Model GU3000XTXB1 – Common Parts & Diagrams

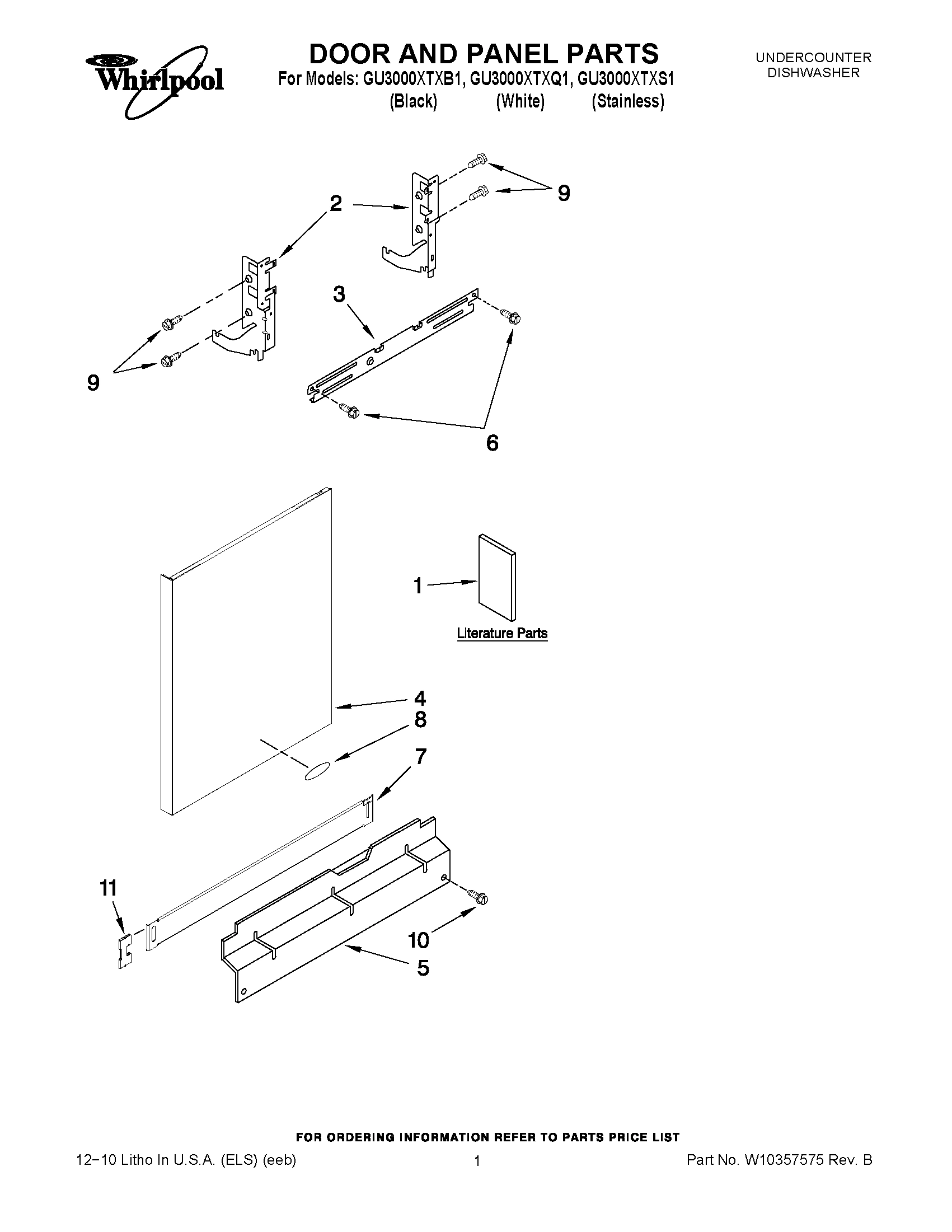

01 - DOOR AND PANEL PARTS

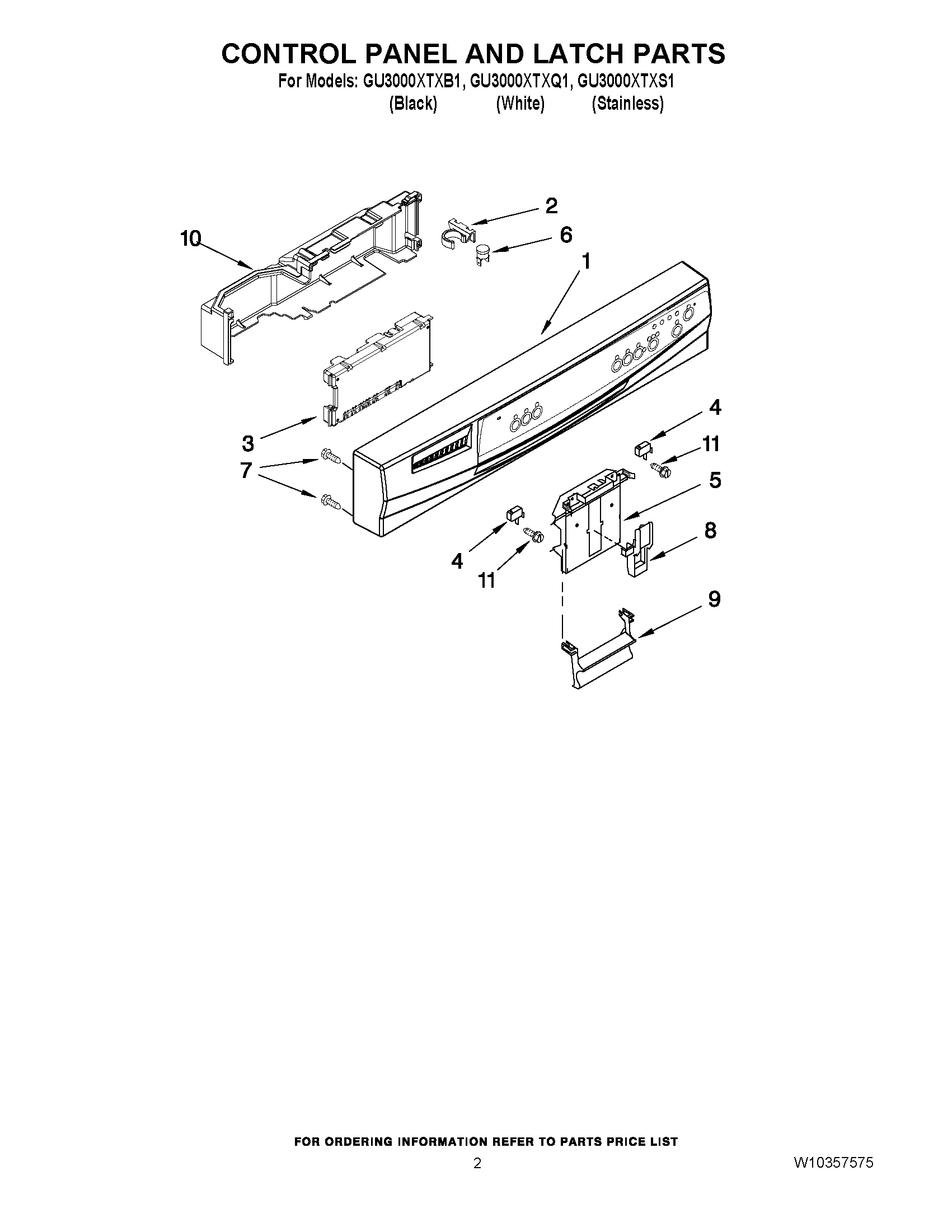

02 - CONTROL PANEL AND LATCH PARTS
03 - INNER DOOR PARTS

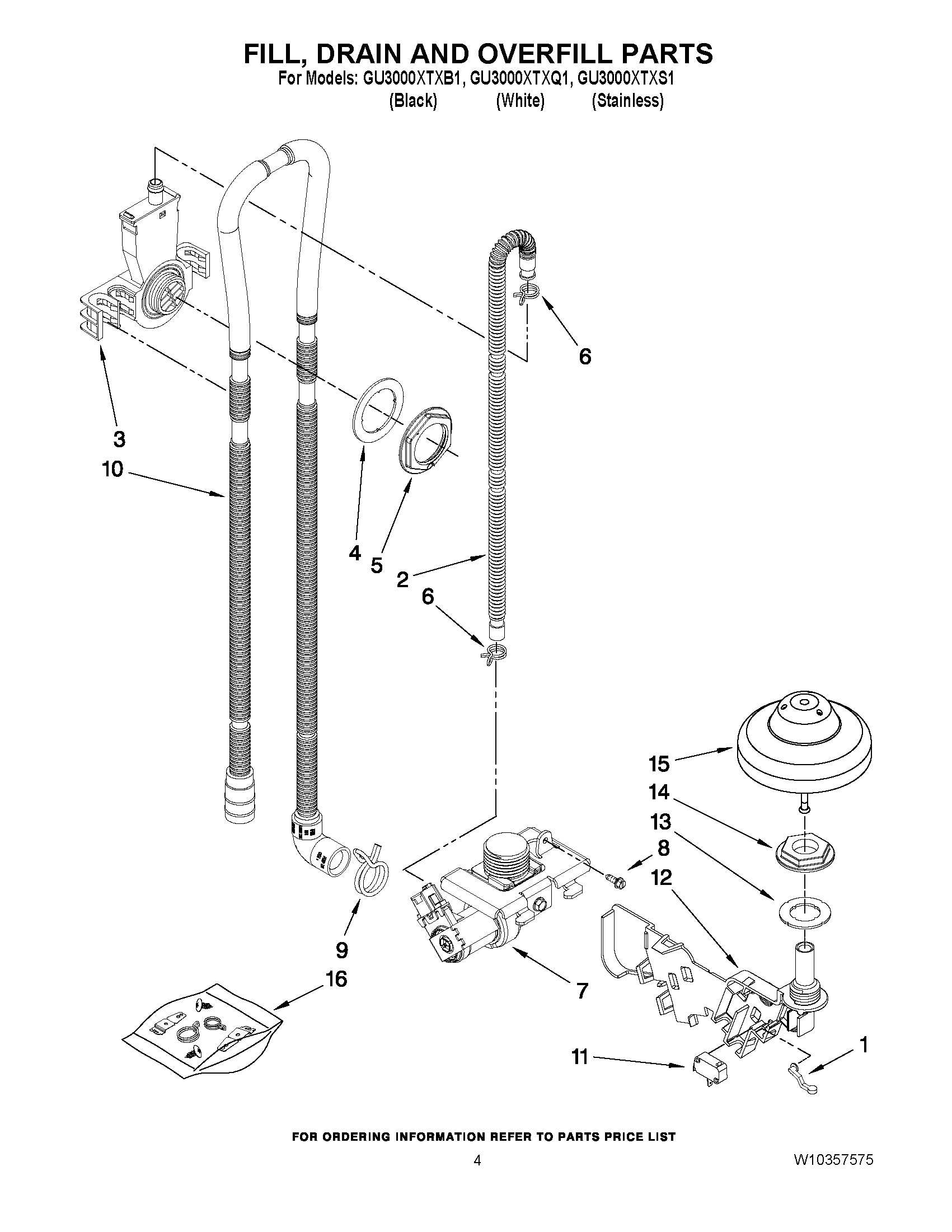

04 - FILL, DRAIN AND OVERFILL PARTS

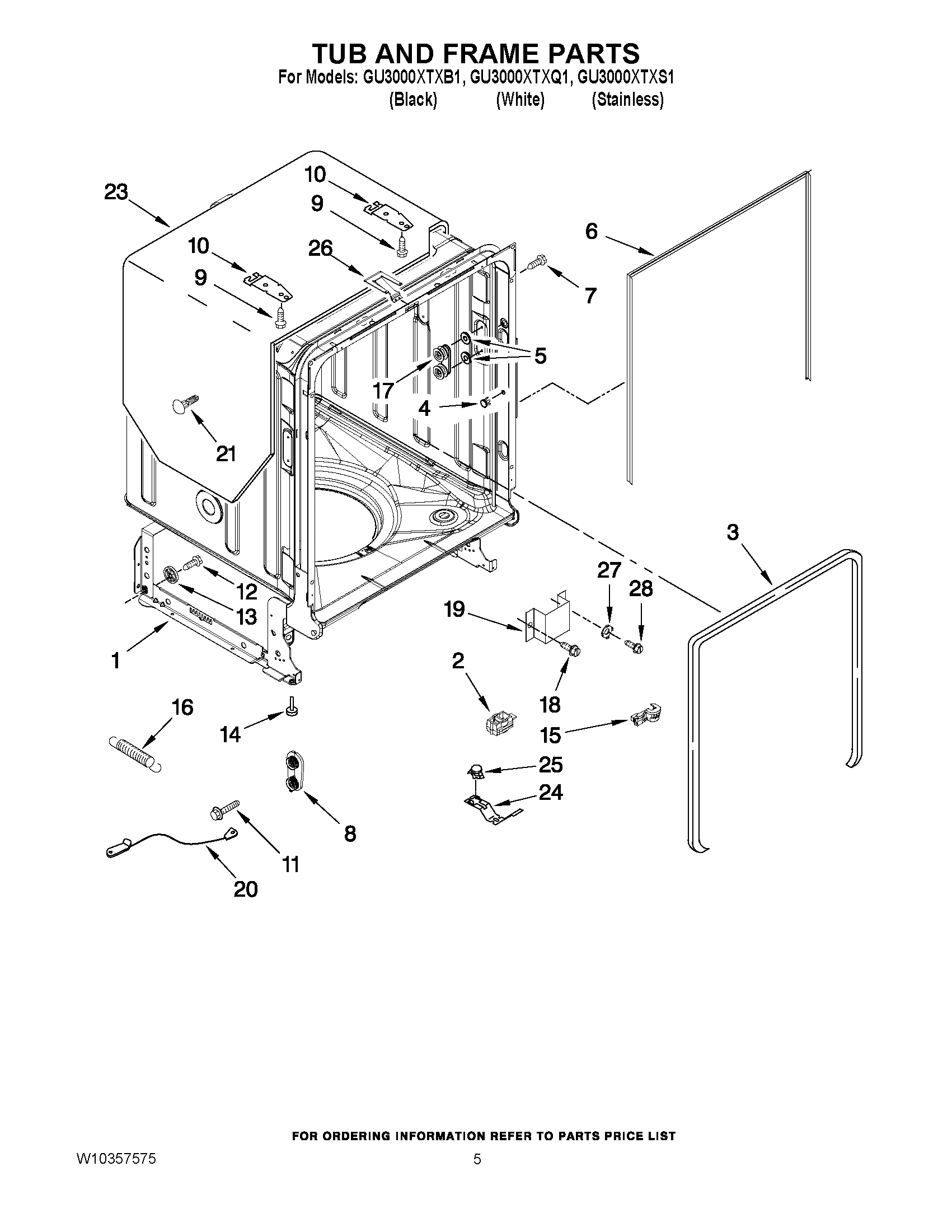

05 - TUB AND FRAME PARTS

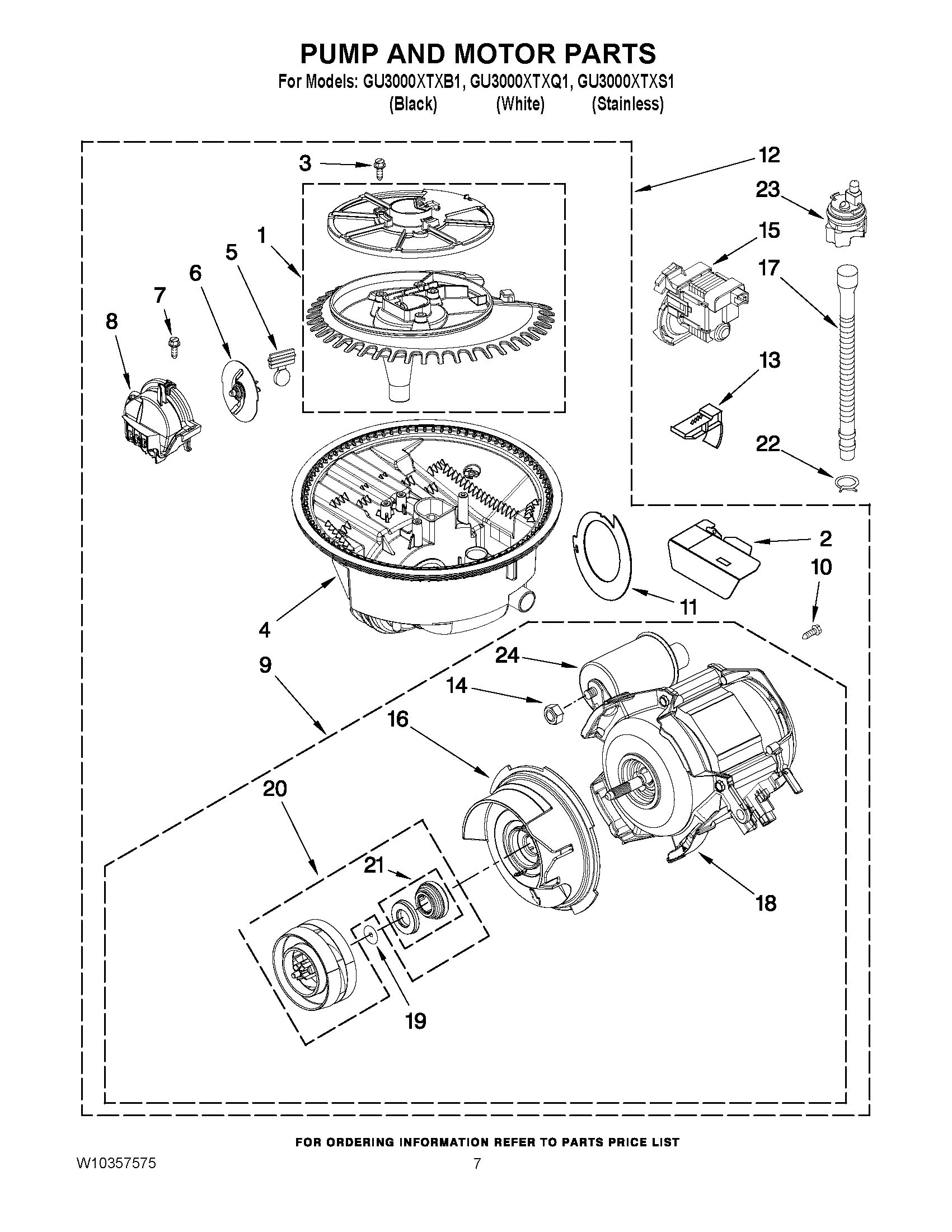

06 - PUMP AND MOTOR PARTS

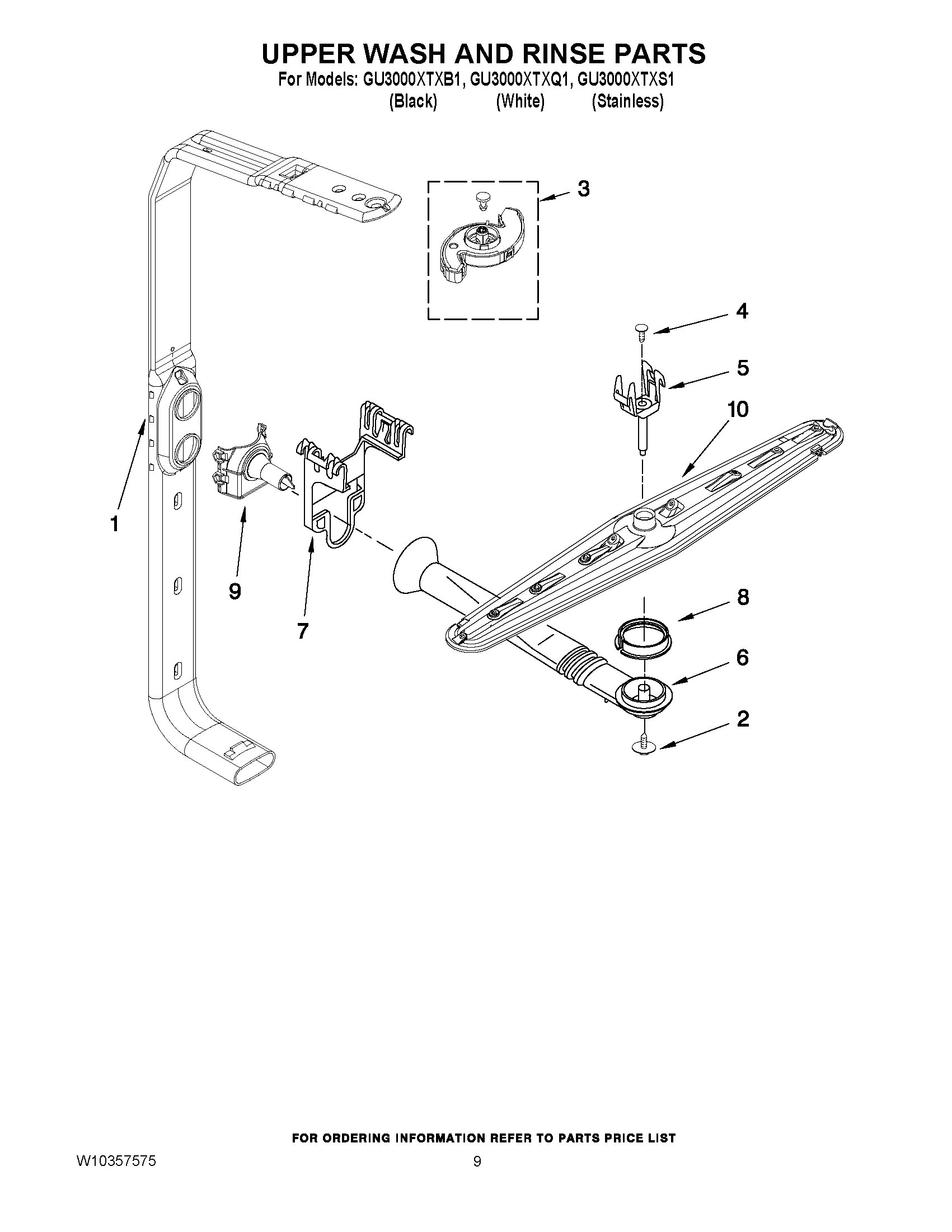

07 - UPPER WASH AND RINSE PARTS

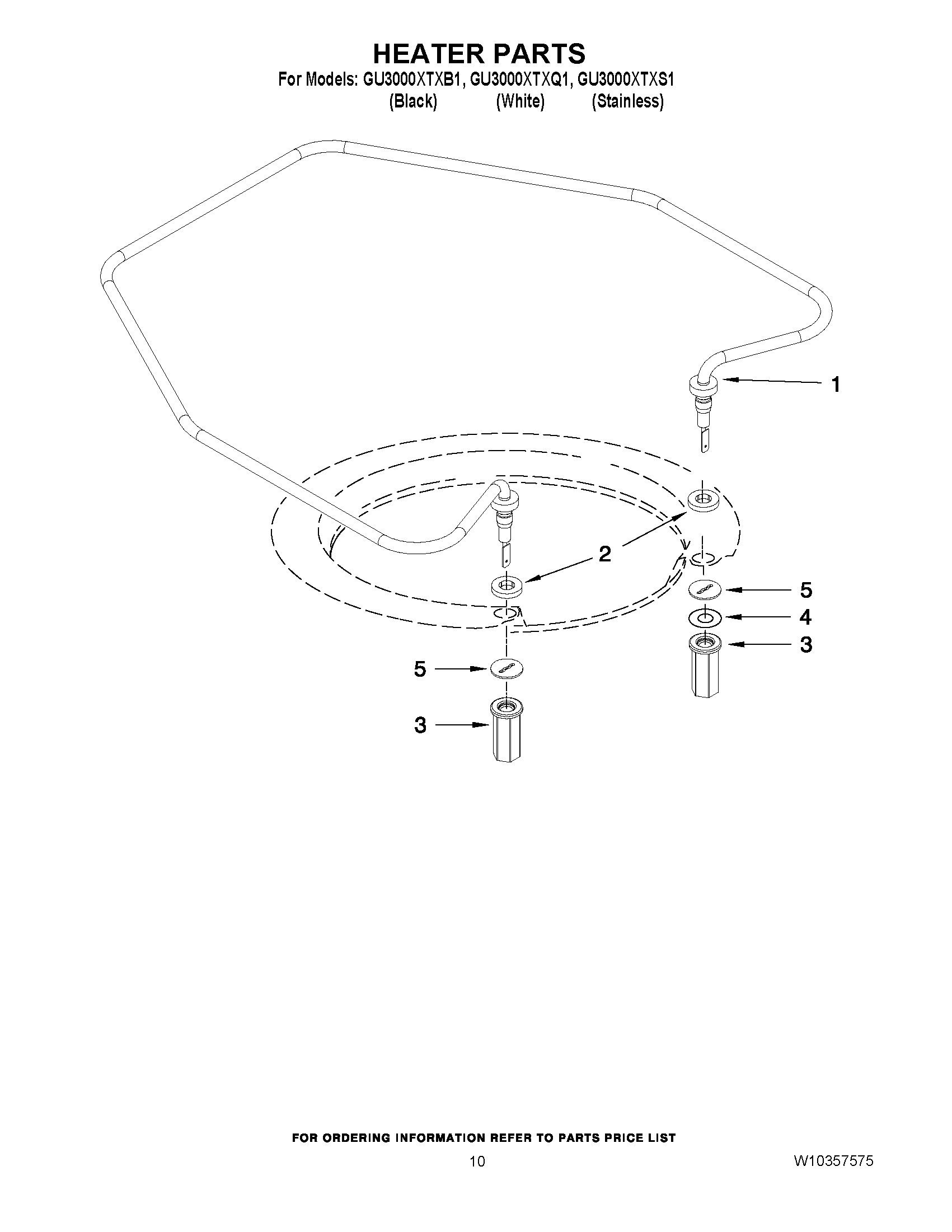

08 - HEATER PARTS

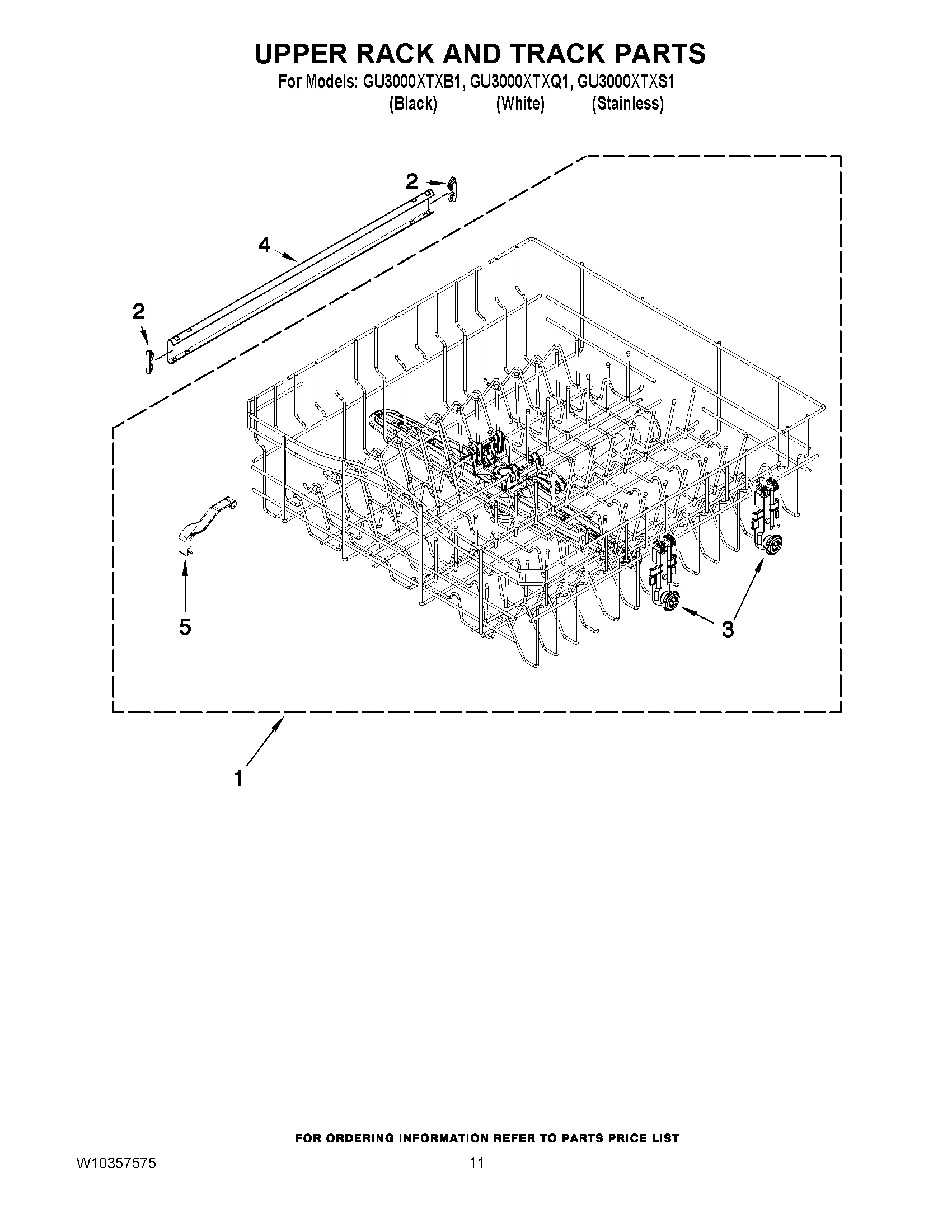

09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK PARTS

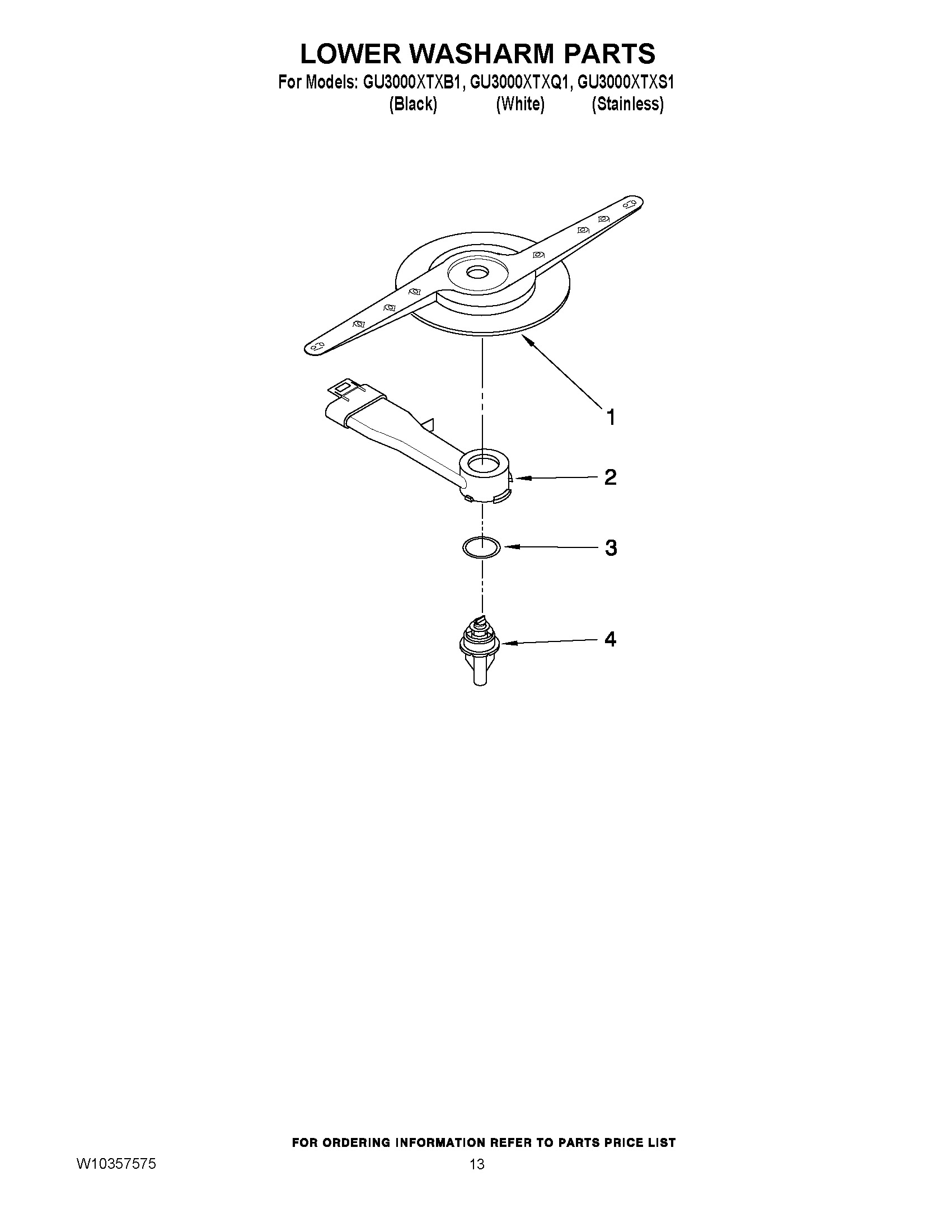

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
