Model Whirlpool GSX9885JQ0 WASHER – Common Parts & Diagrams
07 - WIRING HARNESS

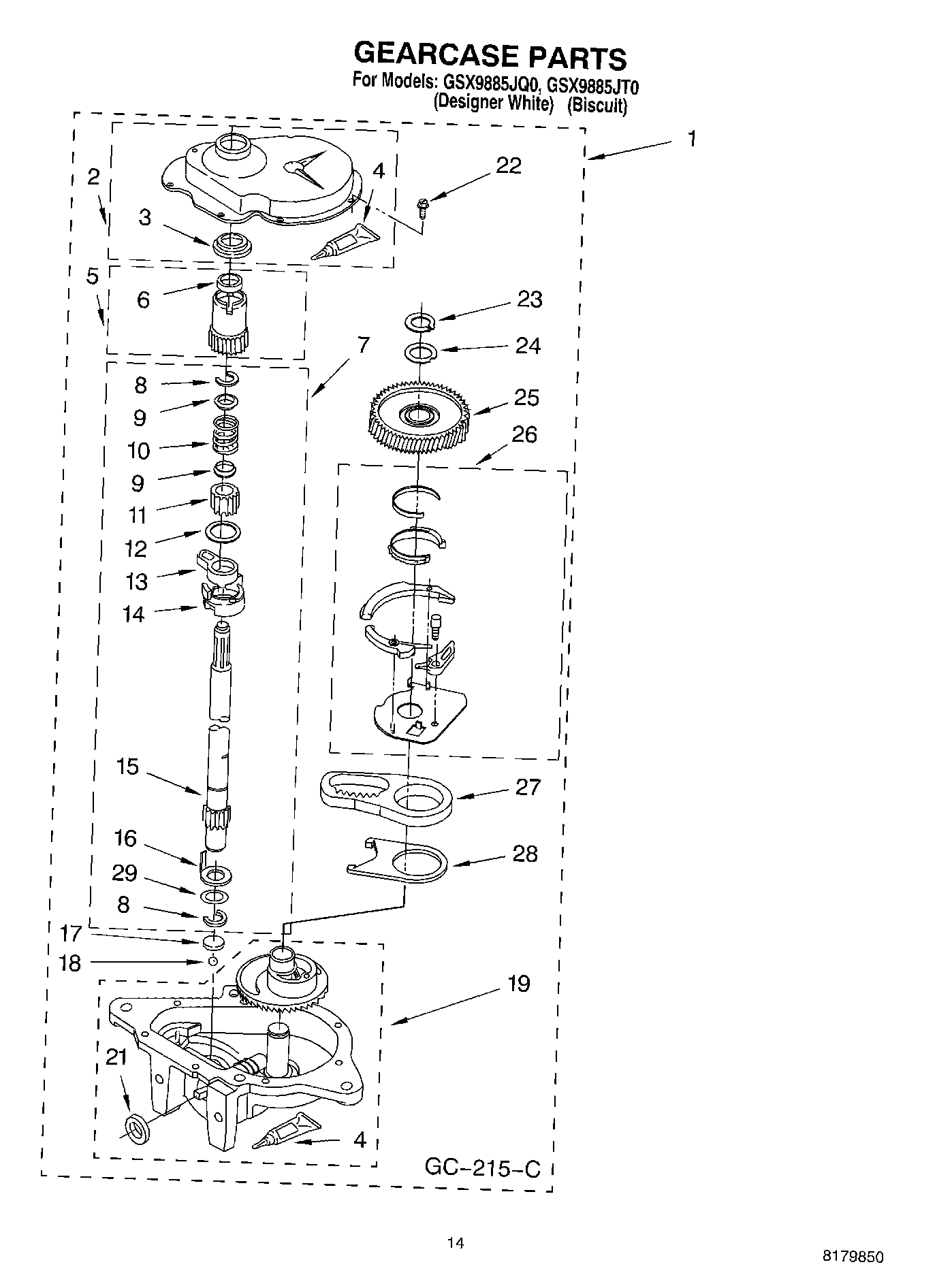

09 - GEARCASE

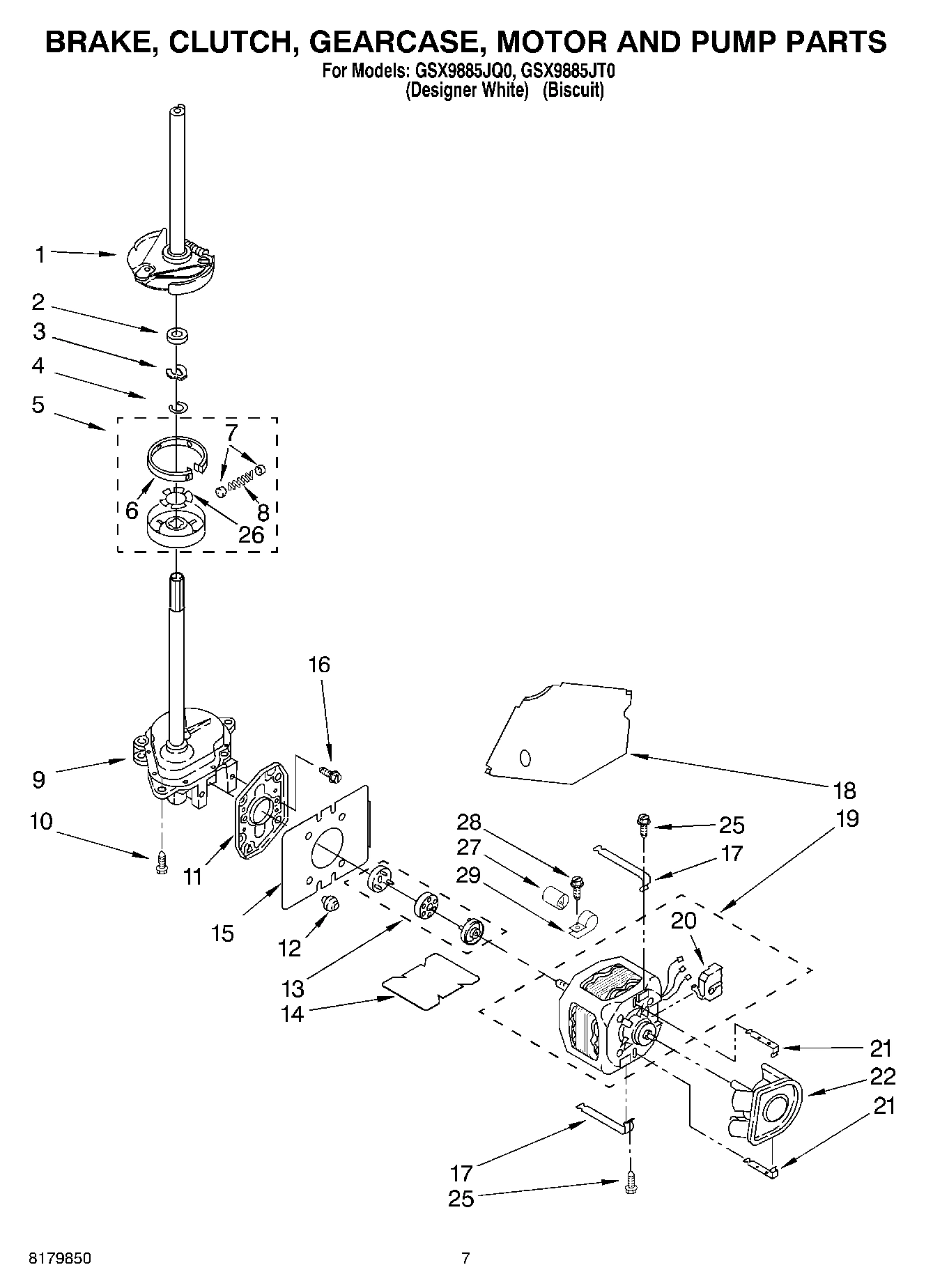

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

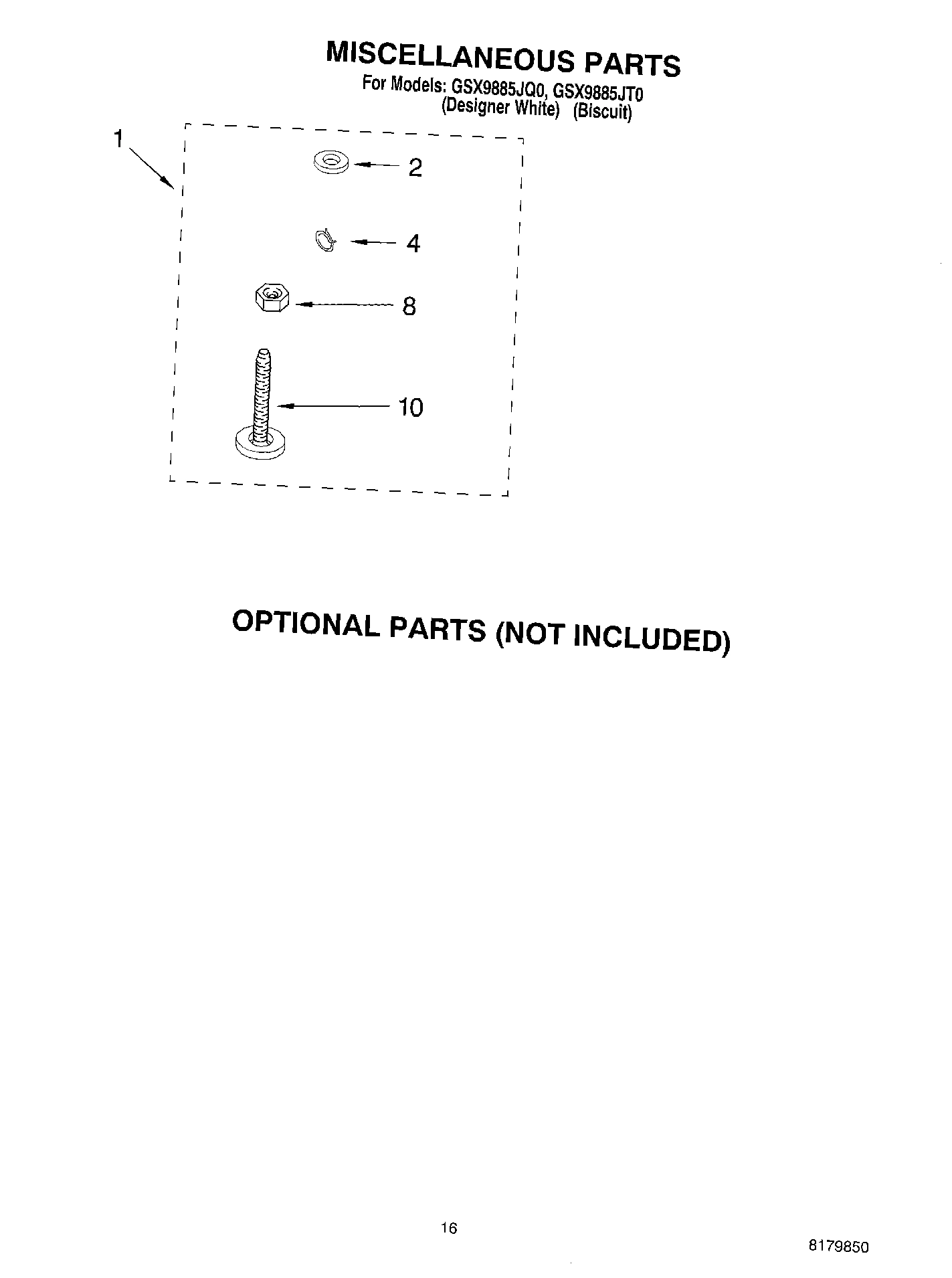

11 - MISCELLANEOUS, OPTIONAL

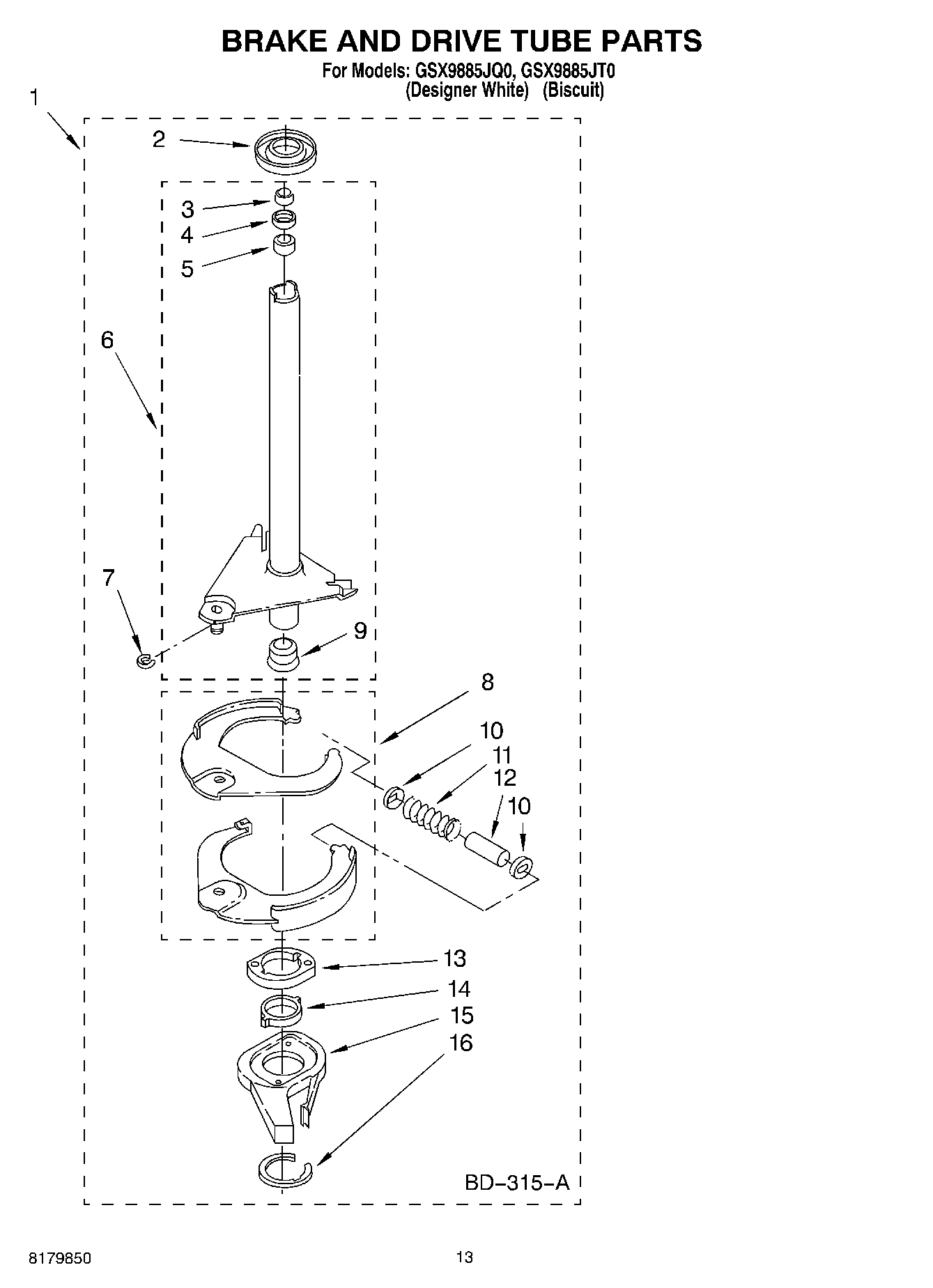

08 - BRAKE AND DRIVE TUBE

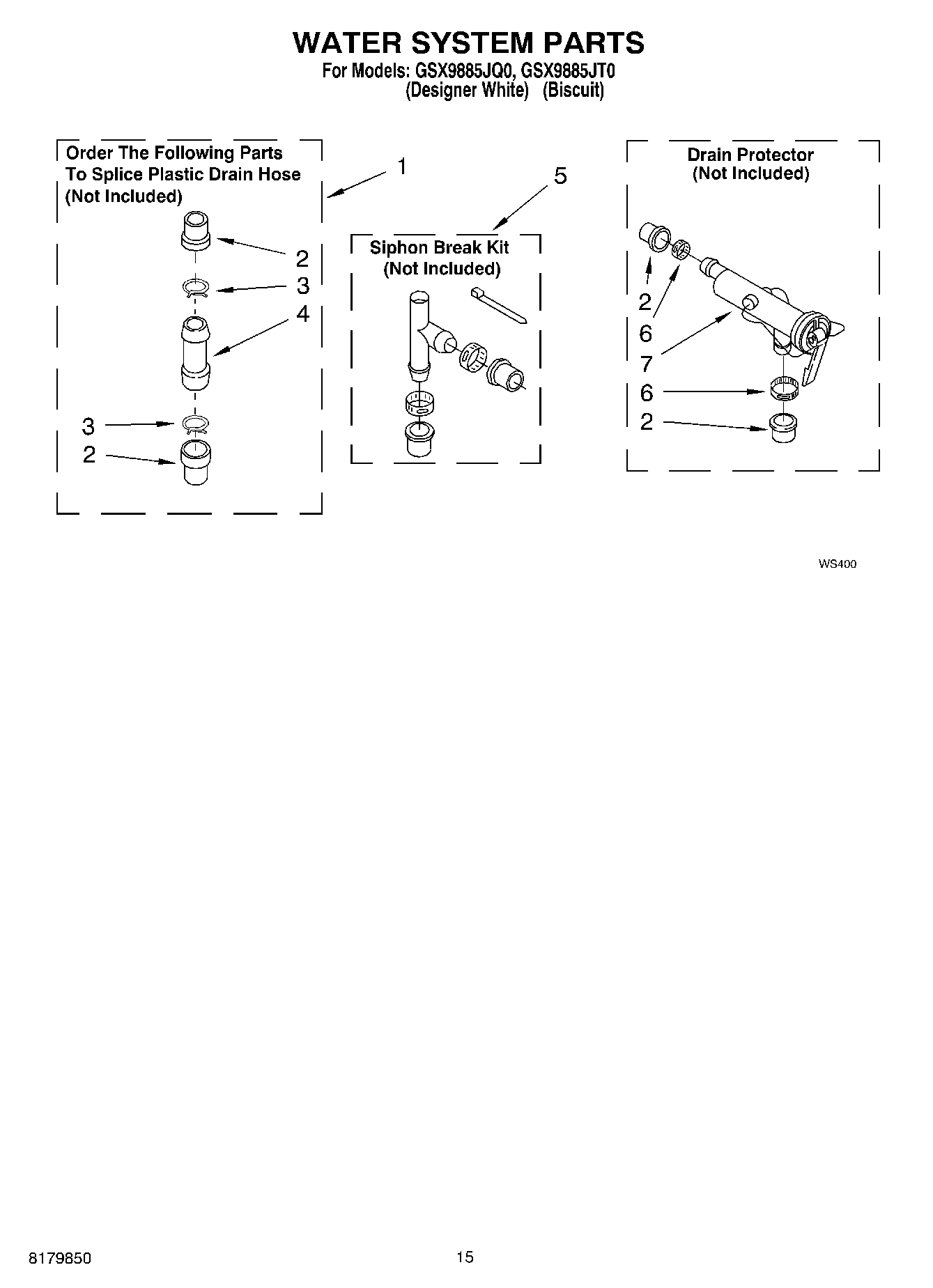

10 - WATER SYSTEM

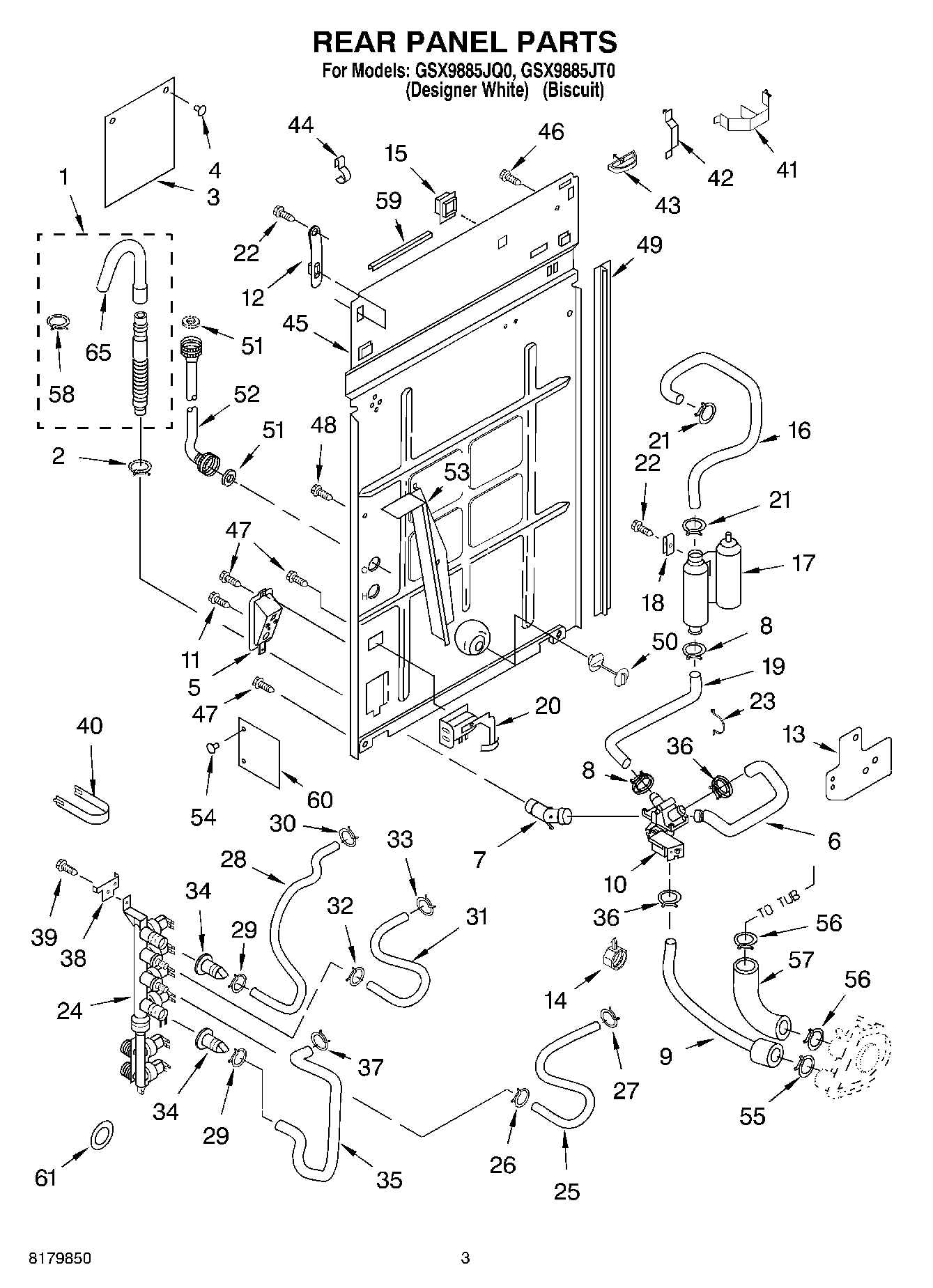

02 - REAR PANEL

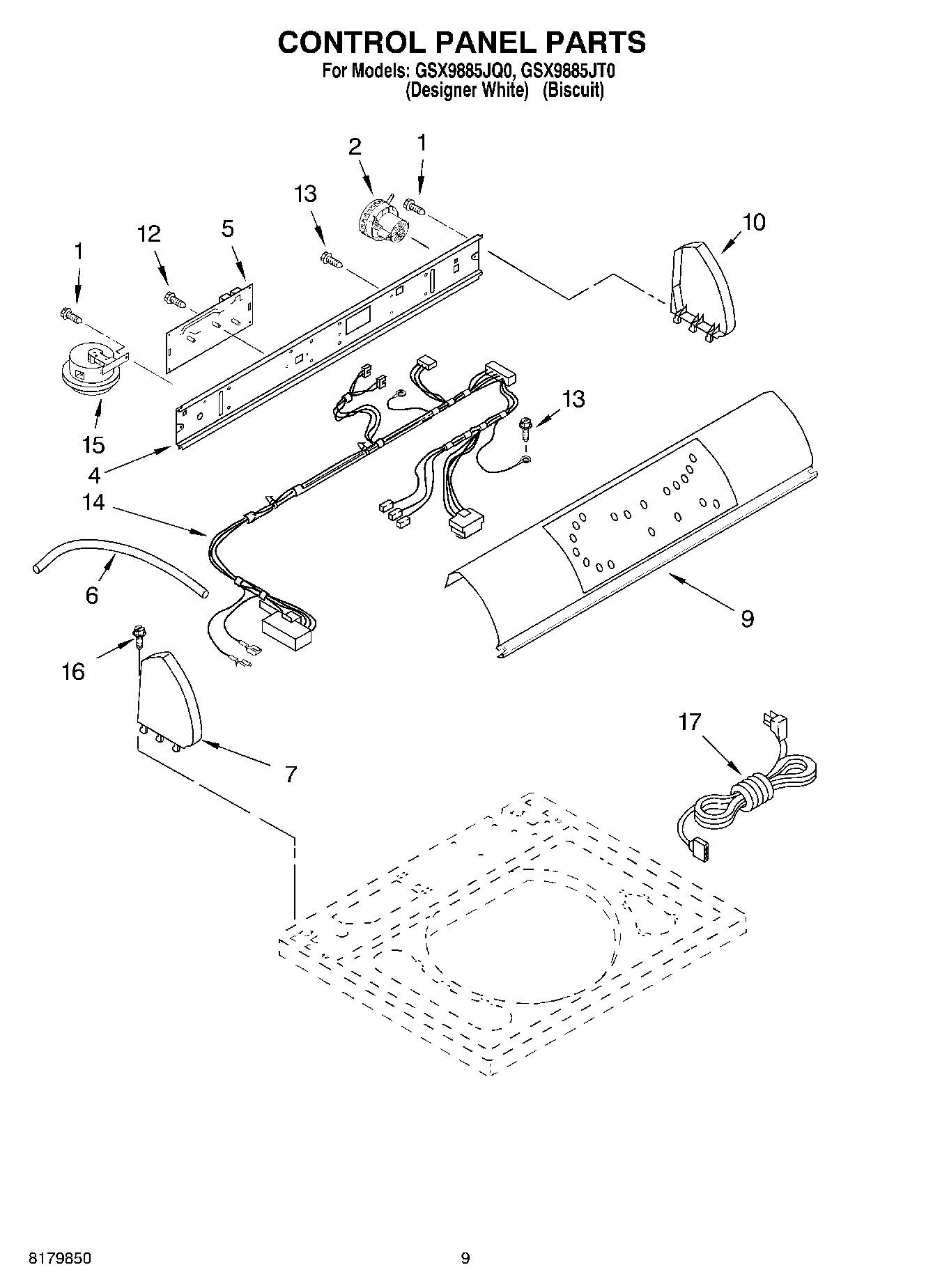

06 - CONTROL PANEL

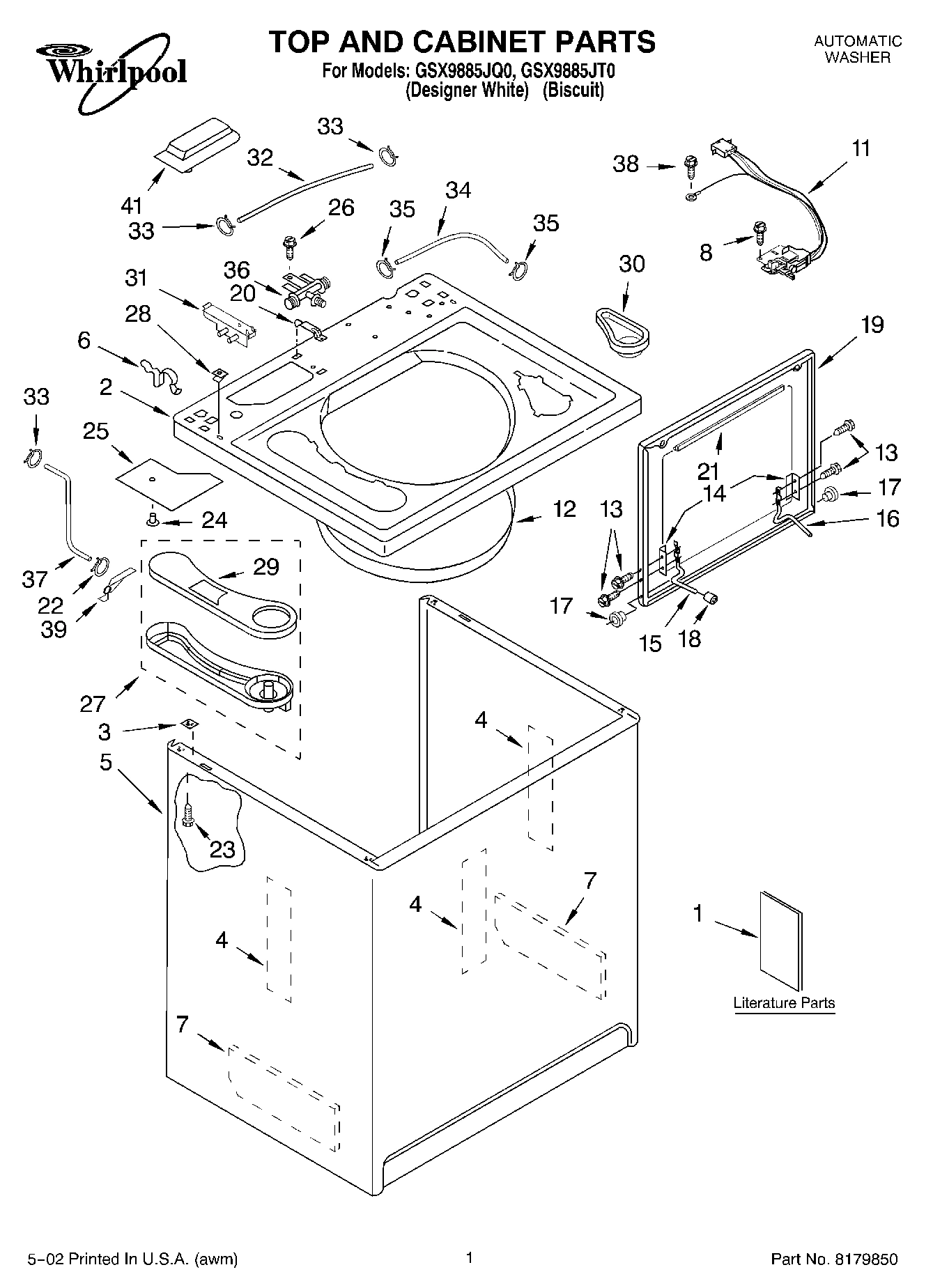

01 - TOP AND CABINET, LITERATURE

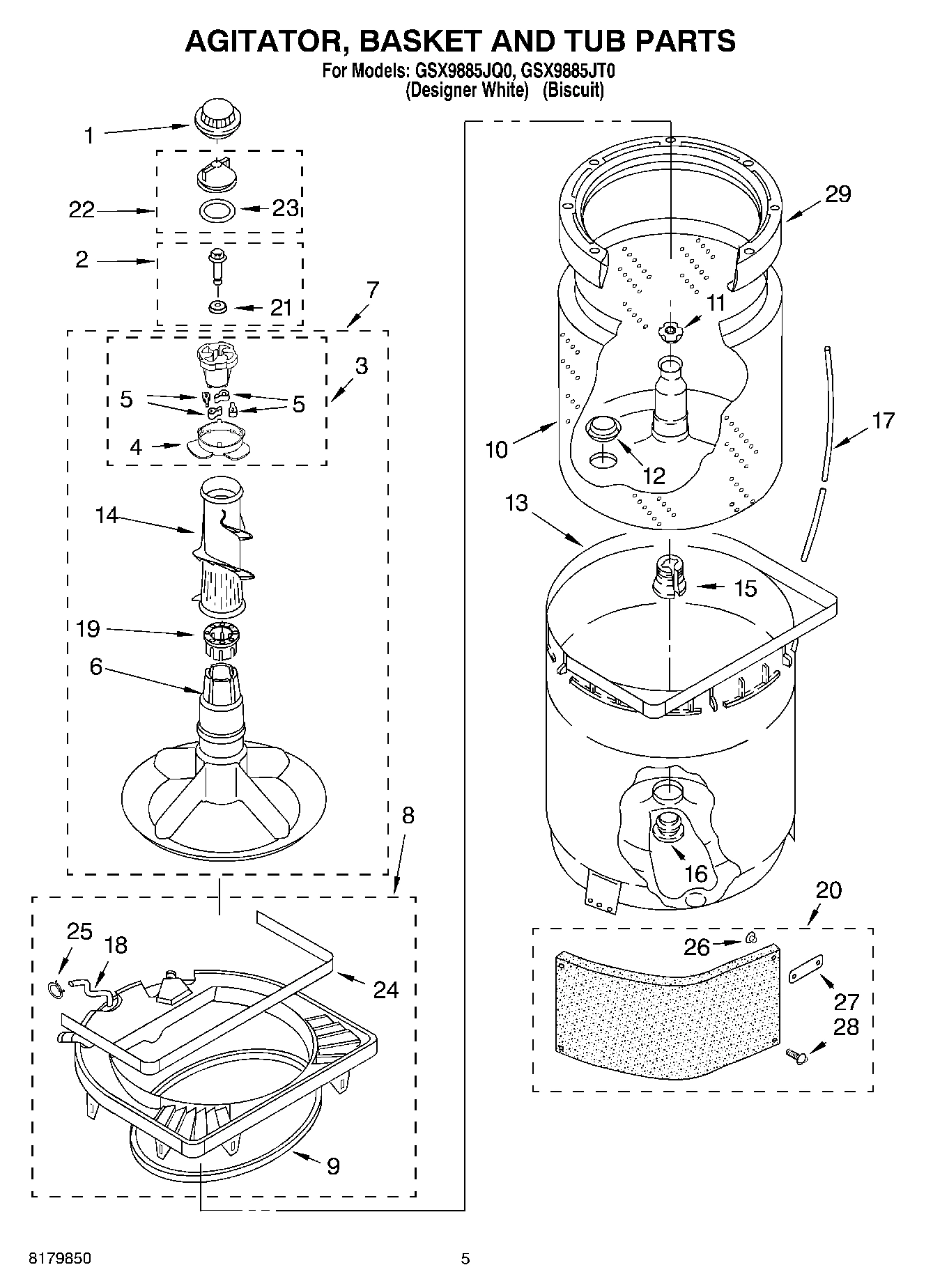

03 - AGITATOR, BASKET AND TUB

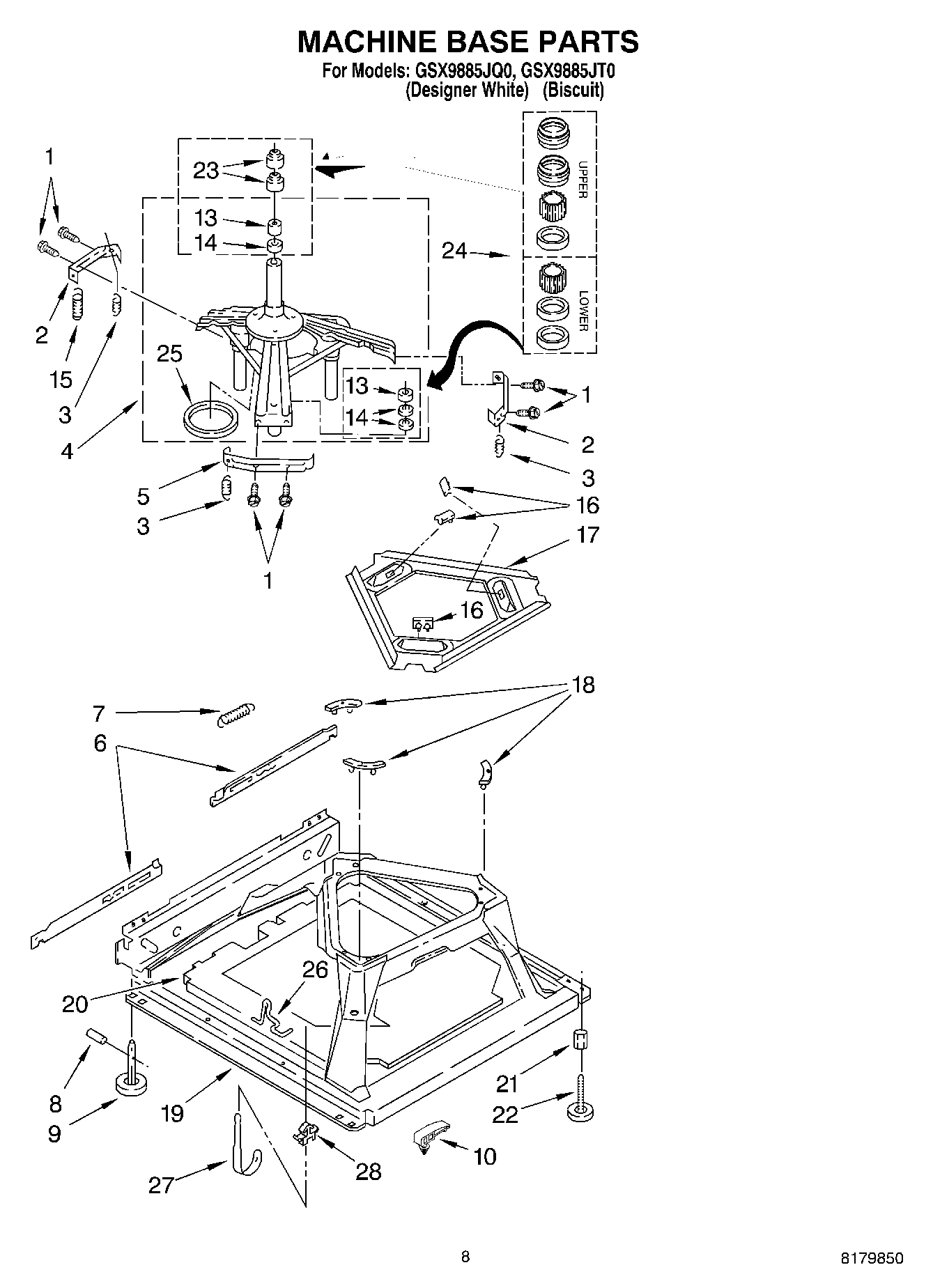

05 - MACHINE BASE
Common parts from model Whirlpool GSX9885JQ0 WASHER
Manual, (Washer) Do-It-Yourself WPL LIT4313896 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
LITERATURE PARTS WPL ARI151525A Contact Us For Availability
1
Installation Instructions (French) WPL LIT3951578 Contact Us For Availability
1
Installation Instructions (English) WPL LIT3952817 Contact Us For Availability
1
Use & Care Guide (English) WPL LIT3953949 Contact Us For Availability
1
Use & Care Guide (French) WPL LIT3954818 Contact Us For Availability
1
Use & Care Guide (Energy Guide) WPL LIT3954861 Contact Us For Availability
1
Installation Instructions (Tech Sheet) WPL LIT3954914 Contact Us For Availability
1
Use & Care Guide (Wiring Diagram) WPL LIT8522270 Contact Us For Availability
2
Switch, Pressure WPL 8054764 Contact Us For Availability
2
Top (White) WPL 8274365 Contact Us For Availability
2
Top (Biscuit) WPL 8274367 Contact Us For Availability
2
Bracket, Spring Outer (2) WPL 8282552 Contact Us For Availability
4
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
4
Clip, Drape WPL 8282566 Contact Us For Availability
4
Bracket, Control WPL 8274302 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
Control, Electronic WPL 8526076 Contact Us For Availability
5
Cabinet (Biscuit) WPL 3954358 Contact Us For Availability
5
Cabinet (White) WPL 8280604 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 8282550 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
7
Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability
7
Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability
7
Cabinet-Sound Absorber WPL 8054736 Contact Us For Availability
8
Screw, Lid Switch WPL 3400611 Contact Us For Availability
8
Tub Ring Assembly WPL 8054685 Contact Us For Availability
9
Seal, Tub Ring WPL 8054355 Contact Us For Availability
9
Panel, Console (White) WPL 8274396 Contact Us For Availability
9
Panel, Console (Biscuit) WPL 8274397 Contact Us For Availability
10
Valve, 2-Way WPL 3358559 Contact Us For Availability
10
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
10
Cap, End (R.H.) (White) WPL 8271359 Contact Us For Availability
10
Cap, End (R.H.) (Biscuit) WPL 8271362 Contact Us For Availability
10
Basket (Also Order No.12) WPL 3951984 Contact Us For Availability
10
Clip, Sound Board (2) WPL 3976276 Contact Us For Availability
13
Tub WPL 8055061 Contact Us For Availability
14
Clamp, Hose WPL 3976395 Contact Us For Availability
14
Harness, Wiring WPL 3955129 Contact Us For Availability
15
Hinge, Lid (Left) WPL 8055257 Contact Us For Availability
15
Transducer, Pressure WPL 8299559 Contact Us For Availability
16
Hinge, Lid (Right) WPL 8055256 Contact Us For Availability
17
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
18
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
18
Hose Assembly, Bleach Outlet WPL 8526794 Contact Us For Availability
18
Clip, Airdome WPL 98084 Contact Us For Availability
19
Hose, 2-Way Valve to Airdome WPL 8054709 Contact Us For Availability
19
Lid (White) WPL 8274362 Contact Us For Availability
19
Lid (Biscuit) WPL 8274364 Contact Us For Availability
19
Base Assembly (Includes Illus. 3, 6, 7, 8, 9, WPL 3946512 Contact Us For Availability
20
Switch, Kickout WPL 8283252 Contact Us For Availability
20
Clip, Wire WPL 357144 Contact Us For Availability
20
Absorber, Sound (Tub) WPL 8055271 Contact Us For Availability
20
Sound, Absorber WPL 8283230 Contact Us For Availability
21
Seal, Lid WPL 8054939 Contact Us For Availability
23
Clip, Hose (2) (Recirculating) WPL 8054659 Contact Us For Availability
24
Valve, Inlet WPL 8271904 Contact Us For Availability
24
Rivet, Shield WPL 8280537 Contact Us For Availability
24
Shield, Splash WPL 8055082 Contact Us For Availability
25
Hose, Detergent WPL 8271982 Contact Us For Availability
25
Shield, Spill WPL 8272149 Contact Us For Availability
26
Clip, Absorber WPL 8055272 Contact Us For Availability
27
Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability
27
Strap, Absorber WPL 8055273 Contact Us For Availability
28
Hose, Bleach WPL 8271984 Contact Us For Availability
28
Retainer, Push-In WPL 3351189 Contact Us For Availability
28
Clip-Snap In (Drain Hose) WPL 3350282 Contact Us For Availability
29
Cover, Dispenser WPL 8272009 Contact Us For Availability
29
Balance Ring WPL 8271897 Contact Us For Availability
30
Dispenser, Detergent WPL 8055238 Contact Us For Availability
31
Hose, Fabric Softener WPL 8271983 Contact Us For Availability
31
Connector, 2-Port WPL 8055243 Contact Us For Availability
32
Hose, Fabric Softener WPL 8055266 Contact Us For Availability
34
Check Valve, Duck Bill WPL 8055306 Contact Us For Availability
34
Hose, Detergent WPL 8055267 Contact Us For Availability
35
Hose, Fresh Fill WPL 8318496 Contact Us For Availability
36
Connector, Venturi WPL 8272010 Contact Us For Availability
38
Bracket, Valve WPL 8271909 Contact Us For Availability
39
Restraint WPL 8271943 Contact Us For Availability
40
Restraint, Hose WPL 8272128 Contact Us For Availability
41
Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability
41
Cover, Hose Disconnect WPL 8055247 Contact Us For Availability
42
Clip, Harness WPL 8054658 Contact Us For Availability
43
Clip, Push-In WPL 3352944 Contact Us For Availability
45
Panel, Rear WPL 8282493 Contact Us For Availability
53
Shield, Upper Valve (Incl. No.54 & No.60) WPL 8280536 Contact Us For Availability
57
WPL 8055063 WPL 8055063 Contact Us For Availability
59
WPL 303294 WPL 303294 Contact Us For Availability
60
WPL 8272150 WPL 8272150 Contact Us For Availability
61
WPL 8318500 WPL 8318500 Contact Us For Availability
× ![]()
