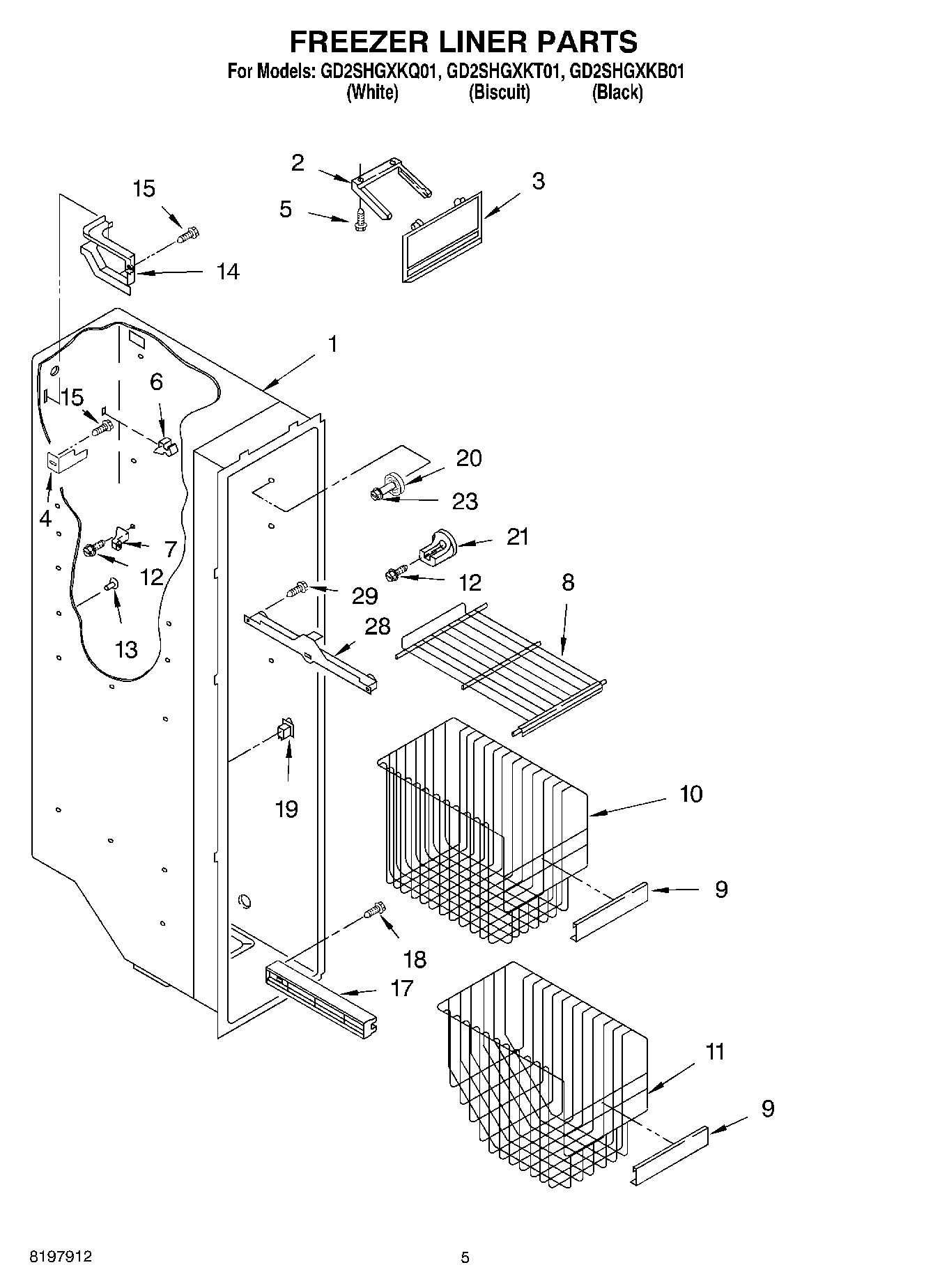

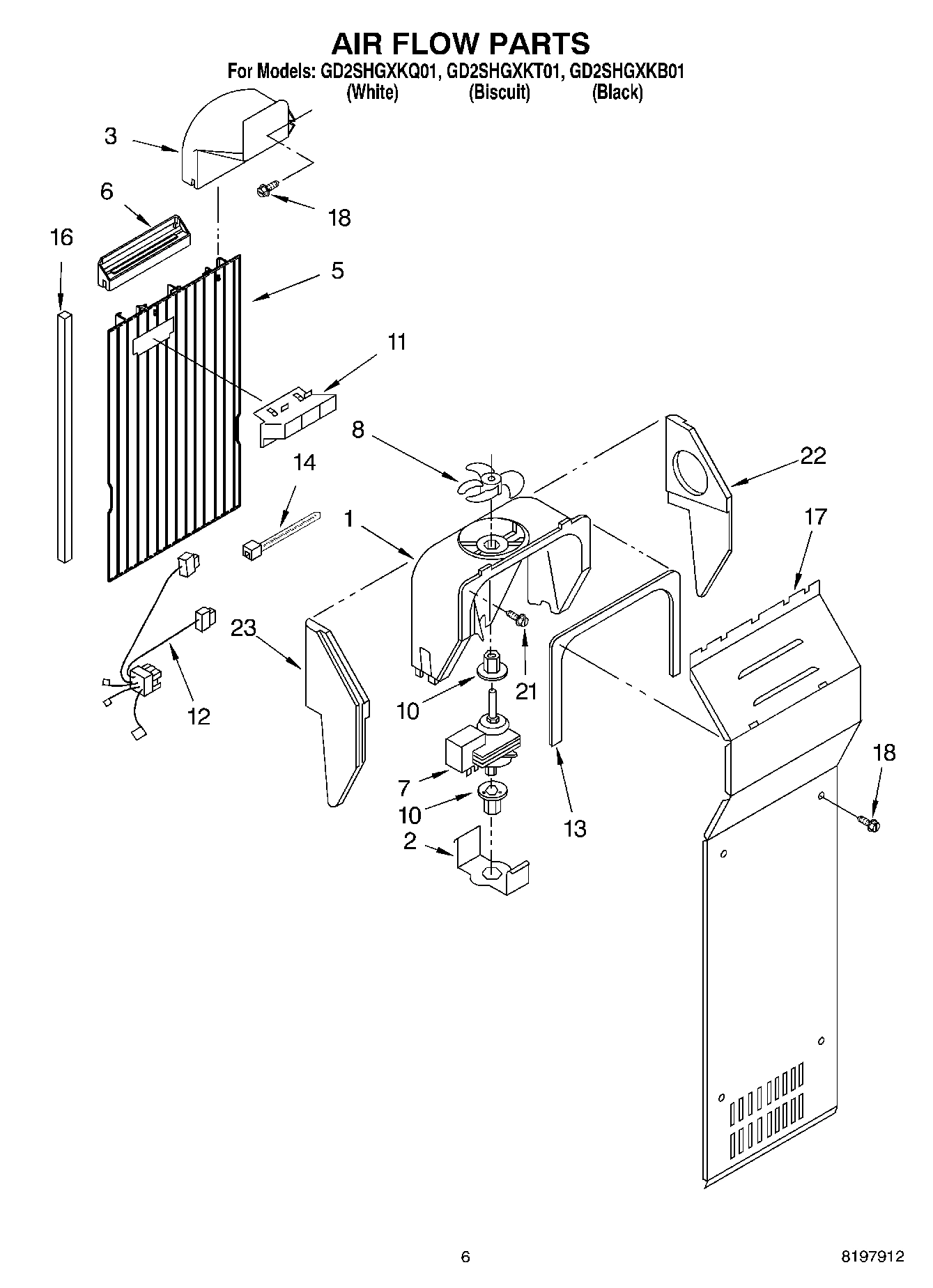

Model Whirlpool GD2SHGXKQ01 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

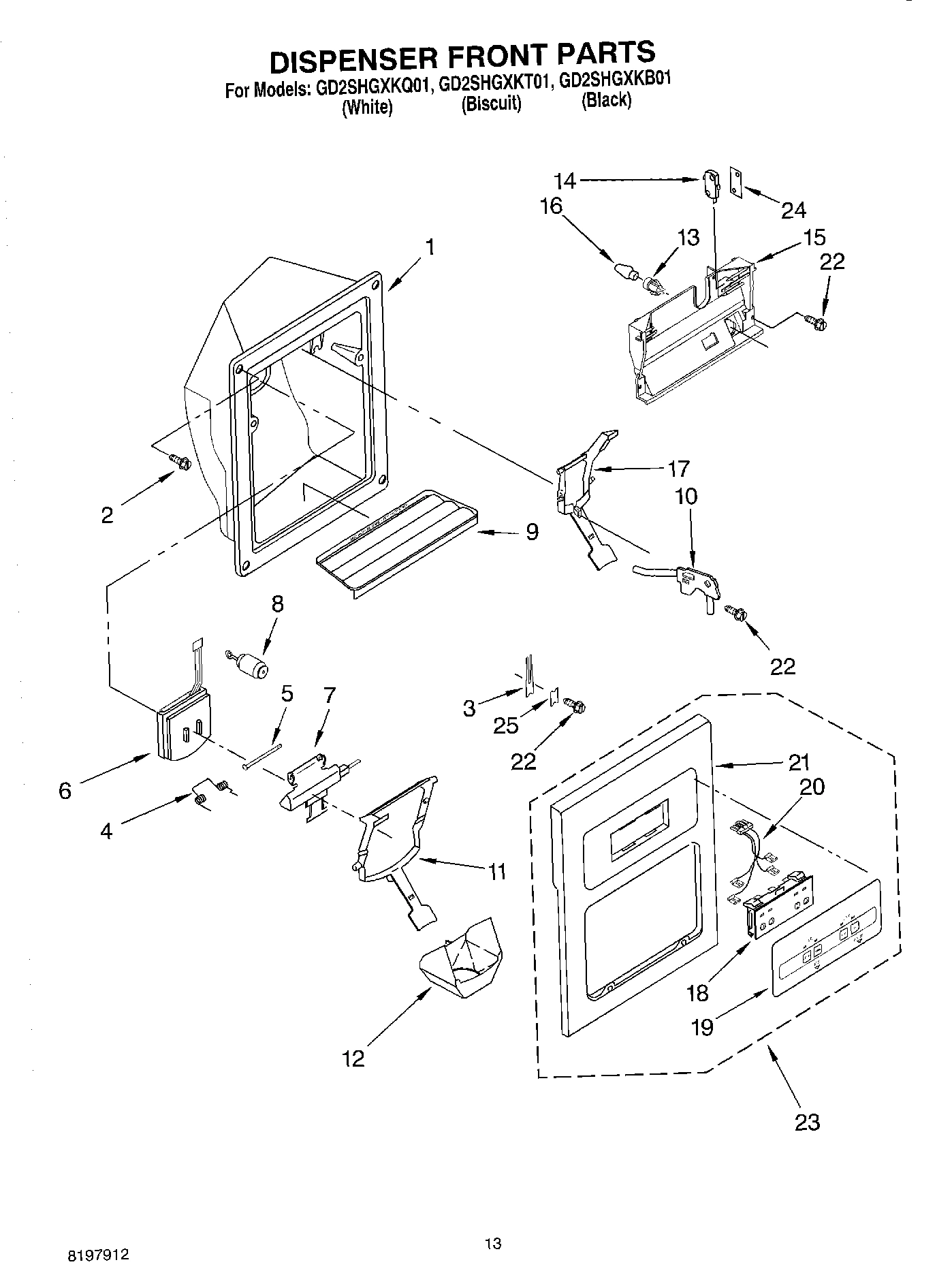

Housing, Dispenser (Not a Serviceable Part) WPL ARI62626A8 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

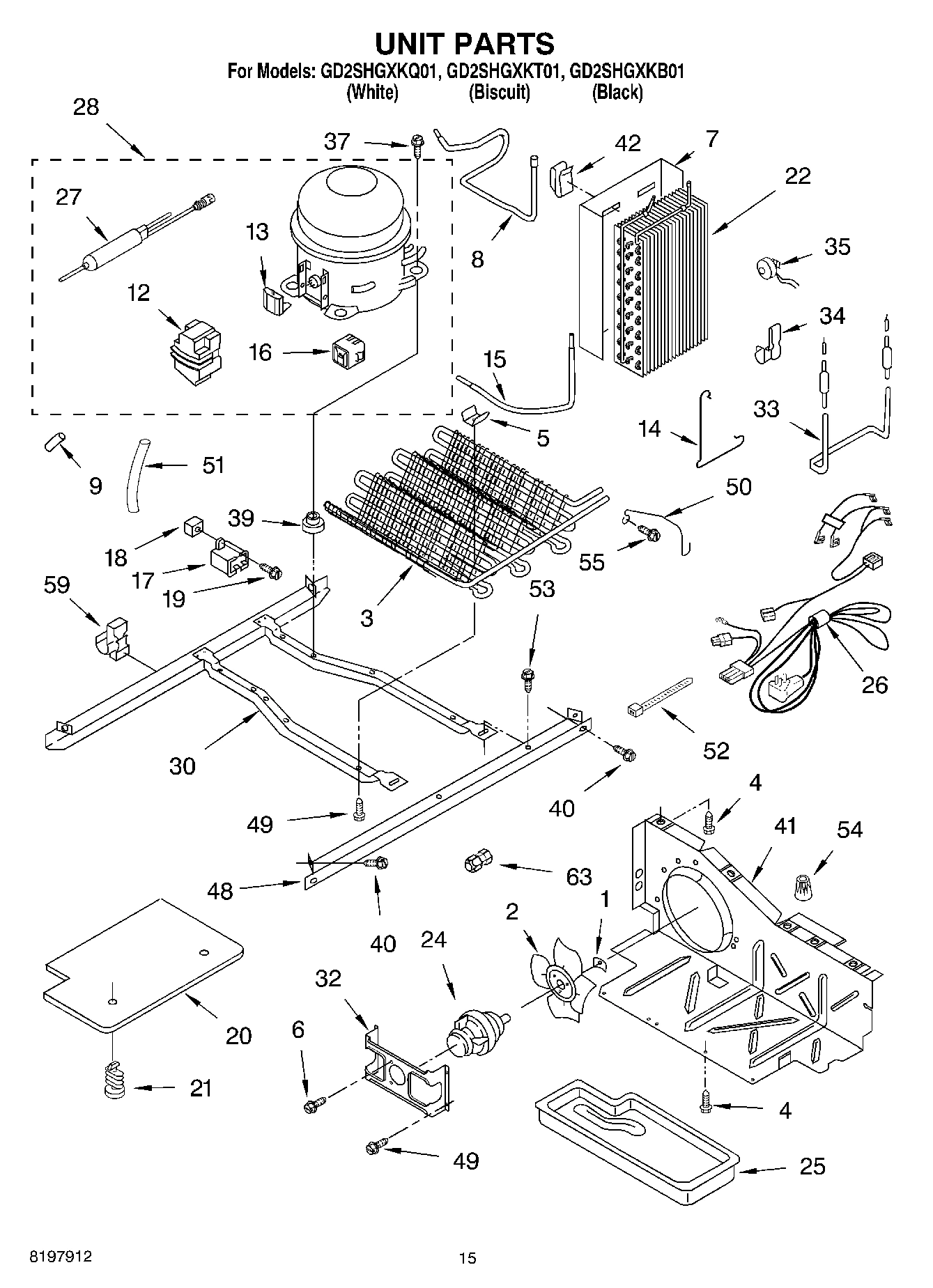

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

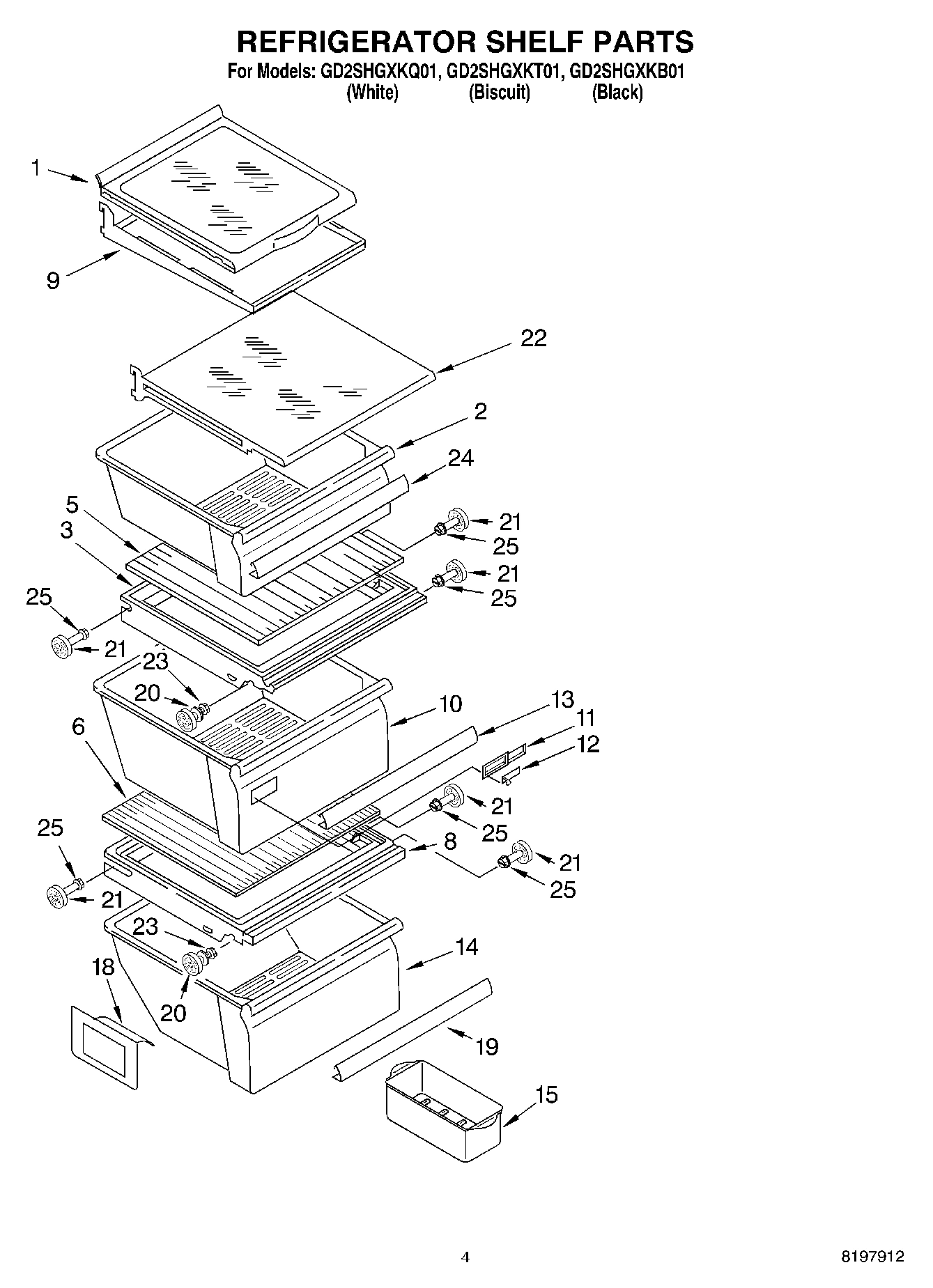

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

7

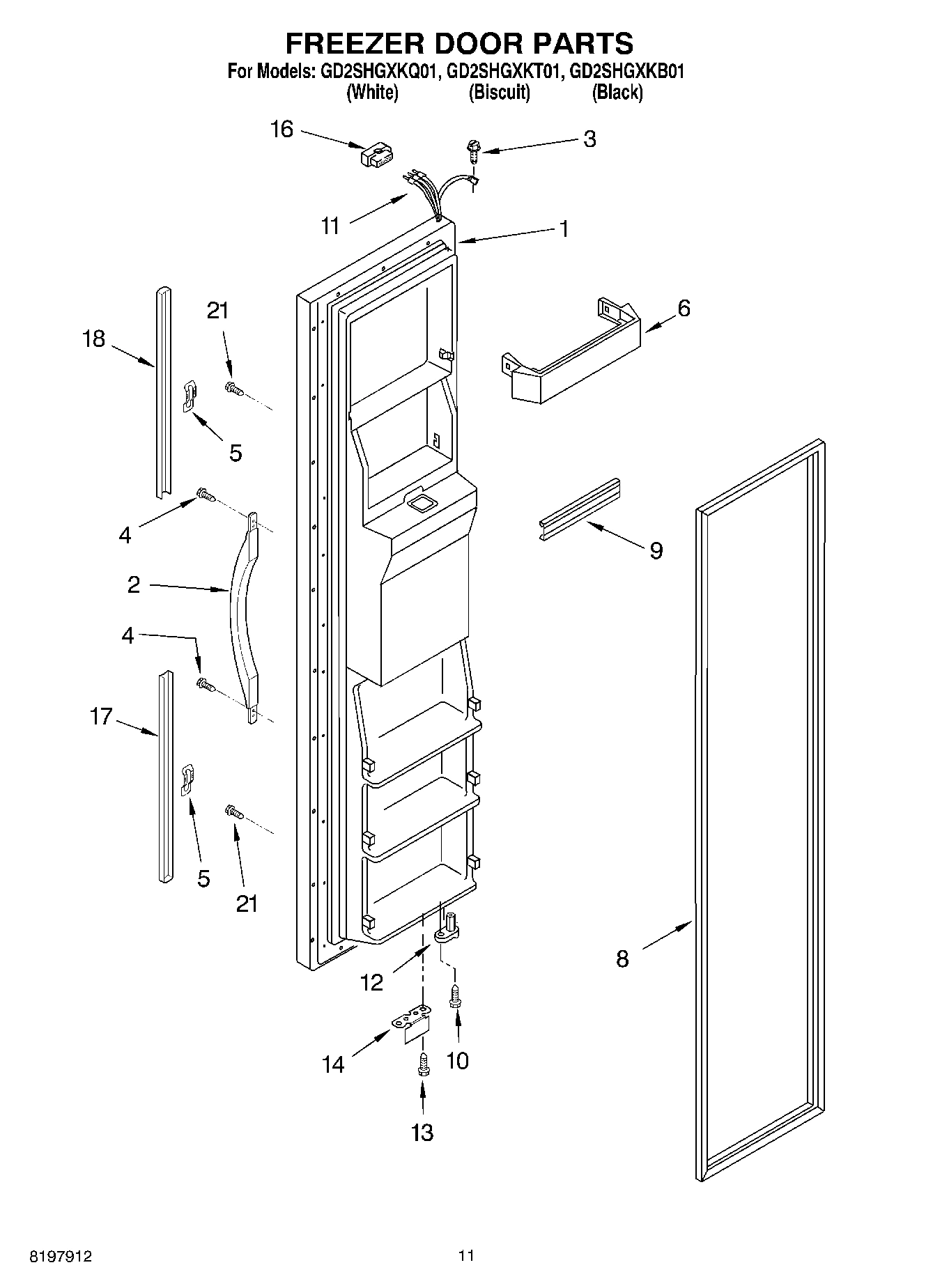

Trim, Door-Bottom (White) WPL 2194969W Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

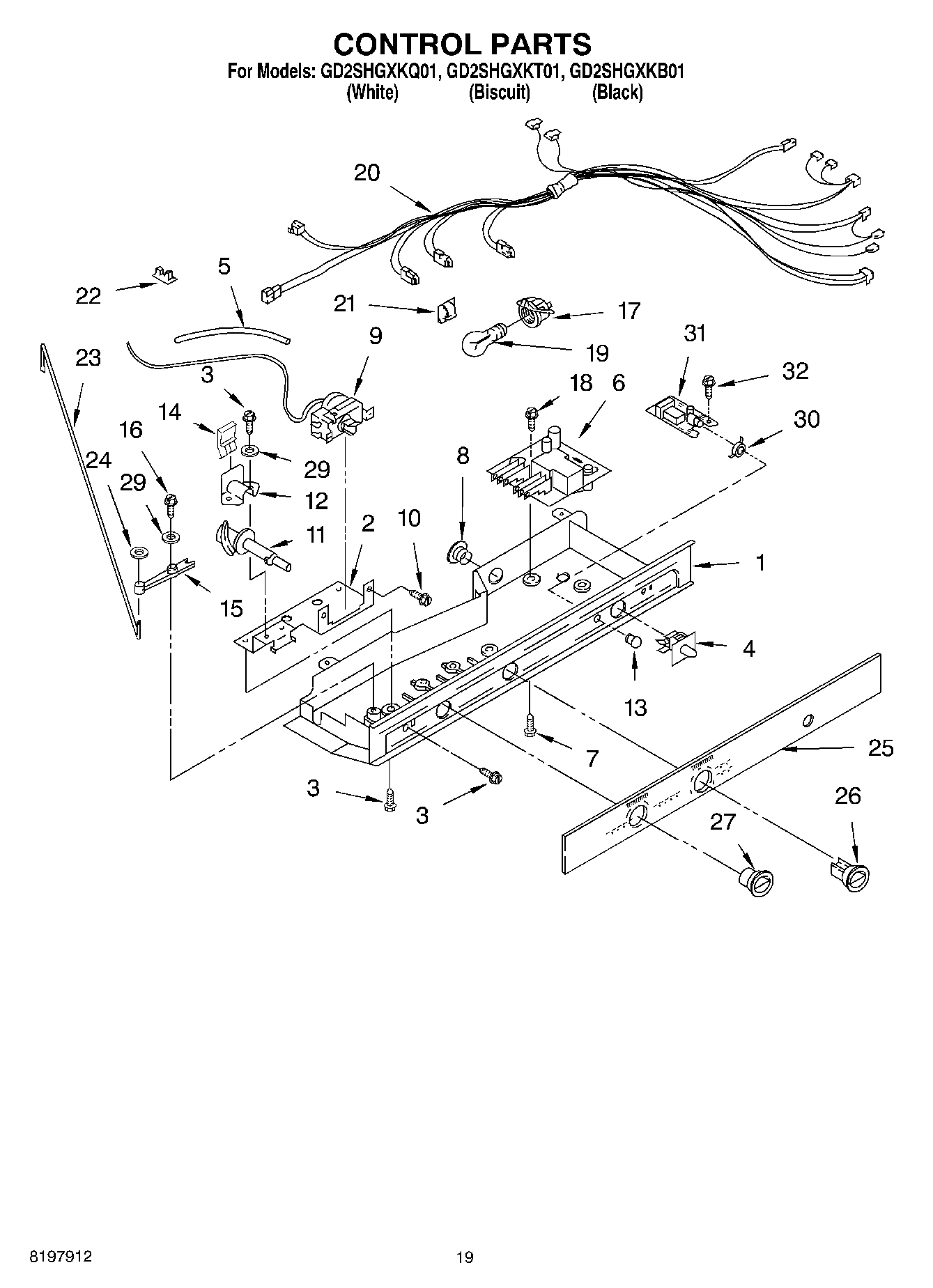

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

Handle (Black) WPL 2186649B Contact Us For Availability

9

Handle (White) WPL 2186649W Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $90.78

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Grommet (4) WPL 2176134 Contact Us For Availability

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Trim, Door-Top (White) WPL 2194971W Contact Us For Availability

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

14

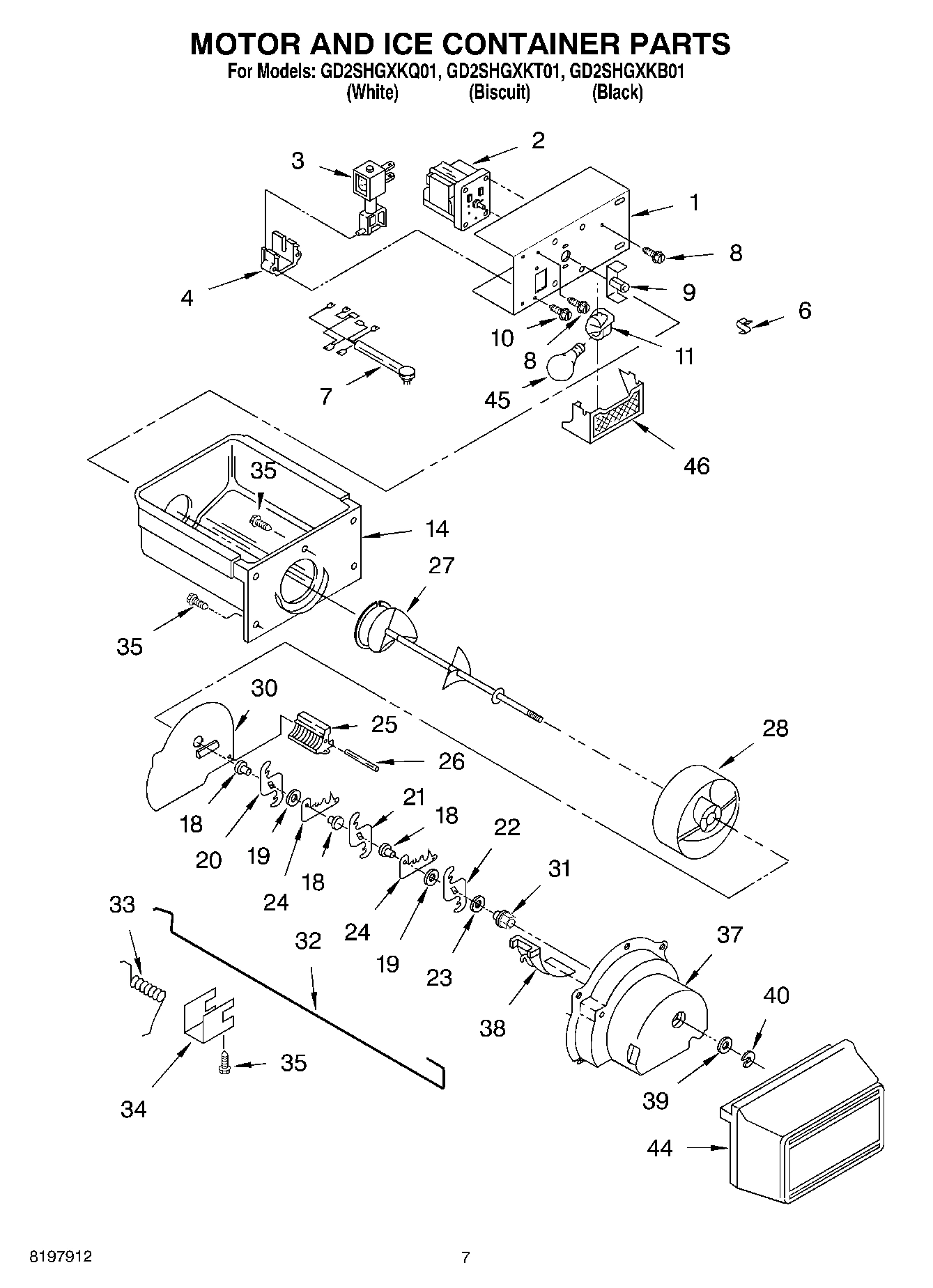

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $134.99

14

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Start-Device, Combination (Start Relay and Ov WPL 2212193 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Switch Assembly (Not Available, Order No.23) WPL ARI62627A5 Contact Us For Availability

Grommet WPL 509812 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Overlay, Front Cover (Not Available, Order No WPL ARI62628A1 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Wire Assembly WPL 2187408 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Stud, Rear WPL 2196207 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI62629A9 Contact Us For Availability

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

22

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Front Cover Assembly (Includes Items 18, 19, WPL 2207293B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207293T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207293W Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

NLA:SCREW Backorder WPL WPW10141645 $4.82

Harness, Wire WPL 2187398 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

27

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

27

Knob, Air Control WPL 2197871 Contact Us For Availability

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.72

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

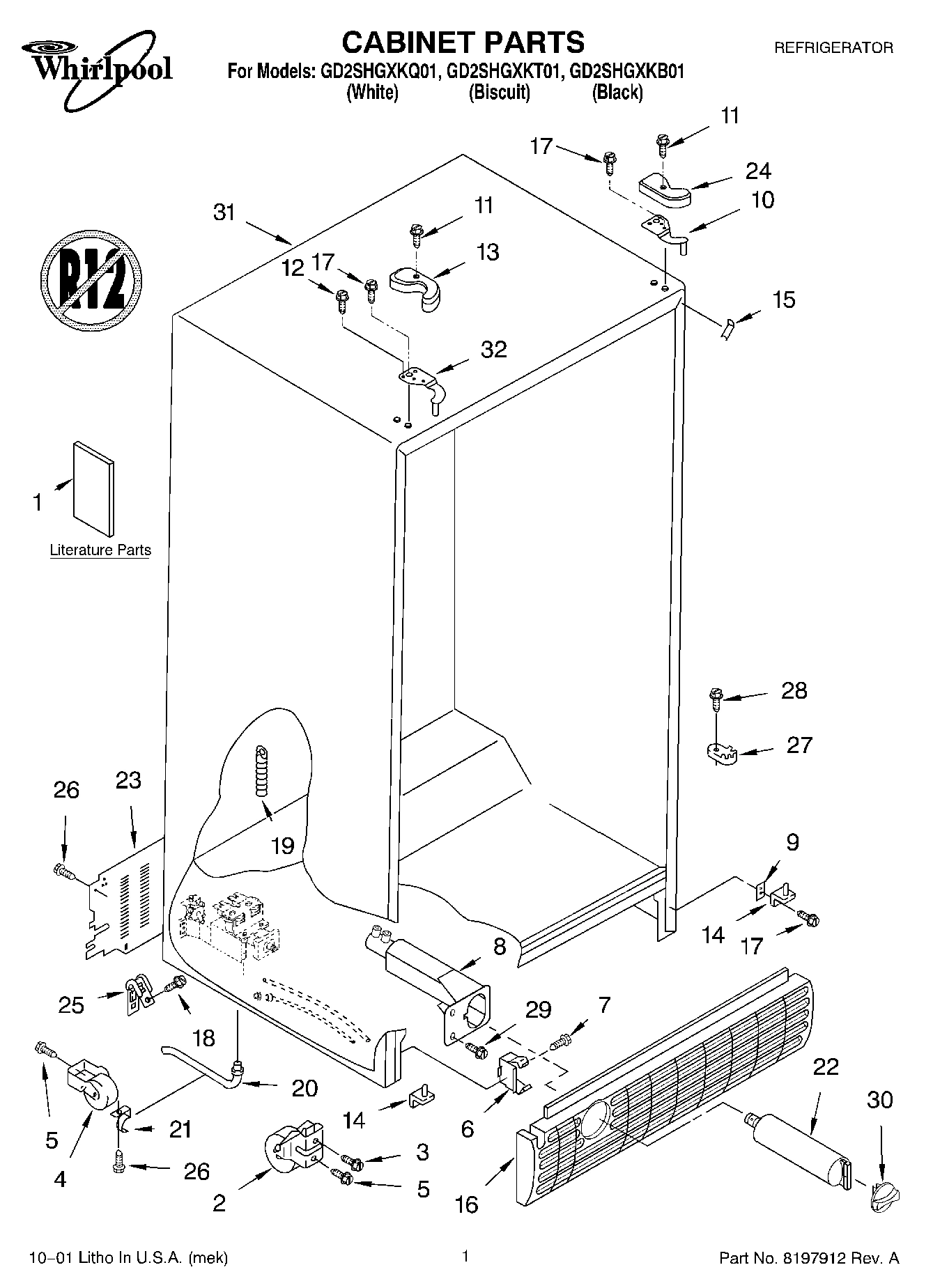

Cabinet (Not A Serviceable Part) WPL ARI62623A7 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $81.01

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

Clip, Heat WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

48

Rail, Unit Mounting WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

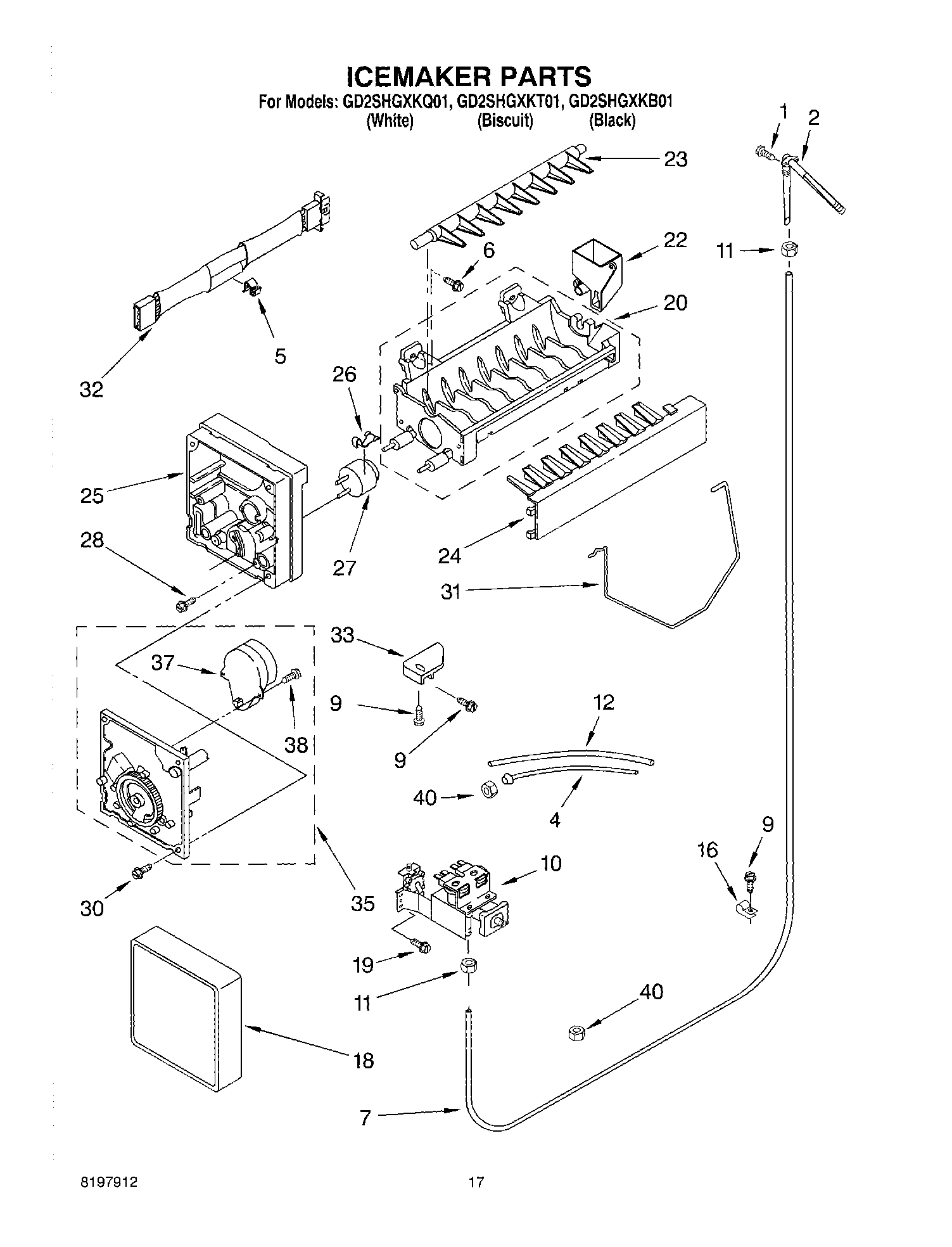

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
