Model Whirlpool GD25DFXFB00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR

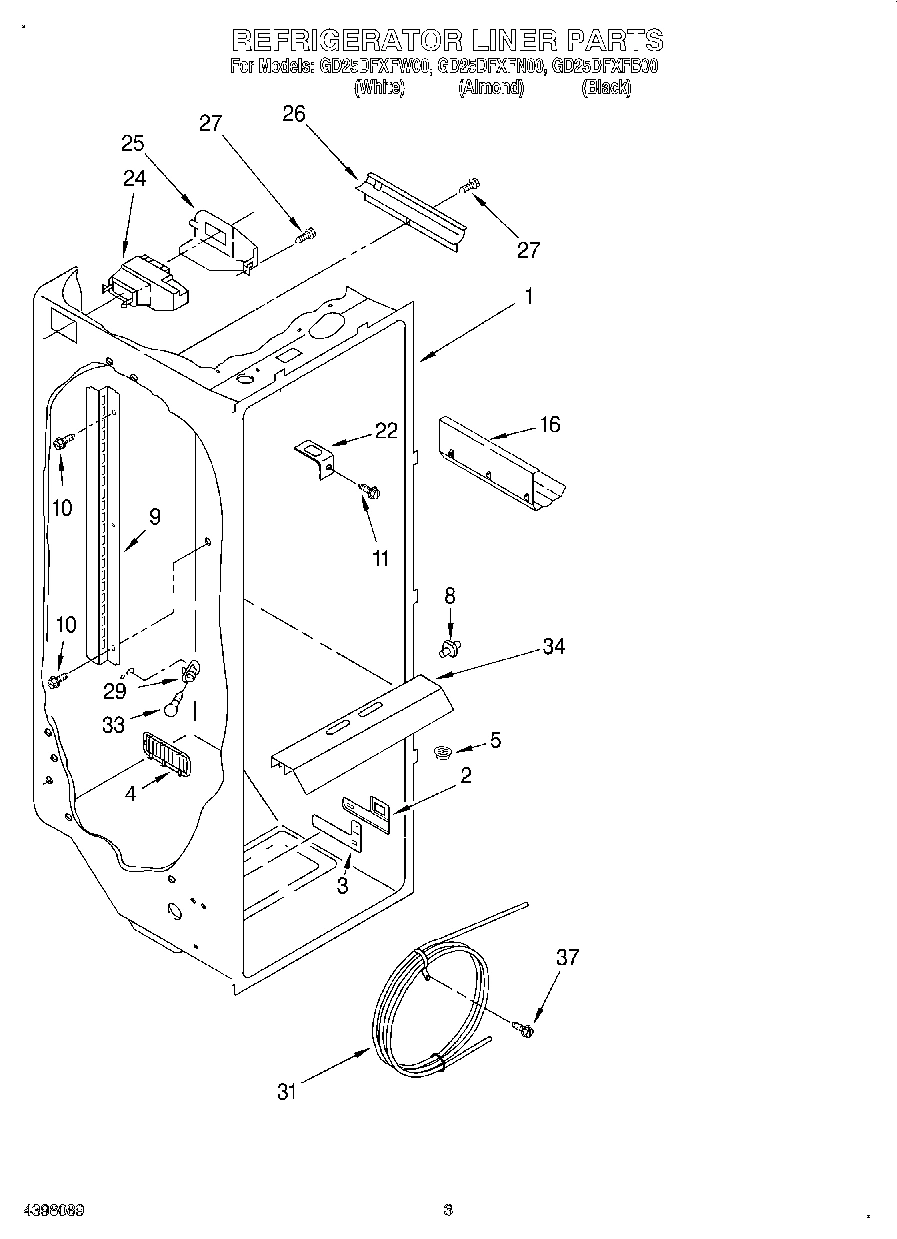

02 - REFRIGERATOR LINER

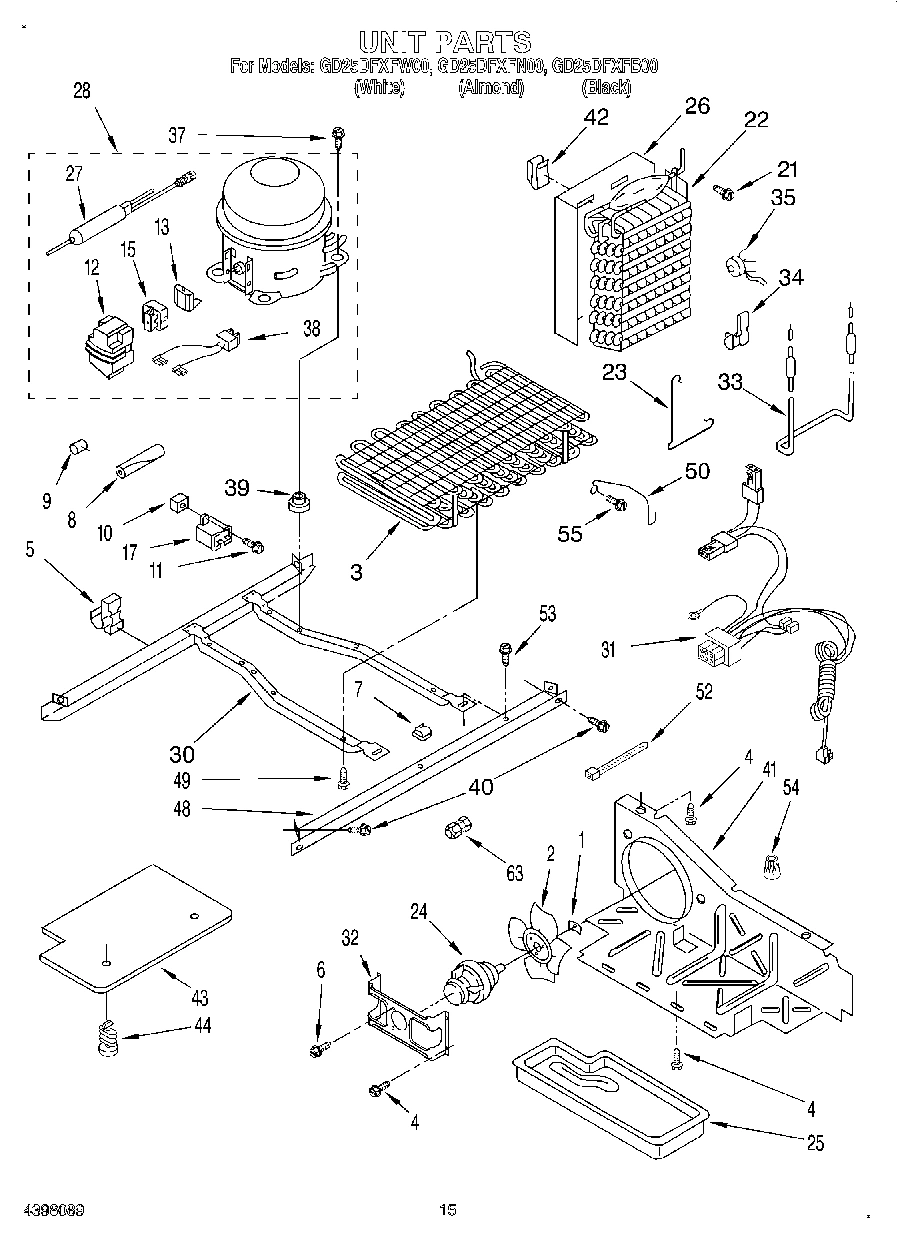

09 - UNIT

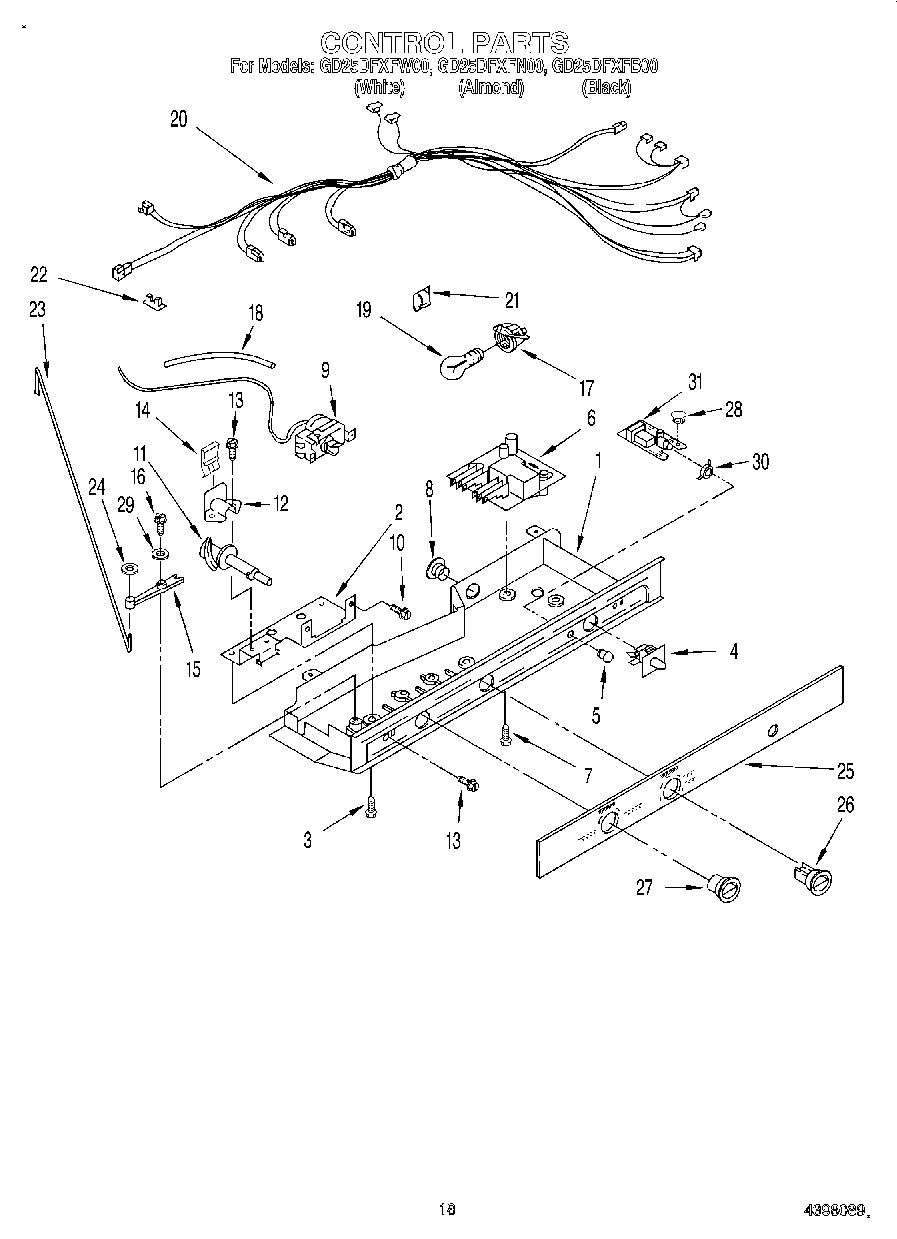

11 - CONTROL

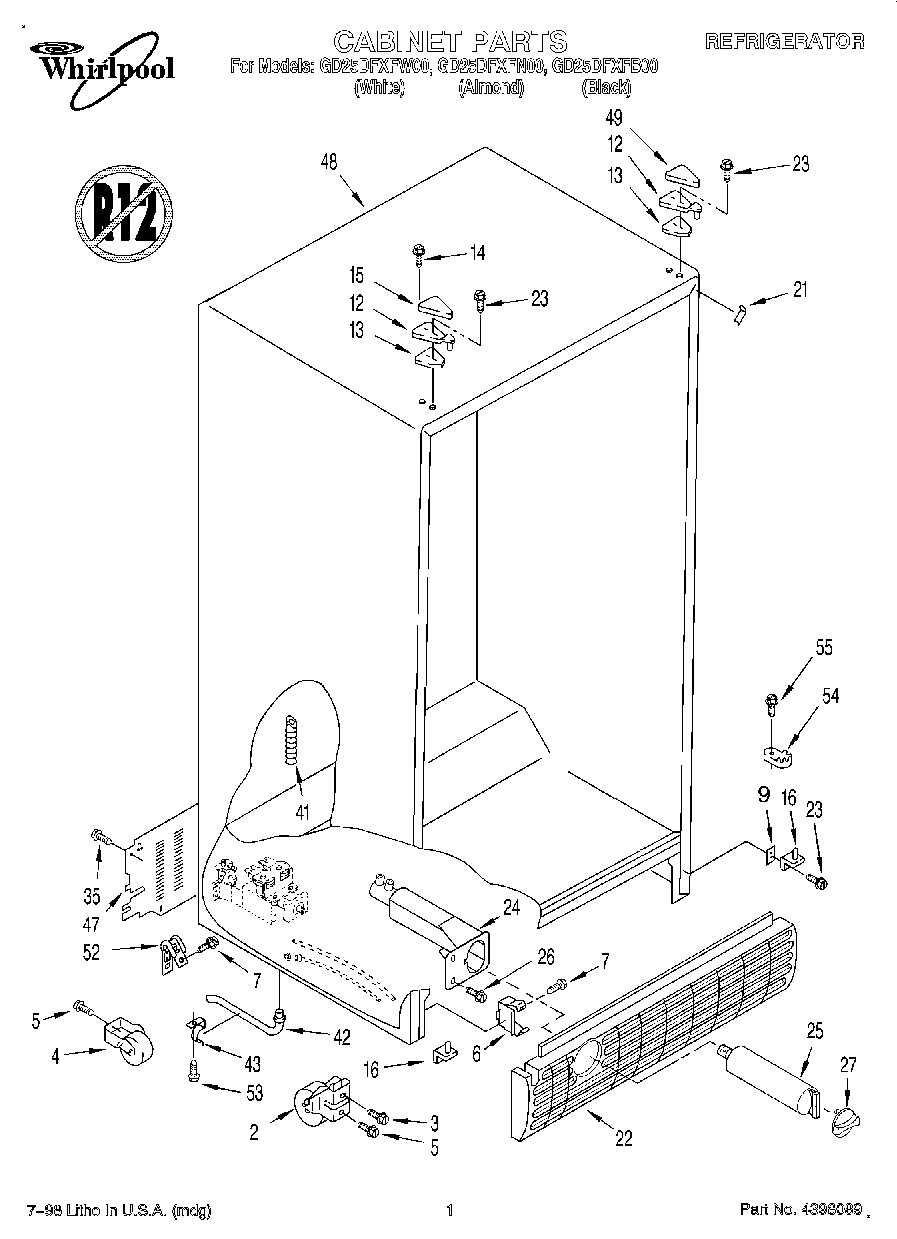

01 - CABINET

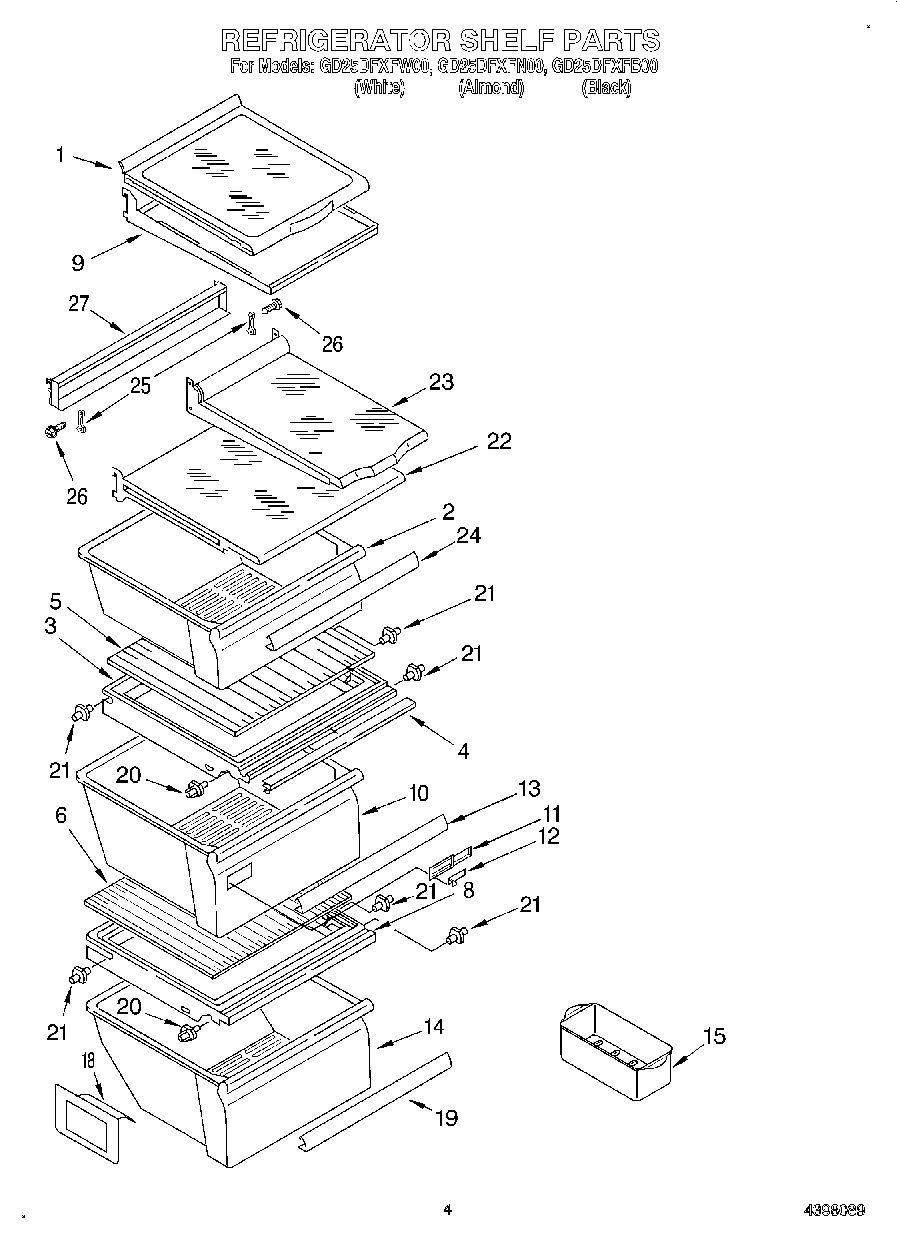

03 - REFRIGERATOR SHELF

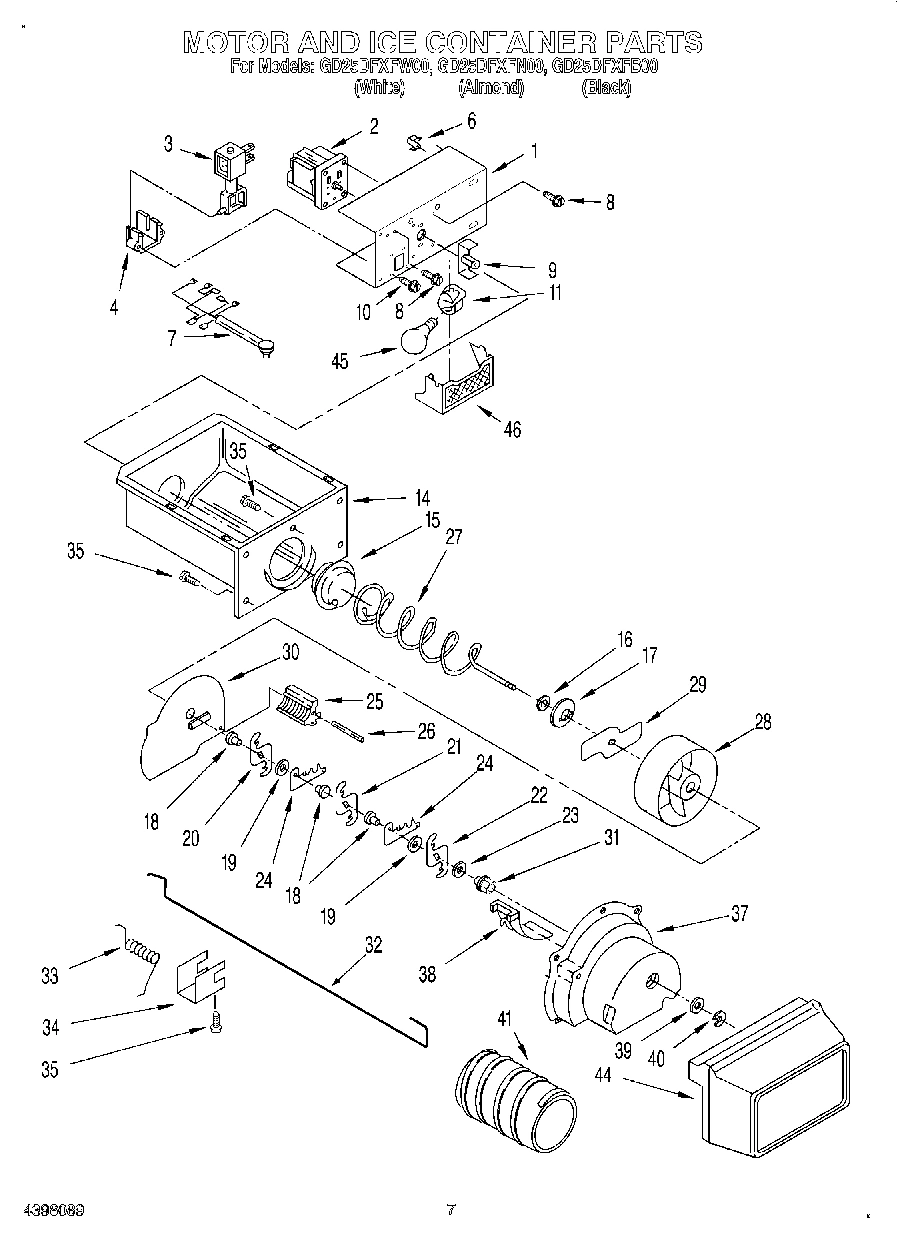

05 - MOTOR AND ICE CONTAINER

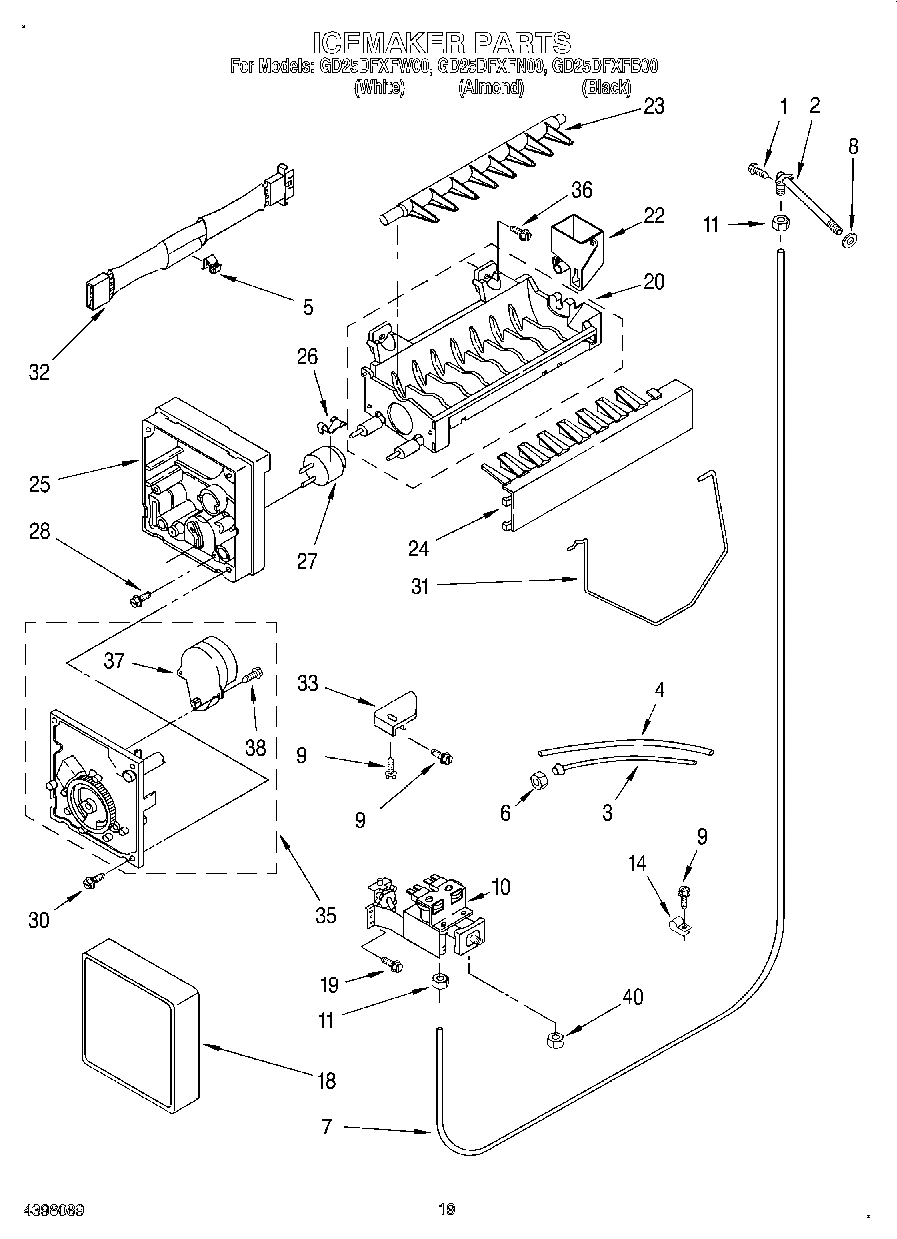

12 - ICEMAKER

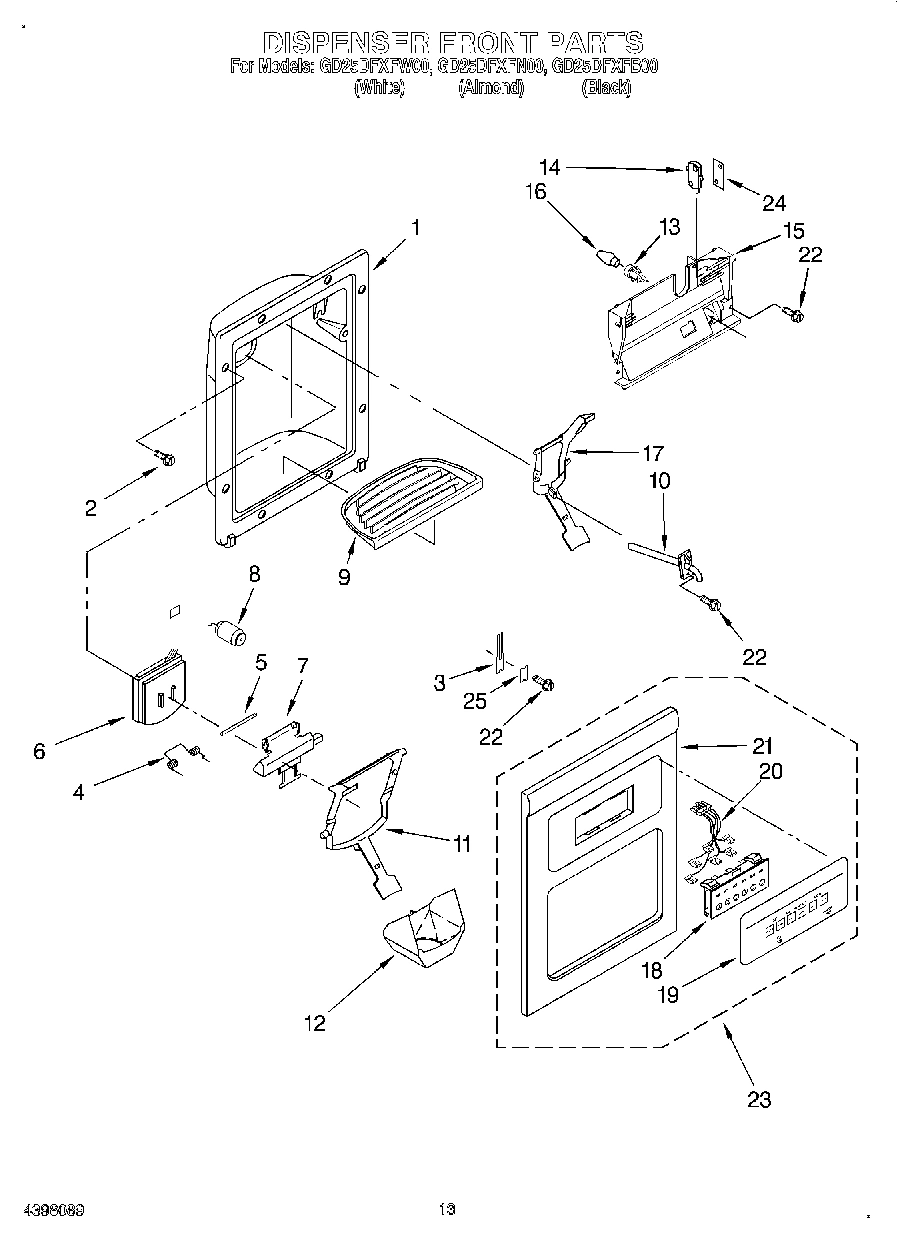

08 - DISPENSER FRONT

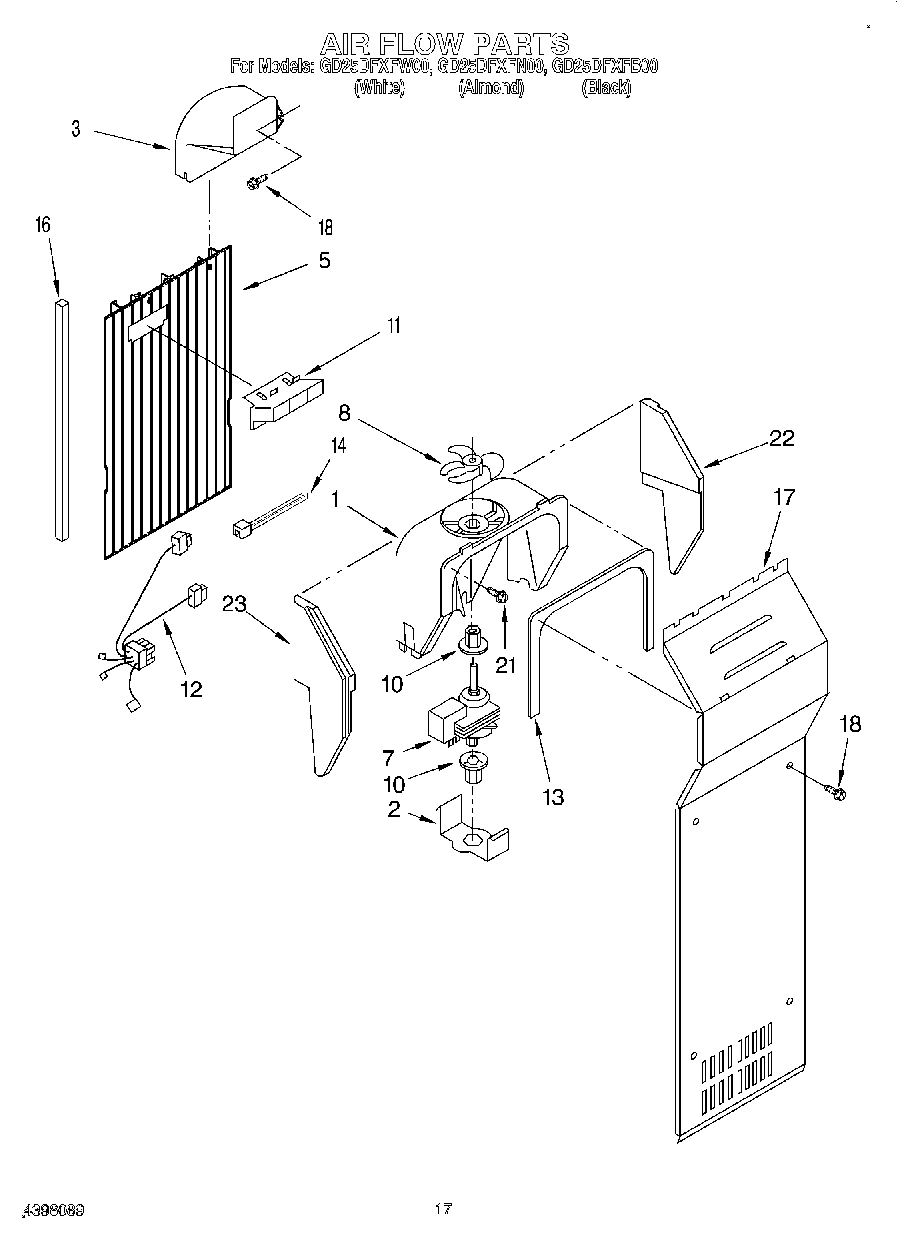

10 - AIR FLOW
Common parts from model Whirlpool GD25DFXFB00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186560 WPL LIT2186560 Contact Us For Availability
WPL LIT2186565 WPL LIT2186565 Contact Us For Availability
WPL LIT2200277 WPL LIT2200277 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI61811A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
5
Air Duct Freezer WPL 2196122 Contact Us For Availability
6
Nut, Compression WPL 2200083 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Handle, Center (Black) WPL 2186649B Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180258 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180266 Contact Us For Availability
17
Cover, Evaporator WPL 2196144 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186555B Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2186555N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186555W Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI61812A8 Contact Us For Availability
22
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186552B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186552N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186552W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Bla WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
