Model Whirlpool GCG2101XMW1 GAS DRYER – Common Parts &amp; Diagrams

1

Clip, Toe Panel WPL 341776 Contact Us For Availability

1

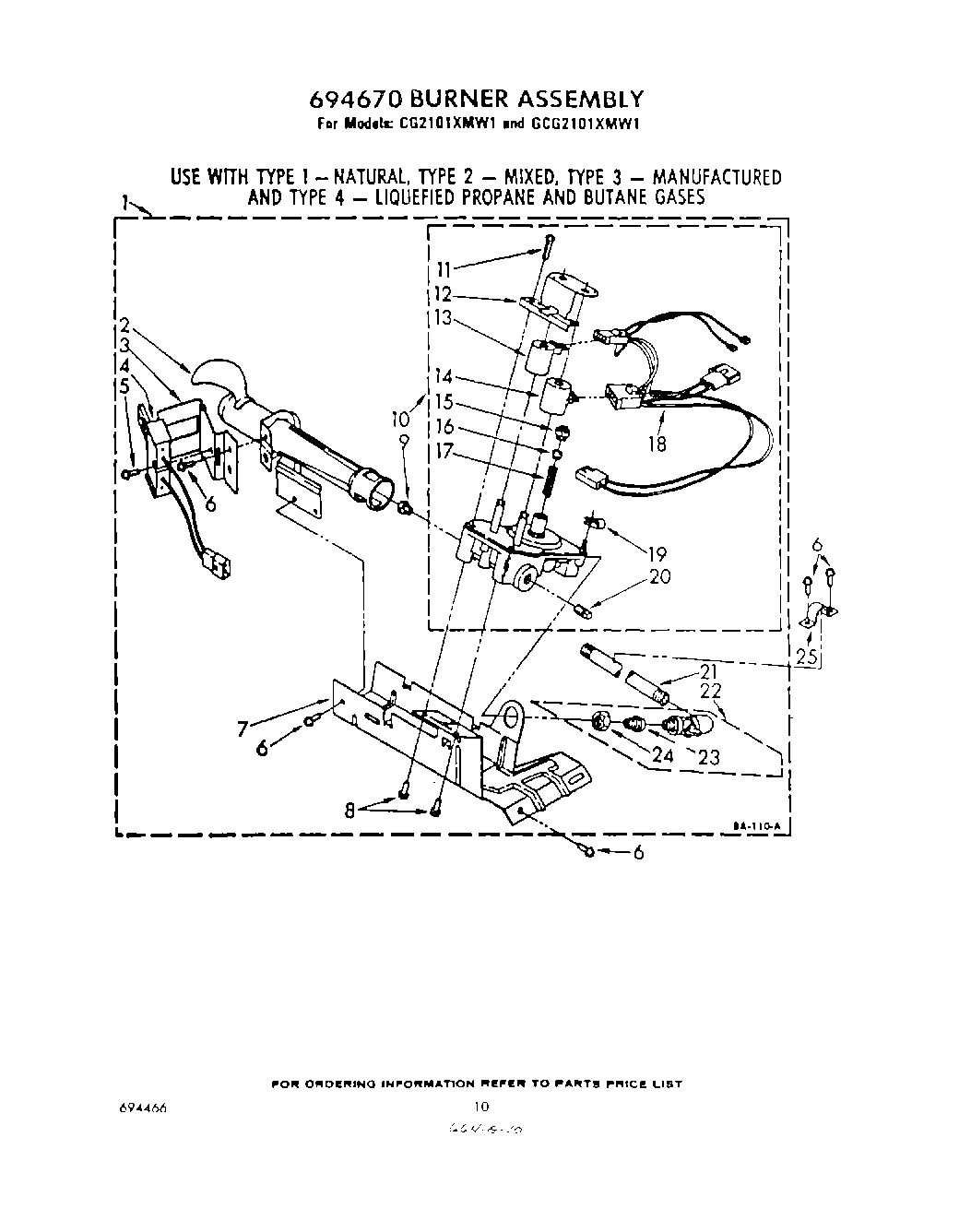

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

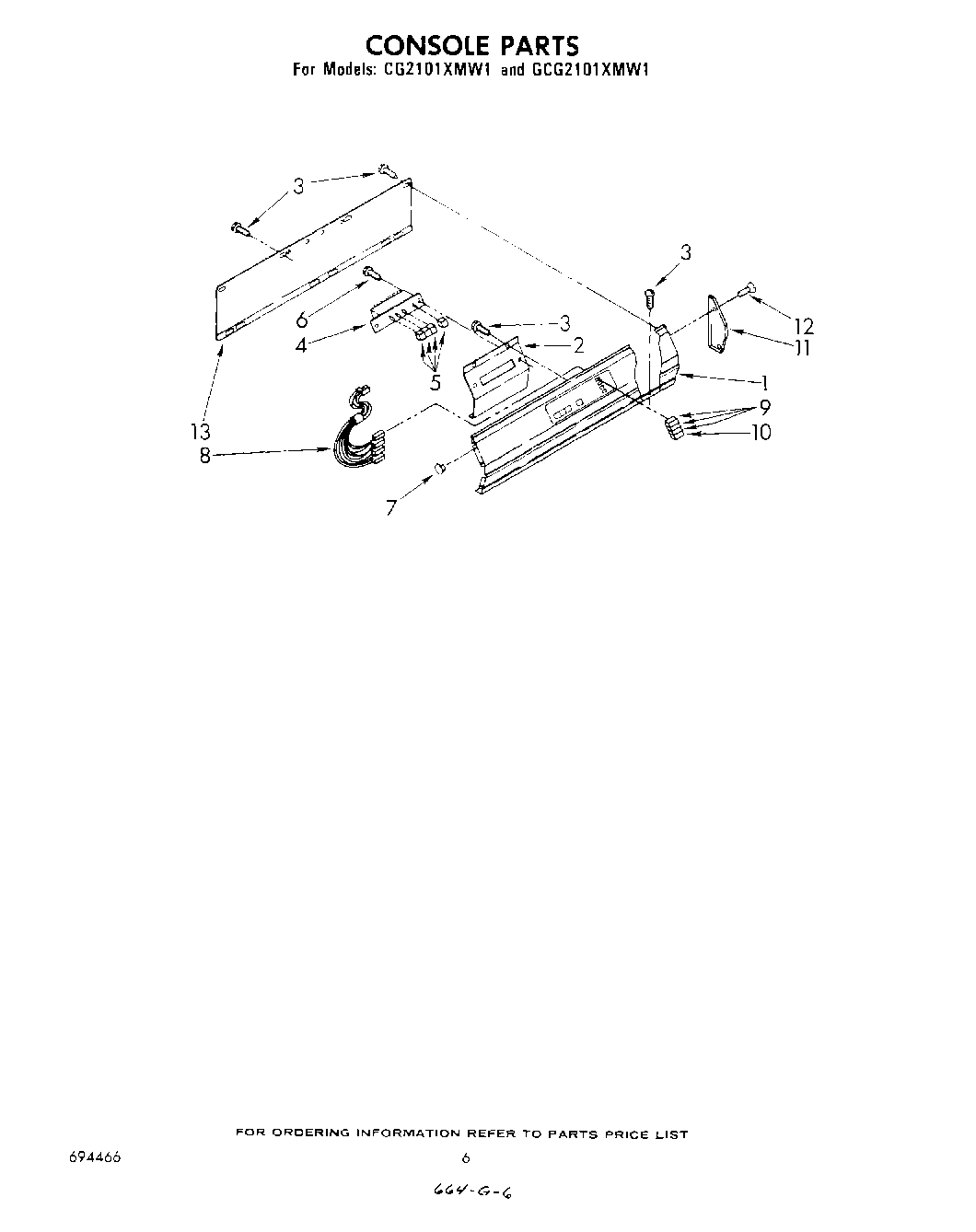

Harness, Console WPL 695576 Contact Us For Availability

2

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

2

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

4

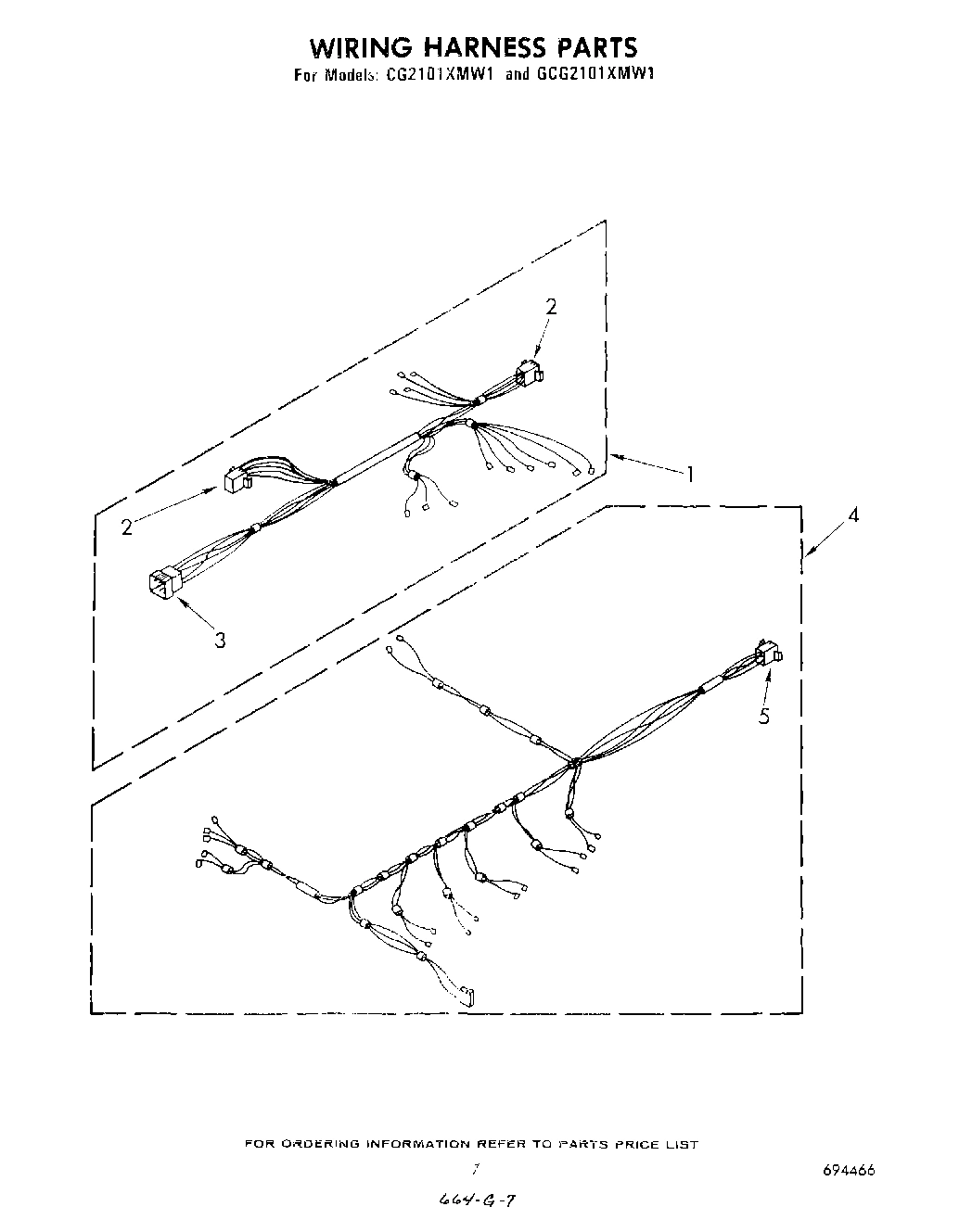

Harness, Wiring (Lower) WPL 695514 Contact Us For Availability

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

7

WP339855 Whirlpool Cam Backorder WPL WP339855 $4.82

7

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.82

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

8

Thermostat, Heater WPL 61298 Contact Us For Availability

9

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

12

Wire, Ground WPL 364089 Contact Us For Availability

13

Strap, Ground WPL 22965 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

18

Panel, Control Box Rear WPL 295871 Contact Us For Availability

18

Panel, Rear WPL 347736 Contact Us For Availability

19

Cover, Lint Screen WPL 688150 Contact Us For Availability

19

Seal, Blower WPL 694630 Contact Us For Availability

19

Clip, Harness WPL 694510 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

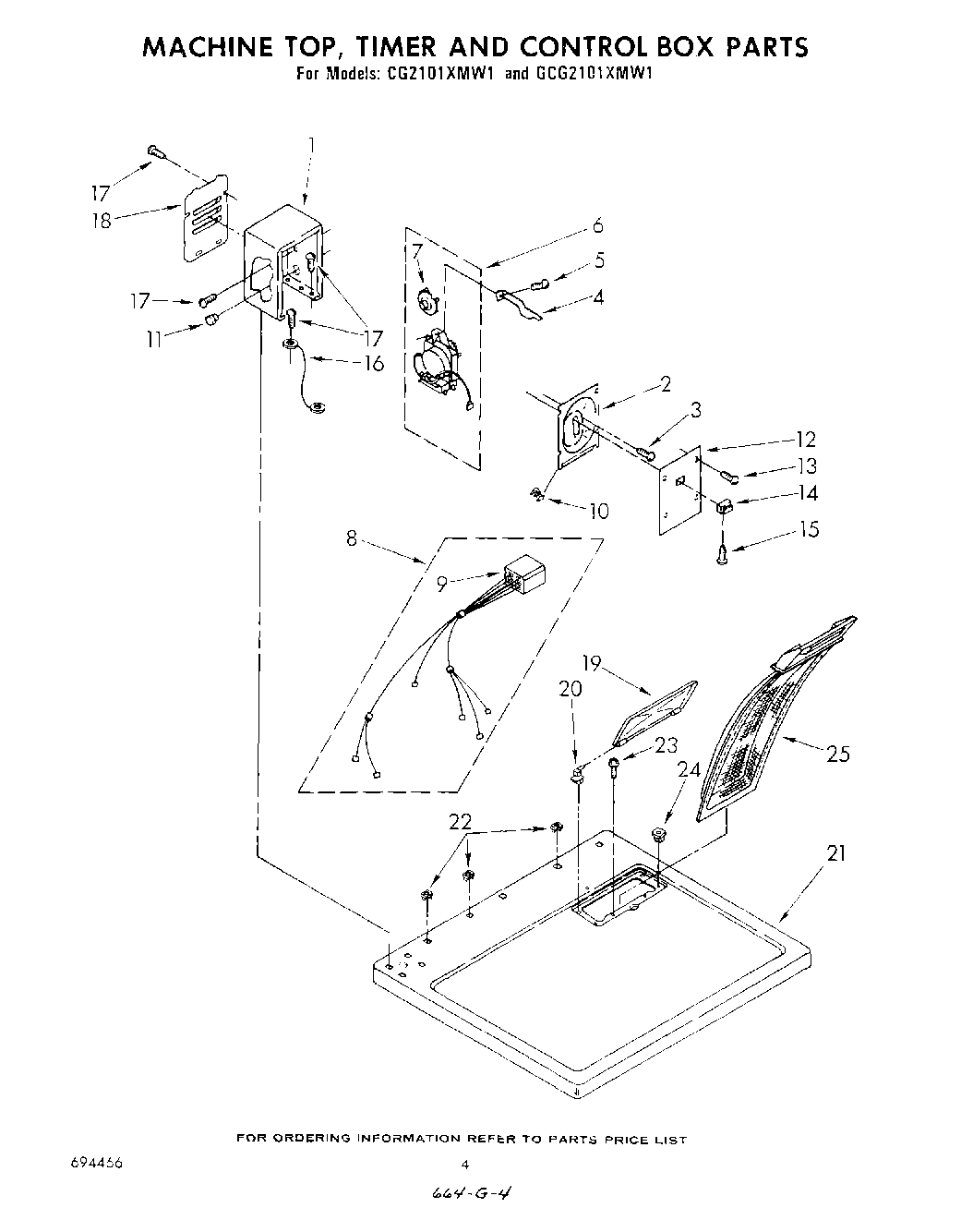

Locator, Top (1) WPL 356837 Contact Us For Availability

Locator, Top (2) WPL 98669 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

Top (White) WPL 695009 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

22

Nut, Push-In (8) WPL 98219 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

24

98460 Whirlpool Nut Backorder WPL 98460 $8.89

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Front Panel Assembly (White) WPL 693202 Contact Us For Availability

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $55.99

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

Panel, Toe (White) WPL 237035 Contact Us For Availability

27

Clip, Toe Panel (2) WPL 696232 Contact Us For Availability

28

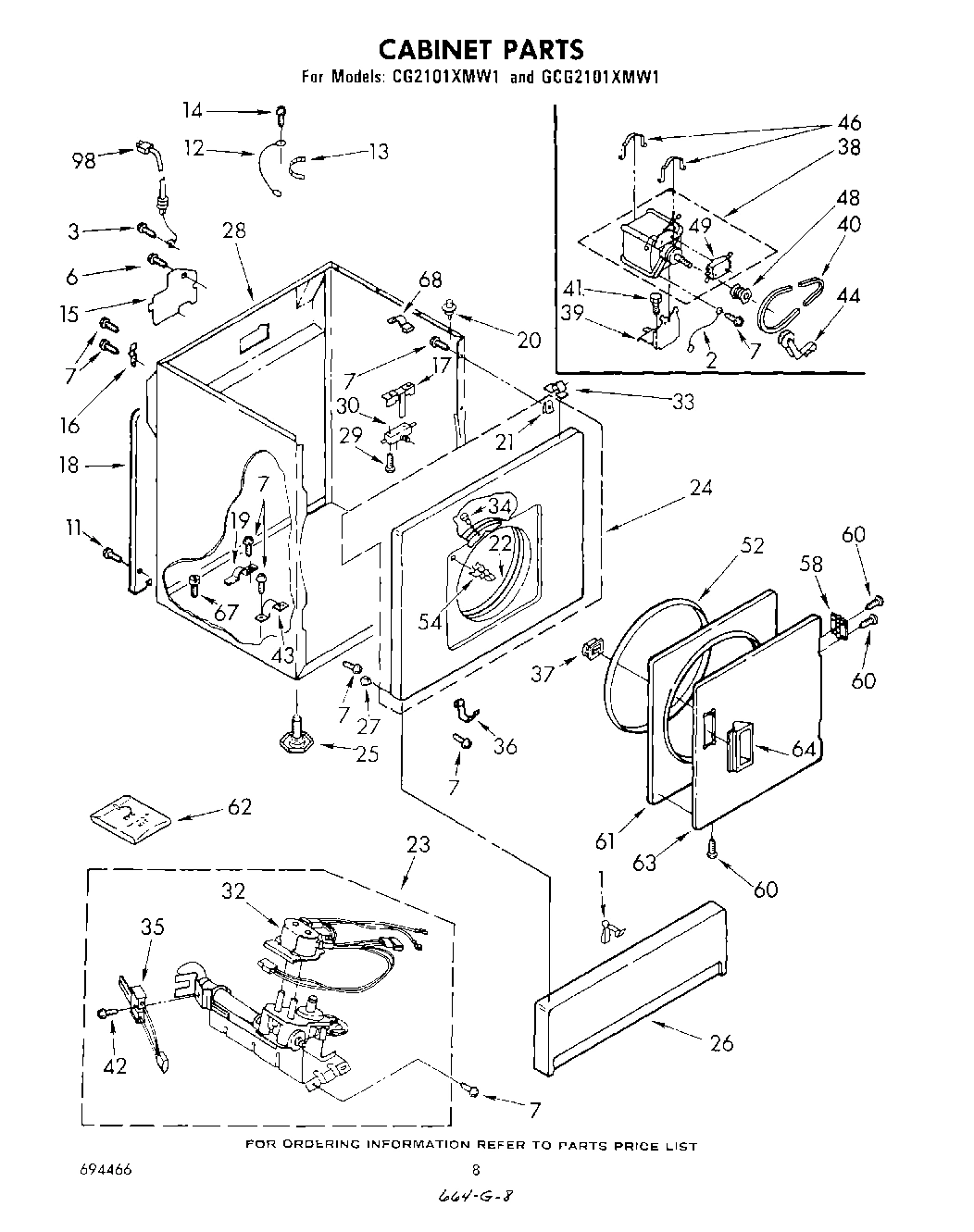

Cabinet (White) WPL 690847 Contact Us For Availability

29

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

30

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

33

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

34

279220 Whirlpool Clip In Stock WPL 279220 $18.99

36

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

37

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

39

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

40

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

41

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

43

Clamp, Pipe (Front) WPL 695885 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

44

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

48

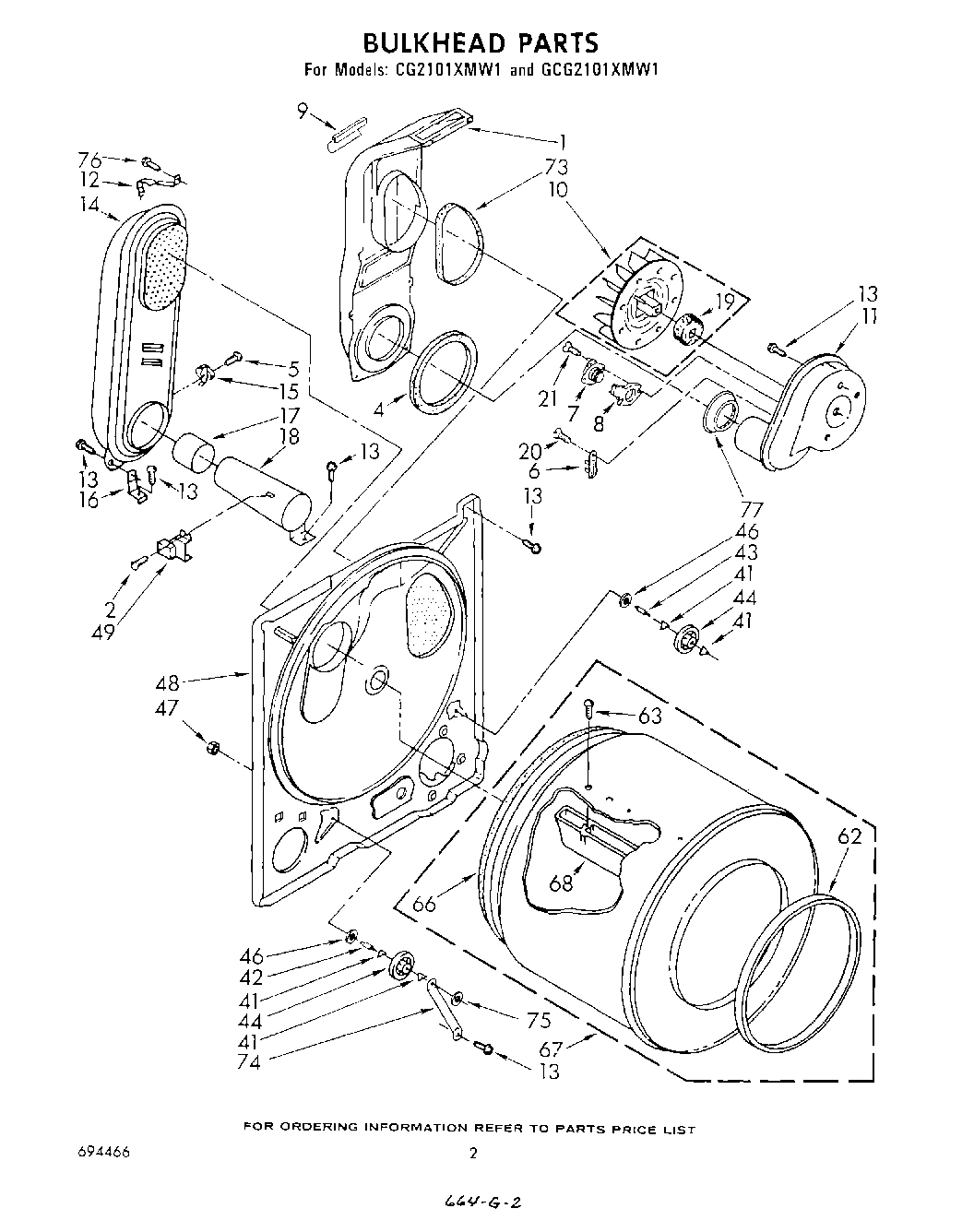

Bulkhead WPL 387227 Contact Us For Availability

49

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

52

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

58

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

60

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

61

280077 Whirlpool Door Backorder WPL 280077 $116.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

63

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

WPL 343826 WPL 343826 Contact Us For Availability

68

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

74

Bracket, Support Shaft WPL 348945 Contact Us For Availability

75

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Instructions, Multi-Venting WPL 348772 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Instructions, Installation WPL 687455 Contact Us For Availability

List, Service Parts WPL 694466 Contact Us For Availability

98

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58
