Model Whirlpool CSP2770AN1 COMMERCIAL (STACKED) ELECTRIC DRYER – Common Parts & Diagrams

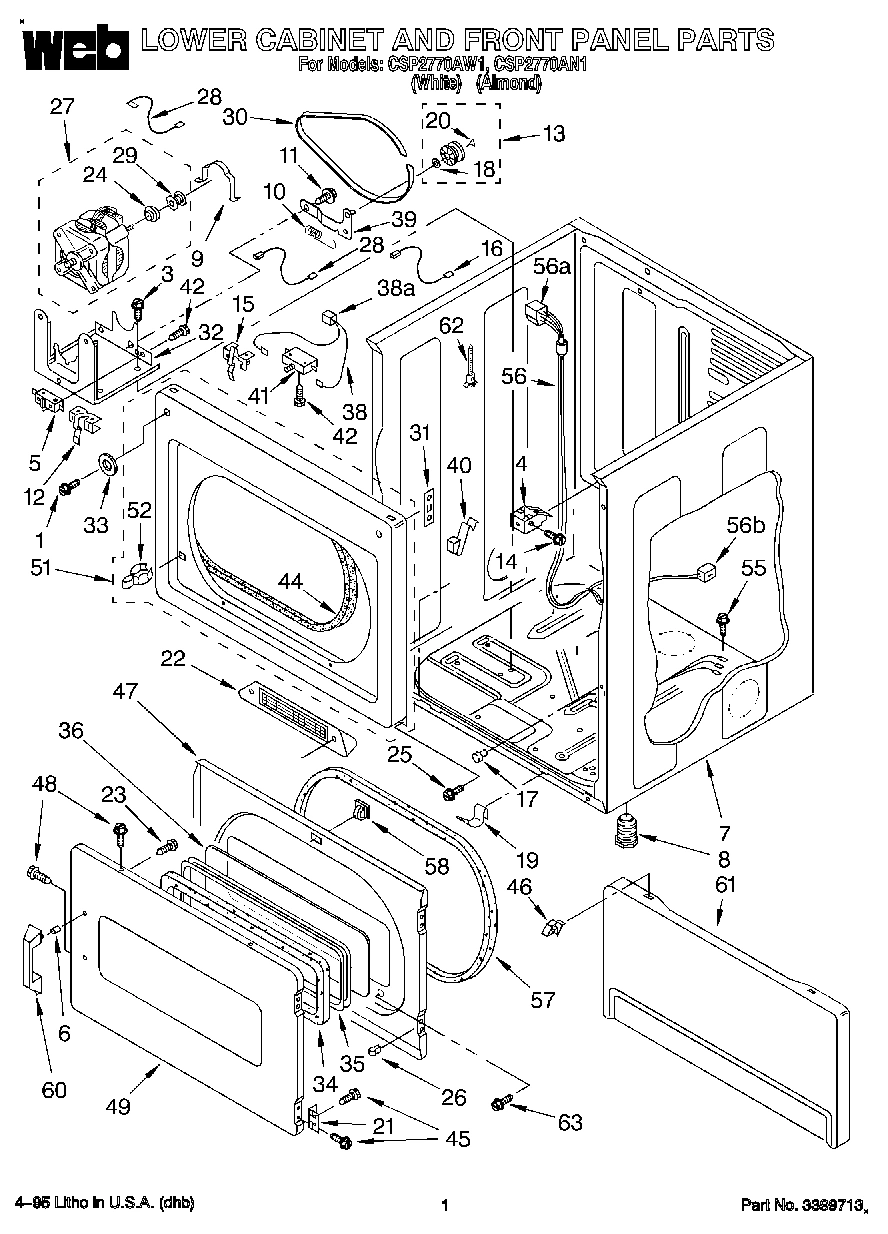

01 - LOWER CABINET AND FRONT PANEL

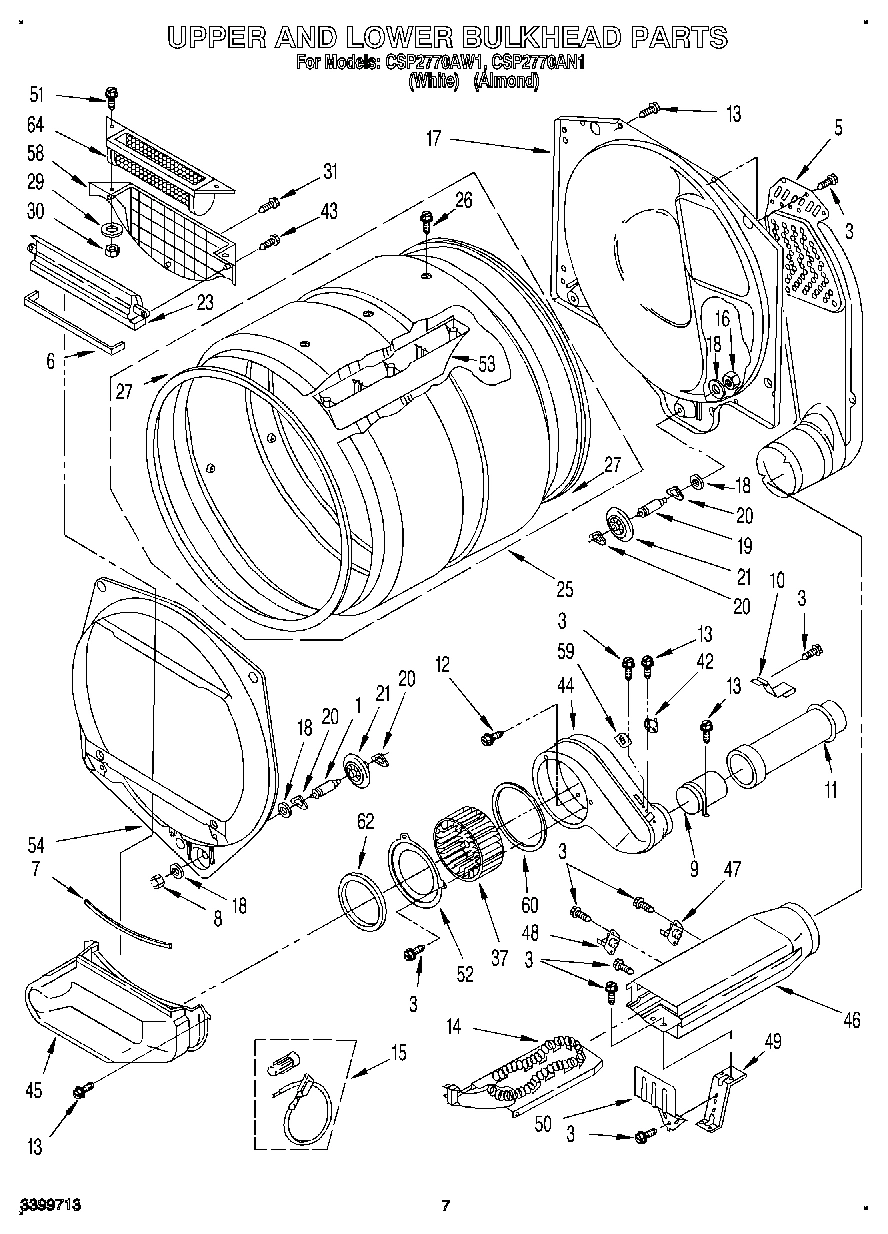

06 - UPPER AND LOWER BULKHEAD, LITERATURE

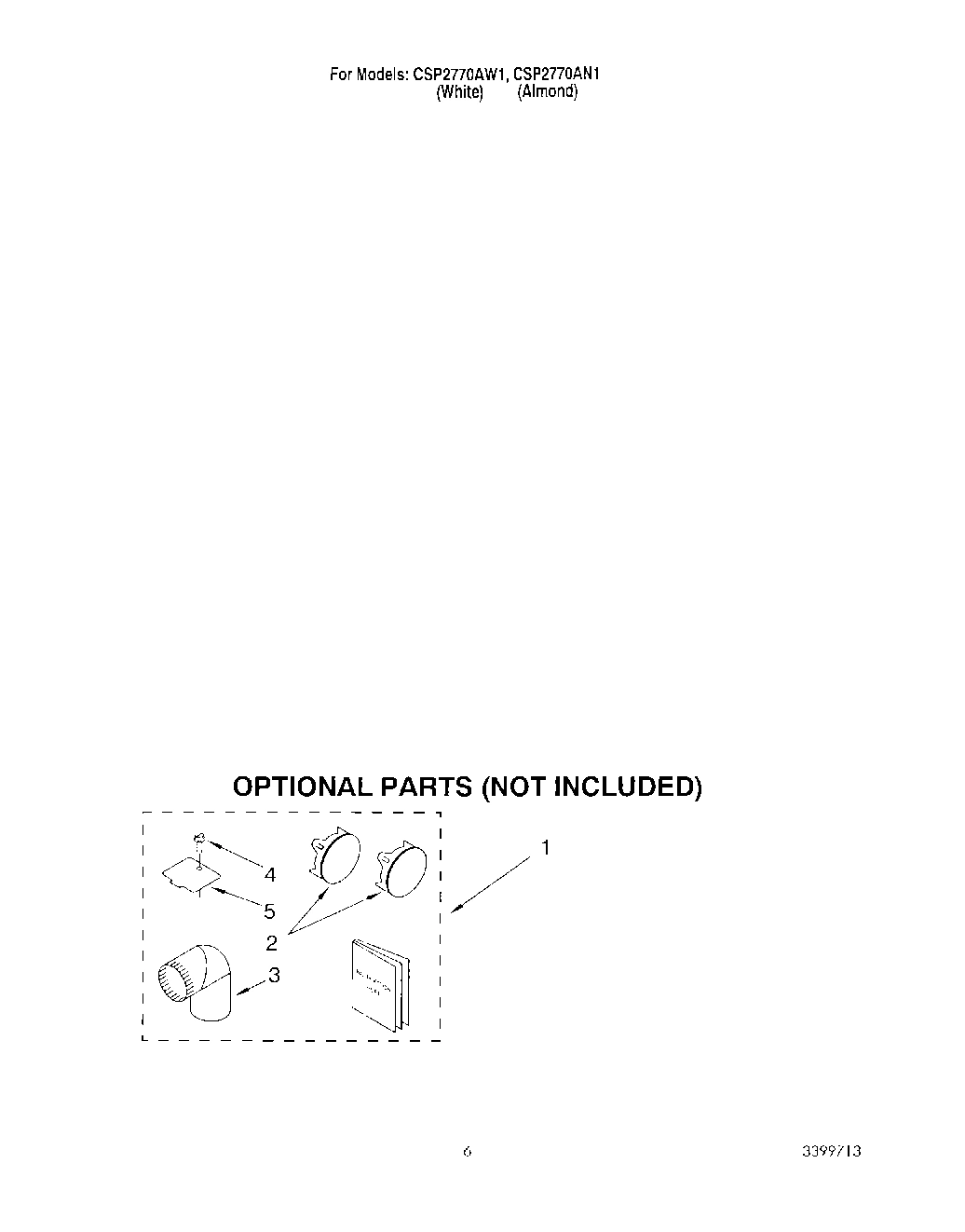

05 - OPTIONAL

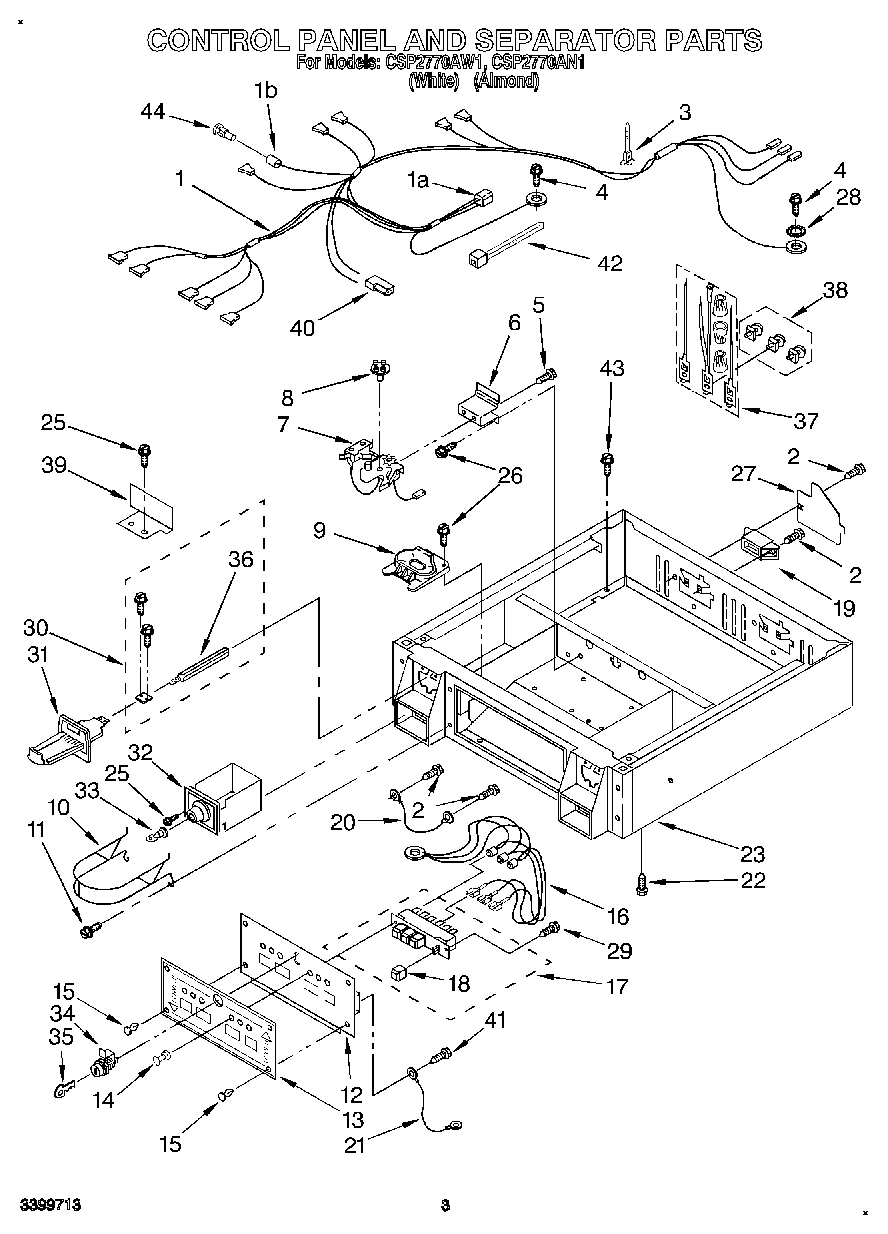

03 - CONTROL PANEL AND SEPARATOR
02 - OPTIONAL

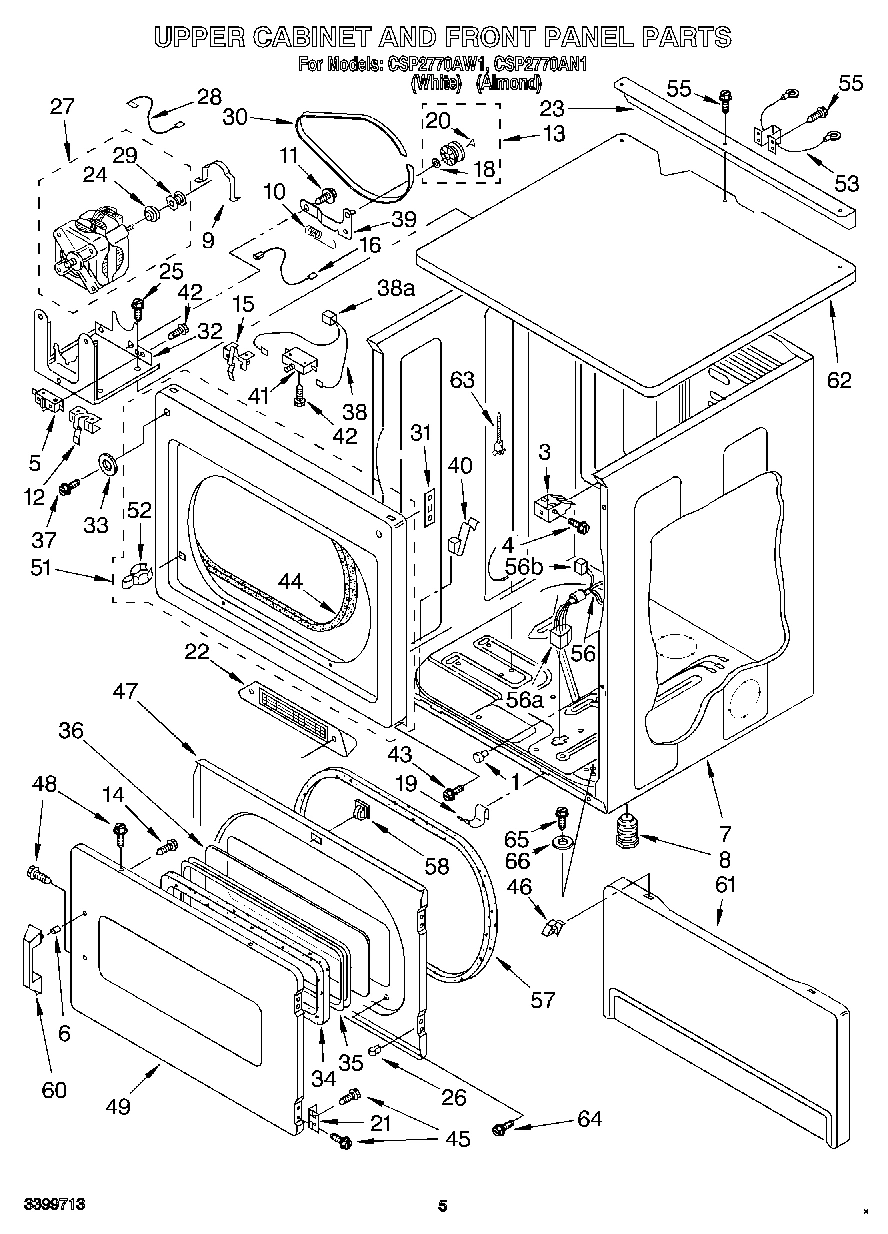

04 - UPPER CABINET AND FRONT PANEL
Common parts from model Whirlpool CSP2770AN1 COMMERCIAL (STACKED) ELECTRIC DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Harness, Wire (2) WPL 3401113 Contact Us For Availability
1A
Receptacle (2) (Uses Terminals (2) 693167, (2 WPL 692998 Contact Us For Availability
1B
Receptacle (Uses Terminals 94614 Or 339642) WPL 351296 Contact Us For Availability
3
4``-90 ELBOW WPL 279731 Contact Us For Availability
6
Fastener, Tubular WPL 3393933 Contact Us For Availability
7
Cabinet (Upper) (White) WPL 3402264 Contact Us For Availability
7
Cabinet (Upper) (Almond) WPL 3402265 Contact Us For Availability
9
Funnel, Coin (2) WPL 3389224 Contact Us For Availability
10
Protector, Slide (2) WPL 3389232 Contact Us For Availability
11
Screw, 10-32 x 3/8 (4) WPL 342043 Contact Us For Availability
12
Panel, Control WPL 3389625 Contact Us For Availability
13
Insert, Decorative WPL 3390036 Contact Us For Availability
14
Lens, Light (6) WPL 3389520 Contact Us For Availability
14
Screw, 8-18 x 3/4 (Door Handle) WPL 718032 Contact Us For Availability
15
Rivet (4) WPL 356388 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Indicator, Light (2) WPL 3401177 Contact Us For Availability
17
Switch, Pushbutton (2) WPL 3401851 Contact Us For Availability
18
Button, Pushbutton (8) WPL 3348587 Contact Us For Availability
20
Strut WPL 3393463 Contact Us For Availability
21
Wire, Ground WPL 340025 Contact Us For Availability
22
Grill WPL 3391611 Contact Us For Availability
23
Collar (White) WPL 3401282 Contact Us For Availability
23
Collar (Almond) WPL 3401283 Contact Us For Availability
23
Bracket, Angle WPL 3393423 Contact Us For Availability
26
Screw (8) WPL 98437 Contact Us For Availability
26
Nut, ``U`` (4) WPL 3389249 Contact Us For Availability
28
Retainer, Terminal (2) WPL 3390443 Contact Us For Availability
30
Slide Extension Bag Assembly WPL ARI22113A9 Contact Us For Availability
31
Slide Mechanism (When Ordering, Specify Numbe WPL ARI22114A7 Contact Us For Availability
32
Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI22115A5 Contact Us For Availability
33
Key, Money Box (When Ordering, Specify Vender WPL ARI22116A3 Contact Us For Availability
33
Washer (2) WPL 3392186 Contact Us For Availability
34
Security Lock & Cam Assembly WPL ARI22117A5 Contact Us For Availability
34
Gasket, Window WPL 3392915 Contact Us For Availability
35
Key, Service Door WPL ARI22118A9 Contact Us For Availability
36
Bolt, Slide Mechanism WPL ARI22119A8 Contact Us For Availability
36
Window (2) WPL 3392918 Contact Us For Availability
38
Harness, Door Switch WPL 3389967 Contact Us For Availability
40
Clip, Lint Duct WPL 3388600 Contact Us For Availability
44
WPL 351297 WPL 351297 Contact Us For Availability
45
Lint Duct Assembly WPL 3390531 Contact Us For Availability
49
Bracket, Heater WPL 697700 Contact Us For Availability
49
Door, Front (Almond) WPL 3392881 Contact Us For Availability
50
Shield, Heat WPL 697699 Contact Us For Availability
51
Upper Front Panel (White) WPL 3393081 Contact Us For Availability
53
Baffle, Drum (3) WPL 3393316 Contact Us For Availability
53
Cable WPL 3388580 Contact Us For Availability
56
Harness (Upper) WPL 3401103 Contact Us For Availability
56A
Plug, Multi- Terminal (Uses Terminals (2) 693 WPL 692997 Contact Us For Availability
56B
WPL 717252 WPL 717252 Contact Us For Availability
58
Cover, Lint Screen WPL 3389516 Contact Us For Availability
60
WPL 3392907 WPL 3392907 Contact Us For Availability
61
WPL 697216 WPL 697216 Contact Us For Availability
62
WPL 3389352 WPL 3389352 Contact Us For Availability
64
Screen, Lint WPL 3389510 Contact Us For Availability
64
WPL 697777 WPL 697777 Contact Us For Availability
65
WPL 122007 WPL 122007 Contact Us For Availability
66
WPL 3389233 WPL 3389233 Contact Us For Availability
× ![]()
