Model Speed Queen AES28AWF1500 Dryer – Common Parts & Diagrams

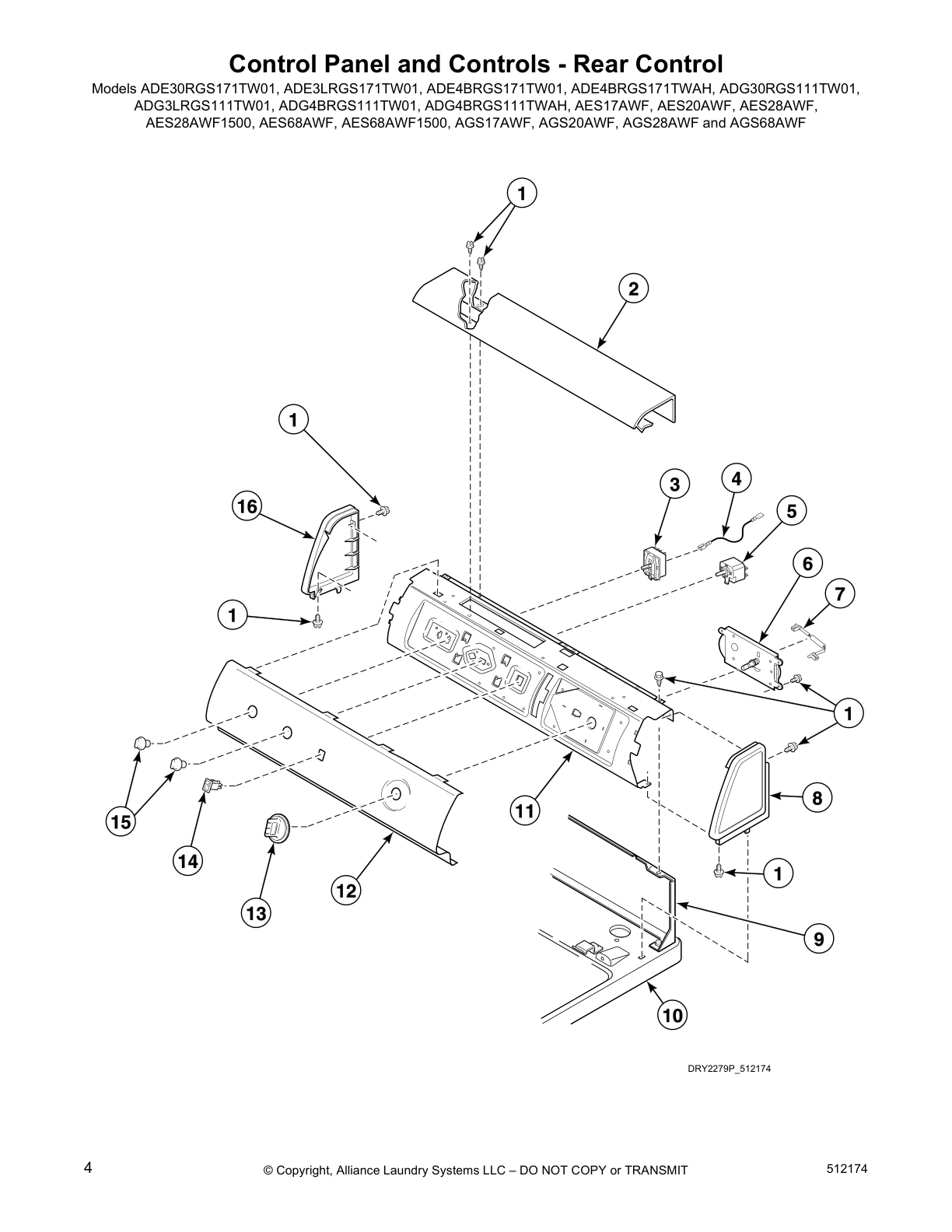

Control Panel and Controls - Rear Control

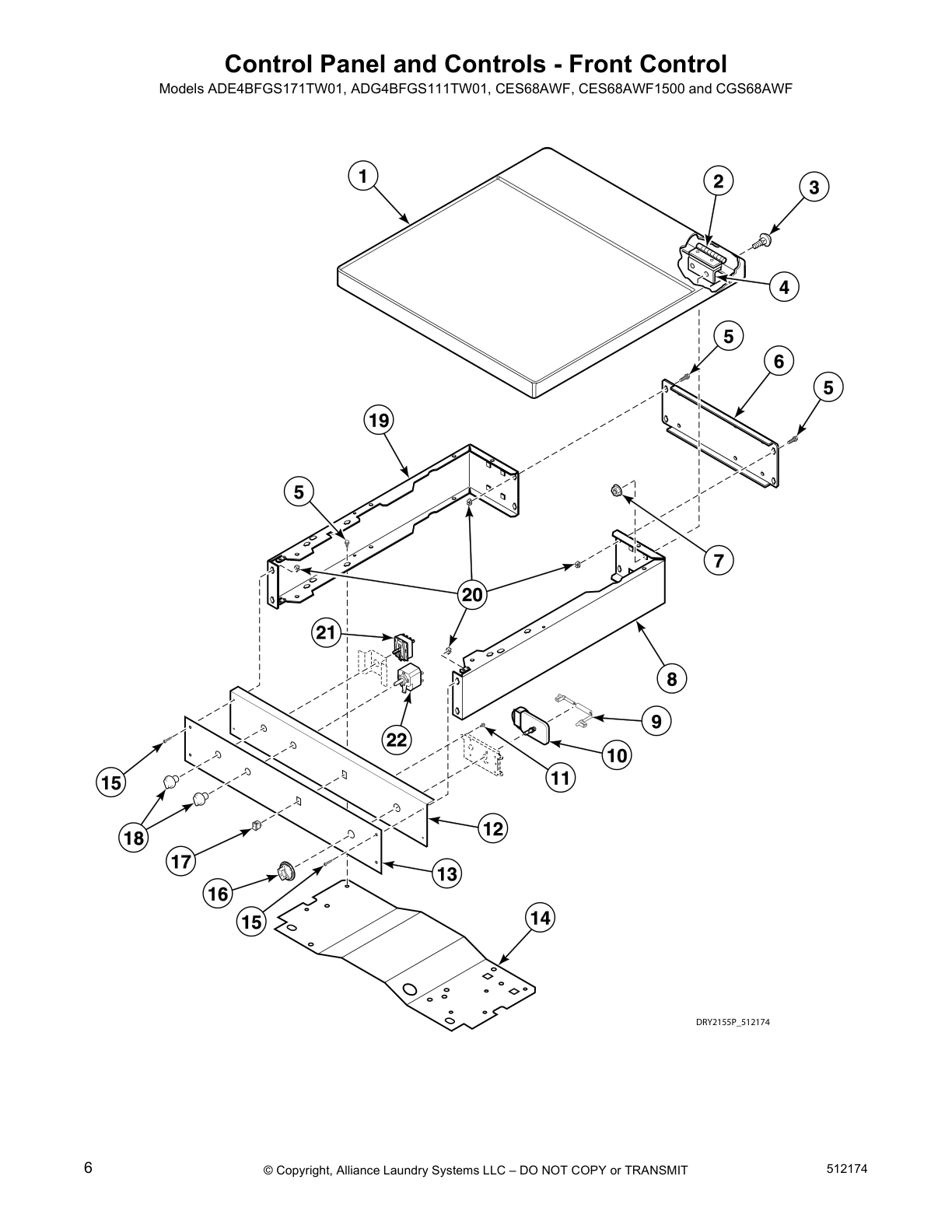

Control Panel and Controls - Front Control

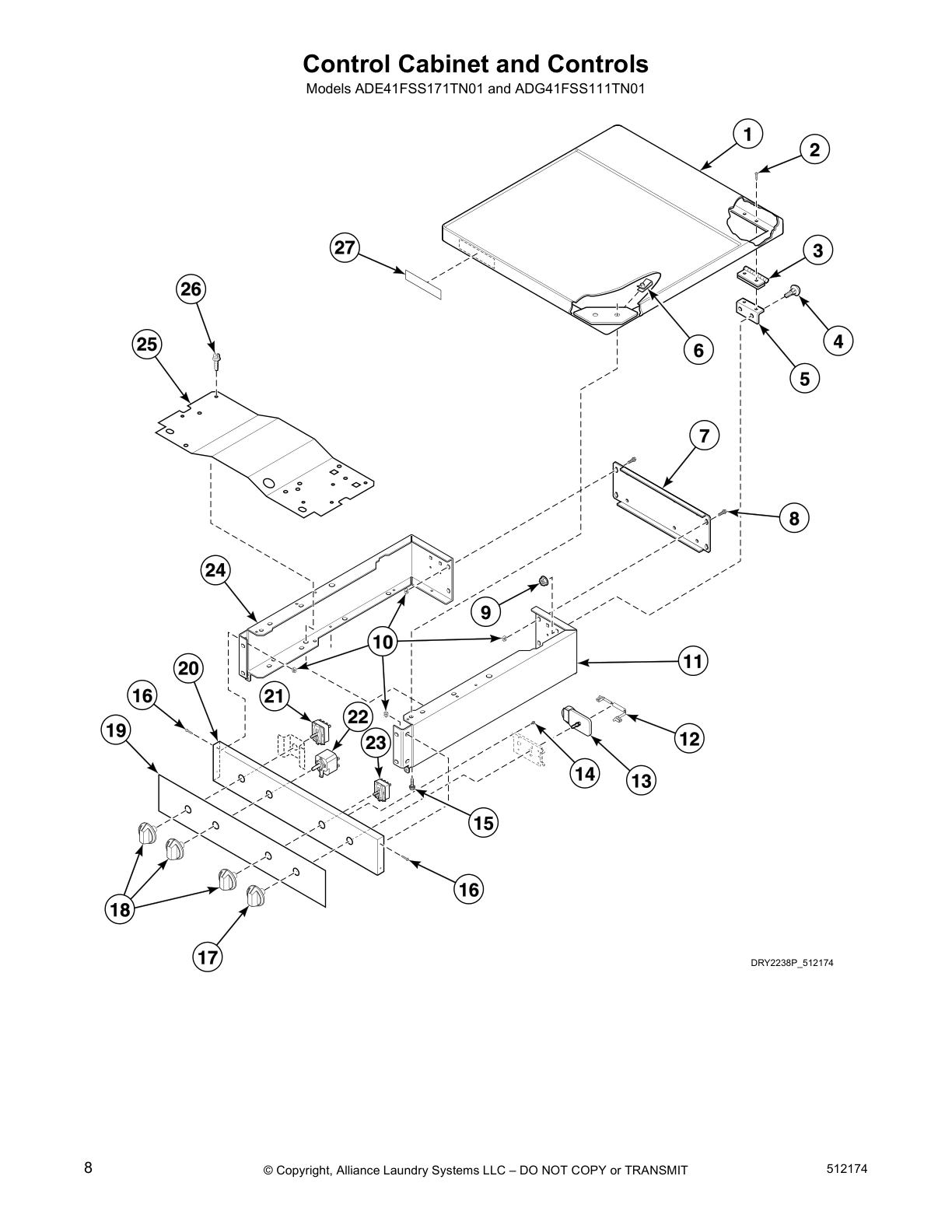

Control Cabinet and Controls

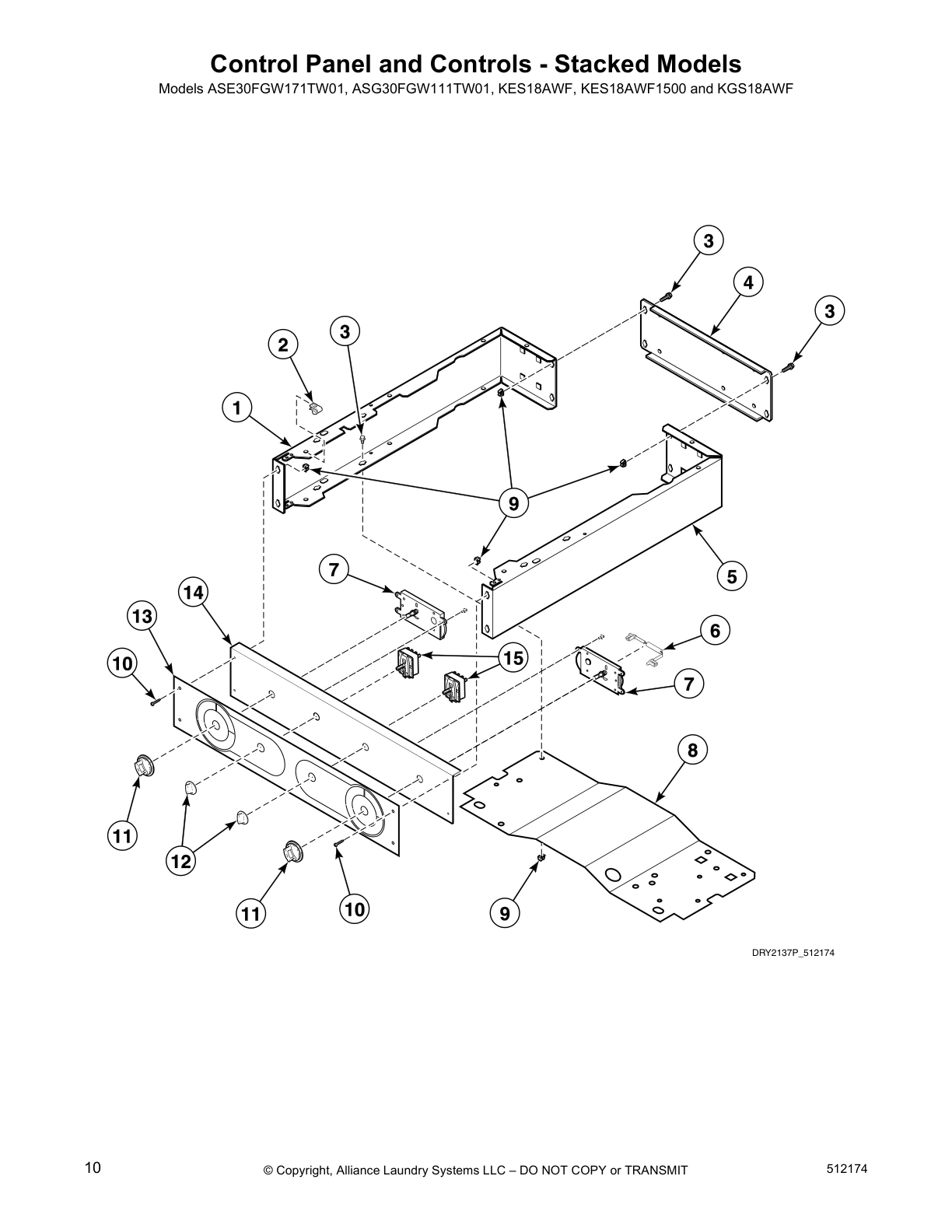

Control Panel and Controls - Stacked Models

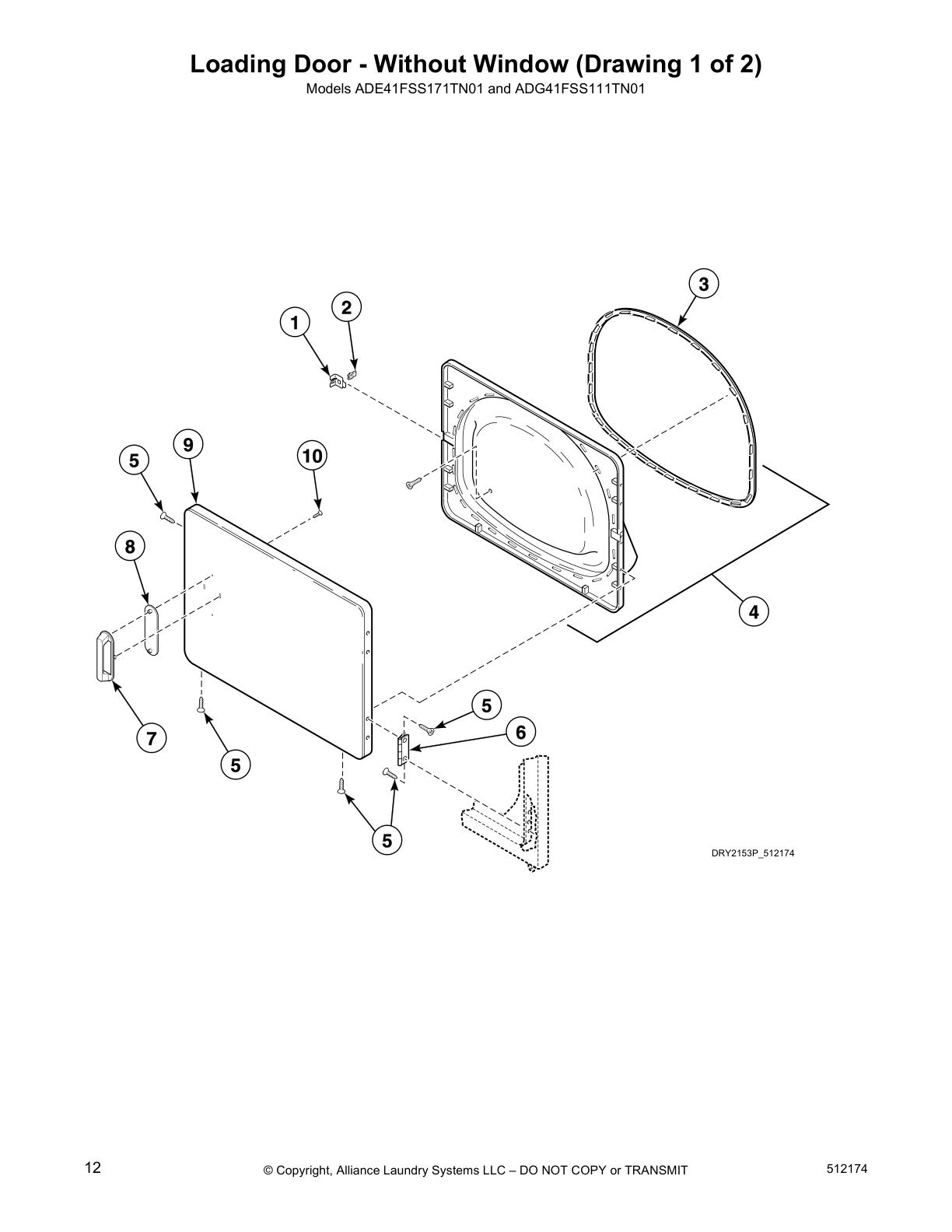

Loading Door - Without Window (Drawing 1 of 2)

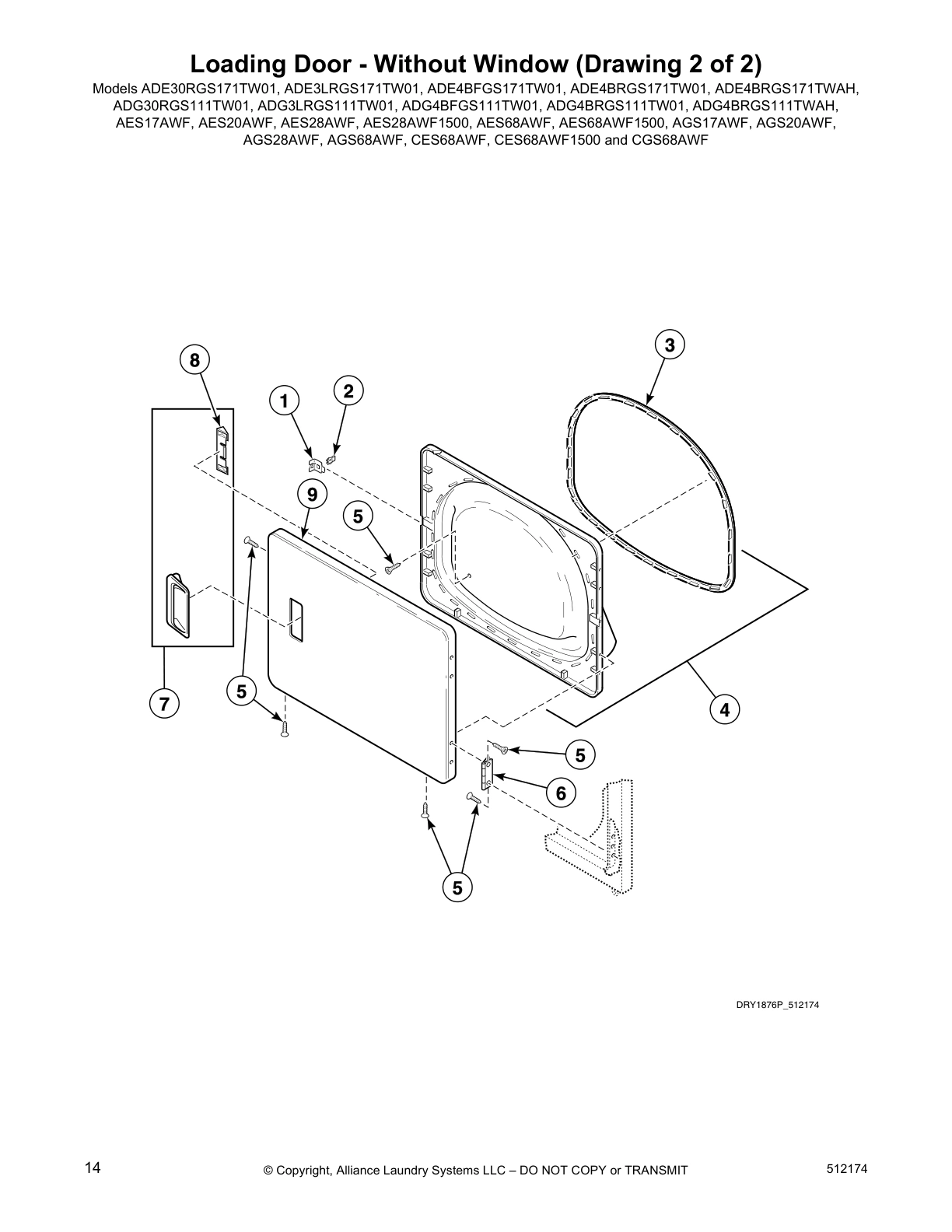

Loading Door - Without Window (Drawing 2 of 2)

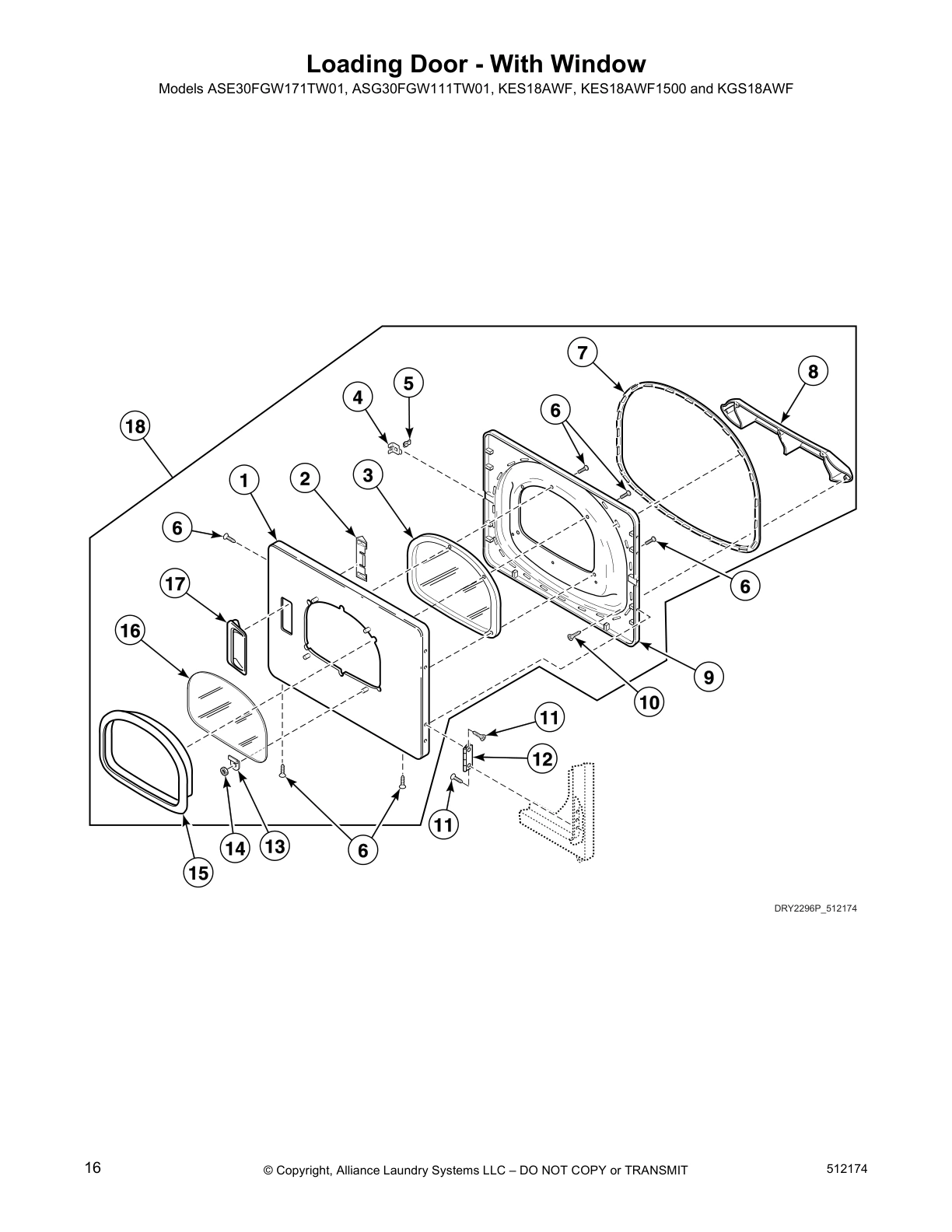

Loading Door - With Window

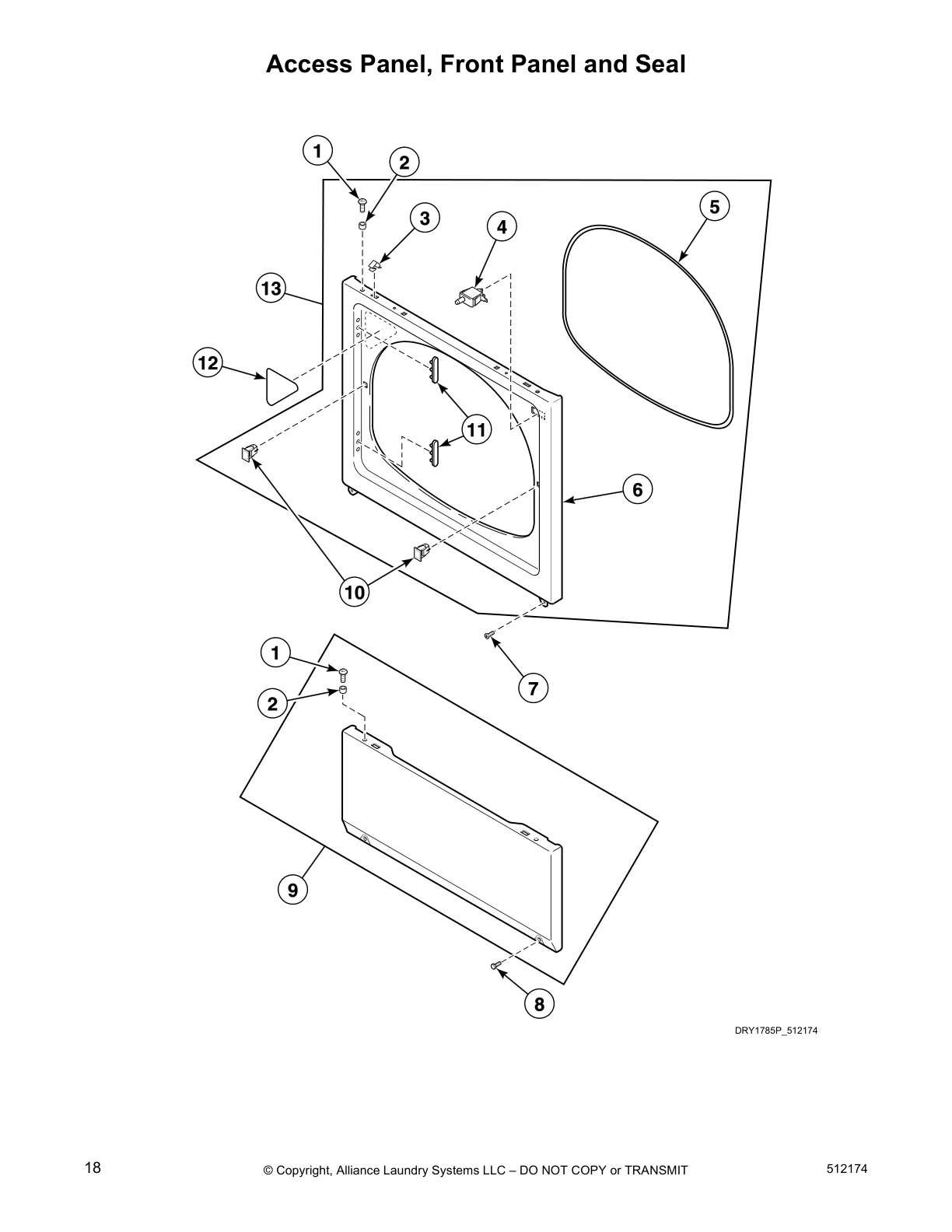

Access Panel, Front Panel and Seal

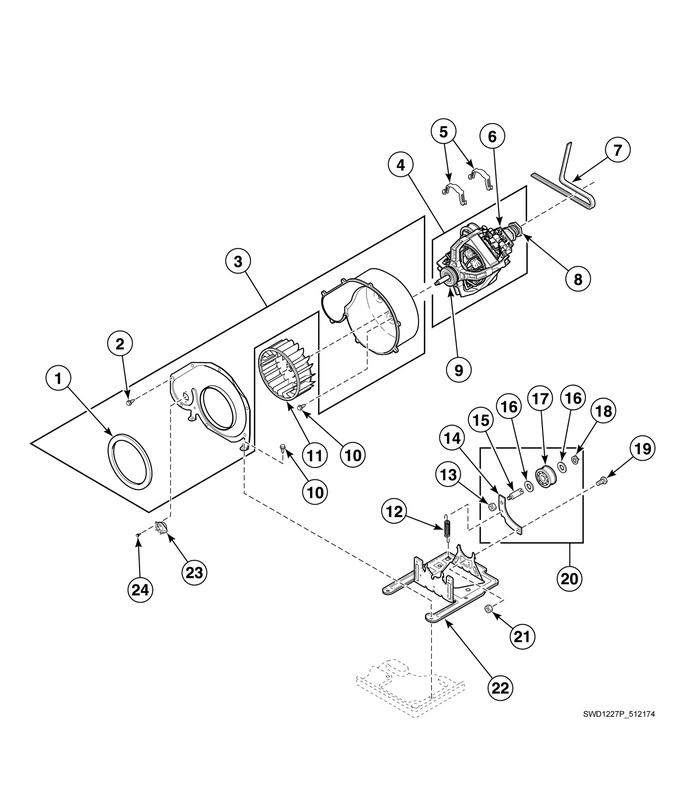

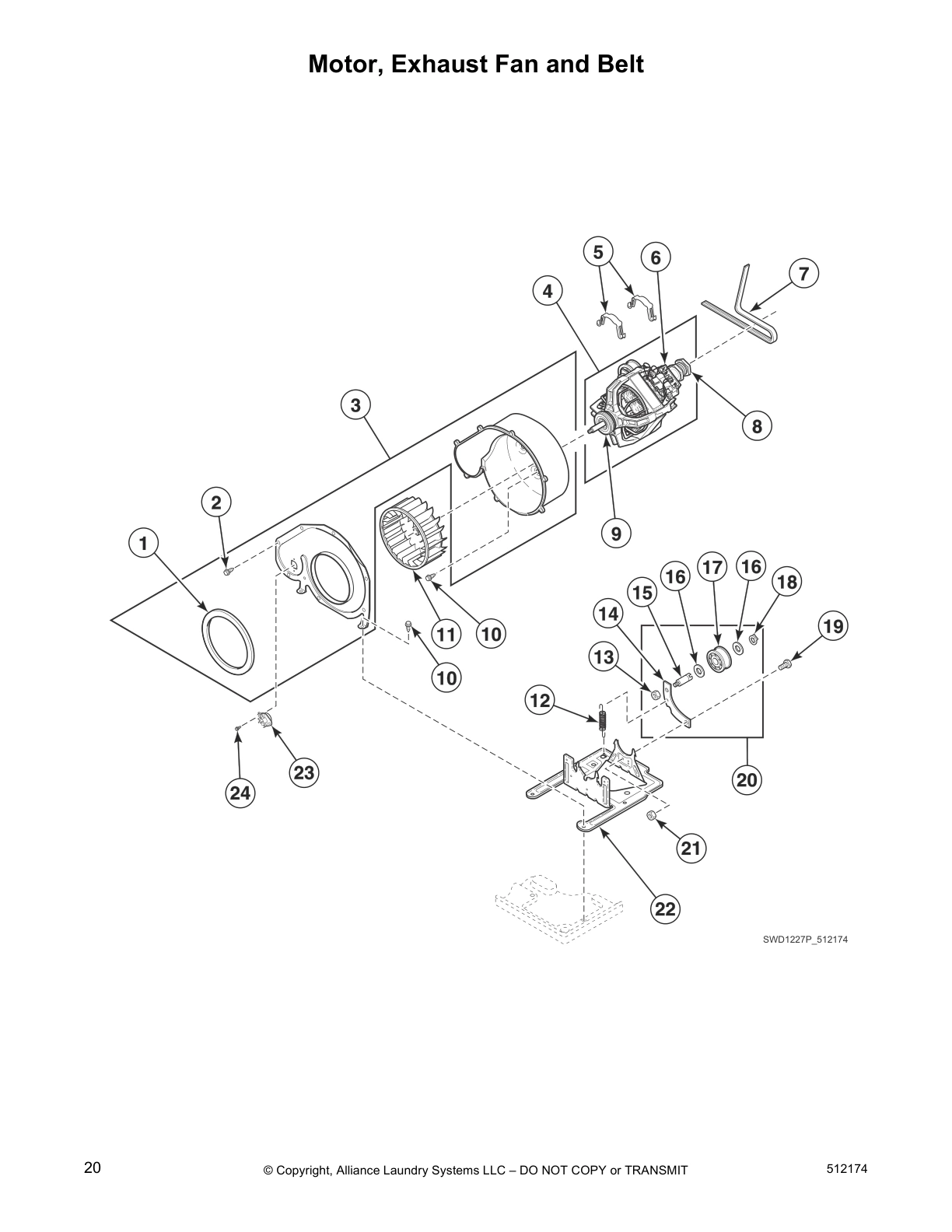

Motor, Exhaust Fan and Belt

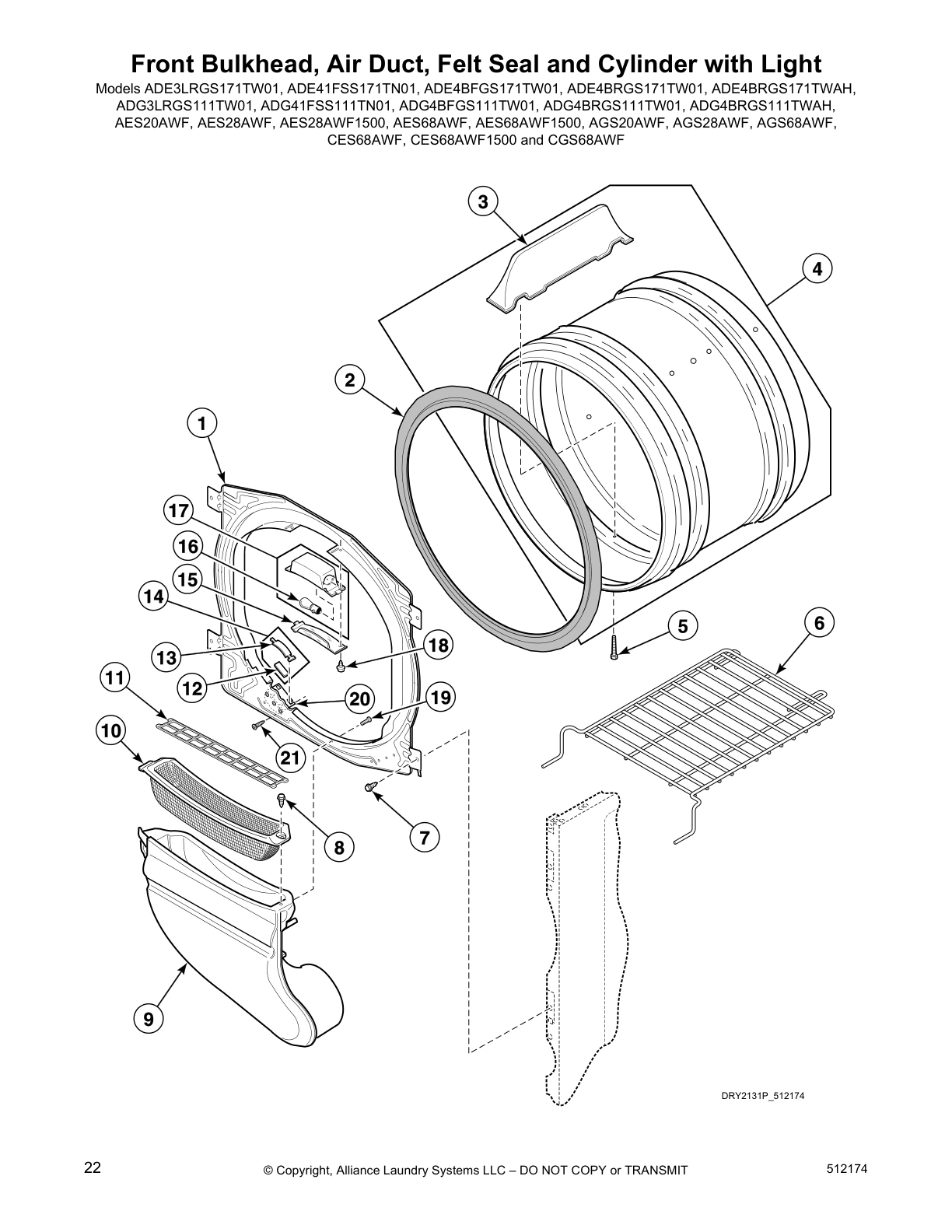

Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light
Front Bulkhead, Air Duct, Felt Seal and Cylinder without Light

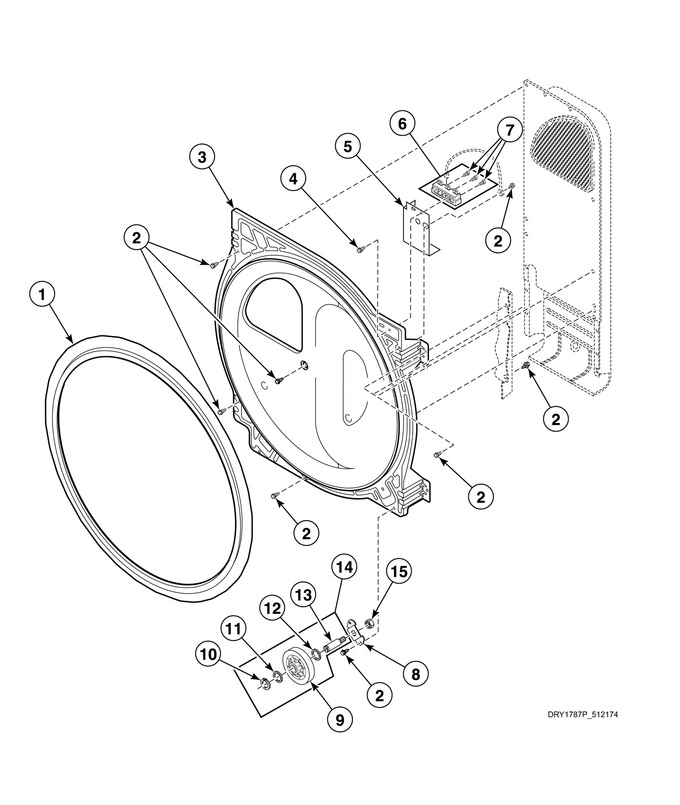

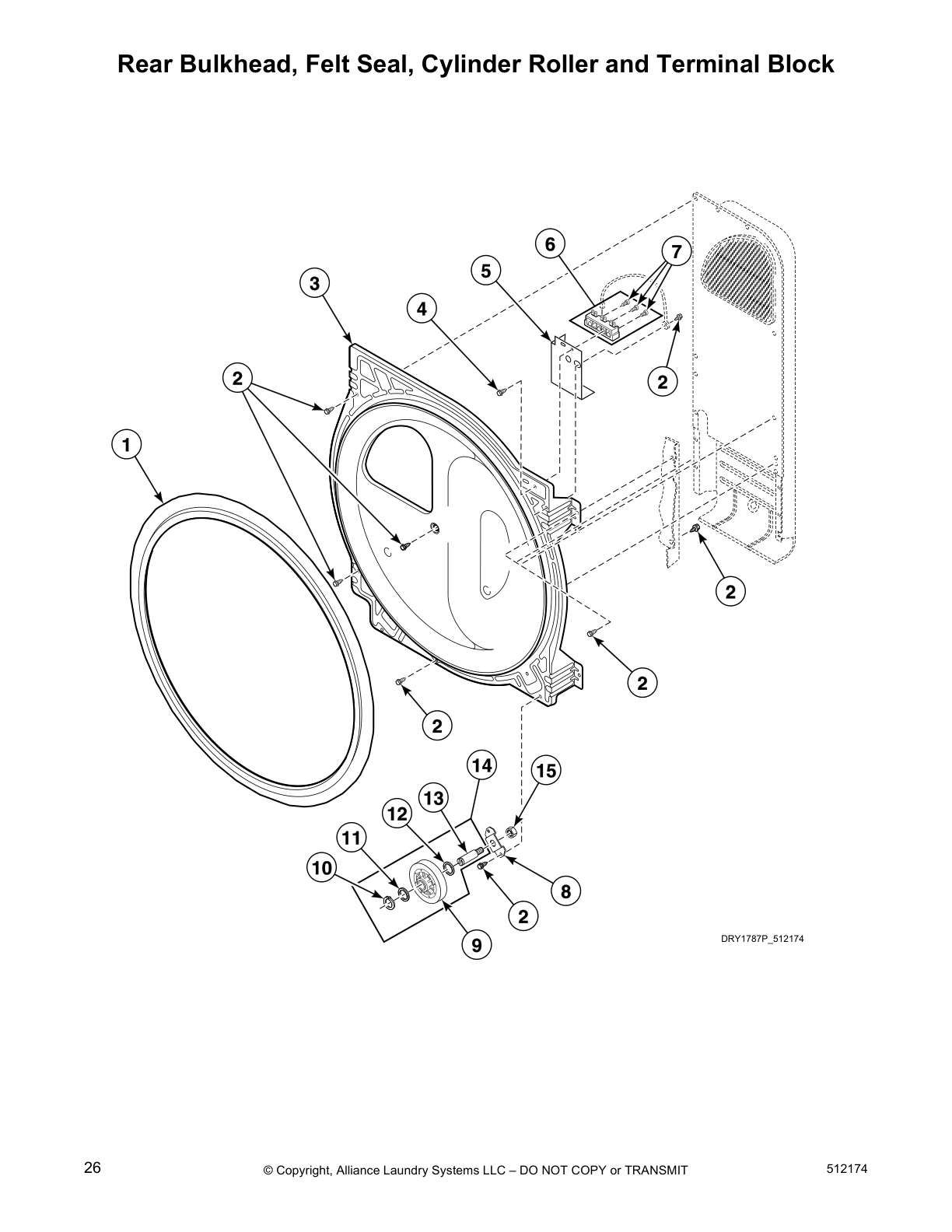

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

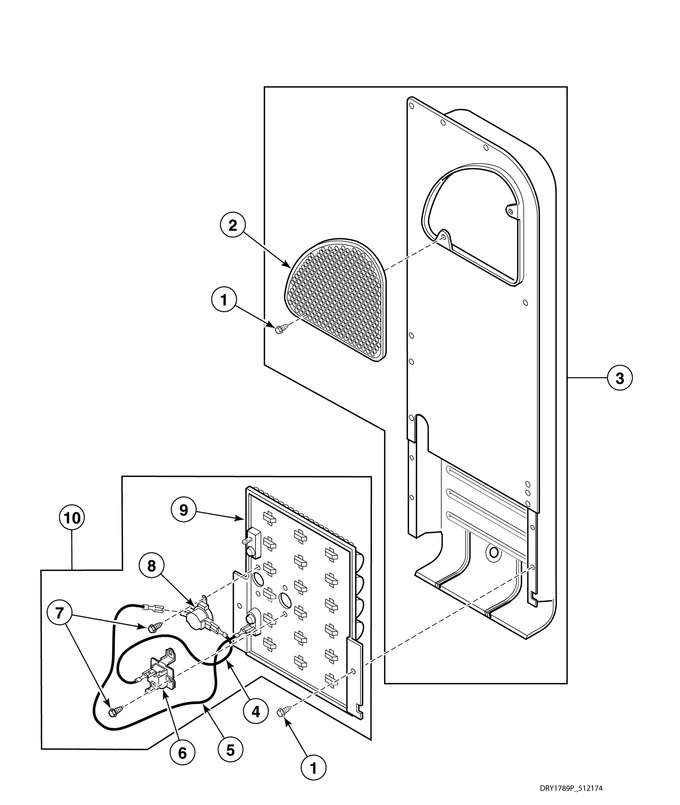

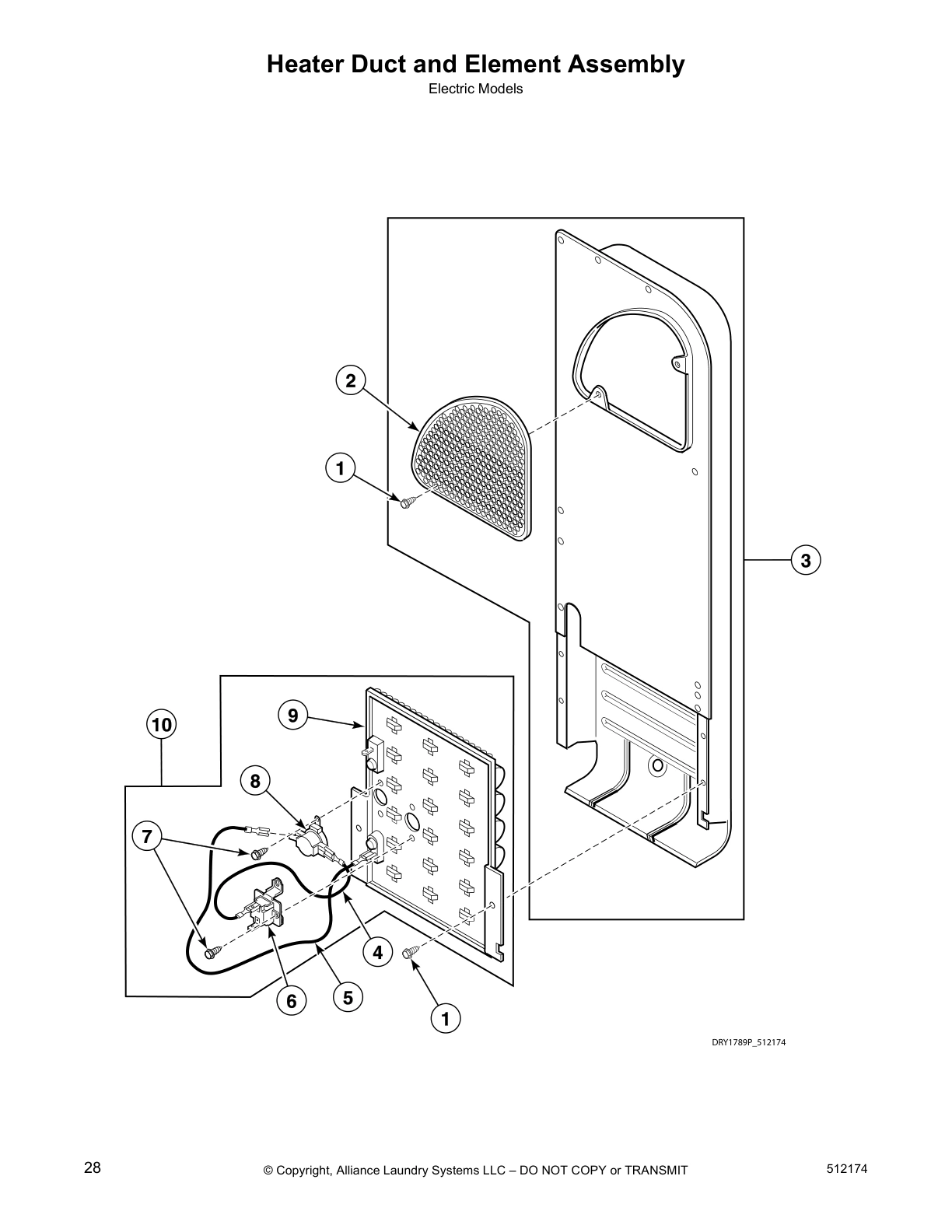

Heater Duct and Element Assembly

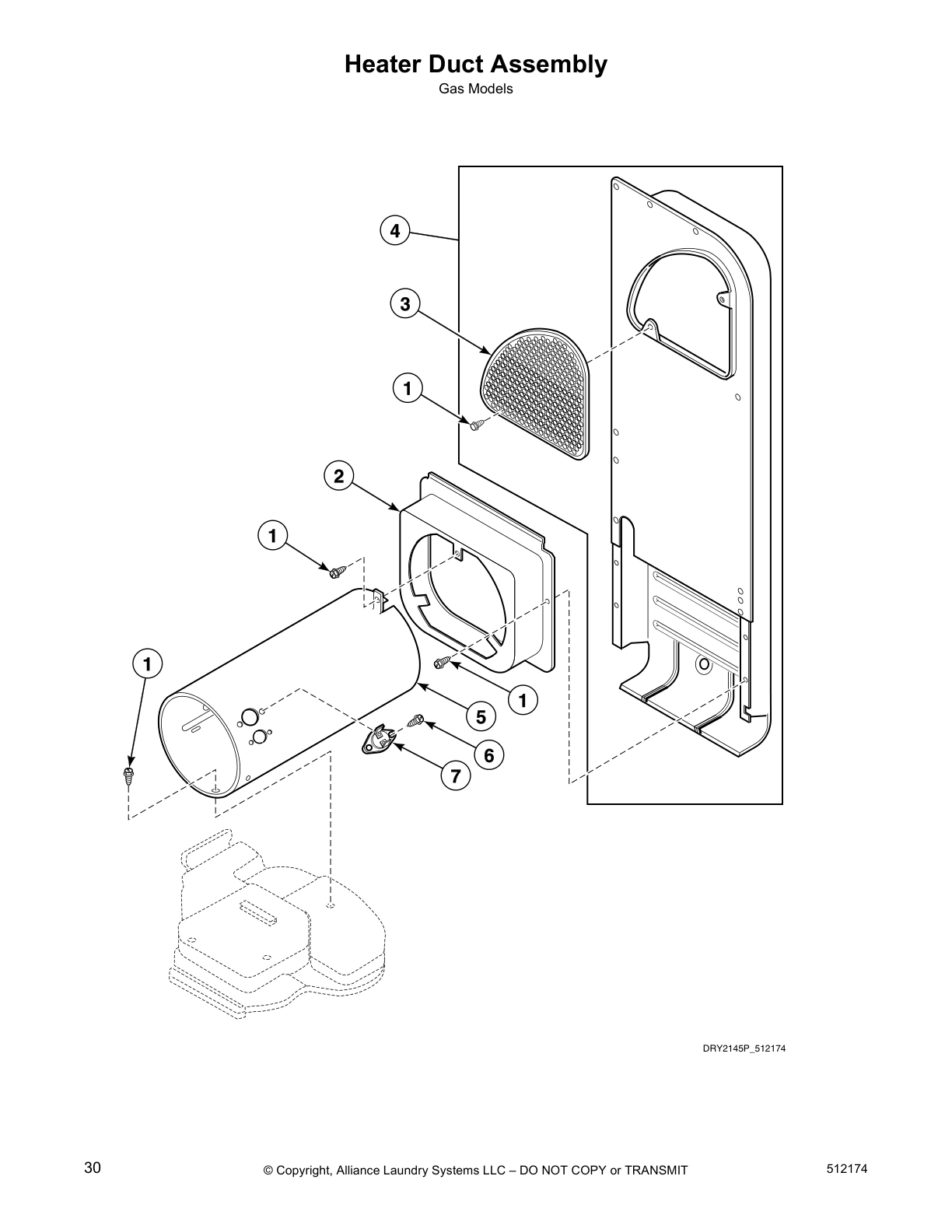

Heater Duct Assembly

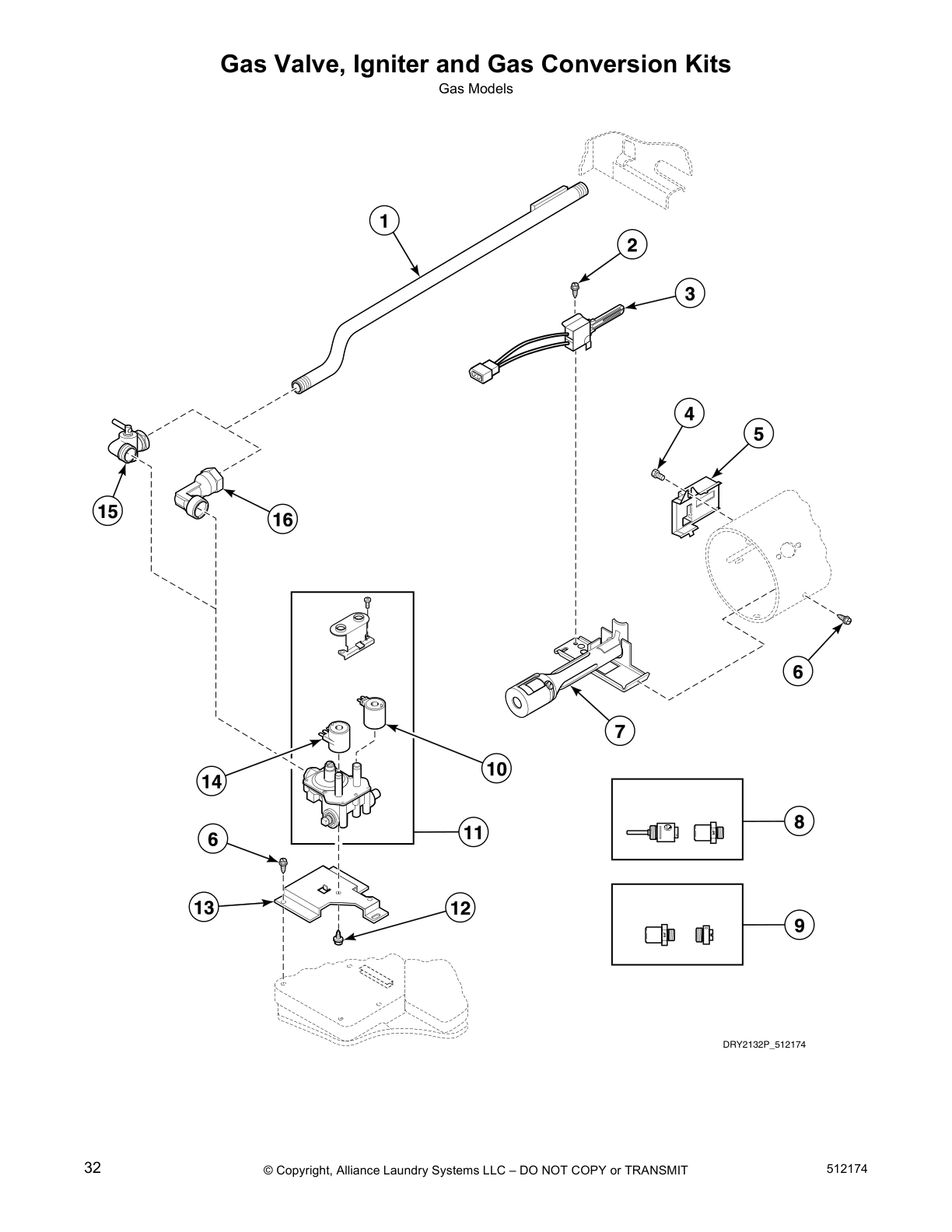

Gas Valve, Igniter and Gas Conversion Kits

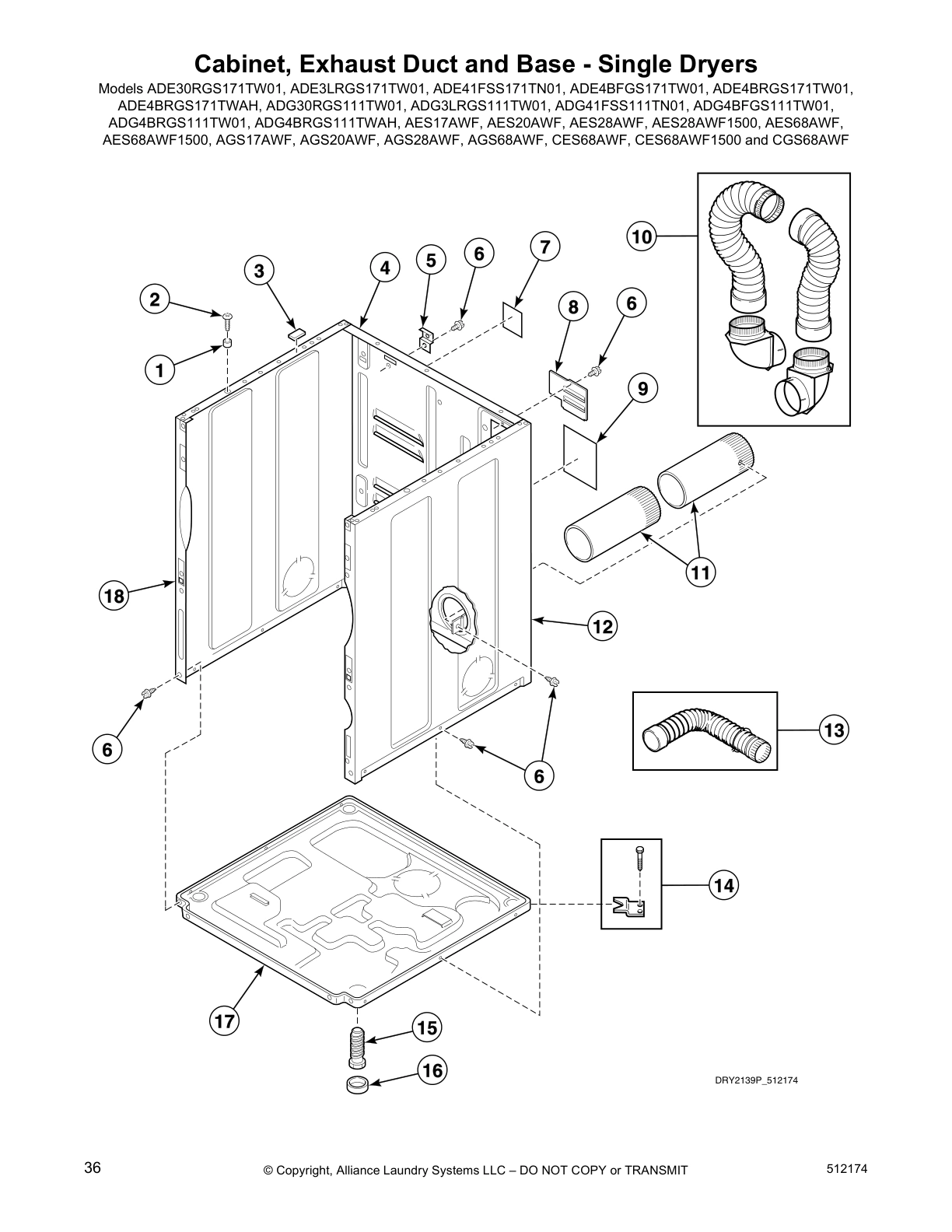

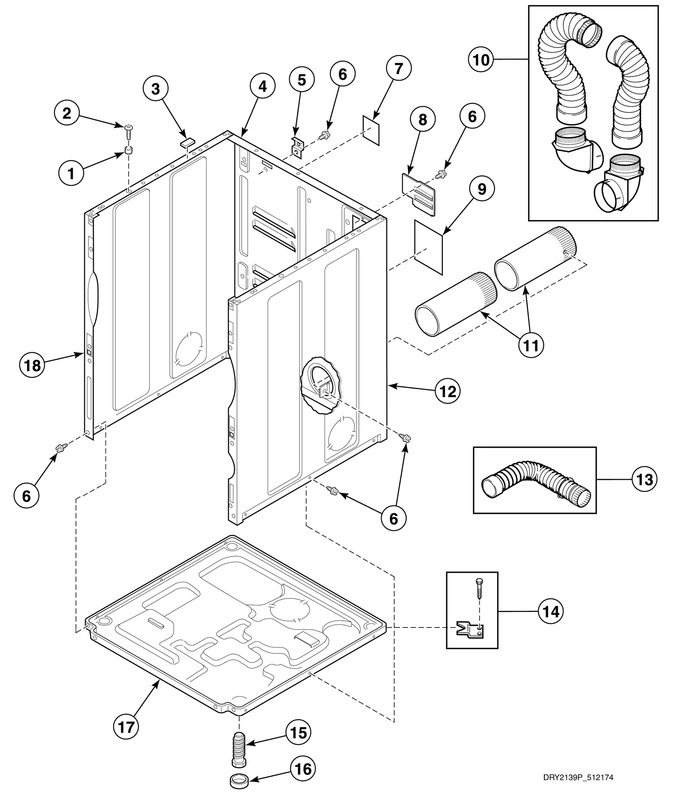

Cabinet, Exhaust Duct and Base - Single Dryers

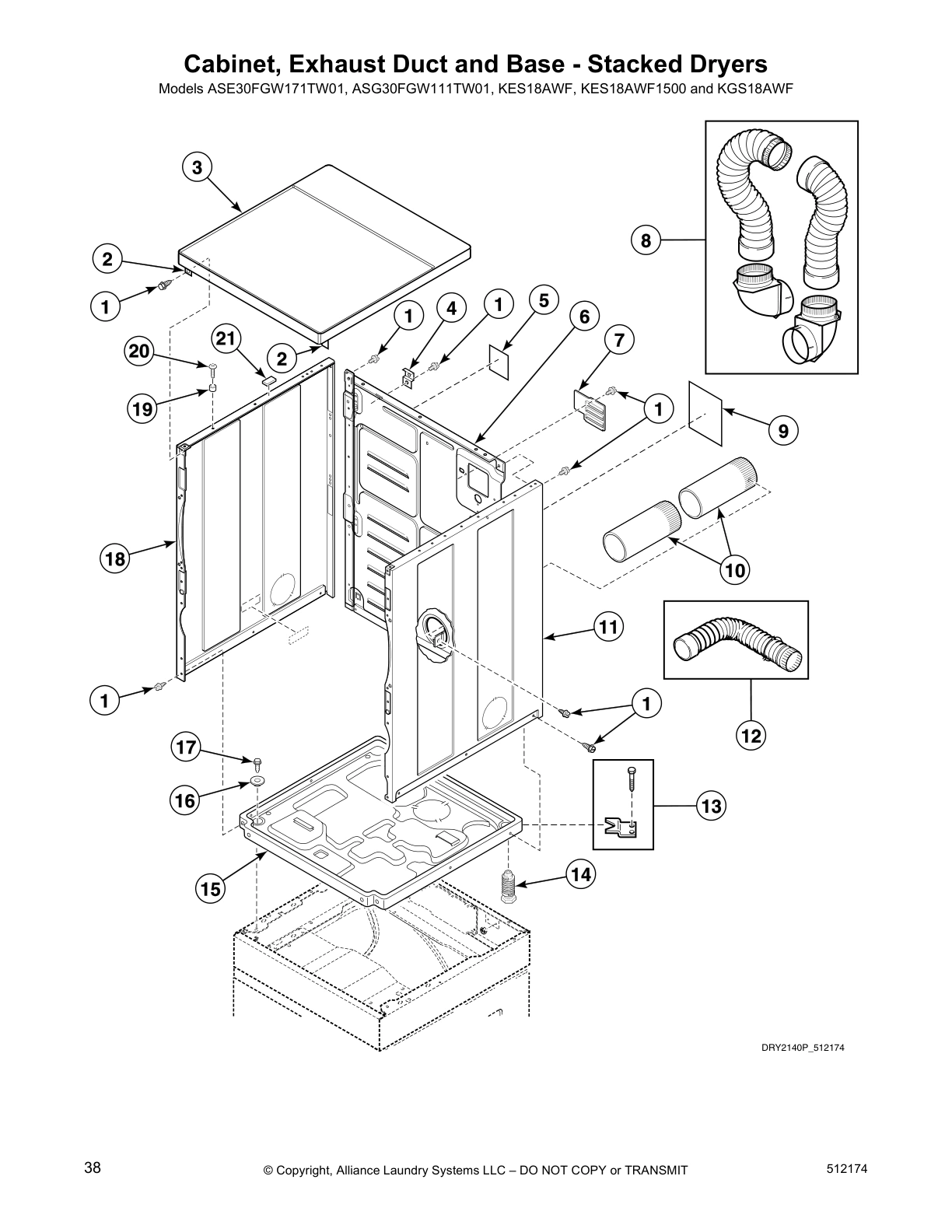

Cabinet, Exhaust Duct and Base - Stacked Dryers

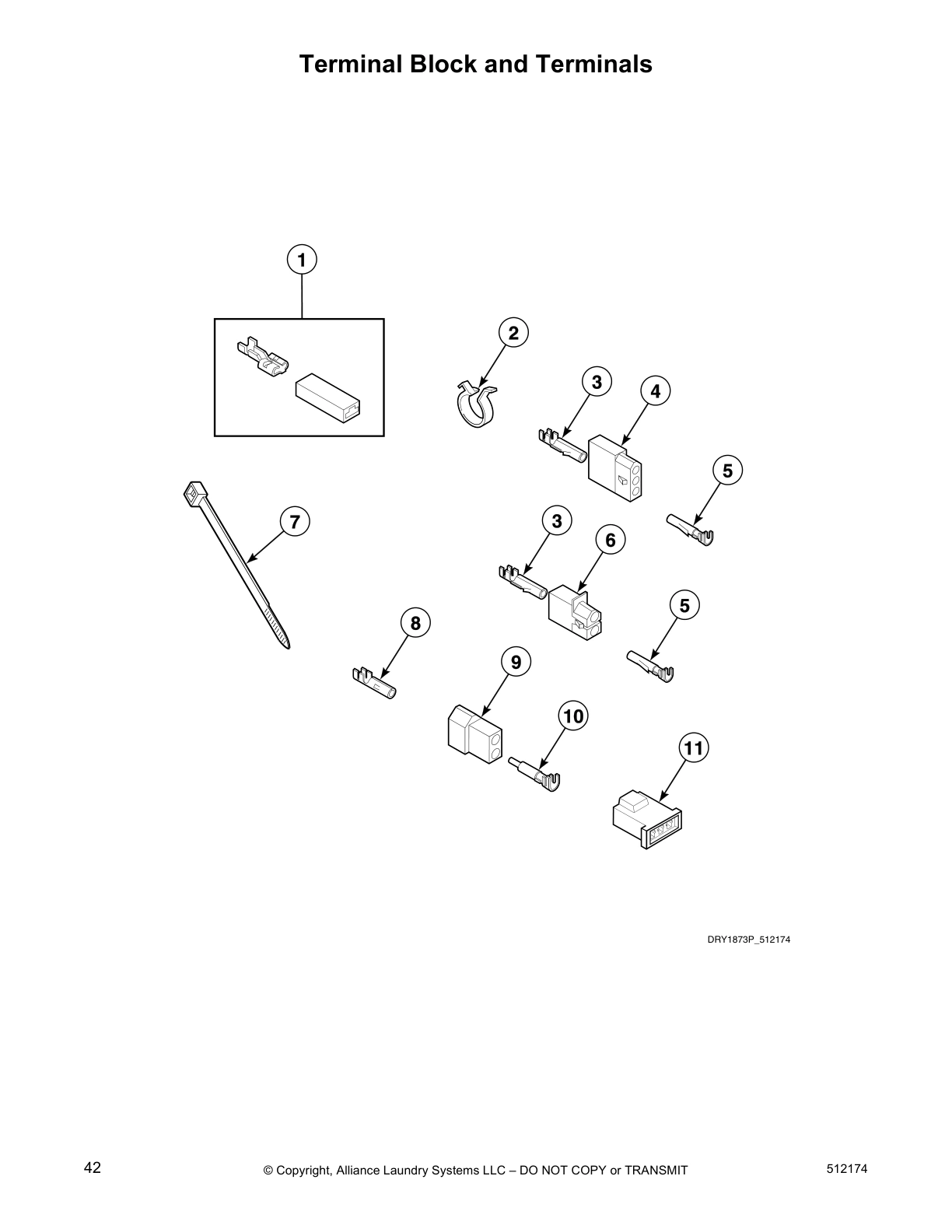

Terminal Block and Terminals

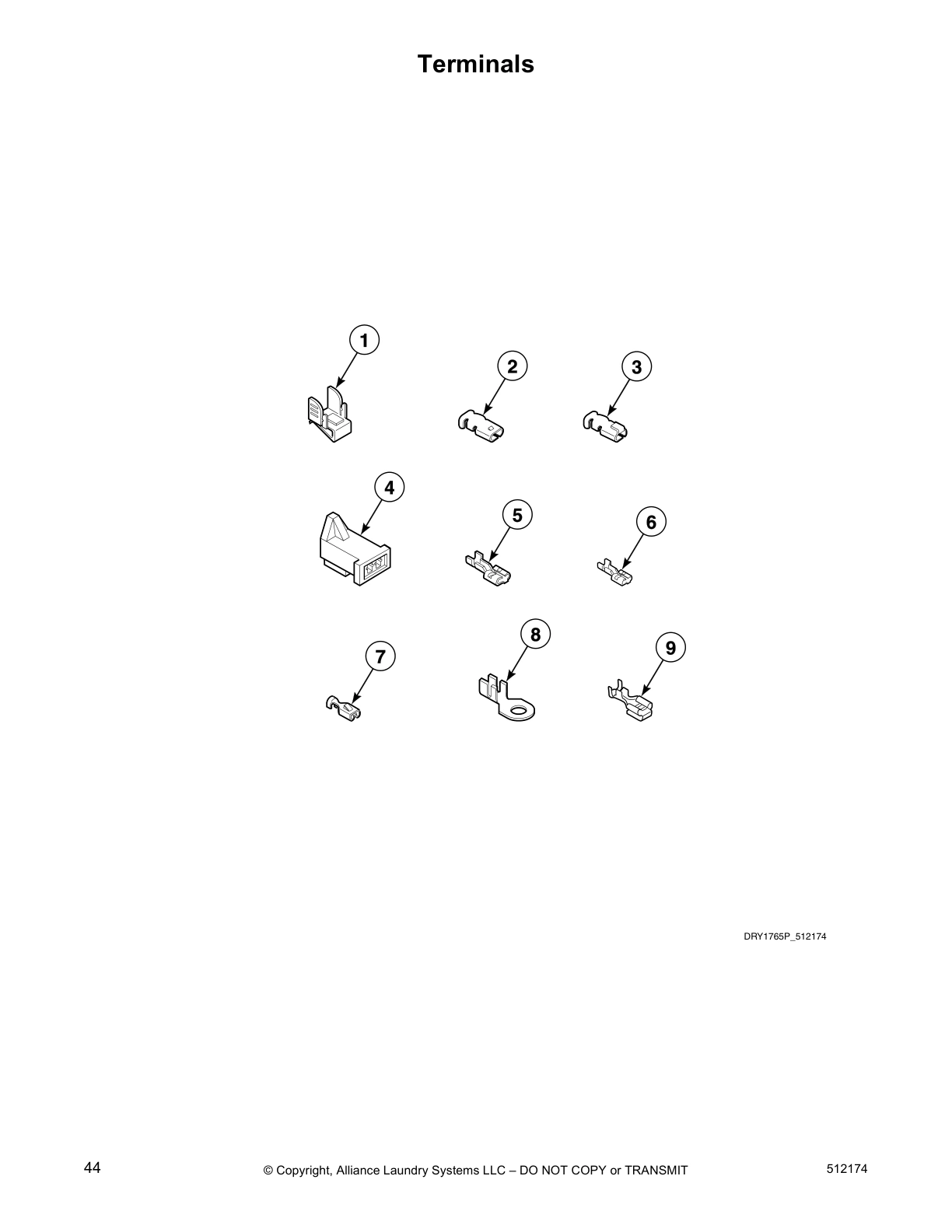

Terminals

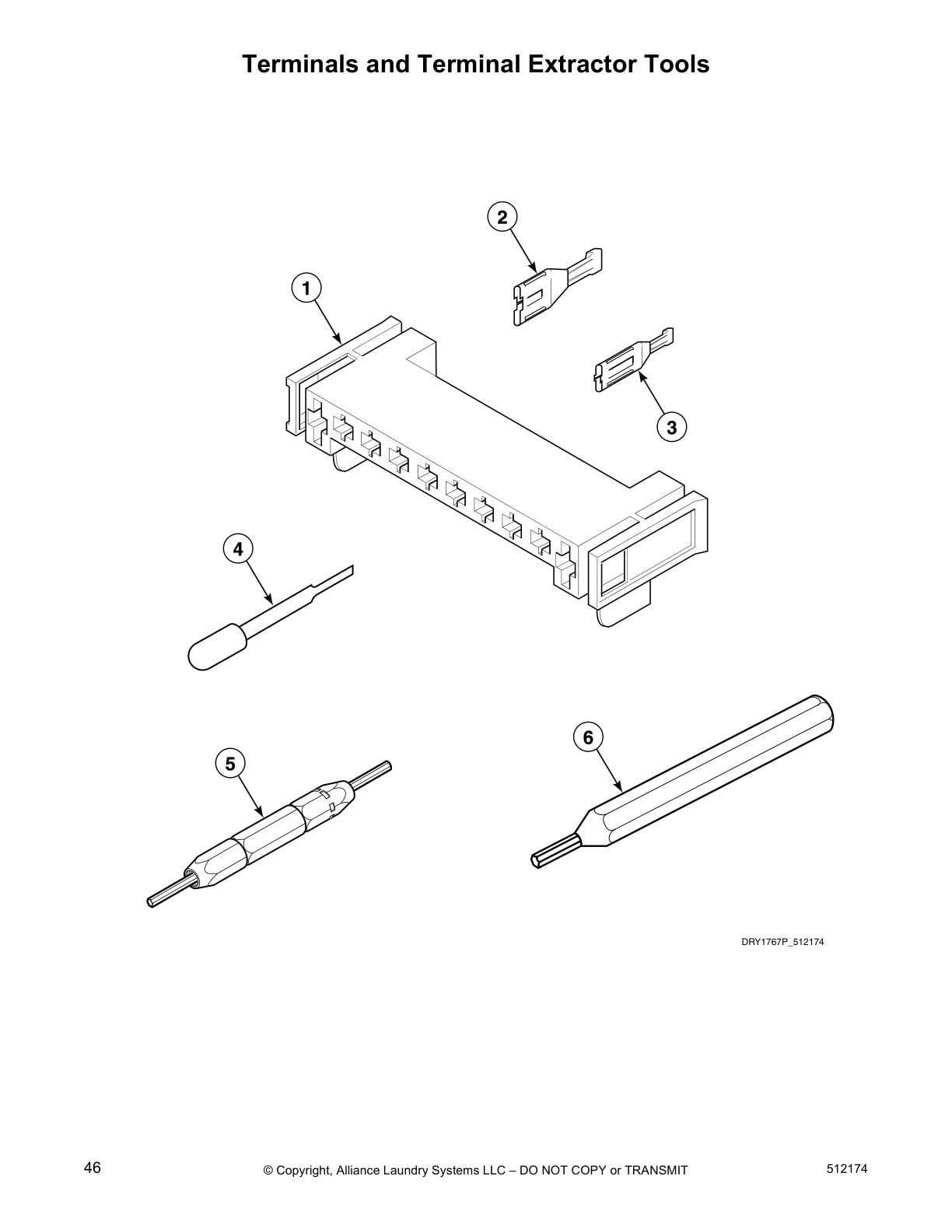

Terminals and Terminal Extractor Tools

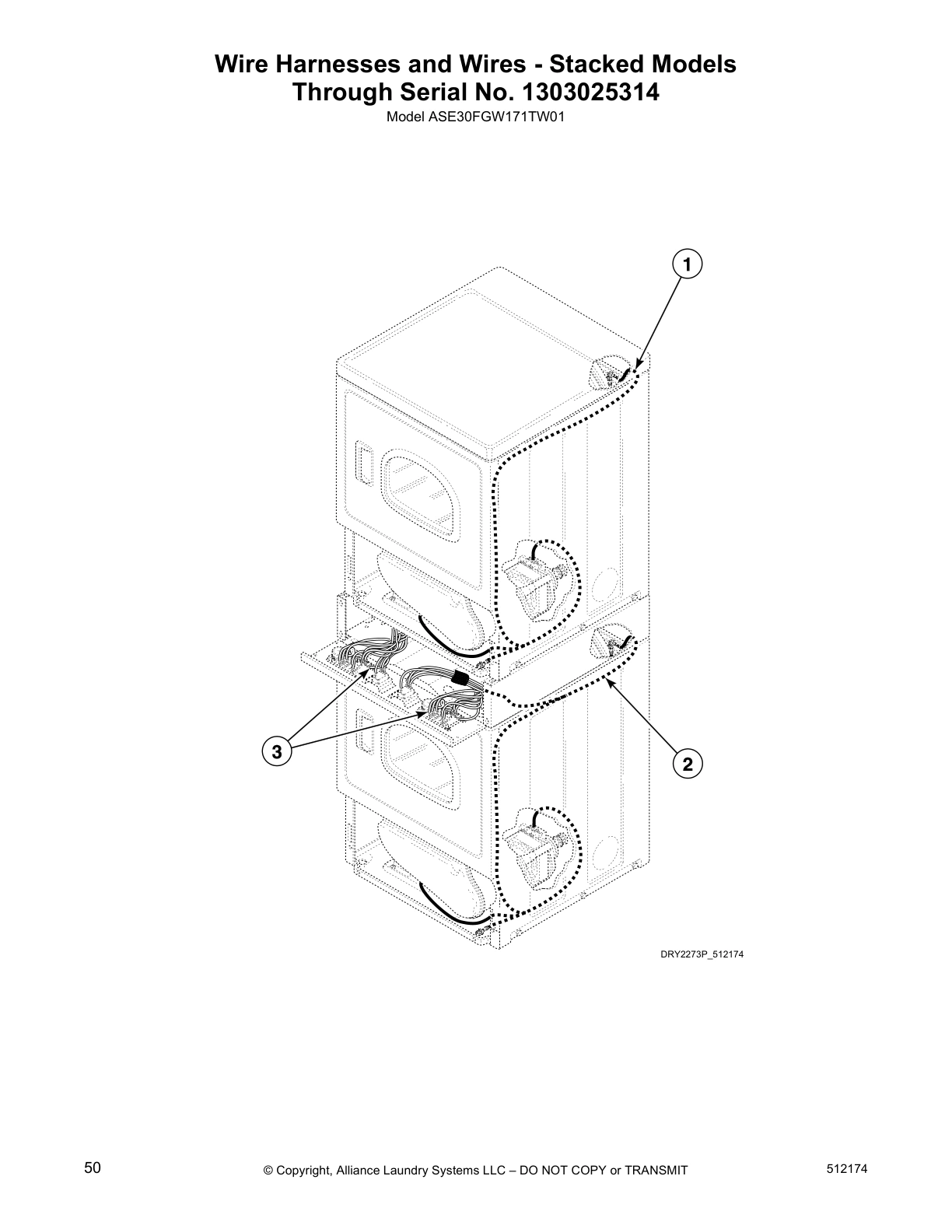

Wire Harnesses and Wires - Stacked Models
Wire Harnesses and Wires - Stacked Models
Through Serial No. 1303025314

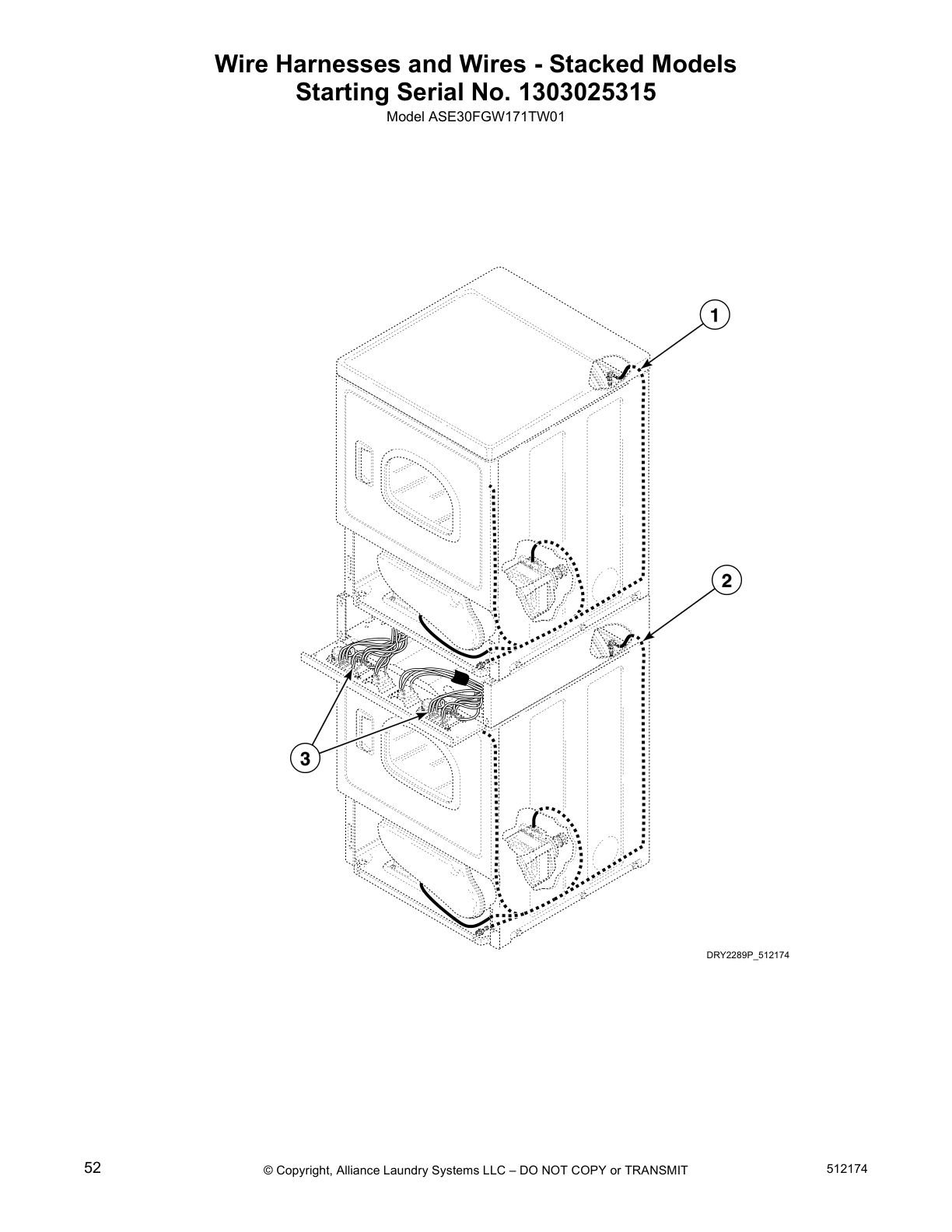

Wire Harnesses and Wires - Stacked Models
Starting Serial No. 1303025315

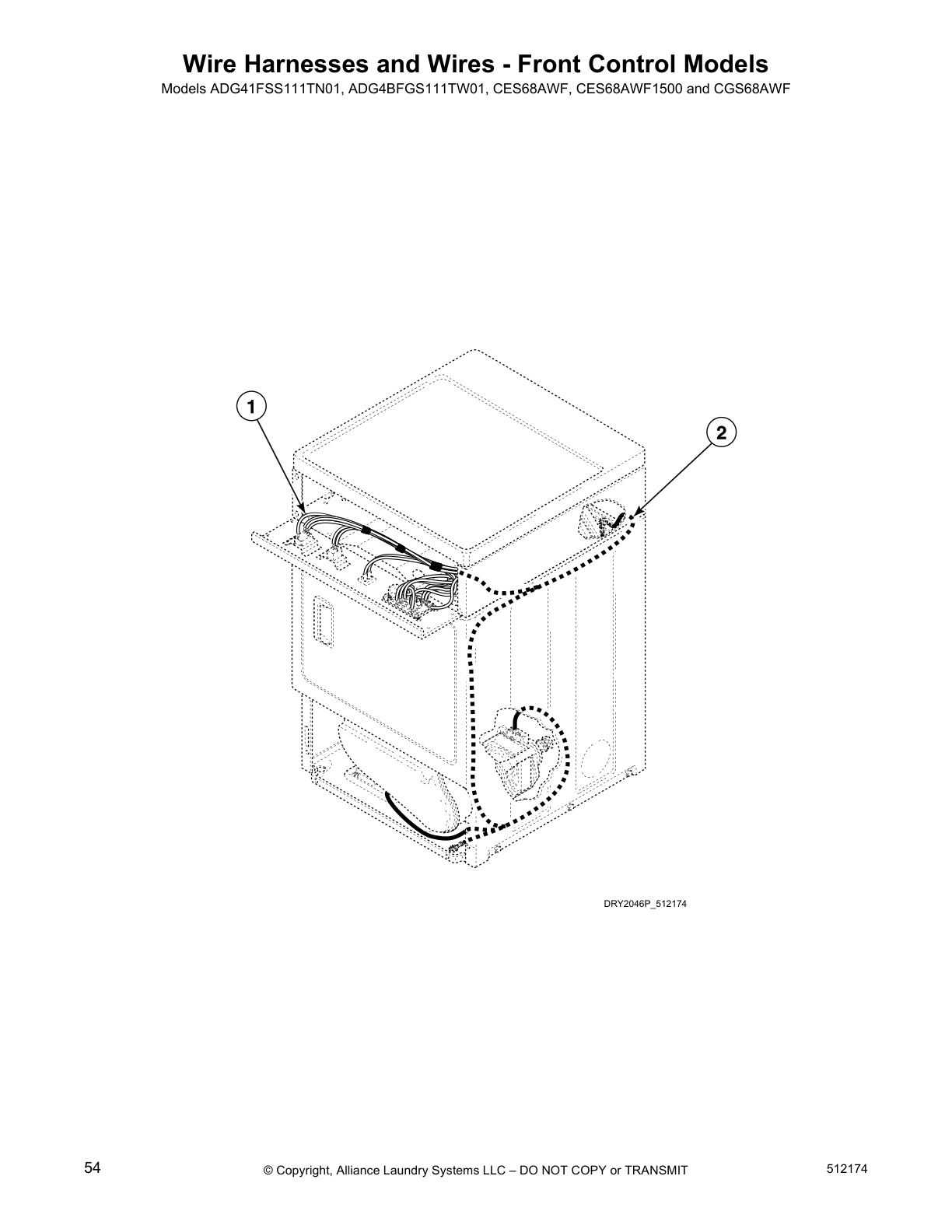

Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Front Control Models

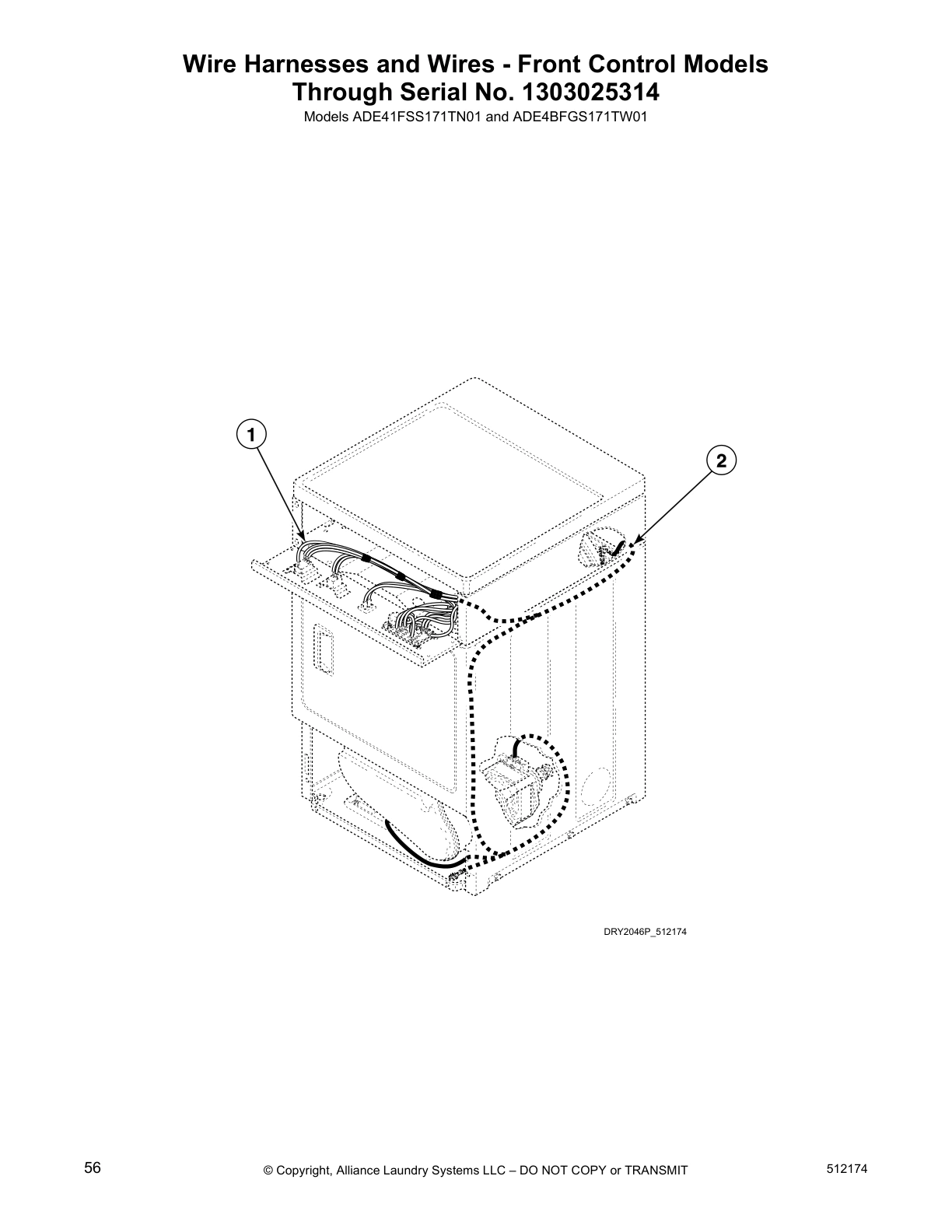

Through Serial No. 1303025314

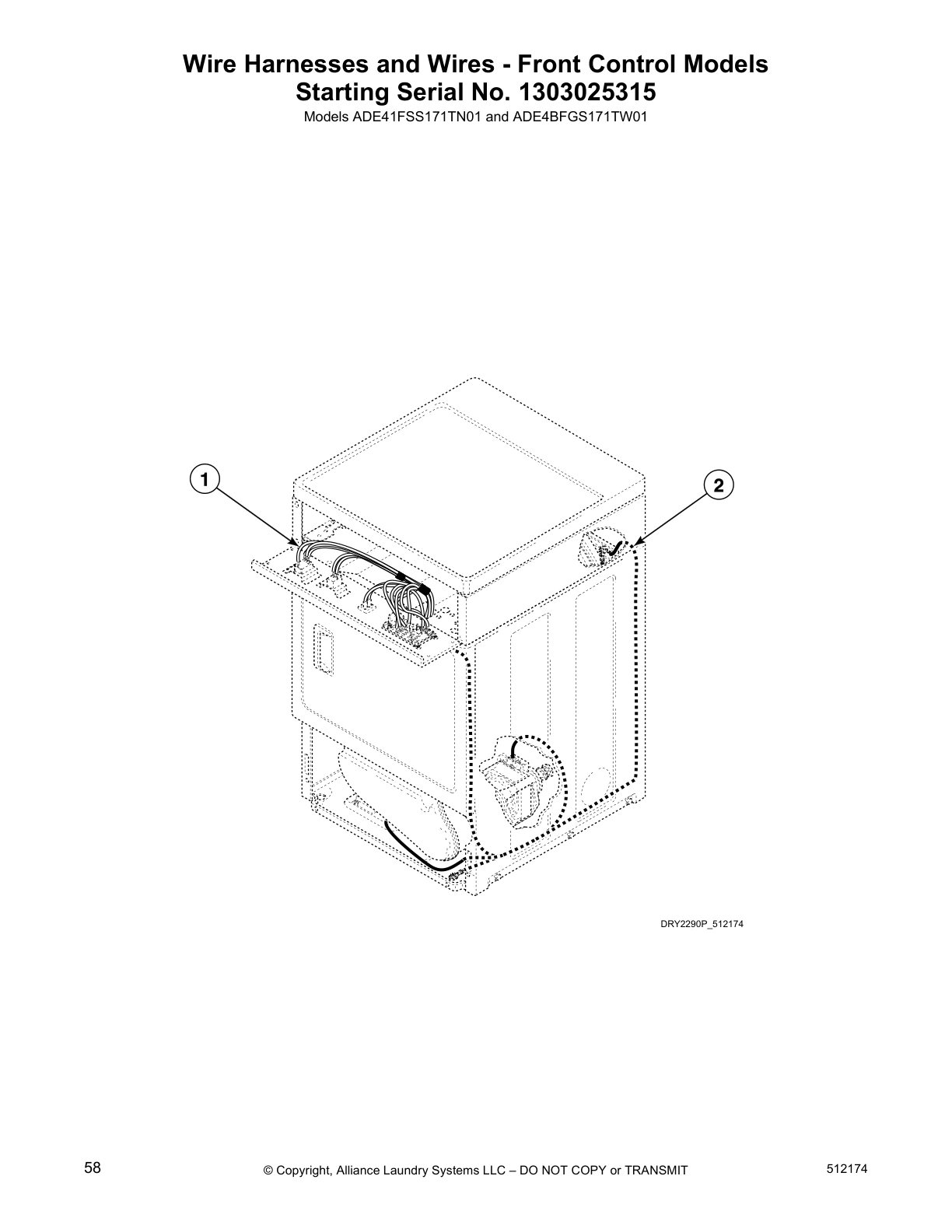

Wire Harnesses and Wires - Front Control Models
Starting Serial No. 1303025315

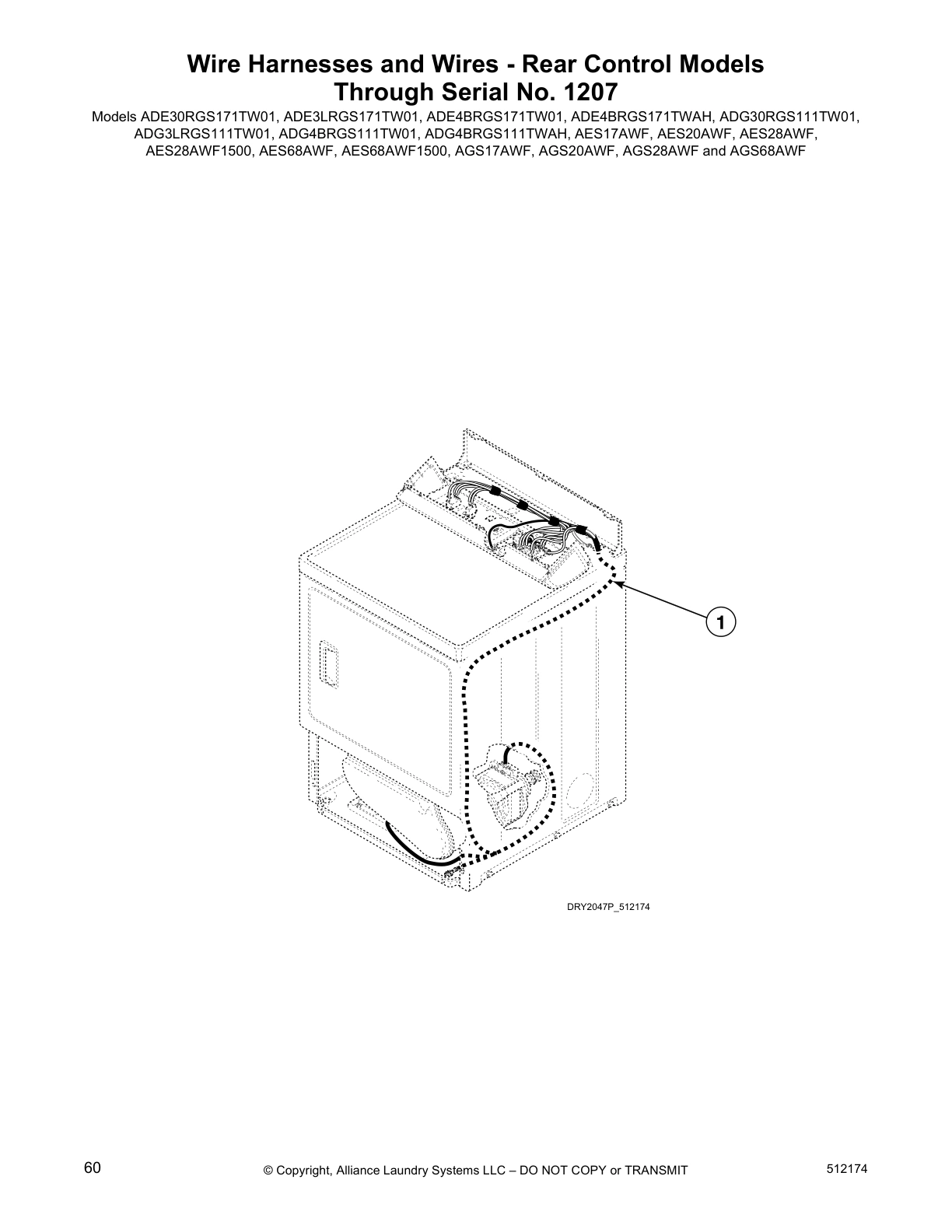

Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207

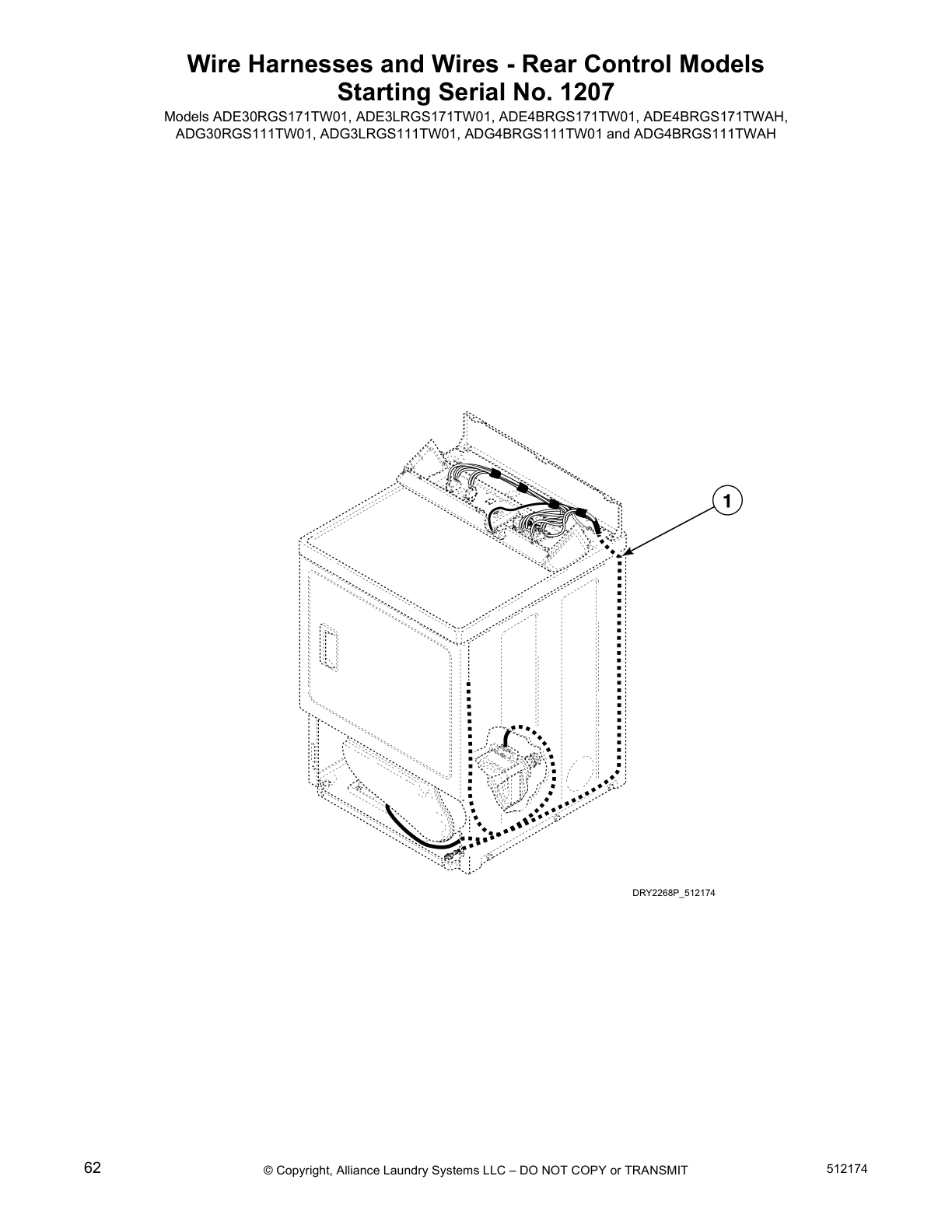

Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207
Motor, Exhaust Fan And Belt
Heater Duct And Element Assembly (electric Models)
Motor, Exhaust Fan And Belt
Loading Door - Without Window (drawing 2 Of 2)

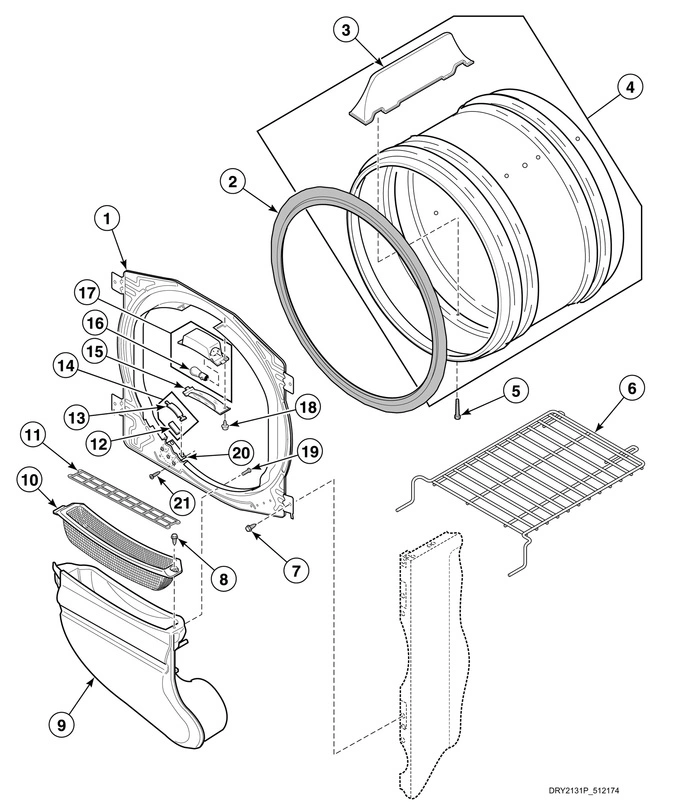

Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Motor, Exhaust Fan And Belt
Control Panel And Controls - Rear Control
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Heater Duct And Element Assembly (electric Models)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Control Panel And Controls - Rear Control
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Terminal Block And Terminals
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Loading Door - Without Window (drawing 2 Of 2)
Control Panel And Controls - Rear Control
Motor, Exhaust Fan And Belt
Access Panel, Front Panel And Seal
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base - Single Dryers
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Loading Door - Without Window (drawing 2 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Loading Door - Without Window (drawing 2 Of 2)
Access Panel, Front Panel And Seal
Loading Door - Without Window (drawing 2 Of 2)
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Motor, Exhaust Fan And Belt
Heater Duct And Element Assembly (electric Models)
Wire Harnesses And Wires - Rear Control Models Through serial no. 1207
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Heater Duct And Element Assembly (electric Models)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Cabinet, Exhaust Duct And Base - Single Dryers
Loading Door - Without Window (drawing 2 Of 2)
Access Panel, Front Panel And Seal
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Control Panel And Controls - Rear Control
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Control Panel And Controls - Rear Control
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Cabinet, Exhaust Duct And Base - Single Dryers
Heater Duct And Element Assembly (electric Models)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Heater Duct And Element Assembly (electric Models)
Motor, Exhaust Fan And Belt
Common parts from model Speed Queen AES28AWF1500 Dryer
1
Front Bulkhead Assembly SPQ 512476 Contact Us For Availability
1
Wire Harness Assembly SPQ 510444 Contact Us For Availability
1
ASSY WIRING HARNESS NS SPQ D510444 Contact Us For Availability
4
Wire Assembly SPQ 510540 Contact Us For Availability
5
Wire Assembly SPQ 510528 Contact Us For Availability
6
Front Panel SPQ 510066WP Contact Us For Availability
6
Wire Assembly SPQ 510527 Contact Us For Availability
7
Timer and Harness Kit SPQ 505797P Contact Us For Availability
8
Door Handle Wedge SPQ 510129 Contact Us For Availability
14
Idler Lever SPQ 510133 Contact Us For Availability
22
Motor and Pulley Assembly SPQ 510060 Contact Us For Availability
× ![]()
