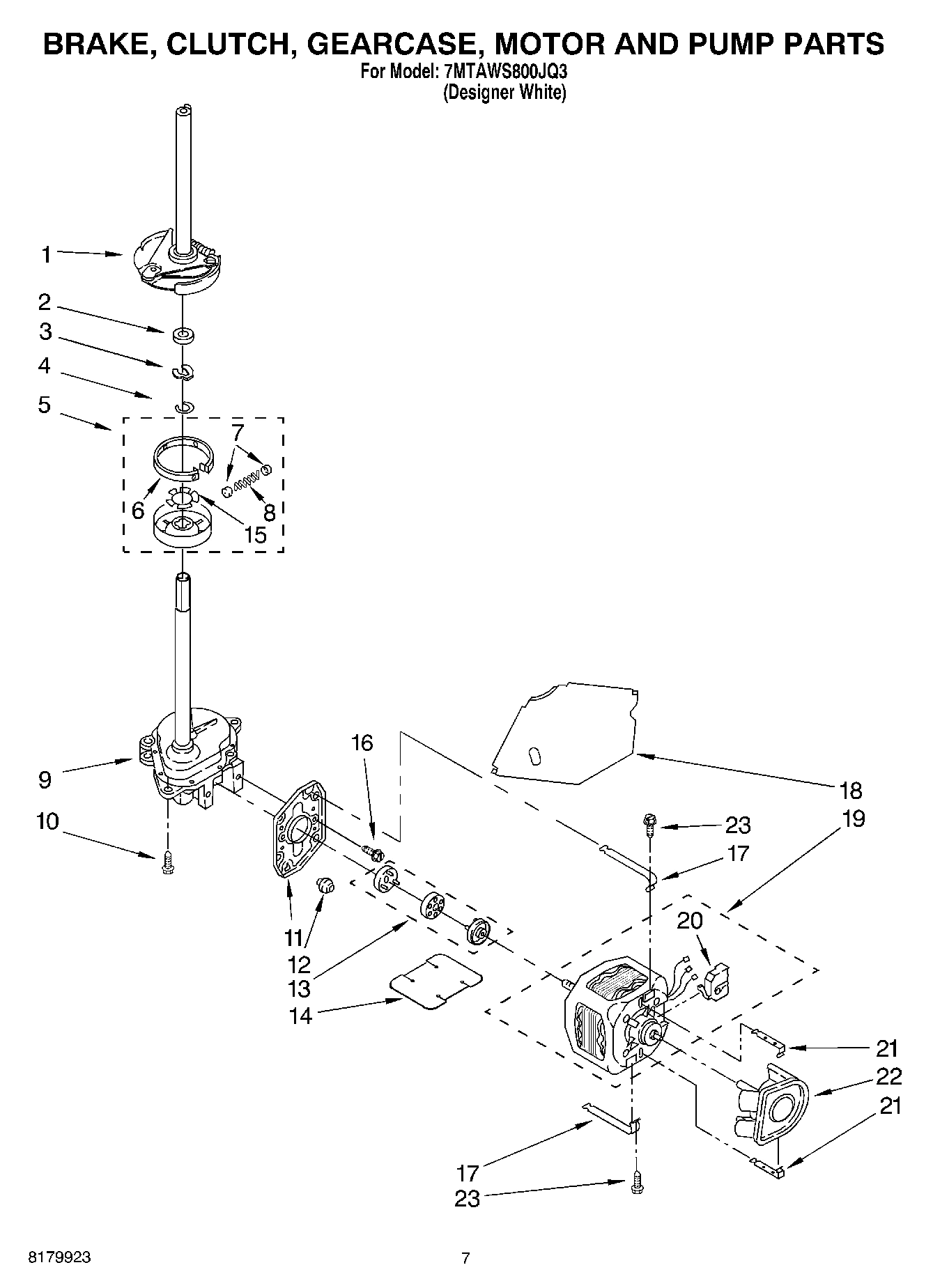

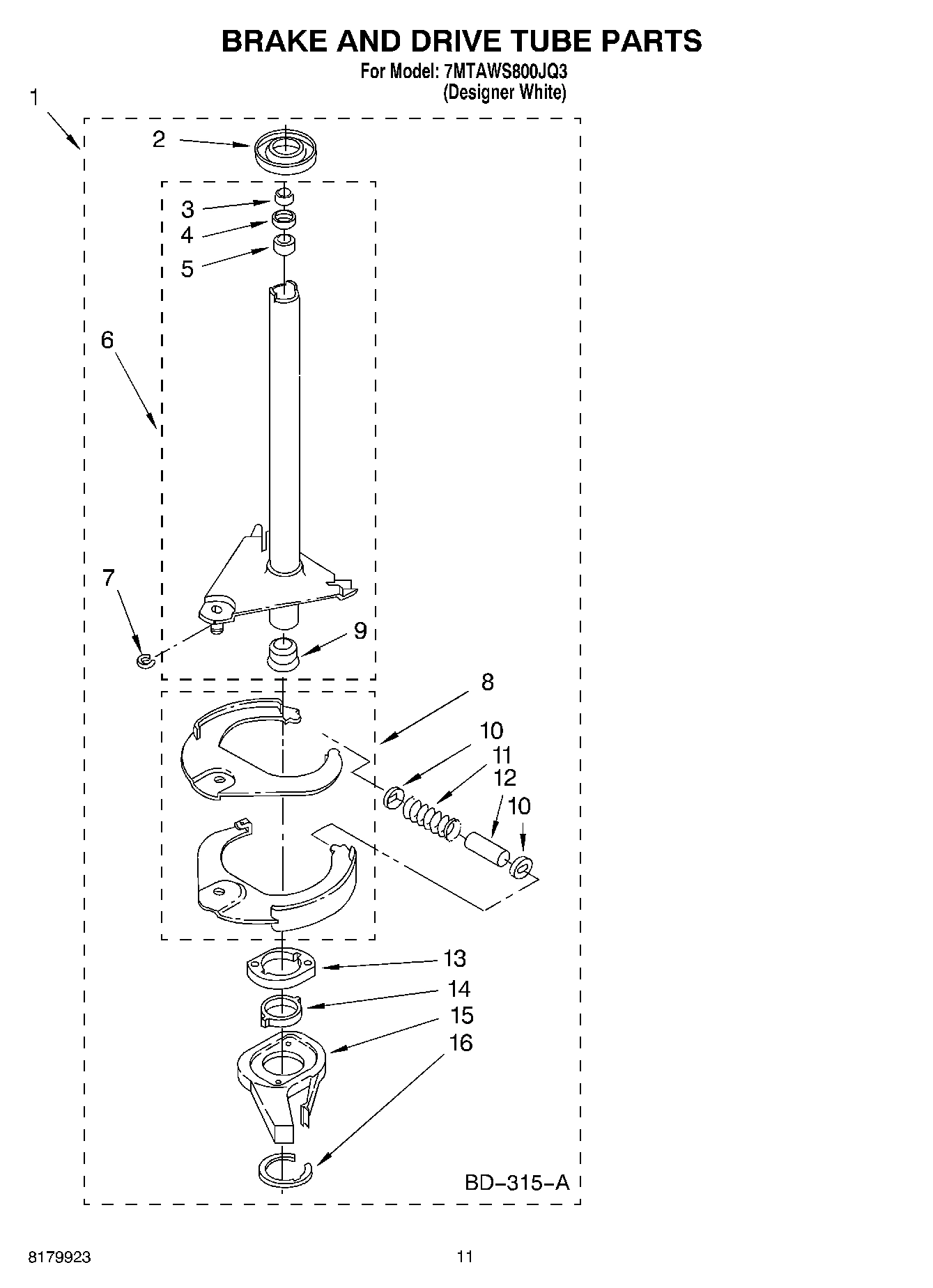

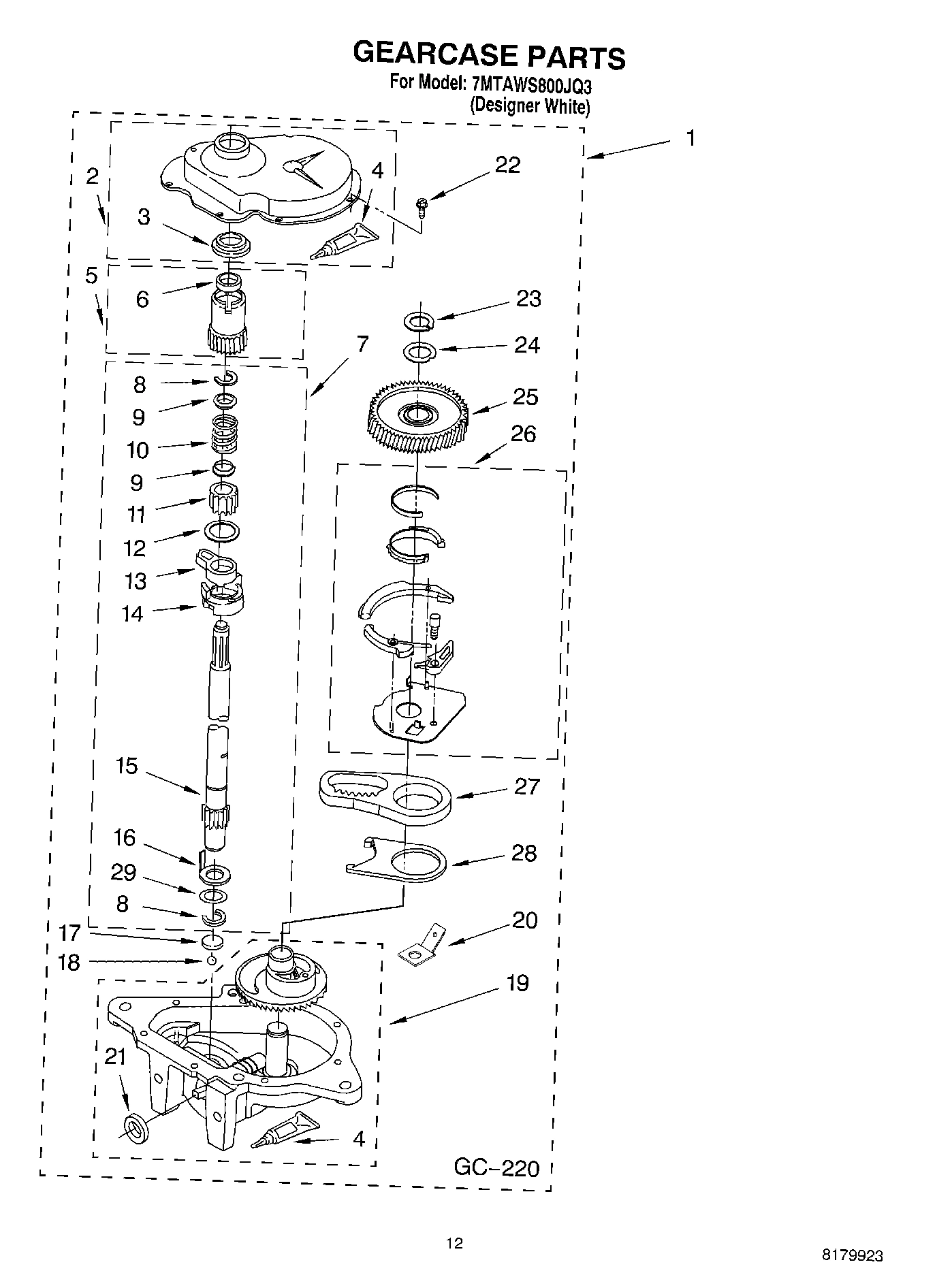

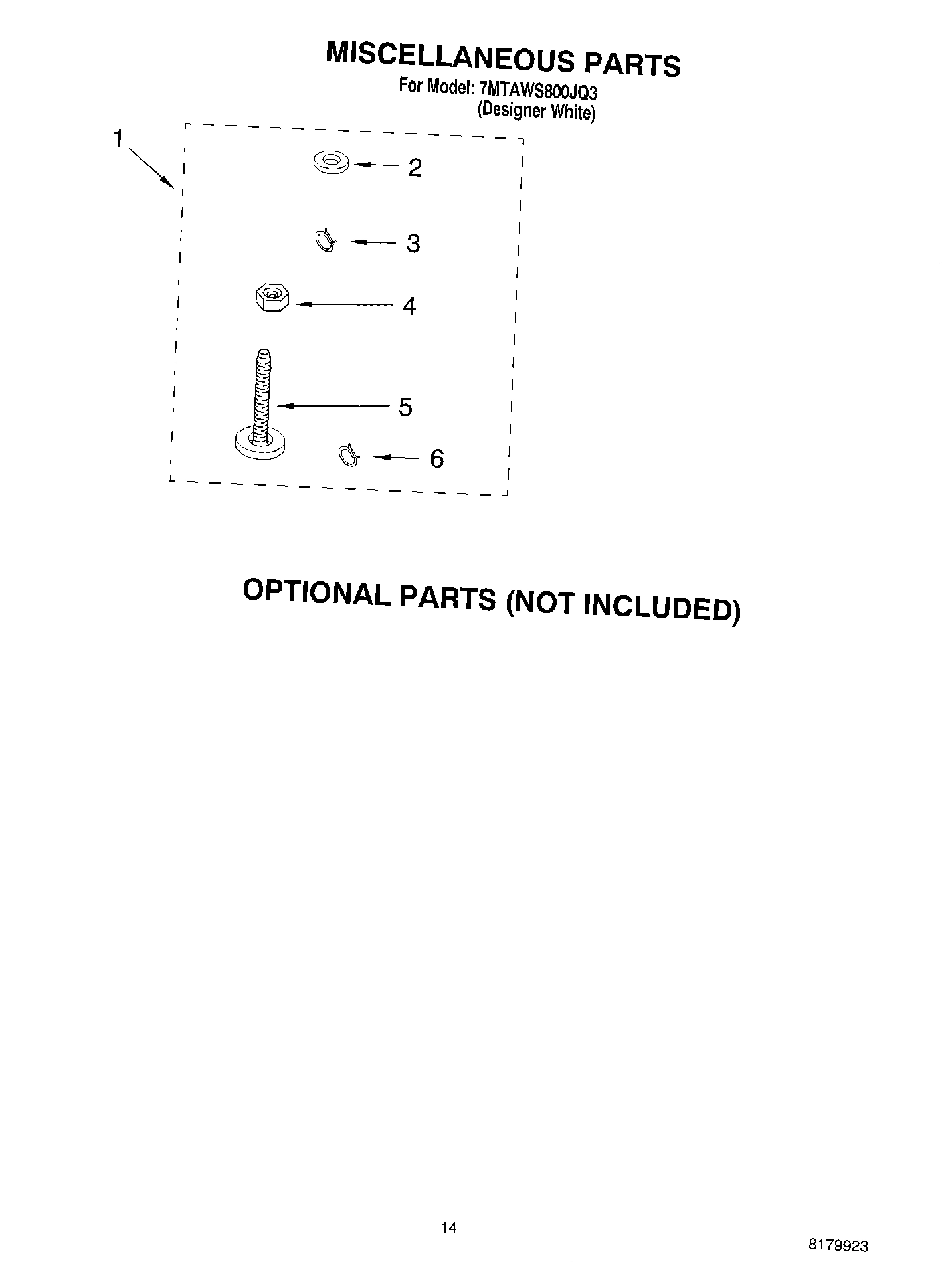

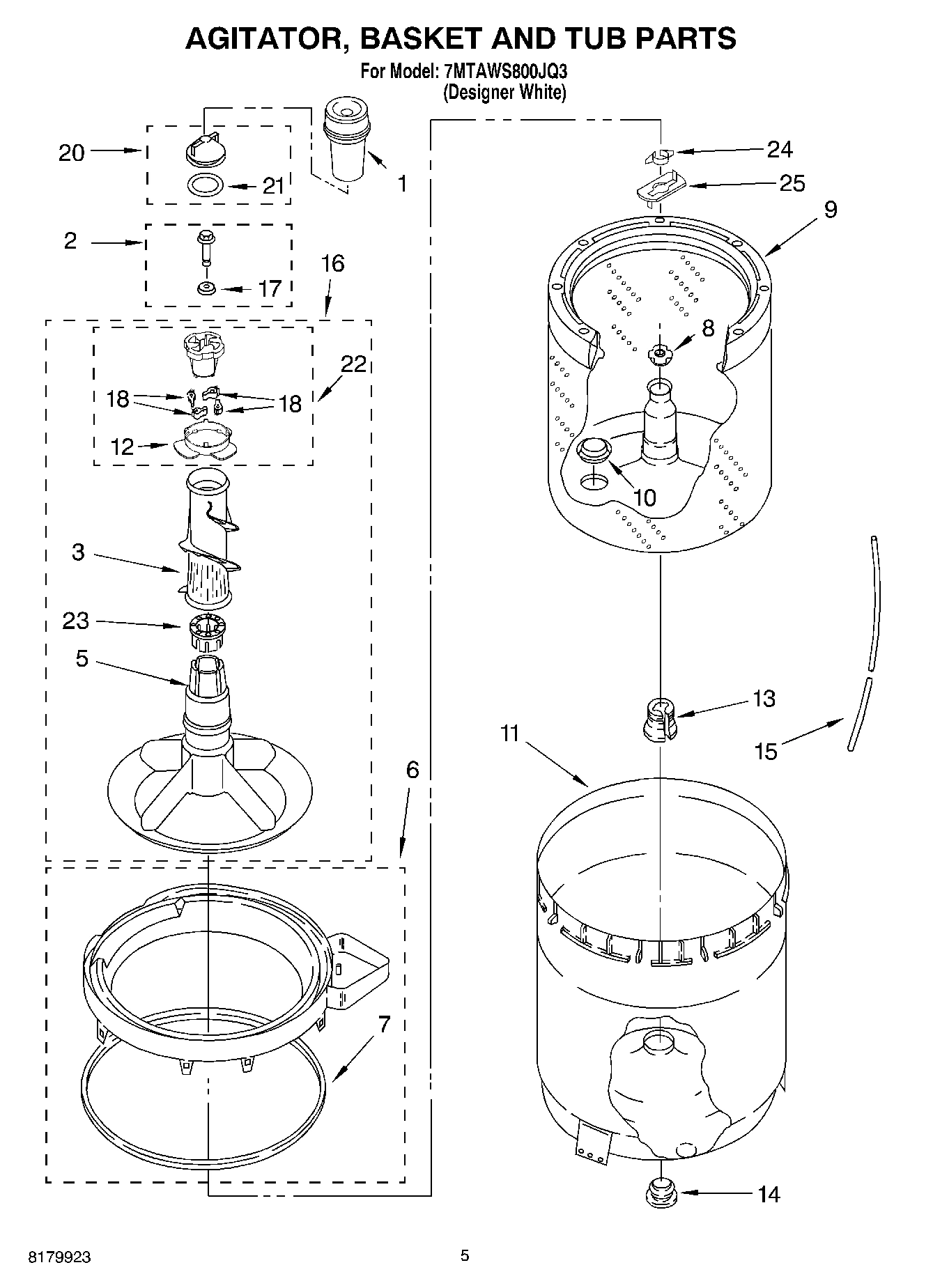

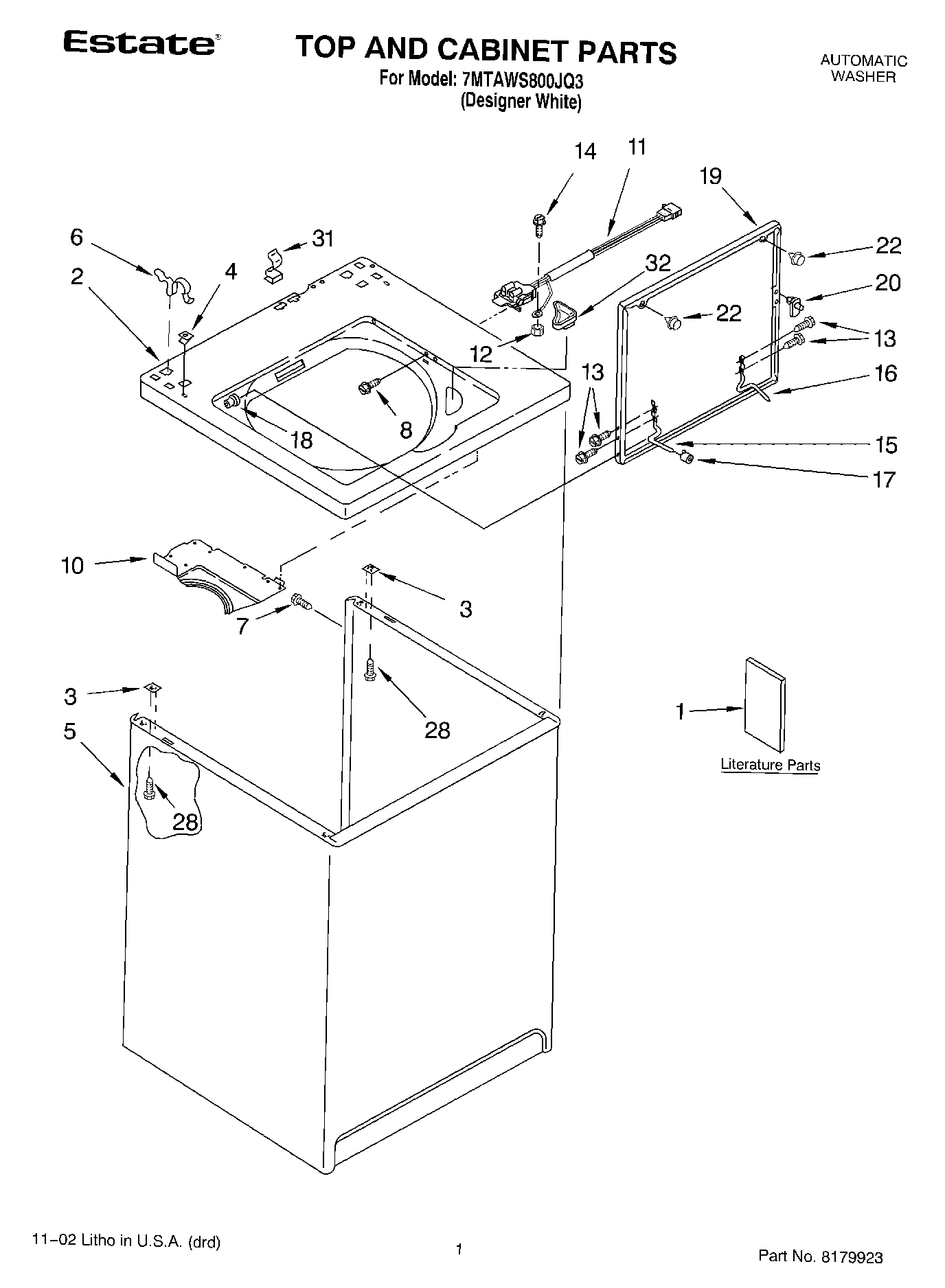

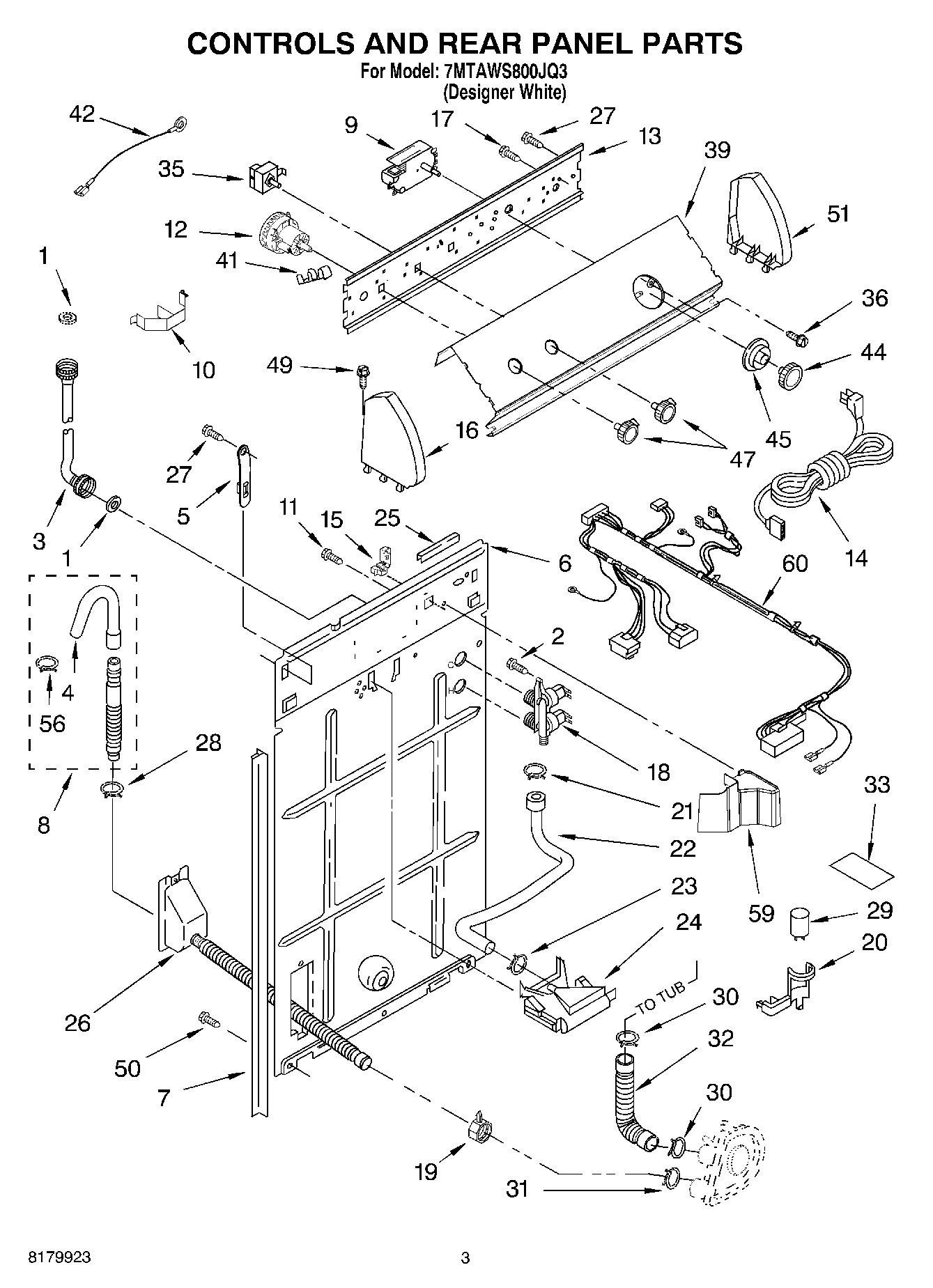

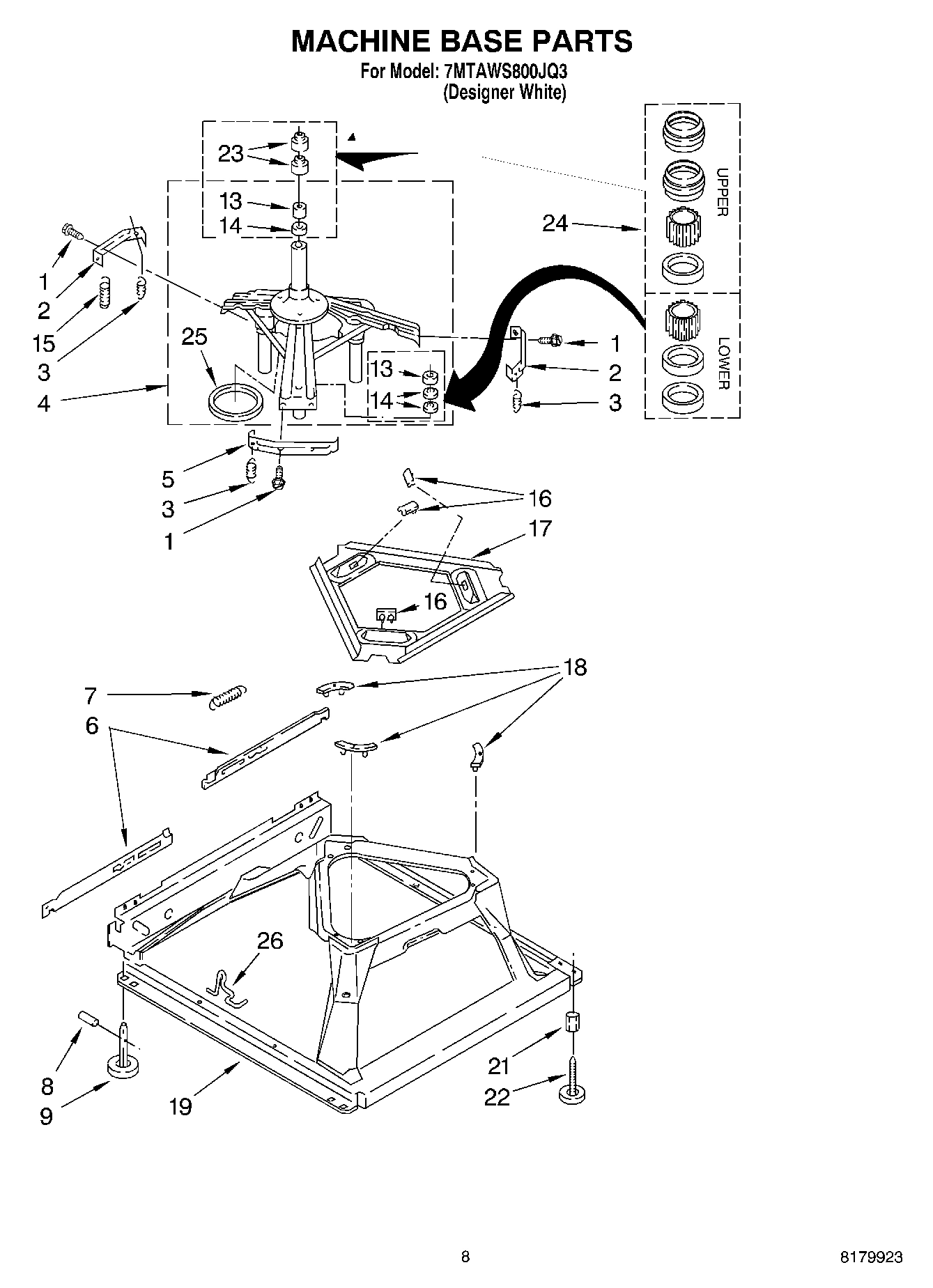

Model Whirlpool 7MTAWS800JQ3 WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.46

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.19

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 8318405 Contact Us For Availability

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.56

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.23

8

285702 Whirlpool Extensions Backorder WPL 285702 $59.11

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP3948852 Whirlpool Timer Assembly Backorder WPL WP3948852 $221.94

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

Spring, Agitate WPL 62676 Contact Us For Availability

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $16.76

11

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

62619 Whirlpool Washer Backorder WPL 62619 $14.93

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $53.02

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.51

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $75.47

8316060 Whirlpool Shield Backorder WPL 8316060 $49.13

W10130795 Whirlpool Power Cord Backorder WPL W10130795 $109.39

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $11.26

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

16

Cap, End (L.H.) WPL 8532108 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Screw, Ground WPL 3179795 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $37.68

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

19

Clamp, Hose WPL 3976395 No Longer Available

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability

20

Clip, Capacitor WPL 8318201 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.85

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $29.83

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

E.T.C. Control WPL 3407125 Contact Us For Availability

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $11.08

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.63

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

27

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

28

3354925 Whirlpool Connector Backorder WPL 3354925 $16.76

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.15

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.71

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

33

Shield, Capacitor WPL 3976286 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $3.22

39

Panel, Console WPL 8531979 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $6.11

42

Wire, Ground WPL 3398893 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $34.49

45

WP3957841 Whirlpool Dial In Stock WPL WP3957841 $29.77

47

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $35.16

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

51

Cap, End (R.H.) WPL 8532107 Contact Us For Availability

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

59

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

60

Harness, Wiring (For WPL 3956136 Contact Us For Availability
