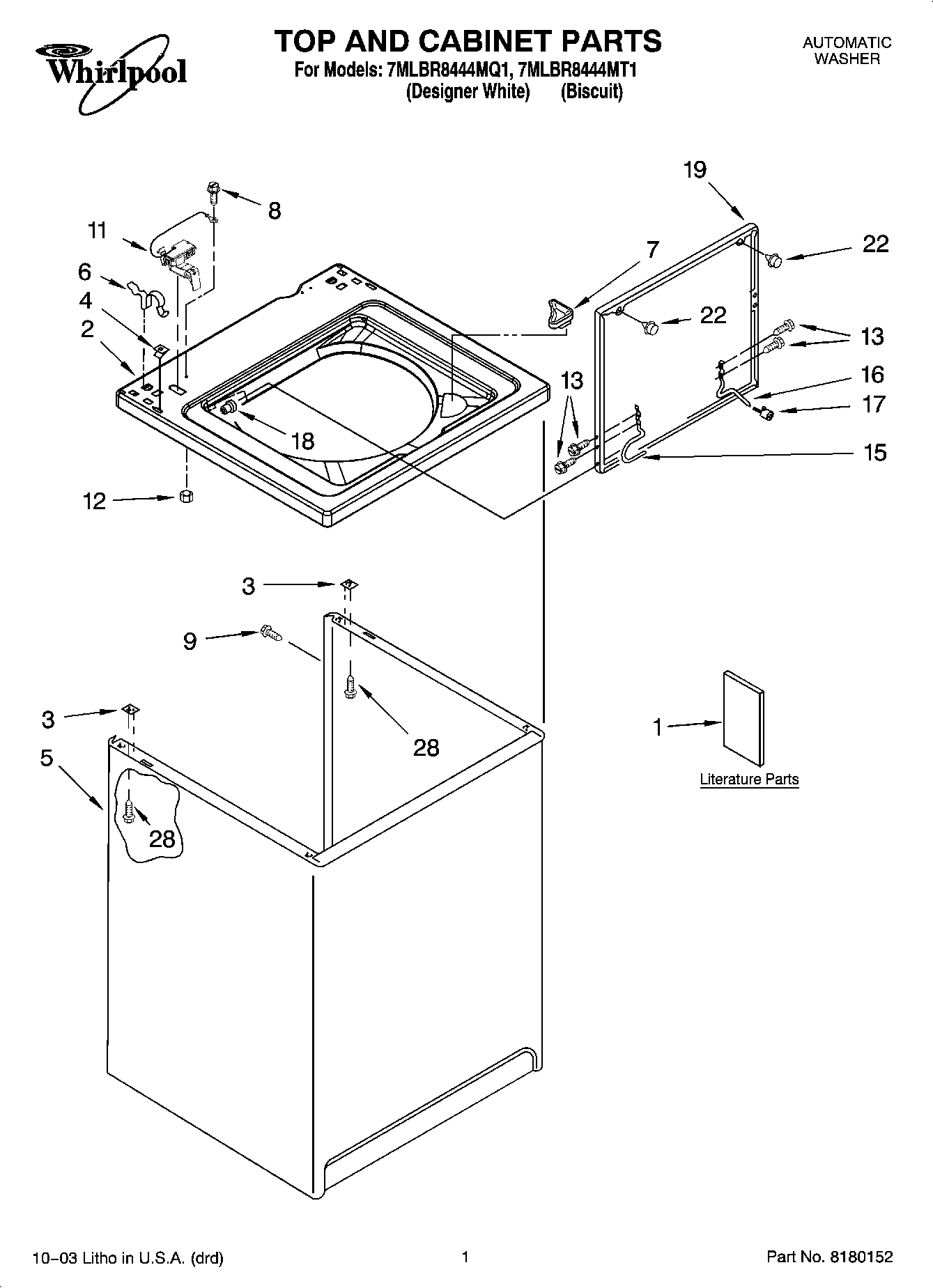

Model Whirlpool 7MLBR8444MQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

Agitator WPL 64214 Contact Us For Availability

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Balance Ring WPL 3956205 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3951603 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Switch, Water Temperature WPL 661614 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

BASKET WPL 3956206 Contact Us For Availability

8316060 Whirlpool Shield Backorder WPL 8316060 $49.60

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Tub WPL 63125 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI142102A Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

19

285459 Whirlpool Washer Base Backorder WPL 285459 $243.38

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

19

Clamp, Hose WPL 3976395 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Extention, Agitator WPL 64210 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

23

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

Screw, Ground WPL 3179795 Contact Us For Availability

39

Panel, Console (White) WPL 8539613 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 8539614 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $45.60

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $36.87

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $32.71

45

Dial, Timer (Biscuit) WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $35.99

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $36.18

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

51

WPL 8314851 WPL 8314851 Contact Us For Availability

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

58

WPL 8314879 WPL 8314879 Contact Us For Availability

59

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

60

WPL 3956739 WPL 3956739 Contact Us For Availability
