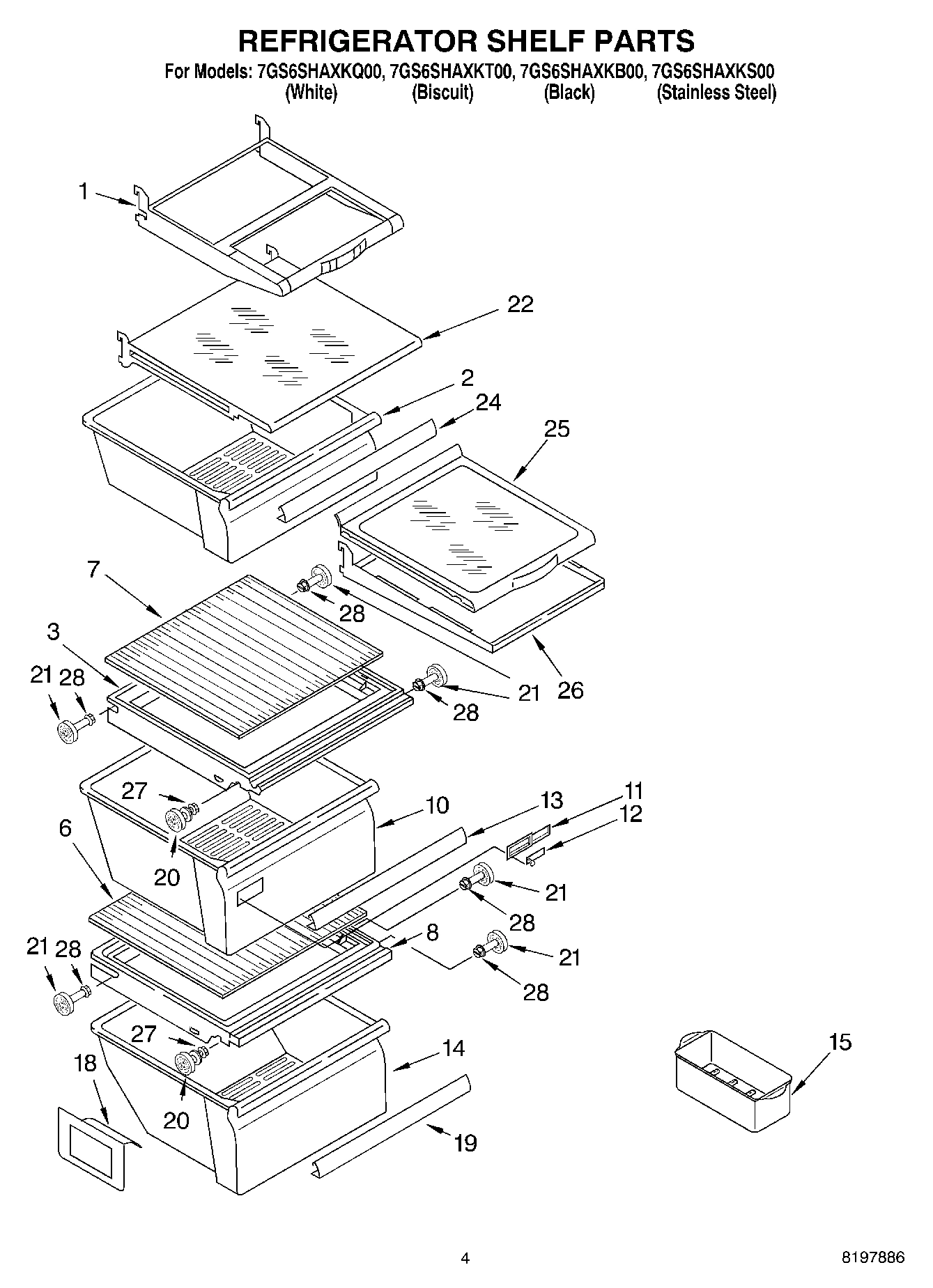

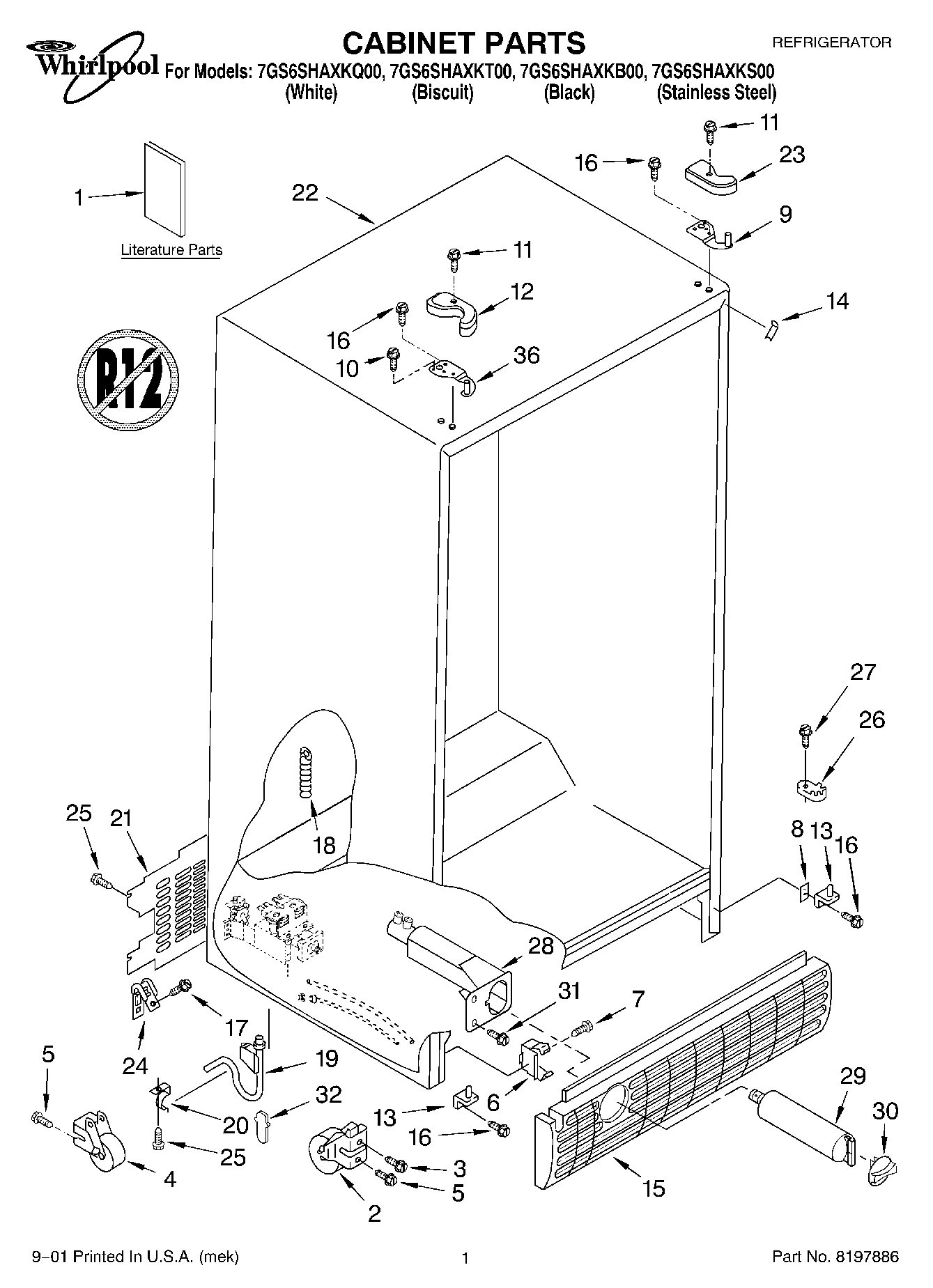

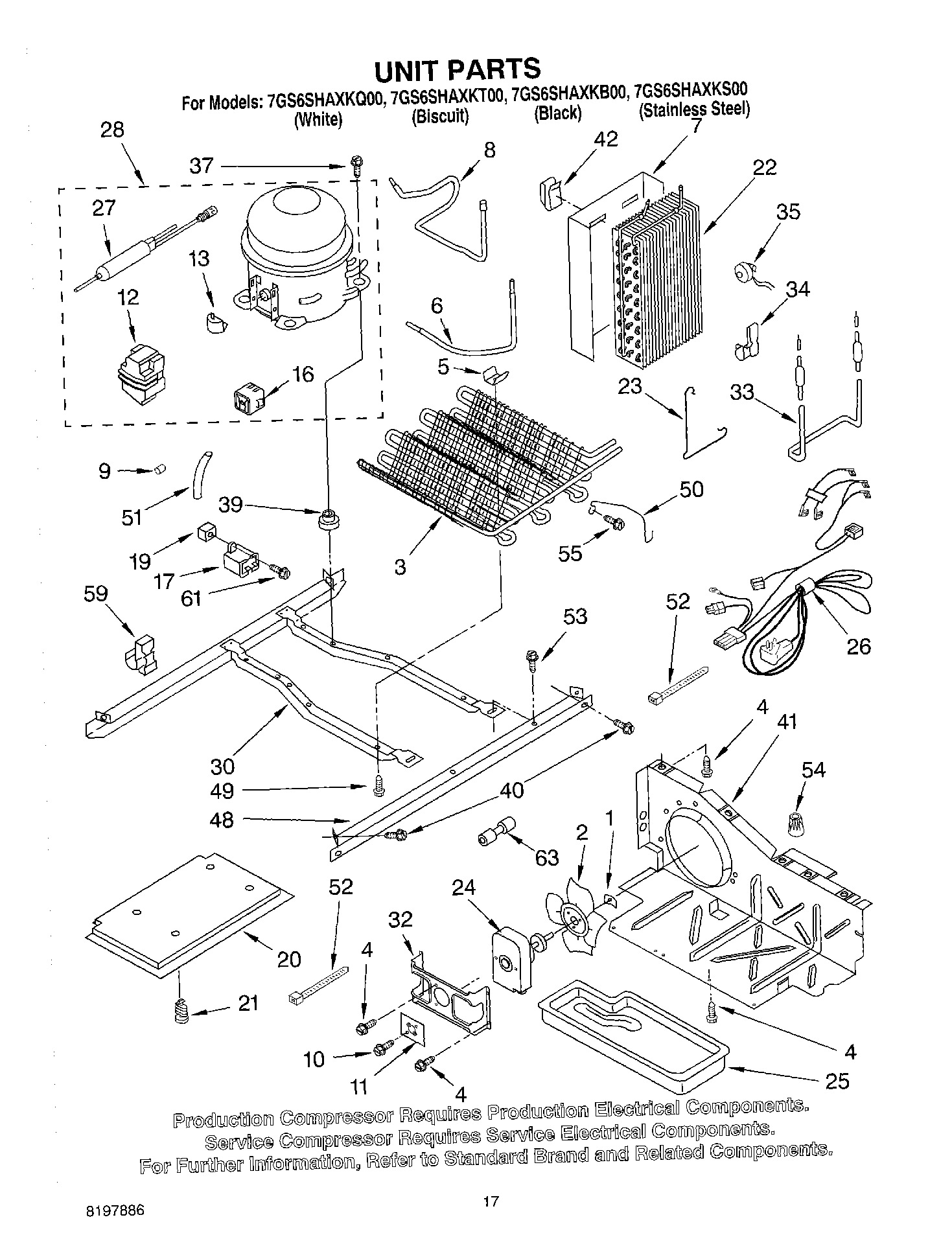

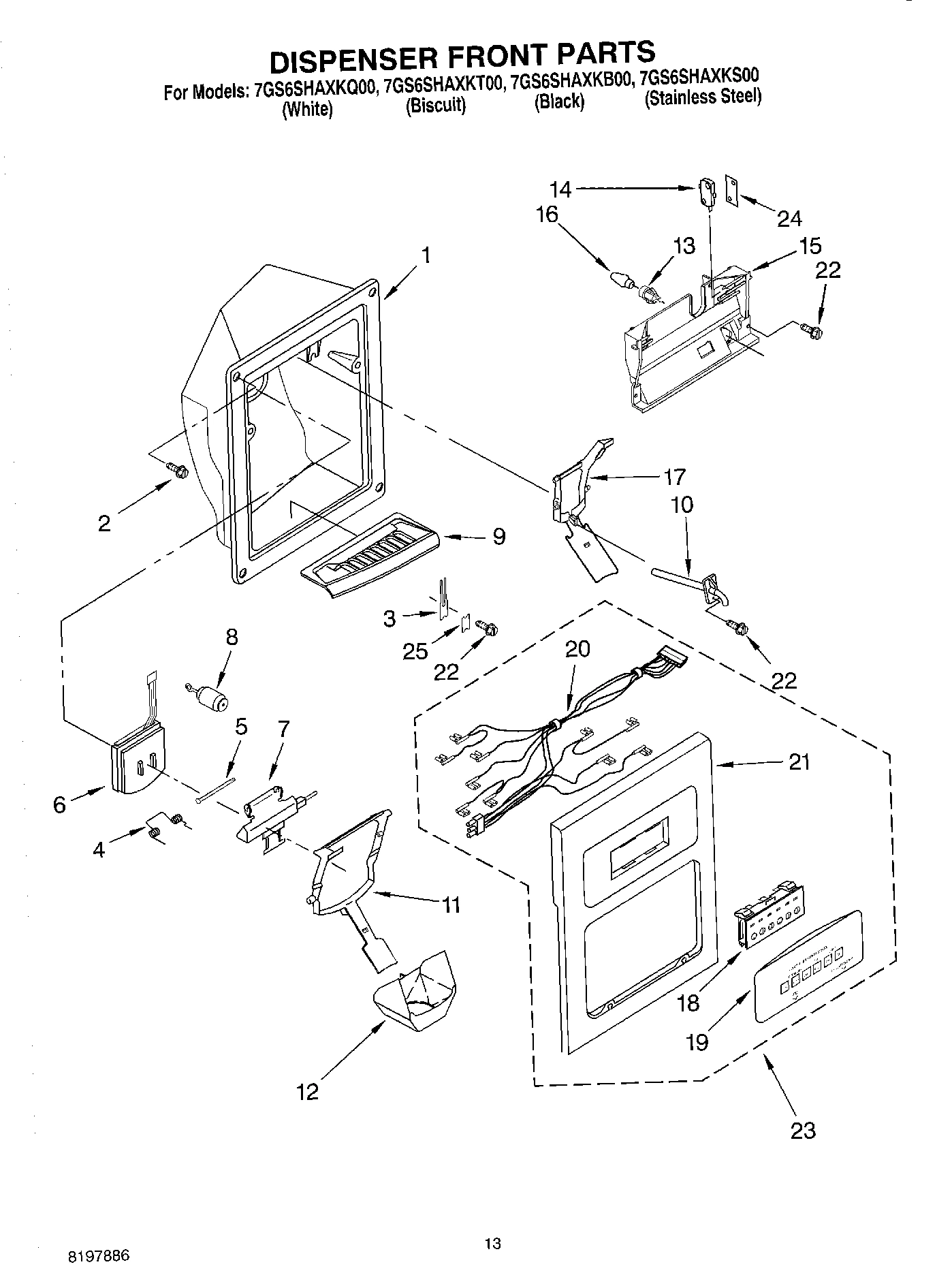

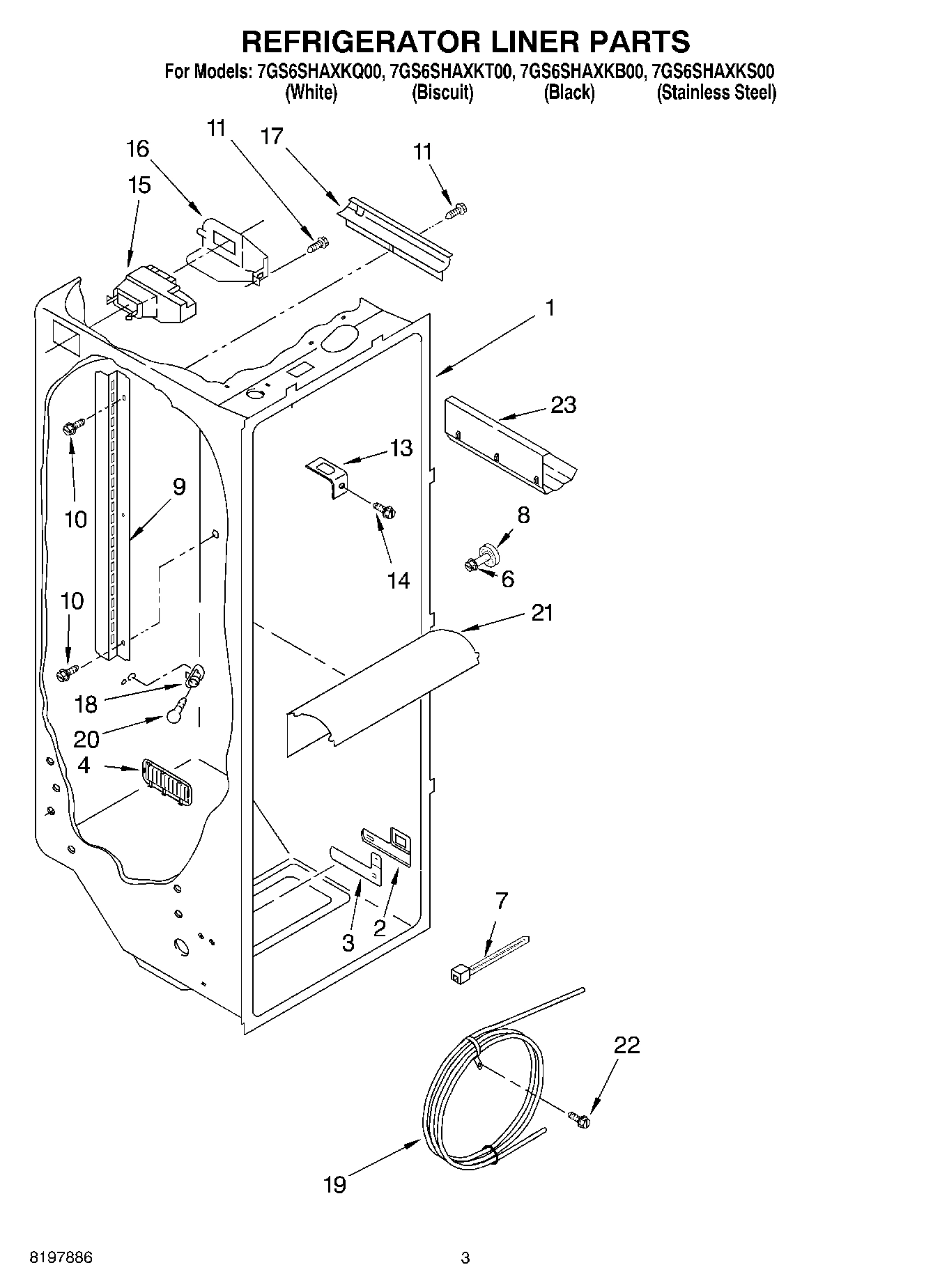

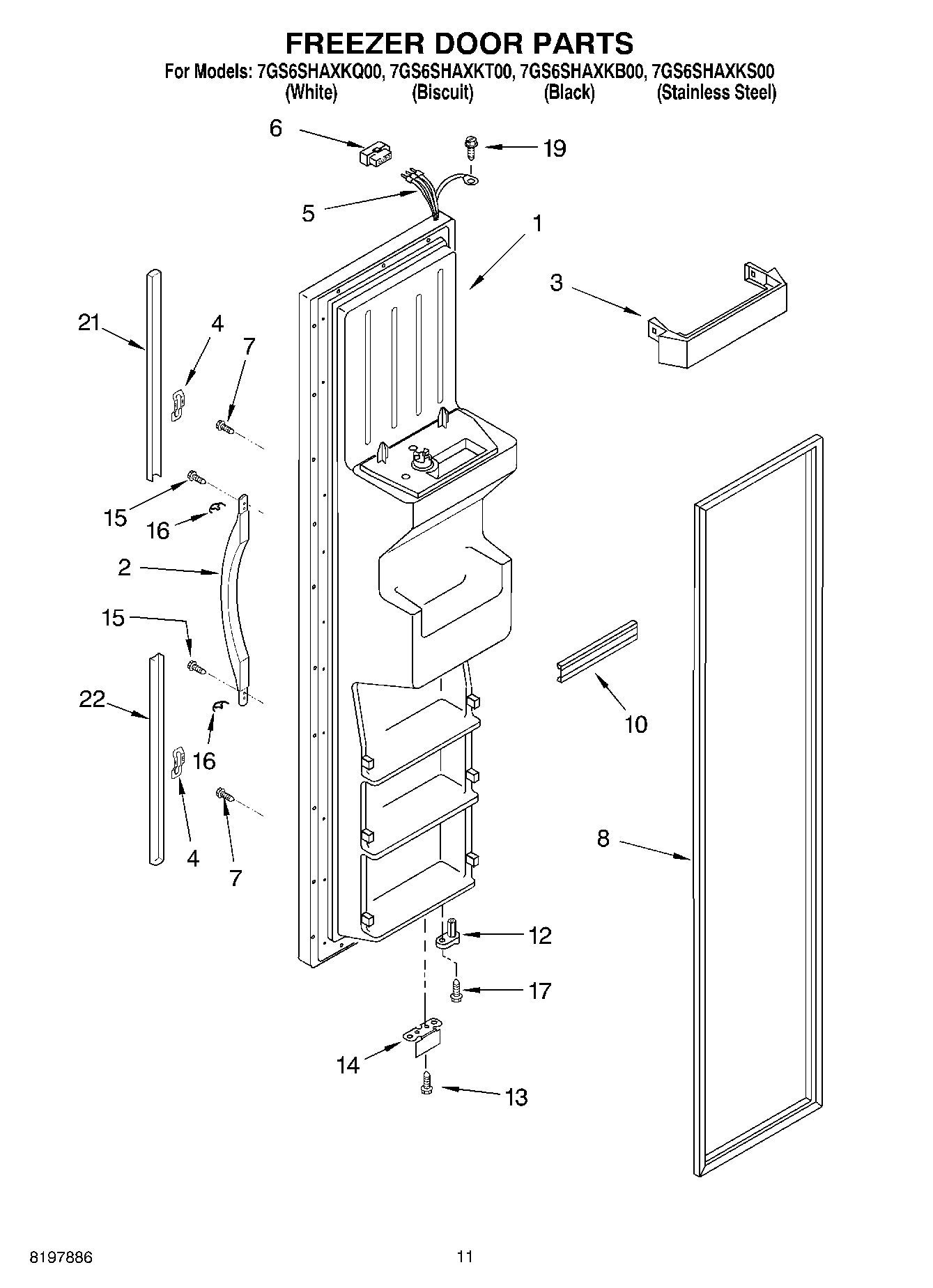

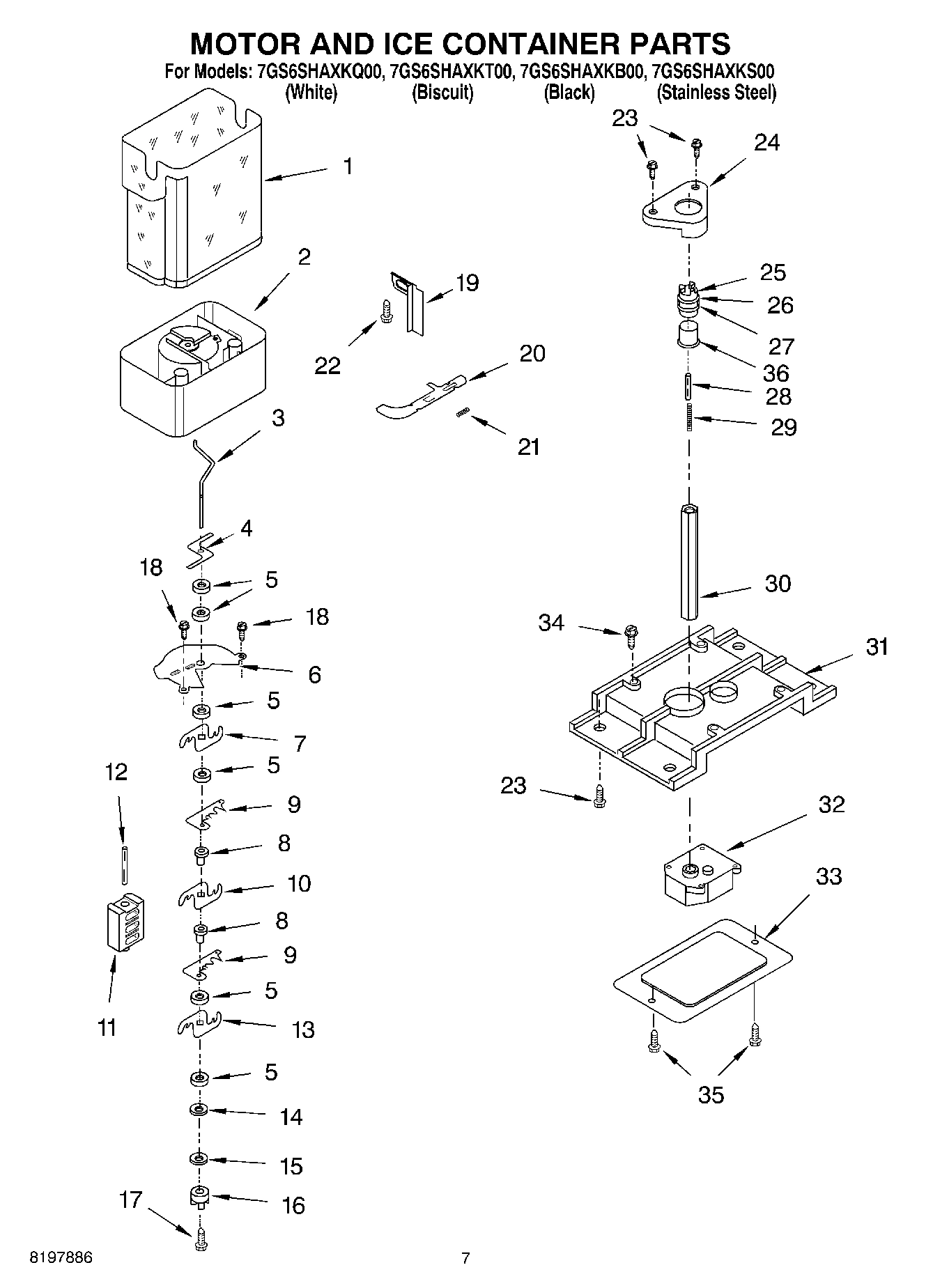

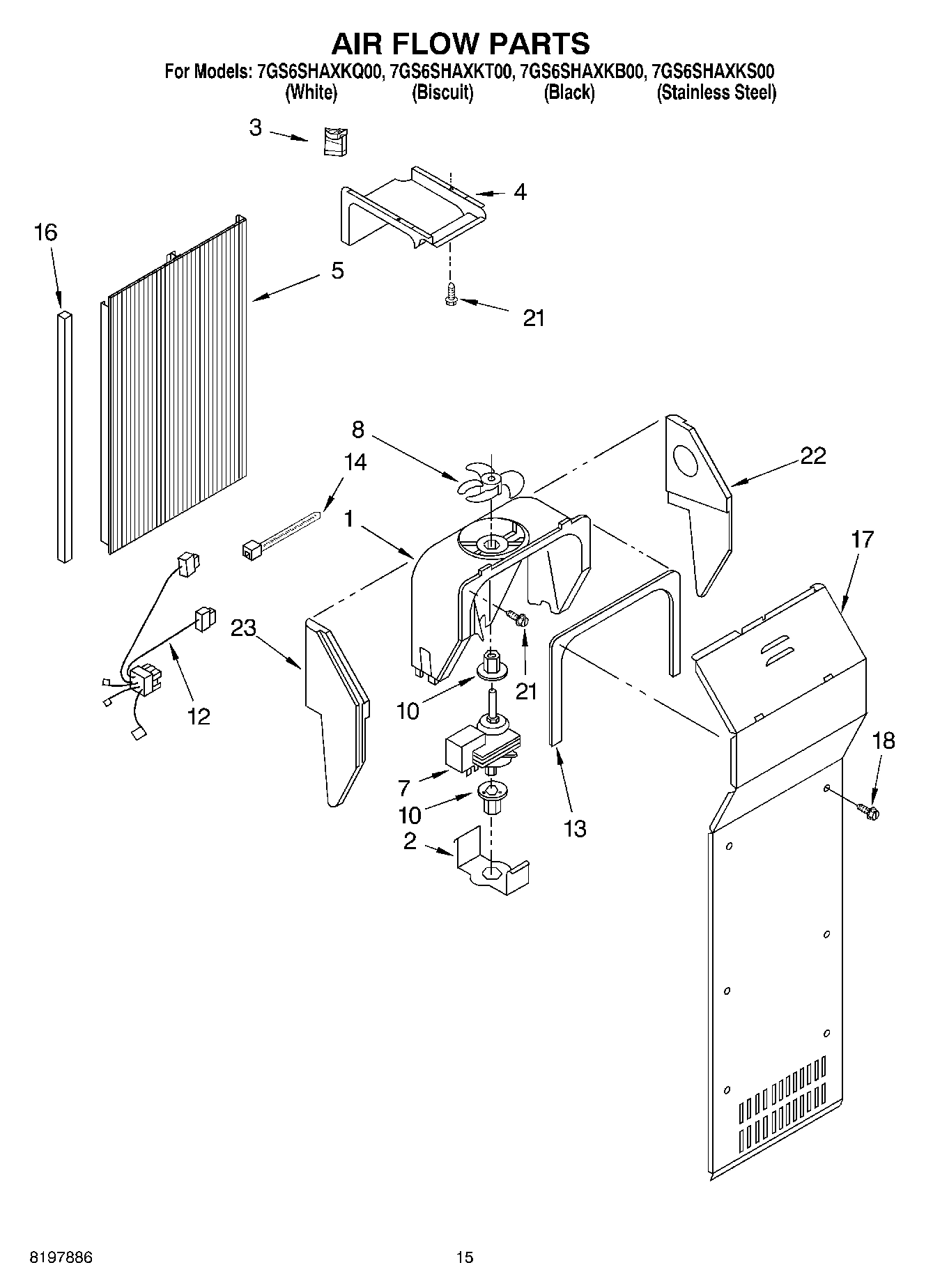

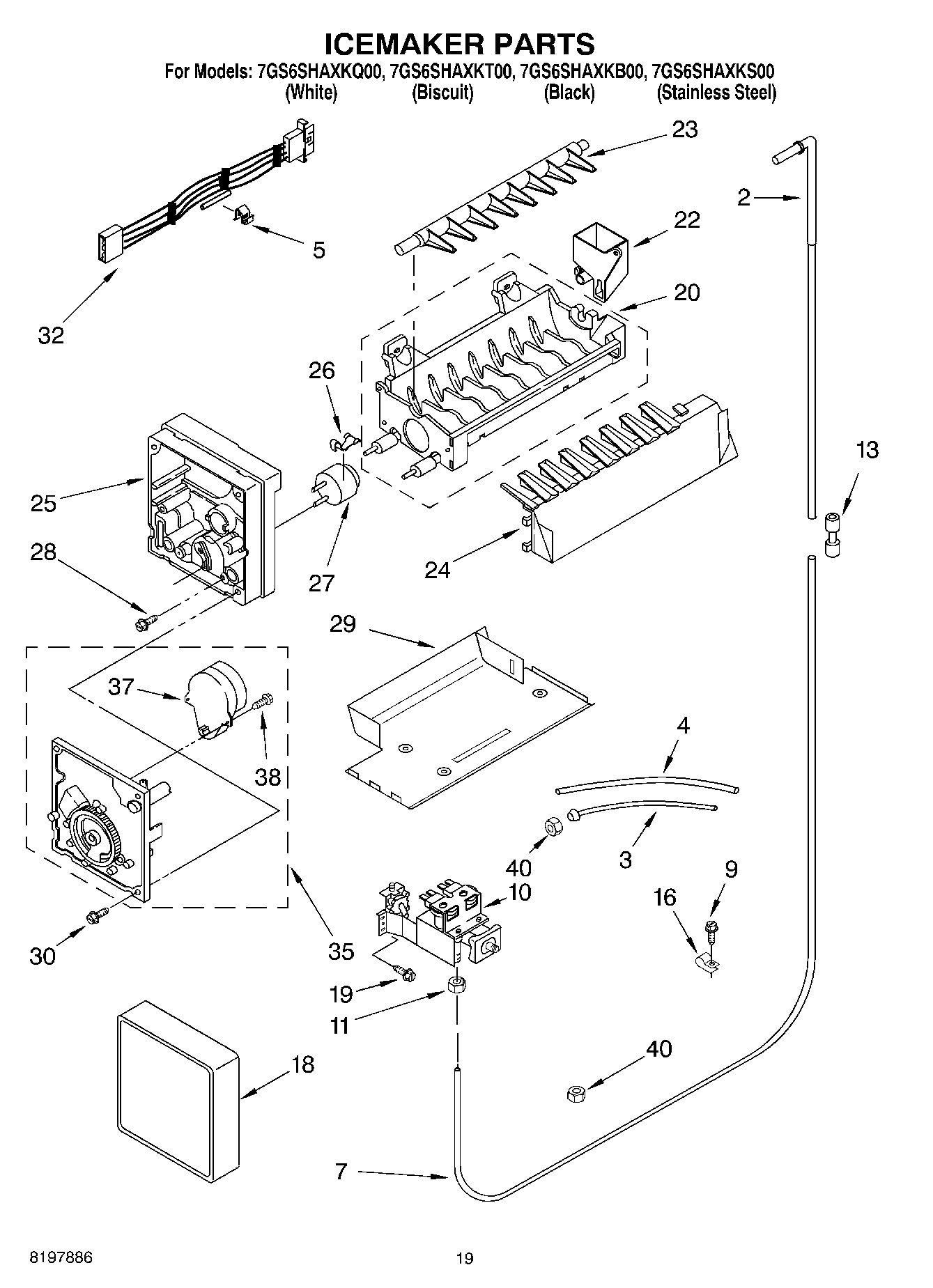

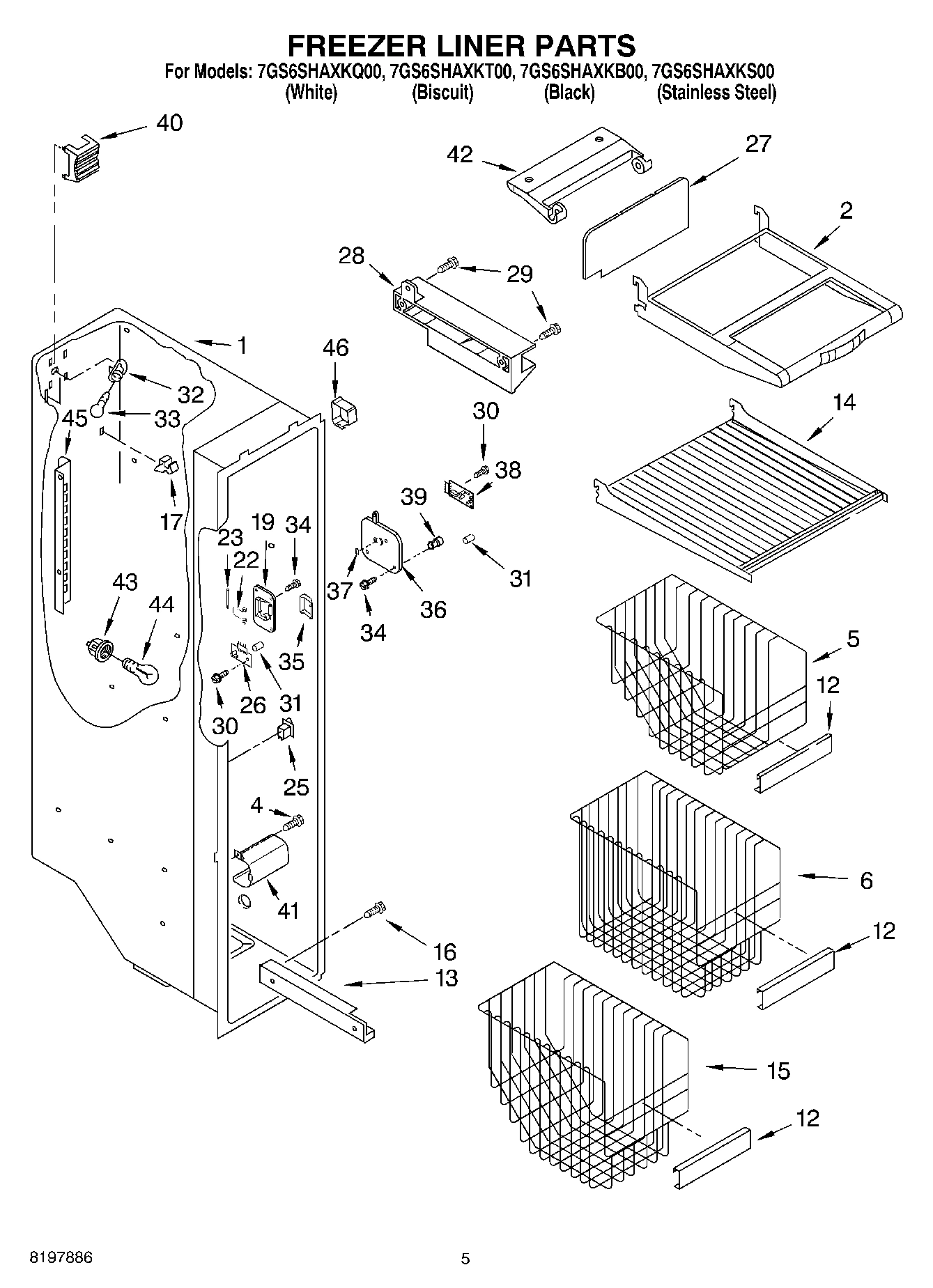

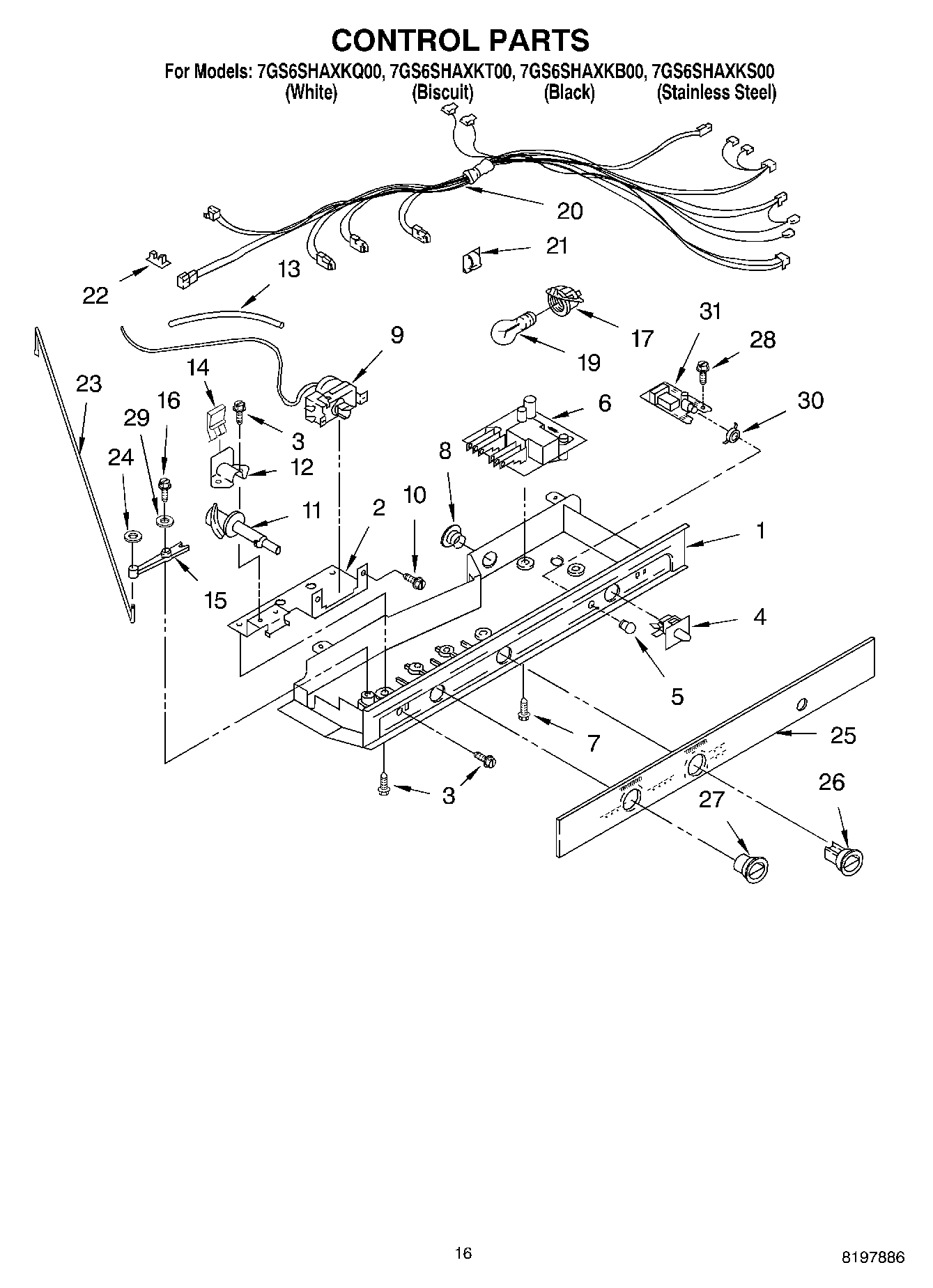

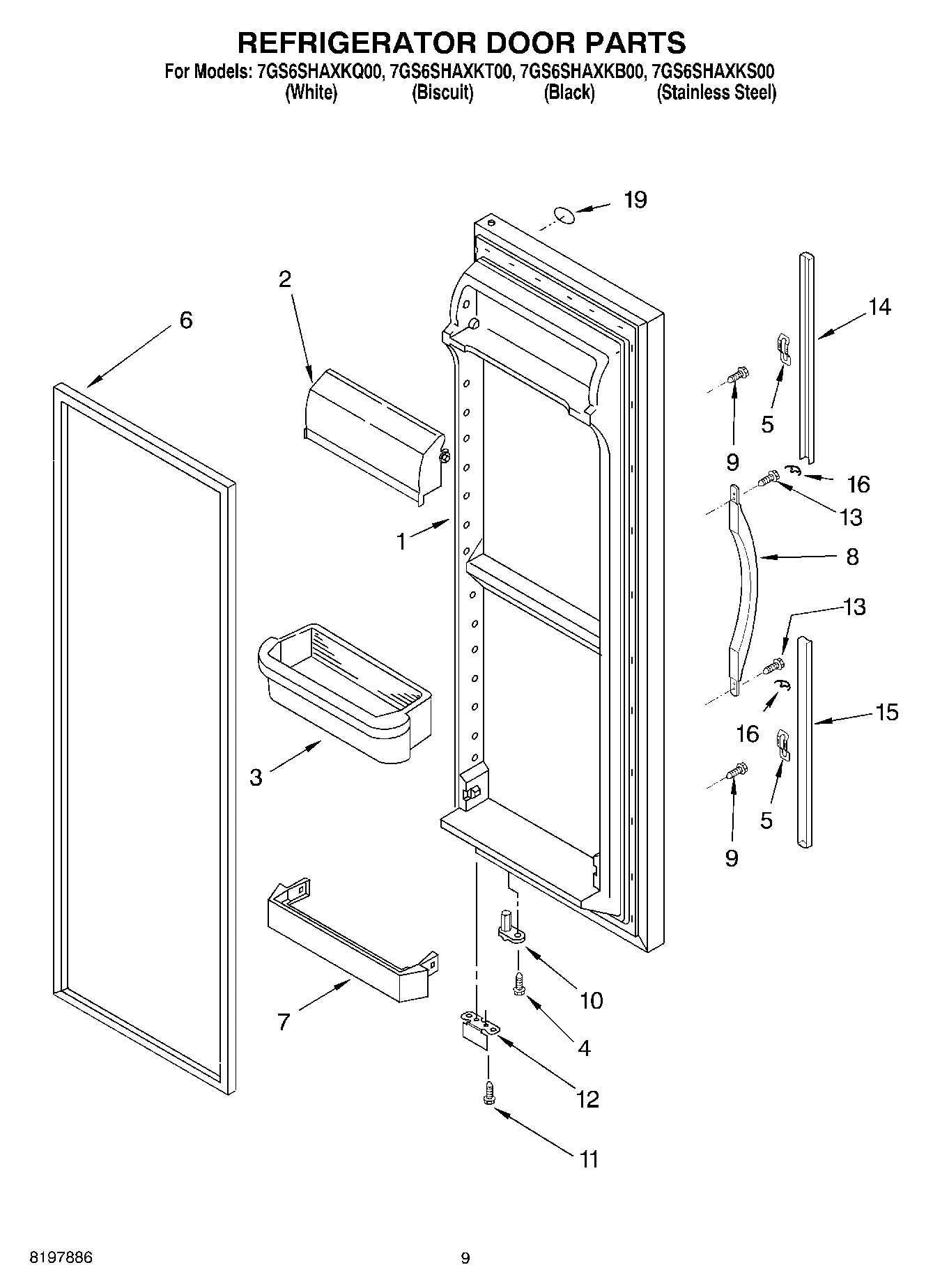

Model Whirlpool 7GS6SHAXKS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Shelf, Flip-Up WPL 2204485 Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Black WPL 2207026B Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Stain WPL 2207026SB Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Biscu WPL 2207026T Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (White WPL 2207026W Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI17411A8 Contact Us For Availability

1

Control Box WPL 2200136 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $25.54

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $110.79

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $30.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Blade, Stirring WPL 2198603 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $90.20

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $239.48

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

6

Cover, Crusher WPL 2198591 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2217185B Whirlpool Refrigerator Handle Backorder WPL WP2217185B $119.30

8

Shim (1) WPL 2209697 Contact Us For Availability

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

8

Handle (Biscuit) WPL 2217185T Contact Us For Availability

8

Handle (Tempest Grey) WPL 2217185TG Contact Us For Availability

8

Handle (White) WPL 2217185W Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $45.74

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $96.99

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2203562W Whirlpool Refrigerator Dispenser A Backorder WPL WP2203562W $68.15

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $6.89

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Trim, Door-Top (Black) WPL 2217187B Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2217187T Contact Us For Availability

Trim, Door-Top (Tempest Grey) WPL 2217187TG Contact Us For Availability

Trim, Door-Top (White) WPL 2217187W Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Trim, Door-Bottom (Black) WPL 2217186B Contact Us For Availability

Trim, Door-Bottom (Biscuit) WPL 2217186T Contact Us For Availability

Trim, Door-Bottom (Tempest Grey) WPL 2217186TG Contact Us For Availability

Trim, Door-Bottom (White) WPL 2217186W Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability

Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $65.67

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Switch Assembly (Not Available, Order No.23) WPL ARI17412A6 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $16.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Overlay, Front Cover (Not Available, Order No WPL ARI17413A5 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $79.95

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Latch, Bin WPL 2212371 Contact Us For Availability

Control Box Harness WPL 2211318 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Front Cover, Housing (Not Available, Order No WPL ARI17414A2 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2220044B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2220044SB Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2220044T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2220044W Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $56.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WPL 625834 WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

Escutcheon, Control Box WPL 2212073 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Frame, Shelf WPL 2195975 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Knob, Air Control WPL 2197871 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Pin WPL 2198666 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

Retainer, Light Lens WPL 2200097 Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

31

Bracket, Motor WPL 2198655 Contact Us For Availability

31

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

32

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Screw WPL 8281162 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

40

Nut, Compression WPL 1129179 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
