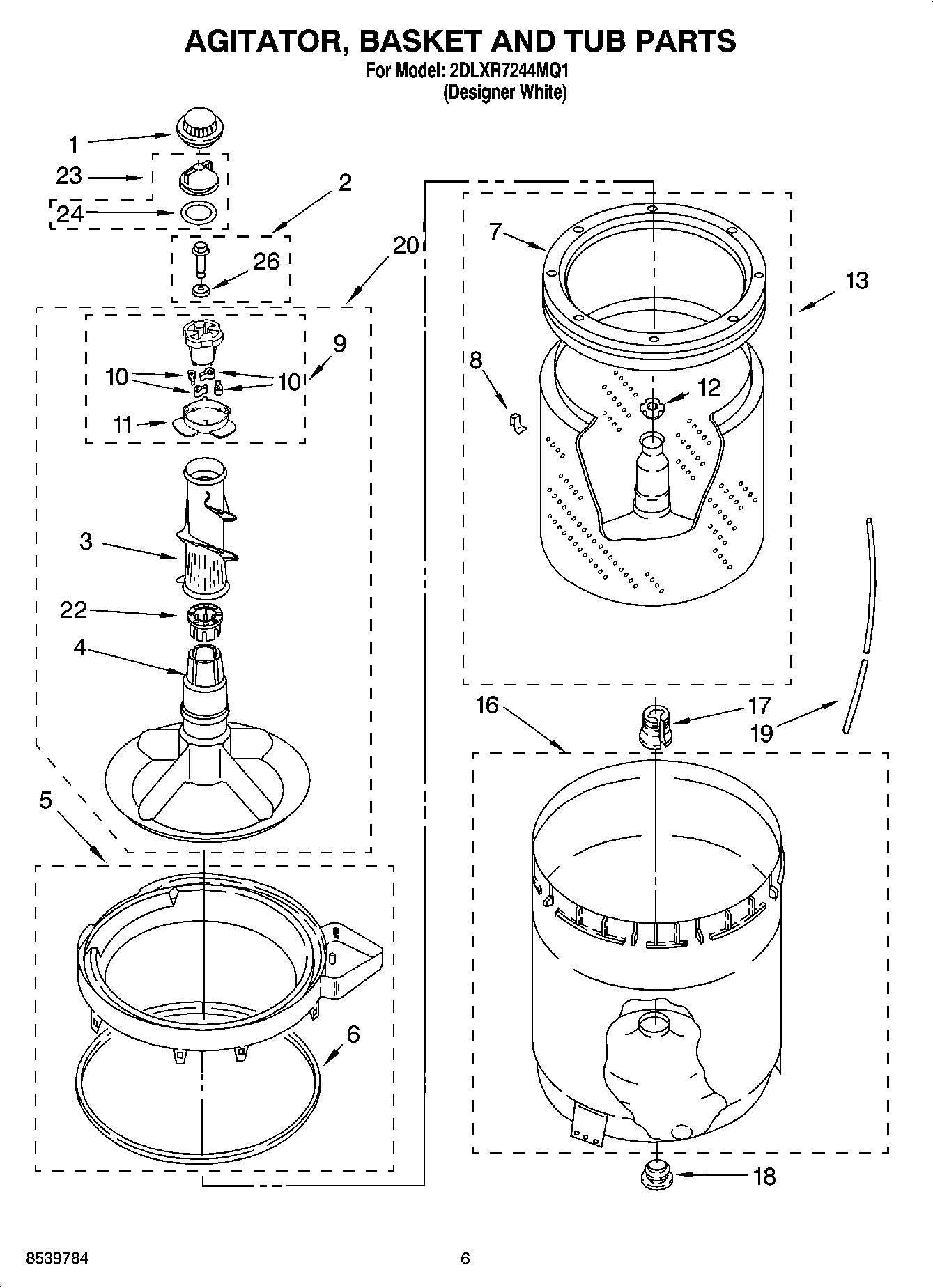

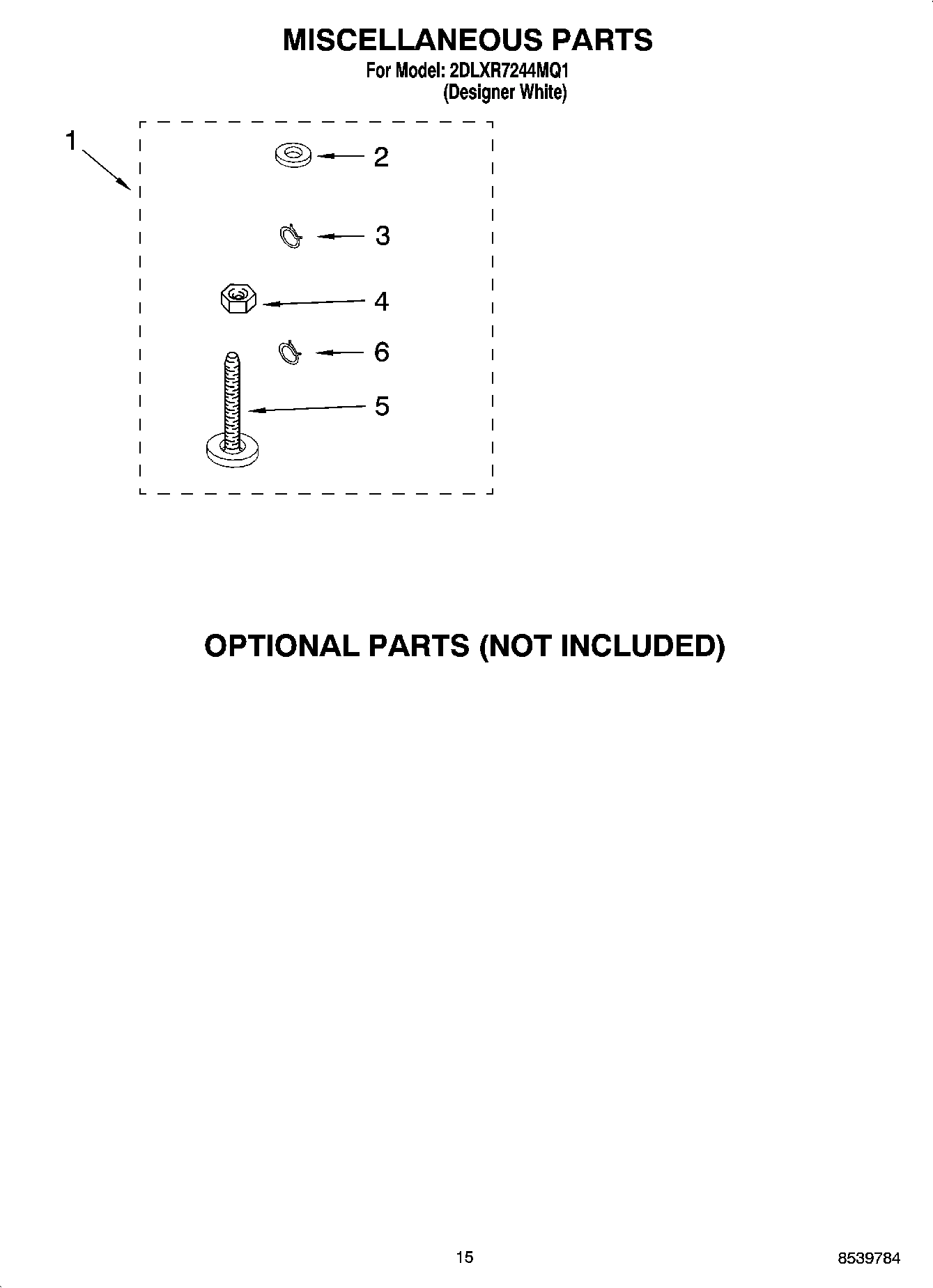

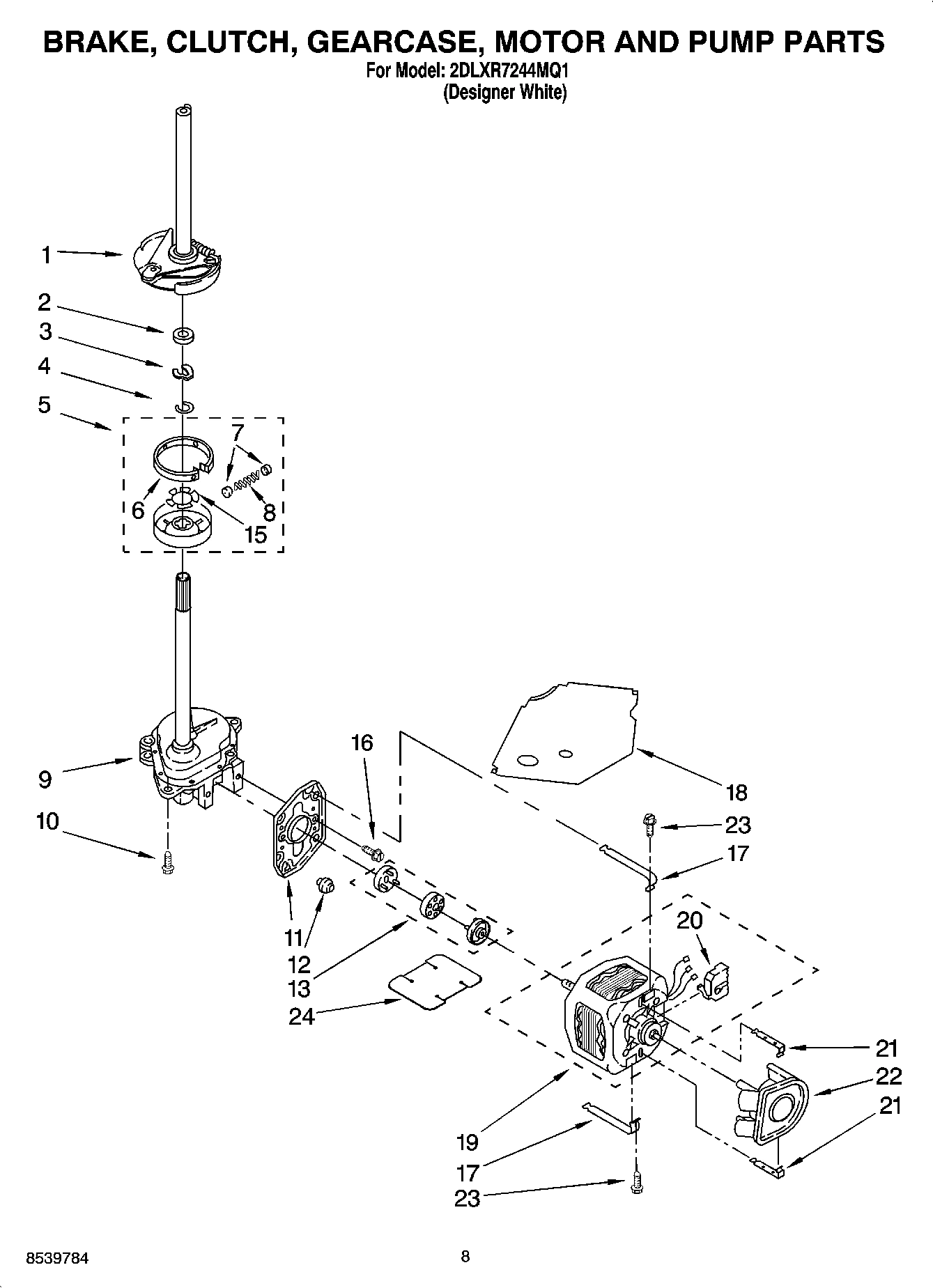

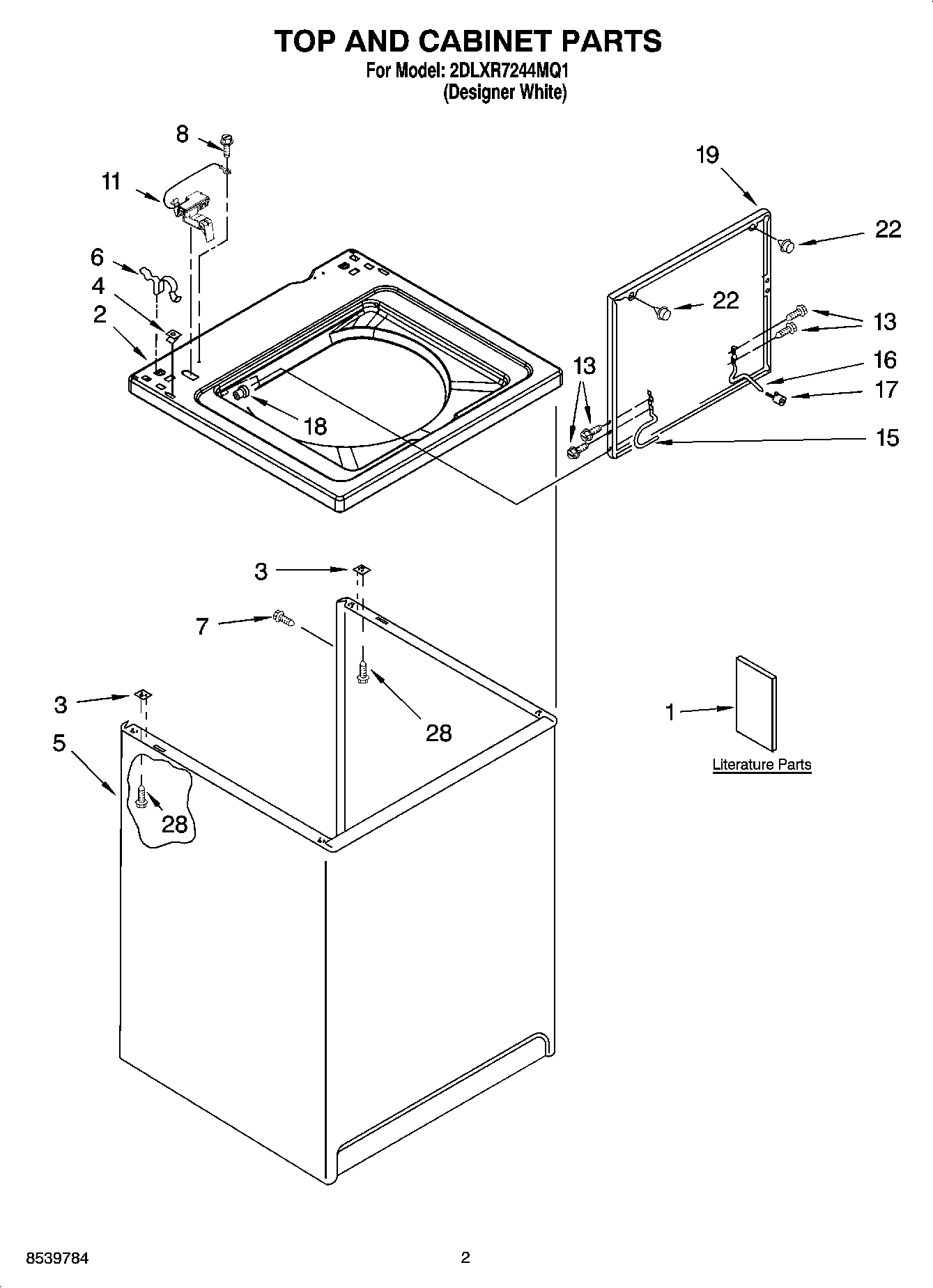

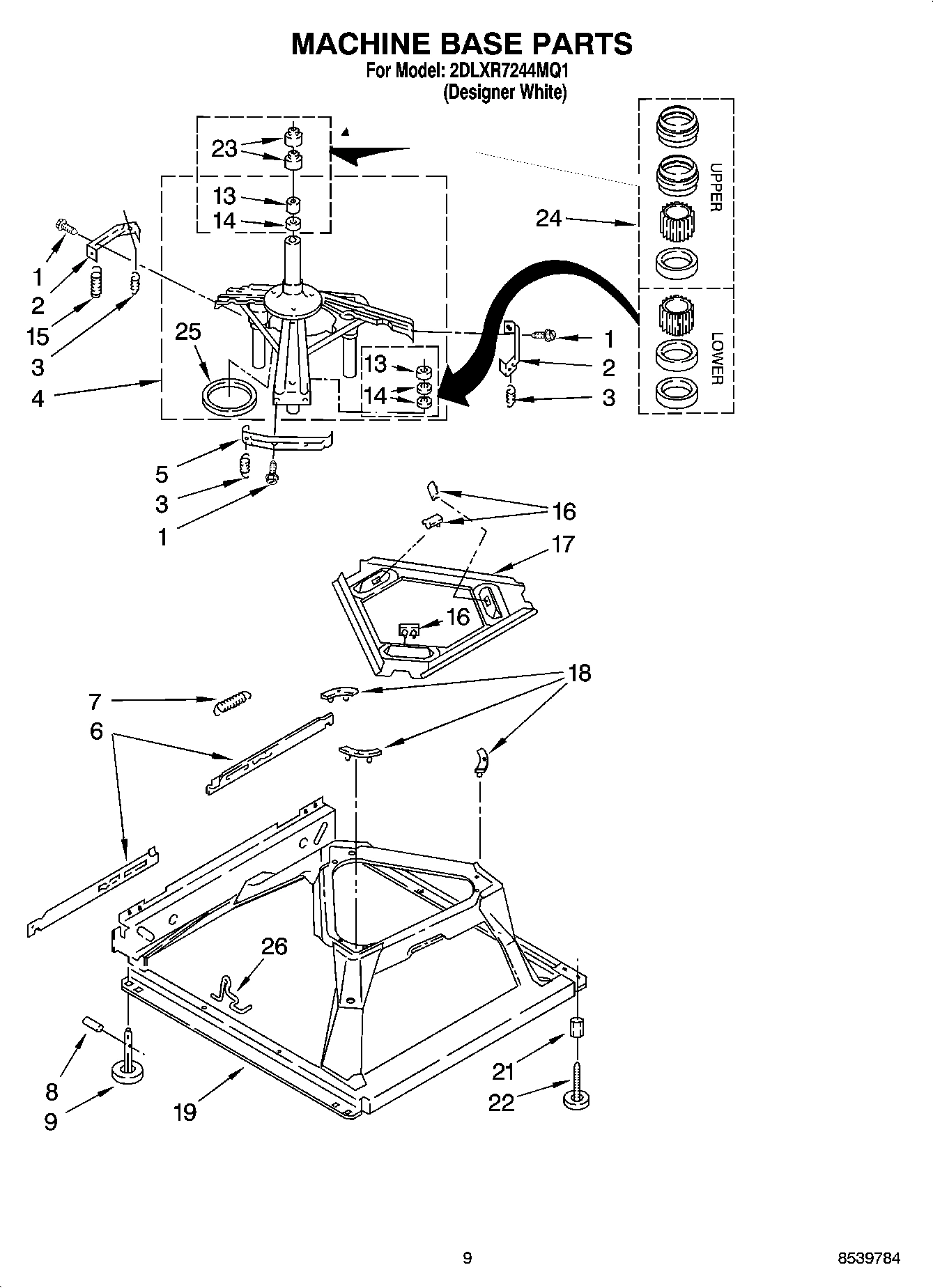

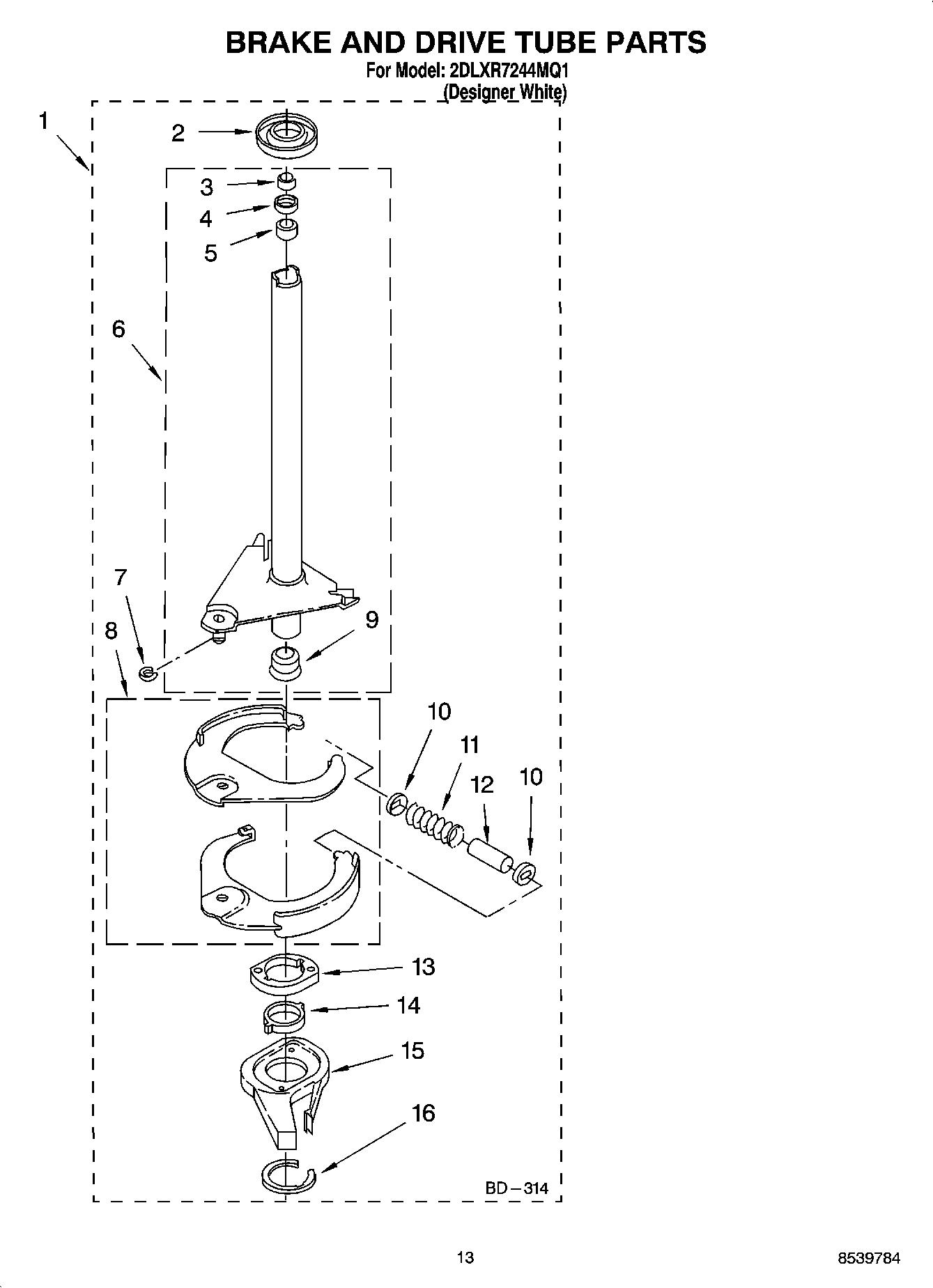

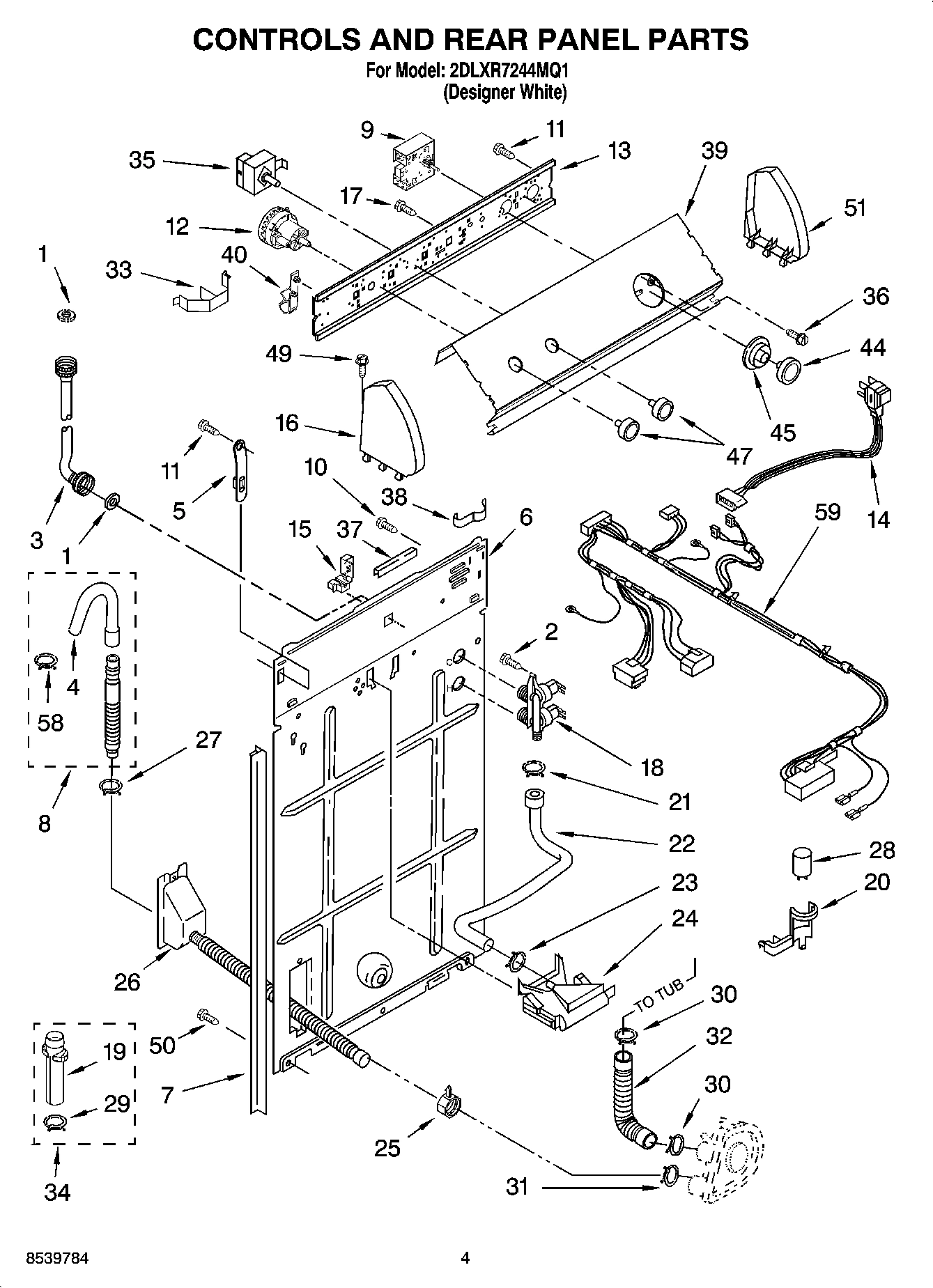

Model Whirlpool 2DLXR7244MQ1 WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $4.19

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Following May Be Purchased WPL ARI139966A Contact Us For Availability

1

DO-IT-YOURSELF REPAIR MANUALS WPL ARI139967A Contact Us For Availability

1

Literature Parts (Manual, Washer) WPL LIT4313896 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8318342 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8539781 Contact Us For Availability

1

Literature Parts (Repair Parts List) WPL LIT8539784 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8542738 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 8541756 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

2

Clip, Harness WPL 388498 Contact Us For Availability

2

TOP WPL 8318068 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $94.88

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $81.87

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

6

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $58.43

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

Drain Protector WPL 367031 Contact Us For Availability

6

OIL WPL ARI139969A Contact Us For Availability

6

LUBRICANT WPL ARI139970A Contact Us For Availability

6

SEALER WPL ARI139971A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI139972A Contact Us For Availability

7

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $5.76

7

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $100.62

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $3.22

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.51

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.16

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.51

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

Basket & Balance Ring WPL 3956206 Contact Us For Availability

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.18

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

14

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.43

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.80

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.59

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

Tub WPL 63125 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.86

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Clip, Harness WPL 3352944 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $304.44

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

20

Agitator (Complete) WPL 3350829 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.68

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.14

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $32.62

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

Clamp, Hose WPL 3976395 No Longer Available

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

E.T.C. Control WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $11.08

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

28

3354925 Whirlpool Connector Backorder WPL 3354925 $16.76

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22
