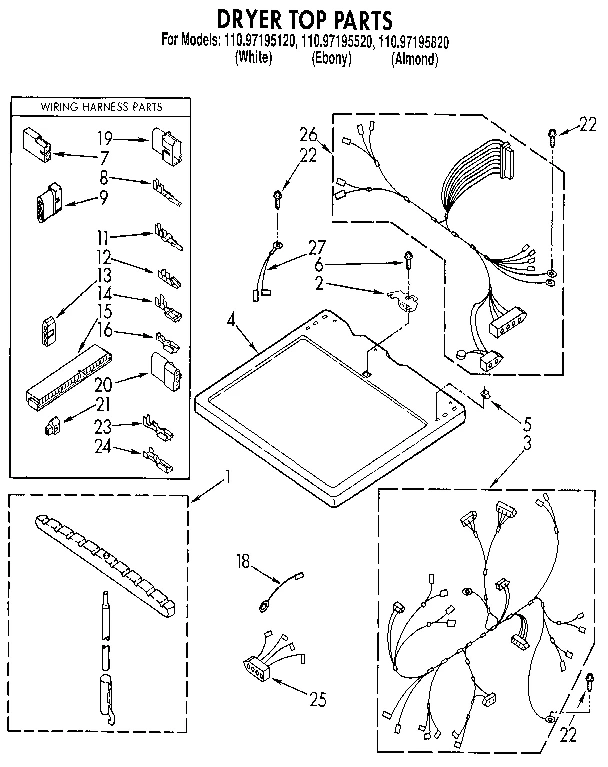

Model Whirlpool 110.97195120 Gas Dryer (Kenmore 11097195120) – Common Parts &amp; Diagrams

1

Gas Burner WPL 3387617 Contact Us For Availability

1

Terminal Cover WPL 3387680 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.27

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Wire WPL 3395521 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $35.70

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

4

Tubing WPL 3391035 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $40.35

5

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Air Duct WPL 3387259 Contact Us For Availability

6

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $65.44

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

7

Sears Canada Bracket WPL 3389871 Contact Us For Availability

7

(338471) (ALT.) WPL N/P Contact Us For Availability

7A

Cabinet WPL 3388456 Contact Us For Availability

7B

Cabnt Eby WPL 3388460 Contact Us For Availability

7C

Cabnt Al WPL 3388457 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.43

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

9

Bracket WPL 3354195 Contact Us For Availability

9A

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9B

Burner Orifice WPL 15775 Contact Us For Availability

9C

Burner Orifice WPL 15419 Contact Us For Availability

9D

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9E

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

279923 Whirlpool Gas Valve In Stock WPL 279923 $154.83

WP3395536 Whirlpool Clip Assembly Backorder WPL WP3395536 $59.04

WP355214 Whirlpool Screw In Stock WPL WP355214 $5.30

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

Fluorescent Lamp WPL 387693 Contact Us For Availability

Wire WPL 3395522 Contact Us For Availability

12

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

12B

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $72.37

12C

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

14

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

15

Transformer WPL 660987 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Support WPL 3354196 Contact Us For Availability

16

Hex Nut WPL 3387709 Contact Us For Availability

17

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $199.49

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $185.70

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

Dryer Ground Wire WPL 3393840 Contact Us For Availability

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $48.80

19

Clip WPL 694510 Contact Us For Availability

19A

Switch Rack WPL 3353963 Contact Us For Availability

19B

Switch Rack WPL 3353967 Contact Us For Availability

19C

Switch Rack WPL 3353964 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.06

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $79.52

Trim WPL 3354423 Contact Us For Availability

Pipe WPL 3387224 Contact Us For Availability

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $71.28

22

Dryer Gas Shut-Off Valve WPL 697441 No Longer Available

22

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $25.62

22

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

22A

Endcap Wh WPL 3354362 Contact Us For Availability

22B

Endcap B WPL 3354366 Contact Us For Availability

22C

Endcap Al WPL 3354363 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $97.32

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $41.45

23

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

Nut Union WPL 233076 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

Wire WPL 3396441 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.87

25

Harness Clip WPL 3391881 Contact Us For Availability

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

26

Screw WPL 697777 Contact Us For Availability

26

Bracket WPL 3389889 Contact Us For Availability

26A

Endcap Wh WPL 3354343 Contact Us For Availability

26B

Endcap B WPL 3354347 Contact Us For Availability

26C

Endcap Alm WPL 3354344 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $40.24

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $85.84

28

Microcomputer WPL 3407091 Contact Us For Availability

28

Sensor WPL 3407033 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $22.27

30

Lamp Cover WPL 3354454 Contact Us For Availability

30

Tap WPL 339625 Contact Us For Availability

31

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

31A

Socket WPL 3393545 Contact Us For Availability

31B

Socket WPL 3393546 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

32

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

33

Lamp Ballast WPL 3393544 Contact Us For Availability

33

Screw WPL 3389484 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

34

Clip WPL 3388600 Contact Us For Availability

35

Dryer Drum Light Lens WPL 3395196 Contact Us For Availability

35

Screw WPL 690756 Contact Us For Availability

36

WP3395618 Whirlpool Light Bulb Backorder WPL WP3395618 $56.95

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $49.05

37

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

38

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

38

Socket WPL 3394882 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.58

39

Tubing WPL 339892 Contact Us For Availability

39A

Touch Module WPL 3393395 Contact Us For Availability

39B

Touch Module WPL 3393399 Contact Us For Availability

39C

Touch Module WPL 3393396 Contact Us For Availability

40

Harness Clip WPL 3390514 Contact Us For Availability

40

Relay WPL 696819 Contact Us For Availability

40

Tap WPL 339624 Contact Us For Availability

41

Dryer Door Switch WPL 3394522 Contact Us For Availability

41

Clip WPL 339745 Contact Us For Availability

42

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $4.82

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $32.82

43

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $10.13

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $106.28

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

45

Duct Lint WPL 3390533 Contact Us For Availability

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

46

Speaker WPL 387973 Contact Us For Availability

46

Funnel WPL 697757 Contact Us For Availability

47

Door WPL 697655 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

48

Rear Panel WPL 3393842 Contact Us For Availability

49

Shield-hns WPL 3393825 Contact Us For Availability

49A

Dryer Door WPL 697221 Contact Us For Availability

49B

Door Eby WPL 3388441 Contact Us For Availability

49C

Door Al WPL 697222 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.66

51A

Panel WPL 697227 Contact Us For Availability

51B

Panel Eby WPL 3388526 Contact Us For Availability

51C

Panel Al WPL 697228 Contact Us For Availability

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $65.26

53

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $4.82

53

Drum Baffle WPL 697693 Contact Us For Availability

54

Bulkhead WPL 697563 Contact Us For Availability

57

W10823582 Whirlpool Door Seal In Stock WPL W10823582 $77.58

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $7.14

58

Grill WPL 697767 Contact Us For Availability

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $20.74

59

Wire WPL 3387376 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $49.64

60B

Handle WPL 693848 Contact Us For Availability

60C

Handle (Almond) WPL 689457 Contact Us For Availability

61A

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $157.17

61B

Toepnl Eby WPL 3388446 Contact Us For Availability

61C

Toepnl Al WPL 697216 Contact Us For Availability

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $37.28

63

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $28.98

66

Elbow WPL 279731 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $26.50

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $28.58

Paint (White) WPL 799344 Contact Us For Availability

Conversion Kit WPL 279243 Contact Us For Availability
