Model Whirlpool 110.92595400 Washer (Kenmore 11092595400) – Common Parts &amp; Diagrams

*65641

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

*65643

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

*65644

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

*65646

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

*65647

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

*65648

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

*65651

285006 Whirlpool Spray In Stock WPL 285006 $52.65

*65652

Paint (White) WPL 799344 Contact Us For Availability

*65656

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

*65658

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

1

285442 Whirlpool Coupling Backorder WPL 285442 $63.41

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP3362061 Whirlpool Cap Backorder WPL WP3362061 $47.57

1

Washer Detergent Dispenser Reservoir WPL 3348814 Contact Us For Availability

1

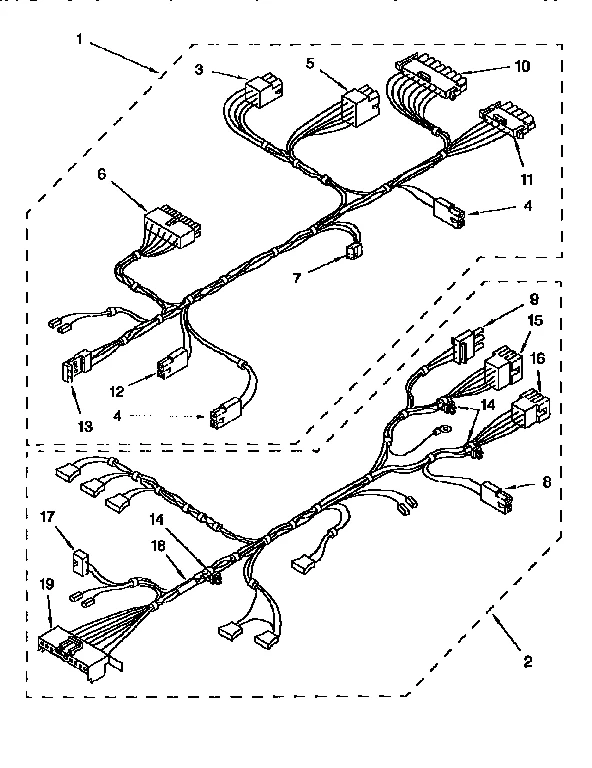

Wire Harness WPL 3354106 Contact Us For Availability

1

Replacement Part WPL 3359461 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

2

285321 Whirlpool Sleeve Backorder WPL 285321 $57.93

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Washer Dispenser Hose WPL 64169 Contact Us For Availability

2

Harness Clip WPL 3352944 Contact Us For Availability

2

Wire Harness WPL 3354107 Contact Us For Availability

3

285748 Whirlpool Agitator Cam Kit In Stock WPL 285748 $21.85

3

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Connector WPL 388817 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

4

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

4

Washer Detergent Dispenser Hose WPL 64168 Contact Us For Availability

4

PLUG (RED) WPL 717251 Contact Us For Availability

4

Retainer Ring WPL 62383 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $4.85

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

5

Bracket WPL 64065 Contact Us For Availability

5

Connector WPL 388818 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $147.95

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Connector WPL 3354025 Contact Us For Availability

6

Connector WPL 3348818 Contact Us For Availability

7

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $69.08

7

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $141.88

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

Insert WPL 64147 Contact Us For Availability

7

Connector WPL 3354462 Contact Us For Availability

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

8

Washer Tub Ring WPL 388201 Contact Us For Availability

8

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

8

Bezel W WPL 64153 Contact Us For Availability

8A

Bezel Al WPL 64154 Contact Us For Availability

8B

Bezel Bl WPL 64158 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

9

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

Reservoir WPL 3348812 Contact Us For Availability

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.58

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

Hinge Panel WPL 387402 Contact Us For Availability

Washer Fabric Softener Dispenser Hose WPL 64170 Contact Us For Availability

Connector WPL 388501 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

Rear Panel WPL 3354585 Contact Us For Availability

Connector WPL 3353821 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $15.49

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Connector WPL 696669 Contact Us For Availability

Insert WPL 3350127 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

Connector WPL 388497 Contact Us For Availability

Reservoir WPL 3350126 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

Harness Clip WPL 388498 Contact Us For Availability

Diverter WPL 387691 Contact Us For Availability

Clip WPL 3355454 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

Cap WPL 94697 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

16

Connector WPL 94612 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Connector WPL 3348075 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $4.54

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

285727 Whirlpool Agitator Assembly In Stock WPL 285727 $153.62

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Clip WPL 357144 Contact Us For Availability

20

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

20

Switch WPL 62850 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

Hose-etc WPL 3349366 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

25

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.26

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

26

Washer Water Inlet Valve WPL 3357901 Contact Us For Availability

27

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

28

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $54.90

28

Washer Water Temperature Sensor WPL 3352282 Contact Us For Availability

29

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

30

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

30

End Cap Clip WPL 689559 Contact Us For Availability

30

Bracket WPL 64219 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

31A

Endcap Al WPL 3354357 Contact Us For Availability

31B

Endcap Eby WPL 3354360 Contact Us For Availability

32

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

32

Control Panel WPL 3363729 Contact Us For Availability

32A

Control Panel WPL 3363730 Contact Us For Availability

32B

Control Panel WPL 3363731 Contact Us For Availability

33

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $54.39

34

Shield WPL 3354833 Contact Us For Availability

34A

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

37

Washer Inlet Valve WPL 64164 Contact Us For Availability

37

Lamp Cover WPL 3354454 Contact Us For Availability

38

Socket WPL 389217 Contact Us For Availability

38

Dispenser Hose WPL 64171 Contact Us For Availability

38A

Socket WPL 389226 Contact Us For Availability

40

Switch WPL 3353968 Contact Us For Availability

40

Dispenser Hose WPL 64165 Contact Us For Availability

40A

Switch WPL 3353969 Contact Us For Availability

40B

Switch WPL 3353972 Contact Us For Availability

42

Dispenser Hose WPL 64166 Contact Us For Availability

44

Dispenser Hose WPL 64167 Contact Us For Availability

46

O-Ring WPL 387999 Contact Us For Availability

47

Protector WPL 303294 Contact Us For Availability

48

Retainer WPL 64162 Contact Us For Availability

49

Shield Valve WPL 64173 Contact Us For Availability

50

Valve Coil WPL 389252 Contact Us For Availability

54

Speaker WPL 387973 Contact Us For Availability

56A

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

57

Rack WPL 3352312 Contact Us For Availability

58

Fastener WPL 3389802 Contact Us For Availability

59

Shield Valve WPL 3348424 Contact Us For Availability
