Model Whirlpool 110.92293110 Washer (Kenmore 11092293110) – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP3362061 Whirlpool Cap Backorder WPL WP3362061 $47.57

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

Washer Detergent Dispenser Reservoir WPL 3348814 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Washer Dispenser Hose WPL 64169 Contact Us For Availability

2

Washer Water-Level Pressure Switch WPL 3356464 Contact Us For Availability

3

285748 Whirlpool Agitator Cam Kit In Stock WPL 285748 $21.85

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Washer Temperature Switch WPL 661546 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $81.53

4

Washer Detergent Dispenser Hose WPL 64168 Contact Us For Availability

4

SEAL, AGITATOR WPL 35774 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $4.85

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

5

Bracket WPL 64065 Contact Us For Availability

5

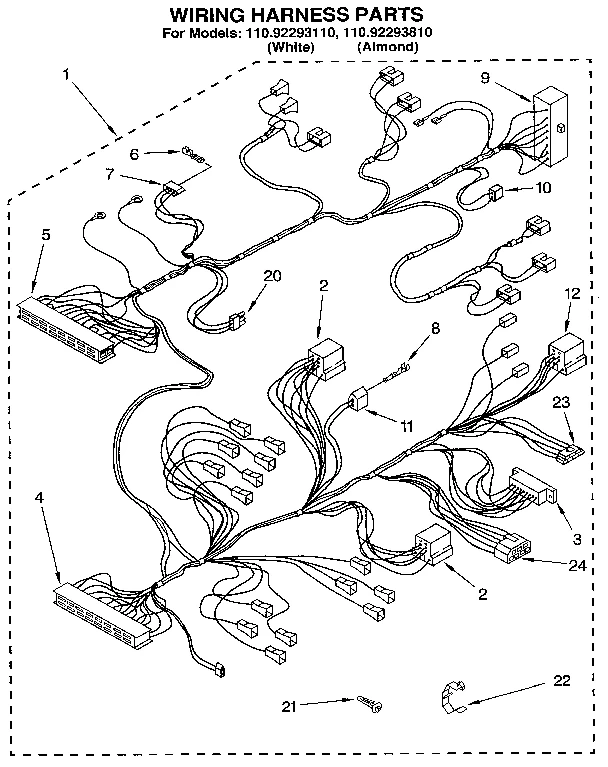

Wire Harness WPL 3360933 Contact Us For Availability

5A

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

6

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $147.95

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

7

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $141.88

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

Insert WPL 64147 Contact Us For Availability

7

Power Cord WPL 3360514 Contact Us For Availability

7A

Endcap Wht WPL 388204 Contact Us For Availability

7B

Endcap Alm WPL 388206 Contact Us For Availability

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Washer Tub Ring WPL 388201 Contact Us For Availability

8

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.58

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

Hinge Panel WPL 387402 Contact Us For Availability

Washer Fabric Softener Dispenser Hose WPL 64170 Contact Us For Availability

10A

End Cap (White) WPL 388210 Contact Us For Availability

10B

End Cap (Almond) WPL 388212 Contact Us For Availability

11

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

11

Rear Panel WPL 3352315 Contact Us For Availability

12

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $15.49

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

12A

Dial (White) WPL 3350996 Contact Us For Availability

12B

Dial (Almond) WPL 3350997 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

13

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

13A

WP3362625 Whirlpool Timer Knob In Stock WPL WP3362625 $37.03

13B

WP3362624 Whirlpool Washer Timer Knob In Stock WPL WP3362624 $27.37

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

14

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

15

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $54.90

15

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

285587 Whirlpool Thrust Washer In Stock WPL 285587 $4.54

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

19

Timer WPL 3358112 Contact Us For Availability

20

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

20

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

20

Switch WPL 62850 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

22

Control WPL 3349478 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

23

Connector WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25A

Control Panel (White) WPL 3350932 Contact Us For Availability

25B

Control Panel (Almond) WPL 3350933 Contact Us For Availability

26

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

26

Inlet Valve WPL 64163 Contact Us For Availability

26A

Control Panel (White) WPL 3357979 Contact Us For Availability

26B

Control Panel (Almond) WPL 3357980 Contact Us For Availability

27

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

27

Clip WPL 3355454 Contact Us For Availability

29

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

29

Cycle Switch WPL 3354284 Contact Us For Availability

30

Bracket WPL 64219 Contact Us For Availability

30A

Control Knob (White) WPL 3350980 Contact Us For Availability

30B

Knob Control (Almond) WPL 3350981 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

31

Socket WPL 3349612 Contact Us For Availability

32

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

32A

Lens W WPL 3350945 Contact Us For Availability

32B

Lens Alm WPL 3350946 Contact Us For Availability

33

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $54.39

33

Light Bulb WPL 3350382 Contact Us For Availability

34

Protector WPL 3350384 Contact Us For Availability

34A

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

36

697811 Whirlpool Relay Backorder WPL 697811 $59.51

37

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

37

Washer Inlet Valve WPL 64164 Contact Us For Availability

38

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

38

Dispenser Hose WPL 64171 Contact Us For Availability

39

Fabric Switch WPL 3358115 Contact Us For Availability

40

Dispenser Hose WPL 64165 Contact Us For Availability

42

Dispenser Hose WPL 64166 Contact Us For Availability

44

Dispenser Hose WPL 64167 Contact Us For Availability

46

O-Ring WPL 387999 Contact Us For Availability

47

Protector WPL 303294 Contact Us For Availability

48

Retainer WPL 64162 Contact Us For Availability

49

Shield Valve WPL 64173 Contact Us For Availability

50

Valve Coil WPL 389252 Contact Us For Availability

51

Washer Water Temperature Sensor WPL 3352282 Contact Us For Availability

52A

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

53

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.26

55

Hose-etc WPL 3349366 Contact Us For Availability

58

Shield Valve WPL 3348424 Contact Us For Availability

59

Clip WPL 357144 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
