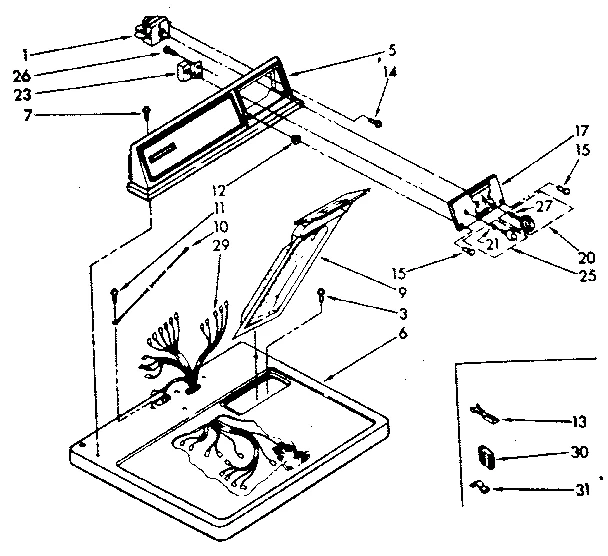

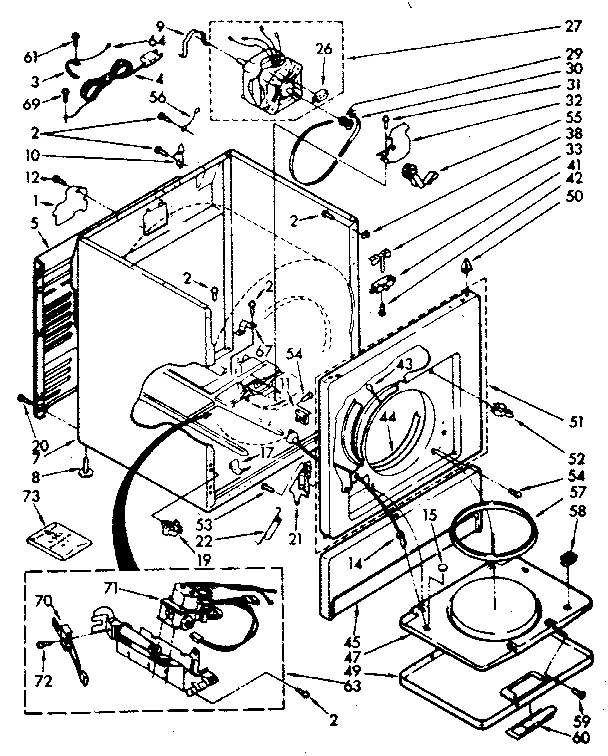

Model Whirlpool 110.87556110 Gas Dryer (Kenmore 11087556110) – Common Parts &amp; Diagrams

1

Timer 60hz WPL 696043 Contact Us For Availability

2

279771 Whirlpool Clip Backorder WPL 279771 $9.33

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

3

Ground Strap WPL 22965 Contact Us For Availability

4

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $60.20

4

Box Support WPL 337445 Contact Us For Availability

5

279900 Whirlpool Box O/S1 Backorder WPL 279900 $228.97

5

Rear Panel WPL 437736 Contact Us For Availability

5

Escutcheon WPL 690648 Contact Us For Availability

6

Top (White) WPL 348831 Contact Us For Availability

7

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

7

Cabinet (White) WPL 690847 Contact Us For Availability

7

Screw WPL 355326 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

9

W10874409 Whirlpool Lint Screen Filter In Stock WPL W10874409 $41.62

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Bulkhead WPL 685775 Contact Us For Availability

9A

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9D

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9E

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $4.82

10

Wire WPL 346569 Contact Us For Availability

11

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

11

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

11

Door Cable Guide WPL 337182 Contact Us For Availability

11A

Guide WPL 337183 Contact Us For Availability

12

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

12

Nut WPL 694055 Contact Us For Availability

13

Thermostat WPL 660036 Contact Us For Availability

13A

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

14

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

14

Screw WPL 349526 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

Bezel WPL 692957 Contact Us For Availability

18

Bracket WPL 348945 Contact Us For Availability

19

Clip WPL 696232 Contact Us For Availability

20

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

20

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

20

Knob WPL 688869 Contact Us For Availability

21

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

21

Door Hinge WPL 238456 Contact Us For Availability

21

Compression Ring WPL 90015 Contact Us For Availability

21A

WP238460 Whirlpool Hinge In Stock WPL WP238460 $4.99

22

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

22

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $4.82

23

Switch WPL 688500 Contact Us For Availability

24

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

24

Nut Union WPL 233076 Contact Us For Availability

25

279505 Whirlpool Chute Backorder WPL 279505 $210.92

25

Dryer Control Knob WPL 349796 Contact Us For Availability

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

26

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

26

Screw WPL 346893 Contact Us For Availability

27

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

28

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $39.91

29

Screw WPL 690372 Contact Us For Availability

29

Harness WPL 696038 Contact Us For Availability

30

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $35.48

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

30

Receptacle WPL 353425 Contact Us For Availability

30A

Washer Terminal Connector WPL 353424 Contact Us For Availability

31

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

31

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

31

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $104.82

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

32

Push-to-Start Switch WPL 348790 Contact Us For Availability

33

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

33

Housing WPL 695081 Contact Us For Availability

35

Connector WPL 98440 Contact Us For Availability

36

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

37

Seal WPL 694630 Contact Us For Availability

38

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

39

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

40

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

43

279220 Whirlpool Clip Backorder WPL 279220 $18.99

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

45

Toe Panel (White) WPL 237035 Contact Us For Availability

47

Door WPL 695953 Contact Us For Availability

49

Door (White) WPL 348737 Contact Us For Availability

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

51

Panel (White) WPL 337470 Contact Us For Availability

53

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $5.16

54

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

55

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

56

Wire WPL 690236 Contact Us For Availability

57

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

59

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

60

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

61

Screw WPL 132848 Contact Us For Availability

63

Burner WPL 694670 Contact Us For Availability

64

Ground Wire WPL 364089 Contact Us For Availability

67

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

70

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

71

279923 Whirlpool Gas Valve In Stock WPL 279923 $142.44

72

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

73

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $26.29

73A

Conversion Kit WPL 279243 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

Paint (White) WPL 799344 Contact Us For Availability
