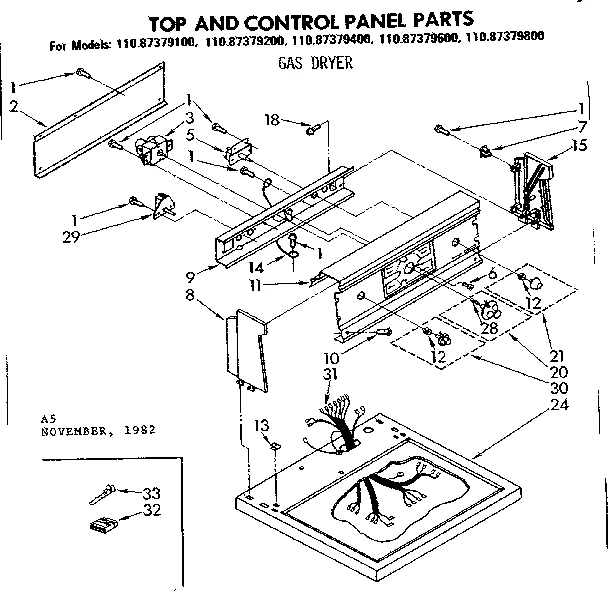

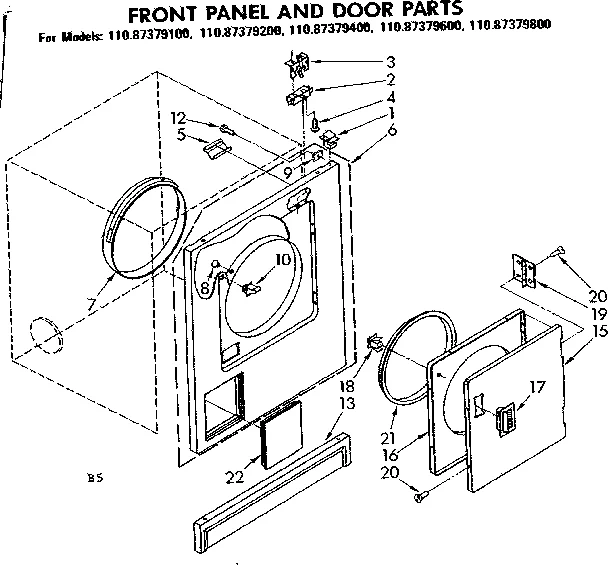

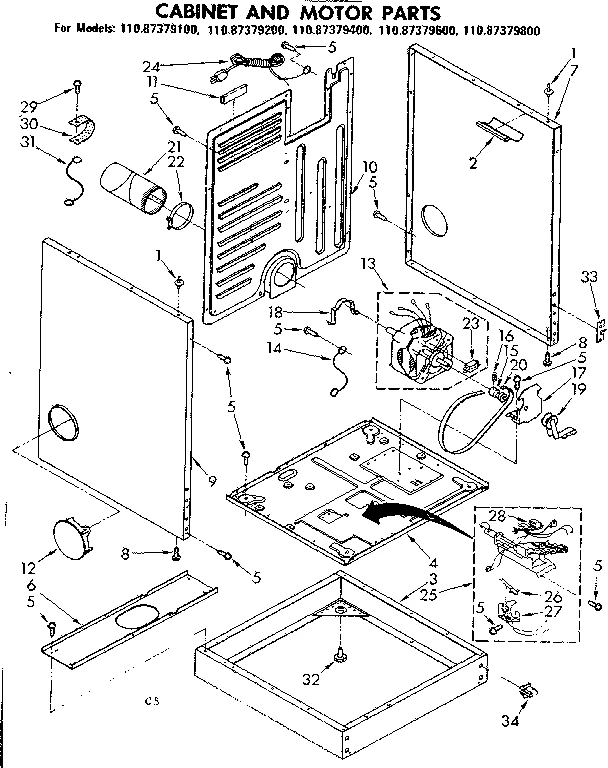

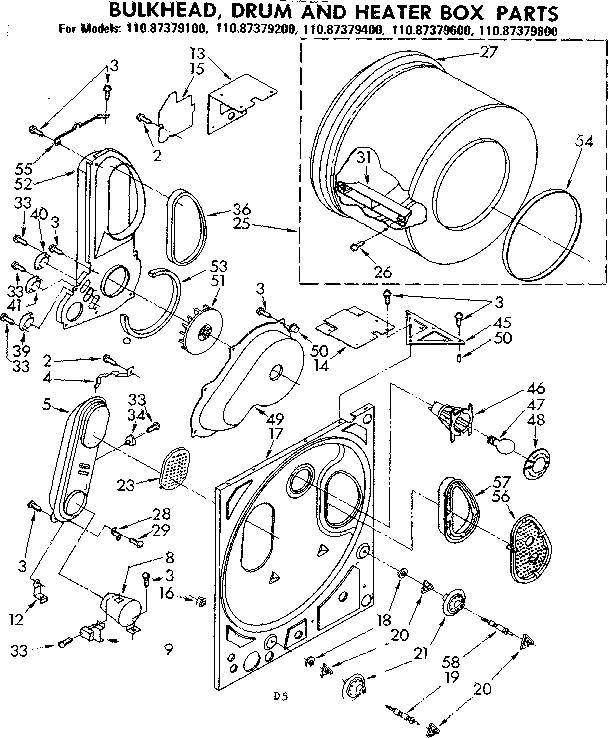

Model Whirlpool 110.87379200 Gas Dryer (Kenmore 11087379200) – Common Parts &amp; Diagrams

1

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

2

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

2

Panel WPL 357942 Contact Us For Availability

2

Support WPL 686771 Contact Us For Availability

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

3

Timer 60hz WPL 691528 Contact Us For Availability

3

Pedestal WPL 692671 Contact Us For Availability

4

279771 Whirlpool Clip Backorder WPL 279771 $9.33

4

WP348726 Whirlpool Base Assembly Backorder WPL WP348726 $191.17

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

4

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

5

Support WPL 686768 Contact Us For Availability

5

Switch WPL 660388 Contact Us For Availability

5

Heater Box WPL 346952 Contact Us For Availability

6

Screw, Nibbed WPL 339607 Contact Us For Availability

6

Coverplate WPL 692702 Contact Us For Availability

6A

Panel (White) WPL 693049 Contact Us For Availability

6B

Panel (Almond) WPL 693050 Contact Us For Availability

6E

Panel WPL 693053 Contact Us For Availability

7

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

7

End Cap Clip WPL 689559 Contact Us For Availability

7

(338471) (ALT.) WPL N/P Contact Us For Availability

7A

Panel (White) WPL 692681 Contact Us For Availability

7B

Panel (Almond) WPL 692682 Contact Us For Availability

7E

Panel WPL 692685 Contact Us For Availability

8

279220 Whirlpool Clip Backorder WPL 279220 $18.99

8

279900 Whirlpool Box O/S1 Backorder WPL 279900 $228.97

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

8

Cap (Chestnut) WPL 372127 Contact Us For Availability

9

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

9

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

9

Bracket WPL 692660 Contact Us For Availability

9A

Panel (White) WPL 692687 Contact Us For Availability

9B

Panel (Almond) WPL 692688 Contact Us For Availability

9E

Panel WPL 692691 Contact Us For Availability

10

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

10

Screw WPL 358225 Contact Us For Availability

10

Panel WPL 349641 Contact Us For Availability

11

Panel WPL 693055 Contact Us For Availability

11

Protector WPL 693067 Contact Us For Availability

12

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.82

12

Compression Ring WPL 90015 Contact Us For Availability

12A

692790 Whirlpool Plug Backorder WPL 692790 $57.71

12B

Plug (Almond) WPL 692791 Contact Us For Availability

12E

Plug WPL 692794 Contact Us For Availability

13

279304 Whirlpool Block Terminal Backorder WPL 279304 $130.28

13

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

13A

Panel (White) WPL 692662 Contact Us For Availability

13B

Panel (Almond) WPL 692663 Contact Us For Availability

13E

Panel WPL 692666 Contact Us For Availability

14

Ground Wire WPL 340025 Contact Us For Availability

14

Wire WPL 687261 Contact Us For Availability

14

Support WPL 692697 Contact Us For Availability

15

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $42.20

15

Cap (Chestnut) WPL 372134 Contact Us For Availability

15

Pulley WPL 348946 Contact Us For Availability

15A

WP348205 Whirlpool Door Backorder WPL WP348205 $97.40

15B

Dryer Door (Almond) WPL 689314 Contact Us For Availability

15C

Door WPL 689315 Contact Us For Availability

15D

Door WPL 689318 Contact Us For Availability

15E

Door WPL 689319 Contact Us For Availability

16

Screw WPL 690046 Contact Us For Availability

16A

280077 Whirlpool Door Backorder WPL 280077 $124.82

17

696541 Whirlpool Base Backorder WPL 696541 $64.59

17

Bulkhead WPL 693170 Contact Us For Availability

17A

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $5.30

17B

Handle (Almond) WPL 689497 Contact Us For Availability

17C

Handle WPL 689498 Contact Us For Availability

17D

Handle WPL 689500 Contact Us For Availability

17E

Handle WPL 689499 Contact Us For Availability

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

Nut Union WPL 233076 Contact Us For Availability

Screw WPL 355326 Contact Us For Availability

19

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

19

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $48.48

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

Dryer Timer Knob WPL 688865 Contact Us For Availability

Screw WPL 689791 Contact Us For Availability

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

Dryer Control Knob WPL 349796 Contact Us For Availability

Pipe WPL 692873 Contact Us For Availability

22

Clamp WPL 692874 Contact Us For Availability

22A

Door (White) WPL 693039 Contact Us For Availability

22B

Door (Almond) WPL 693040 Contact Us For Availability

22D

Door WPL 693042 Contact Us For Availability

22E

Door WPL 693043 Contact Us For Availability

23

345335 Whirlpool Cover Backorder WPL 345335 $75.27

23A

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

24

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $60.20

24A

Top (White) WPL 692651 Contact Us For Availability

24D

Top WPL 692655 Contact Us For Availability

24E

Top (Almond) WPL 692652 Contact Us For Availability

25

3391834 Whirlpool Drum Backorder WPL 3391834 $215.70

25

Burner WPL 693037 Contact Us For Availability

26

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

26

Screw WPL 690372 Contact Us For Availability

27

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $44.53

28

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

28

Coil WPL 685947 Contact Us For Availability

28

Spacer WPL 347641 Contact Us For Availability

29

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

29

Buzzer WPL 347137 Contact Us For Availability

29

Screw WPL 132848 Contact Us For Availability

30

Knob WPL 382823 Contact Us For Availability

30

Ground Strap WPL 22965 Contact Us For Availability

31

Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability

31

Harness WPL 692991 Contact Us For Availability

31

Ground Wire WPL 364089 Contact Us For Availability

32

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

32

Coil WPL 348374 Contact Us For Availability

32

Receptacle WPL 353425 Contact Us For Availability

32A

Washer Terminal Connector WPL 353424 Contact Us For Availability

33

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

33

Screw WPL 98611 Contact Us For Availability

33A

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

34

Clip WPL 690625 Contact Us For Availability

34

Thermostat WPL 660036 Contact Us For Availability

35

Shutter WPL 688630 Contact Us For Availability

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

39

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $18.68

41

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

45

345325 Whirlpool Gusset Backorder WPL 345325 $61.38

46

Socket WPL 691034 Contact Us For Availability

47

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

48

Lens WPL 341165 Contact Us For Availability

49

Fan Scroll WPL 347798 Contact Us For Availability

50

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

51

Dryer Blower Wheel WPL 345317 Contact Us For Availability

52

Air Duct WPL 693033 Contact Us For Availability

53

Duct Seal WPL 345685 Contact Us For Availability

54

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

55

345396 Whirlpool Clip Backorder WPL 345396 $54.31

57

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $41.03

58

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Operating Instructions WPL LIT692149 Contact Us For Availability

Checklist WPL LIT692171 Contact Us For Availability

Label WPL LIT692834 Contact Us For Availability

Parts List WPL LIT692914 Contact Us For Availability

Owner's Manual WPL LIT693160 Contact Us For Availability

Installation Instructions WPL LIT693740 Contact Us For Availability

Service Manual WPL LIT828693 Contact Us For Availability

Conversion Kit WPL 279243 Contact Us For Availability

LP Gas Kit WPL 347701 Contact Us For Availability
