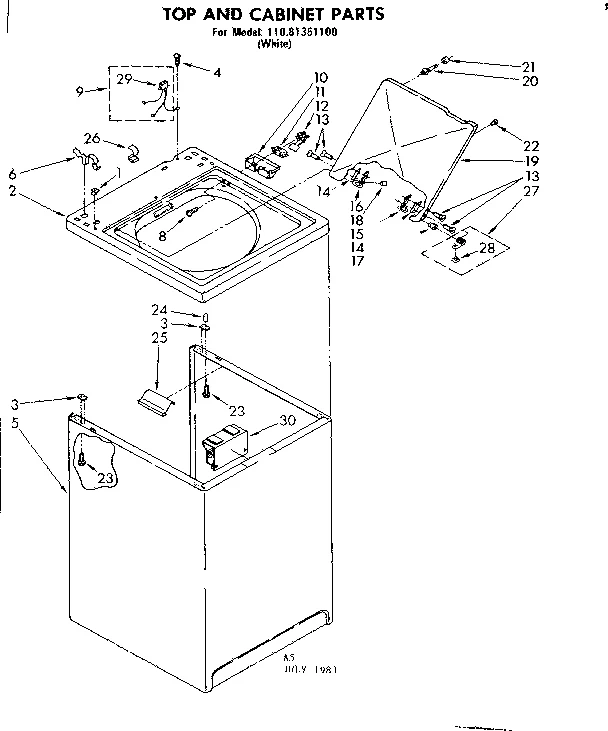

Model Whirlpool 110.81351100 Washer Top &amp; Cabinet Parts (Kenmore 11081351100) – Common Parts &amp; Diagrams

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

1

Washer Agitator Cap WPL 358348 Contact Us For Availability

1

Clip WPL 62732 Contact Us For Availability

1

Replacement Part WPL 384249 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Clip WPL 62749 Contact Us For Availability

2A

Top (White) WPL 63370 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

3

Spring WPL 62740 Contact Us For Availability

3

Cam WPL 63262 Contact Us For Availability

3

Ground Strap WPL 22965 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

4

Appliance O-Ring WPL 357574 Contact Us For Availability

4

Support WPL 63239 Contact Us For Availability

4

Clip WPL 357469 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Washer Agitator Dog WPL 358692 Contact Us For Availability

5

Bracket WPL 62606 Contact Us For Availability

5

Protector WPL 63523 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

6

Agitator Auger WPL 358690 Contact Us For Availability

6

Harness WPL 63508 Contact Us For Availability

6

Screw WPL 132848 Contact Us For Availability

6A

Cabinet (White) WPL 63128 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.87

7

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Agitator WPL 63499 Contact Us For Availability

7

Block (White) WPL 352090 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $63.89

8

Terminal WPL 352088 Contact Us For Availability

8

Spring WPL 354276 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

8

Ring WPL 63223 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

9

Gear Case WPL 62667 Contact Us For Availability

9

Harness WPL 63351 Contact Us For Availability

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Mounting Clip WPL 62825 Contact Us For Availability

Screw WPL 62735 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $15.49

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Washer Outer Tub WPL 63125 Contact Us For Availability

Washer Terminal Connector WPL 353424 Contact Us For Availability

Actuator WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

16

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

16

Lock Nut WPL 285348 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Washer WPL 680829 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip WPL 63552 Contact Us For Availability

19

285459 Whirlpool Washer Base Backorder WPL 285459 $260.42

19

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

19A

Lid (White) WPL 63070 Contact Us For Availability

20

Switch WPL 62850 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

20

Ring WPL 285350 Contact Us For Availability

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

21

Basket WPL 63043 Contact Us For Availability

22

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

24

Clamp WPL 272841 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Support WPL 686768 Contact Us For Availability

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

27

Spring WPL 53749 Contact Us For Availability

27A

Spring WPL 53748 Contact Us For Availability

28

Plug WPL 54690 Contact Us For Availability

29

Plug WPL 62888 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

44

Washer Timer Knob WPL 355519 Contact Us For Availability

47

End Cap Clip WPL 689559 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Label WPL LIT383864 Contact Us For Availability

Checklist WPL LIT384378 Contact Us For Availability

Operating Instructions WPL LIT385148 Contact Us For Availability

Parts List WPL LIT385395 Contact Us For Availability

Label WPL LIT63250 Contact Us For Availability

Guide WPL LIT63548 Contact Us For Availability

Instructions WPL LIT63559 Contact Us For Availability
