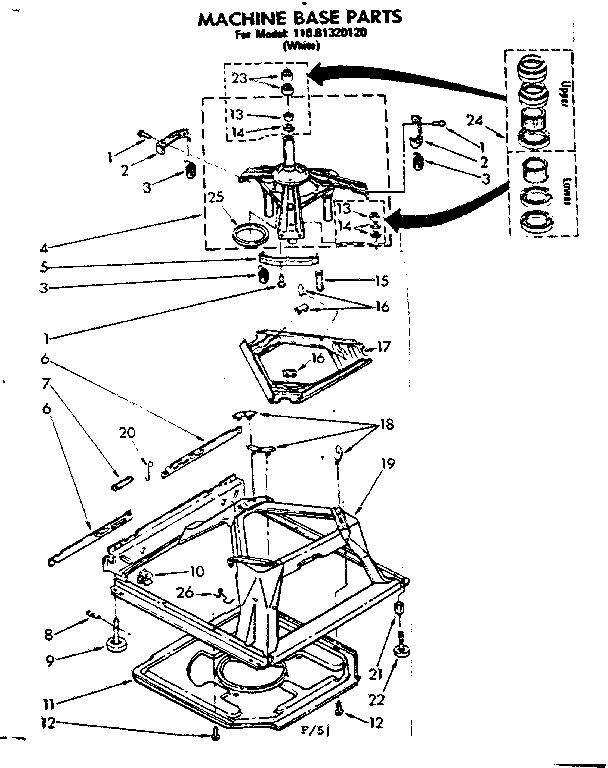

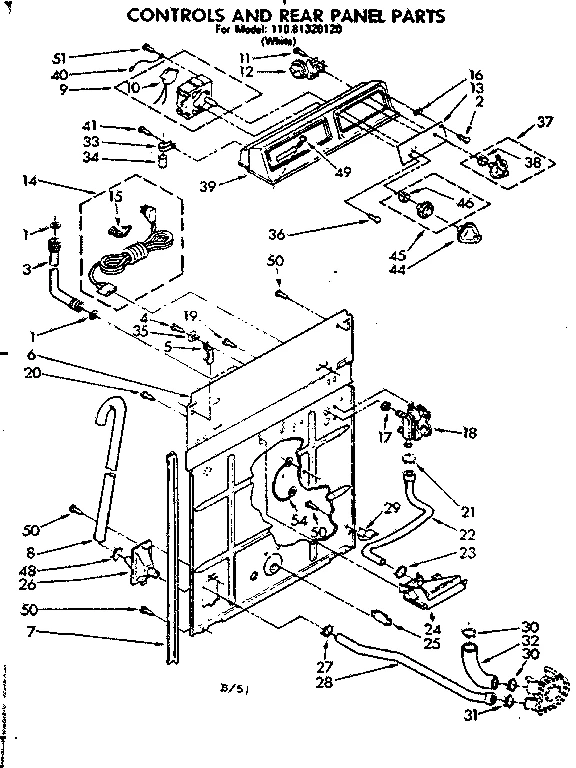

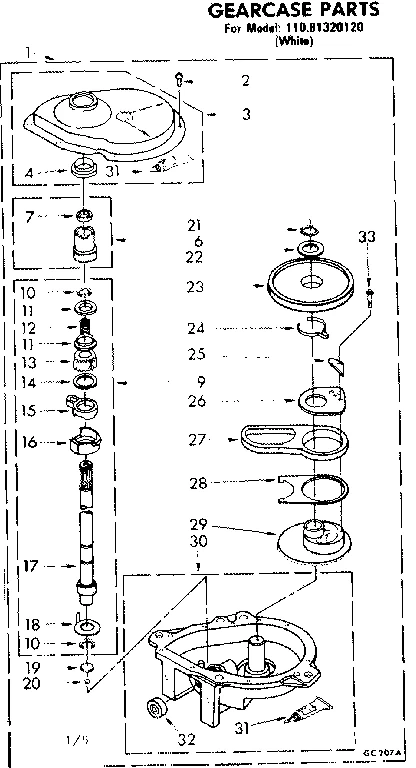

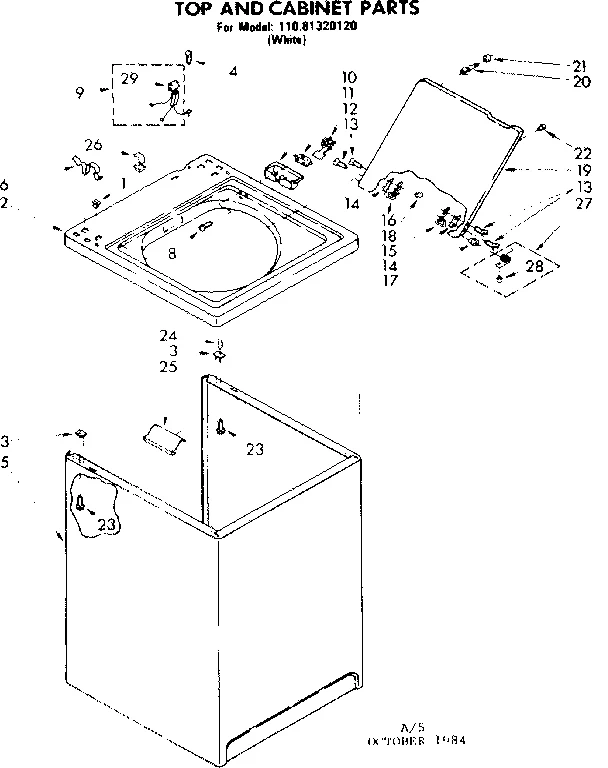

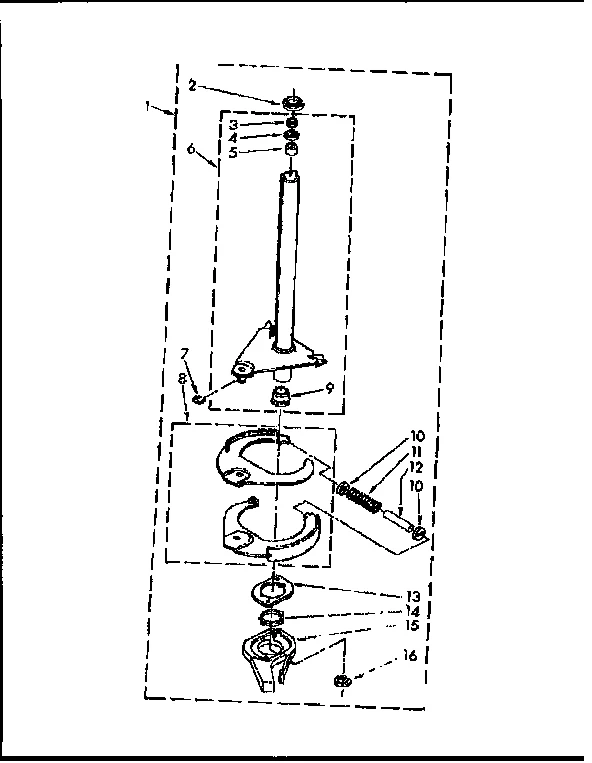

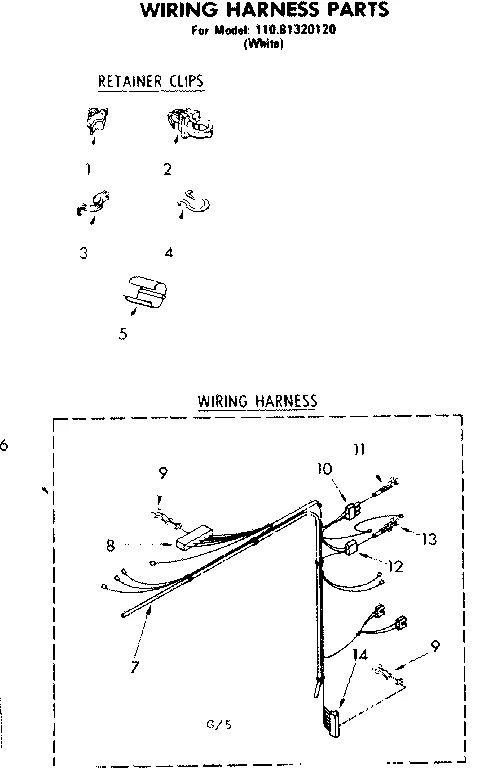

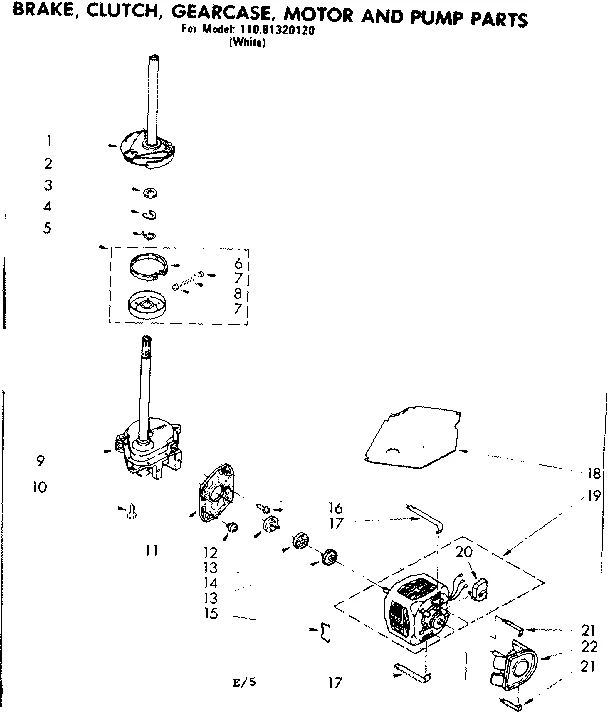

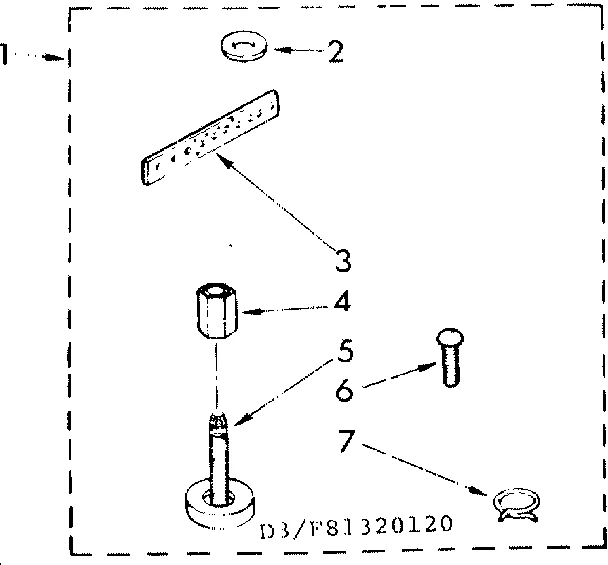

Model Whirlpool 110.81320120 Electric Washer (Kenmore 11081320120) – Common Parts &amp; Diagrams

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

1

Clip WPL 62732 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Top (White) WPL 63370 Contact Us For Availability

2

Clip WPL 62749 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

4

Support WPL 63815 Contact Us For Availability

4

Clip WPL 357469 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

5

Bracket WPL 62606 Contact Us For Availability

5

Protector WPL 63523 Contact Us For Availability

5

Hinge WPL 62748 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

6

Harness WPL 63489 Contact Us For Availability

6

Panel WPL 63898 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.87

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $63.89

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

Terminal WPL 352088 Contact Us For Availability

9

Gear Case WPL 385899 Contact Us For Availability

9

Harness WPL 63595 Contact Us For Availability

9

Timer 60hz WPL 63248 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Mounting Clip WPL 62825 Contact Us For Availability

Screw WPL 62735 Contact Us For Availability

Motor WPL 63492 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Washer Terminal Connector WPL 353424 Contact Us For Availability

Actuator WPL 357347 Contact Us For Availability

Switch WPL 660978 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Bezel WPL 384392 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Cord WPL 62734 Contact Us For Availability

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

Washer Outer Tub WPL 63125 Contact Us For Availability

Clip WPL 386838 Contact Us For Availability

Relief WPL 62733 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

Clip WPL 98084 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

Lid (White) WPL 63070 Contact Us For Availability

Base WPL 63808 Contact Us For Availability

20

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

20

Switch WPL 62851 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

25

Support WPL 686768 Contact Us For Availability

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

27

Spring WPL 53749 Contact Us For Availability

27A

Spring WPL 53748 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $54.39

28

Plug WPL 54690 Contact Us For Availability

29

Plug WPL 62888 Contact Us For Availability

29

Pin WPL 63162 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

35

End Cap Clip WPL 689559 Contact Us For Availability

36

Screw WPL 358950 Contact Us For Availability

37

Knob WPL 382828 Contact Us For Availability

38

Compression Ring WPL 90015 Contact Us For Availability

39

Escutcheon WPL 383638 Contact Us For Availability

40

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $63.26

41

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

44

Knob WPL 355643 Contact Us For Availability

45

Pointer WPL 63474 Contact Us For Availability

46

Clip WPL 384710 Contact Us For Availability

49

Screw WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

54

Ground Wire WPL 364089 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Energy Guide WPL LIT383861 Contact Us For Availability

Checklist WPL LIT384375 Contact Us For Availability

Operating Instructions WPL LIT385623 Contact Us For Availability

Parts List WPL LIT386468 Contact Us For Availability

Label WPL LIT63361 Contact Us For Availability

Guide WPL LIT63548 Contact Us For Availability

Installation Instructions WPL LIT63895 Contact Us For Availability

Installation Instruction Sheet WPL LIT63994 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability
