Model Whirlpool 110.25294503 Washer (Kenmore 11025294503) – Common Parts &amp; Diagrams

1

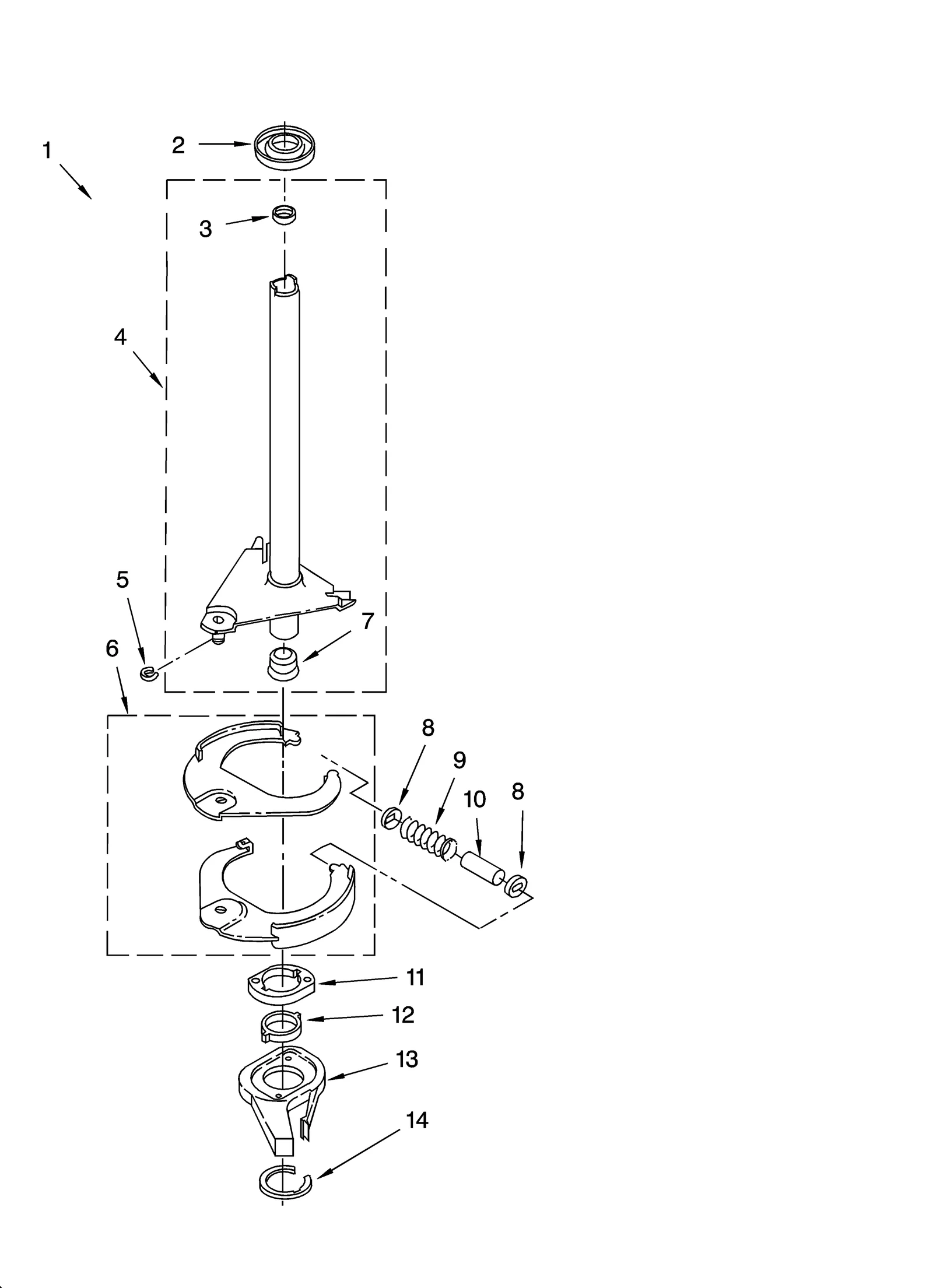

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

285321 Whirlpool Sleeve Backorder WPL 285321 $57.93

2

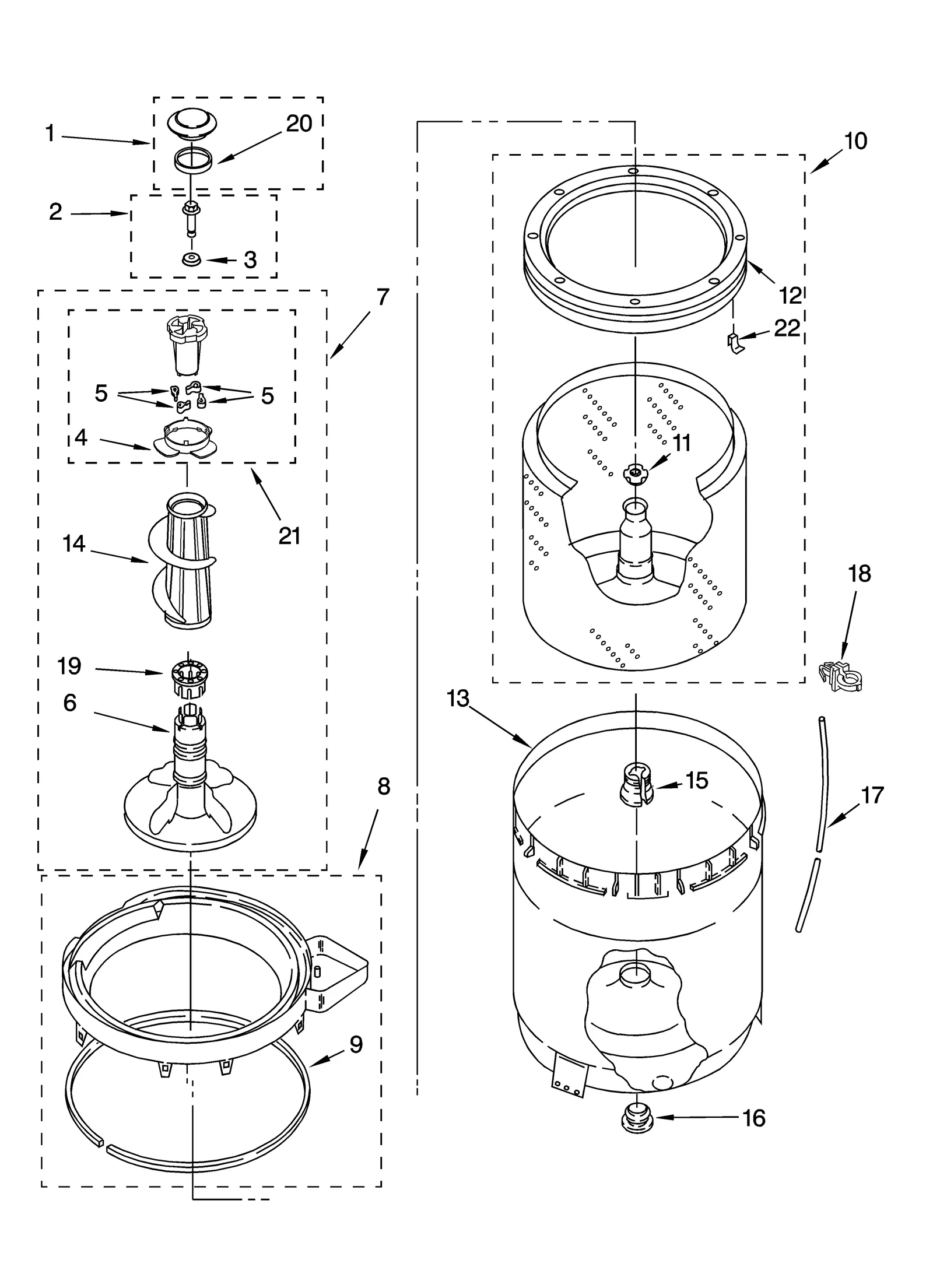

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

5

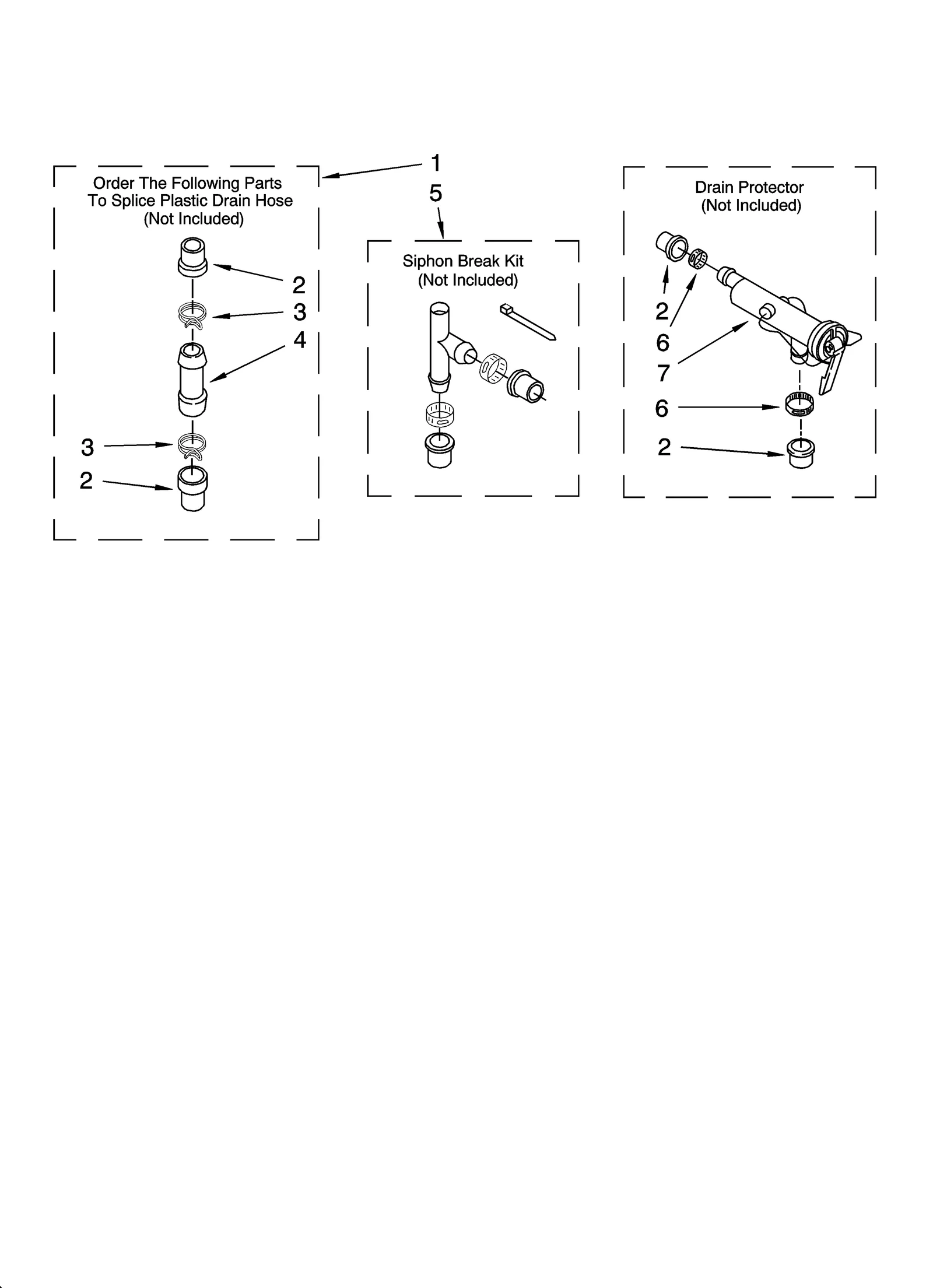

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

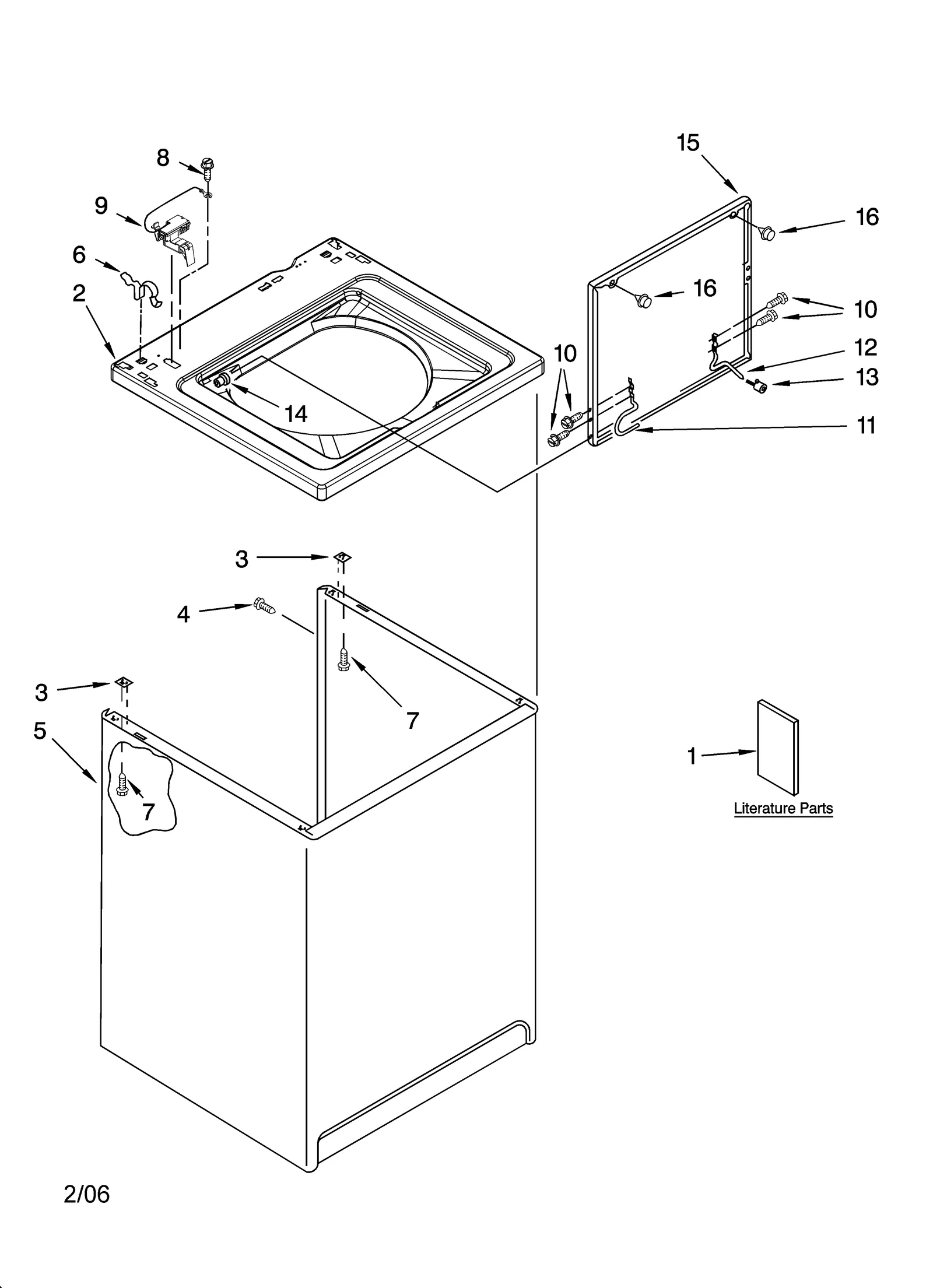

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket WPL 64065 Contact Us For Availability

5

Washer Capacitor Strap WPL 8318046 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP3350832 Whirlpool Agitator Backorder WPL WP3350832 $120.00

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $50.26

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.92

8

Washer Tub Ring WPL 3360611 Contact Us For Availability

8

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

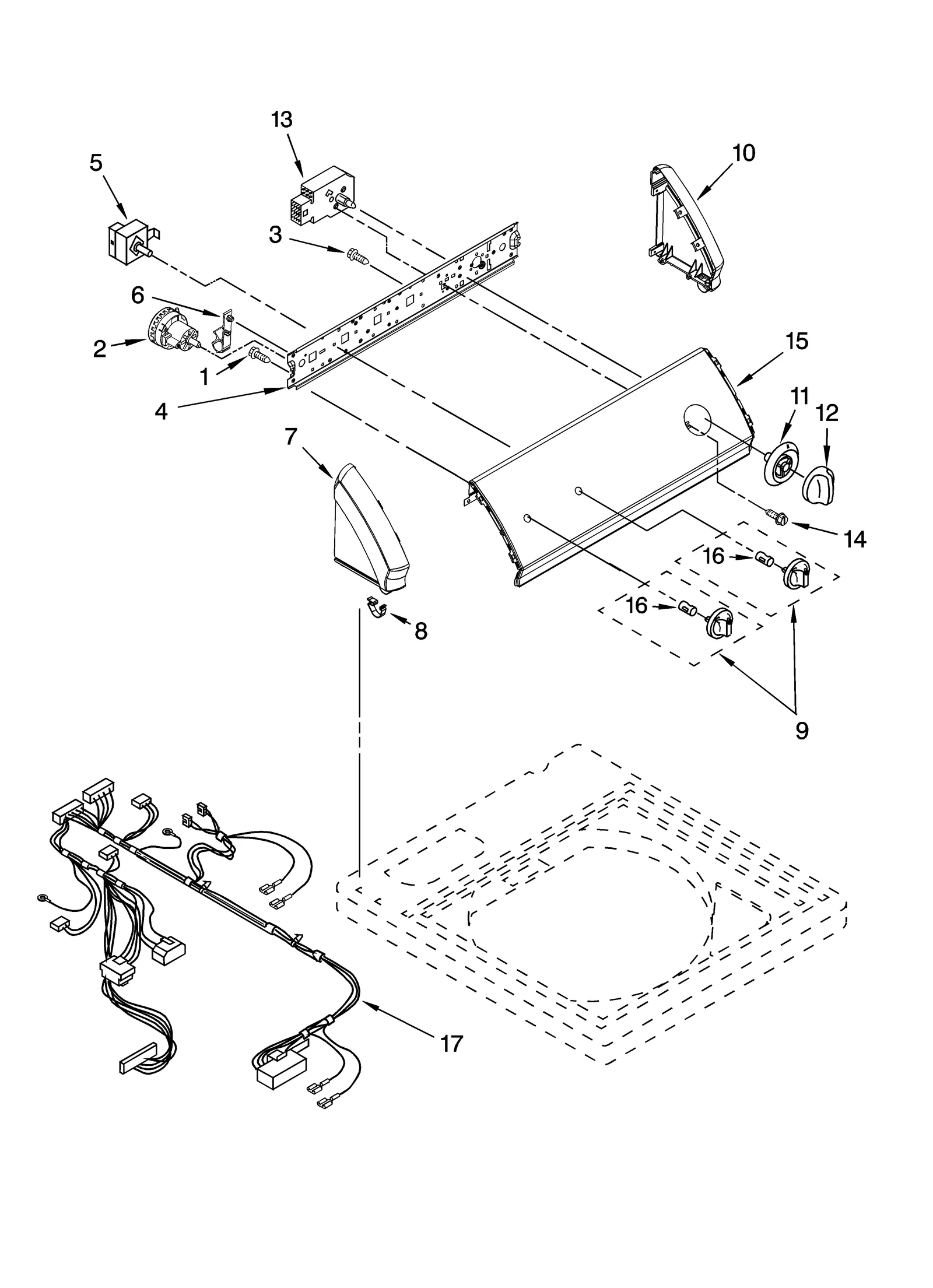

W10816321 Whirlpool Knob Backorder WPL W10816321 $39.65

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

9A

Washer Control Knob (Bisque) WPL 8541469 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $50.11

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

Washer Terminal Connector WPL 353424 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Washer Basket Balance Ring WPL 3956205 Contact Us For Availability

Washer Timer Knob (Gray and White) WPL 3956786 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WP8546681 Whirlpool Timer Backorder WPL WP8546681 $288.87

Washer Outer Tub WPL 63125 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

Washer Agitator Auger WPL 63901 Contact Us For Availability

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

15

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

16

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

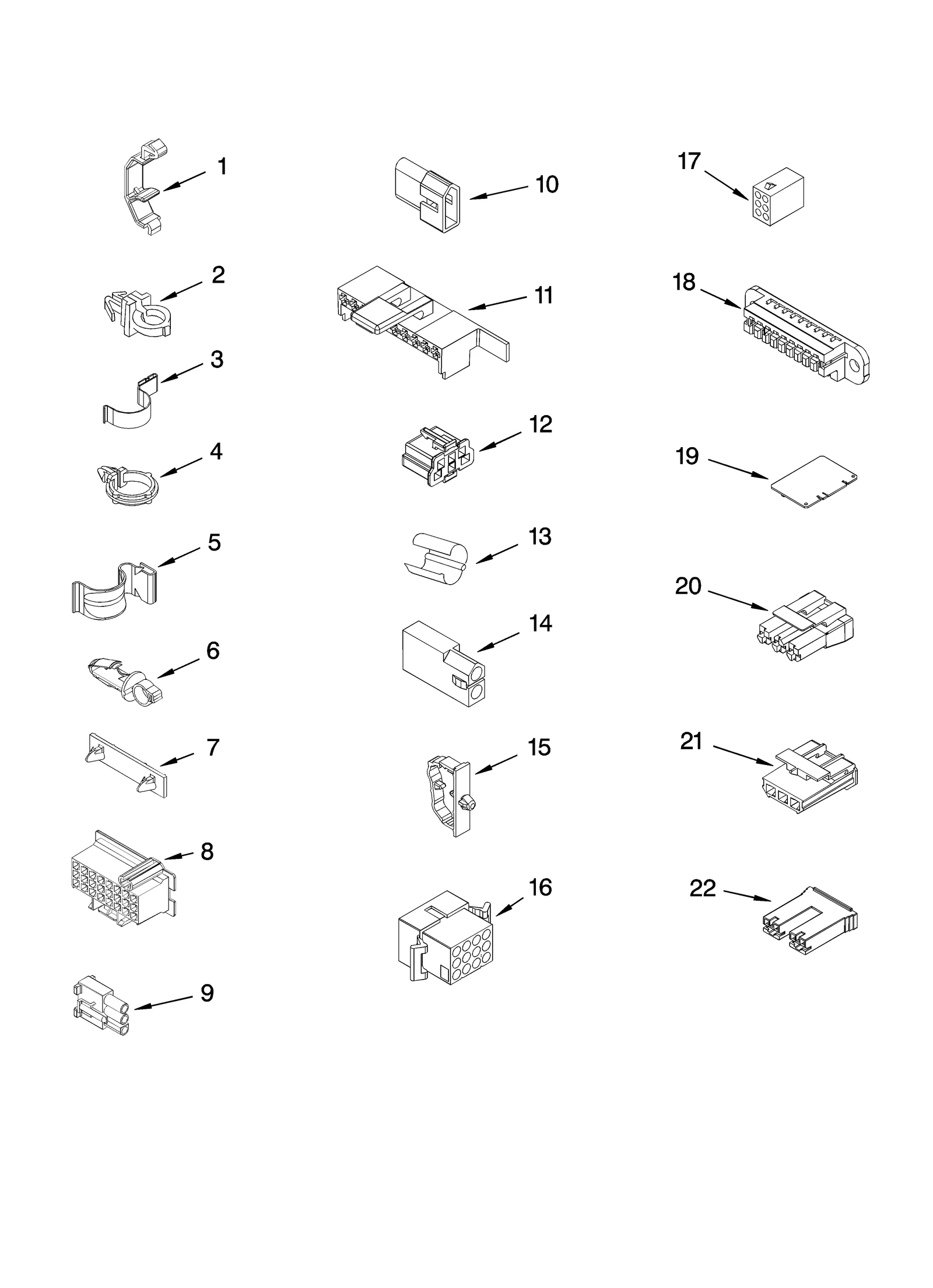

Washer Wire Harness WPL 3957393 Contact Us For Availability

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

19

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

Washer Motor Switch WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

Connector WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

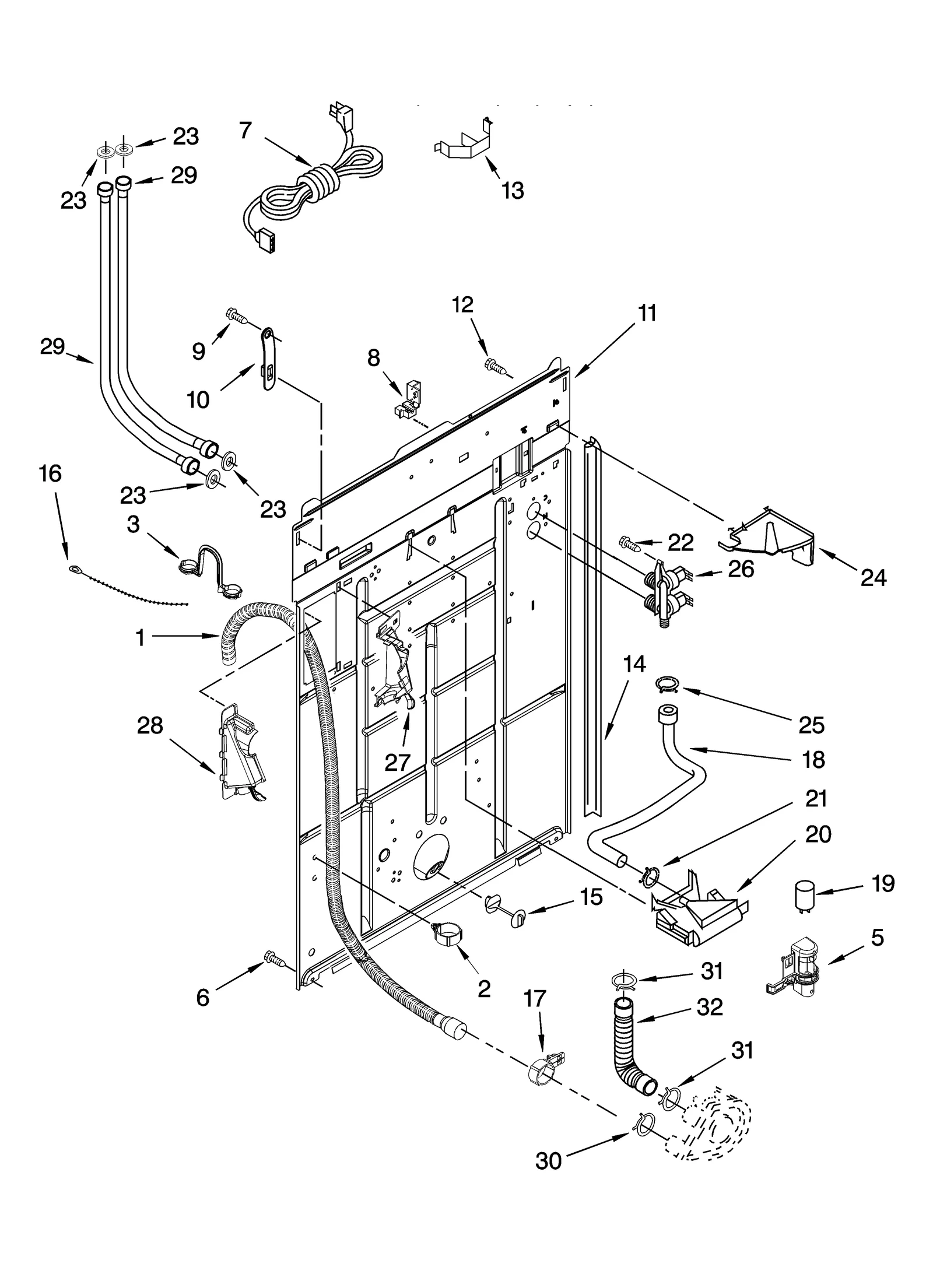

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $4.02

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

Retainer Ring WPL 3362552 Contact Us For Availability

24

Shield WPL 8539874 Contact Us For Availability

24

Washer WPL 285735 Contact Us For Availability

24

Clip WPL 3355454 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

27

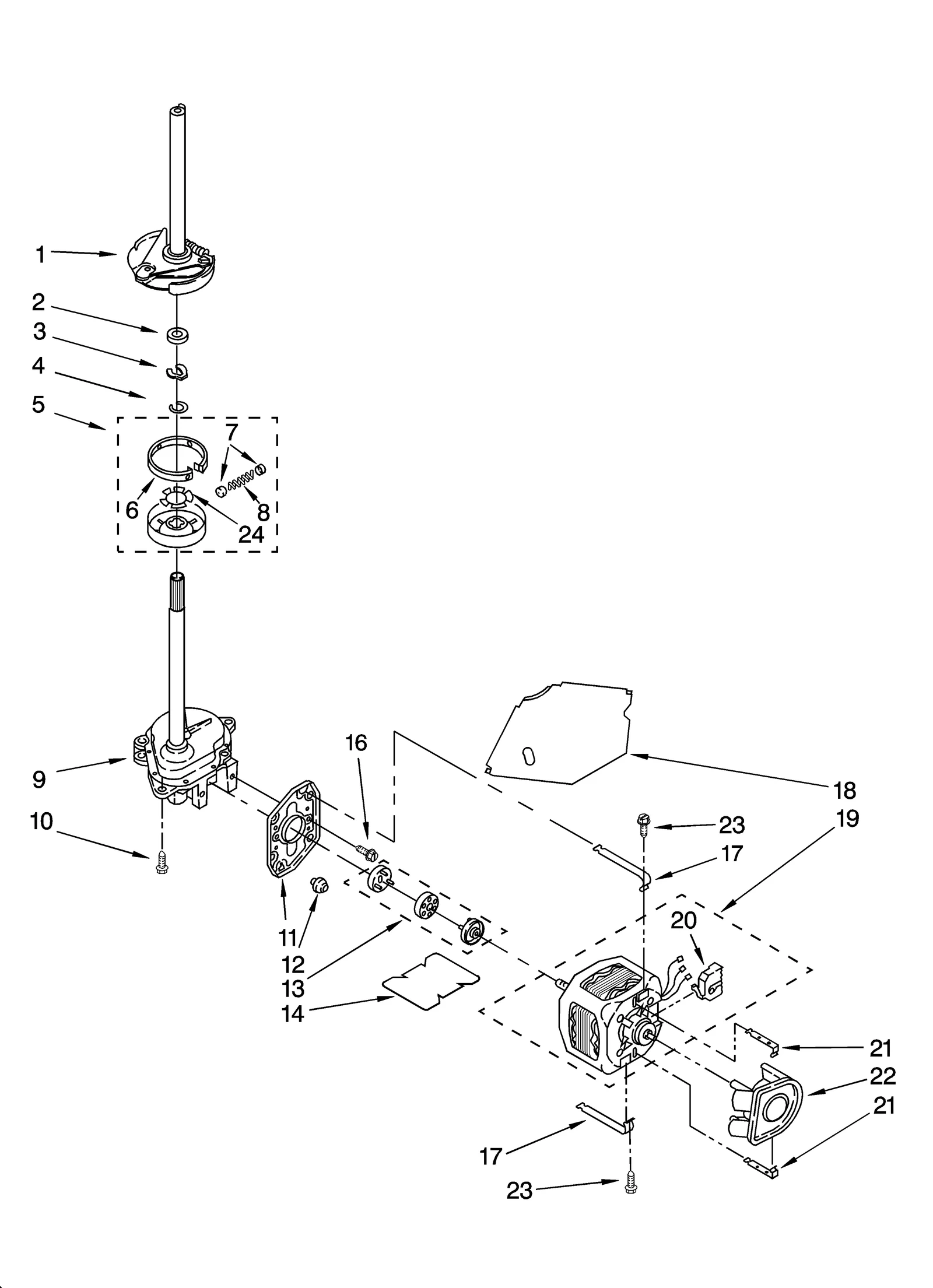

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

28

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $48.95

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
