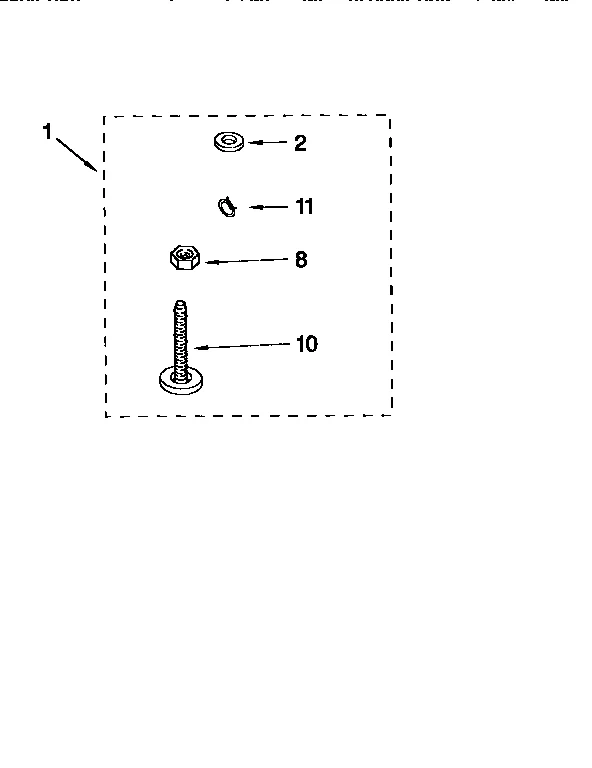

Model Whirlpool 110.16512691 Washer (Kenmore 11016512691) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

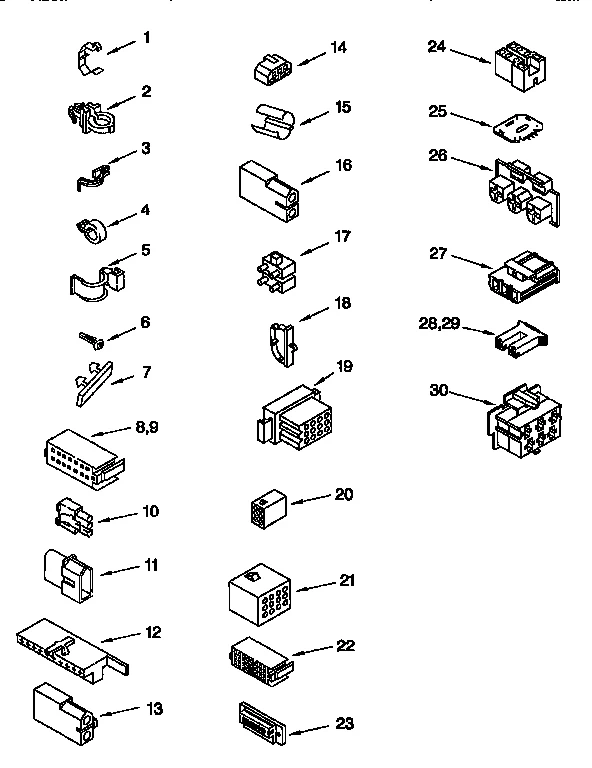

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1A

Wiring Diagram WPL LIT3950985 Contact Us For Availability

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

1B

Energy Guide WPL LIT3950628 Contact Us For Availability

1C

Repair Parts List WPL LIT3950083 Contact Us For Availability

1D

Repair Manual WPL LIT4314044 Contact Us For Availability

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

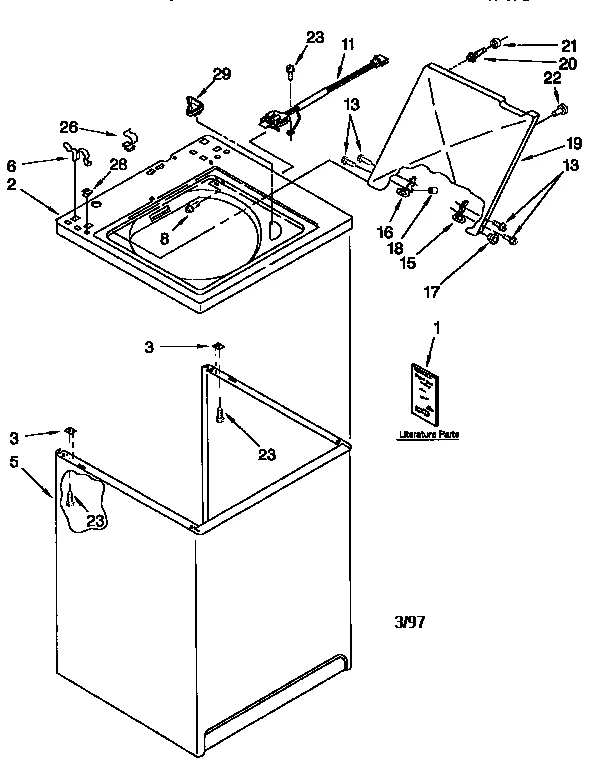

Top W WPL 3949955 Contact Us For Availability

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

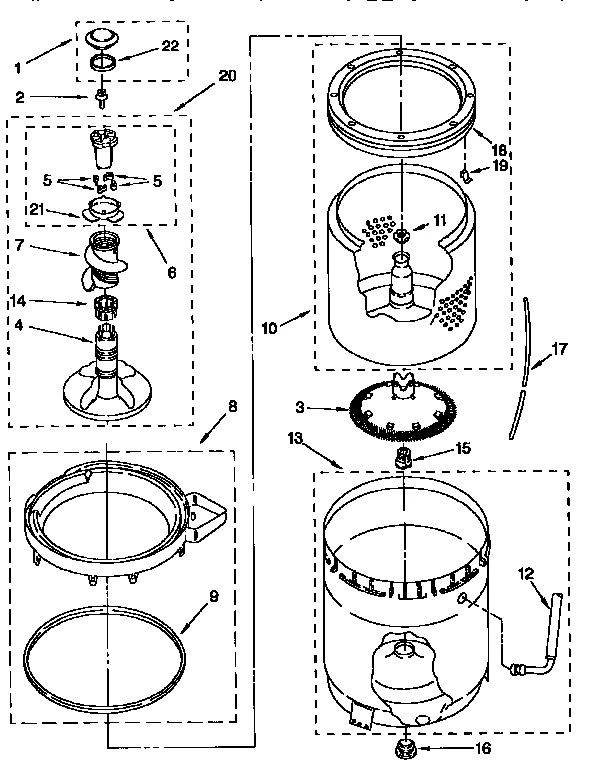

WP3350832 Whirlpool Agitator Backorder WPL WP3350832 $120.00

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

5

Bracket WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

Washer Agitator Auger WPL 63901 Contact Us For Availability

7

Power Cord WPL 3949248 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Washer Tub Ring WPL 3360611 Contact Us For Availability

8

Relief Stirrer WPL 3949468 Contact Us For Availability

9

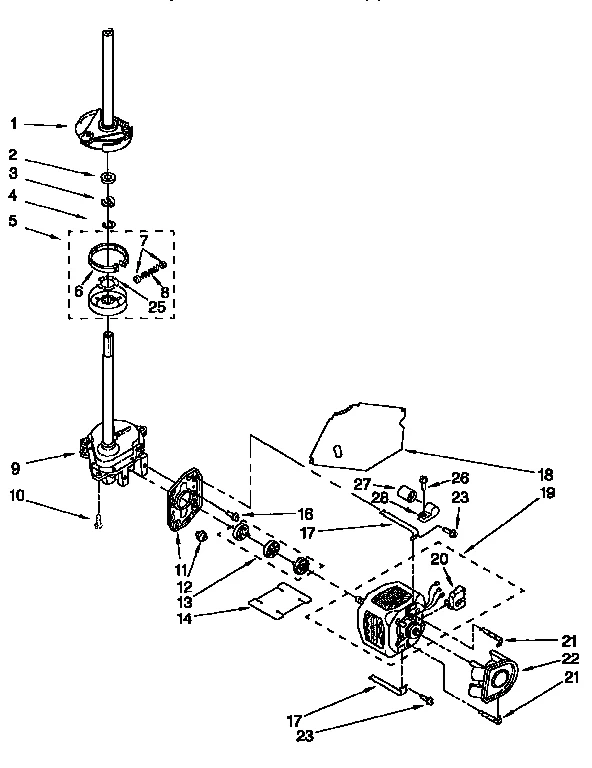

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

9

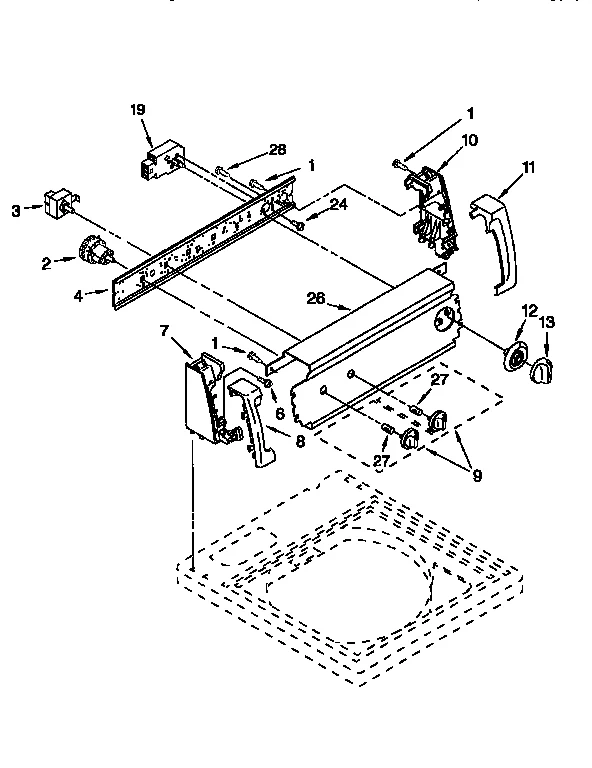

Washer Control Knob WPL 3402572 Contact Us For Availability

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

Hinge Panel WPL 387402 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP3949238 Whirlpool Lid Switch Assembly In Stock WPL WP3949238 $35.46

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

Washer Terminal Connector WPL 353424 Contact Us For Availability

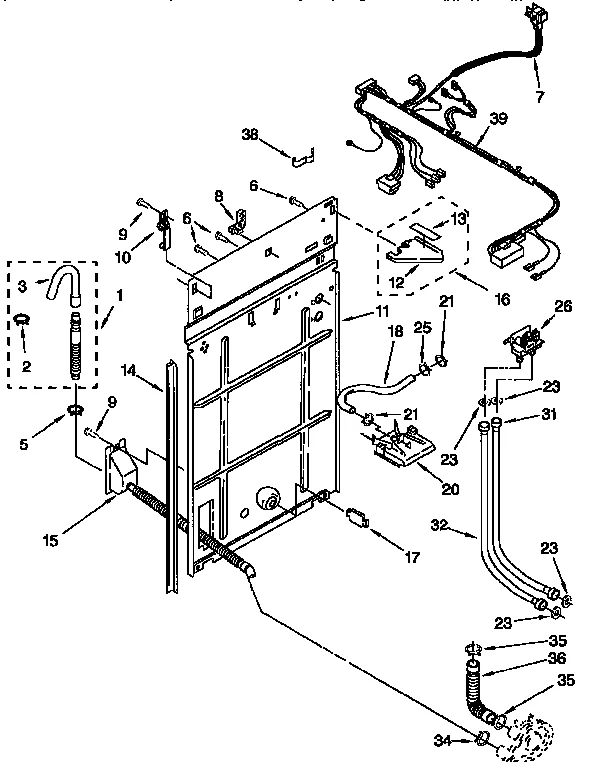

Rear Panel WPL 3356472 Contact Us For Availability

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Washer Timer Dial WPL 3949428 Contact Us For Availability

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

Shield Valve WPL 3348424 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

13

Extension Shield WPL 3950829 Contact Us For Availability

14

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

15

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

16

Shield-sud WPL 3950830 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

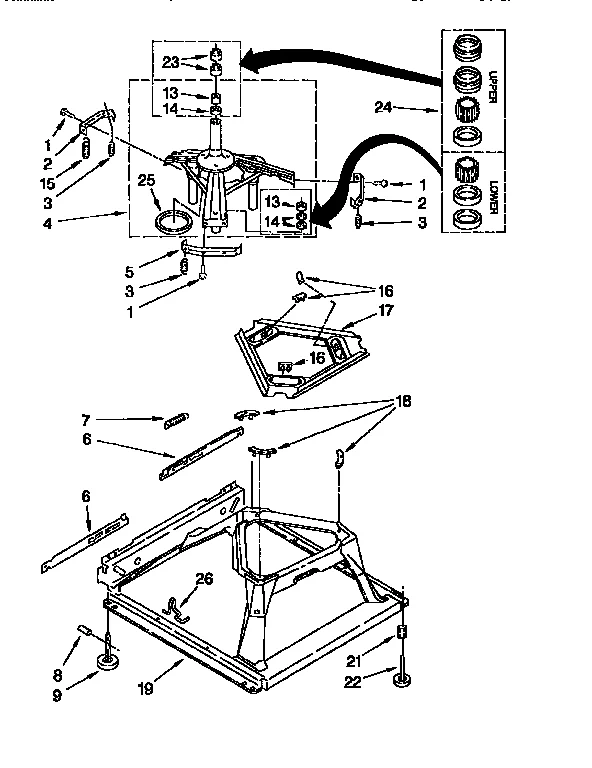

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

19

Lid W WPL 3946600 Contact Us For Availability

20

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

20

Strike WPL 357141 Contact Us For Availability

20

Switch WPL 62851 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

25

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Clip WPL 3355454 Contact Us For Availability

26

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

26

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

27

Connector WPL 3360056 Contact Us For Availability

28

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

29

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $5.19

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

34A

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

38

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

39

Wire Harness WPL 3951125 Contact Us For Availability
