Model Whirlpool 110.16101691 Washer (Kenmore 11016101691) – Common Parts &amp; Diagrams

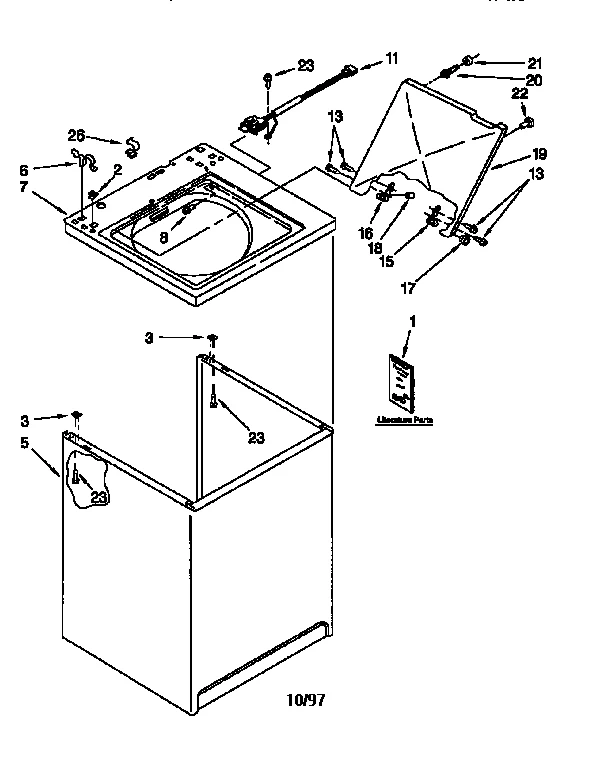

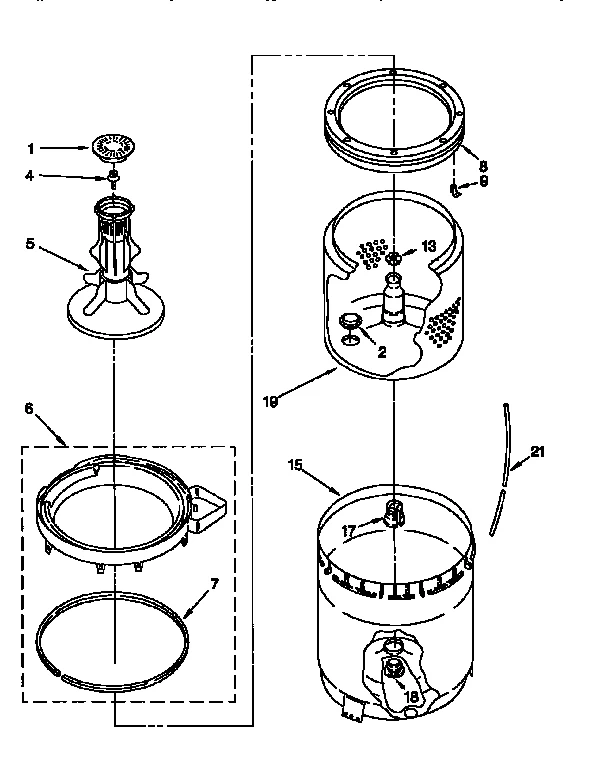

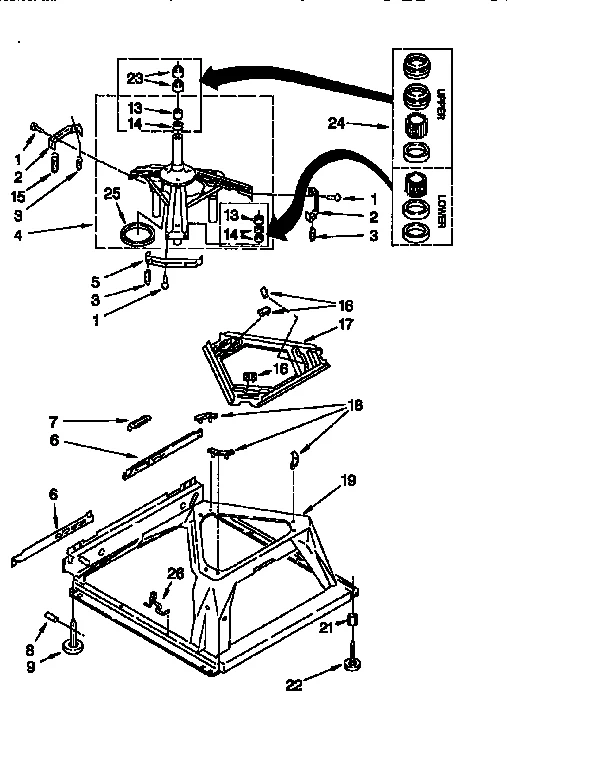

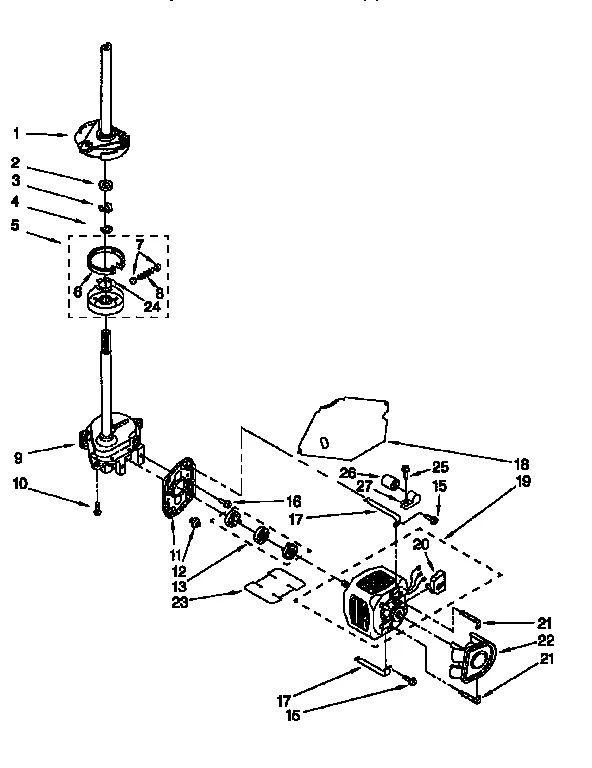

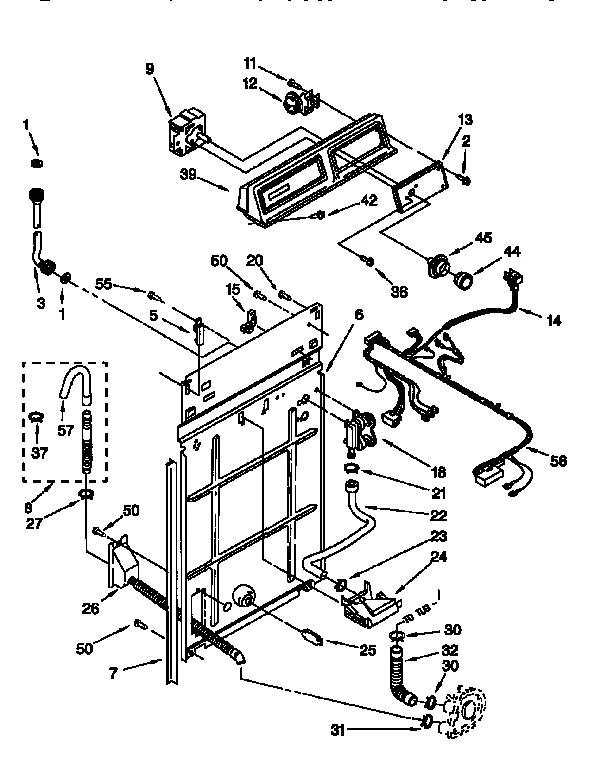

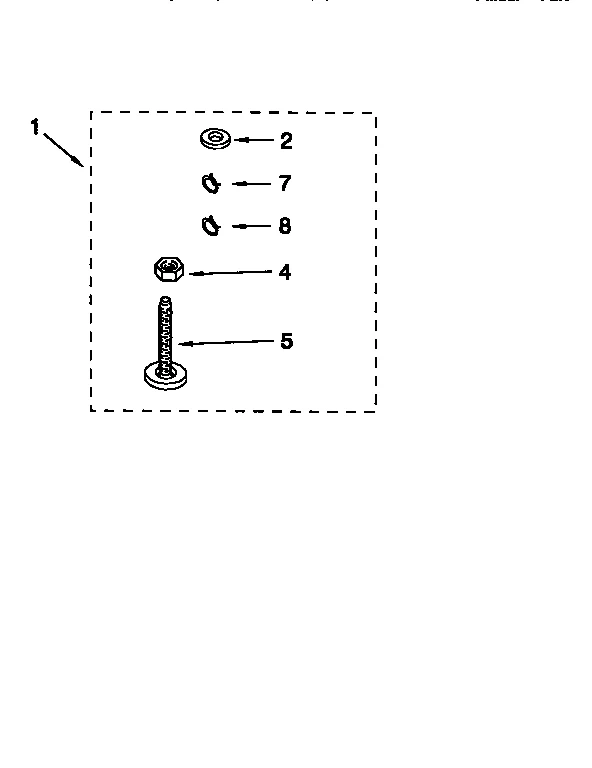

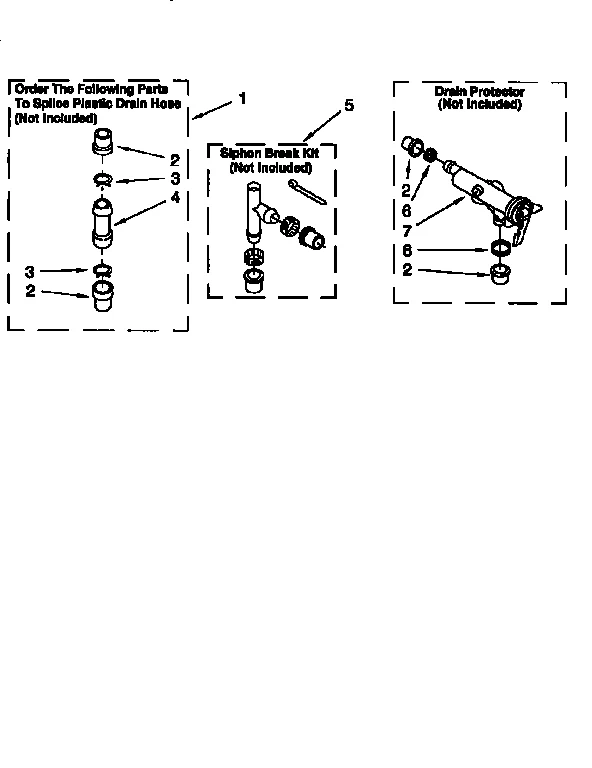

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Owner's Manual WPL LIT3950149 Contact Us For Availability

1

Replacement Part WPL 3976254 Contact Us For Availability

1A

Energy Guide WPL LIT3950626 Contact Us For Availability

1B

Wiring Diagram WPL LIT3951189 Contact Us For Availability

1C

Parts List WPL LIT3950080 Contact Us For Availability

1D

Washer Owner's Manual WPL 4314044 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $57.93

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

4

Support WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Washer Tub Ring WPL 3360611 Contact Us For Availability

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

7

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Top W WPL 3949945 Contact Us For Availability

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

Washer Timer WPL 3946451 Contact Us For Availability

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

11

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $43.99

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

11

Washer Terminal Connector WPL 353424 Contact Us For Availability

12

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

12

Washer Water-Level Pressure Switch WPL 387380 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

15

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

15

Washer Outer Tub WPL 63125 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

285459 Whirlpool Washer Base Backorder WPL 285459 $260.42

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

19

Lid W WPL 3946597 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

20

Switch WPL 62851 Contact Us For Availability

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

23

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

24

Clip WPL 3355454 Contact Us For Availability

25

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

27

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

27

Connector WPL 3360056 Contact Us For Availability

44

WP3362625 Whirlpool Timer Knob In Stock WPL WP3362625 $37.03

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

56

Wire Harness WPL 3951005 Contact Us For Availability

57

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
