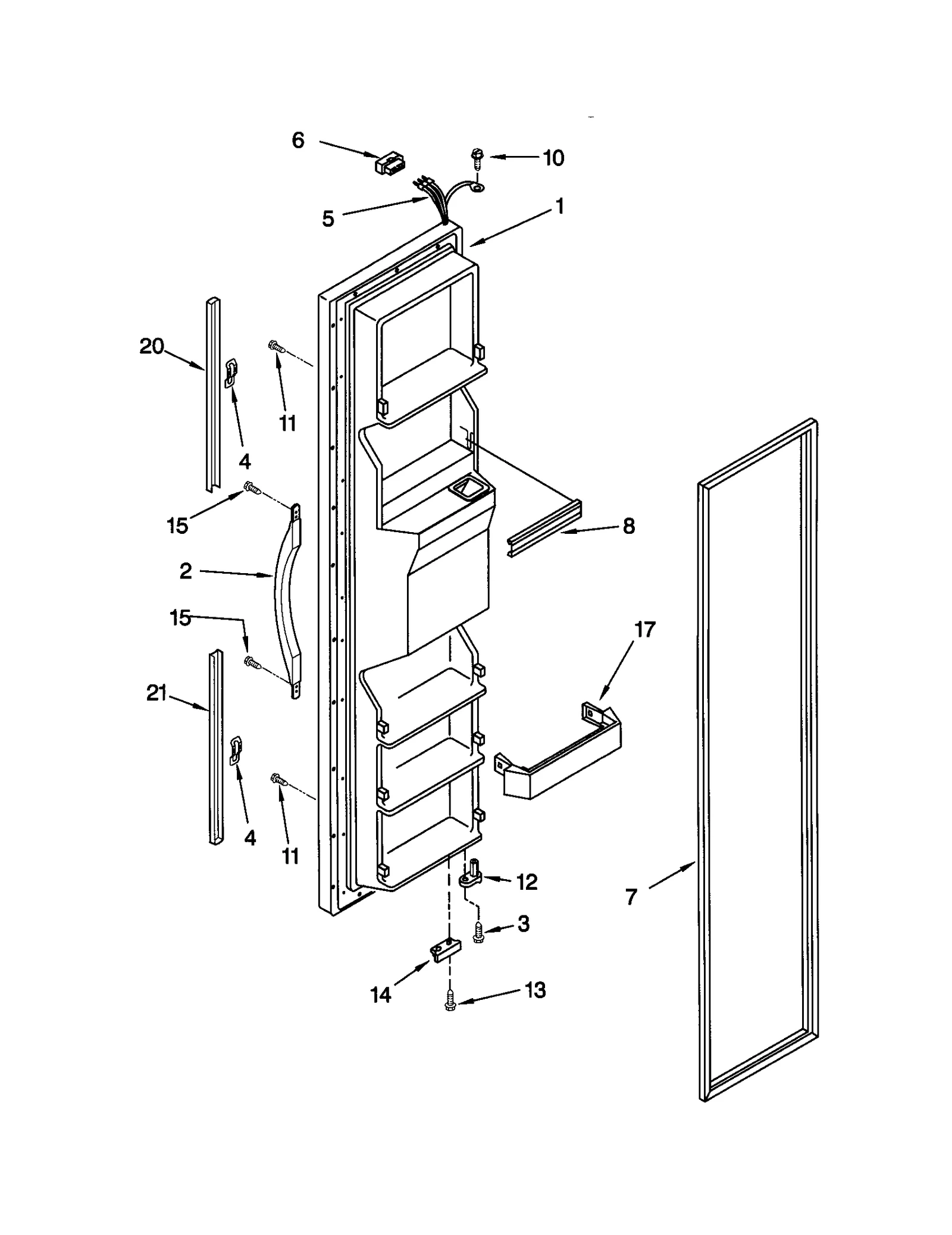

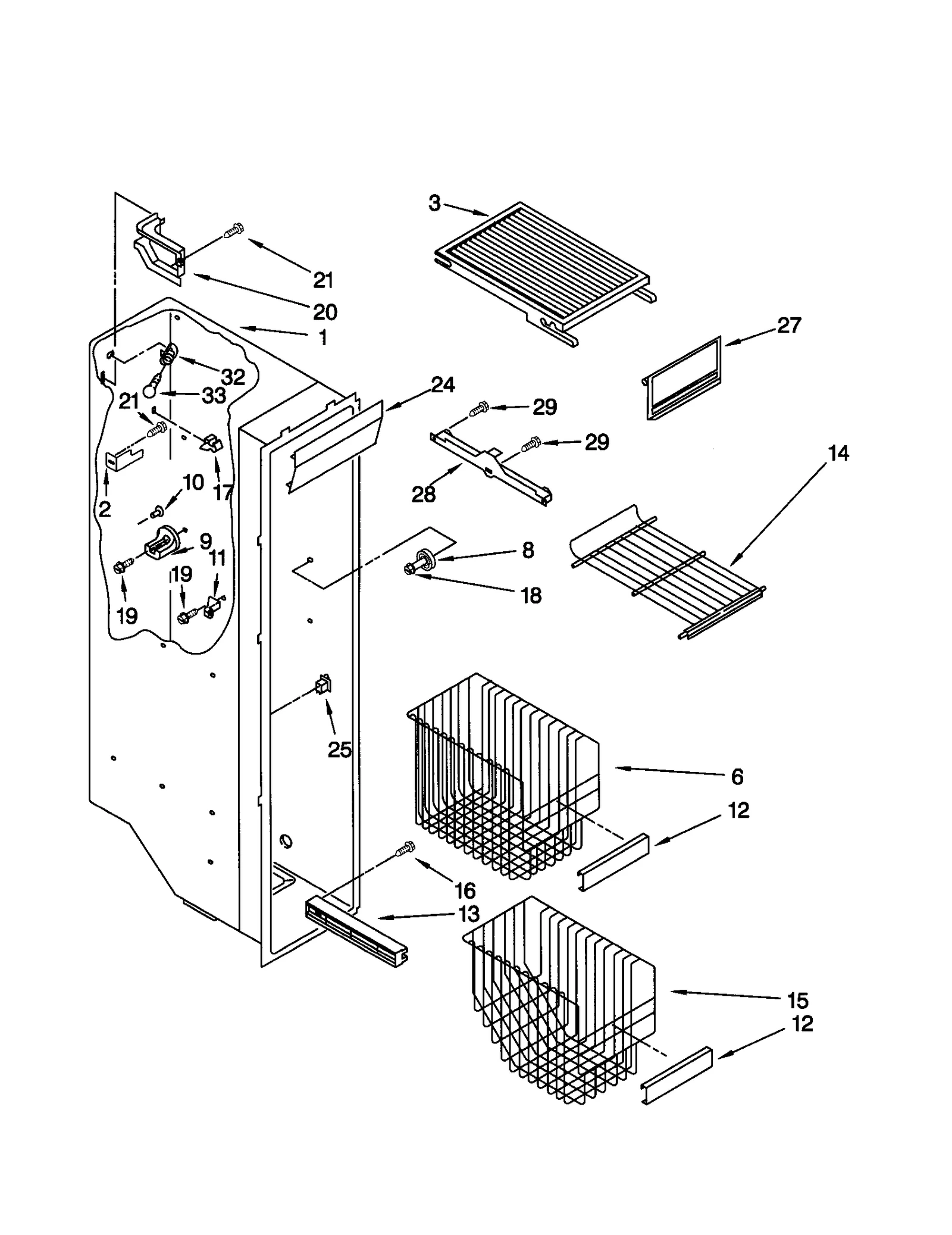

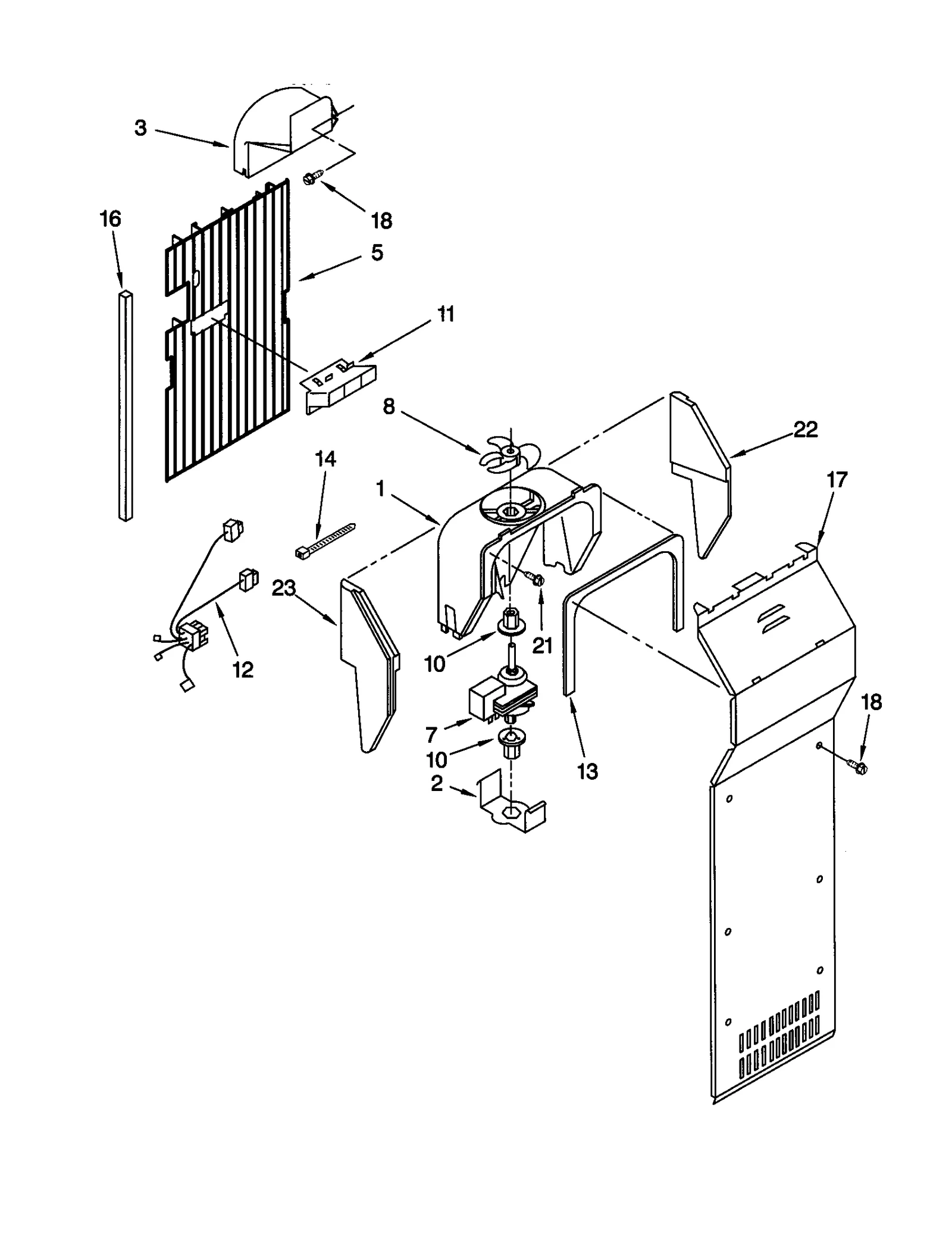

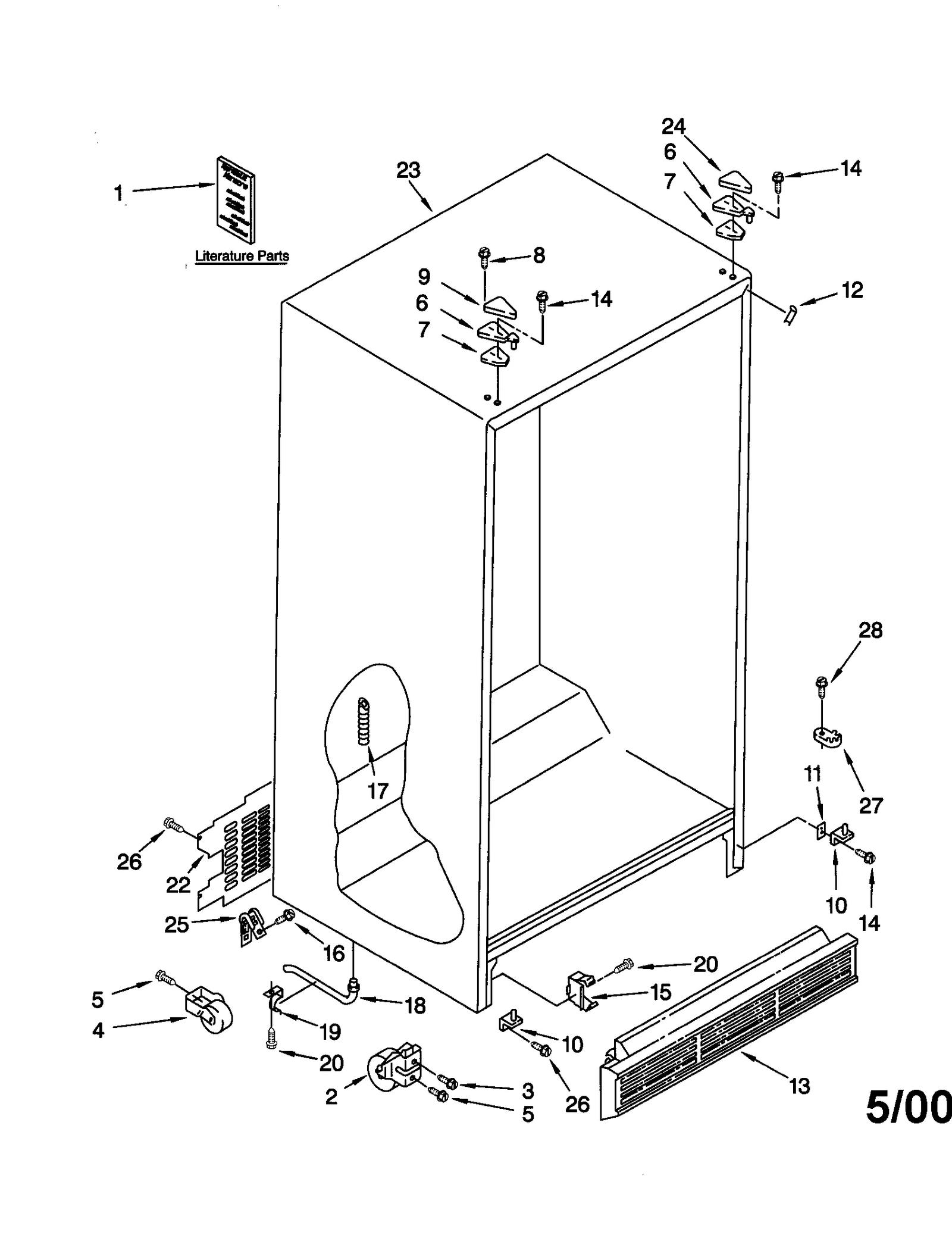

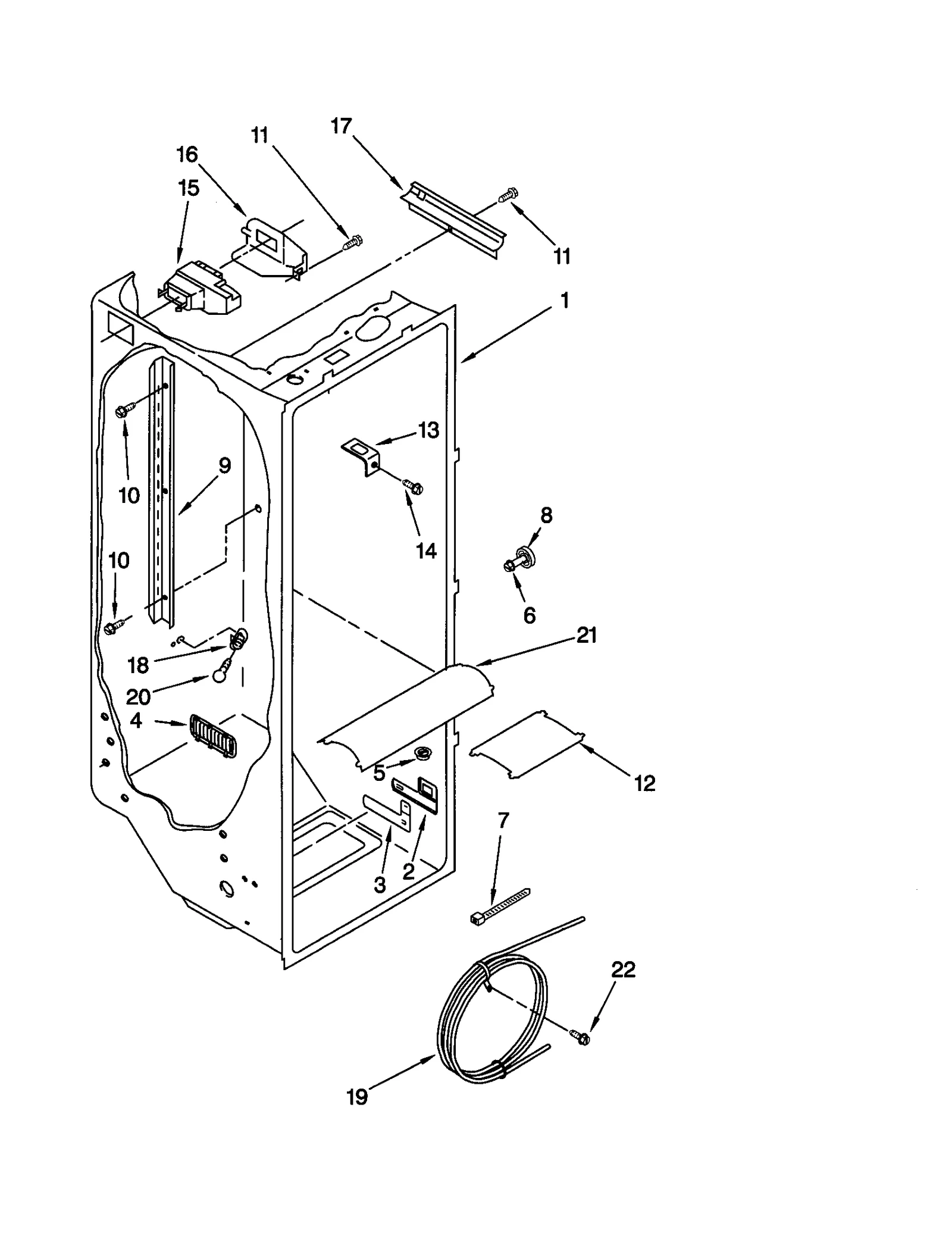

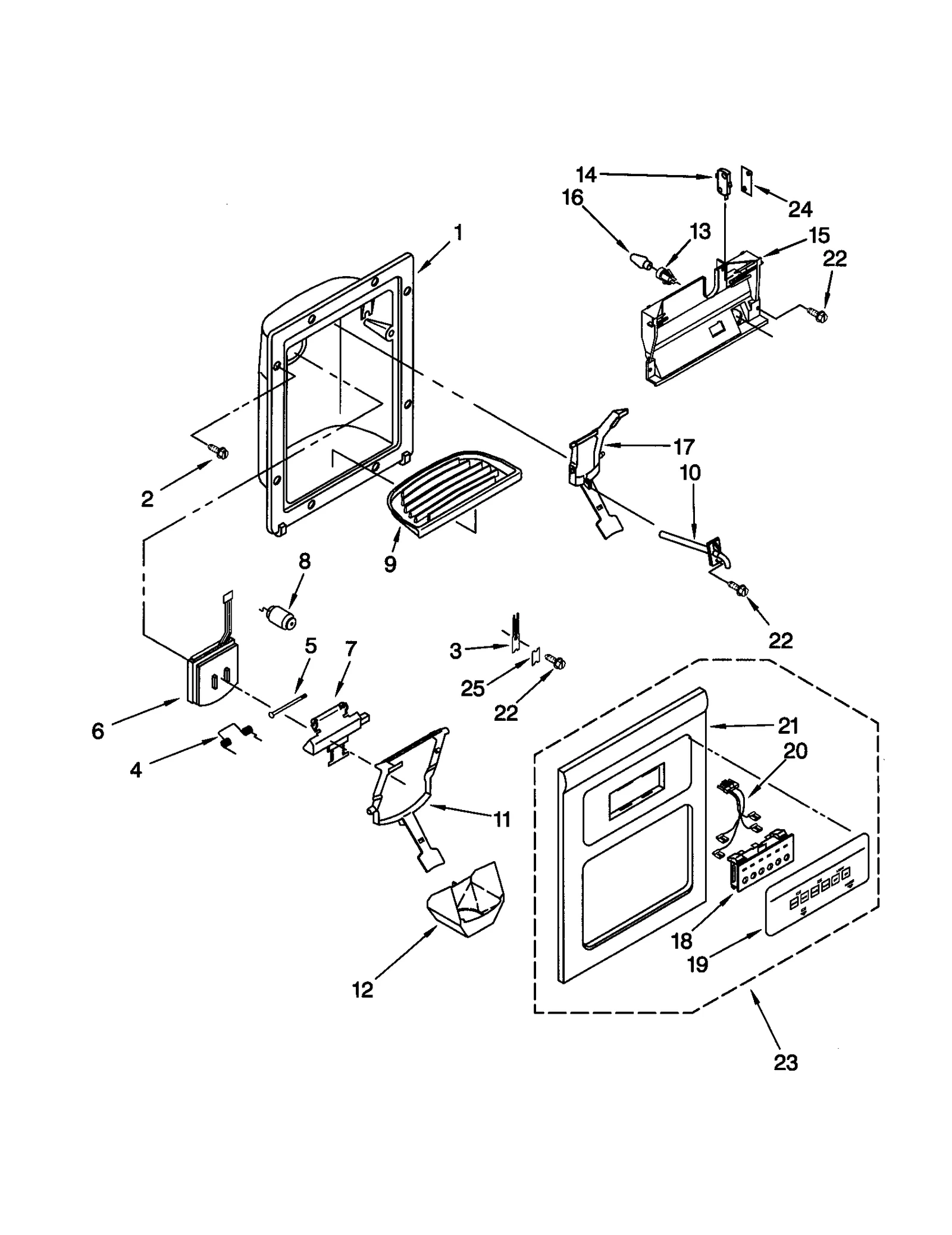

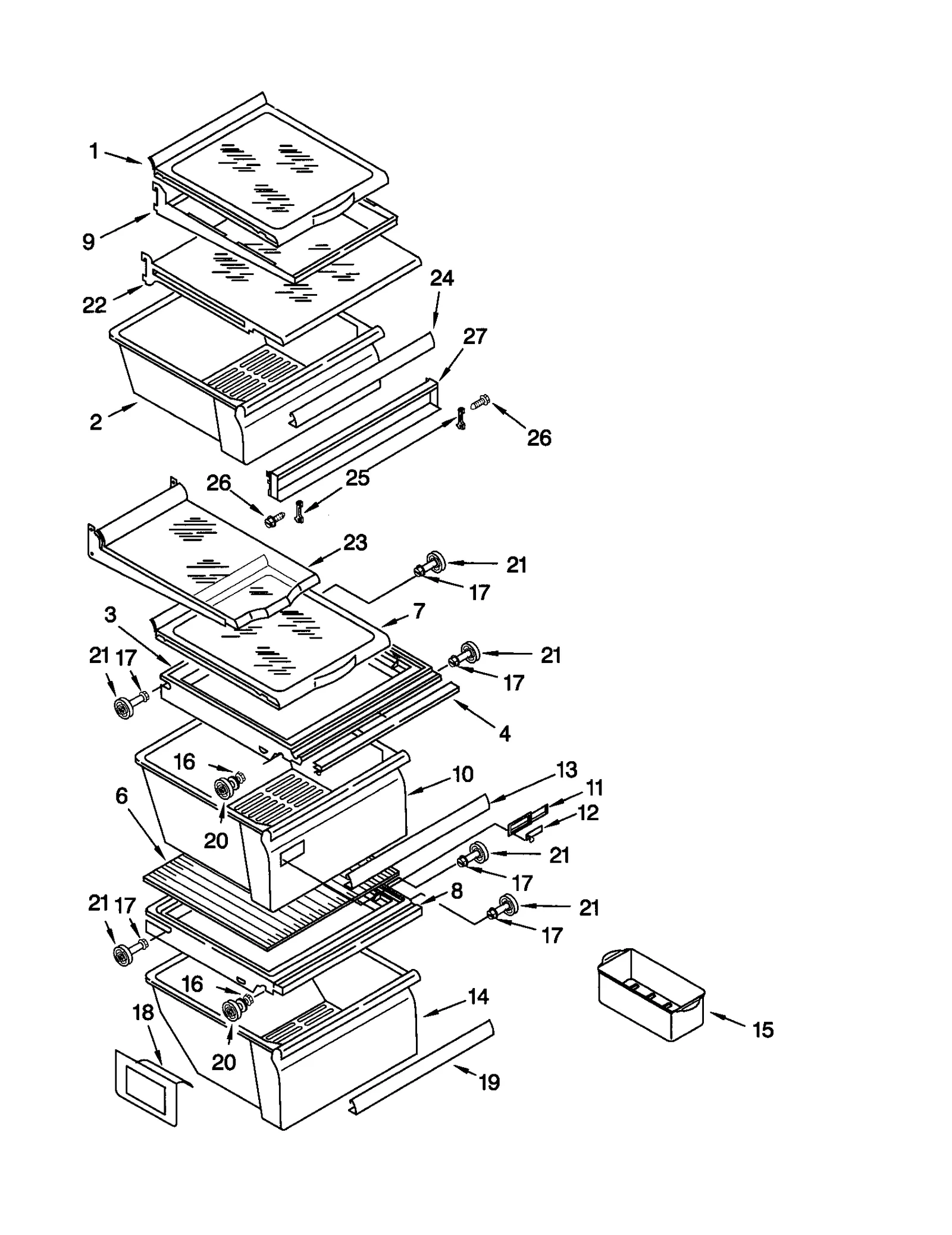

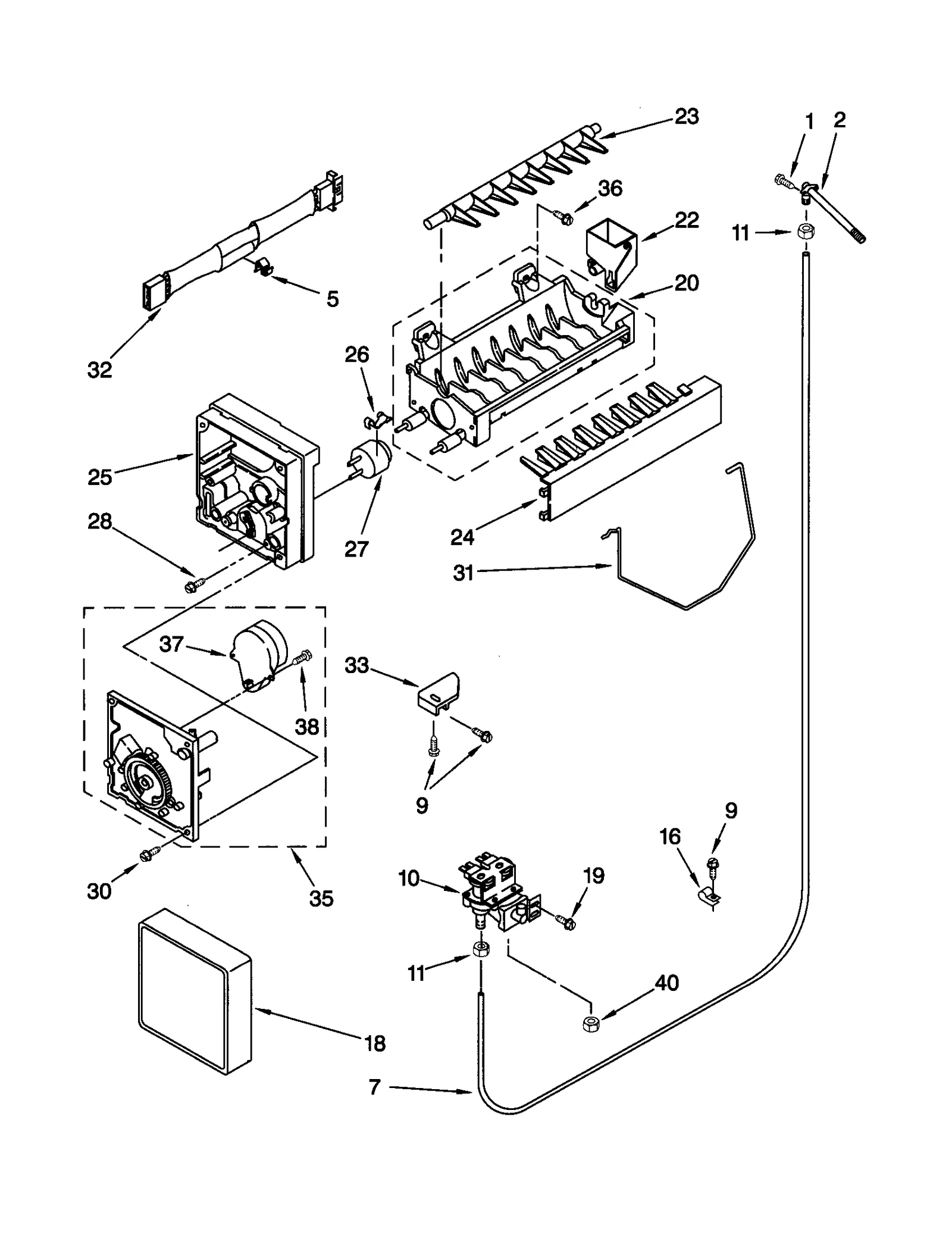

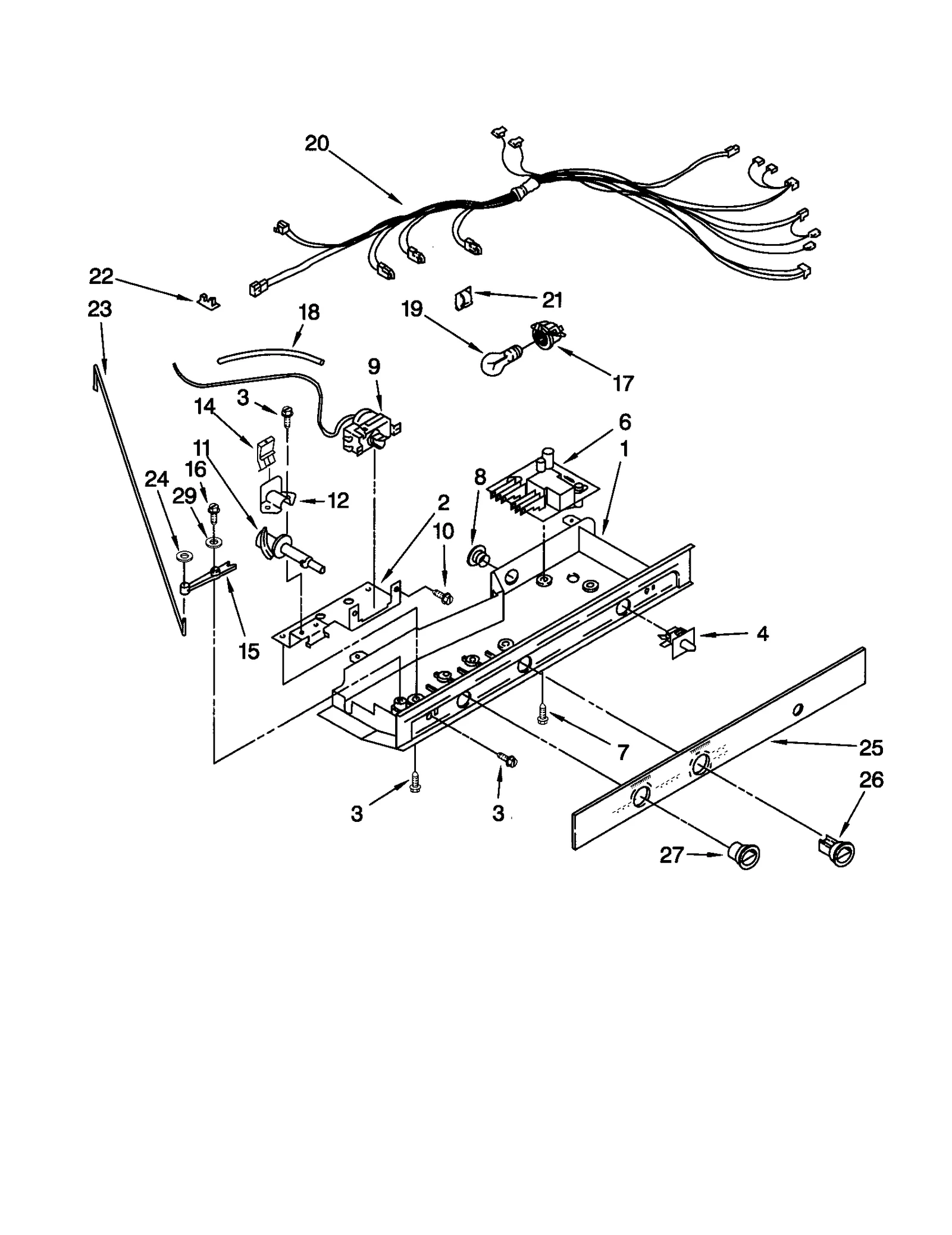

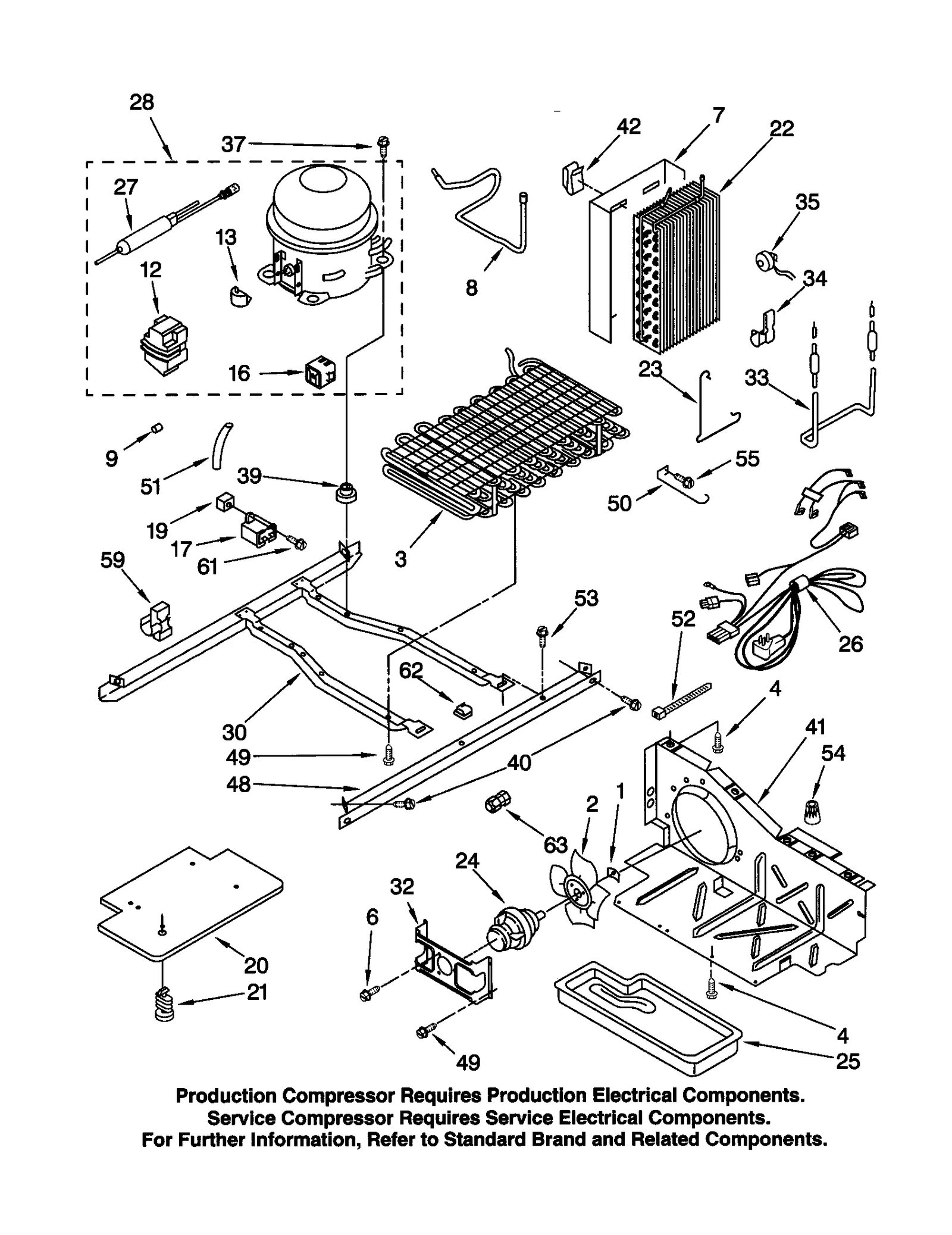

Model Whirlpool 106.59747992 Side-By-Side Refrigerator (Kenmore 10659747992) – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Refrigerator Energy Guide WPL LIT2206436 Contact Us For Availability

1A

Refrigerator Energy Guide WPL LIT2204013 Contact Us For Availability

1B

Refrigerator Owner's Manual WPL LIT2200128 Contact Us For Availability

1C

Refrigerator Technical Sheet WPL LIT2186924 Contact Us For Availability

1D

Service Sheet WPL LIT628370 Contact Us For Availability

1E

Refrigerator Parts List WPL LIT2211617 Contact Us For Availability

1F

Owner's Manual WPL LIT787808 Contact Us For Availability

1G

Ice Maker Repair Manual WPL LIT787316 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.22

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $102.11

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Condenser WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $159.16

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Inglis Refrigerator Pressure Relief Valve WPL 2171846 Contact Us For Availability

5A

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $140.85

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $75.27

7

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $157.12

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

7

Refrigerator Shim WPL 2196048 Contact Us For Availability

7

Refrigerator Shield WPL 2149294 Contact Us For Availability

7A

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $154.81

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Refrigerator Door Hinge Cover Mounting Screw WPL 489284 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $53.12

9

Refrigerator Dispenser Overflow Grille WPL 2183787W Contact Us For Availability

9

Refrigerator Shelf Stud WPL 2196207 Contact Us For Availability

9

Refrigerator Freezer Door Upper Hinge Cover WPL 1129262 Contact Us For Availability

9A

Refrigerator Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

9B

Refrigerator Dispenser Drip Tray WPL 2183787B Contact Us For Availability

9B

Refrigerator Hinge Cover (Black) WPL 2151694 Contact Us For Availability

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $56.99

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $107.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $69.10

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

11B

Refrigerator Arm Dispenser (Black) WPL 2180264 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

12A

Refrigerator Filler WPL 2196095 Contact Us For Availability

12B

Refrigerator Filler WPL 2196097 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $72.32

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $76.45

13A

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $90.02

13B

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $102.90

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

14

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $63.01

14

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $12.29

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.64

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $51.14

Refrigerator Door Handle Trim WPL 2194707W Contact Us For Availability

Refrigerator Run Capacitor WPL 2169137 Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $202.55

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Refrigerator Door Handle Trim WPL 2194705W Contact Us For Availability

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Refrigerator Insert WPL 2203484W Contact Us For Availability

Grommet WPL 509812 Contact Us For Availability

19A

Refrigerator Cover WPL 2203484N Contact Us For Availability

19B

Refrigerator Insert WPL 2203484B Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $64.96

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

Refrigerator Cover Unit WPL 2200468 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Refrigerator Light Lens WPL 2203266 Contact Us For Availability

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $77.61

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $242.95

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Dispenser Display Assembly WPL 2203495W Contact Us For Availability

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

23A

Refrigerator Cover WPL 2203495N Contact Us For Availability

23B

Refrigerator Cover WPL 2203495B Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $55.94

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

Refrigerator Light Lens WPL 2171705 Contact Us For Availability

Spacer WPL 625834 Contact Us For Availability

Inglis Refrigerator Door Hinge Cover WPL 1119787 Contact Us For Availability

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

24A

Refrigerator Hinge Cover (Almond) WPL 1119789 Contact Us For Availability

24B

Refrigerator Door Hinge Cover WPL 2155938 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

Refrigerator Evaporator Tray WPL 110674 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

NLA:SCREW Backorder WPL WPW10141645 $4.82

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

Refrigerator Wire Harness WPL 2188349 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $59.73

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.10

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $398.16

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

28A

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $197.70

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.89

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $40.64

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Refrigerator Defrost Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $33.84

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

37

Refrigerator Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

40

Refrigerator Nut WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $68.27

42

Exchange Clip WPL 2155547 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $58.23

49

Screw WPL 488624 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $29.81

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Nut WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Ice Maker Wire Harness Clamp WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

62

Refrigerator Clip WPL 934011 Contact Us For Availability

63

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.73

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $24.24

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $229.62

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Pnt-blk-qrt WPL 799340 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability

Touch-Up Paint (Almond) WPL 978883 Contact Us For Availability
