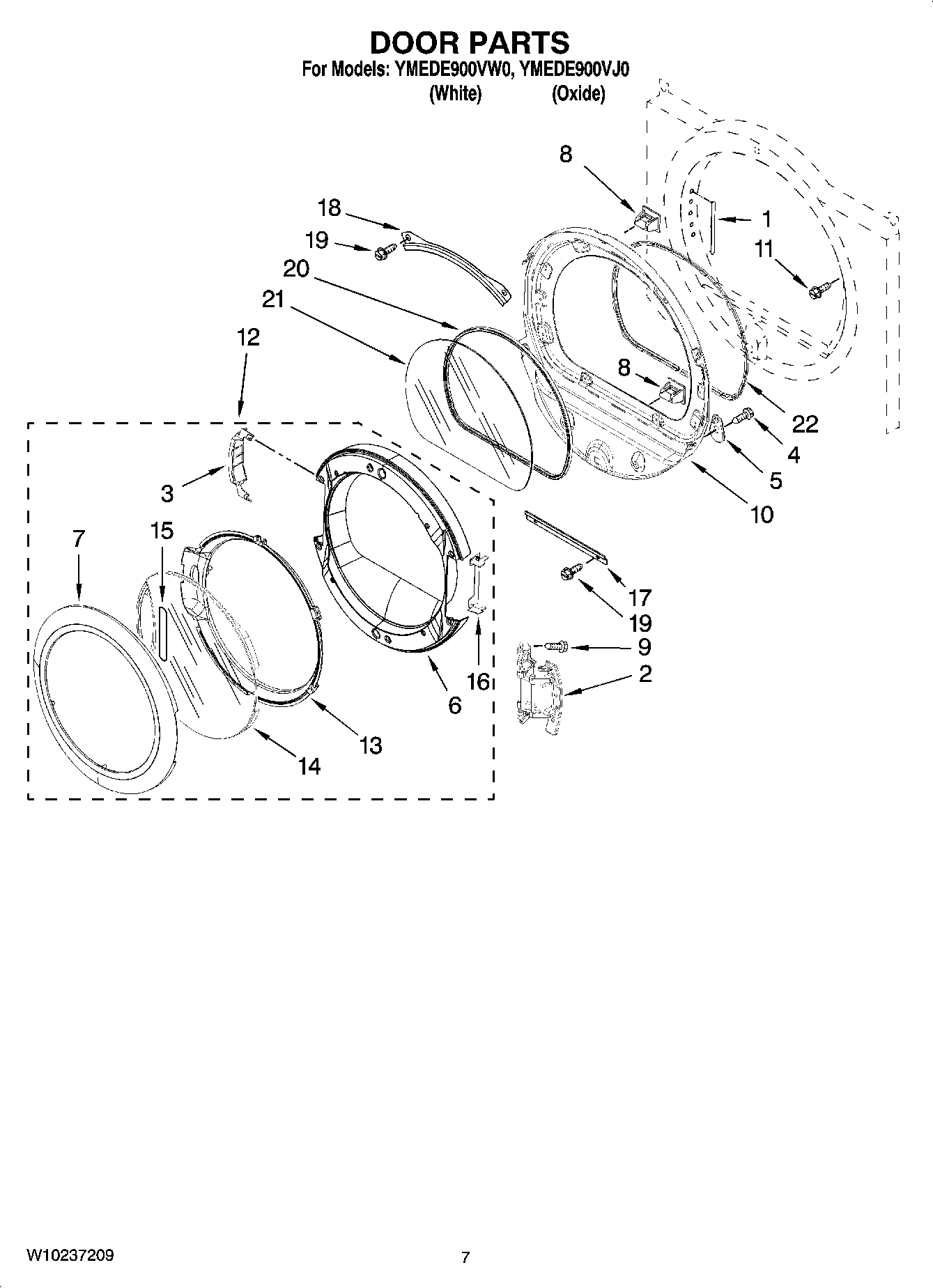

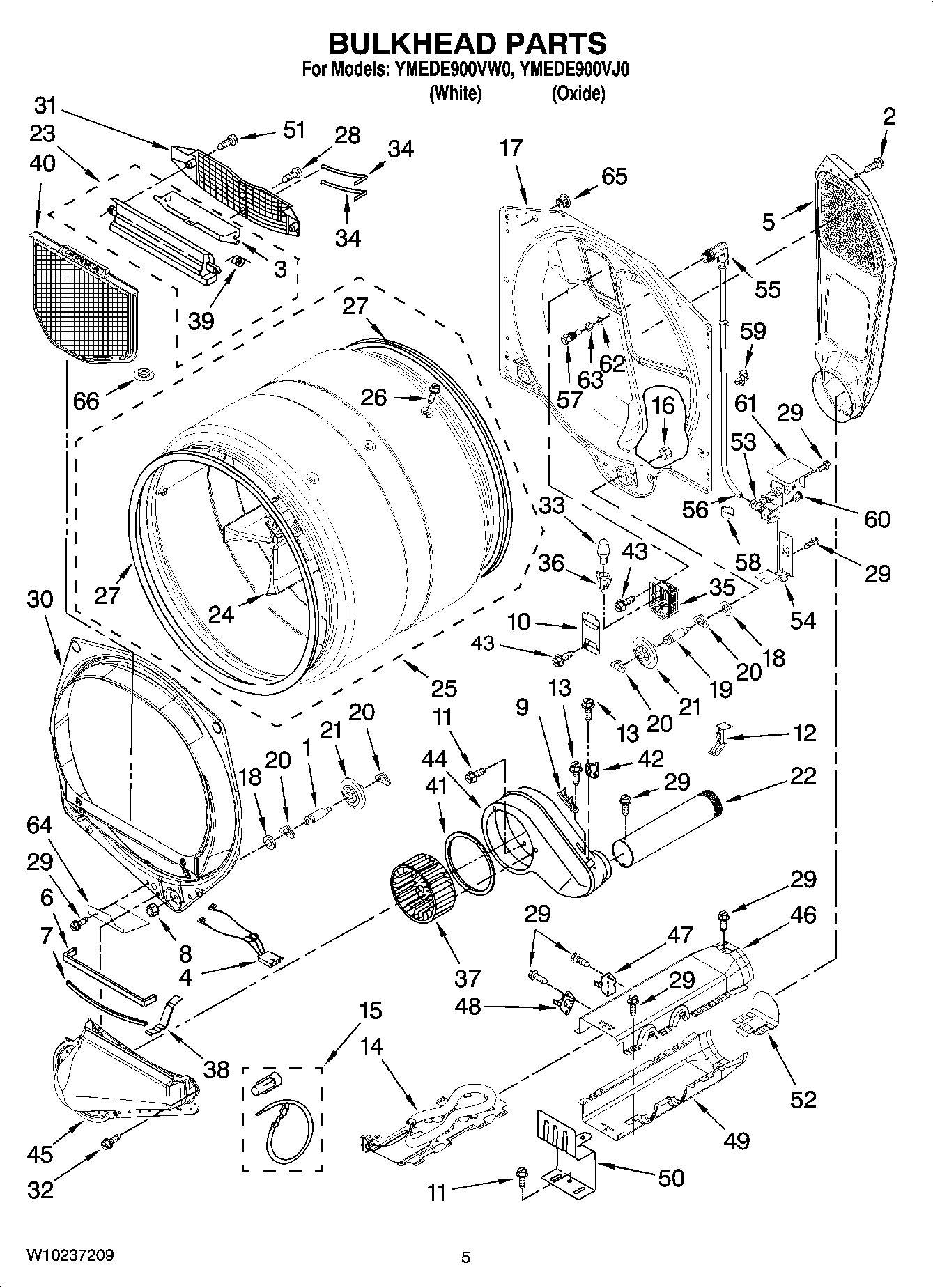

Model Whirlpool YMEDE900VJ0 ELECTRIC DRYER – Common Parts &amp; Diagrams

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $120.04

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

Cover, Door Hinge WPL W10180119 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $81.06

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

6

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

6

Door-Intermediate WPL W10180118 Contact Us For Availability

7

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

7

Handle Ring WPL W10193522 Contact Us For Availability

8

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $7.13

8

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $4.82

10

Door Assembly (Inner) (Includes Illus. 8 ) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $5.02

12

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

12

Door, Outer Assembly WPL W10193530 Contact Us For Availability

13

Door Mask WPL W10180117 Contact Us For Availability

279318 Whirlpool Terminal In Stock WPL 279318 $56.86

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $111.58

Knob, Assembly WPL W10164576 Contact Us For Availability

Screen, Door WPL W10171571 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

Door-Shield WPL W10180120 Contact Us For Availability

17

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

19

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

20

Seal-Window WPL 8579662 Contact Us For Availability

21

Glass-Window WPL 8566254 Contact Us For Availability

22

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $50.58

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $58.65

23

Harness, Digital Interface WPL W10181463 Contact Us For Availability

25

Control Board WPL W10177388 Contact Us For Availability

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

Trim-Ring Assembly (White) WPL W10164746 Contact Us For Availability

Trim-Ring Assembly (Oxide (Includes Item. 48 WPL W10164751 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.52

27

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $7.75

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

30

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $23.09

31

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.70

31

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $21.53

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

35

Clip, S-Type (3) WPL 62825 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $50.46

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

38

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.58

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

Panel, Toe (White) WPL W10116271 Contact Us For Availability

40

Panel, Toe (Oxide) WPL W10164730 Contact Us For Availability

41

W10487430 Whirlpool Rear Panel Backorder WPL W10487430 $233.42

41

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

45

W11095079 Whirlpool Power Cord Backorder WPL W11095079 $82.05

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $118.53

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $49.92

47

WP681414 Whirlpool Screw Backorder WPL WP681414 $3.49

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $72.18

48

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

49

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

50

WPL 8519207 WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

51

WPL W10153275 WPL W10153275 Contact Us For Availability

51

WPL W10164915 WPL W10164915 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

55

W11712577 Whirlpool Clip Backorder WPL W11712577 $5.45

55

WPL ARI7397A22 WPL ARI7397A22 Contact Us For Availability

56

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $73.41

57

WPL W10044629 WPL W10044629 Contact Us For Availability

60

W10859554 Whirlpool Coupler Backorder WPL W10859554 $58.26

62

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

63

W10044628 Whirlpool Nut Backorder WPL W10044628 $67.84

64

W11257251 Whirlpool Shield Backorder WPL W11257251 $48.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $39.73

49586 Whirlpool Mixer In Stock WPL 49586 $9.23

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $34.43

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $23.83

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $15.74

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

(Hose Inlet) 1`Hose WPL W10044603 Contact Us For Availability

Hold Down Kit WPL 8529894 Contact Us For Availability

ACCESSORY PARTS WPL ARI7398A85 Contact Us For Availability

Miscellaneous Parts Bag WPL ARI7399A75 Contact Us For Availability
