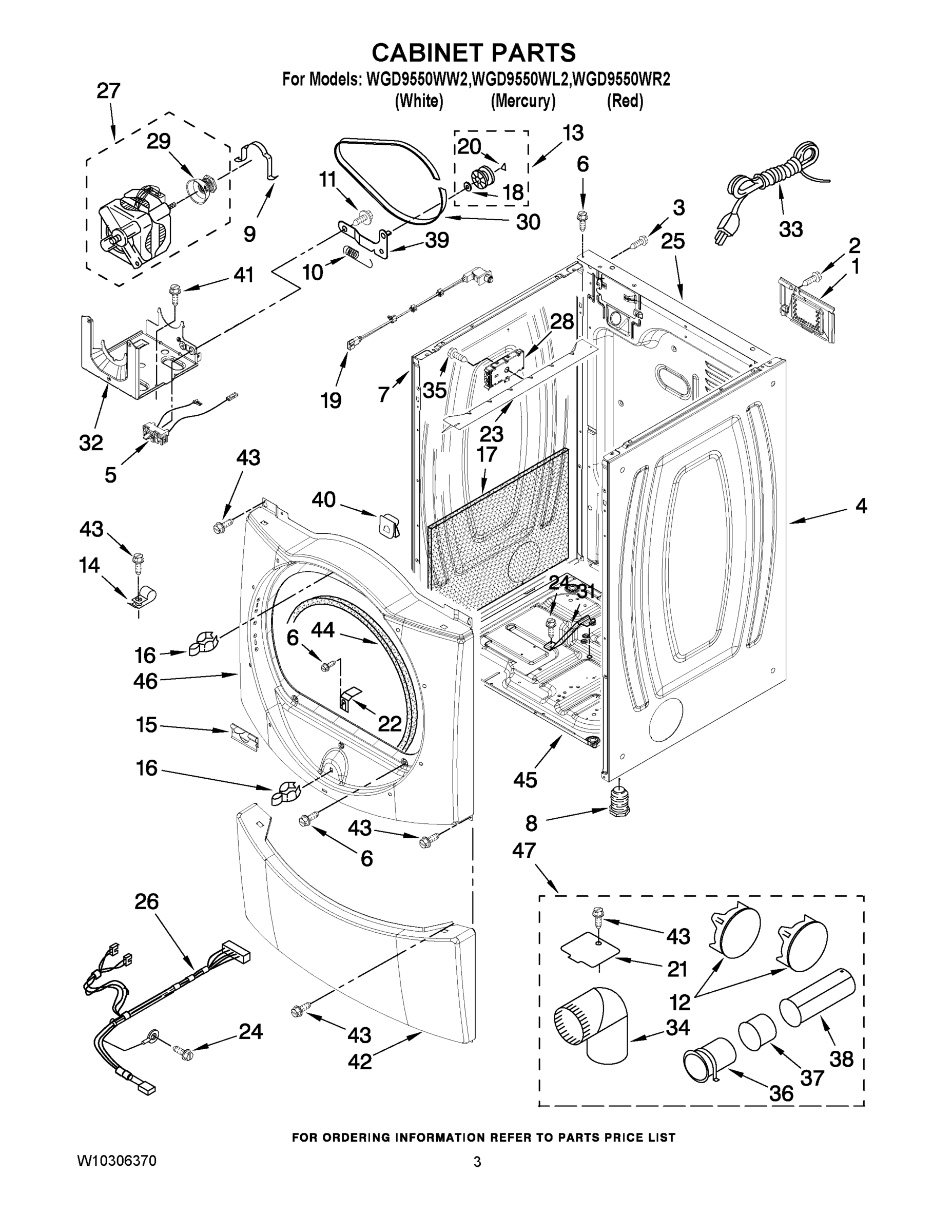

Model Whirlpool WGD9550WW2 GAS DRYER – Common Parts &amp; Diagrams

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

3

W10111069 Whirlpool Wire Harness Backorder WPL W10111069 $186.11

3

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDE ITEMS, 5,7,10,13,18,1 WPL W10255229 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $73.46

7

Base, Burner WPL 3389871 Contact Us For Availability

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $12.73

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.99

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $16.79

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $250.51

10

INNER DOOR (INCLUDES ILLUS. 12) WPL 8578229 Contact Us For Availability

11

W10044628 Whirlpool Nut Backorder WPL W10044628 $63.40

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

12

Bracket, Support WPL 3389889 Contact Us For Availability

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

13

WPW10328463 Whirlpool Valve Coil In Stock WPL WPW10328463 $57.99

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $57.09

14

W10859554 Whirlpool Coupler Backorder WPL W10859554 $54.45

15

326049536 Whirlpool Screw Backorder WPL 326049536 $14.06

15

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

15

Gasket, Window WPL 8579662 Contact Us For Availability

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $7.52

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $21.43

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

Bulkhead, Rear WPL W10133857 Contact Us For Availability

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

USER INTERFACE (RIGHT) WPL W10279773 Contact Us For Availability

INNER DOOR ASSEMBLY (INCLUDE ITEMS, 2,3,5,6,8 WPL 8577819 Contact Us For Availability

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246600 Contact Us For Availability

USER INTERFACE (CENTER) (INCLUDE ITEM, 13. ) WPL W10279709 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10249767 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249765 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $97.26

22

W10250089 Whirlpool Ring Backorder WPL W10250089 $8.39

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $54.82

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $39.99

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $115.75

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.99

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

HARNESS, DIGITAL INTERFACE WPL W10242903 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

27

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $42.21

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $45.22

28

CONTROL BOARD WPL W10256719 Contact Us For Availability

30

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

31

W10044599 Whirlpool Clip Backorder WPL W10044599 $9.35

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $48.99

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $78.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

Clip-S Type WPL 62825 Contact Us For Availability

40

VALVE, WATER INLET (INCLUDES ITEMS, 14,29,52 WPL W10044596 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

43

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $156.49

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $115.91

47

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $83.99

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

50

JUMPER, TCO HI-LIMIT WPL 3401710 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

52

W10815373 Whirlpool Valve In Stock WPL W10815373 $132.65

53

WPL 697693 WPL 697693 Contact Us For Availability

54

WPL W10252304 WPL W10252304 Contact Us For Availability

55

WPL W10044597 WPL W10044597 Contact Us For Availability

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

62

WPL W10154995 WPL W10154995 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $16.79

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $10.38

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $53.99

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (MAGNA RED METALLIC) WPL W10218245 Contact Us For Availability
