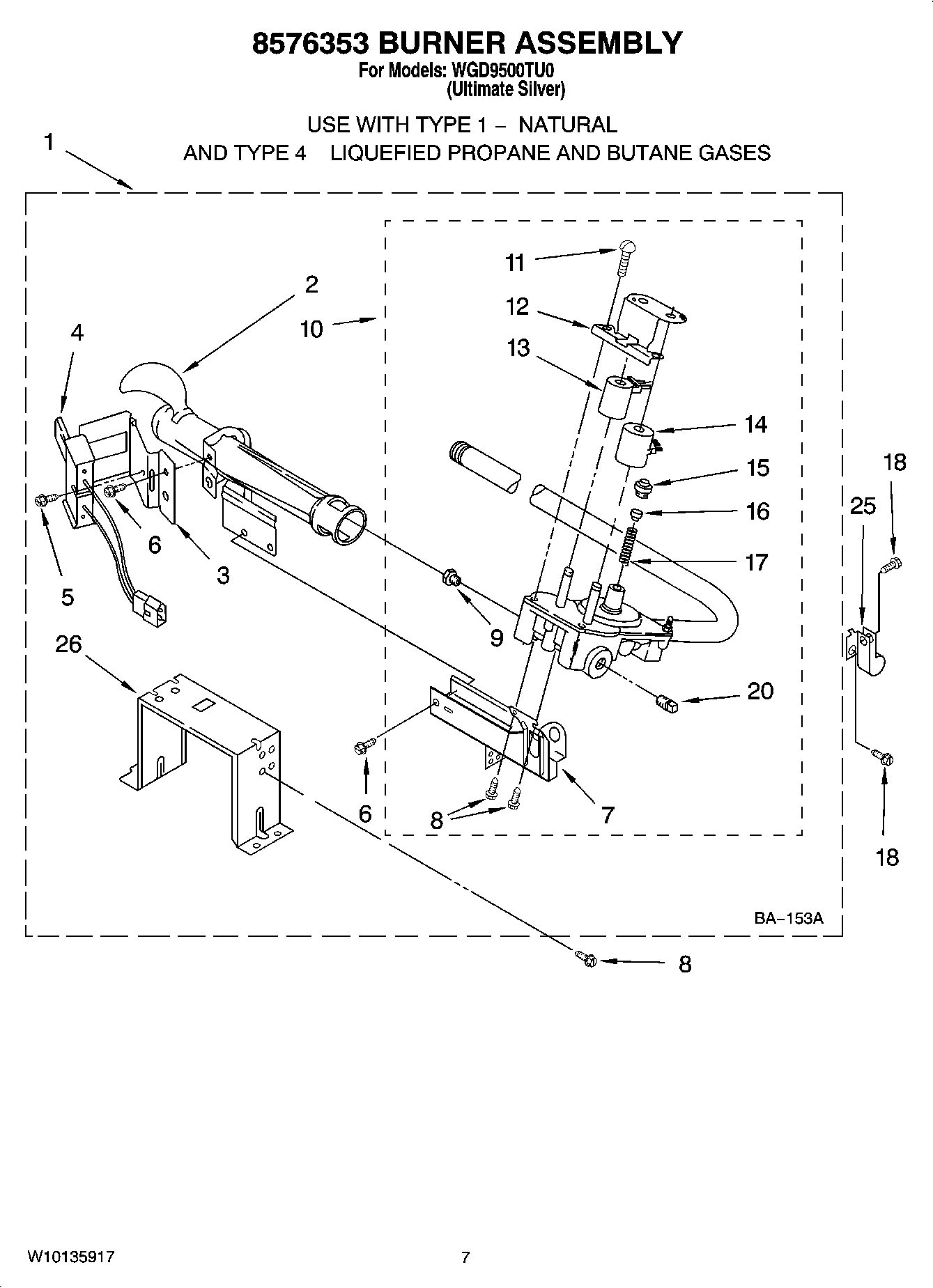

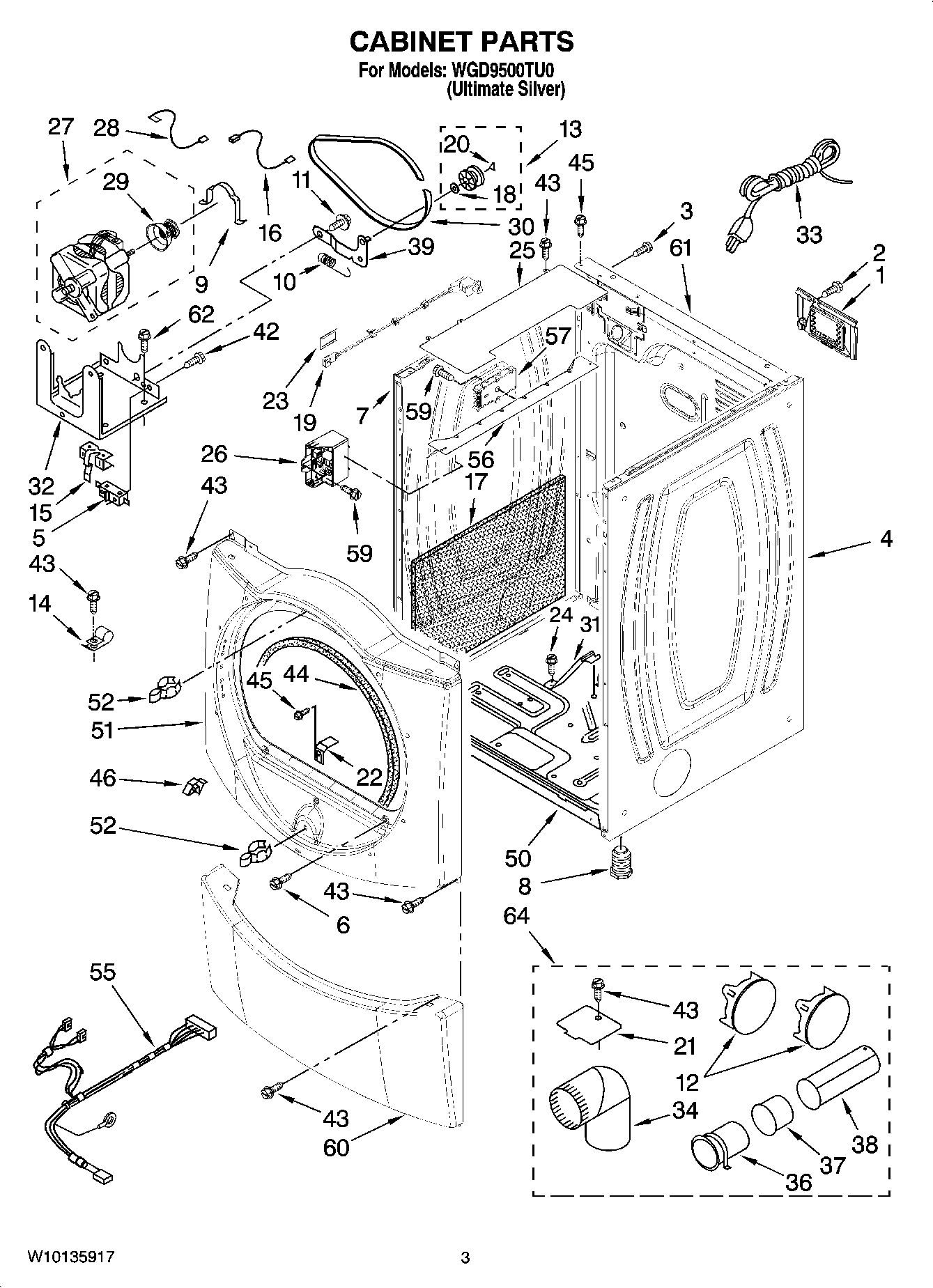

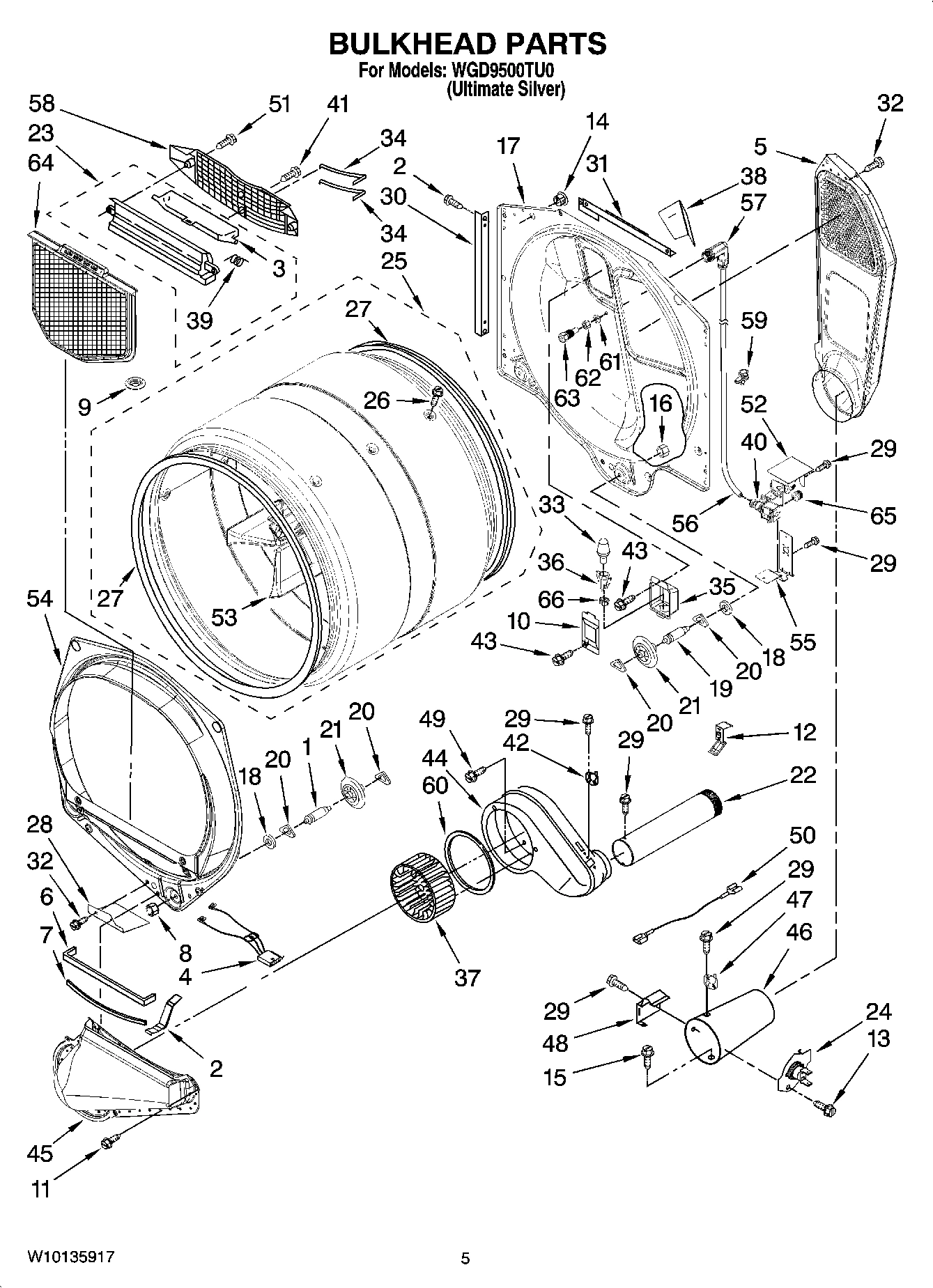

Model Whirlpool WGD9500TU0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $25.46

PAIN WPL 8212605 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

WPL W10044603 WPL W10044603 Contact Us For Availability

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $70.98

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.48

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Ultimate Silver WPL W10095480 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

7

Panel, Side (L.H.) WPL W10095440 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $12.73

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.99

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $16.79

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $250.51

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

Door Assembly (Inner) (Includes Illus. 12 & 1 WPL 8578229 Contact Us For Availability

11

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $57.09

14

8529007 Whirlpool Plug Backorder WPL 8529007 $51.53

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Gasket, Window WPL 8579662 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $7.52

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

Sound Panel WPL W10128772 Contact Us For Availability

Bulkhead, Rear WPL W10124071 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

19

Assembly, Door Switch WPL 8574875 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $5.99

21

Retainer-Snap WPL W10012440 Contact Us For Availability

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $97.26

Door Mask WPL 8578156 Contact Us For Availability

Ramp, Door WPL 8529053 Contact Us For Availability

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

23

Seal, Door Switch WPL W10118614 Contact Us For Availability

24

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $39.99

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.99

Harness, Communication WPL W10095960 Contact Us For Availability

Cover, Control Bracket WPL W10118470 Contact Us For Availability

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $53.99

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

Power Cube WPL 3407228 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

Following Parts Not Illustrated WPL ARI165806A Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.97

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $45.22

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $55.99

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $60.53

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

32

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $62.94

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.01

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $47.31

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $61.06

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $52.61

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $59.08

38

Cover, Drum Light WPL W10044616 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

Valve, Water Inlet (Includes Illus. 52 & 55) WPL W10044596 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $115.91

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $65.50

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

50

Base, Cabinet WPL 8519207 Contact Us For Availability

50

JUMPER, TCO HI-LIMIT WPL 3401710 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

51

Front Panel (Includes Illus. 44) WPL 8578940 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

52

W10815373 Whirlpool Valve In Stock WPL W10815373 $132.65

53

Baffle, WPL W10113136 Contact Us For Availability

54

WPL 8519245 WPL 8519245 Contact Us For Availability

55

W10181464 Whirlpool Wire Harness Backorder WPL W10181464 $87.60

55

WPL W10044597 WPL W10044597 Contact Us For Availability

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

Control Board WPL W10119241 Contact Us For Availability

57

WPL W10044606 WPL W10044606 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

60

Toe, Panel WPL W10116277 Contact Us For Availability

61

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

61

Panel, Rear WPL W10116451 Contact Us For Availability

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $63.40

62

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

62

Optional Pa WPL ARI165805A Contact Us For Availability

63

WPL W10044578 WPL W10044578 Contact Us For Availability

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

64

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95

65

W10859554 Whirlpool Coupler Backorder WPL W10859554 $54.45

66

WPL 8577884 WPL 8577884 Contact Us For Availability
