Model Whirlpool TGDL200WW0 GAS DRYER – Common Parts & Diagrams

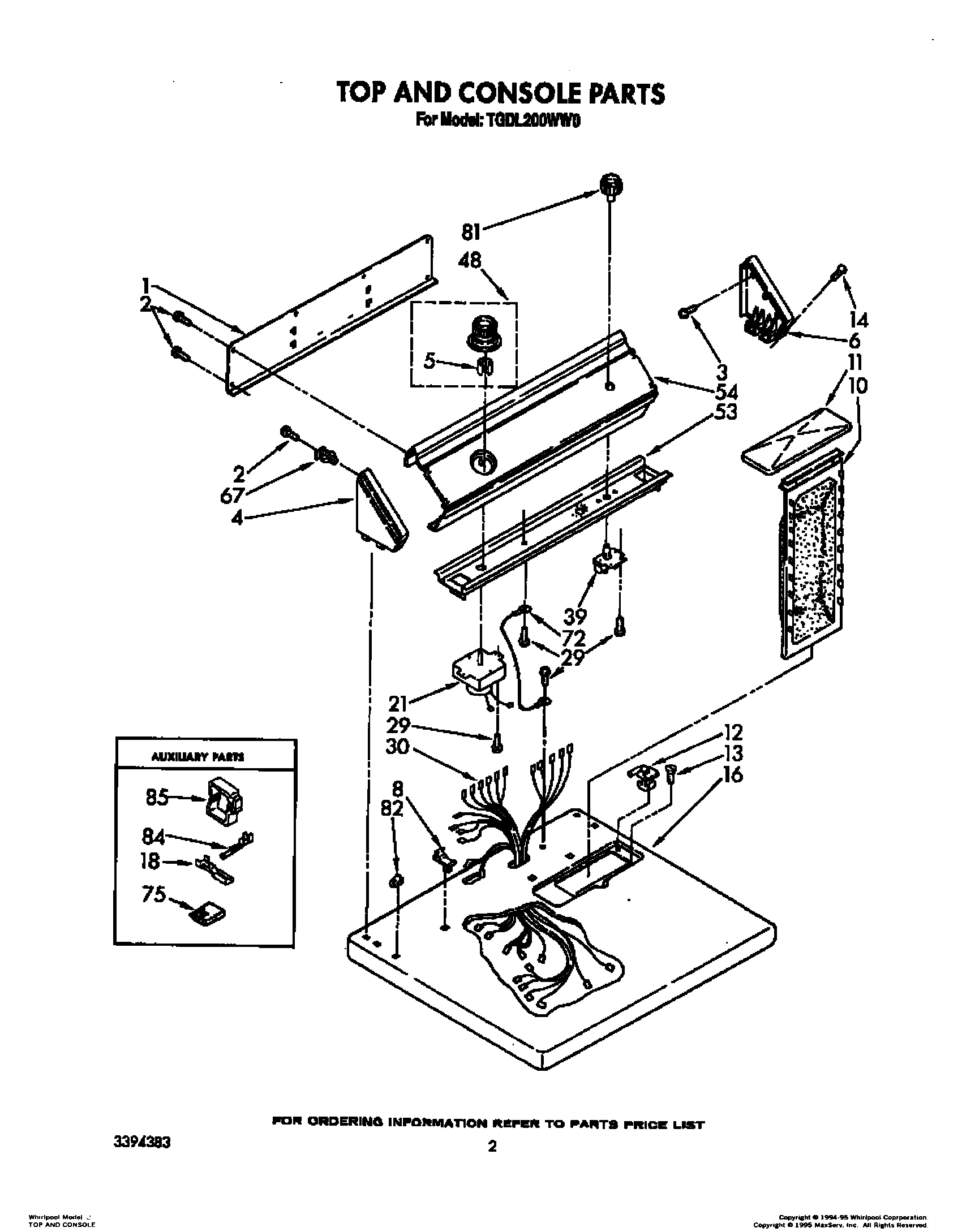

02 - TOP AND CONSOLE, LIT/OPTIONAL

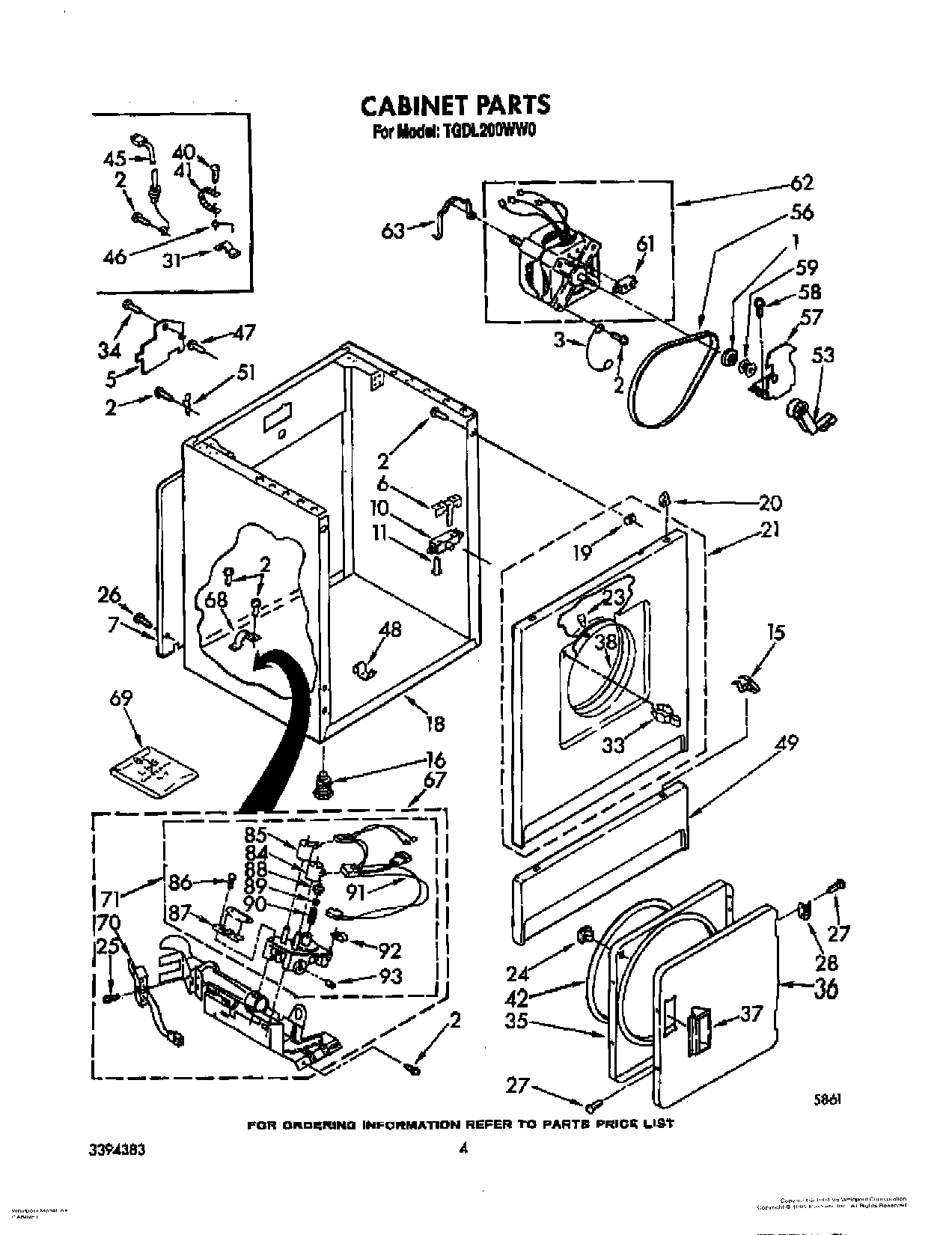

03 - CABINET

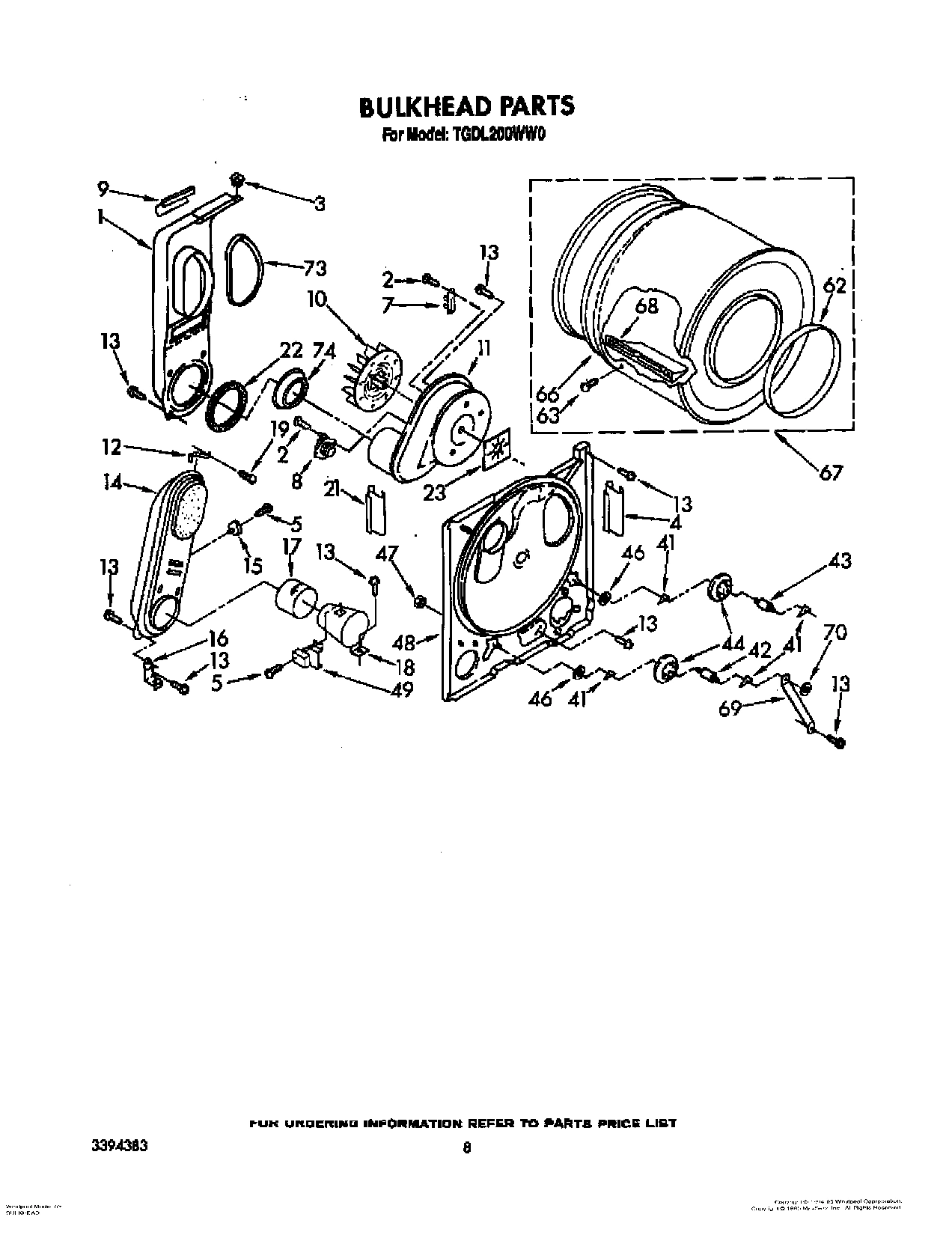

05 - BULKHEAD

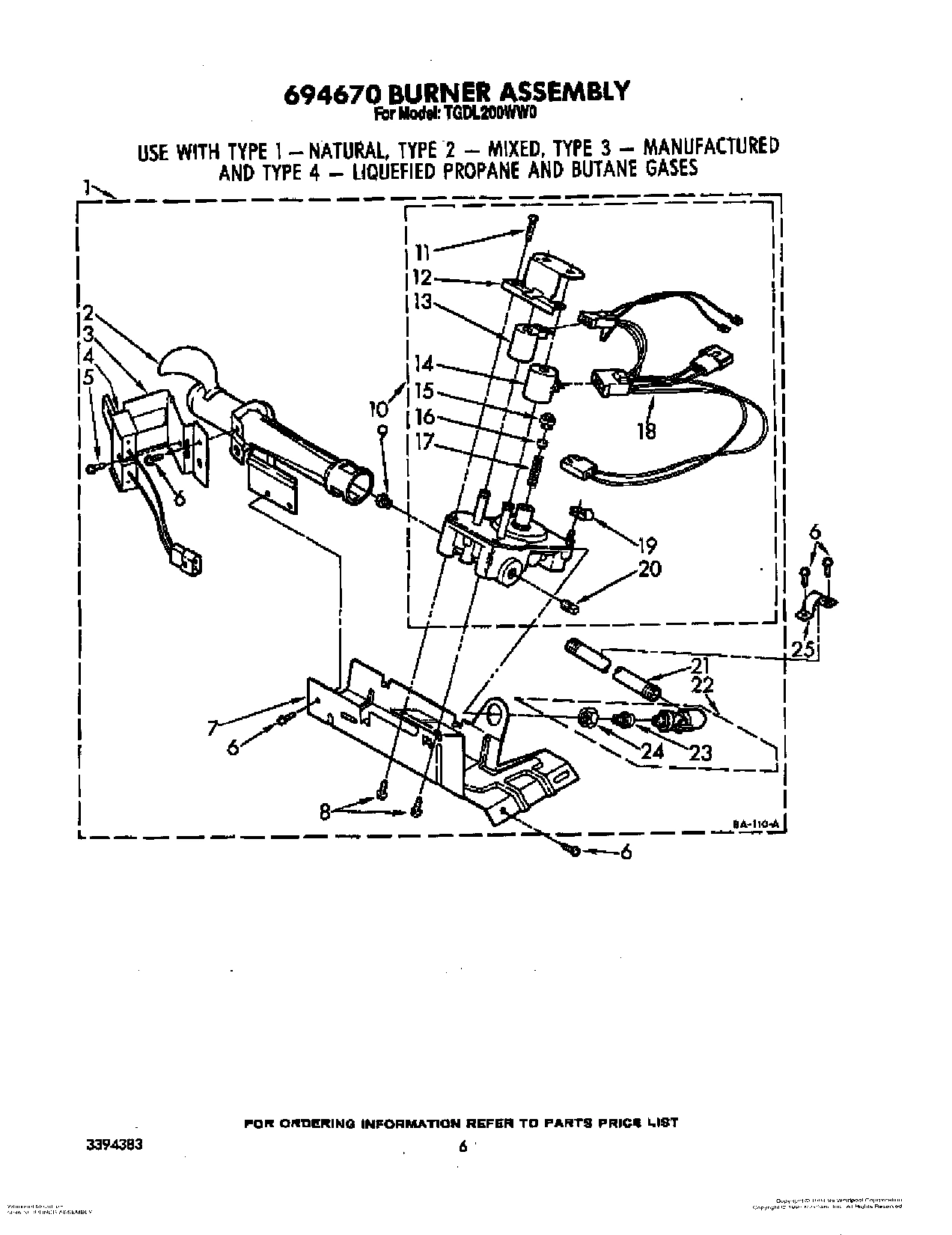

04 - 694670 BURNER ASSEMBLY
Common parts from model Whirlpool TGDL200WW0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
15
Thermostat, 205~F (96.1~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, 205~F (96.1~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205~F (96.1~C) WPL 660036 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
21
Upper Front Panel (White) WPL 693202 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
23
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685775 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
82
Nut, Push-In (2) WPL 358473 Contact Us For Availability
× ![]()
