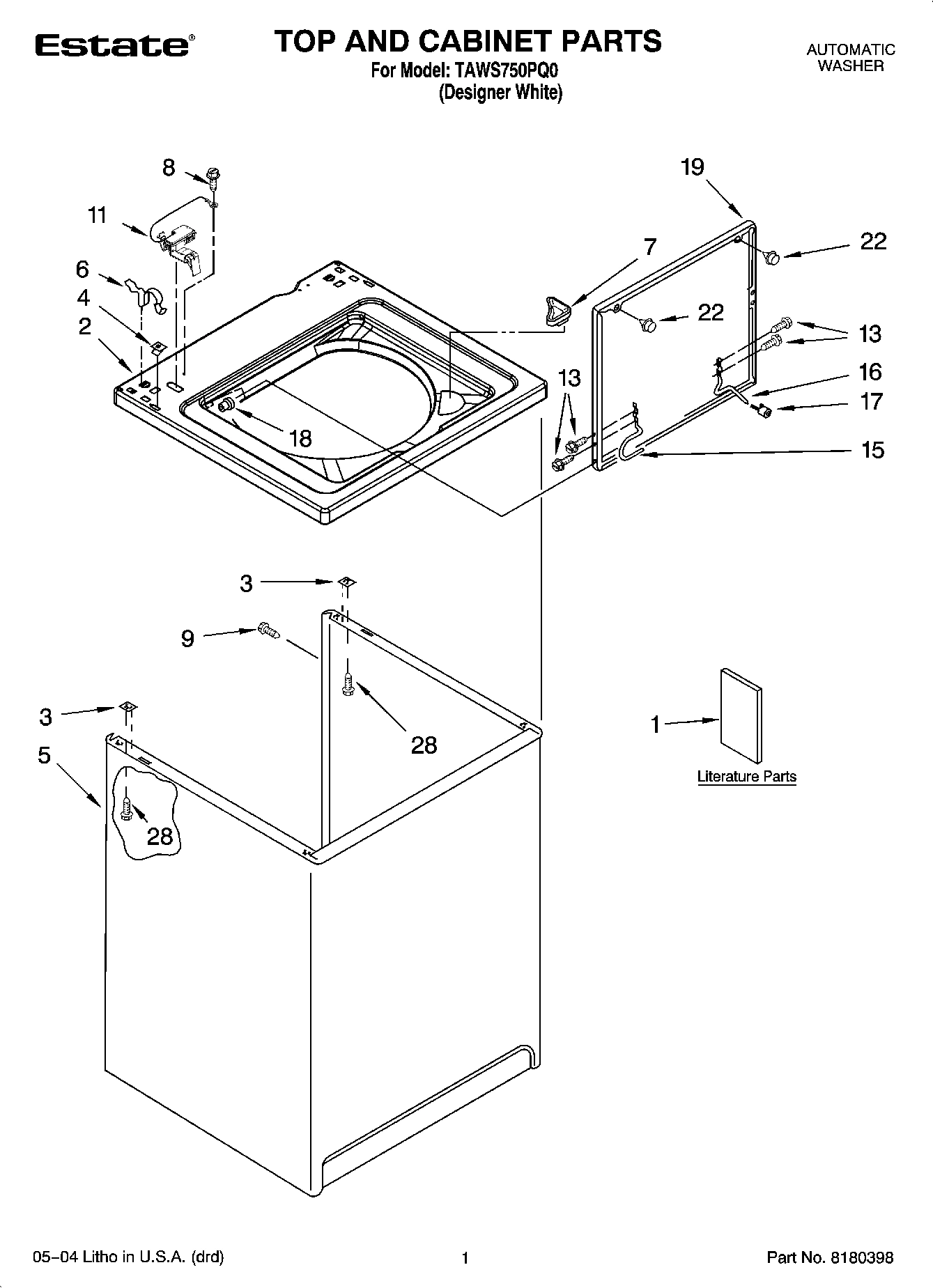

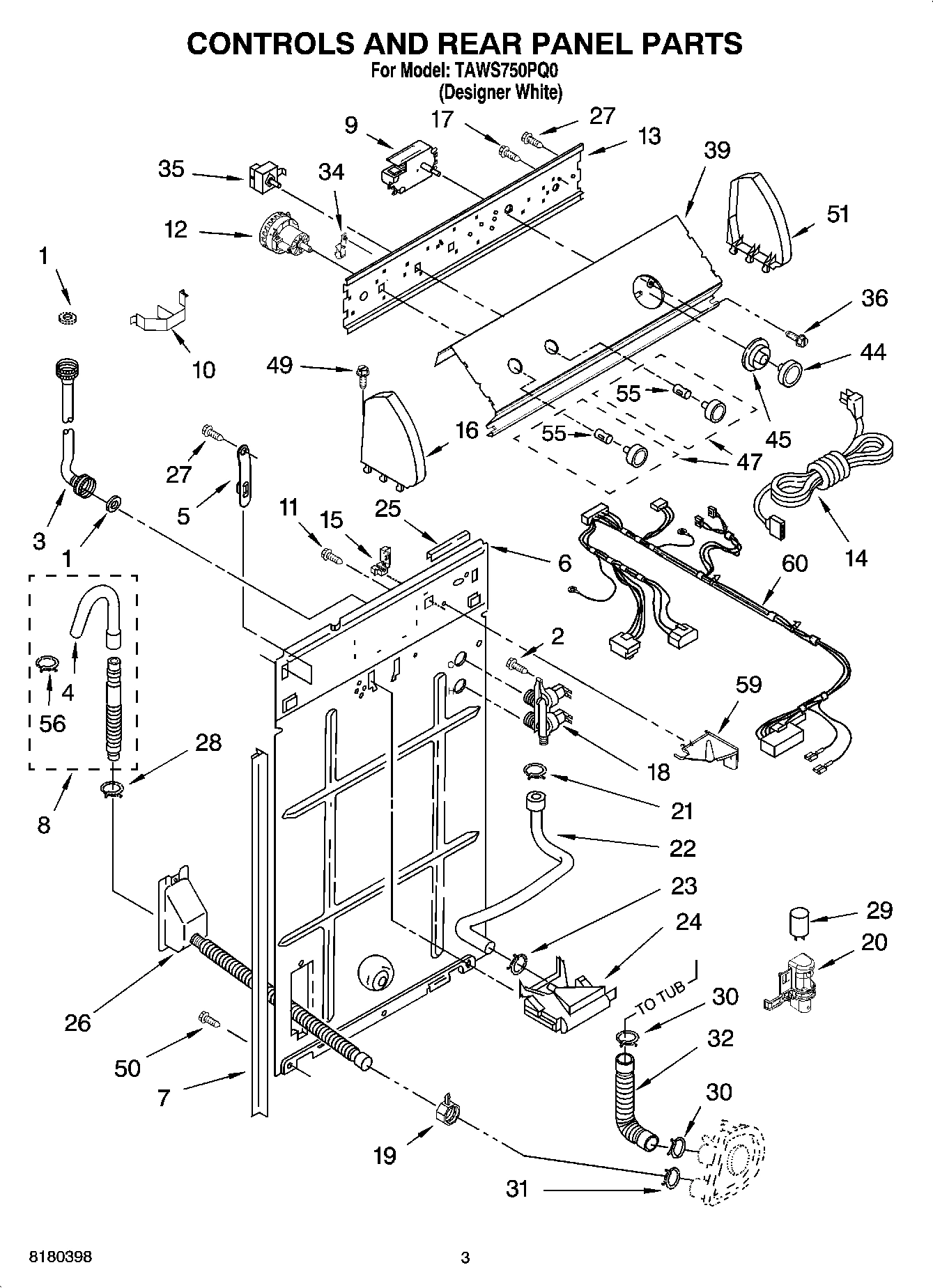

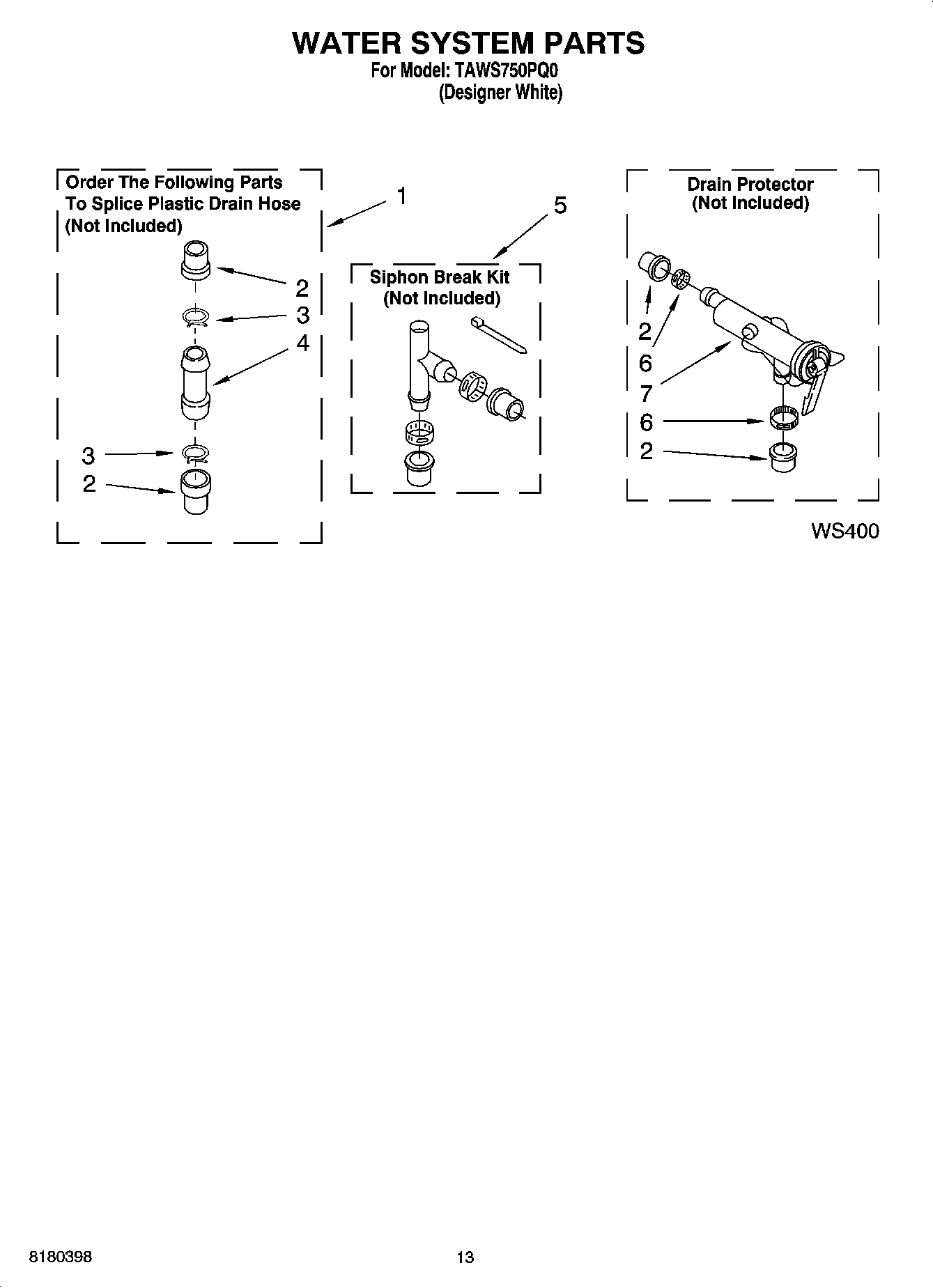

Model Whirlpool TAWS750PQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955873 Contact Us For Availability

1

Literature Parts (Feature Sheet) WPL LIT3955914 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3956345 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8542052 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

2

TOP WPL 8318064 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $159.32

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.99

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $222.60

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

OIL WPL ARI164174A Contact Us For Availability

6

LUBRICANT WPL ARI164175A Contact Us For Availability

6

SEALER WPL ARI164176A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI164177A Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

9

WP8542050 Whirlpool Timer In Stock WPL WP8542050 $242.99

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $14.02

11

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

11

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $53.47

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $76.20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

14

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

14

Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability

15

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

15

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

19

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $217.71

19

Clamp, Hose WPL 3976395 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $52.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

34

Retainer, Harness WPL 8317975 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $88.90

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

39

Panel, Console WPL 3956978 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $45.60

45

Dial, Timer WPL 8557458 Contact Us For Availability

47

Knob, Control WPL 8557460 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

279960 Whirlpool Endcap Assembly Backorder WPL 279960 $56.11

55

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

59

Shield, Suds WPL 8539874 Contact Us For Availability

60

Harness, Wiring (For Detail WPL 3956952 Contact Us For Availability
