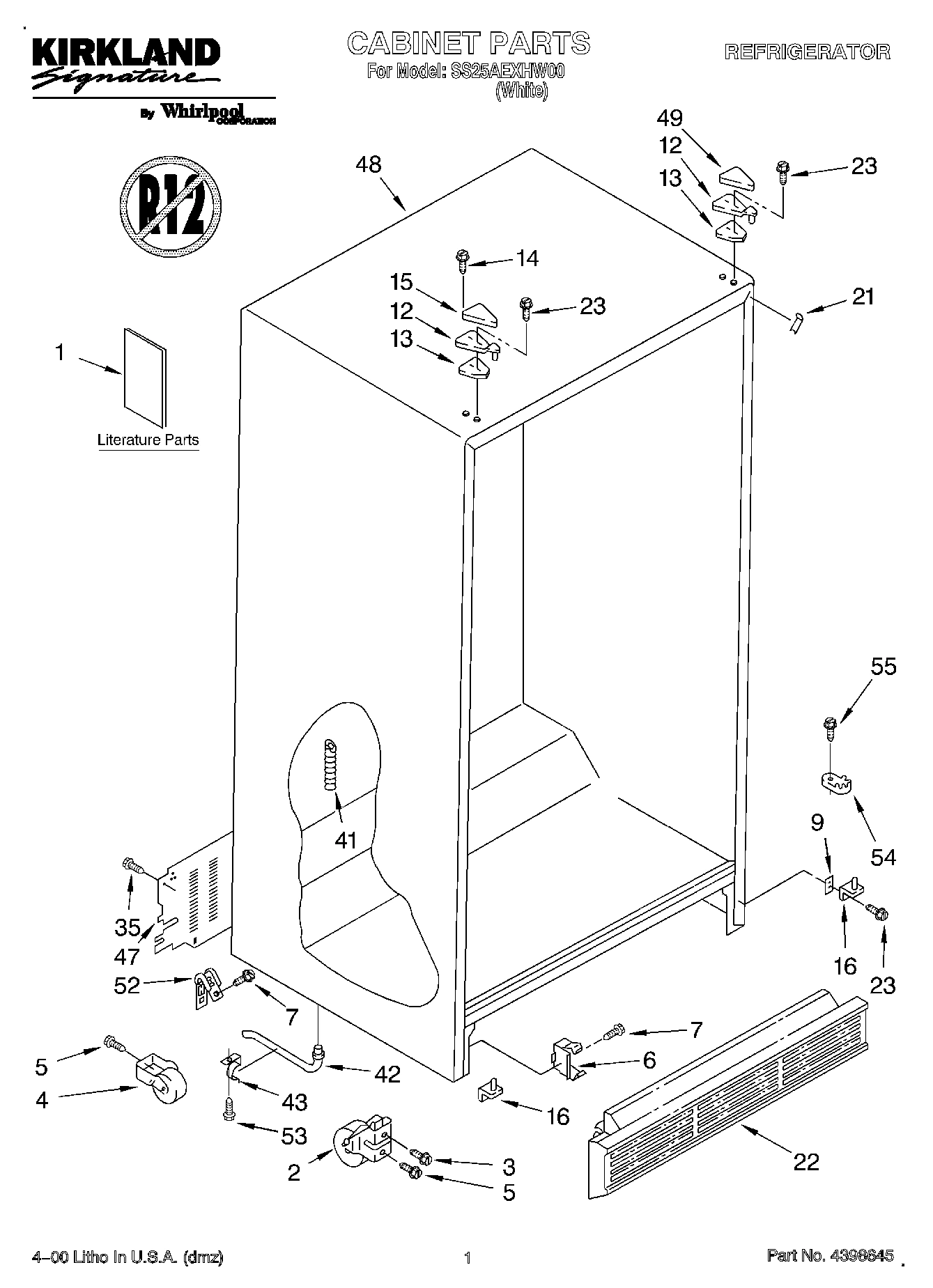

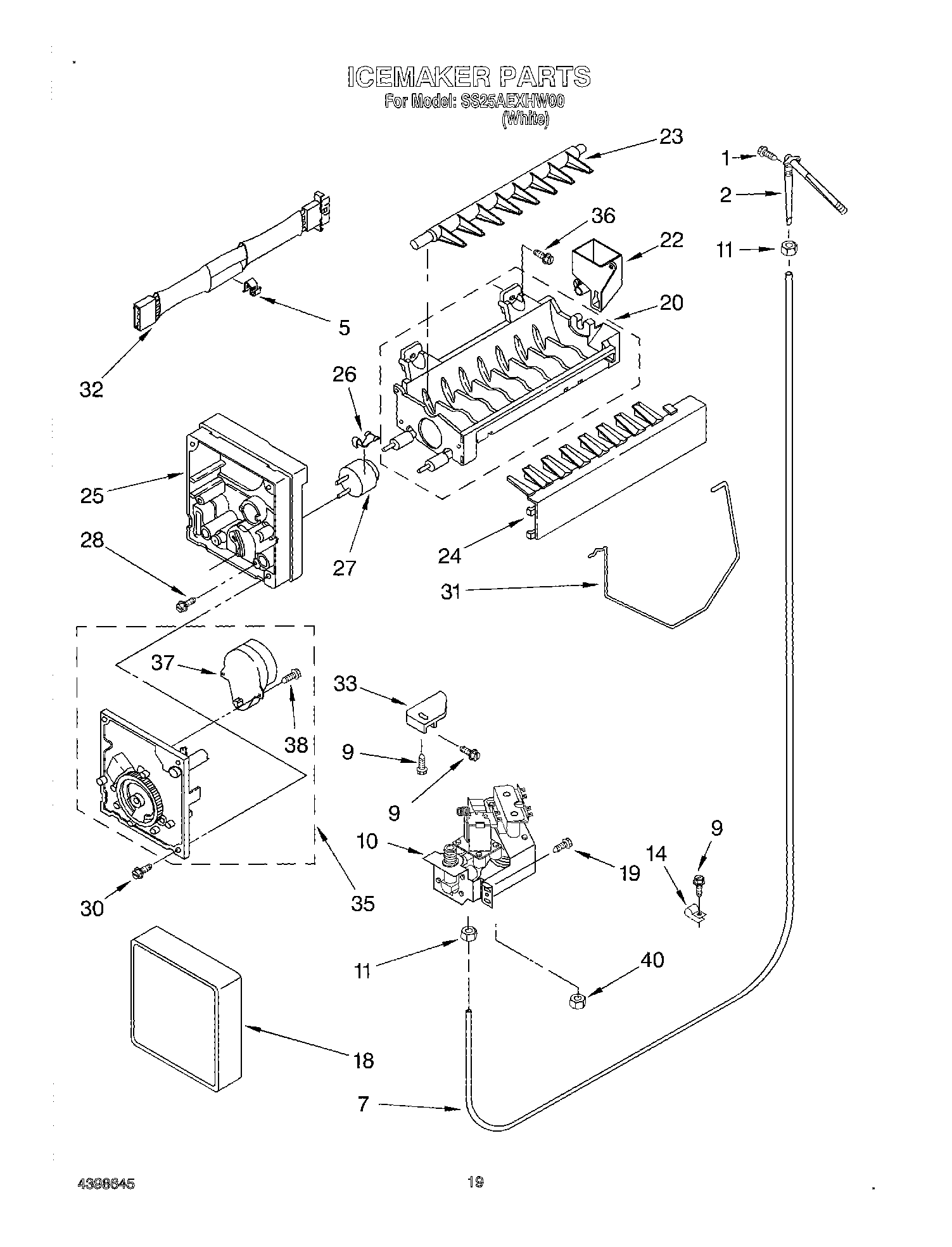

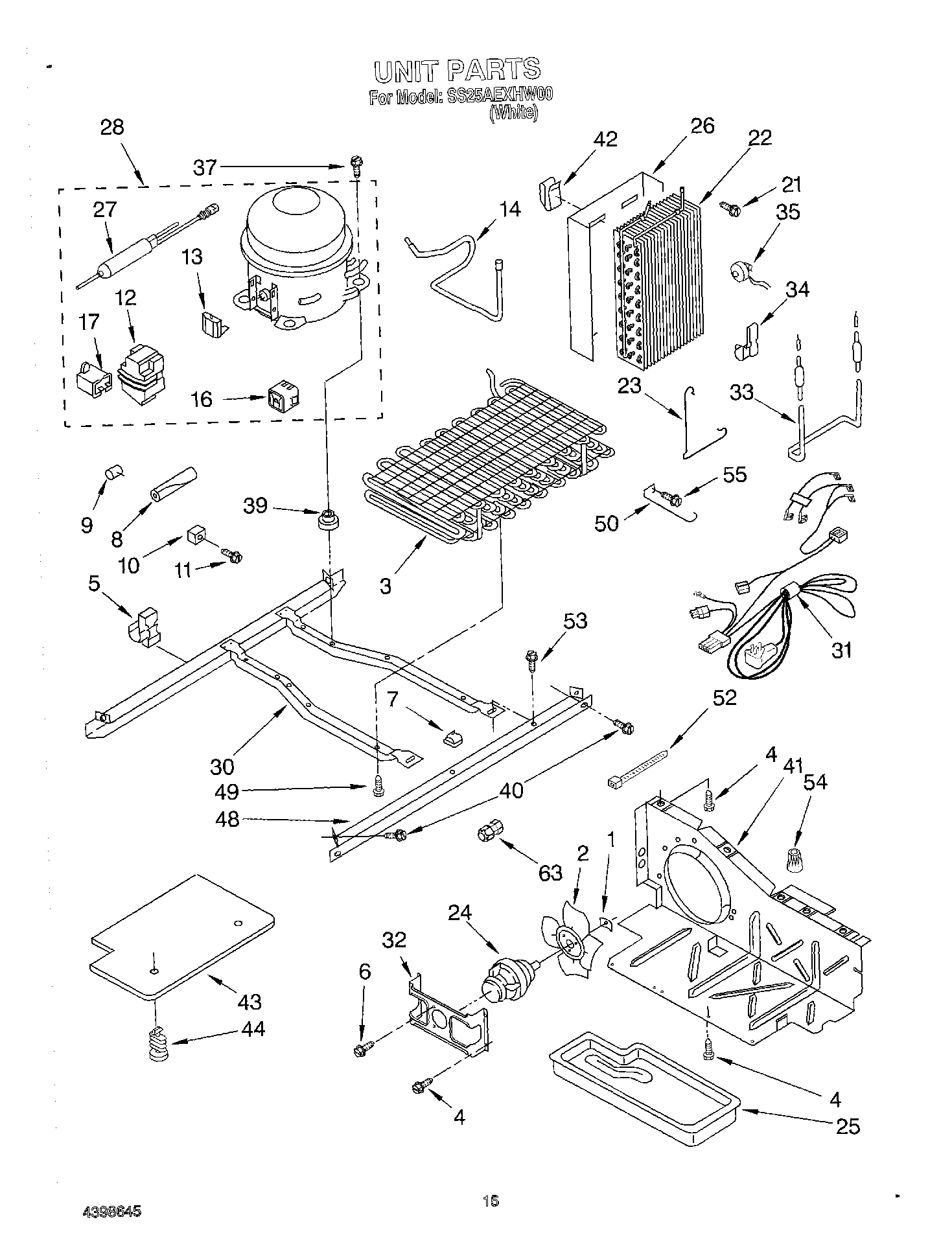

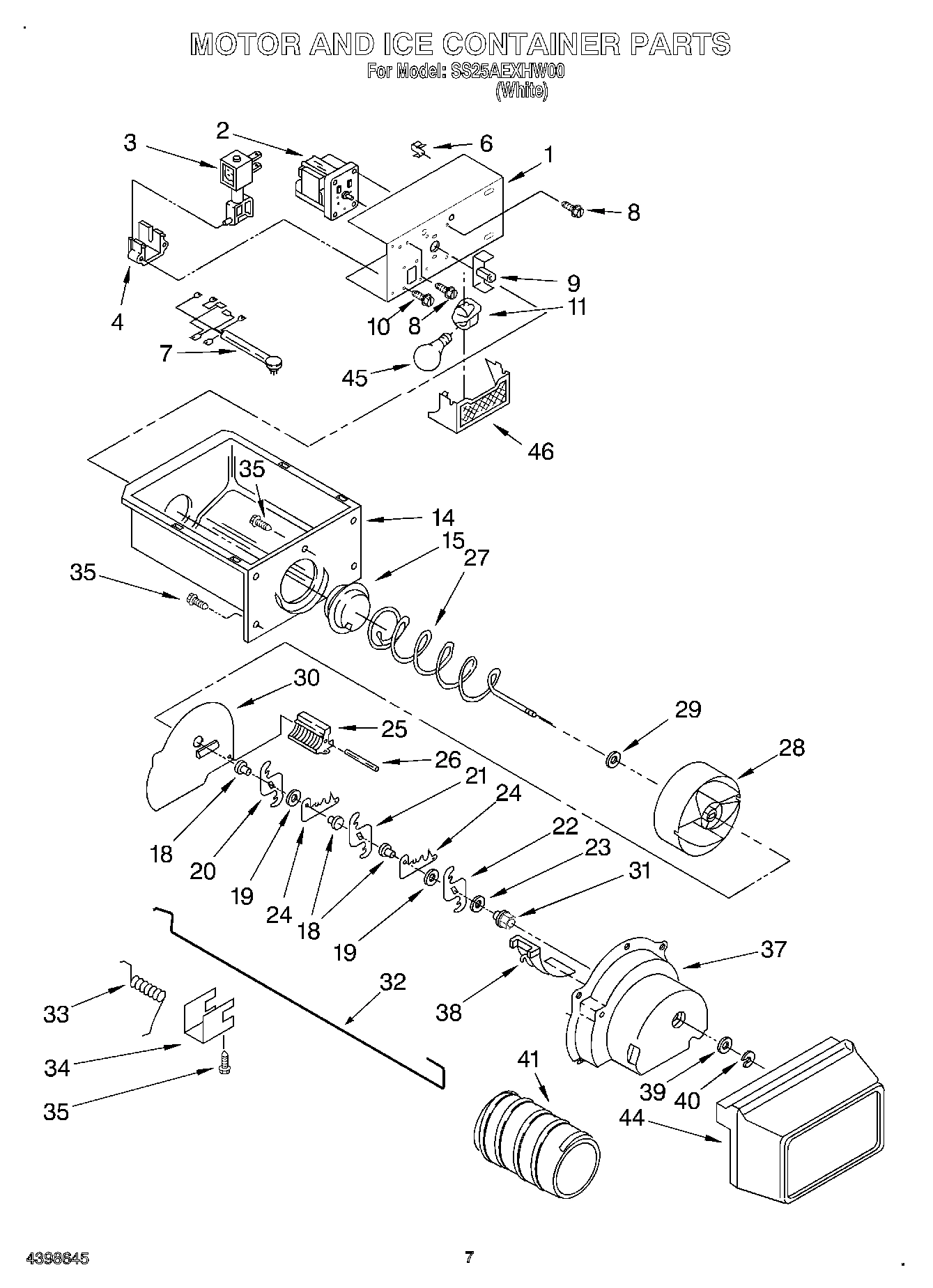

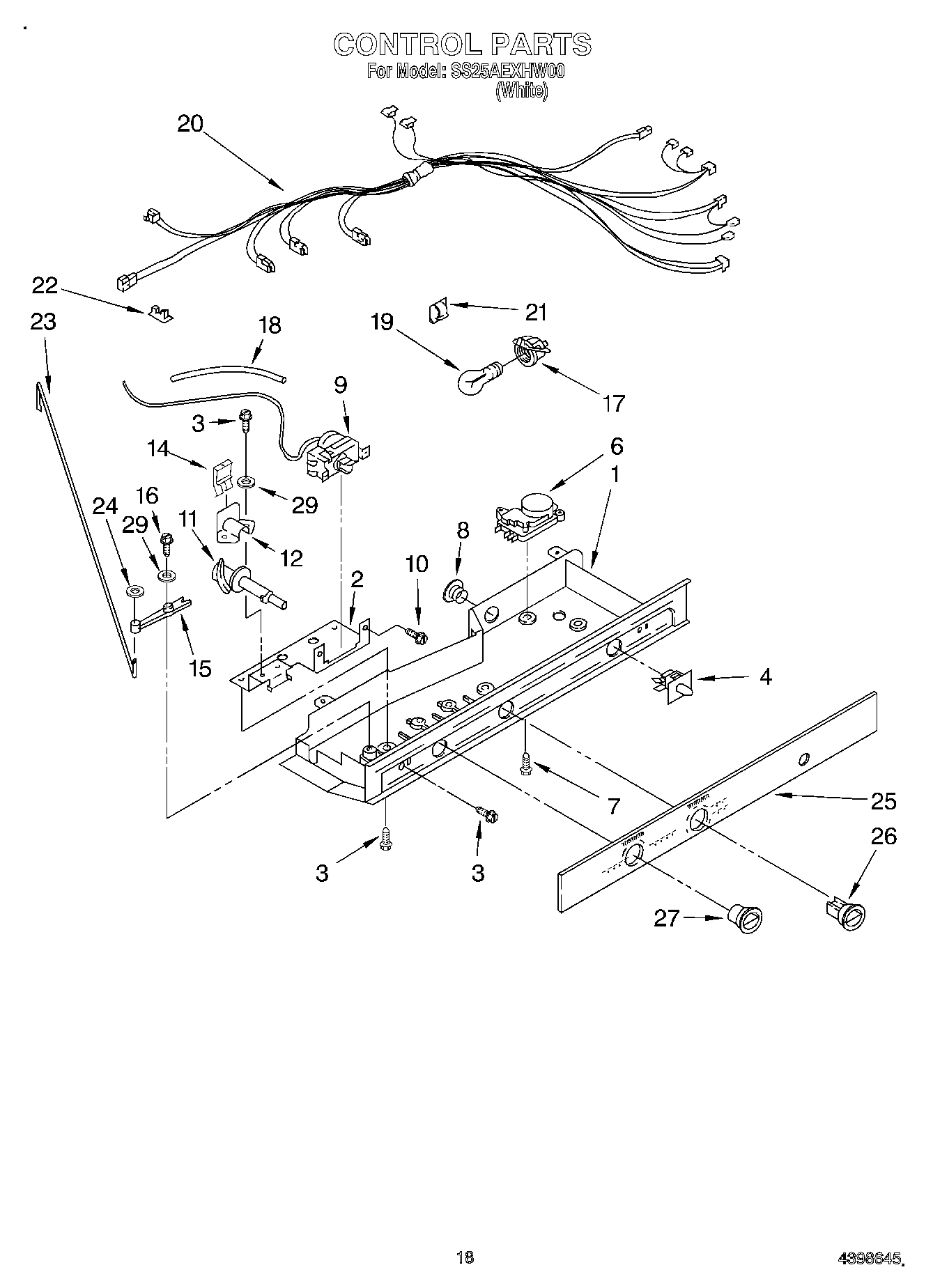

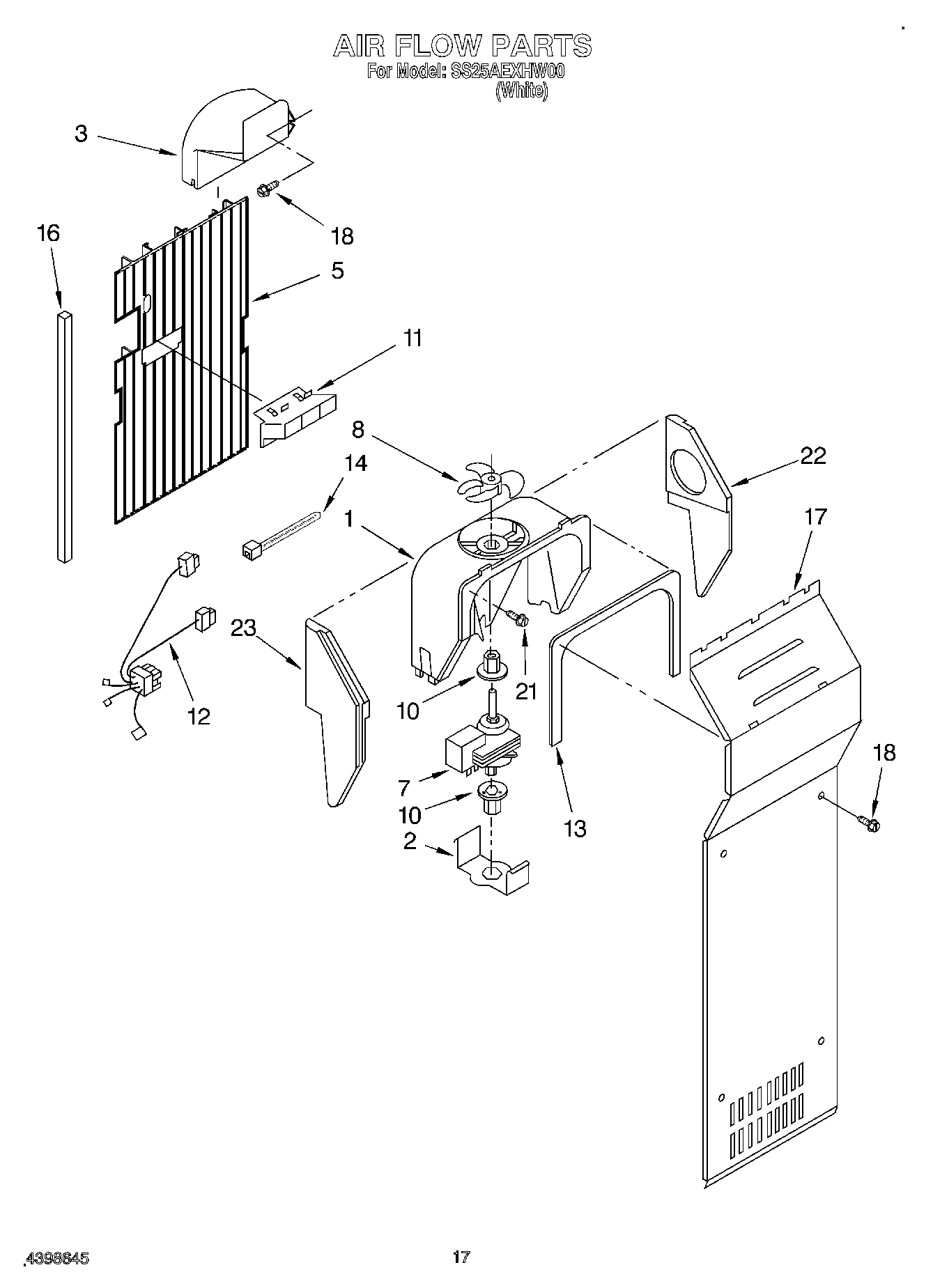

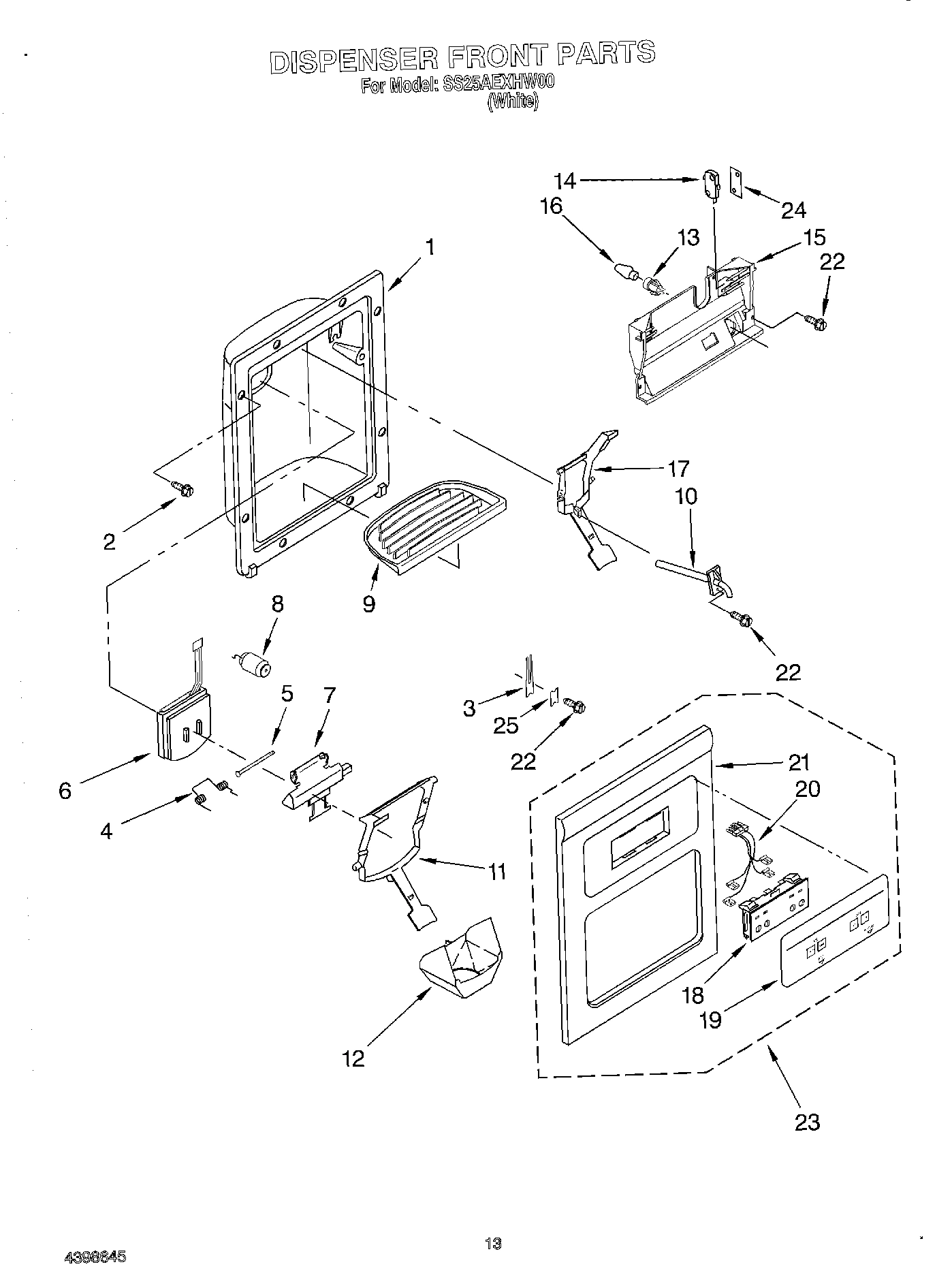

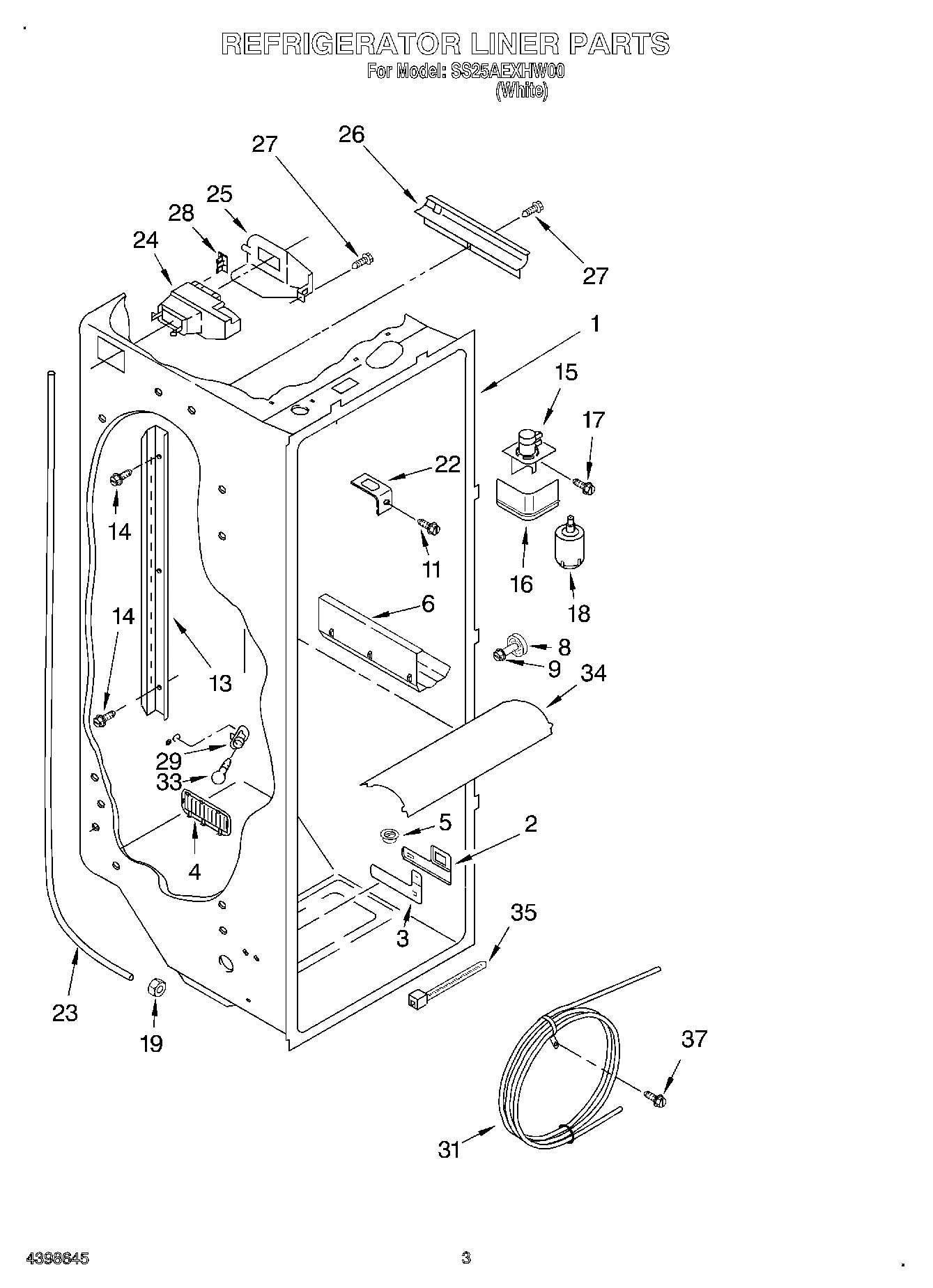

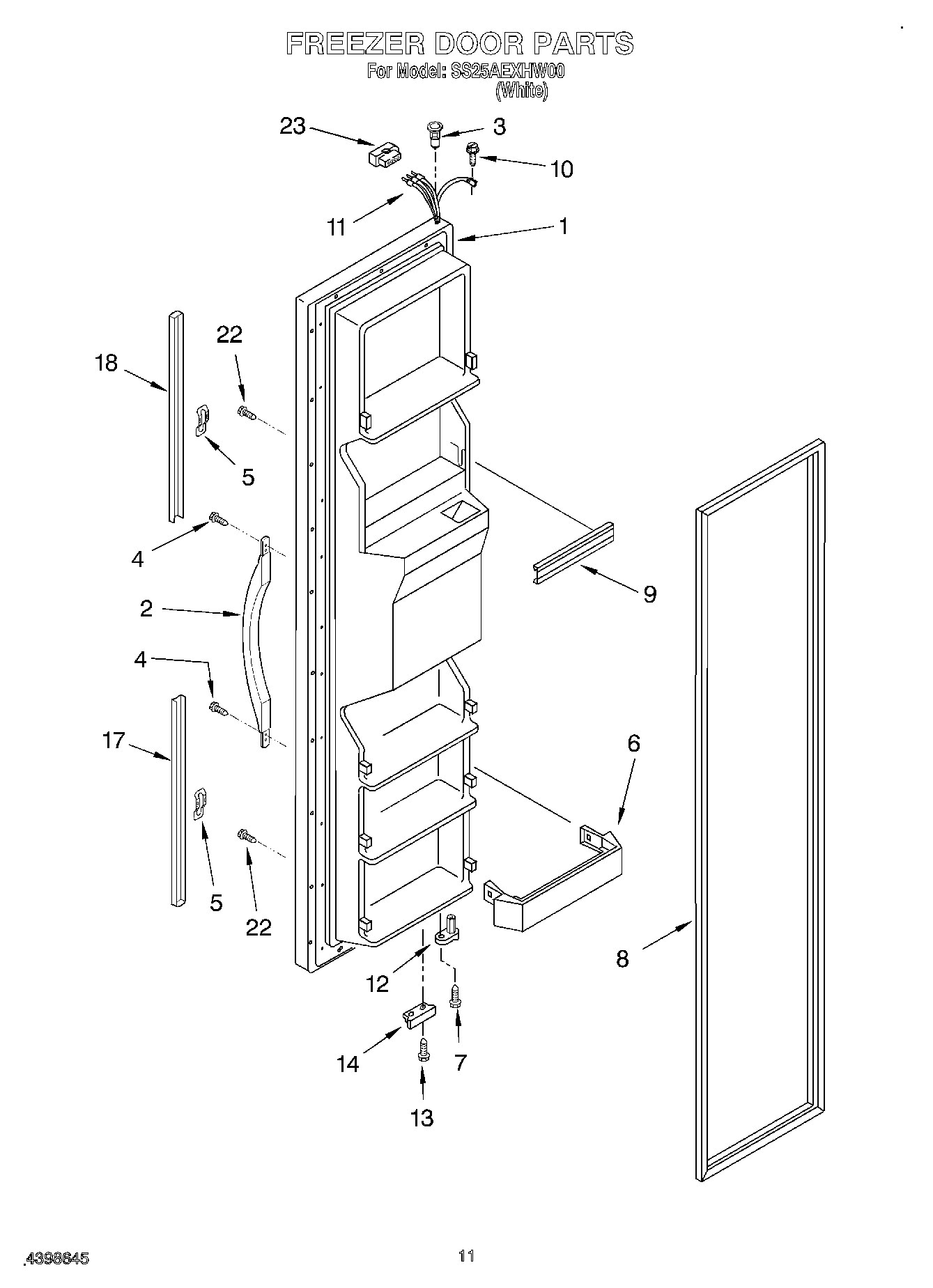

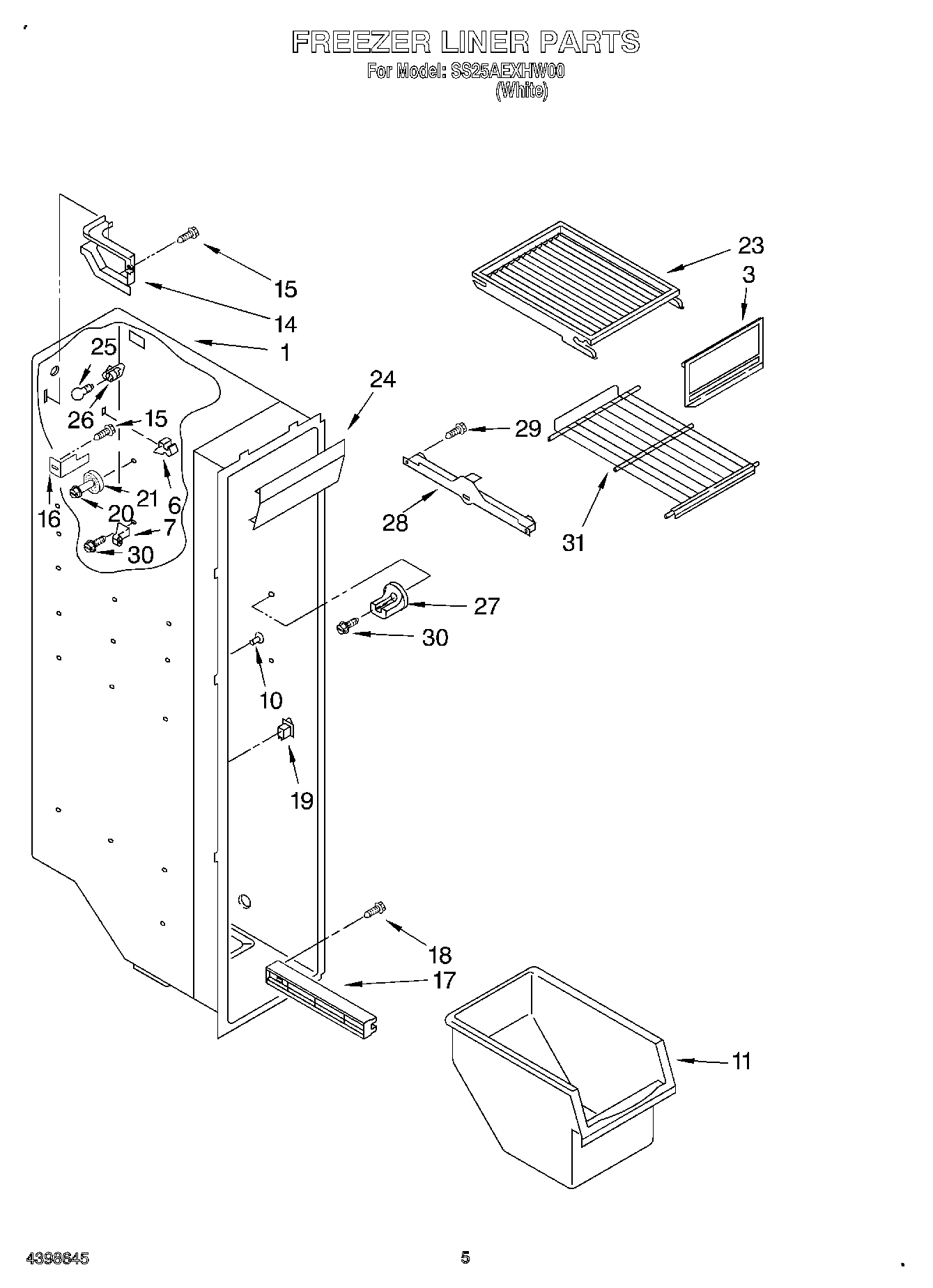

Model Whirlpool SS25AEXHW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

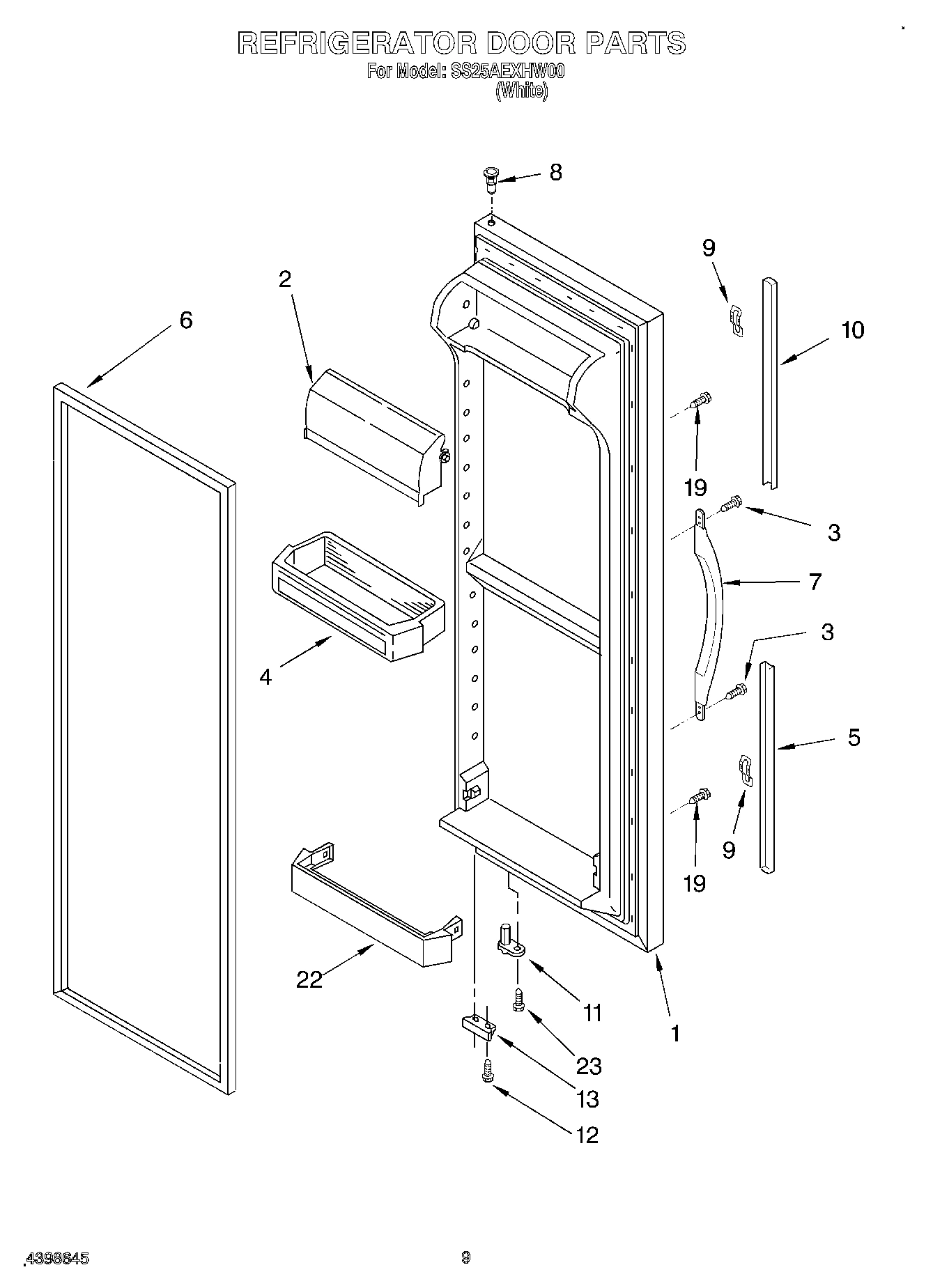

Refrigerator Door (Includes Item 6) (White) WPL 2194509W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI130546A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $234.92

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $6.94

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $29.87

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Extension, Handle (White) WPL 2194969W Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

7

Handle, Center (White) WPL 2186649W Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.34

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $89.22

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

Bracket, Door Stop WPL 2195950 Contact Us For Availability

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

14

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $129.99

14

TUBE, SUCTION WPL 2205765 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

16

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

17

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

17

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

18

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $169.83

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

Compression Nut (Outlet) WPL 2200083 Contact Us For Availability

Compression Nut (Inlet) WPL 2204357 Contact Us For Availability

Overlay, Front Cover (White) WPL 2206016W Contact Us For Availability

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

20

Wire Assembly WPL 2196198 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI130547A Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $64.51

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Clamp WPL 2161324 Contact Us For Availability

Water Tube (Inlet) WPL 2205814 Contact Us For Availability

Water Tube (Outlet) WPL 2205815 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2206014W Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $125.84

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $60.55

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

Air Diffuser Cover WPL 2204409 Contact Us For Availability

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

Shelf (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $88.88

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $84.14

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
