Model Whirlpool RGL4636BL2 – Common Parts & Diagrams
04 - BULKHEAD
03 - 3401771 BURNER ASSEMBLY

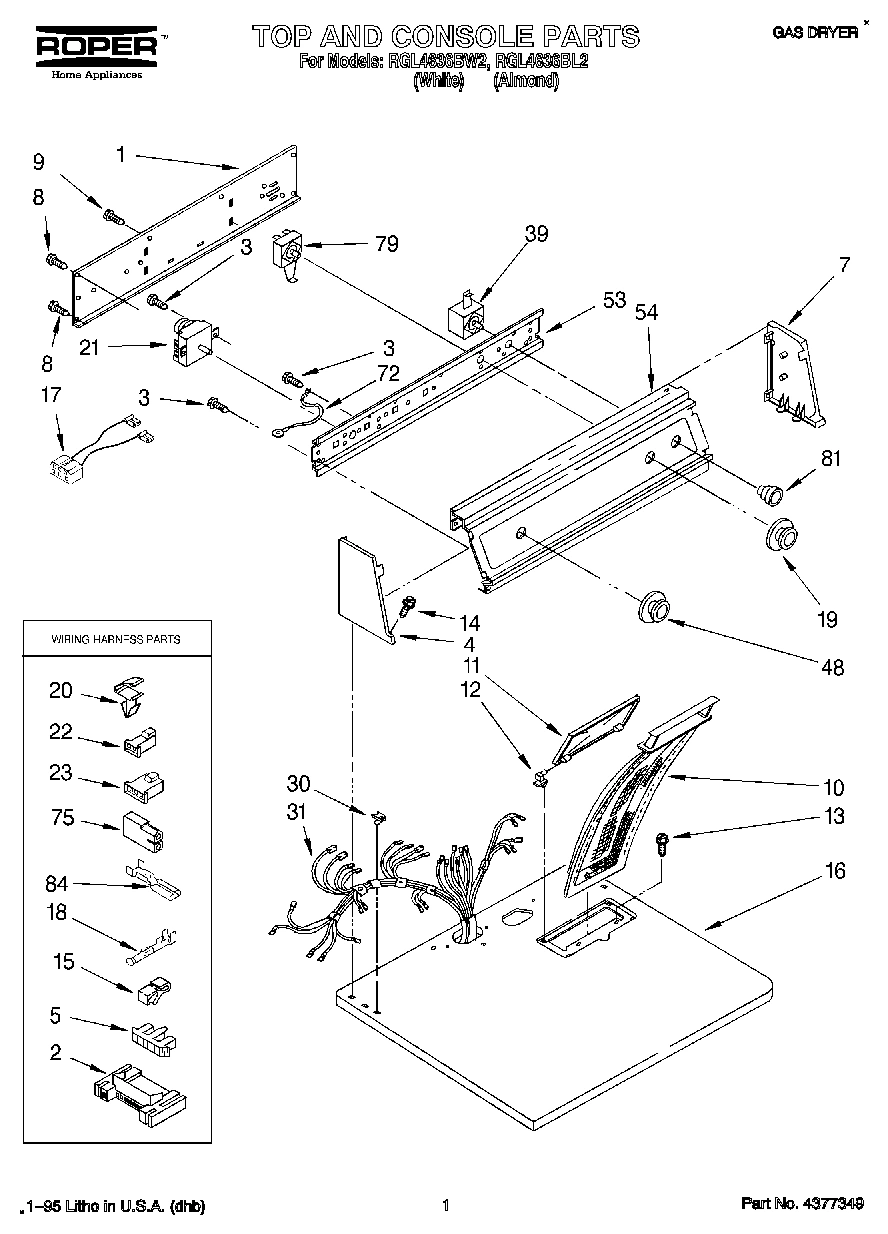

01 - TOP AND CONSOLE, LIT/OPTIONAL

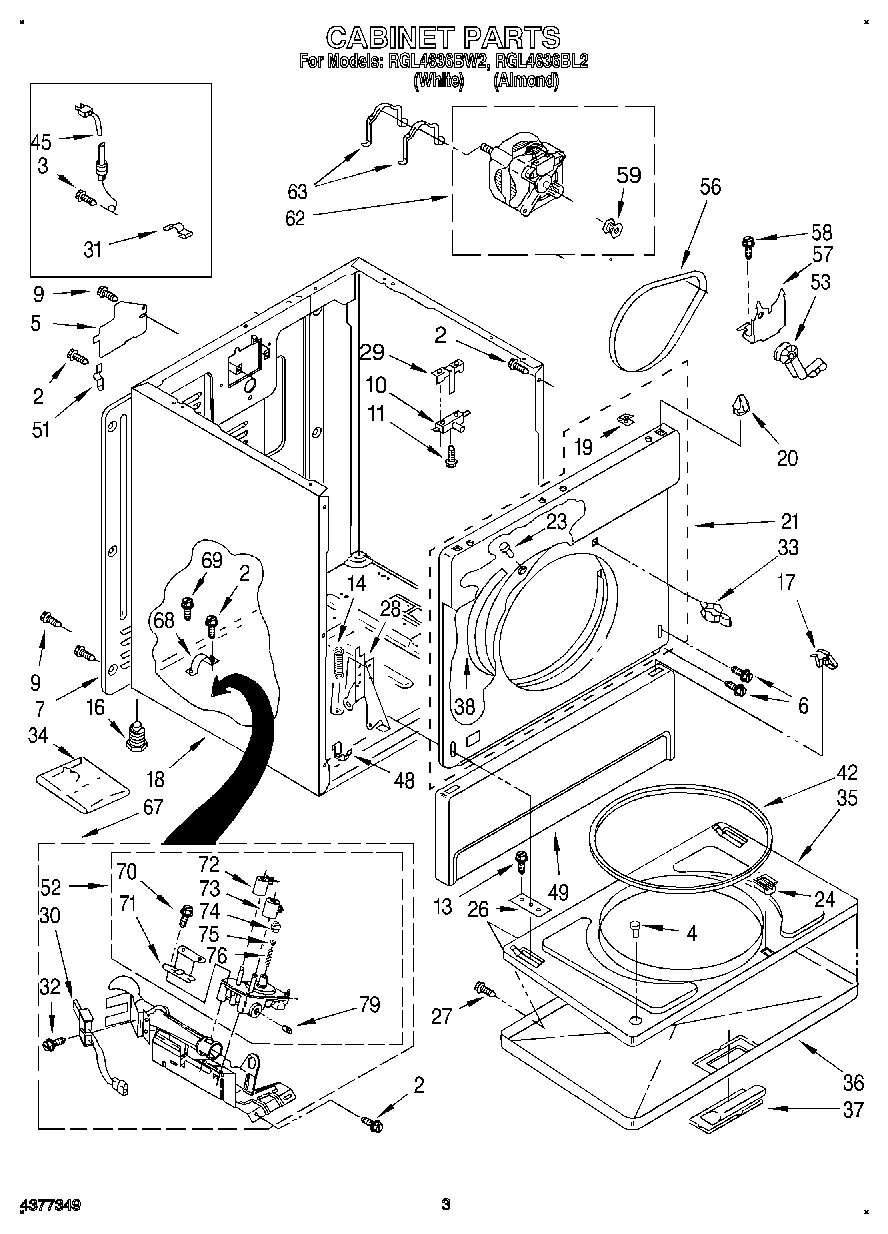

02 - CABINET
Common parts from model Whirlpool RGL4636BL2
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Connector, Timer WPL 3397269 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Cap, End (R.H.) WPL 3357998 Contact Us For Availability
7
Panel, Rear WPL 3396807 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
15
(Alt.) WPL 341196 Contact Us For Availability
15
Clip, Retainer WPL 689180 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
18
Cabinet Assembly (Includes Illus. Nos. 5, 7, WPL 3399580 Contact Us For Availability
18
Cabinet Assembly (Includes Illus. Nos. 5, 7, WPL 3399581 Contact Us For Availability
19
Knob, Temperature Selector WPL 3352167 Contact Us For Availability
21
Front Panel Assembly (White) WPL 338012 Contact Us For Availability
21
Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability
22
Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability
23
Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
31
Harness, Wiring WPL 3401622 Contact Us For Availability
35
Door, Rear WPL 695954 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
48
Timer Knob & Dial WPL 3391823 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control WPL 3397323 Contact Us For Availability
67
Burner Assembly, 60 Hz. (Re WPL 3401771 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 2 Way WPL 717252 Contact Us For Availability
79
Switch, Temperature Selector WPL 3354281 Contact Us For Availability
81
Knob, Push-To-Start WPL 3391829 Contact Us For Availability
× ![]()
