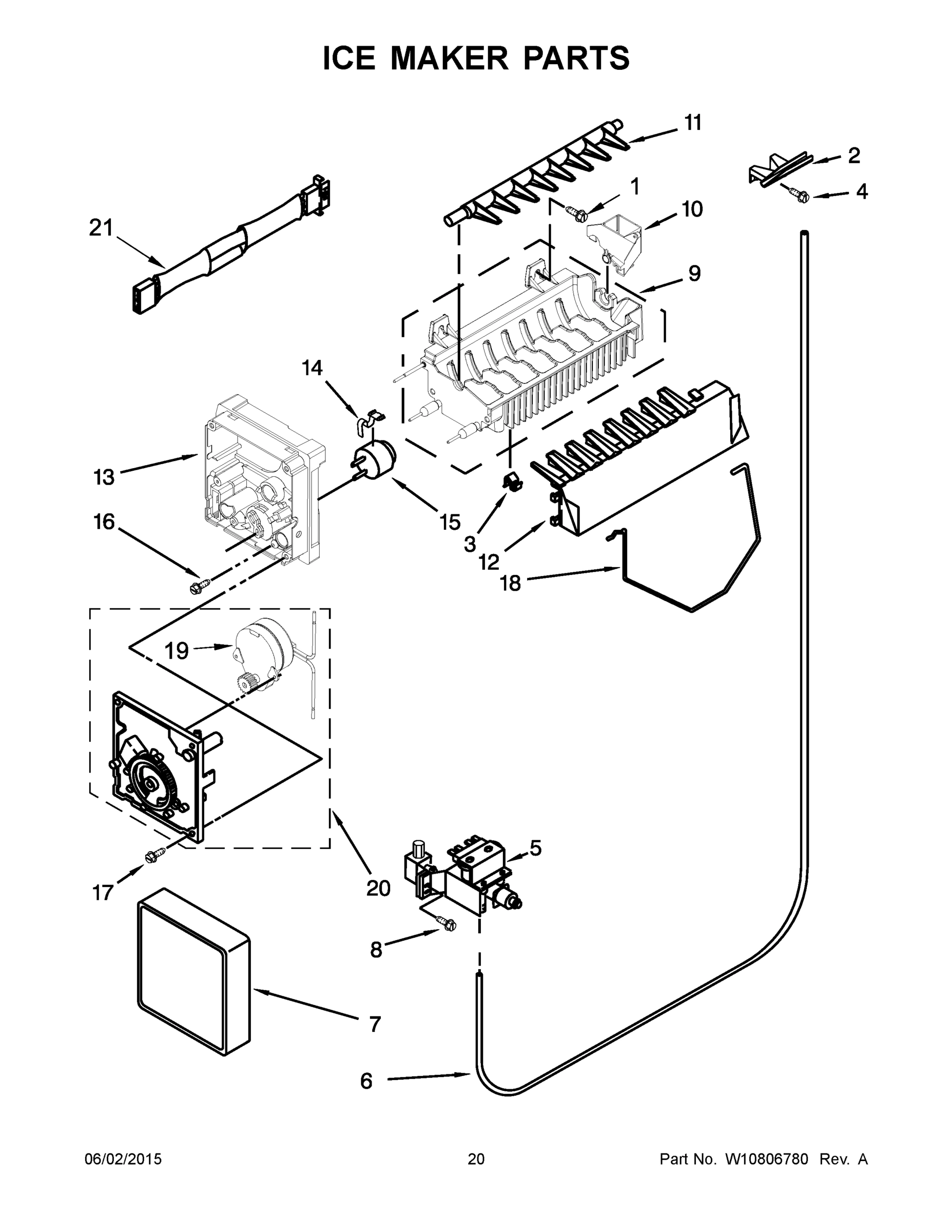

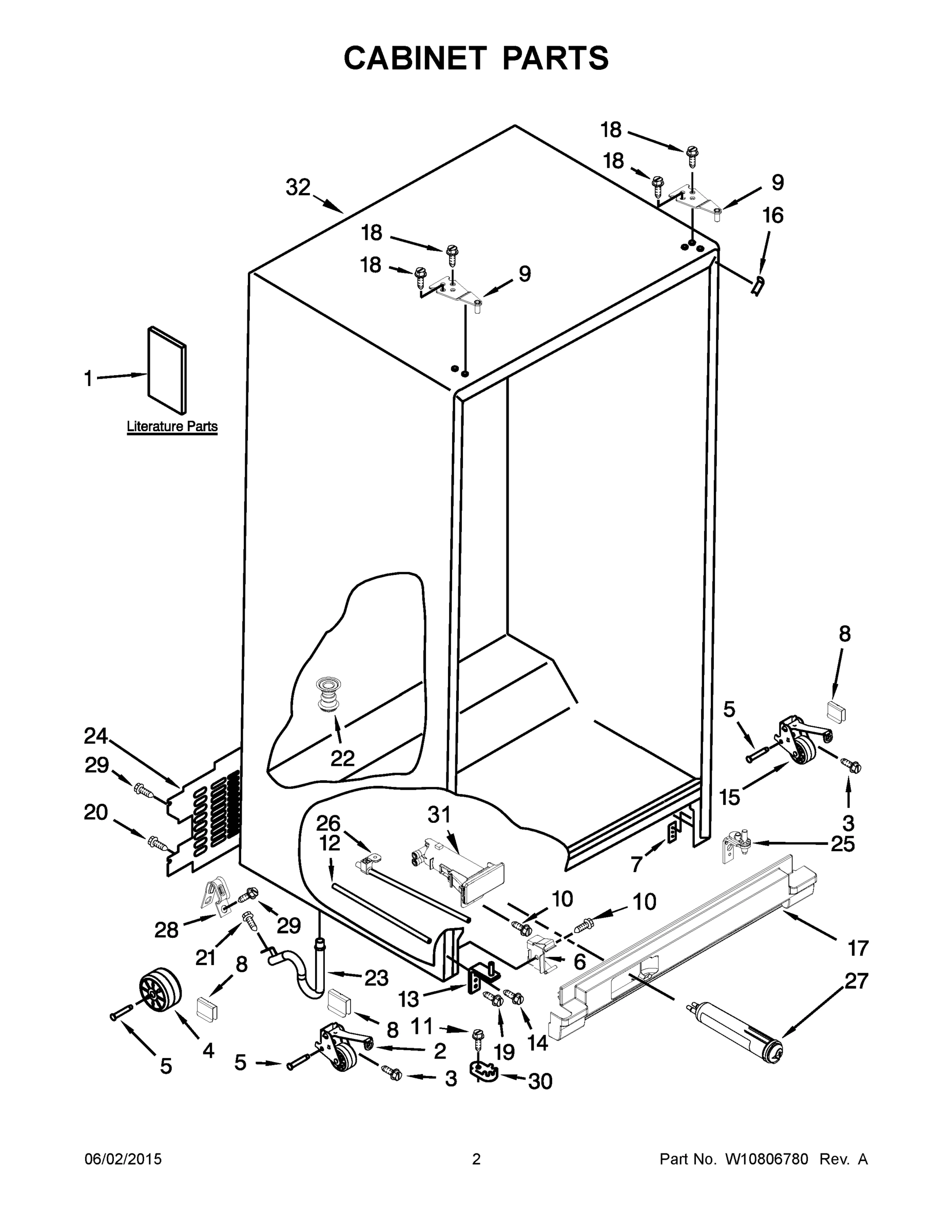

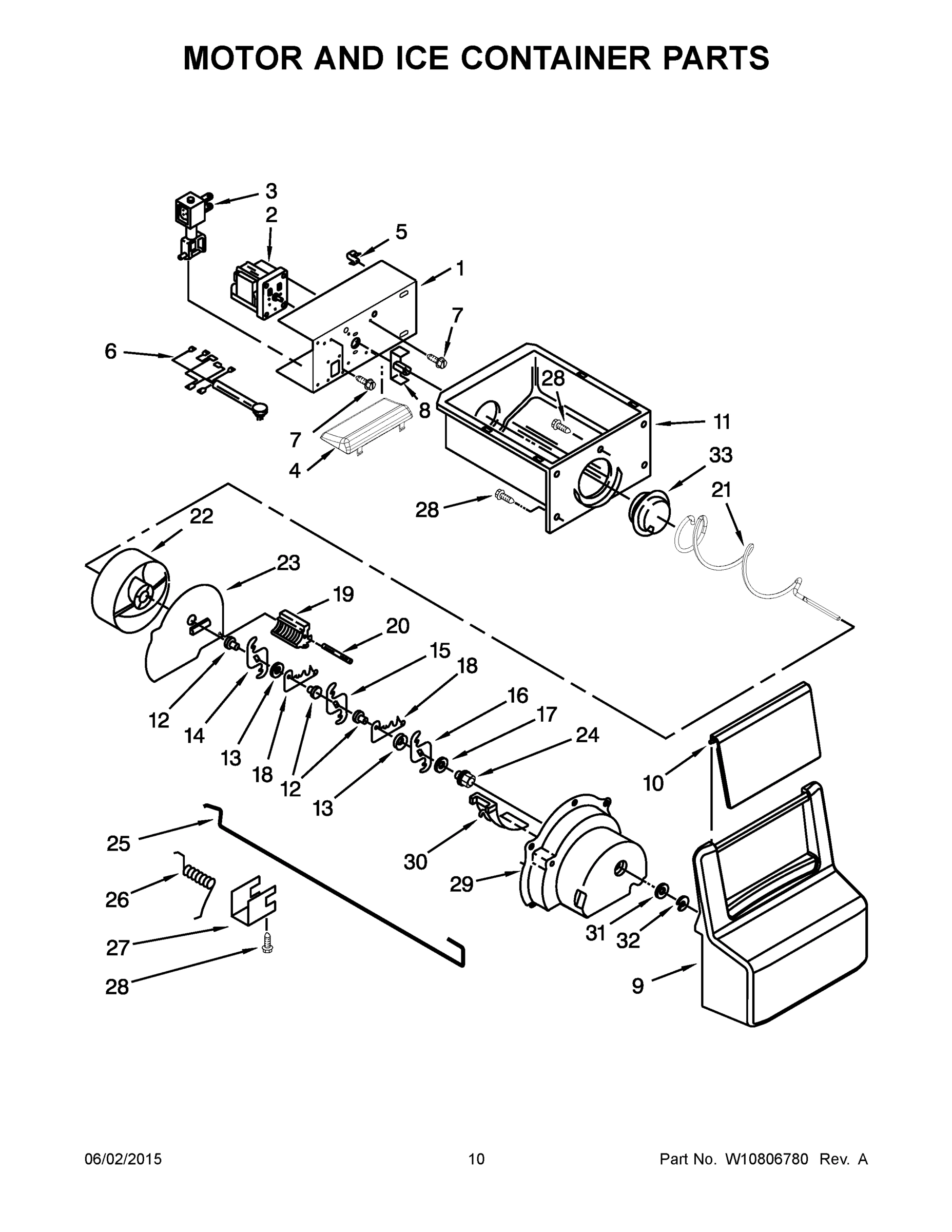

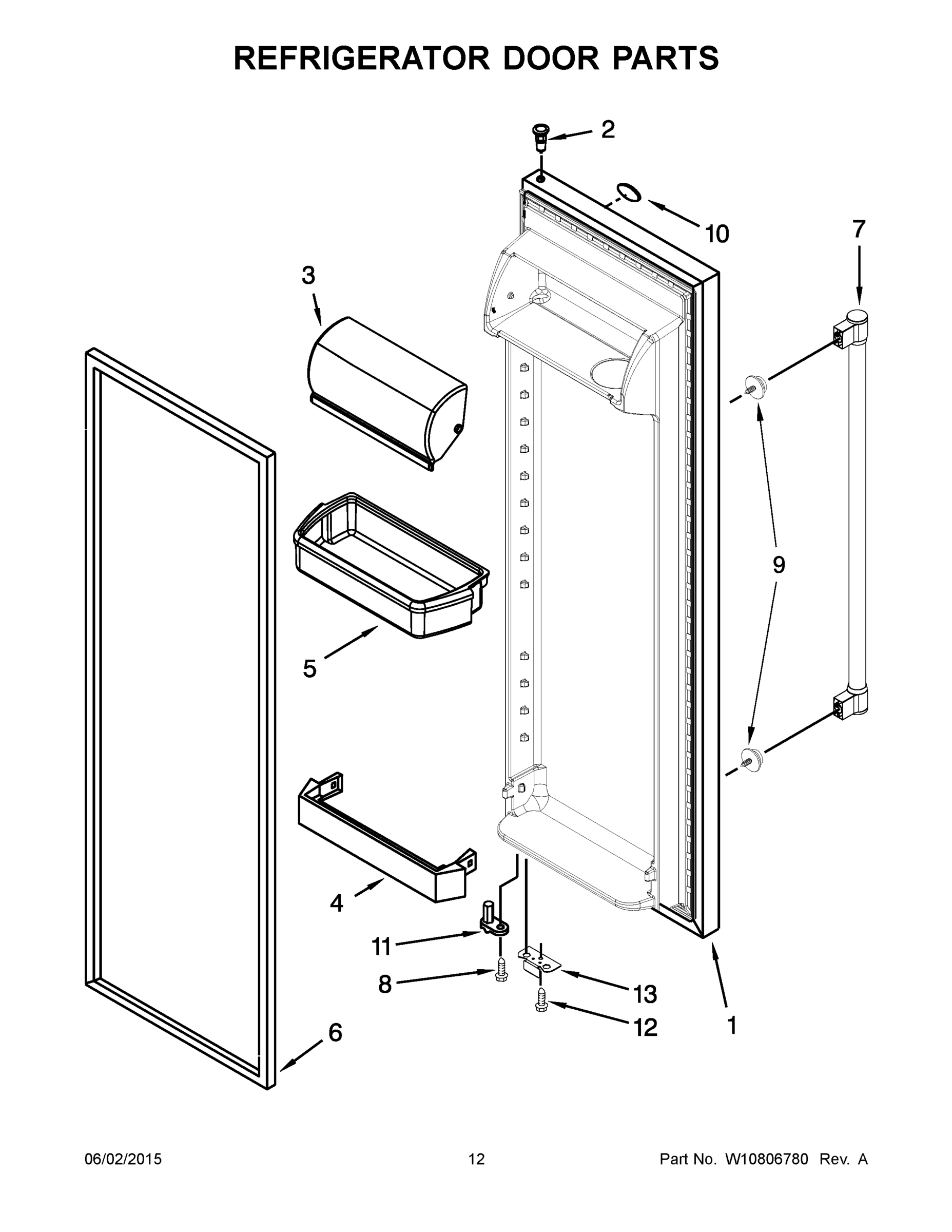

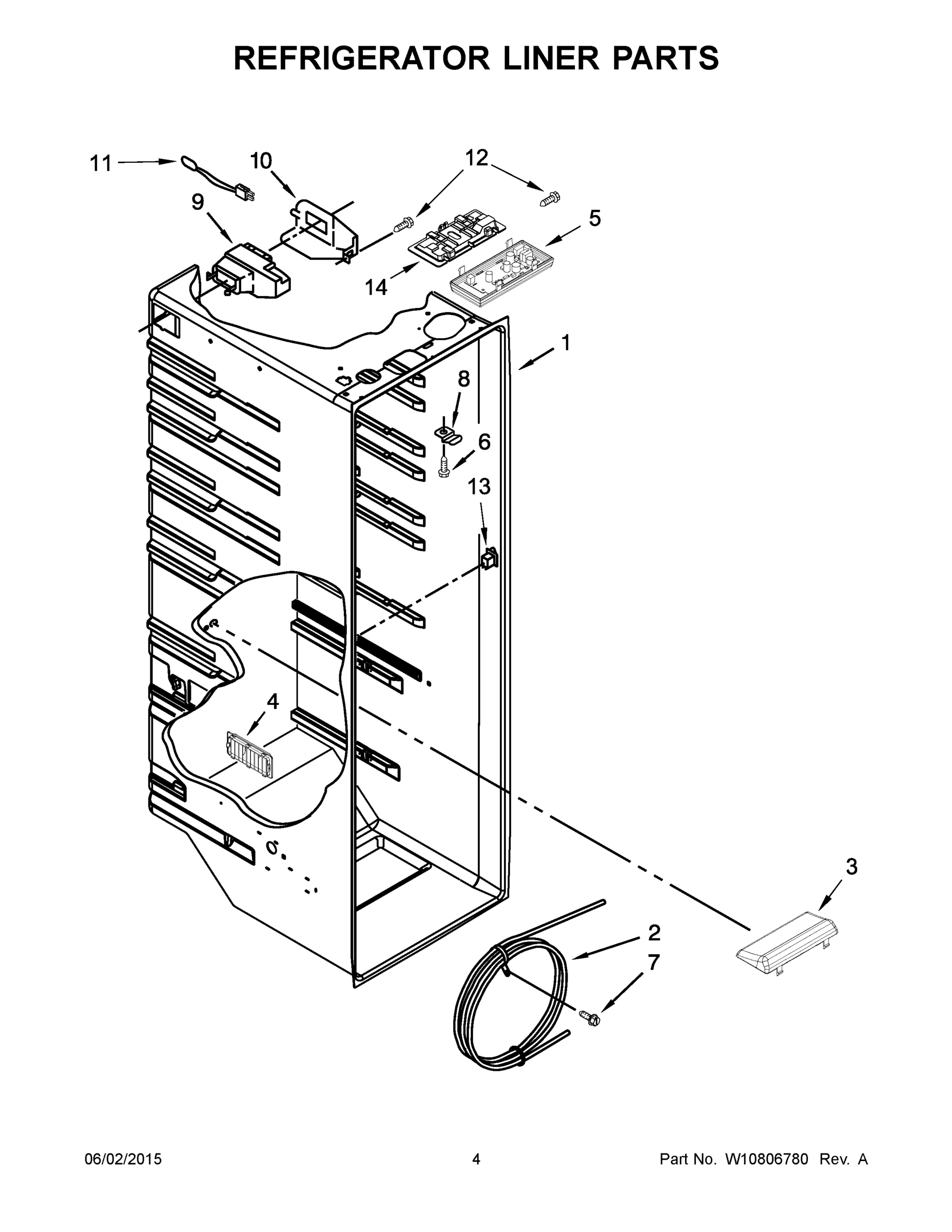

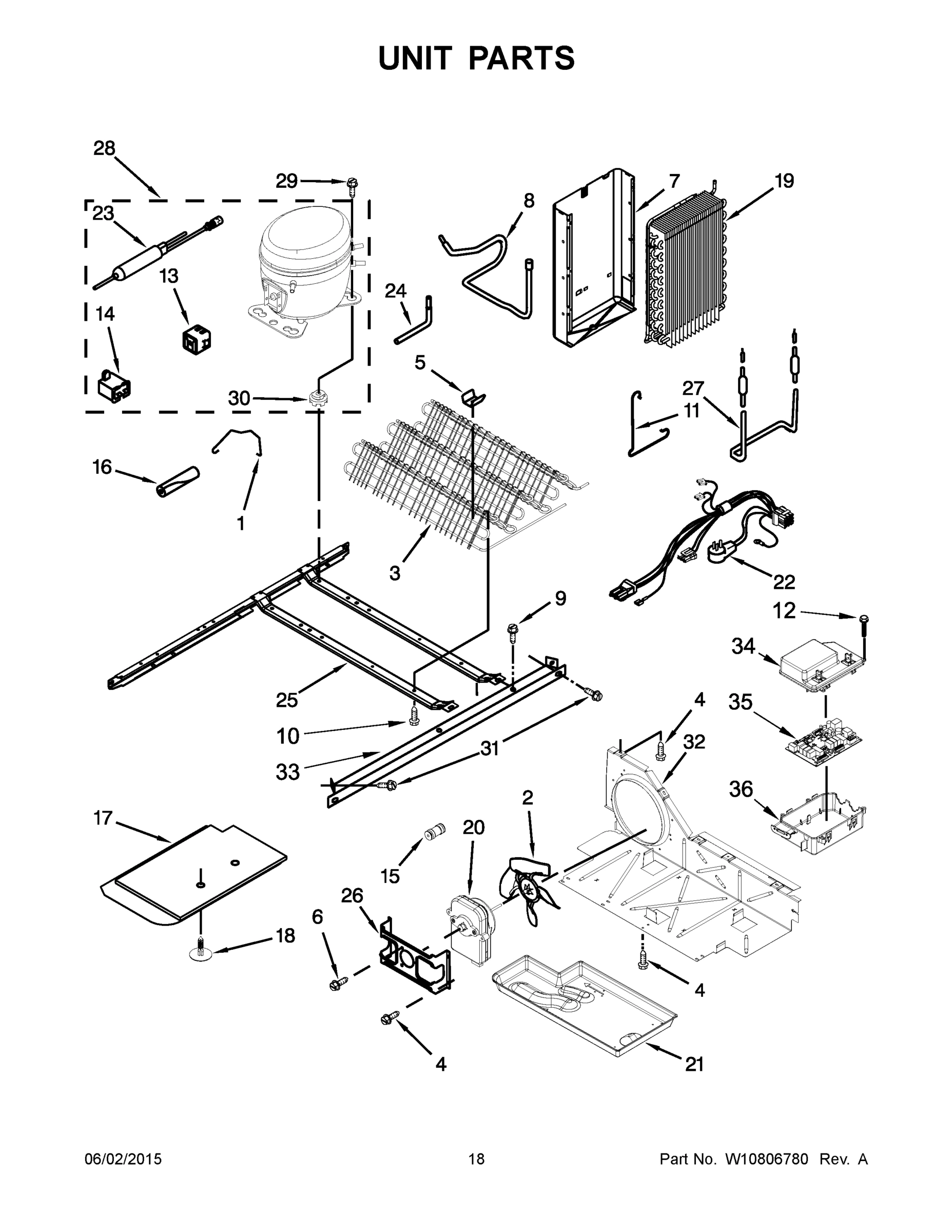

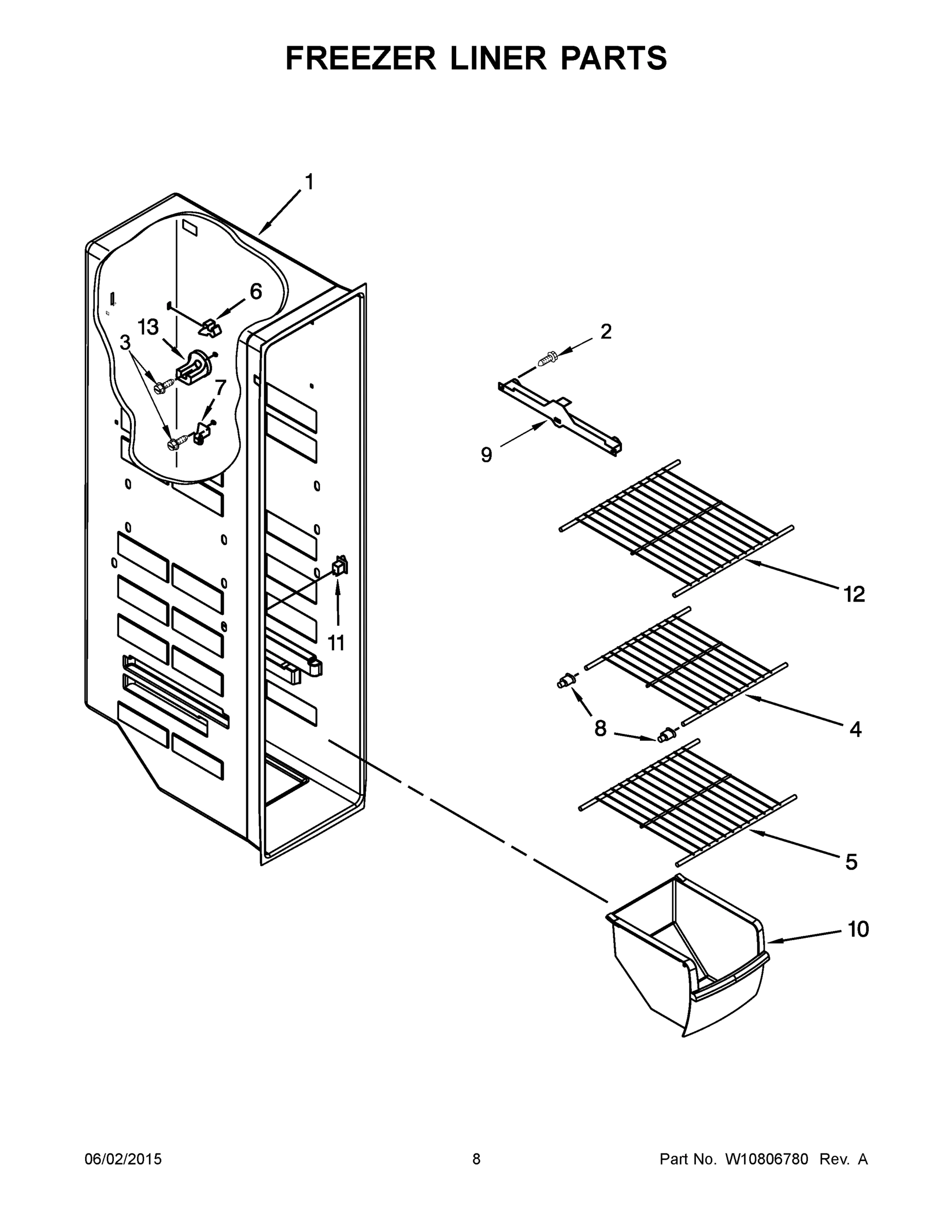

Model Whirlpool MSF25D4MDM02 REFRIGERATOR – Common Parts &amp; Diagrams

1

BRACKET, MOTOR WPL W10397980 Contact Us For Availability

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $131.60

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.51

2

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $85.63

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $13.91

2

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

2

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $84.71

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $52.72

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $222.63

3

W10636045 Whirlpool Refrigerator Cover Backorder WPL W10636045 $99.02

3

W10803534 Whirlpool Screw In Stock WPL W10803534 $7.98

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $110.99

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.47

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

WPW10397392 Whirlpool Refrigerator Grille Backorder WPL WPW10397392 $36.03

3A

WPW10397394 Whirlpool Refrigerator Grille In Stock WPL WPW10397394 $43.95

3B

WPW10397395 Whirlpool Refrigerator Grille In Stock WPL WPW10397395 $30.08

4

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $61.30

4

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

4

WPW10397435 Whirlpool Refrigerator Fitting Backorder WPL WPW10397435 $93.88

4

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $12.10

4

WPW10515057 Whirlpool Light Board In Stock WPL WPW10515057 $55.50

5

W10177781 Whirlpool Refrigerator Air Duct Backorder WPL W10177781 $74.13

5

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $73.41

5

WPW10515058 Whirlpool LED Light In Stock WPL WPW10515058 $27.53

5

WPW10710203 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10710203 $35.57

5

SHELF, WIRE WPL W10698646 Contact Us For Availability

6

W10417930 Whirlpool Refrigerator Dispenser Ha Backorder WPL W10417930 $86.94

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $6.02

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $35.32

6A

WPW10606407-includeCORE Whirlpool WPW10606407 Backorder WPL WPW10606407-includeCORE $244.01

6B

W11034364-includeCORE Whirlpool W11034364 Ref Backorder WPL W11034364-includeCORE $270.37

7

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $97.53

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

7

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

7

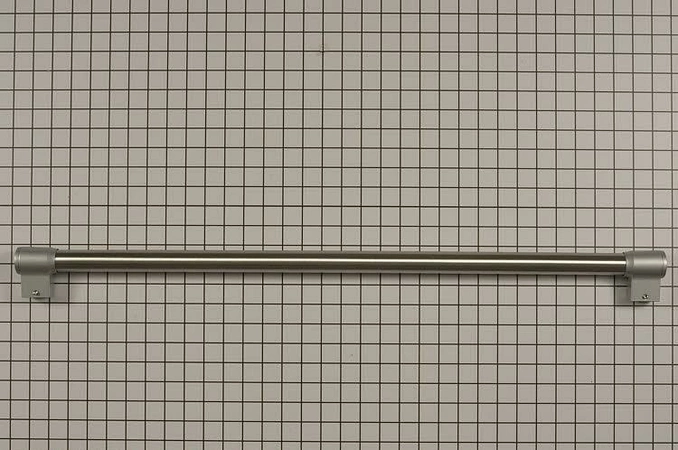

WPW10643725 Whirlpool Refrigerator Handle Backorder WPL WPW10643725 $206.45

8

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $61.13

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

8

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $6.93

8

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $11.30

8

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

8

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.70

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $14.90

8

SCREW WPL W10191952 Contact Us For Availability

9

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

9

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $126.08

9

W11427433 Whirlpool Cover Backorder WPL W11427433 $73.61

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

9

WPW10178772 Whirlpool Crisper Pan In Stock WPL WPW10178772 $145.63

9

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $142.00

9A

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

9A

W11579508 Whirlpool Top Hinge Backorder WPL W11579508 $25.04

9B

W11164088 Whirlpool Refrigerator Door Hinge Backorder WPL W11164088 $50.70

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $70.09

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $72.65

W10406980 Whirlpool Refrigerator Ice Door Backorder WPL W10406980 $45.49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

W11676540 Whirlpool Refrigerator Cup Fill Backorder WPL W11676540 $13.58

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

WPW10612926 Whirlpool Refrigerator Nameplate Backorder WPL WPW10612926 $23.51

10A

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $24.26

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $23.29

W10539759 Whirlpool Refrigerator Wire Harness Backorder WPL W10539759 $54.50

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $27.54

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $29.73

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $54.99

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $138.70

CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.85

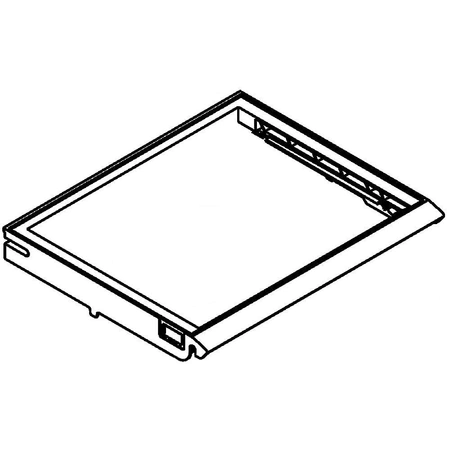

W10636041 Whirlpool Refrigerator Cover Backorder WPL W10636041 $85.59

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $66.33

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $76.73

SHELF, WIRE WPL W10698644 Contact Us For Availability

W10646418 Whirlpool Refrigerator Door Hinge Backorder WPL W10646418 $25.02

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $69.69

BRACKET, DOOR STOP (SILVER) WPL W10219801 Contact Us For Availability

13A

BRACKET, DOOR STOP (BLACK) WPL W10219802 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $61.31

W11416813 Whirlpool Microwave Housing In Stock WPL W11416813 $45.90

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $79.20

15

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

15

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $71.58

15

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $43.54

16

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.85

16

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $61.38

16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $6.02

16A

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

16B

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $4.82

17

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.85

17

GRILE (WHITE) WPL W10348650 Contact Us For Availability

17

ASSEMBLY, UNIT COVER (BOTTOM) WPL W10466698 Contact Us For Availability

17A

GRILE (BLACK) WPL W10348651 Contact Us For Availability

17B

GRILE (GREY) WPL W10350049 Contact Us For Availability

18

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

18

ARM-SHUT In Stock WPL W11807379 $43.00

18

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $53.35

18A

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $5.24

19

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

19

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $264.08

20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

20

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $112.76

21

W10838084 Whirlpool Refrigerator Wire Harness In Stock WPL W10838084 $49.84

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

21

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $99.48

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $32.02

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

23

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $23.69

24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

25

W11049959 Whirlpool Refrigerator Hinge In Stock WPL W11049959 $60.41

25

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

26

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

26

WPW10350007 Whirlpool Refrigerator Water Tube In Stock WPL WPW10350007 $59.65

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

29

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $95.11

29

SCREW WPL W10476309 Contact Us For Availability

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

30

CLOSER, DOOR (FREEZER) WPL 2223751 Contact Us For Availability

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

31

W10862456 Whirlpool Water Filter Housing In Stock WPL W10862456 $93.58

31A

W10862460 Whirlpool Water Filter Housing In Stock WPL W10862460 $108.74

31B

W10862461 Whirlpool Refrigerator Water Filter In Stock WPL W10862461 $109.17

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

32

BAFFLE, AIR WPL W10332806 Contact Us For Availability

33

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $105.27

34

W10334855 Whirlpool Refrigerator Cover Backorder WPL W10334855 $50.61

35

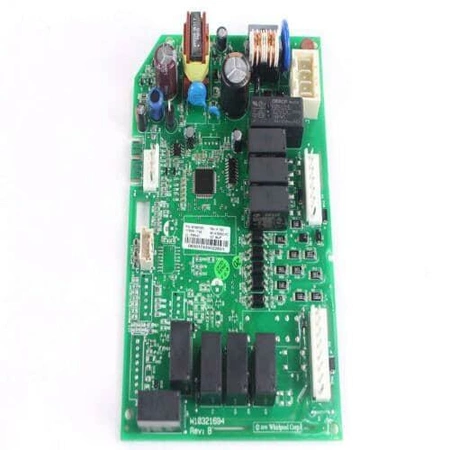

W11035837-includeCORE Whirlpool W11035837 Ref Backorder WPL W11035837-includeCORE $316.79

36

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $71.91

100

WPW10300022 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10300022 $182.10

100

WPW10558423 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10558423 $309.71

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $18.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

PAINT, TOUCH-UP (1/2OZ. GRAPHITE) WPL 80051 Contact Us For Availability

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
