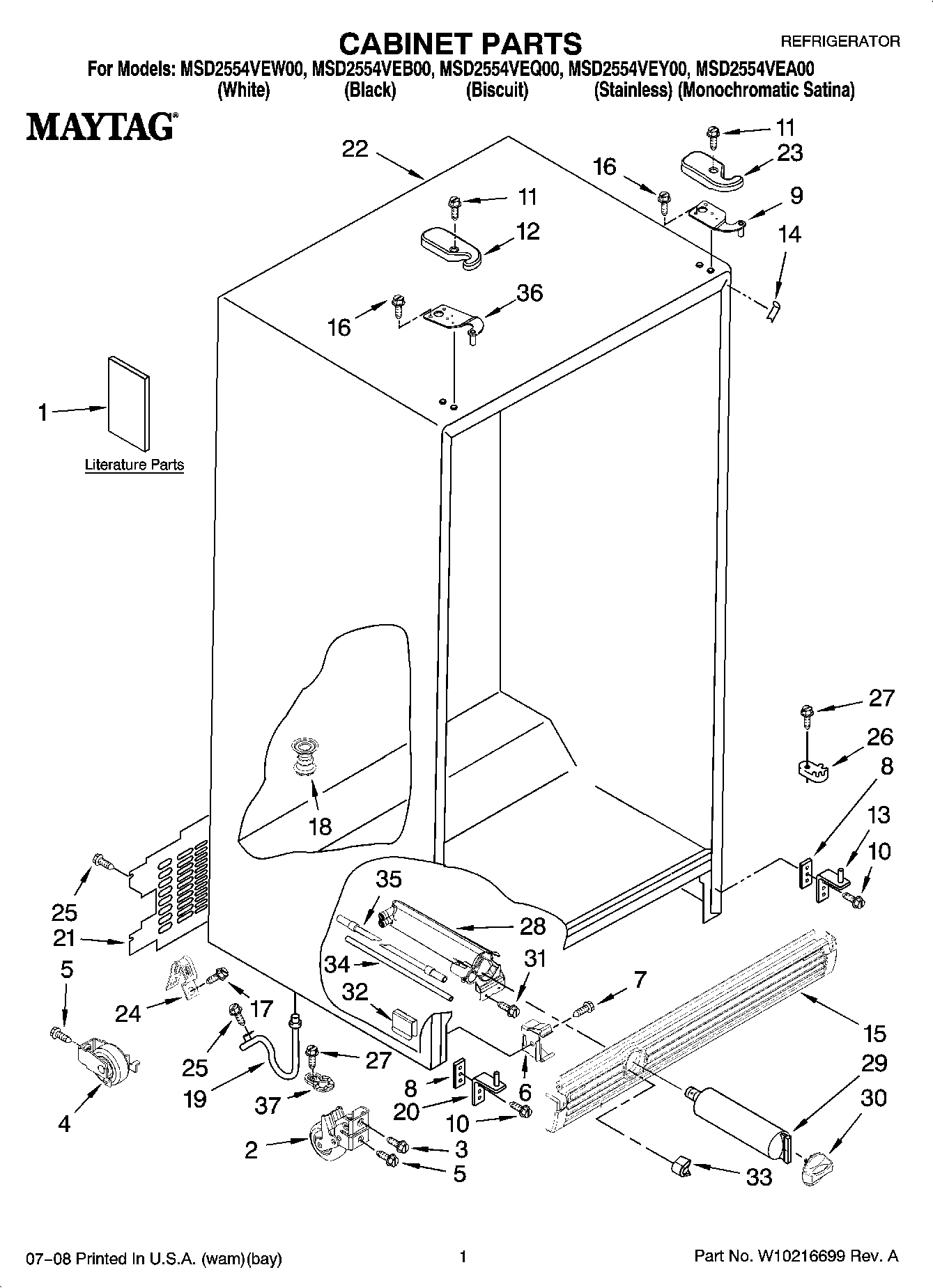

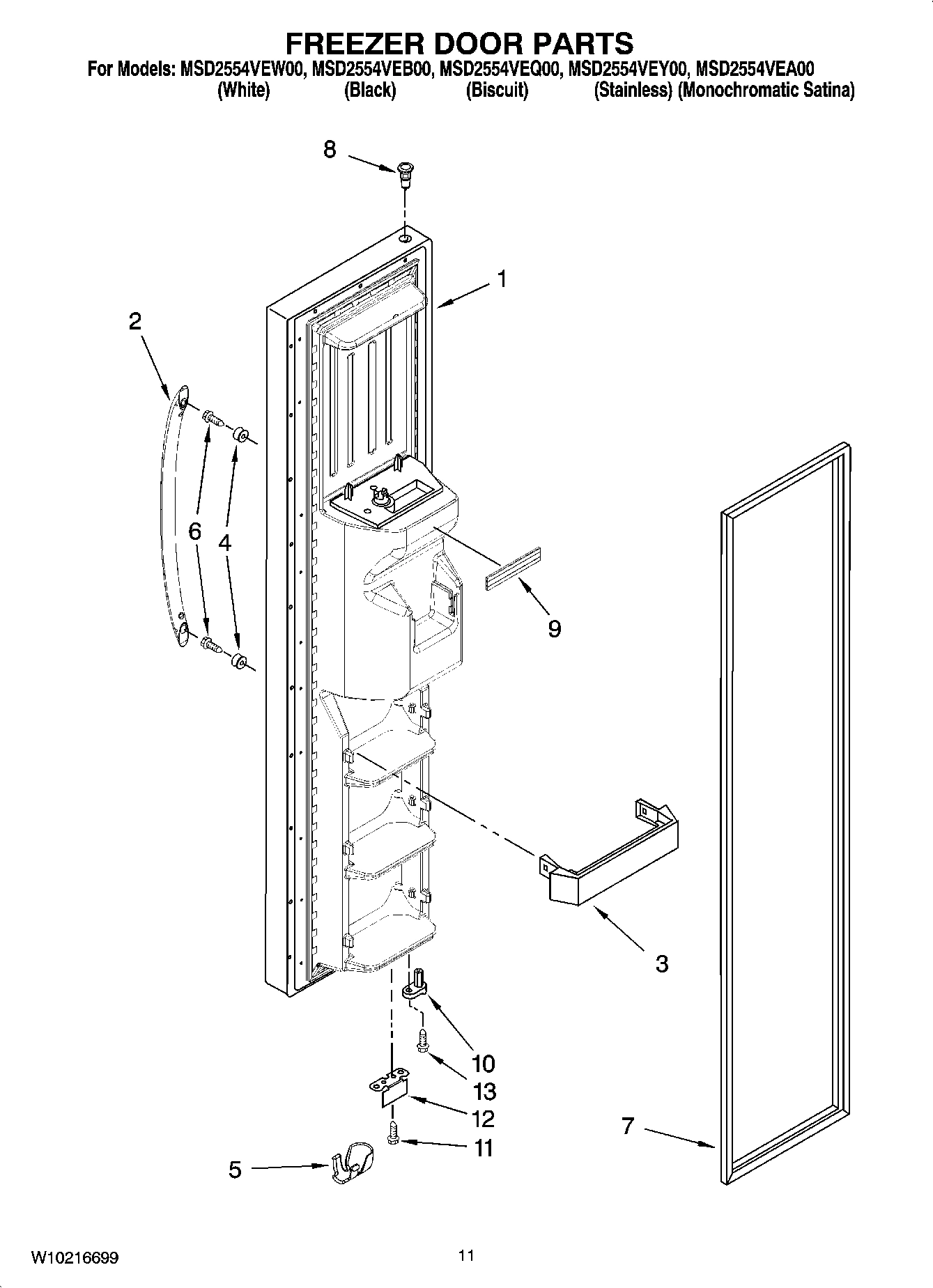

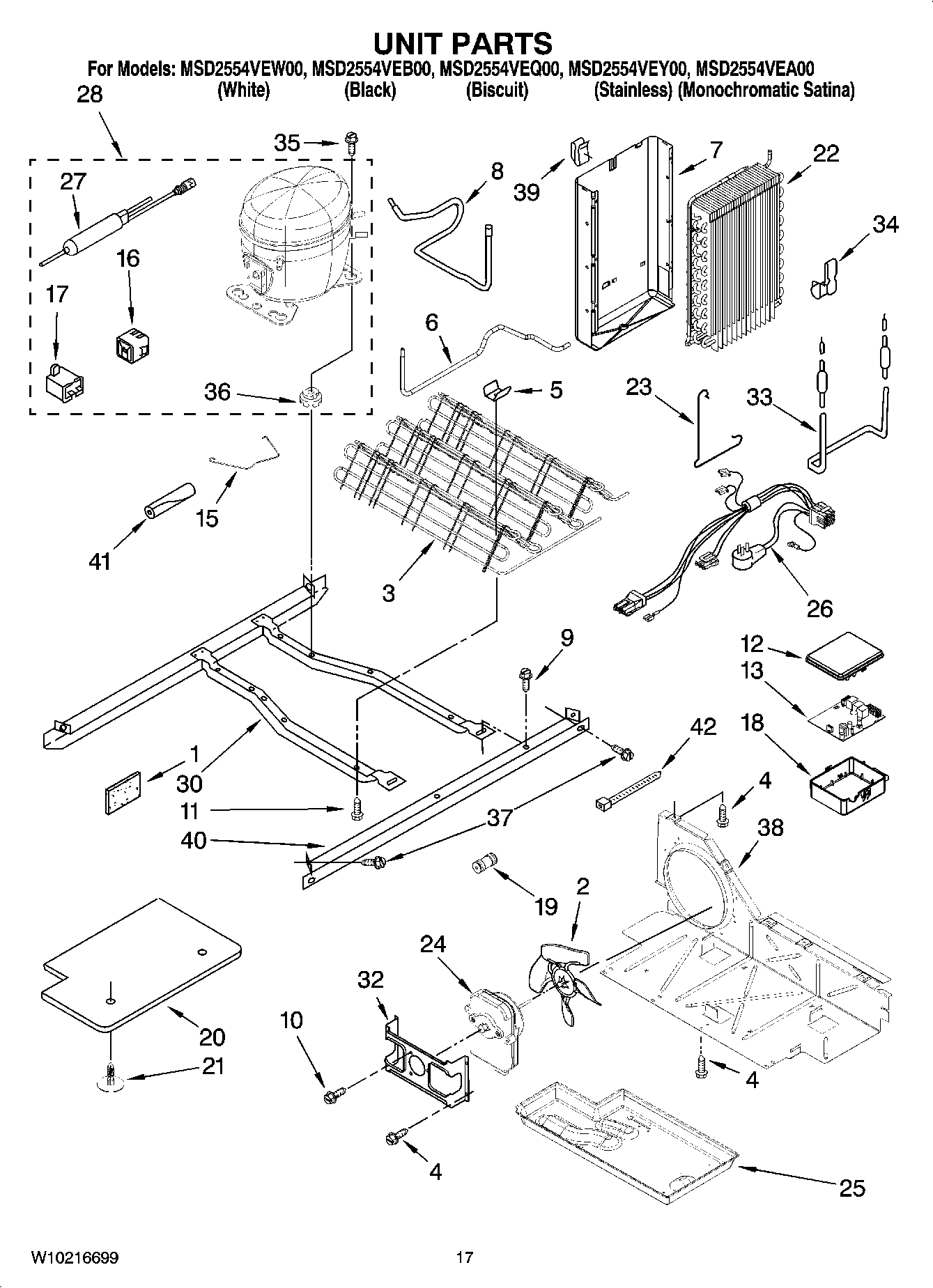

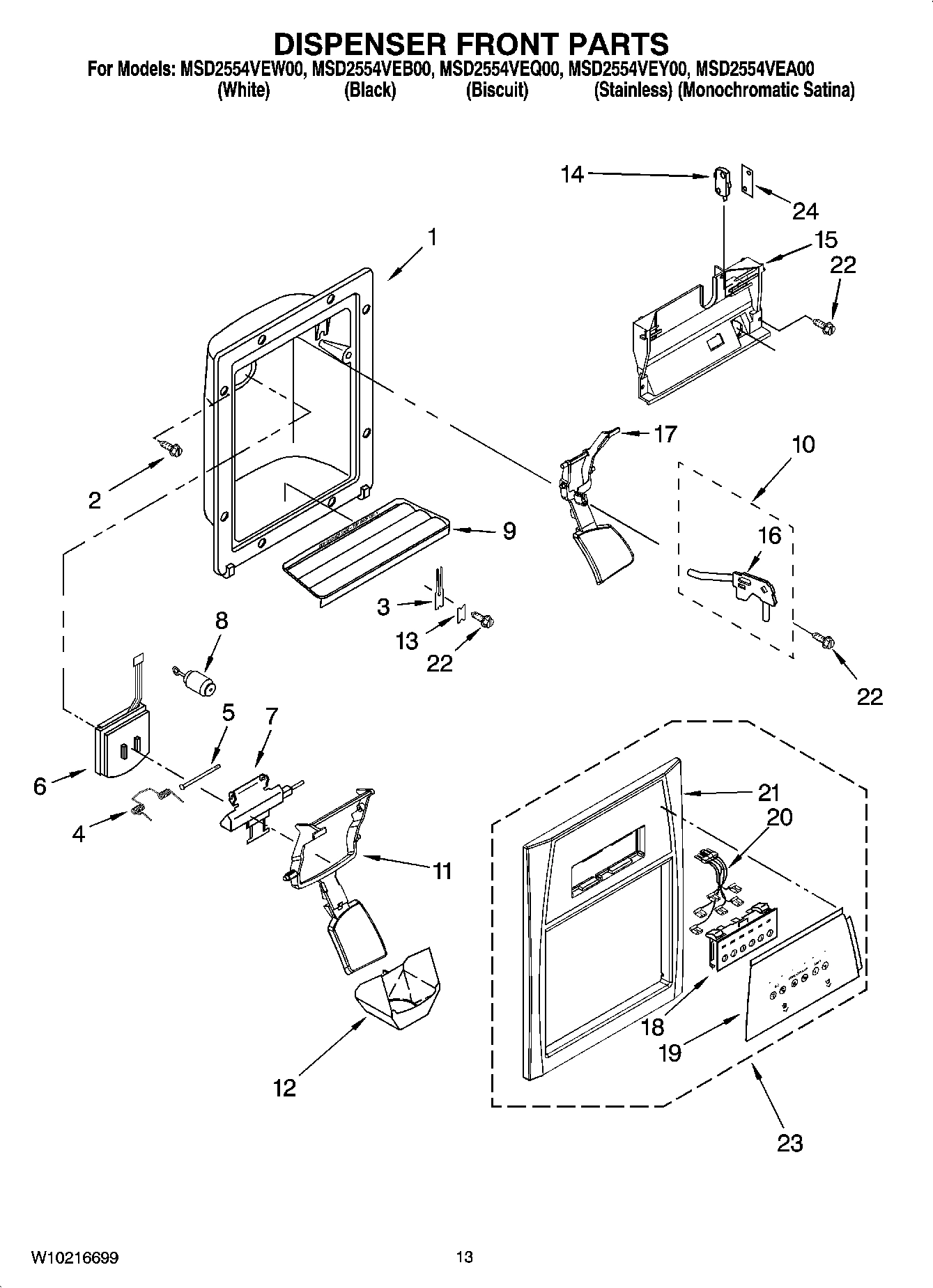

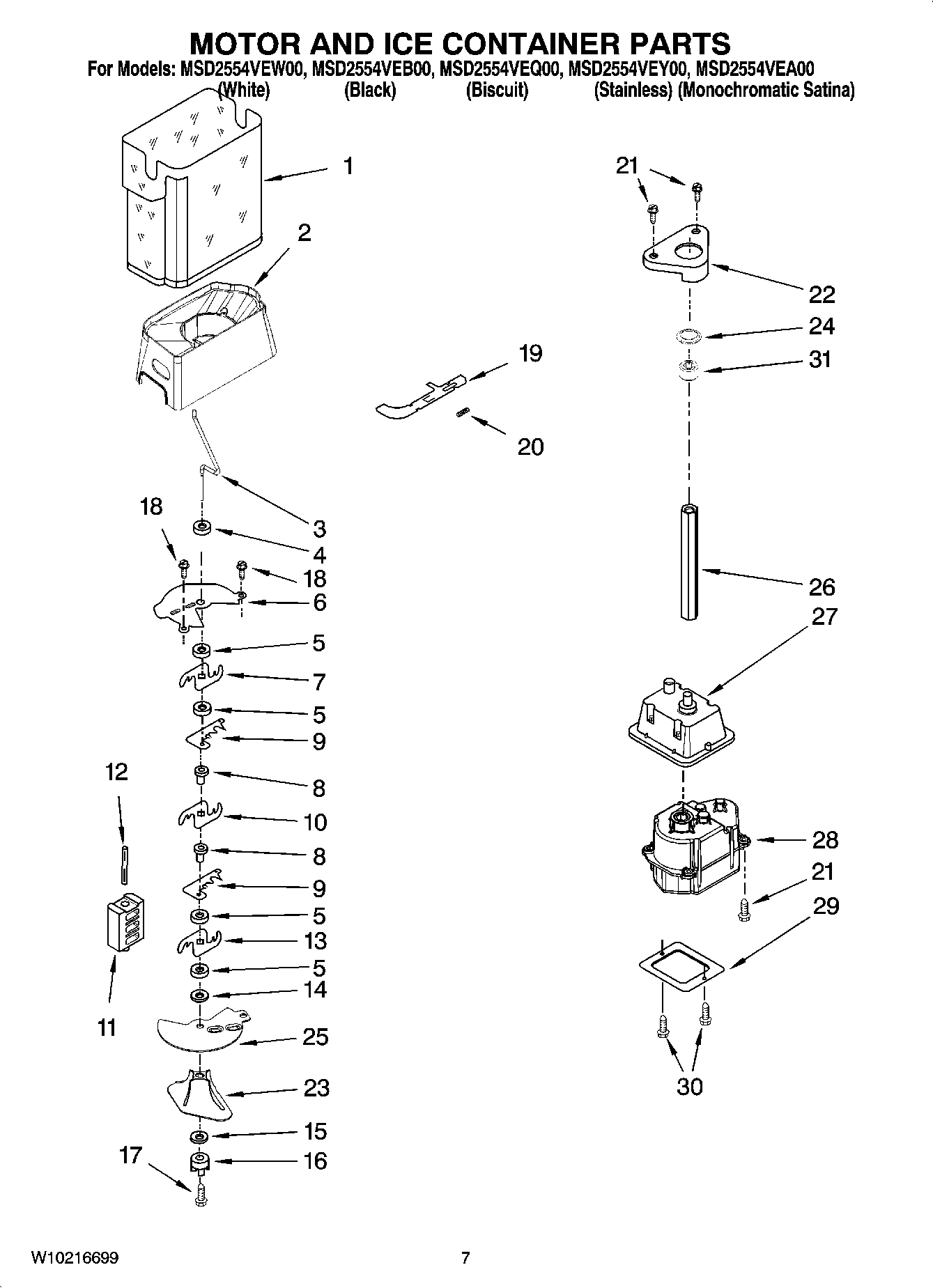

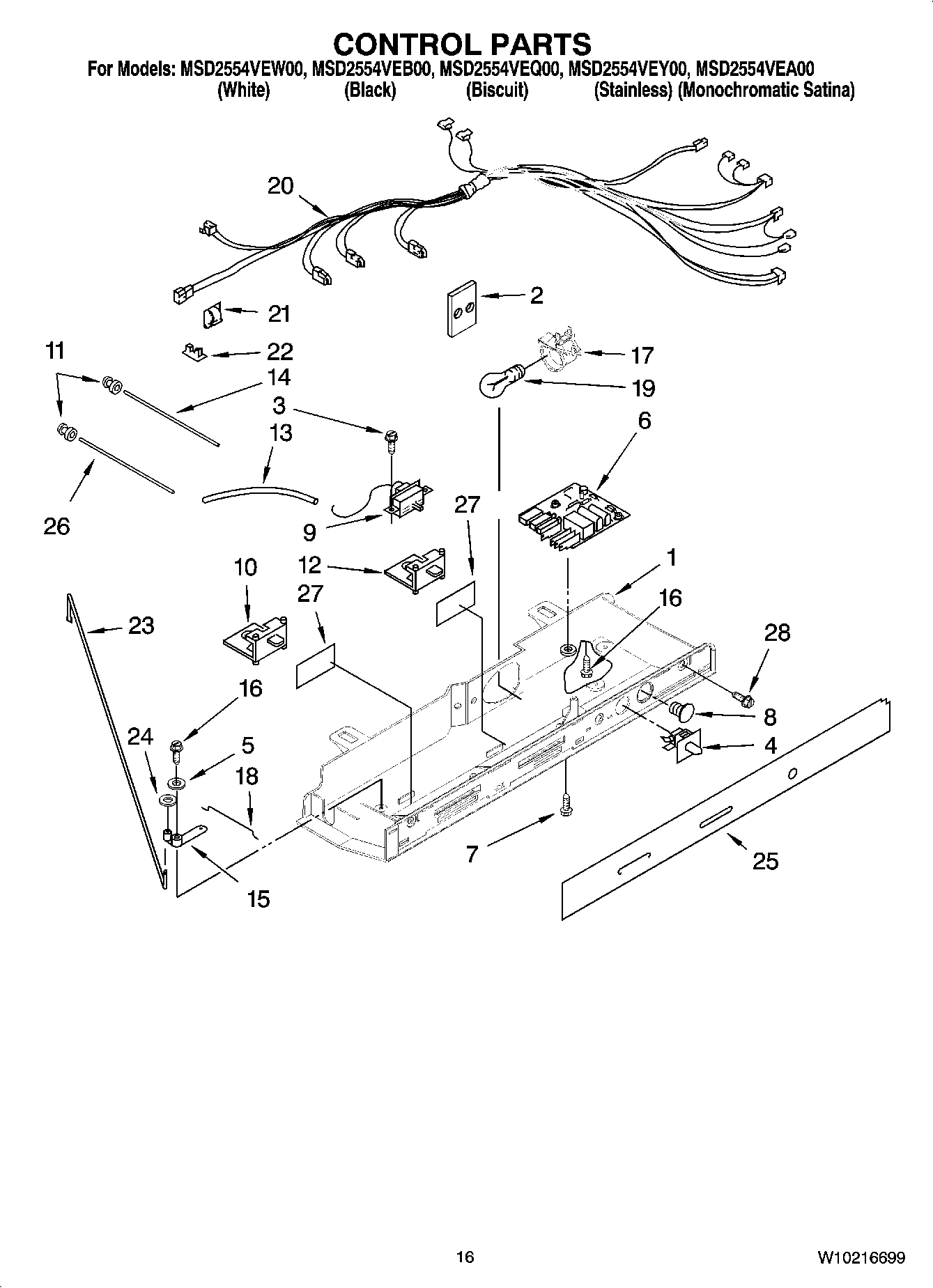

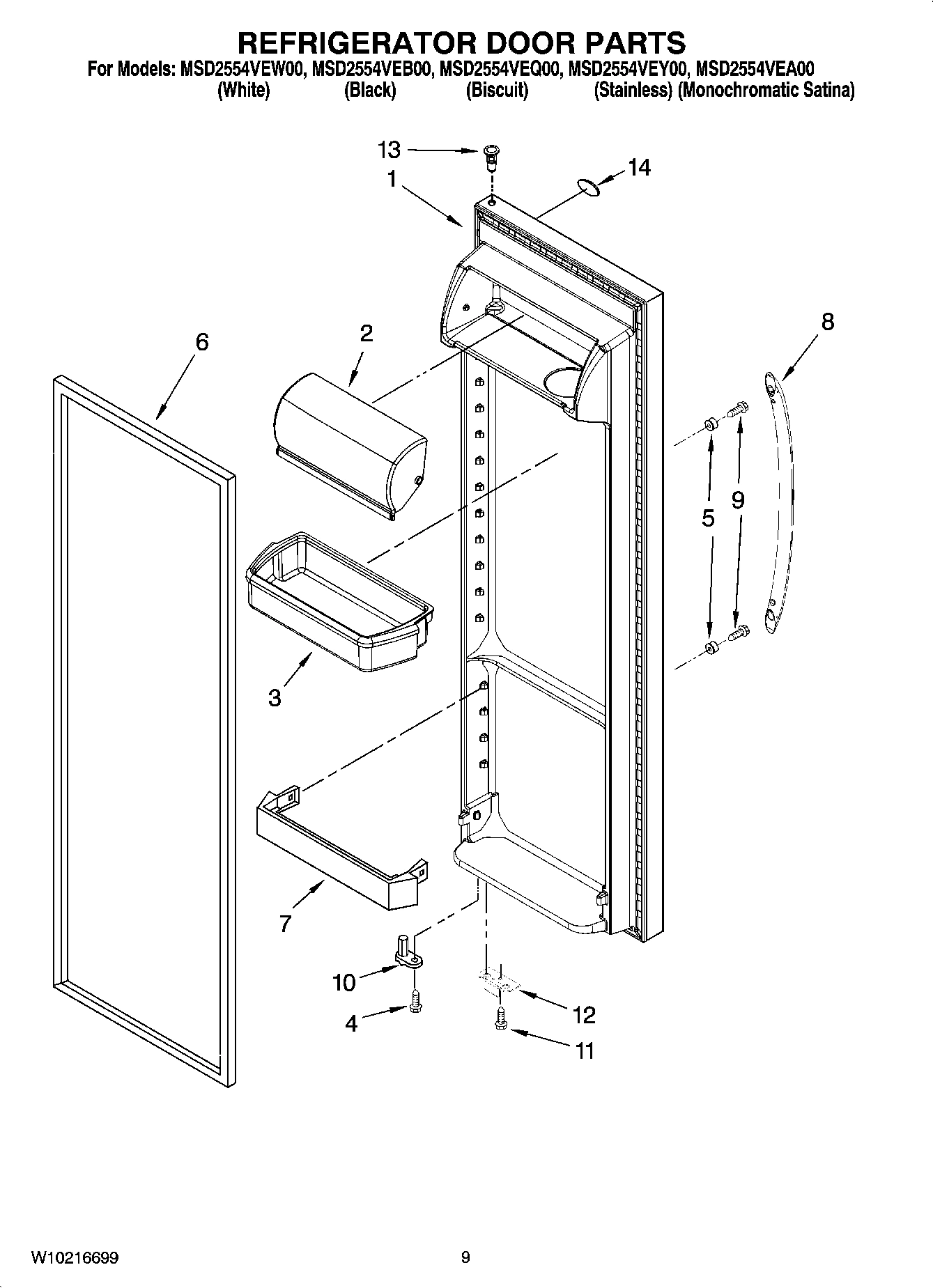

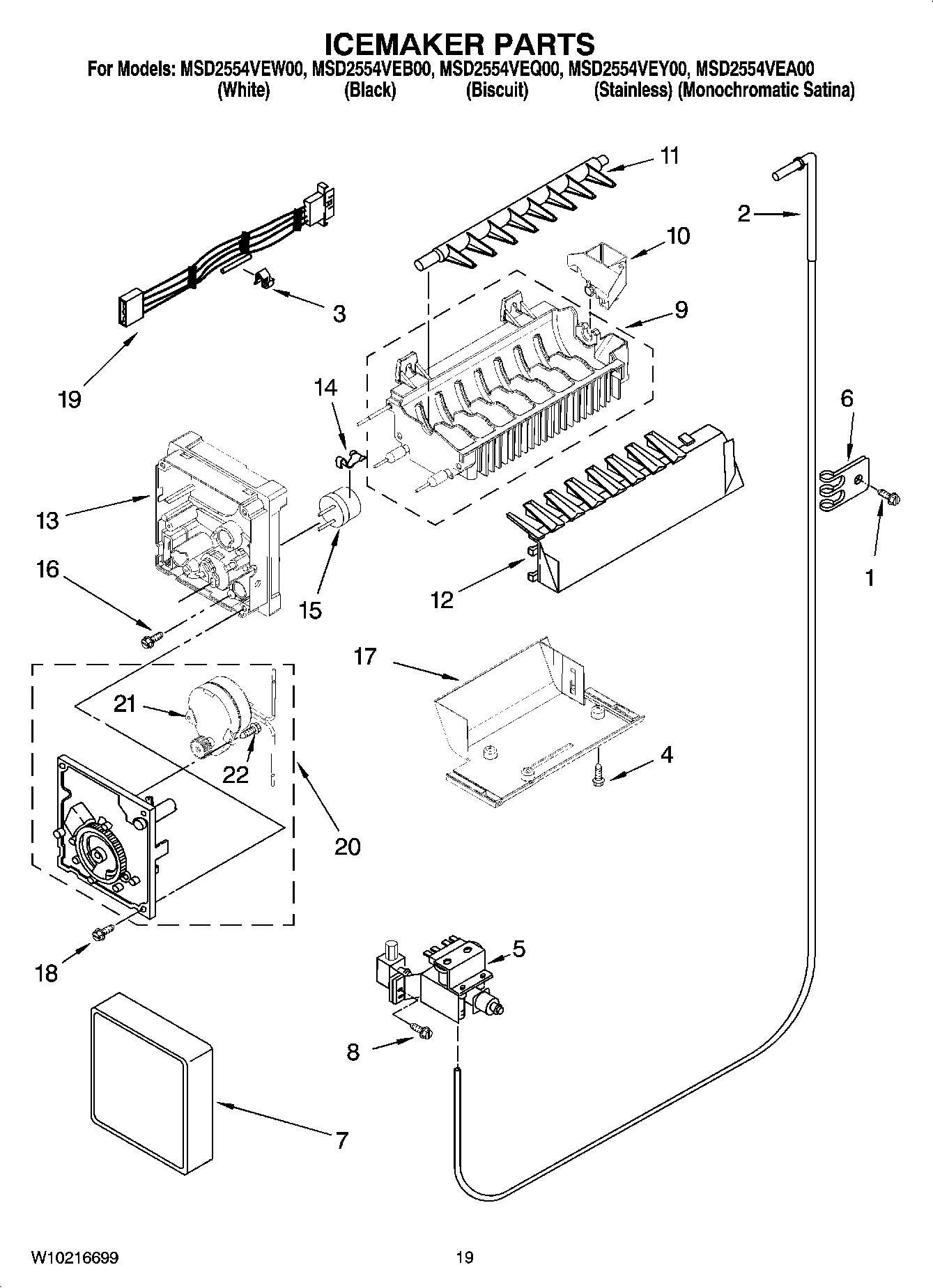

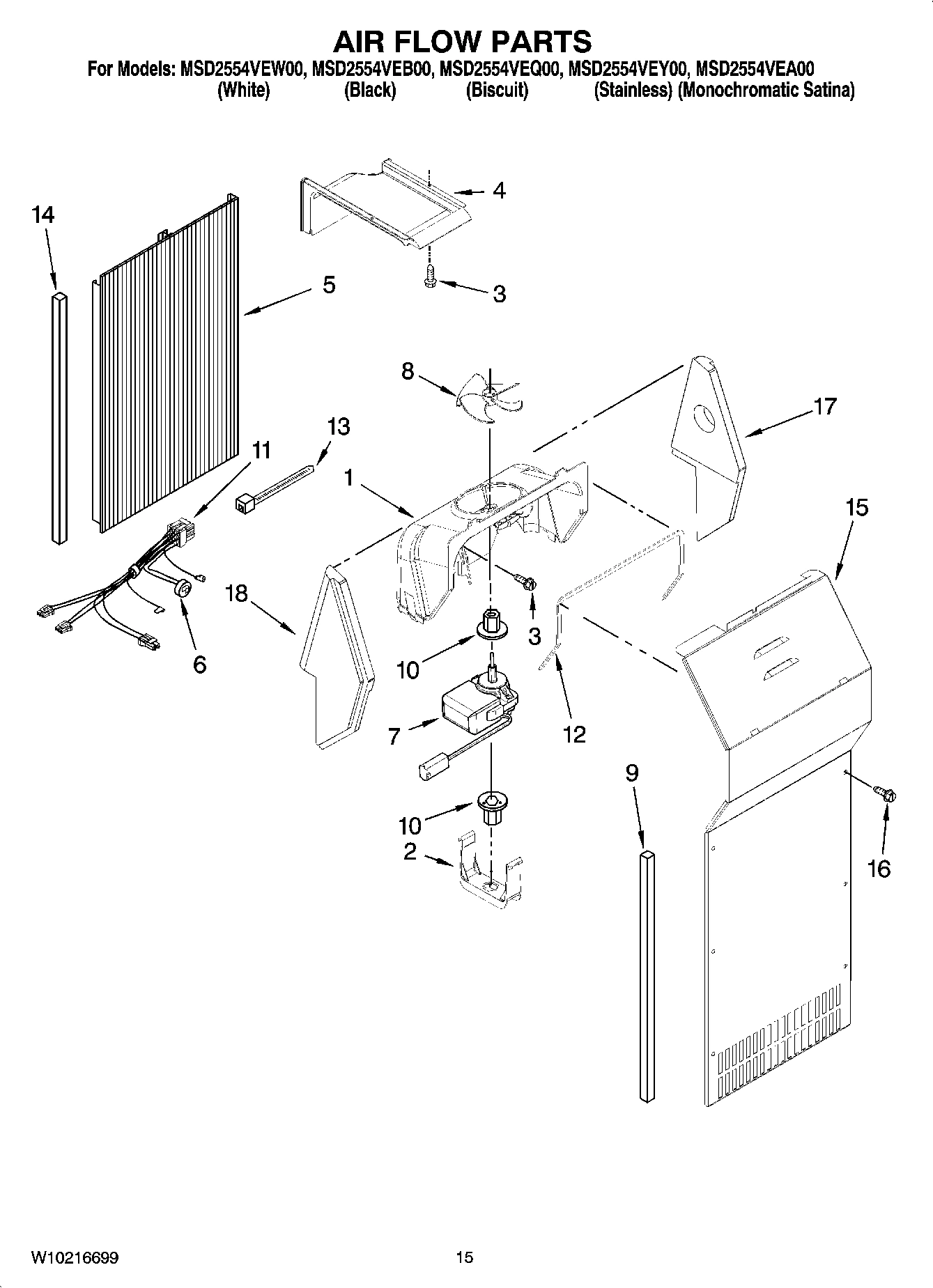

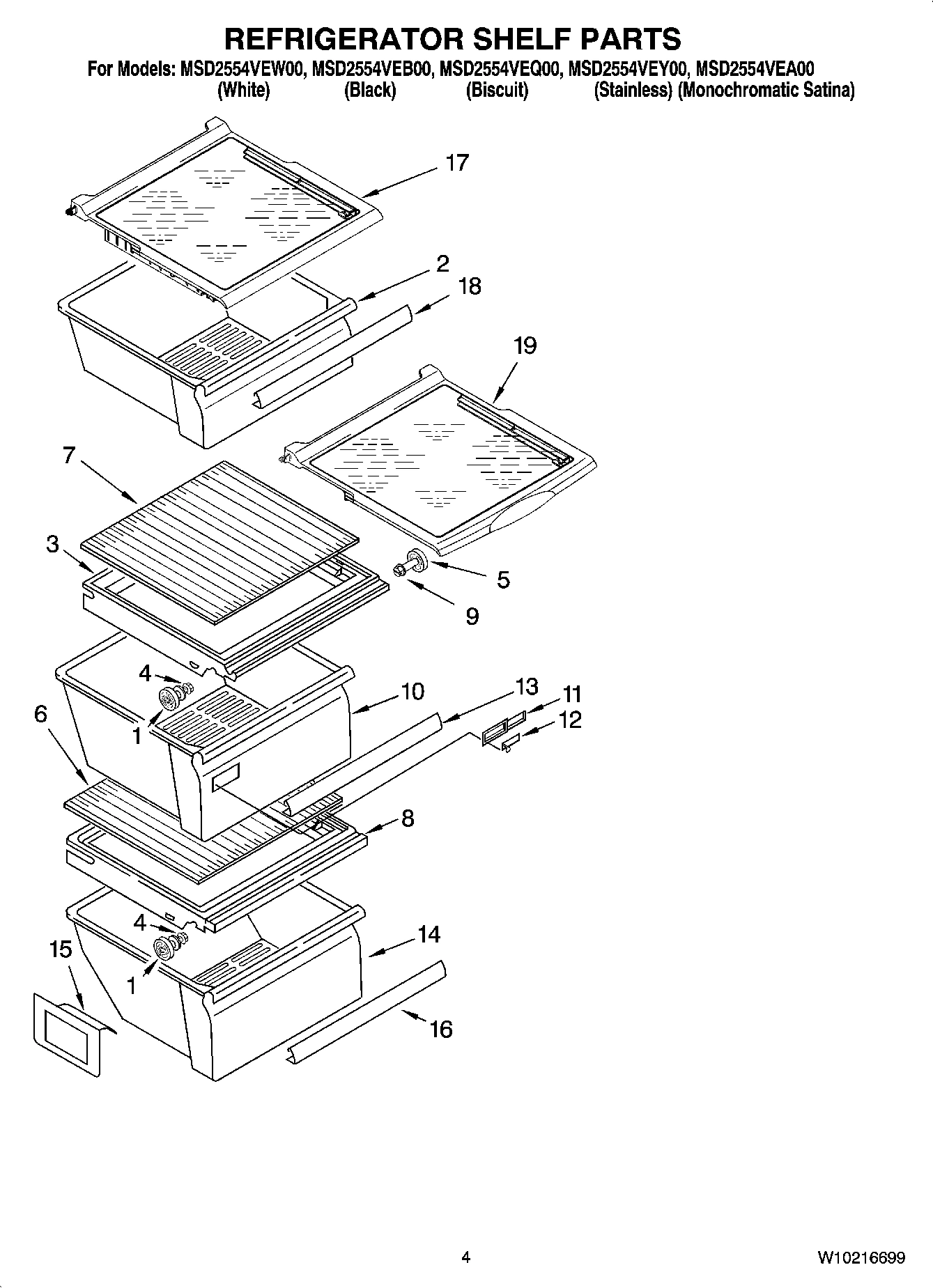

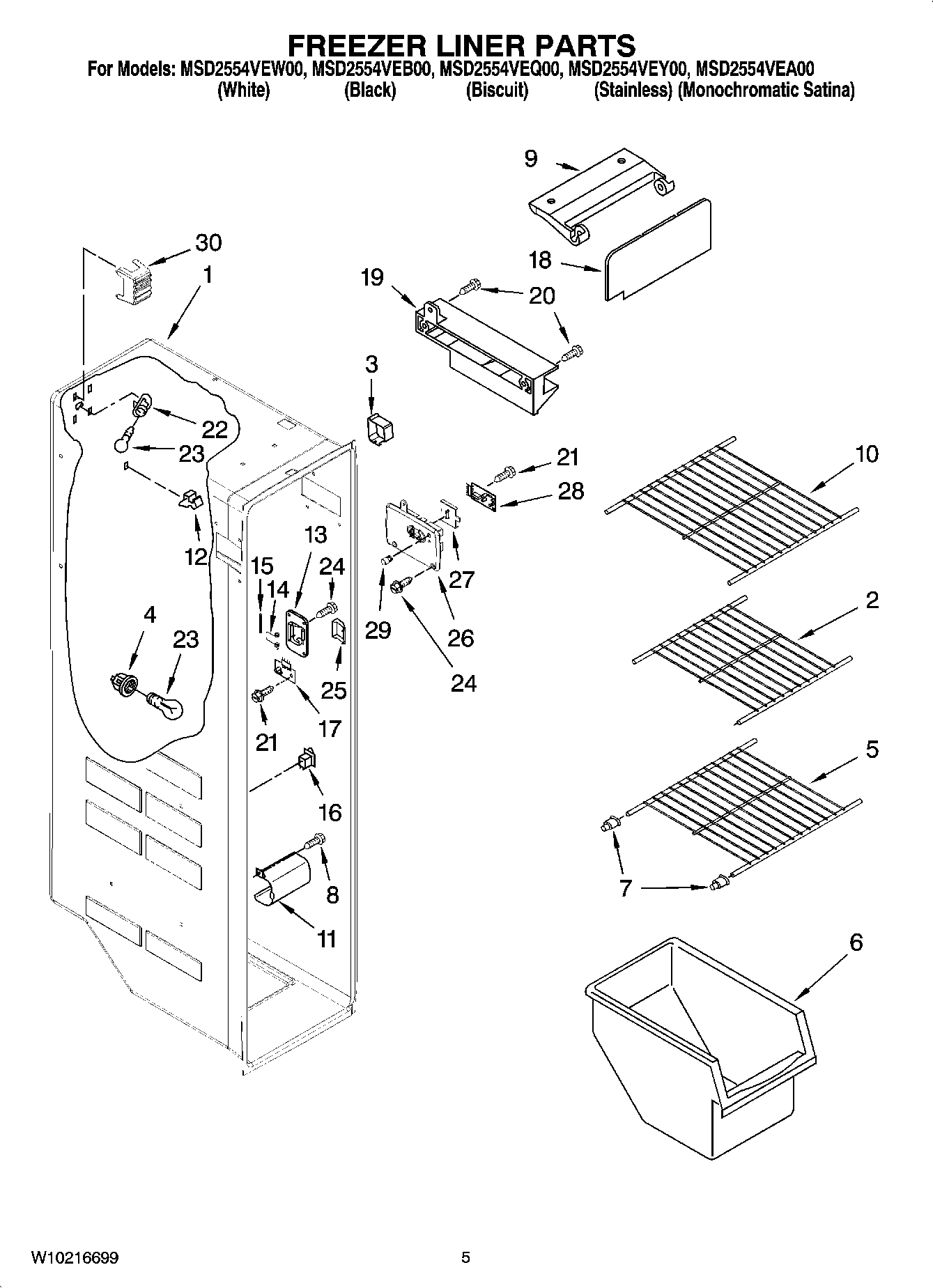

Model Whirlpool MSD2554VEQ00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.67

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $76.14

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $196.74

1

Refrigerator Door (Includes Item 6) (White) WPL W10172362 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL W10172363 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL W10172364 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL W10172369 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Satina) WPL W10172476 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI6179A17 Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $85.57

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.47

2

WPW10318961 Whirlpool Refrigerator Wire Shelf In Stock WPL WPW10318961 $60.17

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $64.04

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $222.63

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $54.99

3

WP2317240 Whirlpool Refrigerator Ice Auger Backorder WPL WP2317240 $81.37

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $32.25

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $76.47

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.66

4

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

5

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $60.57

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin Backorder WPL WP2196195 $12.02

5

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $6.50

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $7.53

5

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $117.53

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $173.00

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $153.10

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $6.02

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $13.85

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $143.70

6

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $107.55

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Tube, Condenser to Heat Loop WPL 2325479 Contact Us For Availability

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $131.60

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $60.17

7

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.70

7

Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability

8

13004701W Whirlpool Refrigerator Handle Backorder WPL 13004701W $127.56

8

67006982 Whirlpool Refrigerator Handle Assemb Backorder WPL 67006982 $133.79

8

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

8

W11690159 Whirlpool Handle Backorder WPL W11690159 $104.21

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Shim WPL 2209697 Contact Us For Availability

9

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $5.30

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $67.28

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.83

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $47.45

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $58.02

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $66.48

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

9

Blade, Fixed WPL 2257020 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $67.28

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $63.89

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

Light Lens WPL 2212340 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $16.88

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Box Cover WPL 2255624 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $71.95

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Elec. Control WPL 2322572 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $49.78

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $61.18

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $14.27

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $6.02

Washer, Plain WPL 489235 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.89

Pivot Arm WPL 2161306 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2206314 Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $8.89

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $27.54

W11629923 Whirlpool Coupling In Stock WPL W11629923 $23.13

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $74.56

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $70.27

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $303.28

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $6.32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $46.20

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

Bracket, Ice Maker Mounting WPL 2303583 Contact Us For Availability

2326982 Whirlpool Refrigerator Control Box Backorder WPL 2326982 $62.48

W11566763 Whirlpool Fitting In Stock WPL W11566763 $32.02

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $57.18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $95.20

WPW10334458 Whirlpool Refrigerator Connector In Stock WPL WPW10334458 $14.46

Extension Tube WPL 2304937 Contact Us For Availability

Latch, Bin WPL 2317277 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

20

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $233.07

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

20

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

21

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $264.08

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $6.02

23

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

23

Wiper WPL 2317243 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $88.99

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $8.29

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.58

WPL 625834 WPL 625834 Contact Us For Availability

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $17.66

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $99.48

26

2310425 Whirlpool Refrigerator Wire Harness Backorder WPL 2310425 $168.11

26

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $31.99

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

Enclosure, Motor WPL 2322488 Contact Us For Availability

28

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $382.08

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $78.64

29

WP2198643 Whirlpool Refrigerator Lens Backorder WPL WP2198643 $4.82

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $197.70

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $39.49

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Light Shield WPL 2198589 Contact Us For Availability

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $46.37

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

2260503MG Whirlpool Refrigerator Button In Stock WPL 2260503MG $17.54

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $44.17

34

Clip, Heater WPL 2161324 Contact Us For Availability

36

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

36

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

37

WPL 2223751 WPL 2223751 Contact Us For Availability

38

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $68.27

39

Clip, Heat WPL 2155547 Contact Us For Availability

40

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $58.23

41

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

42

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

100

Ice Container (Complete) WPL W10204467 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI6185A69 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI6186A34 Contact Us For Availability
