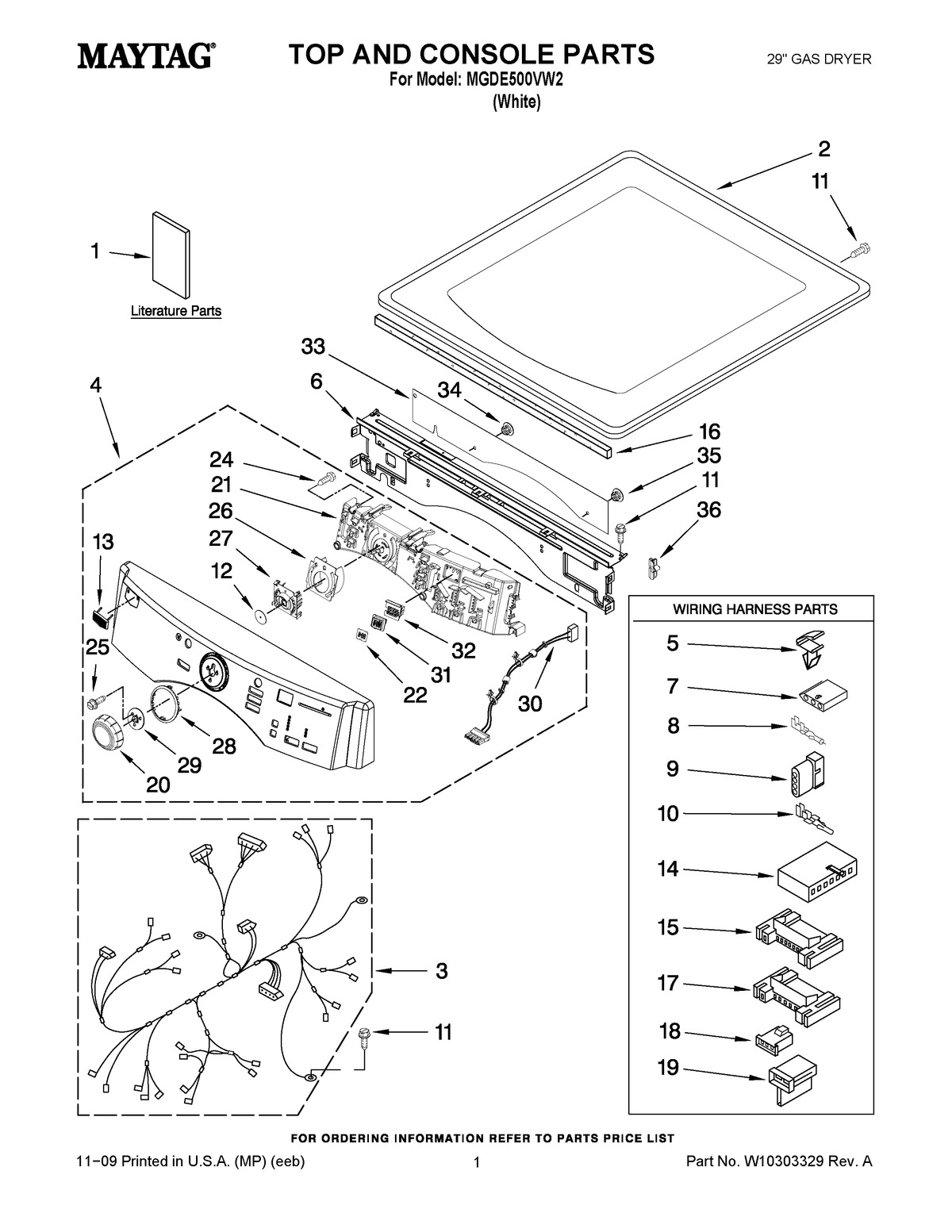

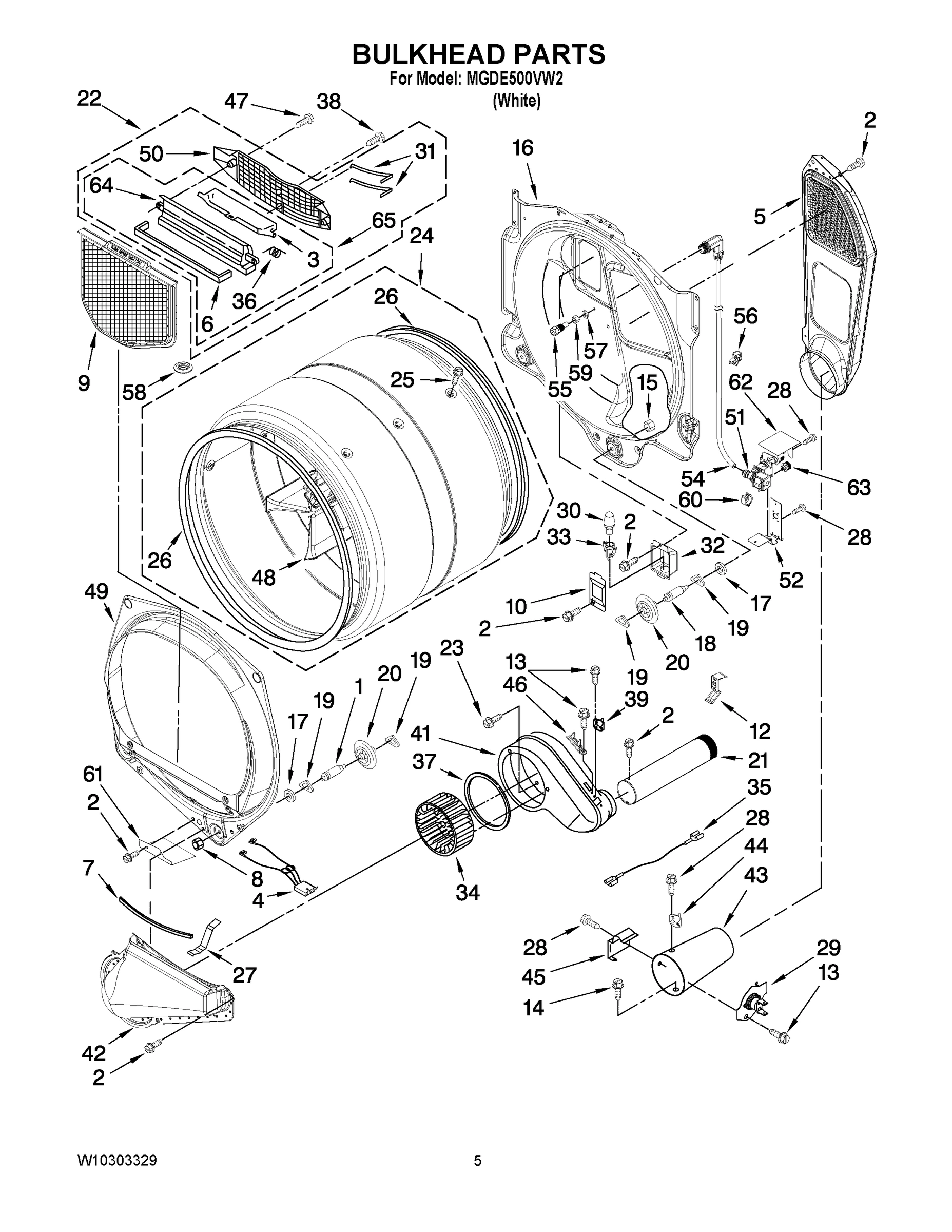

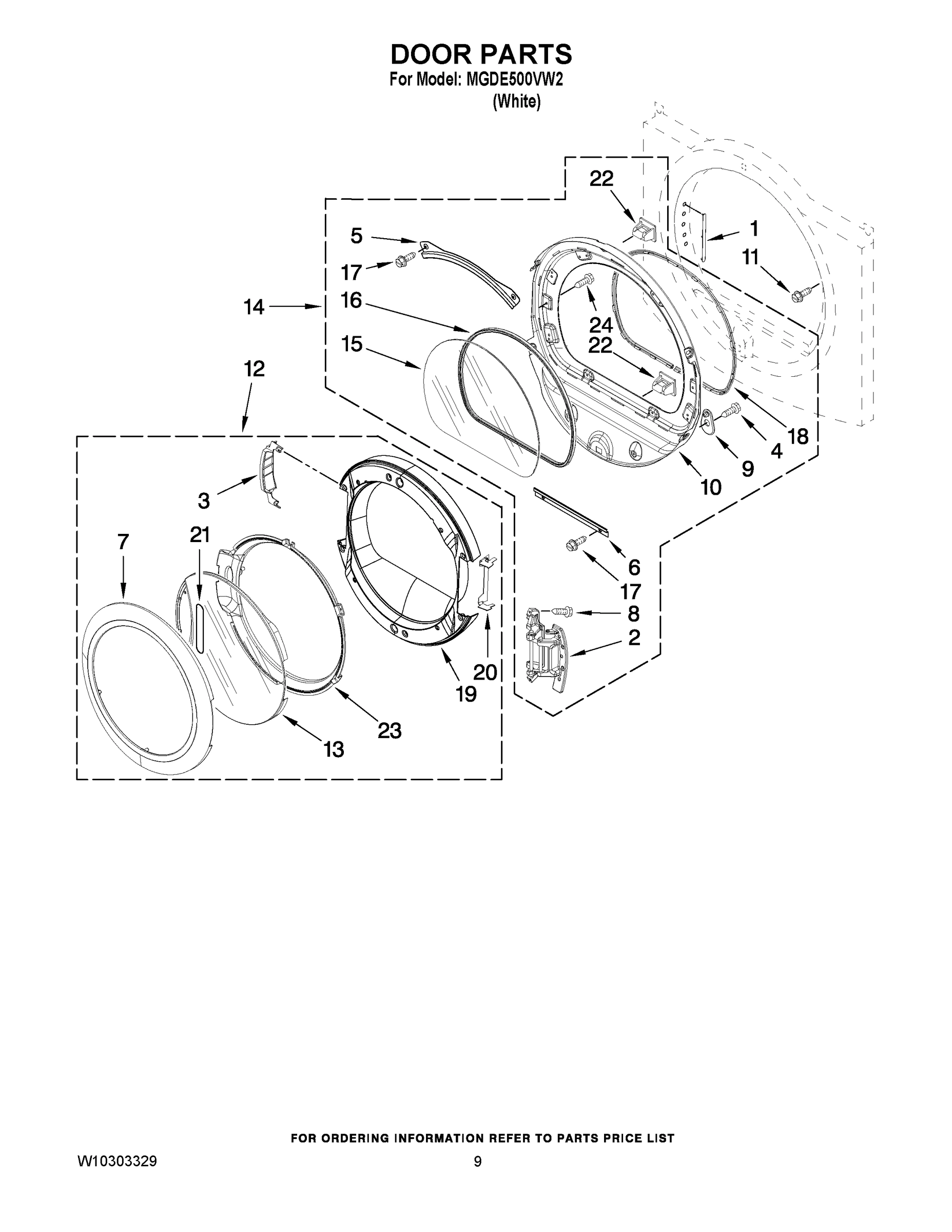

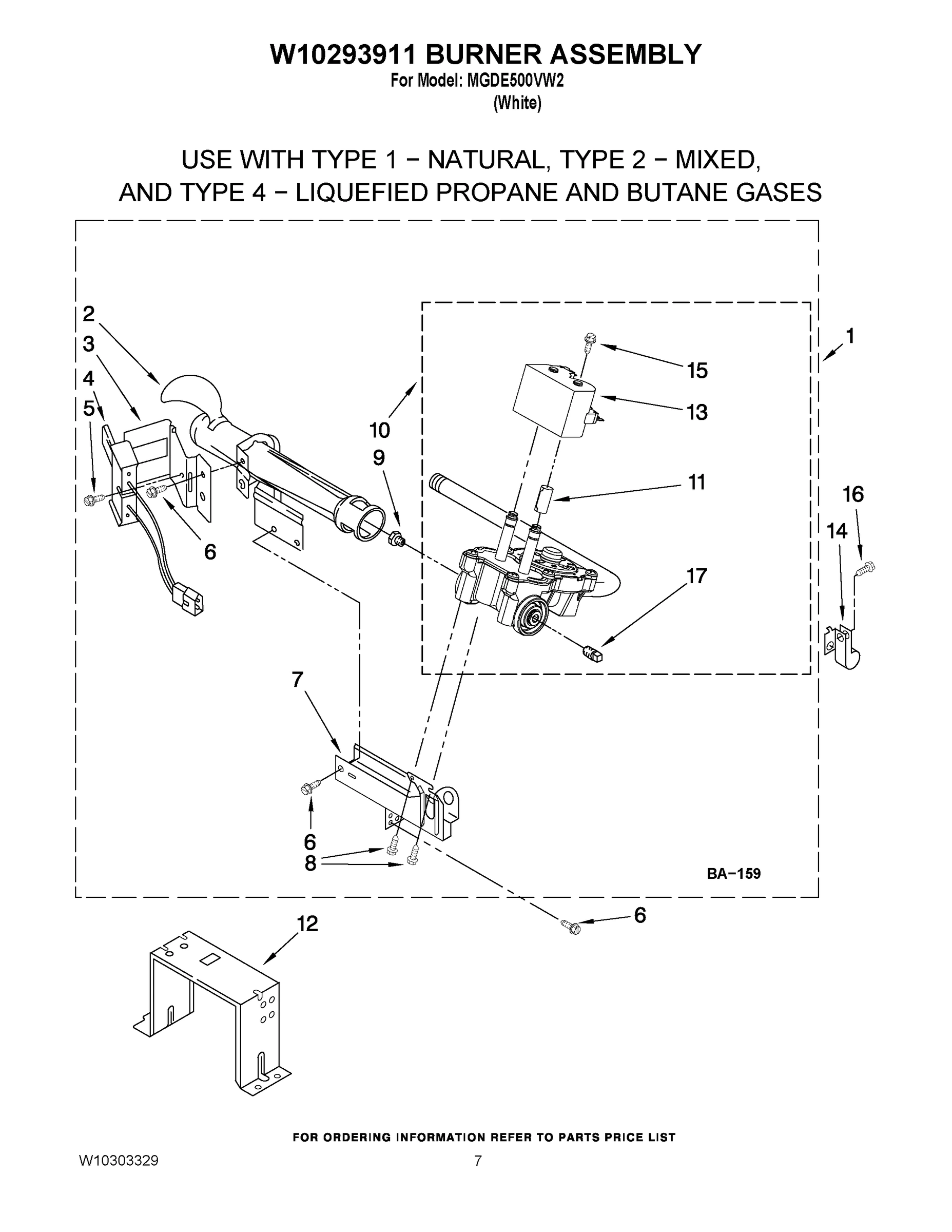

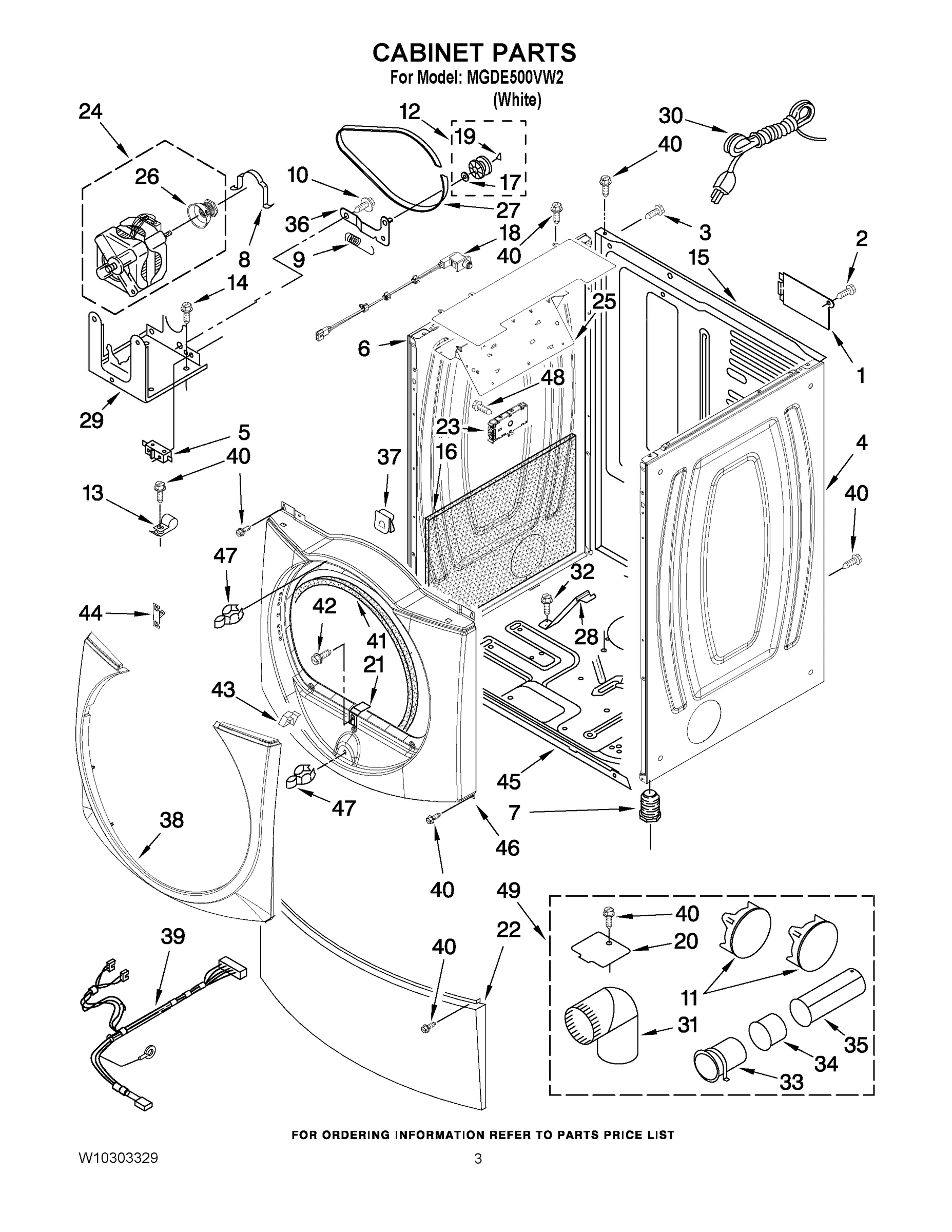

Model Whirlpool MGDE500VW2 GAS DRYER – Common Parts &amp; Diagrams

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $13.10

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $120.04

3

W10111069 Whirlpool Wire Harness Backorder WPL W10111069 $199.14

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

Cover, Door Hinge WPL W10180119 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $81.06

4

Screw,1/4-20 x 0.5 WPL 3400224 Contact Us For Availability

5

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WPW10411937 Whirlpool Switch In Stock WPL WPW10411937 $25.31

6

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

6

W11233548 Whirlpool Panel In Stock WPL W11233548 $154.54

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

7

Connector Sensor WPL 353424 Contact Us For Availability

7

Handle Ring WPL W10193522 Contact Us For Availability

8

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP15418 Whirlpool Gas Orifice Backorder WPL WP15418 $16.67

9

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

9

Screw-Plug WPL W10048910 Contact Us For Availability

10

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

10

Inner Door WPL 8578229 Contact Us For Availability

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

11

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

12

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

12

DOOR ASSEMBLY OUTER (INCLUDES 3,7,13,19,20,21 WPL W10193530 Contact Us For Availability

13

3978776 Whirlpool Bracket Backorder WPL 3978776 $61.09

13

Door Mask Assembly WPL W10180117 Contact Us For Availability

14

WP681414 Whirlpool Screw Backorder WPL WP681414 $3.49

14

DOOR ASSEMBLY INNER (INCLUDES 2,4,5,6,8,9,10, WPL 8577819 Contact Us For Availability

326049536 Whirlpool Screw Backorder WPL 326049536 $14.06

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

Window WPL 8566254 Contact Us For Availability

PANEL, REAR WPL W10244141 Contact Us For Availability

16

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $21.43

16

Seal-Window WPL 8579662 Contact Us For Availability

16

Bulkhead, Rear WPL W10133857 Contact Us For Availability

17

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

17

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

17

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

18

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $61.52

18

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $50.58

19

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

19

Door-Intermediate WPL W10180118 Contact Us For Availability

20

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

20

Knob WPL W10164576 Contact Us For Availability

20

Shield, Door WPL W10180120 Contact Us For Availability

21

Ramp, Door WPL 8529053 Contact Us For Availability

21

TECHBOX ASSEMBLY WPL W10269025 Contact Us For Availability

22

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $7.13

22

OUTLET GRILL HOUSING ASSEMBLY (COMPLETE) WPL W10253353 Contact Us For Availability

22

TOE PANEL WPL W10246269 Contact Us For Availability

23

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $5.02

23

Control Board WPL W10174746 Contact Us For Availability

23

Screen, Door WPL W10171571 Contact Us For Availability

24

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.52

24

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $7.75

24

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

25

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

25

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

25

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

26

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

27

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

27

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $23.09

28

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

29

W11481730 Whirlpool Bracket In Stock WPL W11481730 $55.55

29

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $53.13

30

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $67.35

31

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

31

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

32

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

32

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

33

W11222979 Whirlpool Socket Backorder WPL W11222979 $83.53

33

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

34

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $50.46

34

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

35

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

36

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.58

36

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

37

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

37

Clip, S-Type (3) WPL 62825 Contact Us For Availability

38

TRIM-RING ASSEMBLY (INCLUDES: ITEM 44) WPL W10221445 Contact Us For Availability

39

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

39

HARNESS, DIGITAL INTERFACE WPL W10242903 Contact Us For Availability

40

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

41

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

42

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

43

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

43

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $124.03

44

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $55.88

44

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

45

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

45

Base, Cabinet WPL W10239098 Contact Us For Availability

46

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

46

FRONT PANEL WPL W10153275 Contact Us For Availability

47

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

49

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $73.41

50

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

55

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $167.44

57

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

59

W10044628 Whirlpool Nut Backorder WPL W10044628 $67.84

61

W11257251 Whirlpool Shield Backorder WPL W11257251 $48.38

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $58.26

64

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $41.45

65

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $58.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.40

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (MAGNA RED) WPL W10218245 Contact Us For Availability
