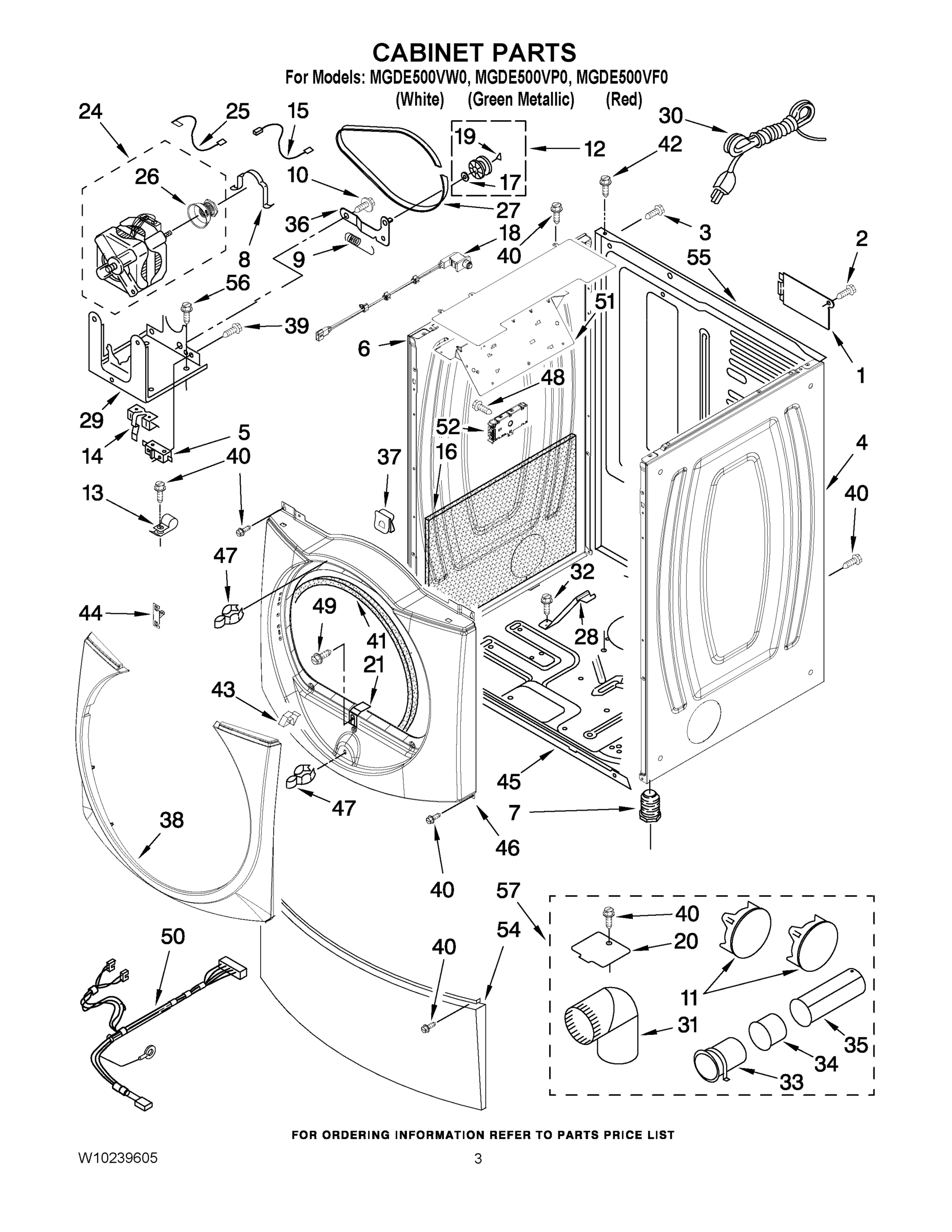

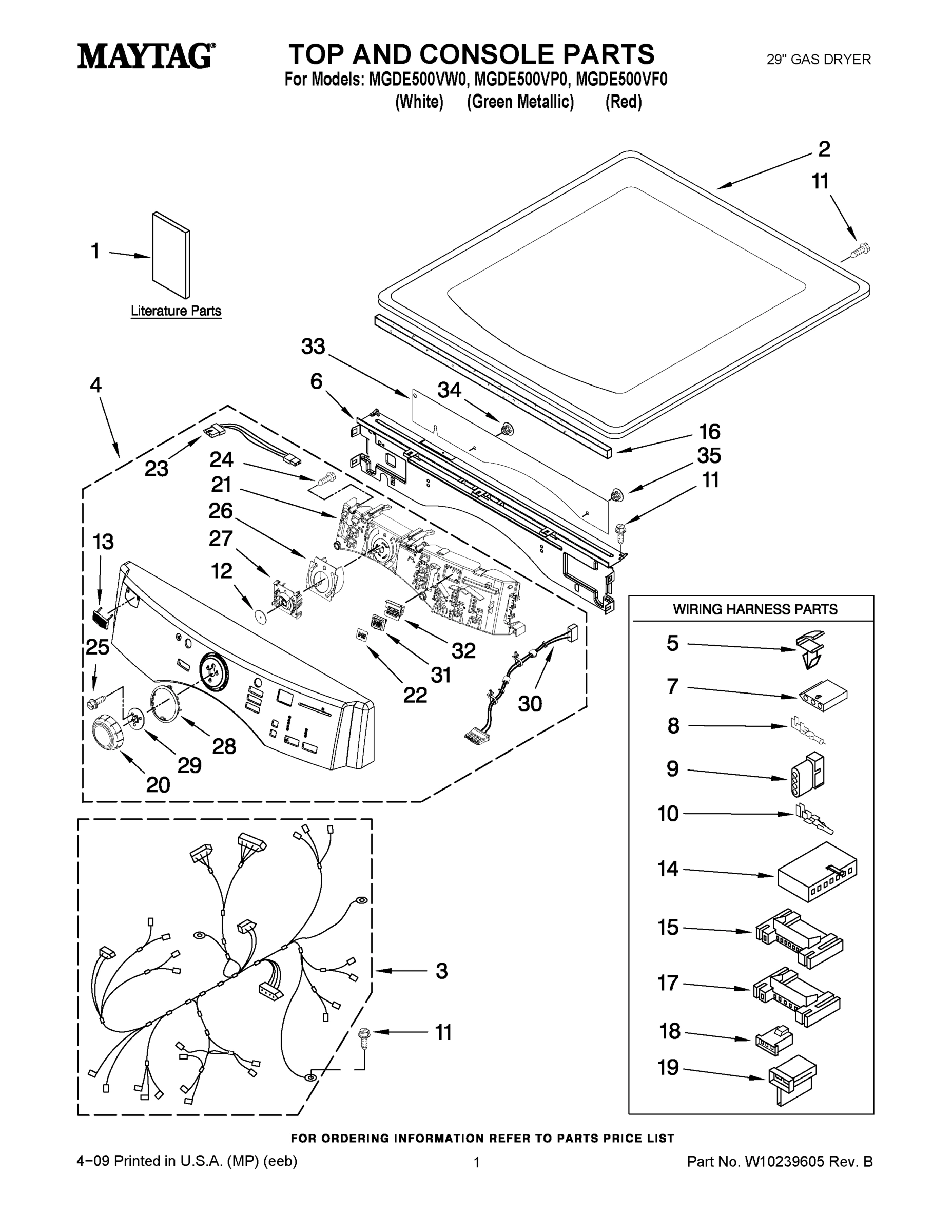

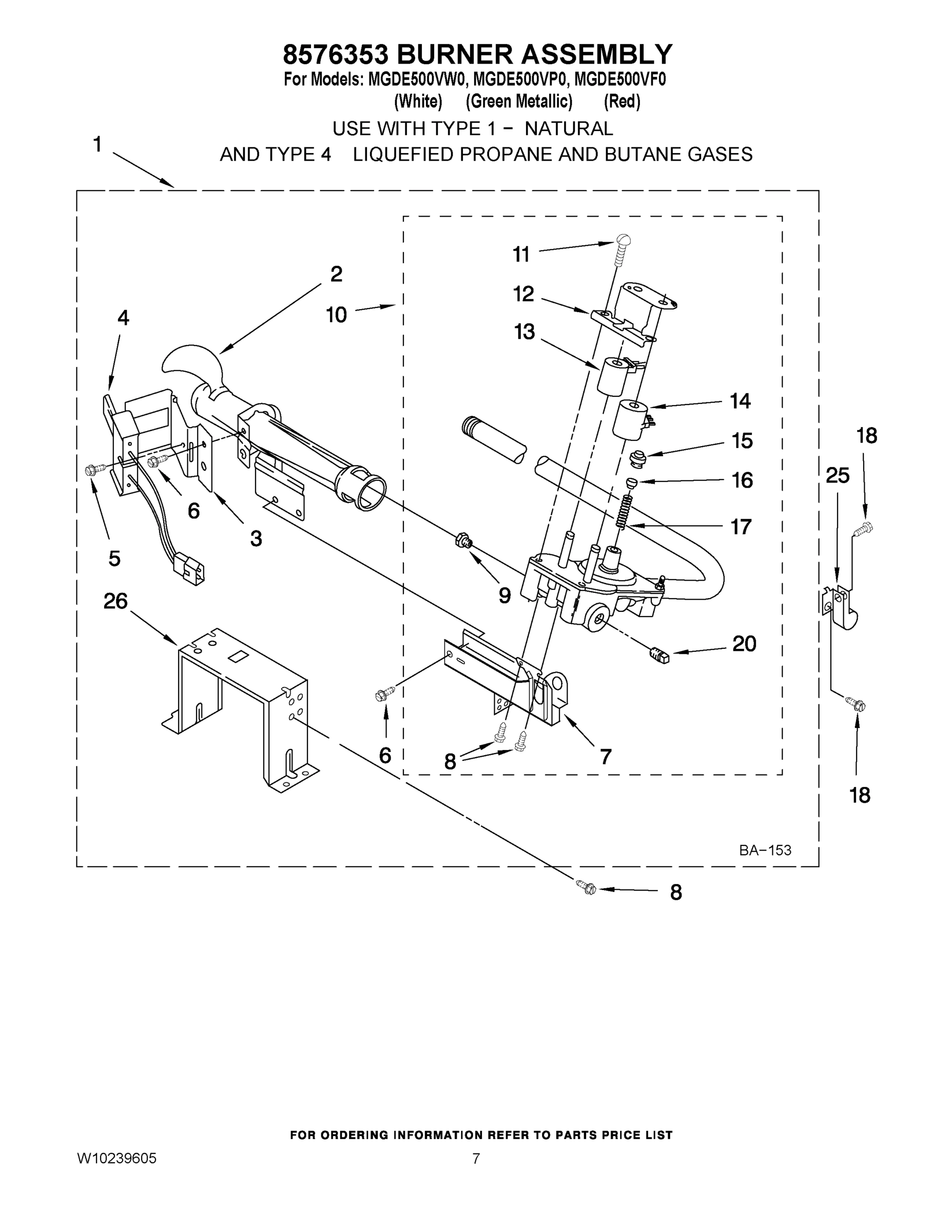

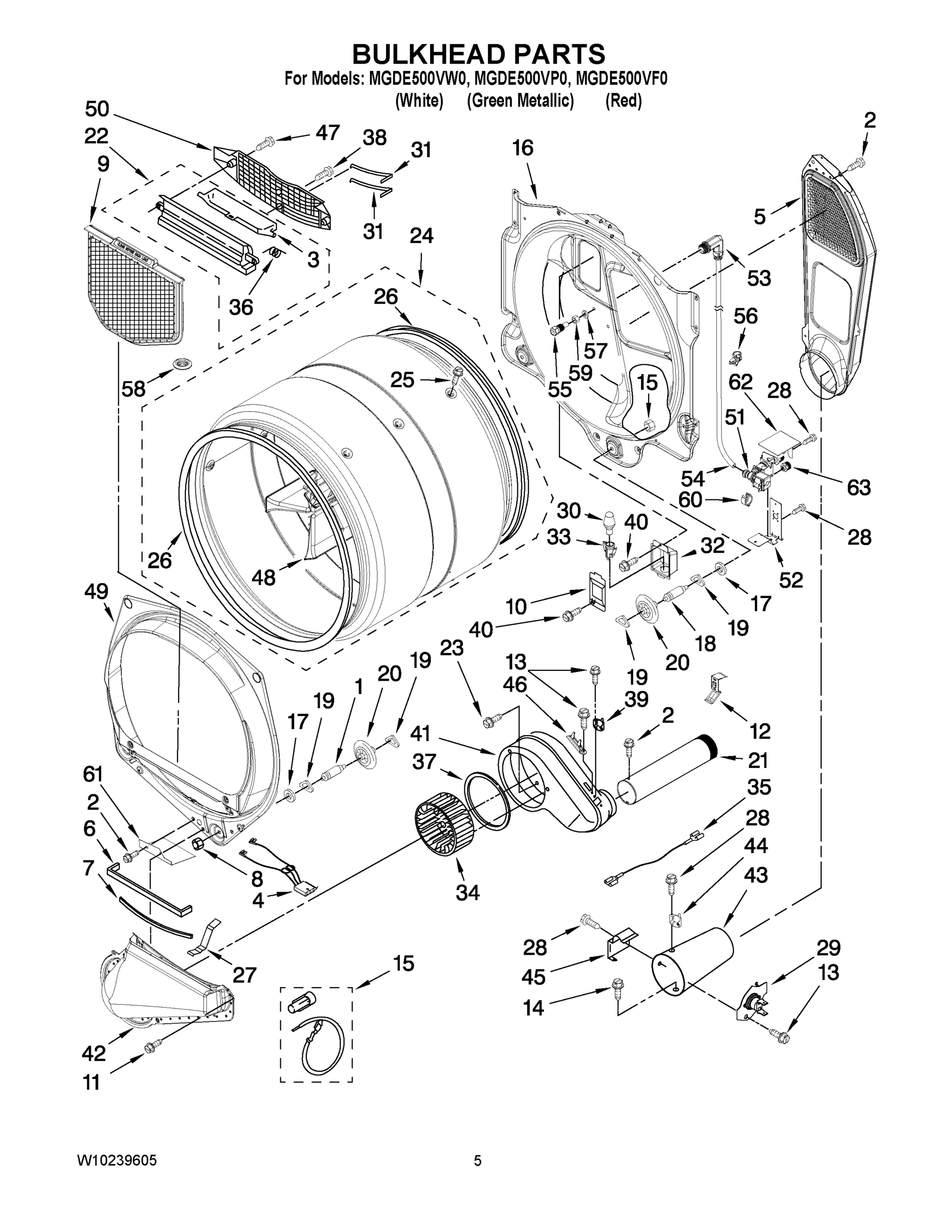

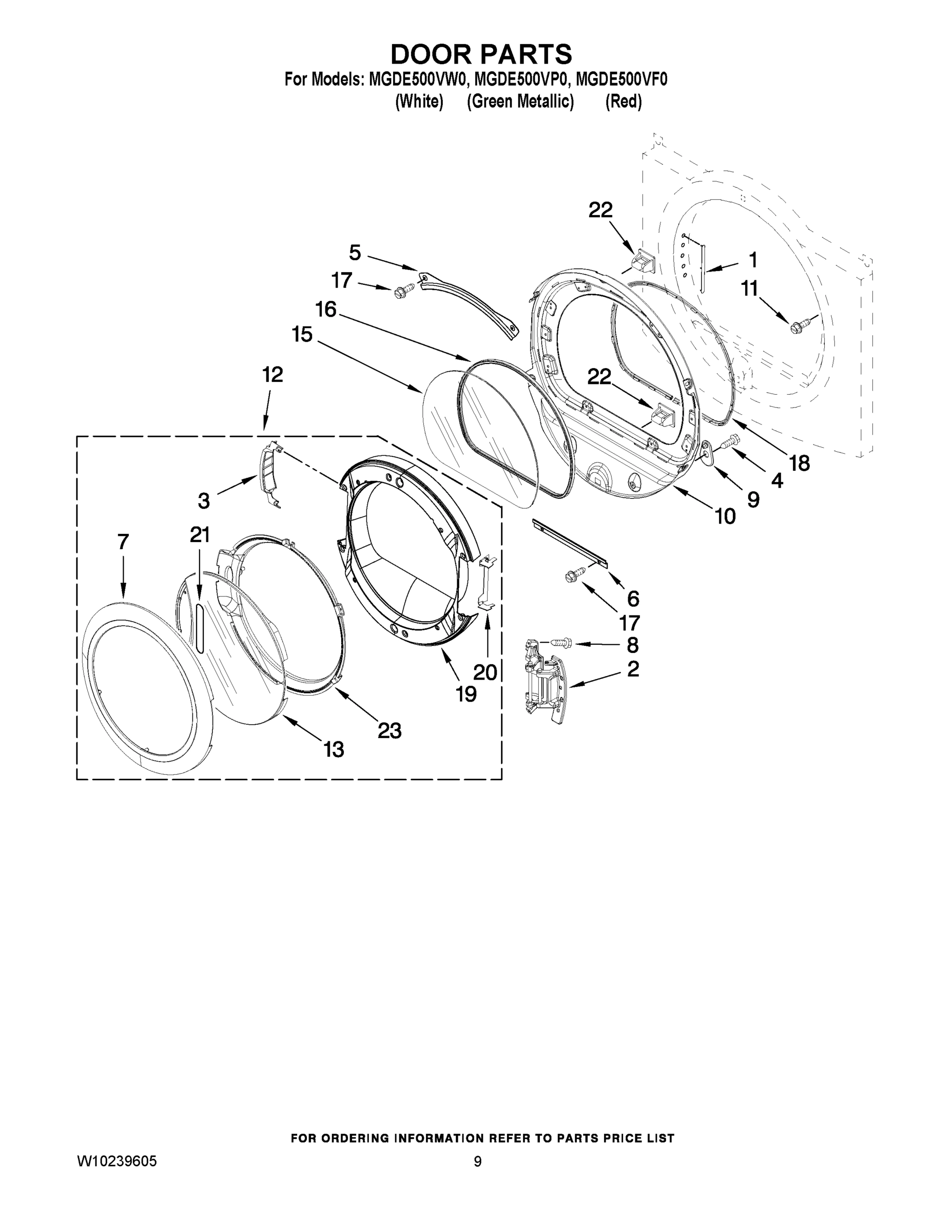

Model Whirlpool MGDE500VF0 GAS DRYER – Common Parts &amp; Diagrams

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $75.95

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $120.04

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

Cover, Door Hinge WPL W10180119 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $81.06

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Side (R.H.) (Red) WPL W10193957 Contact Us For Availability

4

Panel, Side (R.H.) (Green Metallic) WPL W10193958 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $40.35

5

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

6

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

6

W11233548 Whirlpool Panel In Stock WPL W11233548 $154.54

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

6

Panel, Side (L.H.) (Red) WPL W10193954 Contact Us For Availability

6

Panel, Side (L.H.) (Green Metallic) WPL W10193965 Contact Us For Availability

7

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

7

Connector Sensor WPL 353424 Contact Us For Availability

7

Handle Ring WPL W10193522 Contact Us For Availability

8

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP15418 Whirlpool Gas Orifice Backorder WPL WP15418 $16.67

9

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

9

Screw-Plug WPL W10048910 Contact Us For Availability

10

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

10

Door Assembly (Inner) (Includes Illus. 14) WPL 8578229 Contact Us For Availability

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

11

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

12

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

12

Door, Outer WPL W10193530 Contact Us For Availability

13

3978776 Whirlpool Bracket Backorder WPL 3978776 $61.09

13

Door Mask Assembly WPL W10180117 Contact Us For Availability

14

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

W10167612 Whirlpool Wire Backorder WPL W10167612 $8.57

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

Window WPL 8566254 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

Seal-Window WPL 8579662 Contact Us For Availability

Bulkhead, Rear WPL W10133857 Contact Us For Availability

Sound Panel WPL W10128772 Contact Us For Availability

17

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

18

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $61.52

18

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $50.58

19

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

19

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

19

Door-Intermediate WPL W10180118 Contact Us For Availability

20

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

20

Knob WPL W10164576 Contact Us For Availability

20

Shield, Door WPL W10180120 Contact Us For Availability

21

Ramp, Door WPL 8529053 Contact Us For Availability

21

User-Interface WPL W10164610 Contact Us For Availability

22

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $7.13

22

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $58.65

22

Foil-Display WPL W10171504 Contact Us For Availability

23

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $5.02

23

Harness, User-Interface WPL W10185548 Contact Us For Availability

23

Screen, Door WPL W10171571 Contact Us For Availability

24

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.52

24

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $7.75

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

26

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

26

Frame-Light Guide WPL W10170295 Contact Us For Availability

27

W10170293 Whirlpool Ring Backorder WPL W10170293 $68.65

27

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

27

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $23.09

28

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

28

Cycle, Light Guide WPL W10164567 Contact Us For Availability

29

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

29

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $53.13

29

Bushing, Knob WPL W10172298 Contact Us For Availability

30

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $67.35

30

Power Cable User Interface WPL W10185550 Contact Us For Availability

31

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

31

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

31

Guide, Light (3-Way Digital) WPL W10164578 Contact Us For Availability

32

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

32

W10171502 Whirlpool Bracket Backorder WPL W10171502 $11.46

32

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

33

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

33

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

33

Shield, Console Bracket WPL W10215674 Contact Us For Availability

34

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $50.46

34

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

34

Plug-Hole,1/4``(2) WPL W10216201 Contact Us For Availability

35

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

35

Plug-Hole,5/16``(1) WPL W10216202 Contact Us For Availability

36

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.58

36

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

37

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

37

Clip, S-Type (3) WPL 62825 Contact Us For Availability

38

Trim-Ring Assembly (Includes Item. 48) (White WPL W10164746 Contact Us For Availability

38

TRIM-RING ASSEMBLY INCLUDES: (ITEM 48) (RED) WPL W10190563 Contact Us For Availability

38

TRIM-RING ASSEMBLY INCLUDES: (ITEM 48) (GREEN WPL W10190564 Contact Us For Availability

39

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

39

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

40

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

41

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

42

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

43

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

43

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $124.03

44

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $55.88

44

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

45

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

45

WPL 8519207 WPL 8519207 Contact Us For Availability

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

WPL W10153275 WPL W10153275 Contact Us For Availability

WPL W10193967 WPL W10193967 Contact Us For Availability

WPL W10193970 WPL W10193970 Contact Us For Availability

47

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

49

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

50

W10181464 Whirlpool Wire Harness Backorder WPL W10181464 $93.73

50

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

51

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

52

WPL W10174746 WPL W10174746 Contact Us For Availability

54

WPL W10116271 WPL W10116271 Contact Us For Availability

54

WPL W10193962 WPL W10193962 Contact Us For Availability

54

WPL W10193963 WPL W10193963 Contact Us For Availability

55

Nozzle & Screen WPL W10044629 Contact Us For Availability

55

WPL W10181460 WPL W10181460 Contact Us For Availability

56

WP681414 Whirlpool Screw Backorder WPL WP681414 $3.49

57

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

57

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $73.41

59

W10044628 Whirlpool Nut Backorder WPL W10044628 $67.84

61

W11257251 Whirlpool Shield Backorder WPL W11257251 $48.38

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $58.26

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

(Hose Inlet) 1`Hose WPL W10044603 Contact Us For Availability
