Model Whirlpool MEDB850WL1 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

Clip, Ground WPL W10007520 Contact Us For Availability

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

2

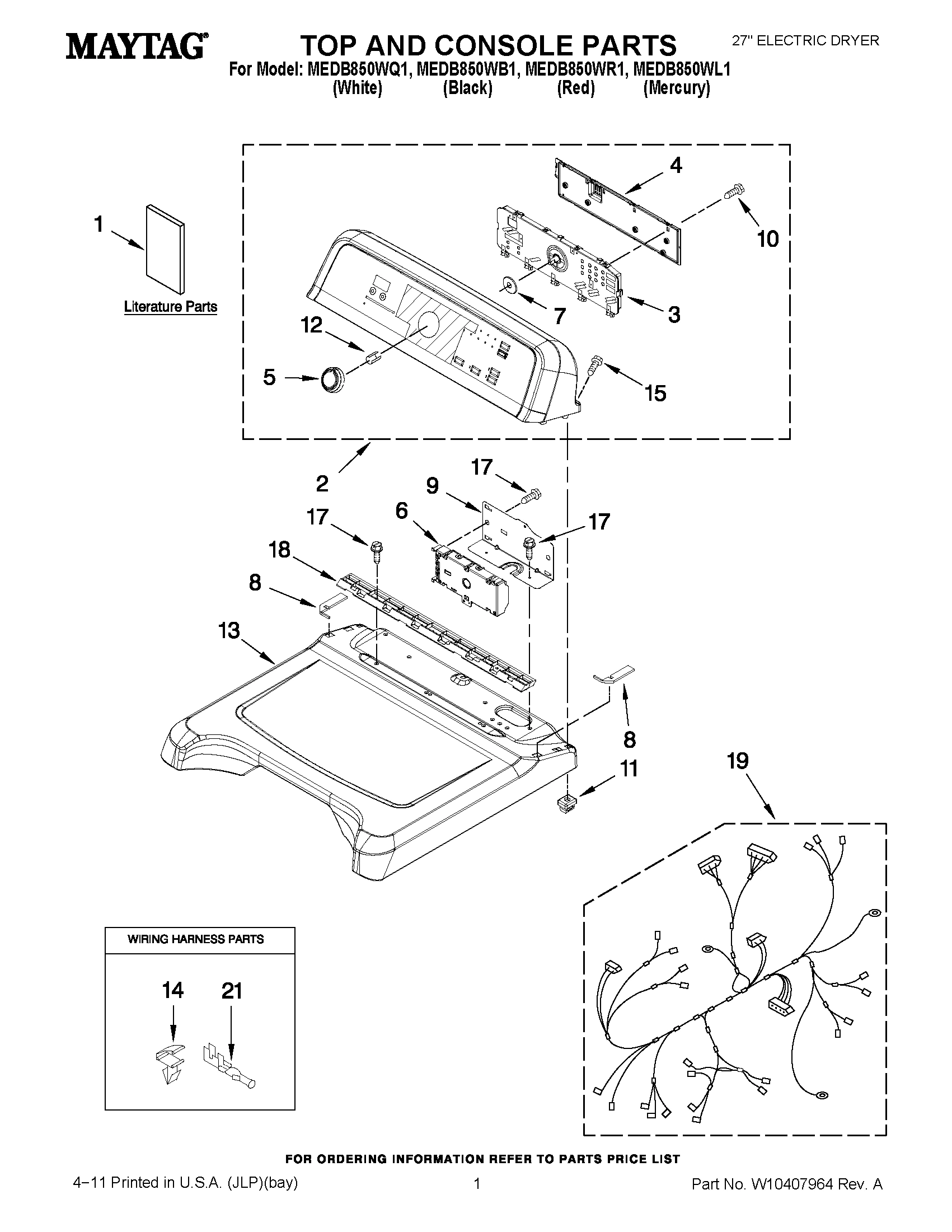

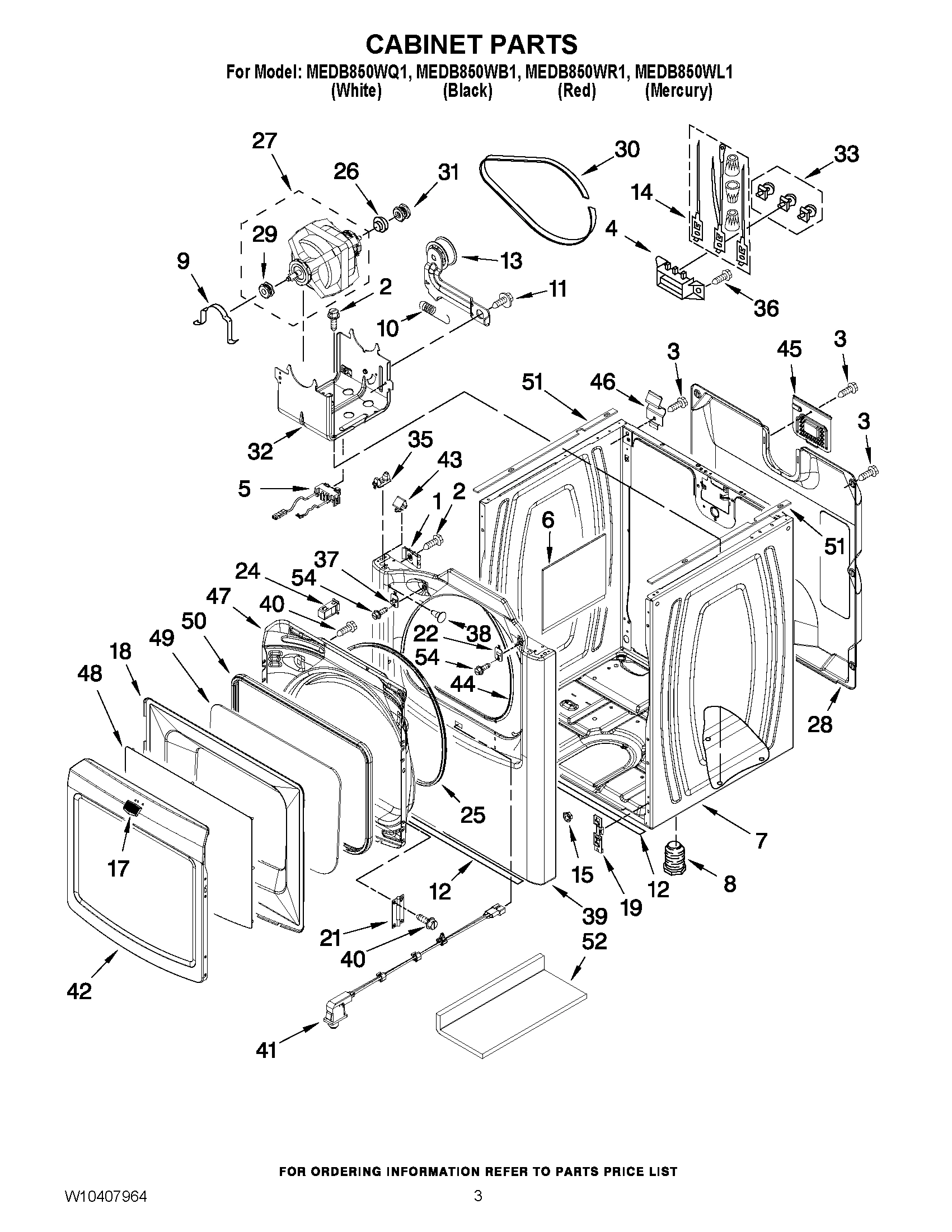

PANEL, CONSOLE (WHITE) WPL W10252468 Contact Us For Availability

2

PANEL, CONSOLE (RED) WPL W10252470 Contact Us For Availability

3

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

3

USER INTERFACE WPL W10336131 Contact Us For Availability

5

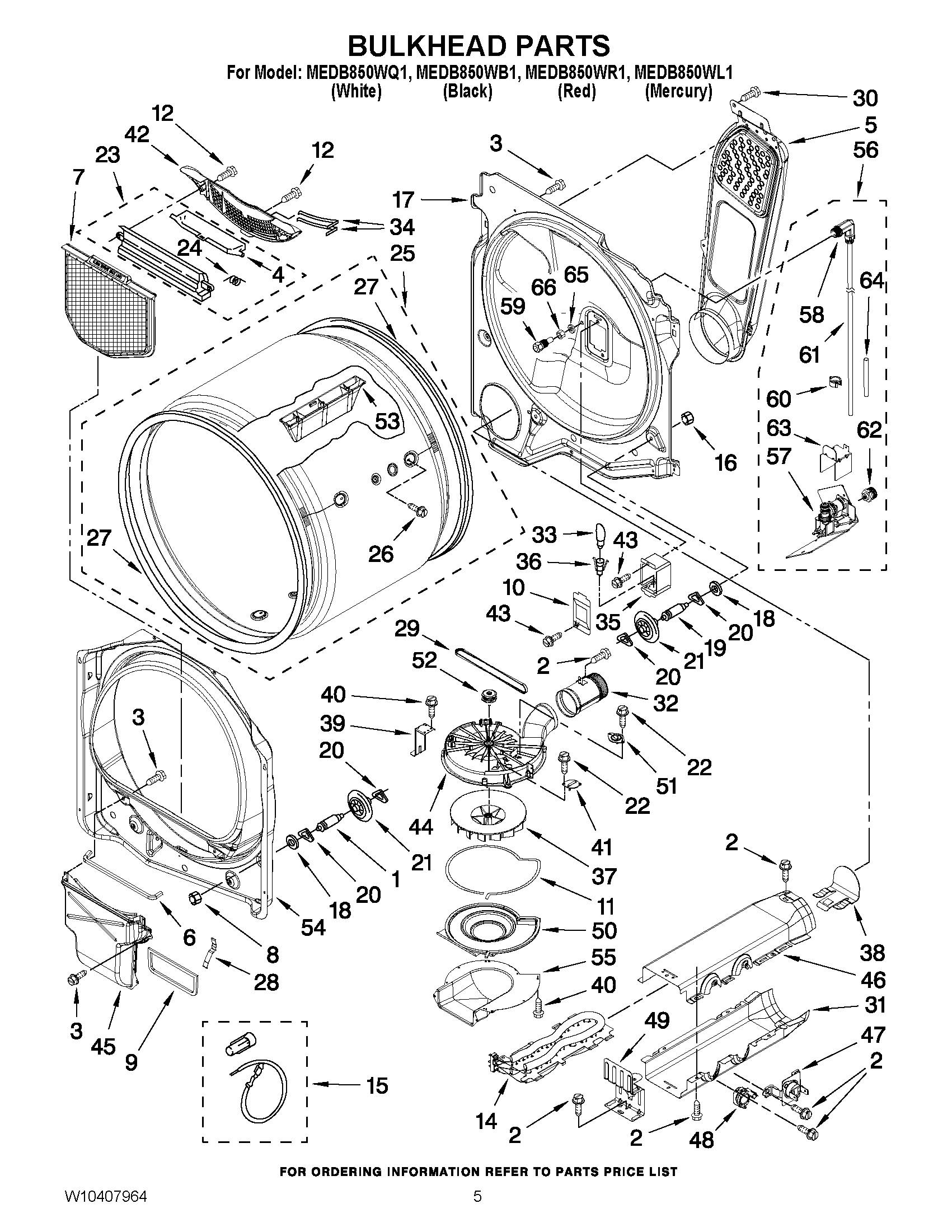

Air Duct Assembly WPL 8544730 Contact Us For Availability

6

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $21.43

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

6

Control Electronic WPL W10111620 Contact Us For Availability

7

W10223154 Whirlpool Cabinet Assembly Backorder WPL W10223154 $256.18

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Seal, Lint Duct WPL 8544721 Contact Us For Availability

9

BRACKET, MACHINE CONTROLLER WPL 8563853 Contact Us For Availability

10

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

11

WP8573068 Whirlpool Seal Gasket Backorder WPL WP8573068 $60.95

12

W10153920 Whirlpool Clip Backorder WPL W10153920 $5.85

12

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

13

TOP (WHITE) WPL W10223157 Contact Us For Availability

14

279318 Whirlpool Terminal In Stock WPL 279318 $56.86

14

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $111.58

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

17

Bulkhead, Rear WPL W10139797 Contact Us For Availability

19

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $10.83

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $48.79

19

HARNESS, ELECTRIC WPL W10319802 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

HINGE ASSEMBLY (MERCURY SILVER) WPL W10252472 Contact Us For Availability

HINGE ASSEMBLY (RED) WPL W10252473 Contact Us For Availability

22

3350424 Whirlpool Screw Backorder WPL 3350424 $8.05

22

WPW10111888 Whirlpool Plate Assembly Backorder WPL WPW10111888 $18.66

24

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

24

WPW10111905 Whirlpool Dryer Door Catch In Stock WPL WPW10111905 $5.43

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

28

Clip, Lint Duct WPL 8573070 Contact Us For Availability

28

Panel, Rear WPL W10140148 Contact Us For Availability

29

W10139247 Whirlpool Motor Pulley Backorder WPL W10139247 $91.92

29

WP8544742 Whirlpool Dryer Blower Belt In Stock WPL WP8544742 $44.89

30

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

30

WPW10136934 Whirlpool Belt Assembly In Stock WPL WPW10136934 $35.41

31

Pulley, (Motor Drum) WPL W10136930 Contact Us For Availability

31

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

32

Exhaust Pipe WPL 8544755 Contact Us For Availability

32

Bracket, Motor WPL 8547158 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $21.53

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

35

WP8568303 Whirlpool Lock Assembly Backorder WPL WP8568303 $4.82

37

WP8544737 Whirlpool Wheel Assembly In Stock WPL WP8544737 $76.03

38

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

39

BRACKET, HOUSING BLOWER WPL 8544741 Contact Us For Availability

41

W10201785 Whirlpool See Note Substitutions by Backorder WPL W10201785 $62.36

41

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $20.78

42

W10252478 Whirlpool Door Assembly Backorder WPL W10252478 $146.33

42

W10252479 Whirlpool Door Assembly Backorder WPL W10252479 $248.71

42

W11117302 Whirlpool Grille Out In Stock WPL W11117302 $157.25

43

Lock, Top Front WPL 8576625 Contact Us For Availability

44

W10044490 Whirlpool Seal Assembly Backorder WPL W10044490 $21.08

44

HOUSING, BLOWER WPL W10256512 Contact Us For Availability

45

Lint Duct Assembly WPL 8544786 Contact Us For Availability

45

Cover, Terminal Block WPL W10110241 Contact Us For Availability

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $118.53

47

W10111878 Whirlpool Door Assembly Backorder WPL W10111878 $145.14

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $72.18

49

Bracket, Heater Box WPL 8544729 Contact Us For Availability

50

W10111859 Whirlpool Gasket Backorder WPL W10111859 $83.61

50

Blower, Cover (Includes No.11) WPL 8544719 Contact Us For Availability

51

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

52

WP8544739 Whirlpool Motor Pulley In Stock WPL WP8544739 $54.32

53

8563860 Whirlpool Drum Baffle Backorder WPL 8563860 $107.33

54

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $4.82

54

WP8557244 Whirlpool Bulkhead Assembly Backorder WPL WP8557244 $206.79

56

Valve & Hose (Complete) WPL W10130506 Contact Us For Availability

57

WPW10129424 Whirlpool Valve Backorder WPL WPW10129424 $165.23

59

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $167.44

60

W10044599 Whirlpool Clip Backorder WPL W10044599 $9.35

62

W10859554 Whirlpool Coupler Backorder WPL W10859554 $58.26

65

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

66

W10044628 Whirlpool Nut Backorder WPL W10044628 $67.84

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $17.40

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $24.60

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

49611 Whirlpool Exhaust Kit Backorder WPL 49611 $75.53

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $29.98

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $16.79

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $18.89

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.40

WPW10336486 Whirlpool Connector In Stock WPL WPW10336486 $50.02

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (MAGNA RED METALLIC) WPL W10218245 Contact Us For Availability
