Model Whirlpool LT5000XMW0 – Common Parts & Diagrams
09 - WASHER DRIVE

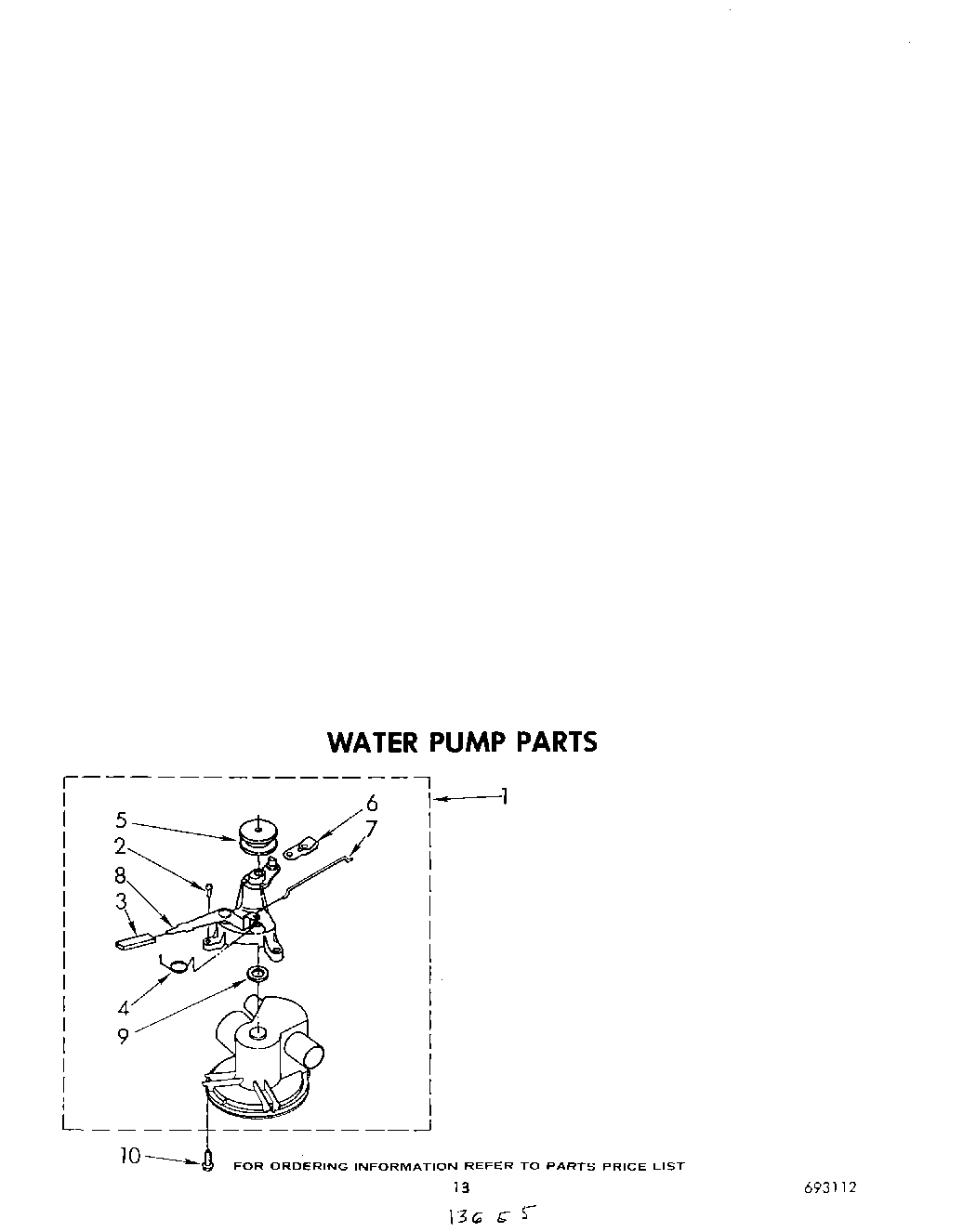

10 - WATER PUMP

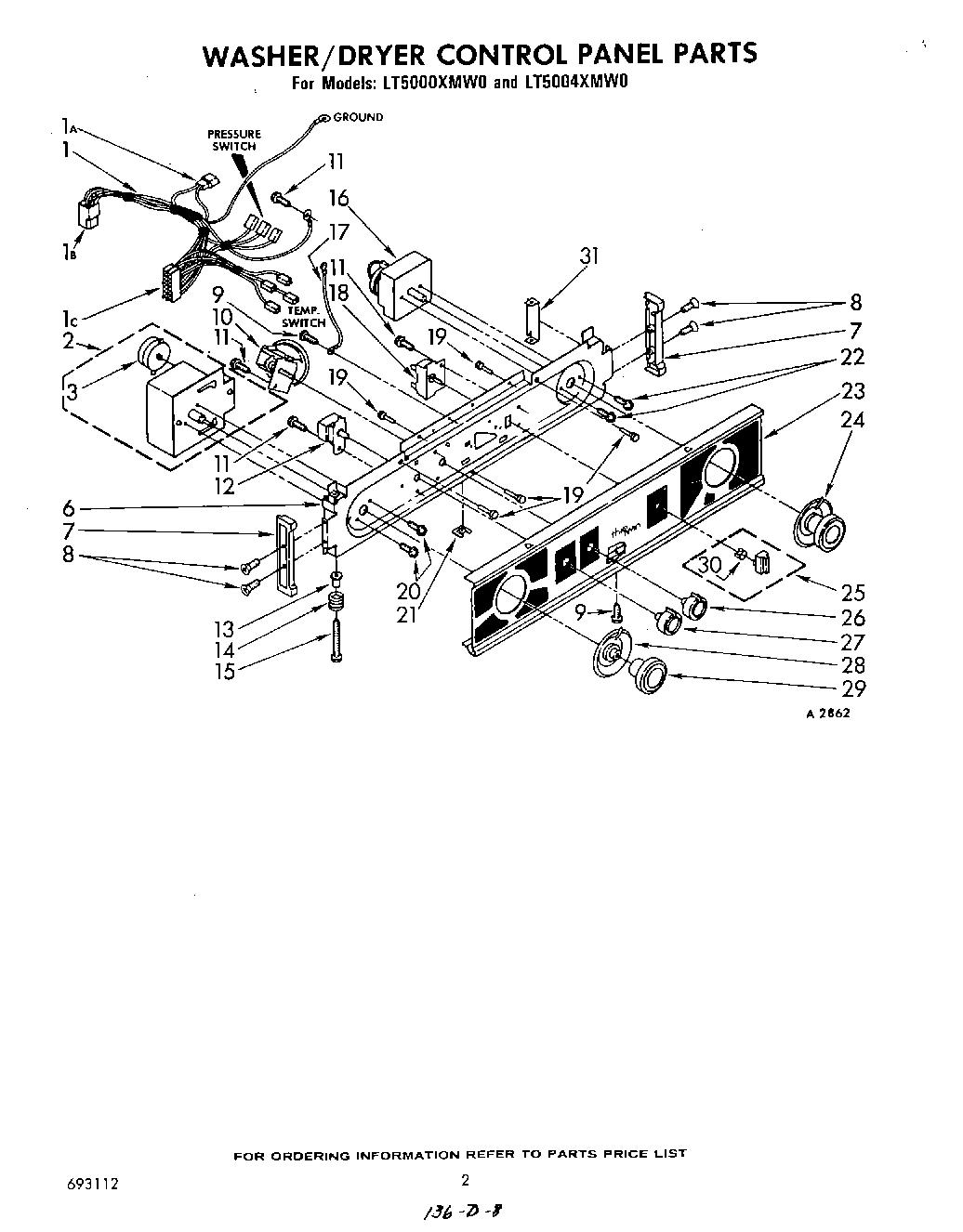

02 - WASHER/DRYER CONTROL PANEL

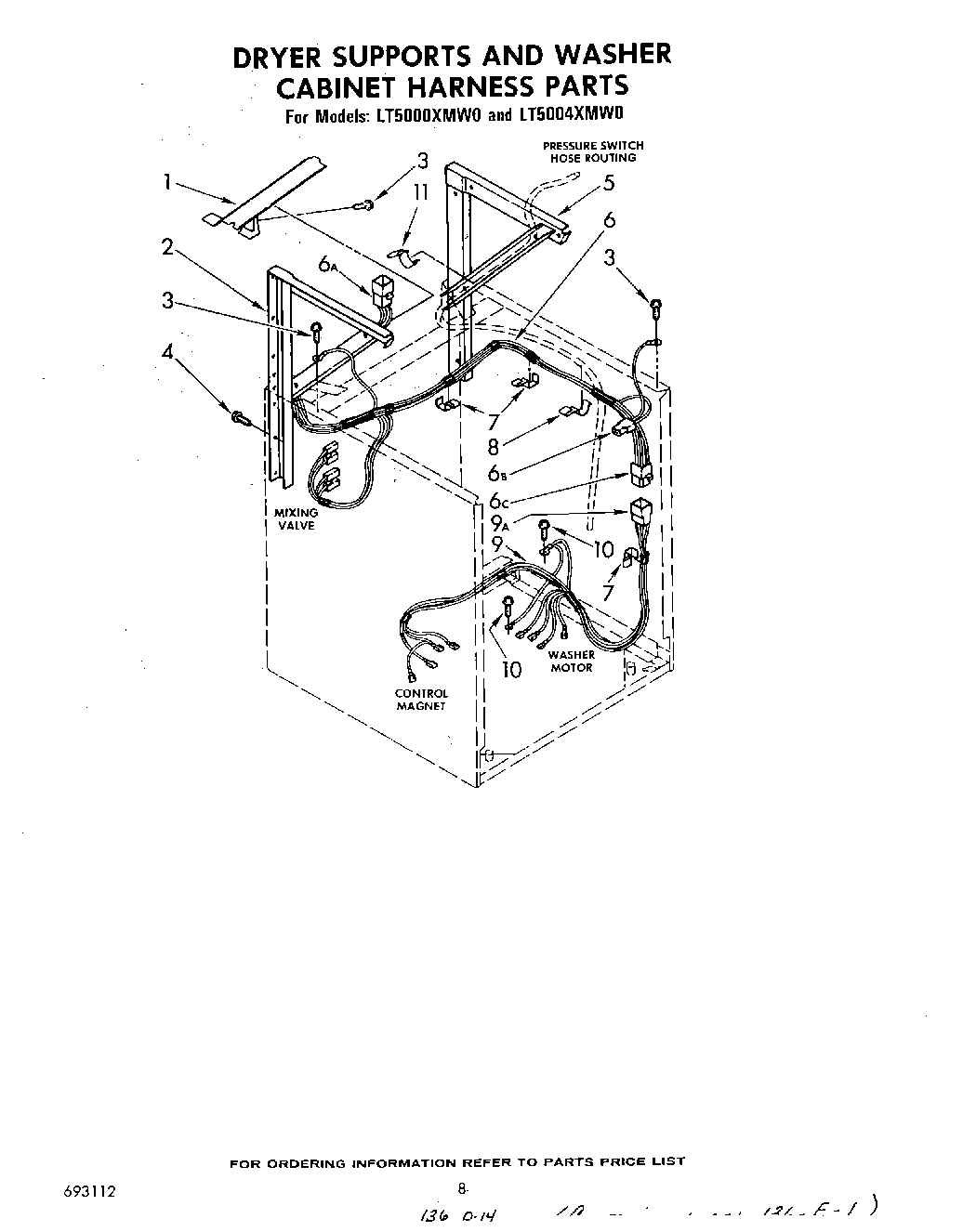

06 - DRYER SUPPORTS AND WASHER CABINET H

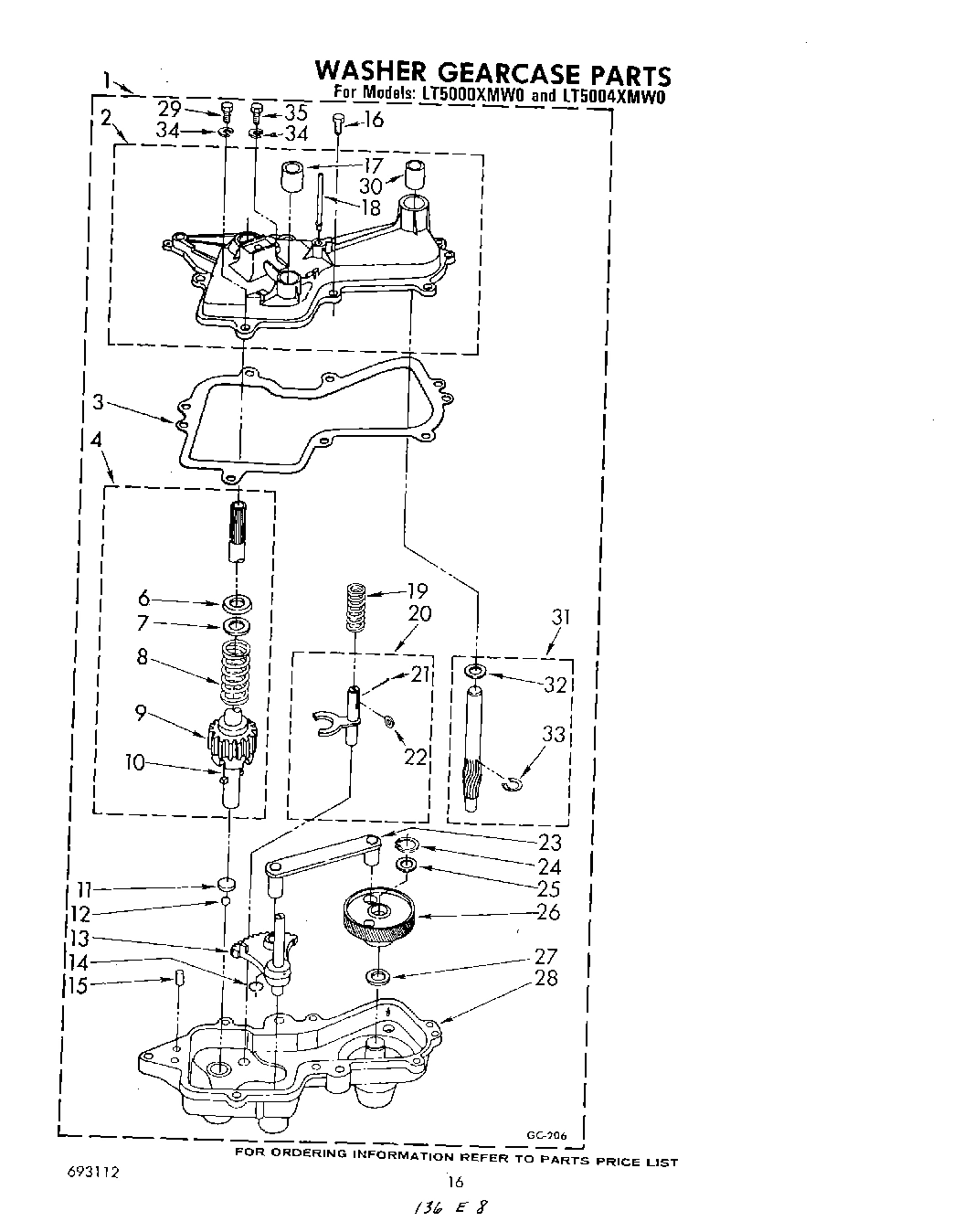

13 - WASHER GEARCASE

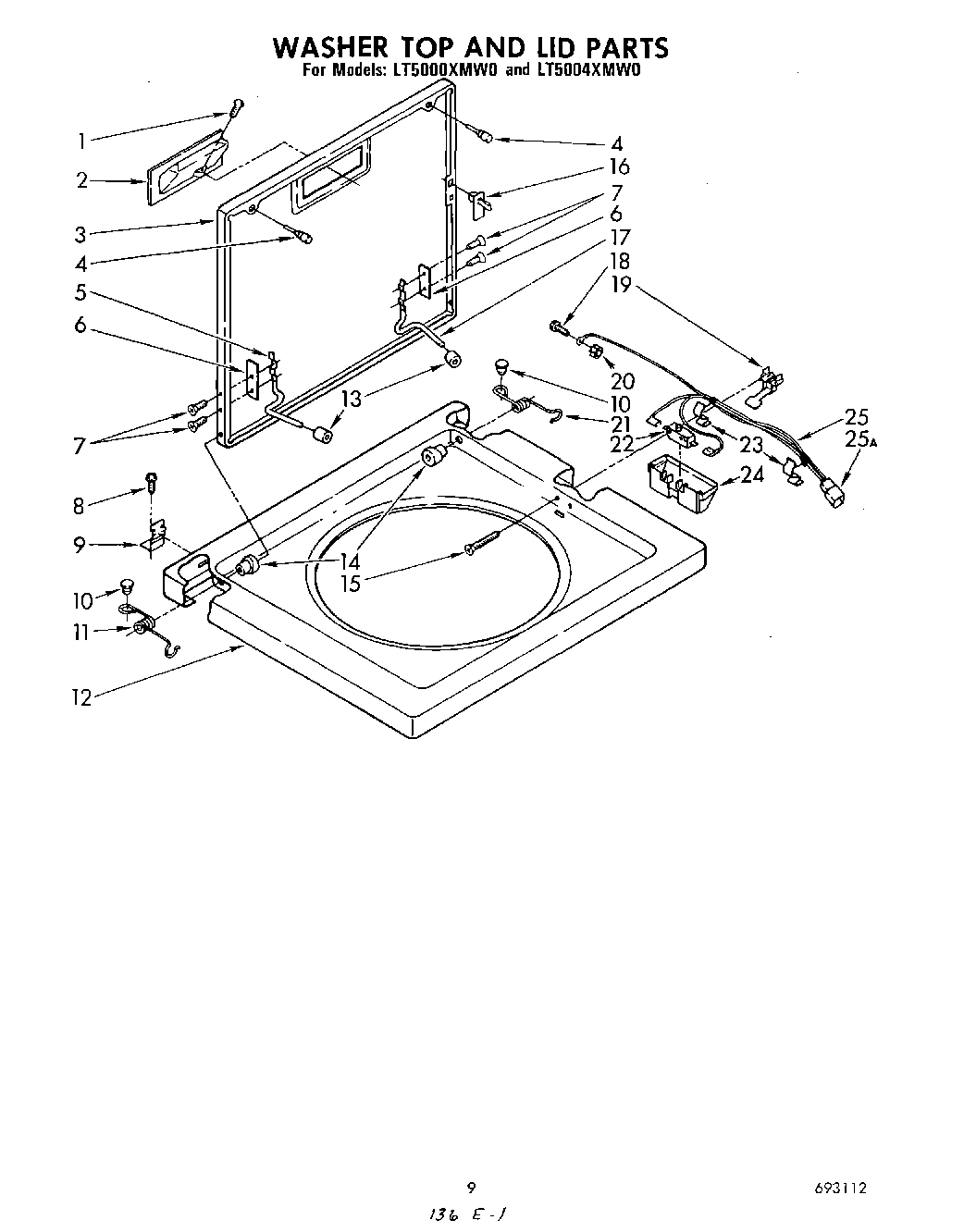

07 - WASHER TOP AND LID

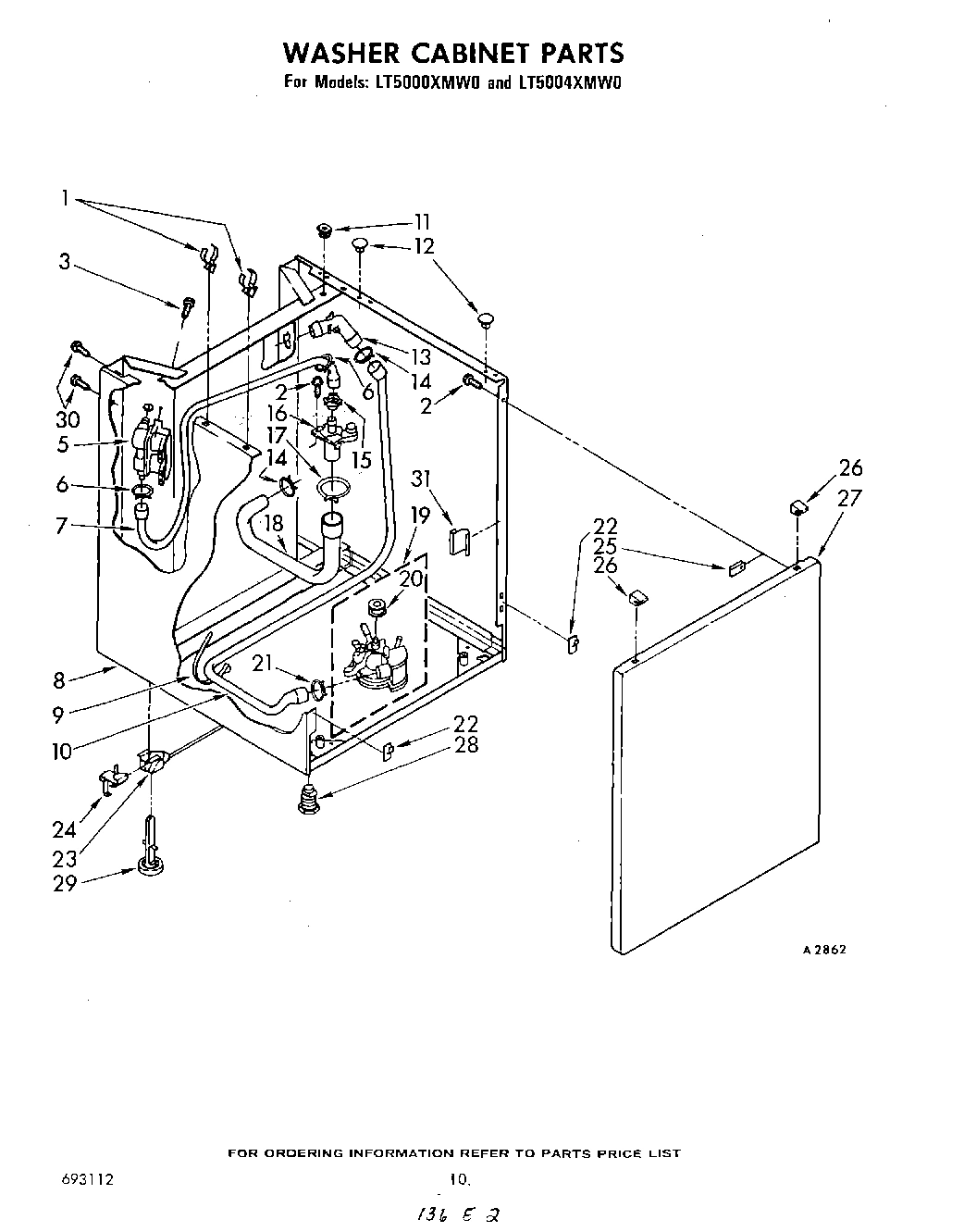

08 - WASHER CABINET

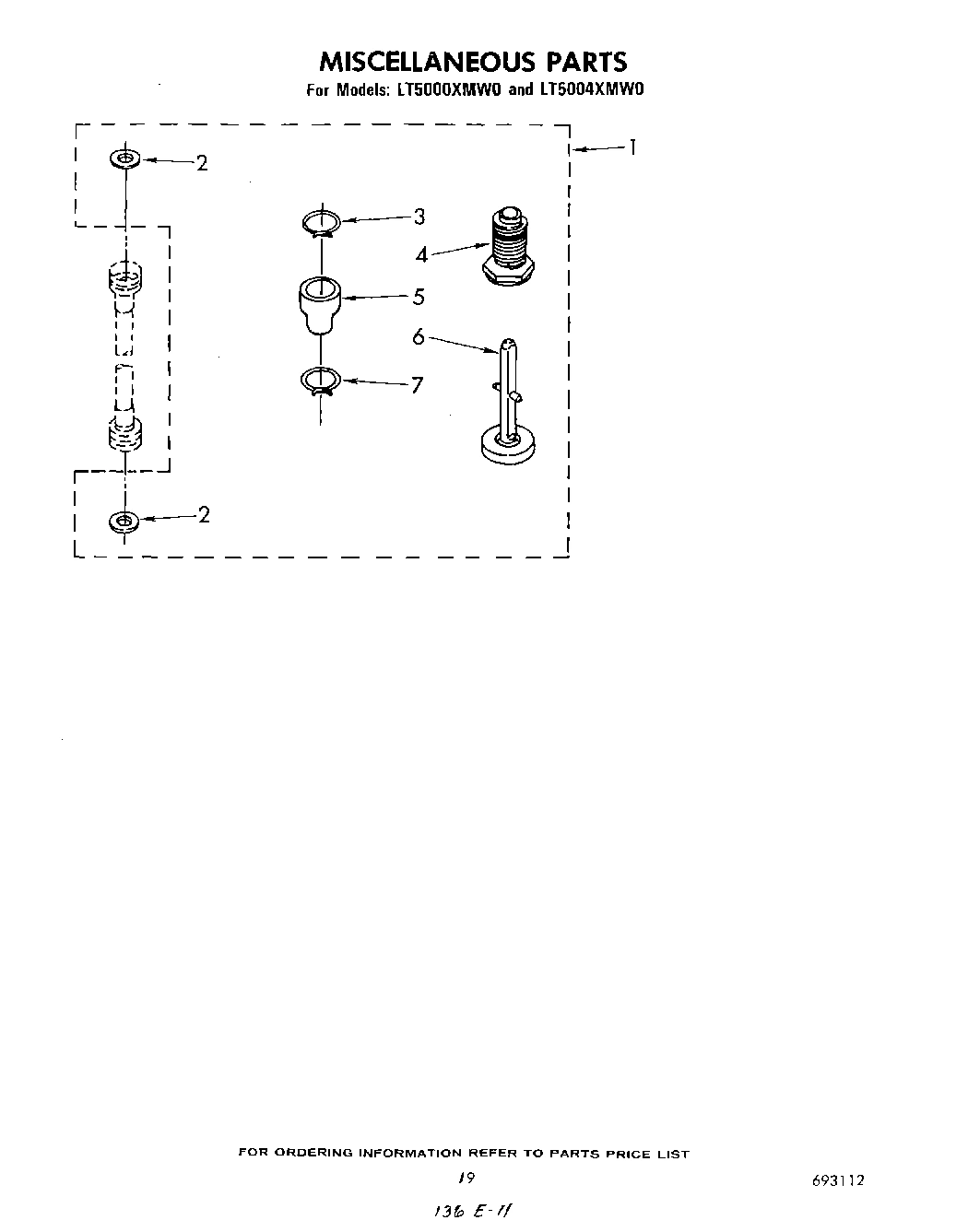

16 - MISCELLANEOUS , LITERATURE AND OPTIONAL

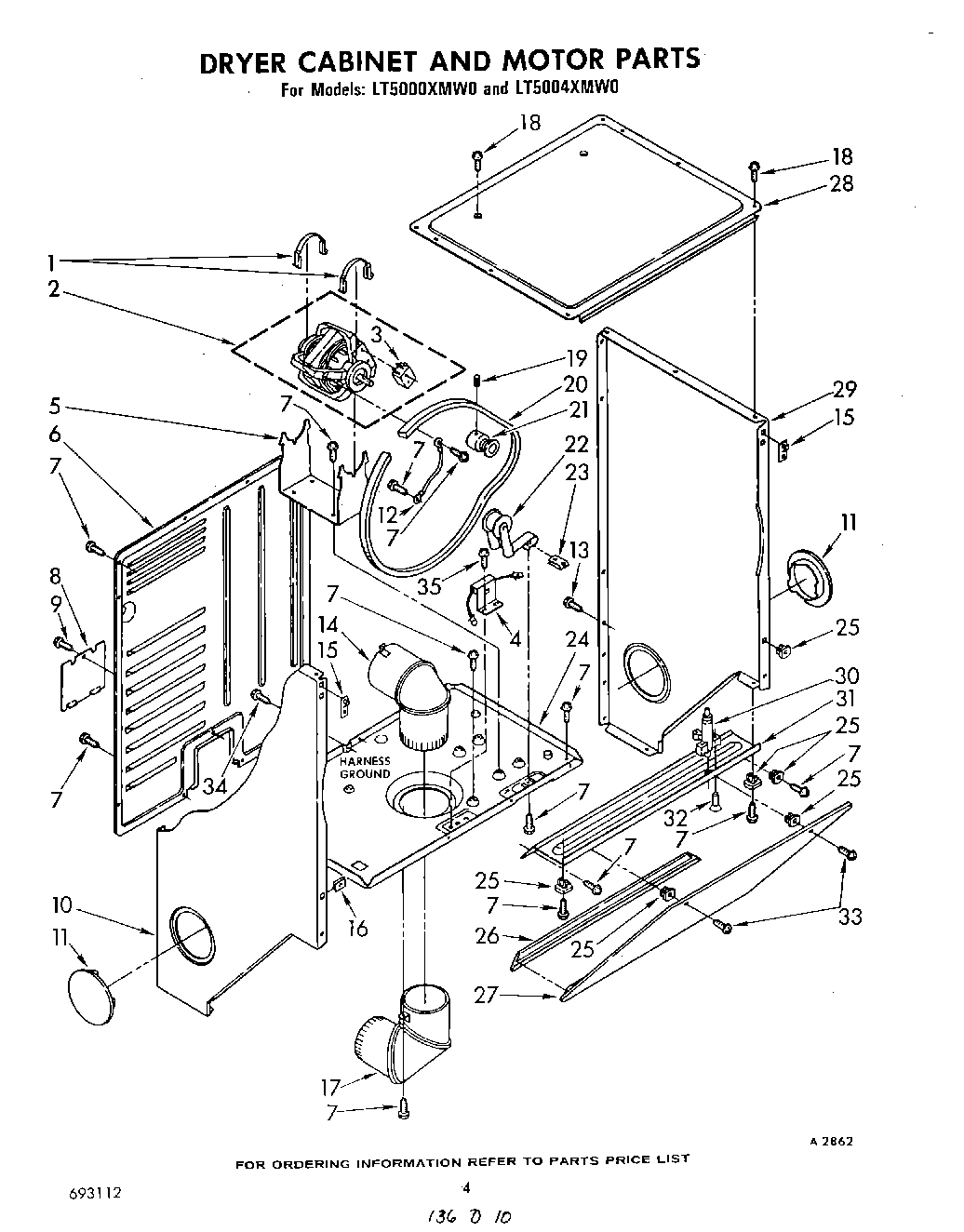

04 - DRYER CABINET AND MOTOR

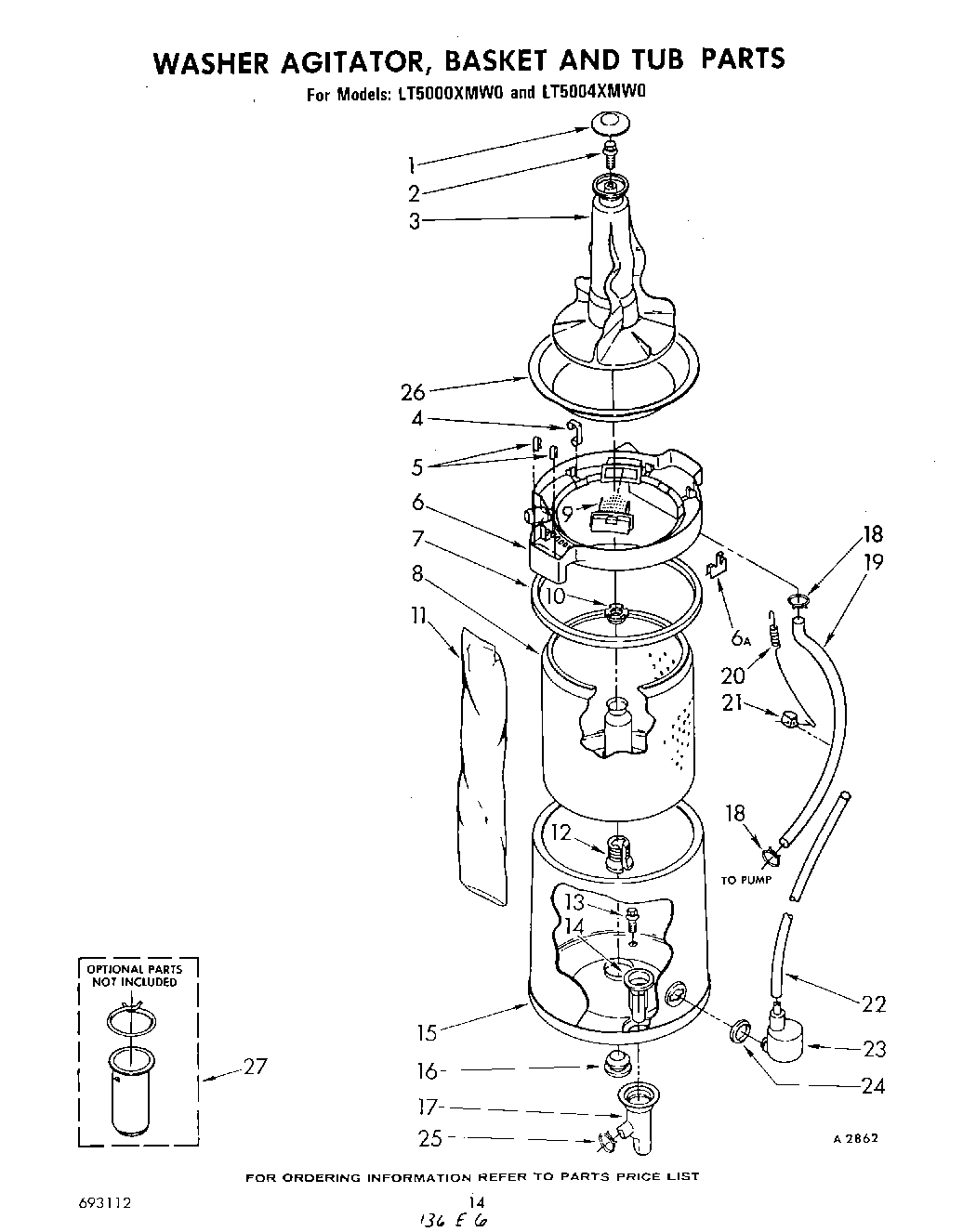

11 - WASHER AGITATOR, BASKET AND TUB

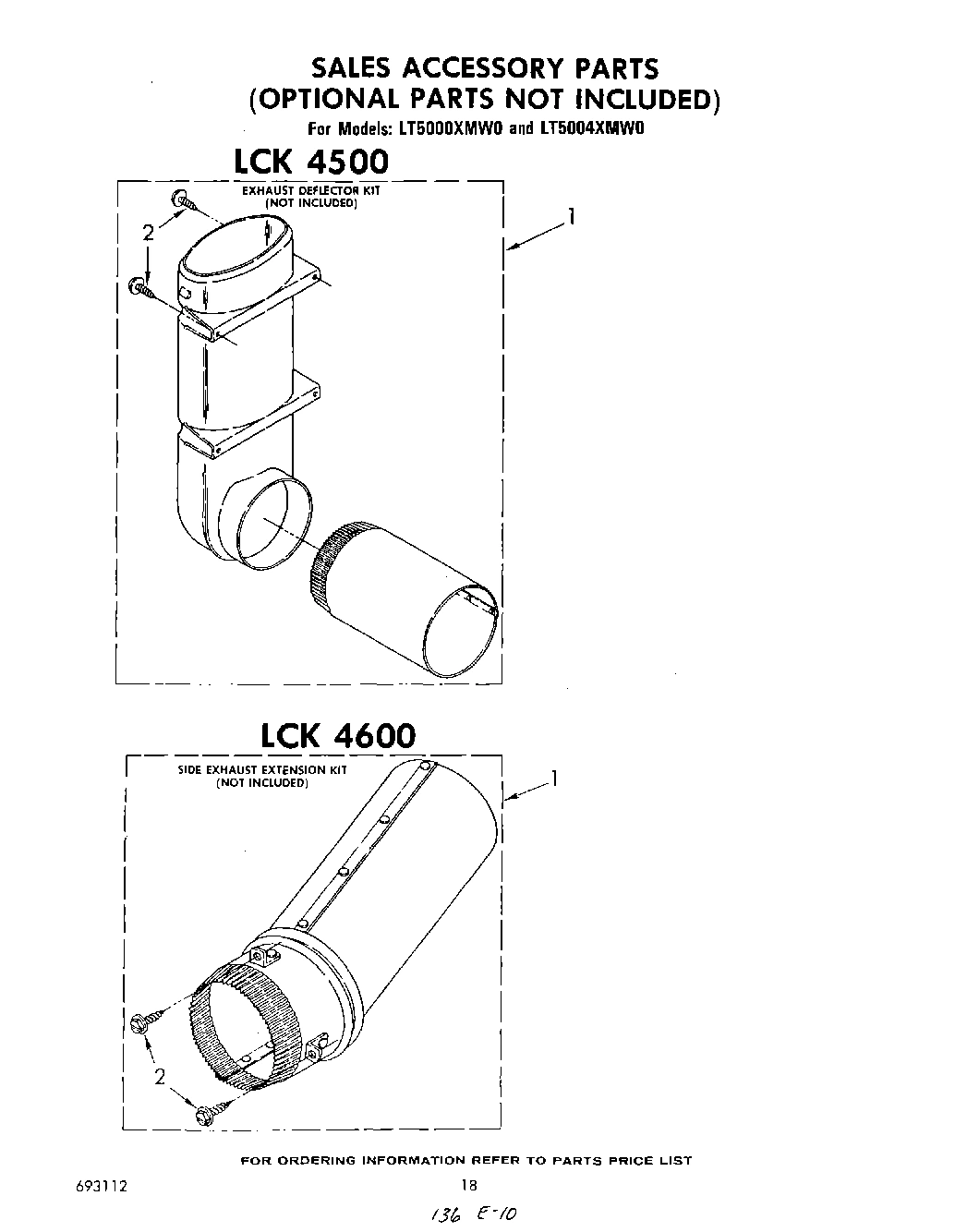

15 - LCK 4500 , LCK 4600

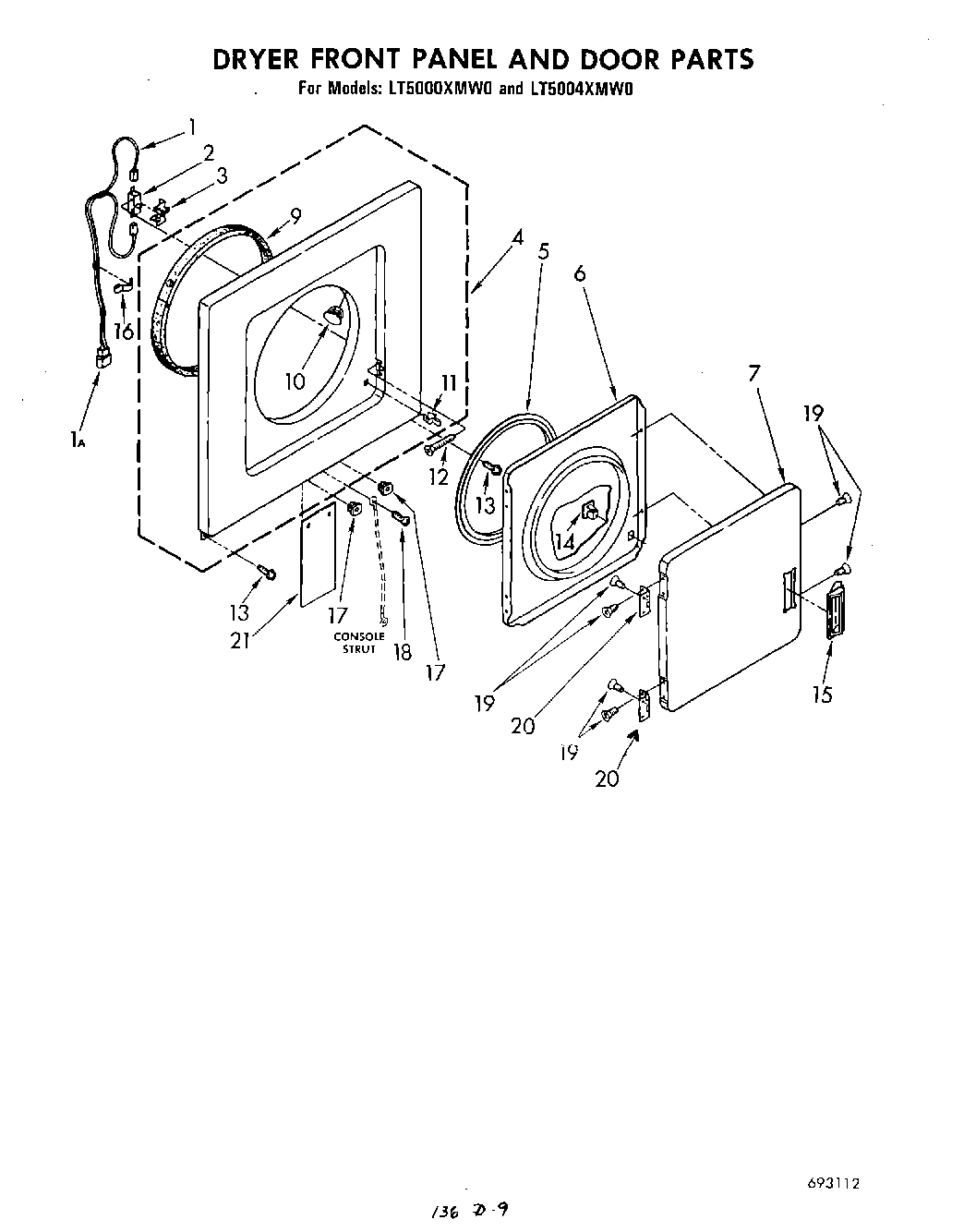

03 - DRYER FRONT PANEL AND DOOR

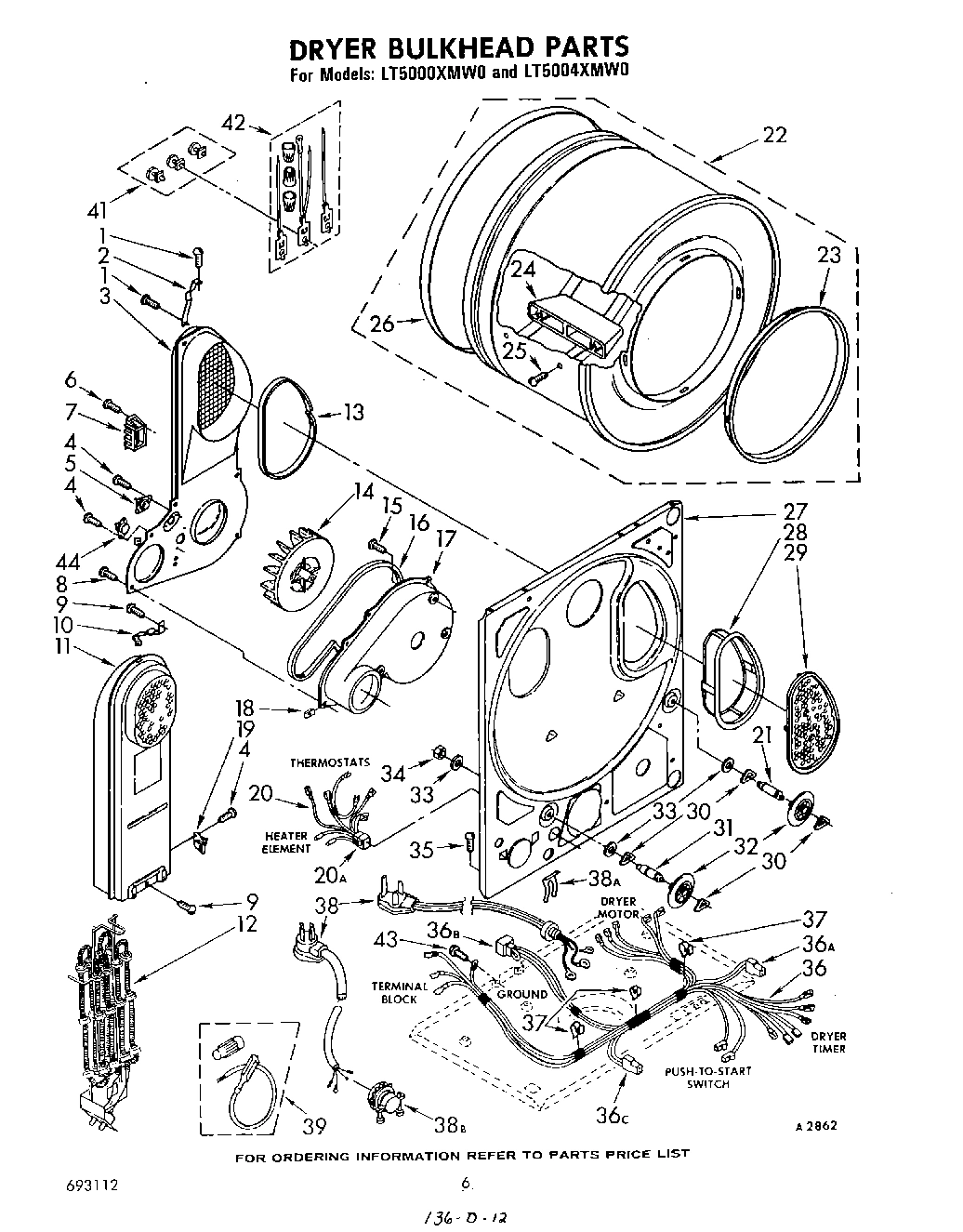

05 - DRYER BULKHEAD

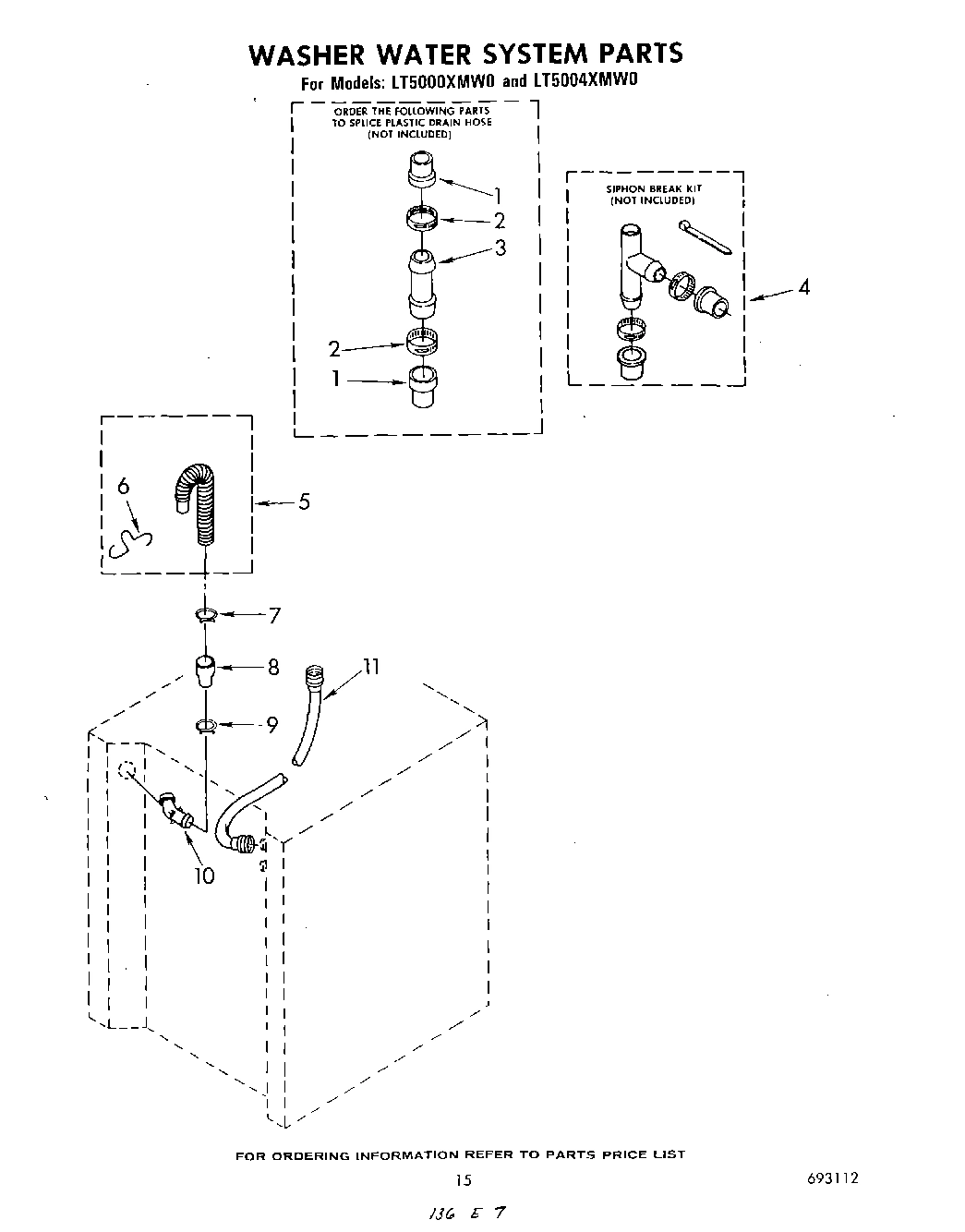

12 - WASHER WATER SYSTEM

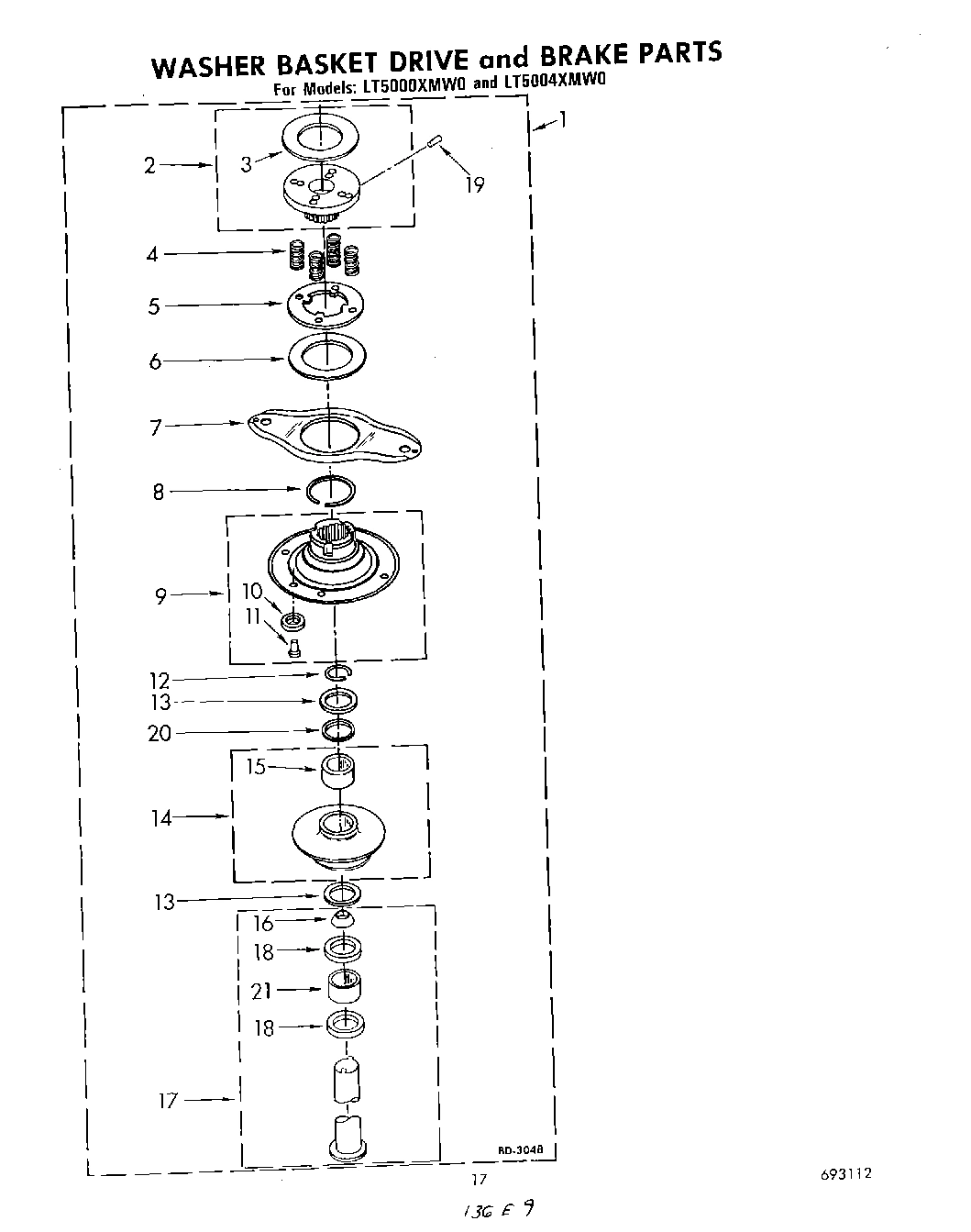

14 - WASHER BASKET DRIVE AND BRAKE
Common parts from model Whirlpool LT5000XMW0
1
Gearcase (Complete) WPL 384122 Contact Us For Availability
1
Screw, Lid Handle WPL 359243 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 692890 Contact Us For Availability
1
Cap, Agitator WPL 356381 Contact Us For Availability
1
Exhaust Deflector Kit (Complete) WPL 694609 Contact Us For Availability
1
Harness, Door Switch (Includes Illus. 1A) WPL 692728 Contact Us For Availability
1
Basket Drive & Brake WPL 359175 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Handle, Lid (White) WPL 379884 Contact Us For Availability
2
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
2
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
2
Handle, Lid (Toast) WPL 379890 Contact Us For Availability
2
Handle, Lid (Platinum) WPL 379891 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350508 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Lid (White) WPL 693276 Contact Us For Availability
3
Lid (Almond) WPL 693277 Contact Us For Availability
3
Lid (Golden Harvest) WPL 693280 Contact Us For Availability
3
Lid (Toast) WPL 693281 Contact Us For Availability
3
Lid (Platinum) WPL 693282 Contact Us For Availability
3
Agitator WPL 367200 Contact Us For Availability
3
Air Duct & Bracket WPL 694574 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354253 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Power Resistor & Shield WPL 694569 Contact Us For Availability
4
Clip, Tub Ring (5) WPL 356141 Contact Us For Availability
4
Panel, Front (Almond) WPL 692620 Contact Us For Availability
4
Panel, Front (Toast) WPL 692621 Contact Us For Availability
4
Panel, Front (Platinum) WPL 692622 Contact Us For Availability
4
Panel, Front (Golden Harvest) WPL 692623 Contact Us For Availability
4
Spring, Basket Drive (Gray Black) (4) WPL 356152 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
6
Harness, Upper (Automatic) (Includes Illus. 6 WPL 692730 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Panel, Rear WPL 692626 Contact Us For Availability
6
Tub Ring (Includes Illus. 5 & 11) WPL 384676 Contact Us For Availability
6
Retainer, Drain Hose WPL 357247 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 356396 Contact Us For Availability
6A
Plug, Terminal (9-Way) (Connects With Automat WPL 692996 Contact Us For Availability
6A
Tub Ring Retainer Kit (Used To Retain Tub Rin WPL 350987 Contact Us For Availability
6C
Plug, Terminal (9-Way) (Connects With Lower G WPL 94611 Contact Us For Availability
7
End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available
7
Clip, Wiring Harness (8) WPL 356387 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Golden Harvest WPL 261890 Contact Us For Availability
7
Toast WPL 285365 Contact Us For Availability
7
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
7
Leveler (Thinner) WPL 350941 Contact Us For Availability
7
Label, Energy Guide (For Model LT5000XMWO) WPL 386185 Contact Us For Availability
7
Label, Energy Guide (For Model LT5004XMWO) WPL 386191 Contact Us For Availability
7
Instructions, Operating WPL 693012 Contact Us For Availability
7
Sheet, Installation Instructions (For Model L WPL 693022 Contact Us For Availability
7
Instructions, Installation (For Model LT5004X WPL 693024 Contact Us For Availability
7
Guide, Laundry WPL 693030 Contact Us For Availability
7
List, Repair Parts WPL 693112 Contact Us For Availability
7
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
7
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
7
Gasket, Tub Ring WPL 356380 Contact Us For Availability
7
Door, Front (Almond) WPL 689314 Contact Us For Availability
7
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
7
Door, Front (Toast) WPL 695214 Contact Us For Availability
7
Door, Front (Platinum) WPL 695215 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Cabinet (White) WPL 692561 Contact Us For Availability
8
Cabinet (Almond) WPL 692562 Contact Us For Availability
8
Cabinet (Toast) WPL 692563 Contact Us For Availability
8
Cabinet (Platinum) WPL 692564 Contact Us For Availability
8
Cabinet (Golden Harvest) WPL 692565 Contact Us For Availability
8
Cover, Terminal Block WPL 307972 Contact Us For Availability
8
Basket WPL 359174 Contact Us For Availability
8
Screw, Grounding No.8 (5) (Air Duct To Scroll WPL 694079 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
9
Harness, Lower (Automatic) (Gearcase To Motor WPL 692729 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Filter & Latch WPL 384477 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357716 Contact Us For Availability
9A
Cap, Terminal (9-Way) (Connects With Upper Ca WPL 94612 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Plug, Button (2) WPL 54690 Contact Us For Availability
10
Hose, Drain WPL 692773 Contact Us For Availability
10
Panel, Side (L.H.) (Almond) WPL 692614 Contact Us For Availability
10
Panel, Side (L.H.) (Toast) WPL 692615 Contact Us For Availability
10
Panel, Side (L.H.) (Platinum) WPL 692616 Contact Us For Availability
10
Panel, Side (L.H.) (Golden Harvest) WPL 692617 Contact Us For Availability
10
Locknut WPL 356995 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 356405 Contact Us For Availability
11
Spring, Lid (L.H.) (Includes Illus 10) WPL 384460 Contact Us For Availability
11
Plug, Side (Almond) WPL 692791 Contact Us For Availability
11
Plug, Side (Toast) WPL 692792 Contact Us For Availability
11
Plug, Side (Platinum) WPL 692793 Contact Us For Availability
11
Plug, Side (Golden Harvest) WPL 692794 Contact Us For Availability
11
Heater Box (120/240 Volts) WPL 685457 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
12
Switch, Water Temperature 370145 (Alt.) 37014 WPL 660393 Contact Us For Availability
12
Top (Almond) WPL 384694 Contact Us For Availability
12
Top (Golden Harvest) WPL 384697 Contact Us For Availability
12
Top (Toast) WPL 384698 Contact Us For Availability
12
Top (Platinum) WPL 384699 Contact Us For Availability
12
Wire, Motor Ground WPL 687261 Contact Us For Availability
12
Block, Basket Driver WPL 357836 Contact Us For Availability
12
Element, Heater WPL 694430 Contact Us For Availability
13
Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Screw & Washer (4) WPL 370571 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Clamp, Hose WPL 272855 Contact Us For Availability
14
Elbow, Upper WPL 695524 Contact Us For Availability
14
Funnel, Drain WPL 356201 Contact Us For Availability
14
Wheel, Blower WPL 345317 Contact Us For Availability
14
Pulley, Basket Drive WPL 366948 Contact Us For Availability
15
Screw, Console Lock (2) WPL 693710 Contact Us For Availability
15
Pin, Dowel (2) WPL 5018 Contact Us For Availability
15
Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability
15
Tub WPL 367162 Contact Us For Availability
15
Handle, Door (Almond) WPL 689306 Contact Us For Availability
15
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
15
Handle, Door (Platinum) WPL 695286 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
16
Spring, Brake WPL 94726 Contact Us For Availability
16
Timer, Control (60 Hz.) (Dryer) (Timer Motor WPL 694530 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (5) WPL 356599 Contact Us For Availability
16
Support Protector WPL 692846 Contact Us For Availability
16
Seal, Fan Scroll WPL 345685 Contact Us For Availability
17
Strut, Console WPL 693175 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Manifold, Tub Outlet WPL 357160 Contact Us For Availability
17
Fastener, Push (2) WPL 693739 Contact Us For Availability
17
Fan Scroll WPL 692833 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
18
Switch, Push-To-Start WPL 693169 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
18
Hose, Water Inlet (Siphon Break To Tub Ring) WPL 356314 Contact Us For Availability
18
Clip, Fan Scroll To Air Duct (5) WPL 694078 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Actuator, Lid Switch WPL 357347 Contact Us For Availability
19
Pump, Complete (Refer To Page 13 For Further WPL 358258 Contact Us For Availability
19
Setscrew, Pulley WPL 690046 Contact Us For Availability
19
Hose, Tub Ring To Pump WPL 356397 Contact Us For Availability
19
Set Screw, 5/16-18 x 13/16 WPL 358931 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Pulley, Pump WPL 356926 Contact Us For Availability
20
Spring, Hose Retaining WPL 356887 Contact Us For Availability
20
Harness, Thermostat & Heater (Includes Illus. WPL 694529 Contact Us For Availability
20
Retainer, Oil WPL 354319 Contact Us For Availability
20A
Plug, Multi-Terminal (Connects With Main Drye WPL 692997 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
21
Spring, Lid (R.H.) (Includes Illus. 10) WPL 384461 Contact Us For Availability
21
Pulley, Motor (60 Hz.) (Includes Illus. 19) WPL 348946 Contact Us For Availability
21
Bracket, Hose Retaining Spring WPL 356982 Contact Us For Availability
21
Barrier, Harness WPL 693303 Contact Us For Availability
21
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
23
Panel, Control WPL 694328 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
23
Air Dome WPL 360804 Contact Us For Availability
24
BAFFLE-DRM WPL 685207 Contact Us For Availability
24
Seal, Air Dome WPL 351830 Contact Us For Availability
24
Knob & Skirt, Dryer Timer WPL 690200 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
24
Base, Dryer WPL 694413 Contact Us For Availability
25
Button, Push-To-Start WPL 689857 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Harness, Lid Switch WPL 692732 Contact Us For Availability
25
Screw, Baffle Mounting (6) (11-16 x 7/8) WPL 690372 Contact Us For Availability
25A
Receptacle, Latching (3-Way) (Connects With A WPL 691707 Contact Us For Availability
26
Gear, Main Drive WPL 359273 Contact Us For Availability
26
Shield, Tub Ring WPL 384453 Contact Us For Availability
27
Panel, Front (White) WPL 692628 Contact Us For Availability
27
Knob & Clip, Water Temperature WPL 693799 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
27
Panel, Front (Almond) WPL 692629 Contact Us For Availability
27
Panel, Front (Toast) WPL 692630 Contact Us For Availability
27
Panel, Front (Platinum) WPL 692631 Contact Us For Availability
27
Panel, Front (Golden Harvest) WPL 692632 Contact Us For Availability
27
Panel, Transition (Almond) WPL 692934 Contact Us For Availability
27
Panel, Transition (Toast) WPL 692935 Contact Us For Availability
27
Panel, Transition (Platinum) WPL 692936 Contact Us For Availability
27
Panel, Transition (Golden Harvest) WPL 692937 Contact Us For Availability
27
Manifold Repair Kit (This Kit Eliminates The WPL 285150 Contact Us For Availability
28
Dial, Timer WPL 692831 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
29
Knob, Timer WPL 359206 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (1) WPL 356512 Contact Us For Availability
29
Panel, Side (R.H.) (White) WPL 692607 Contact Us For Availability
29
Panel, Side WPL 692608 Contact Us For Availability
29
WPL 692609 WPL 692609 Contact Us For Availability
29
WPL 692610 WPL 692610 Contact Us For Availability
29
WPL 692611 WPL 692611 Contact Us For Availability
30
Clip, Push-To-Start Button WPL 90015 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Pad, Extruder (2) WPL 694398 Contact Us For Availability
31
WPL 692782 WPL 692782 Contact Us For Availability
31
WPL 692783 WPL 692783 Contact Us For Availability
31
WPL 692784 WPL 692784 Contact Us For Availability
31
WPL 692785 WPL 692785 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
WPL 354975 WPL 354975 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
34
Lockwasher (2) WPL 138485 Contact Us For Availability
35
Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability
36
Harness, Main Dryer Wiring (Includes Illus. 3 WPL 694531 Contact Us For Availability
36B
WPL 692998 WPL 692998 Contact Us For Availability
36C
WPL 717252 WPL 717252 Contact Us For Availability
37
WPL 693141 WPL 693141 Contact Us For Availability
× ![]()
