Model Whirlpool LGV4434AW0 GAS DRYER – Common Parts & Diagrams

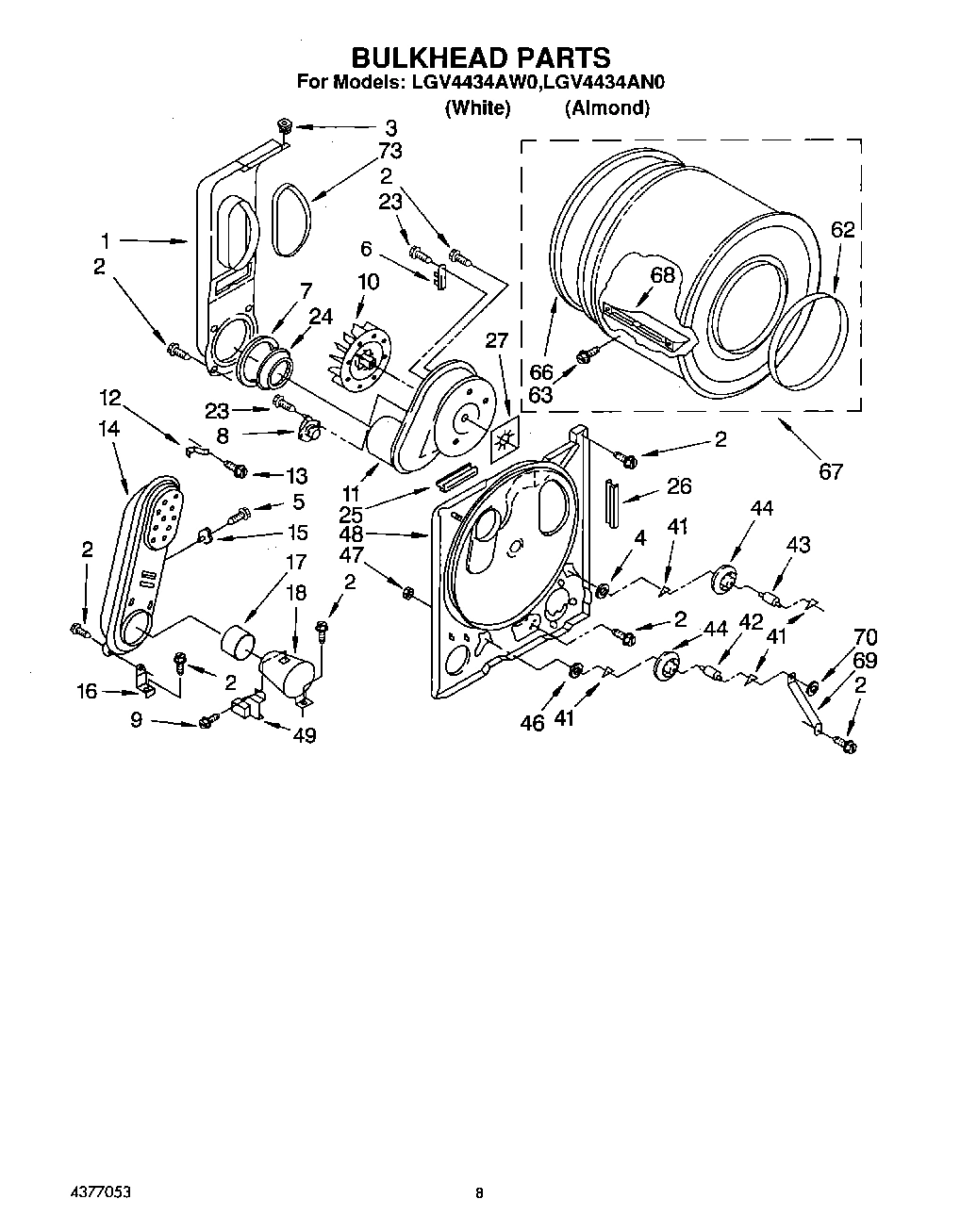

04 - BULKHEAD

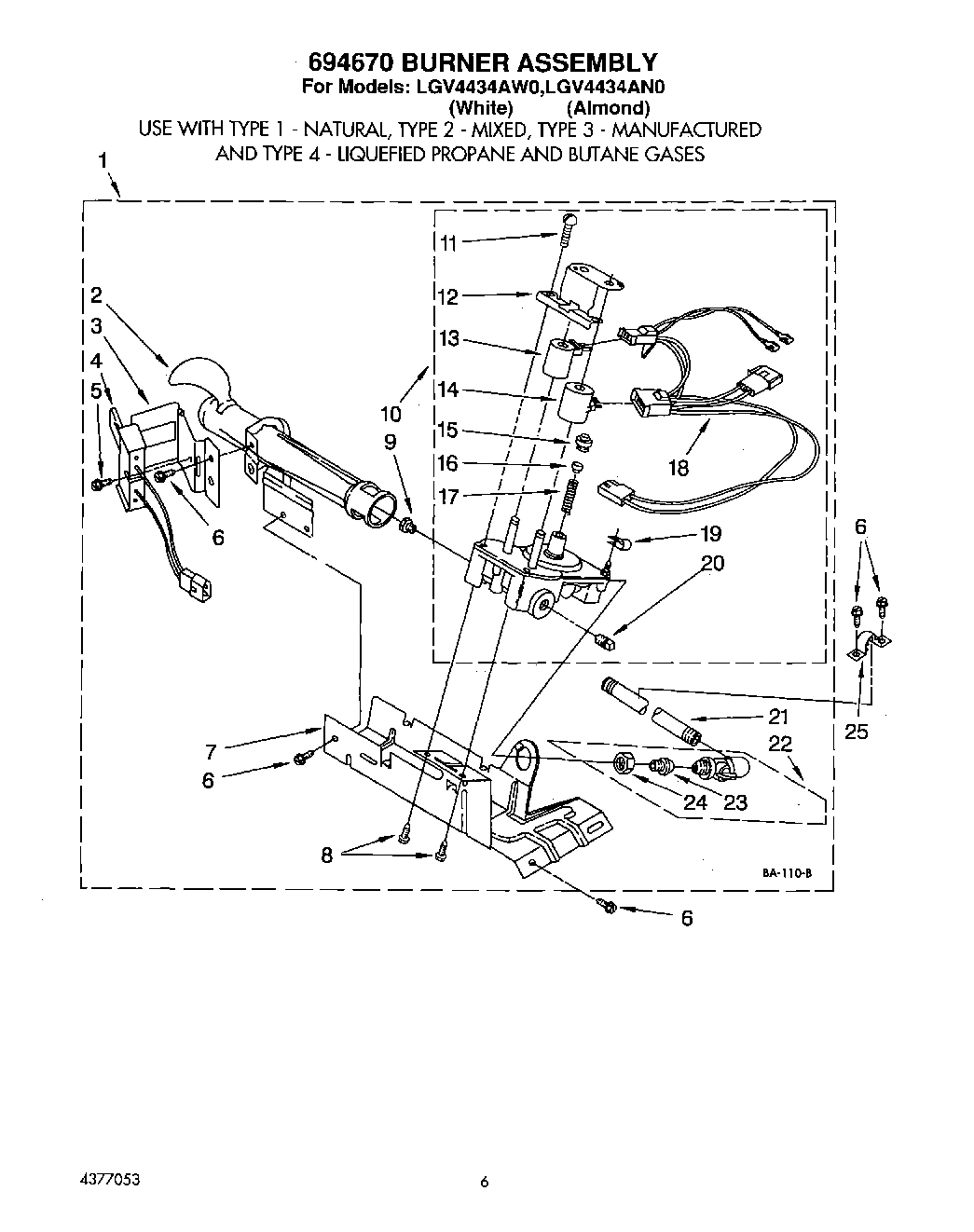

03 - 694670 BURNER ASSEMBLY

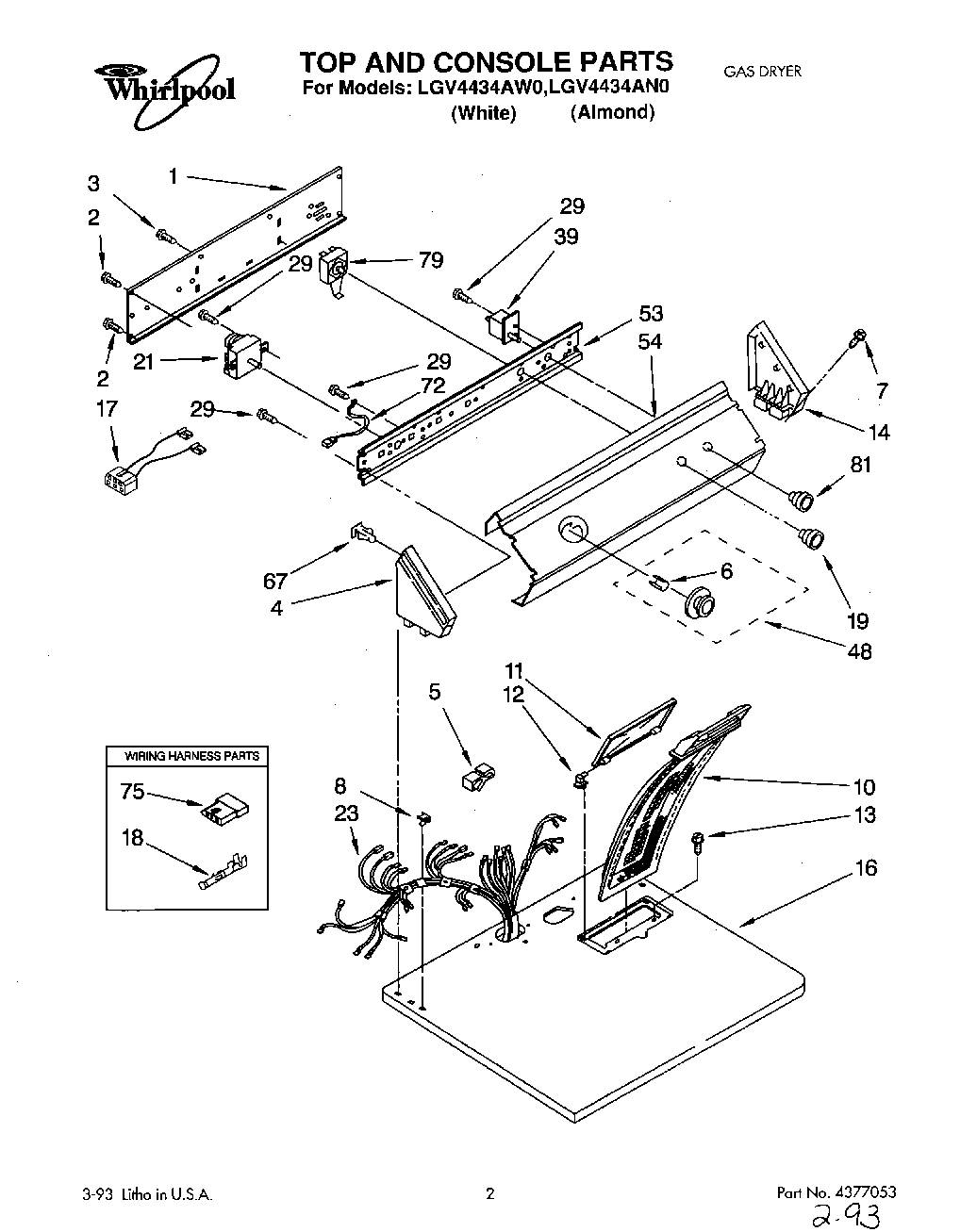

01 - TOP AND CONSOLE, LIT/OPTIONAL

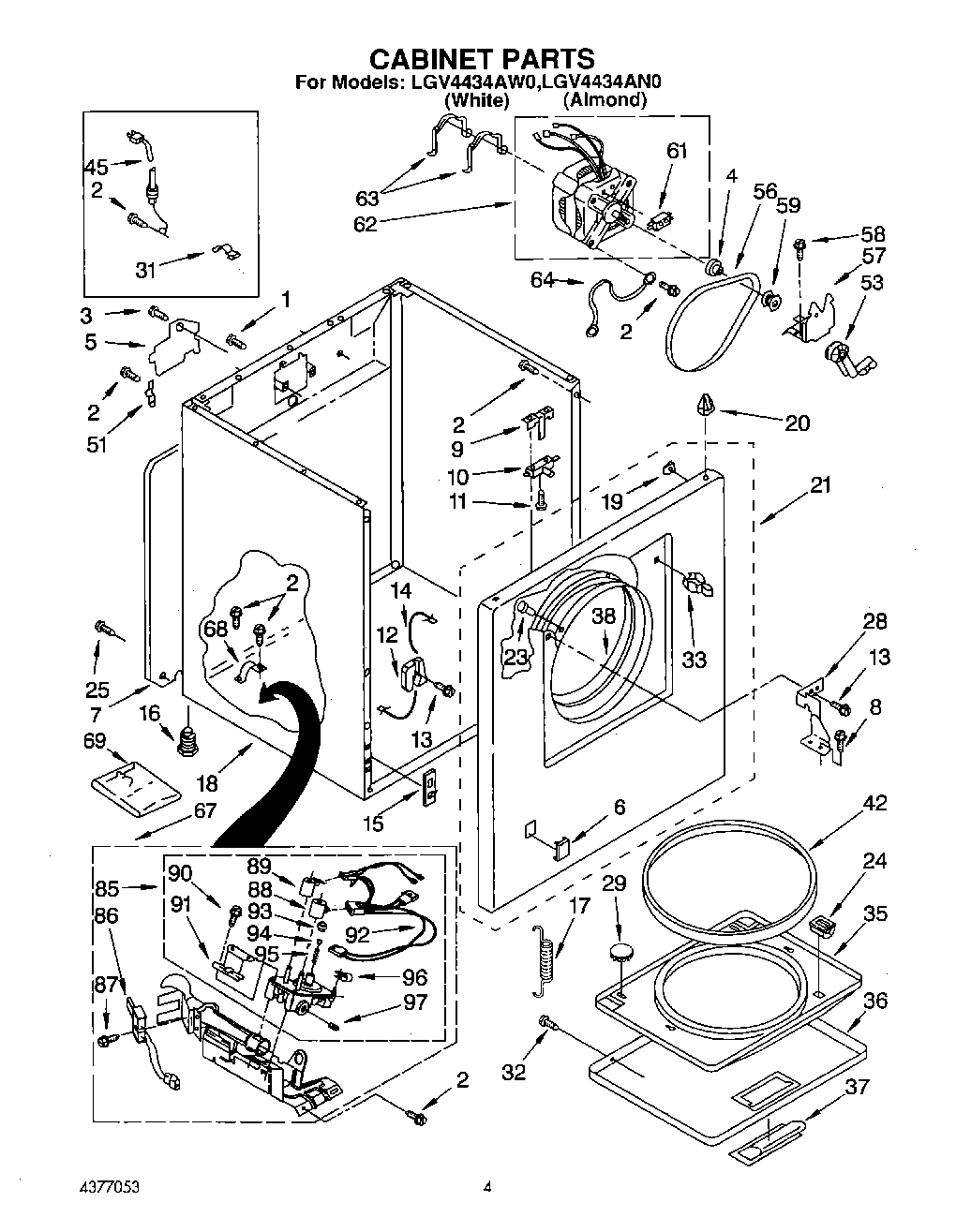

02 - CABINET
Common parts from model Whirlpool LGV4434AW0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Panel, Rear Console WPL 3397545 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability
5
Clip, Retainer WPL 689180 Contact Us For Availability
6
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
6
Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability
7
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
7
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
12
GUIDE WPL 337182 Contact Us For Availability
12
Guide, Cable (R.H.) WPL 337183 Contact Us For Availability
14
Cable, Door (2) WPL 230131 Contact Us For Availability
15
(Alt.) WPL 341196 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
18
Cabinet (White) WPL 3394109 Contact Us For Availability
18
Cabinet (Almond) WPL 3394110 Contact Us For Availability
21
Front Panel Assembly (White) WPL 3394890 Contact Us For Availability
21
Front Panel Assembly (Almond) WPL 3394891 Contact Us For Availability
23
Harness, Wiring WPL 3396220 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
28
Hinge, Door (R.H.) WPL 238456 Contact Us For Availability
35
Door, Rear WPL 695953 Contact Us For Availability
36
Door, Front (White) WPL 348737 Contact Us For Availability
36
Door, Front (Almond) WPL 689485 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
(Alt.) WPL 692021 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control (White) WPL 3397147 Contact Us For Availability
54
Panel, Control (Almond) WPL 3397148 Contact Us For Availability
64
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
67
Nut, Push-On (4) WPL 689559 Contact Us For Availability
67
Burner Assembly, 60 Hz. (Refer to Pages For F WPL 694670 Contact Us For Availability
69
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability
79
Switch, Temperature Selector WPL 3354281 Contact Us For Availability
81
Knob, Push-To-Start WPL 3396163 Contact Us For Availability
96
WPL 694510 WPL 694510 Contact Us For Availability
× ![]()
