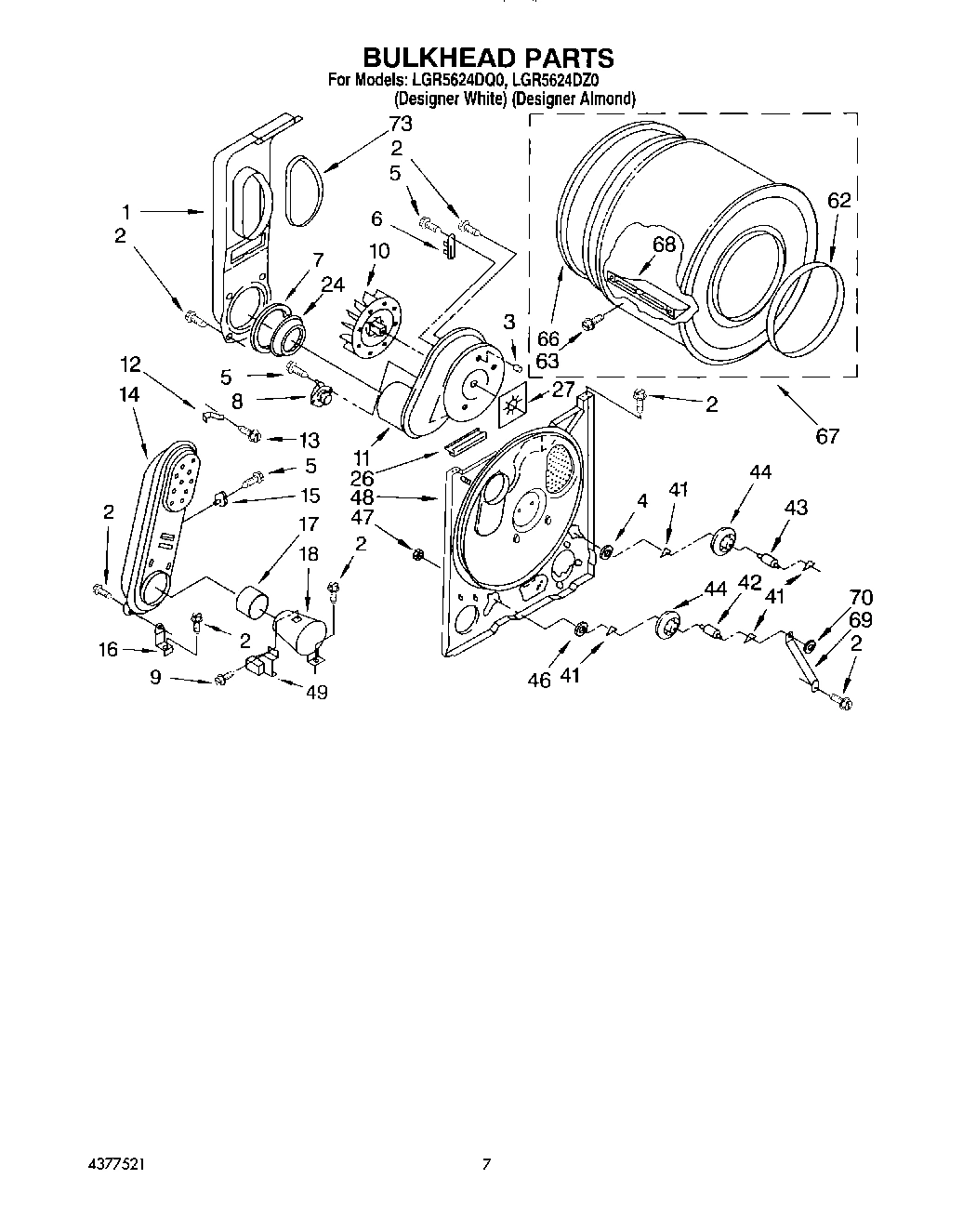

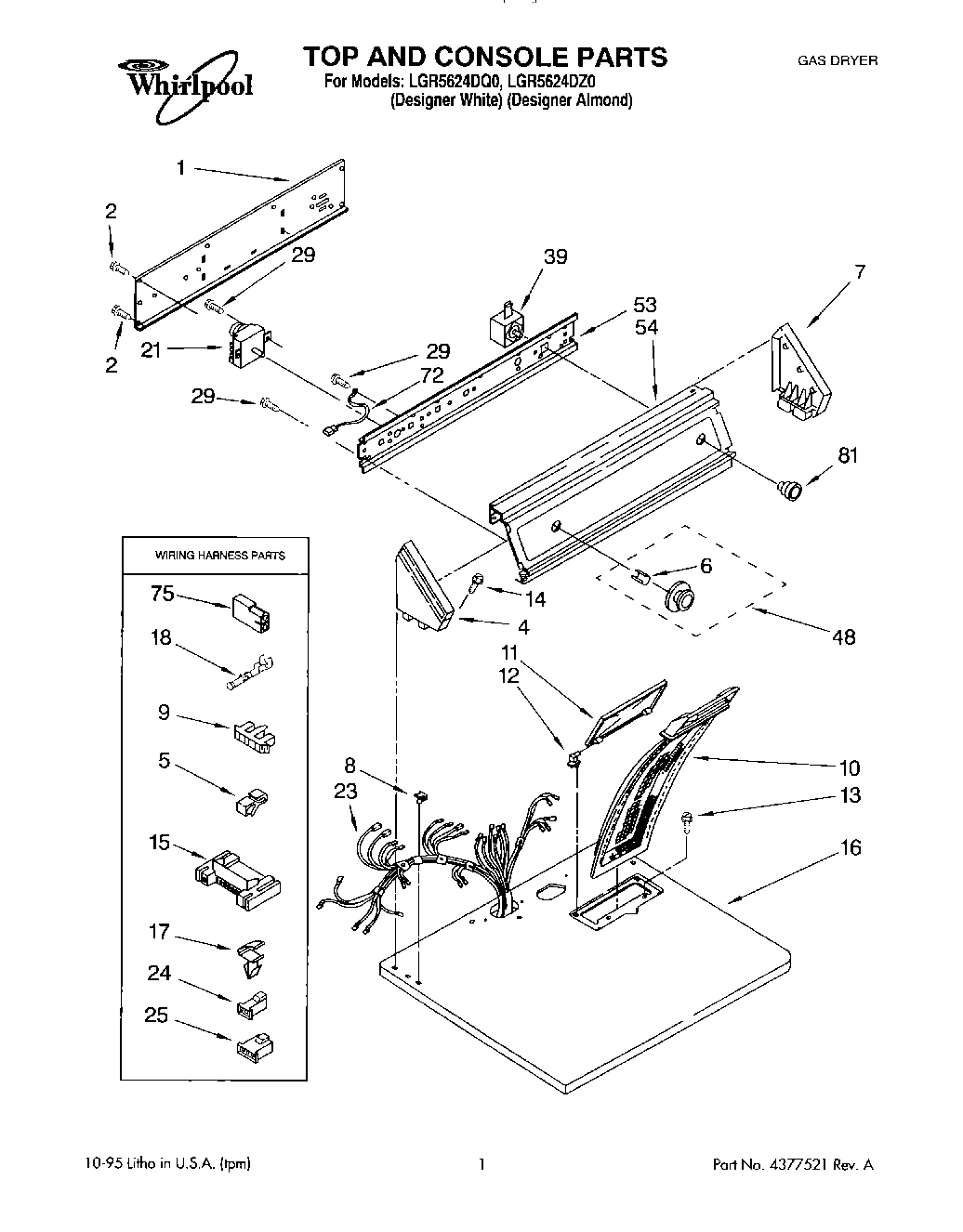

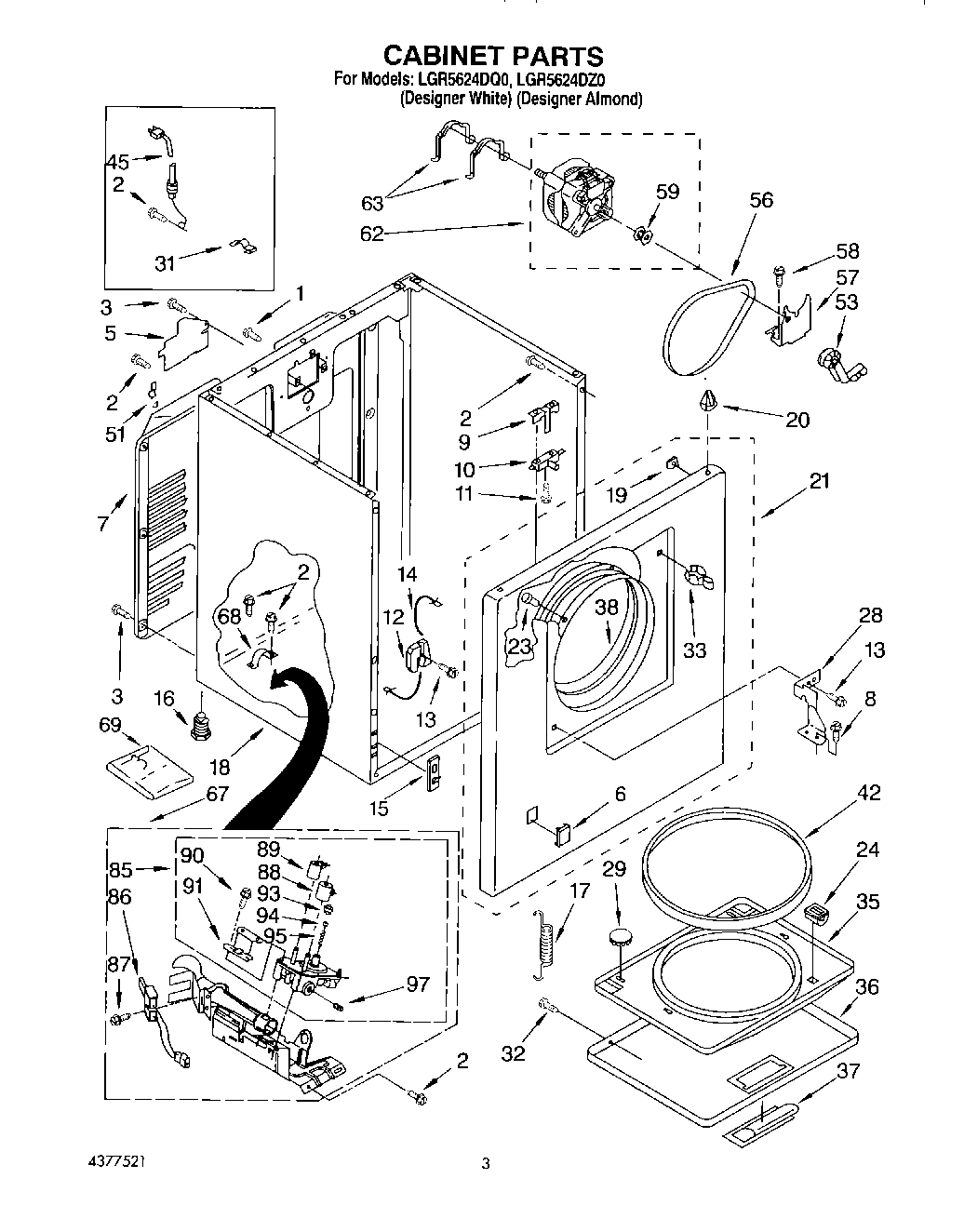

Model Whirlpool LGR5624DZ0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

6

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

6

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

6

Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

7

Panel, Rear WPL 3396807 Contact Us For Availability

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

8

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

Connector, Timer WPL 3397269 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

GUIDE WPL 337182 Contact Us For Availability

Guide, Cable (R.H.) WPL 337183 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

14

Cable, Door (2) WPL 230131 Contact Us For Availability

15

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

Top (White) WPL 3396022 Contact Us For Availability

16

Top (Almond) WPL 3396023 Contact Us For Availability

17

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $4.99

17

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

18

Cabinet (White) WPL 3399580 Contact Us For Availability

18

Cabinet (Almond (Includes Illus. 5, 7, 15, 16 WPL 3399581 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

21

WP3976568 Whirlpool Timer In Stock WPL WP3976568 $229.84

21

Front Panel Assembly (White) WPL 3394890 Contact Us For Availability

21

Front Panel Assembly (Almond) WPL 3394891 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

Harness, Wiring WPL 3401616 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

Nut, Compression WPL 233076 Contact Us For Availability

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

25

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

28

WP238460 Whirlpool Hinge In Stock WPL WP238460 $4.99

28

Hinge, Door (R.H.) WPL 238456 Contact Us For Availability

29

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

35

Door, Rear WPL 695953 Contact Us For Availability

36

Door, Front (White) WPL 348737 Contact Us For Availability

36

Door, Front (Almond) WPL 689485 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $65.89

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

39

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $42.99

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

48

3957753 Whirlpool Knob Backorder WPL 3957753 $43.19

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $37.23

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (White) WPL 3403654 Contact Us For Availability

54

Panel, Control (Almond) WPL 3403670 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

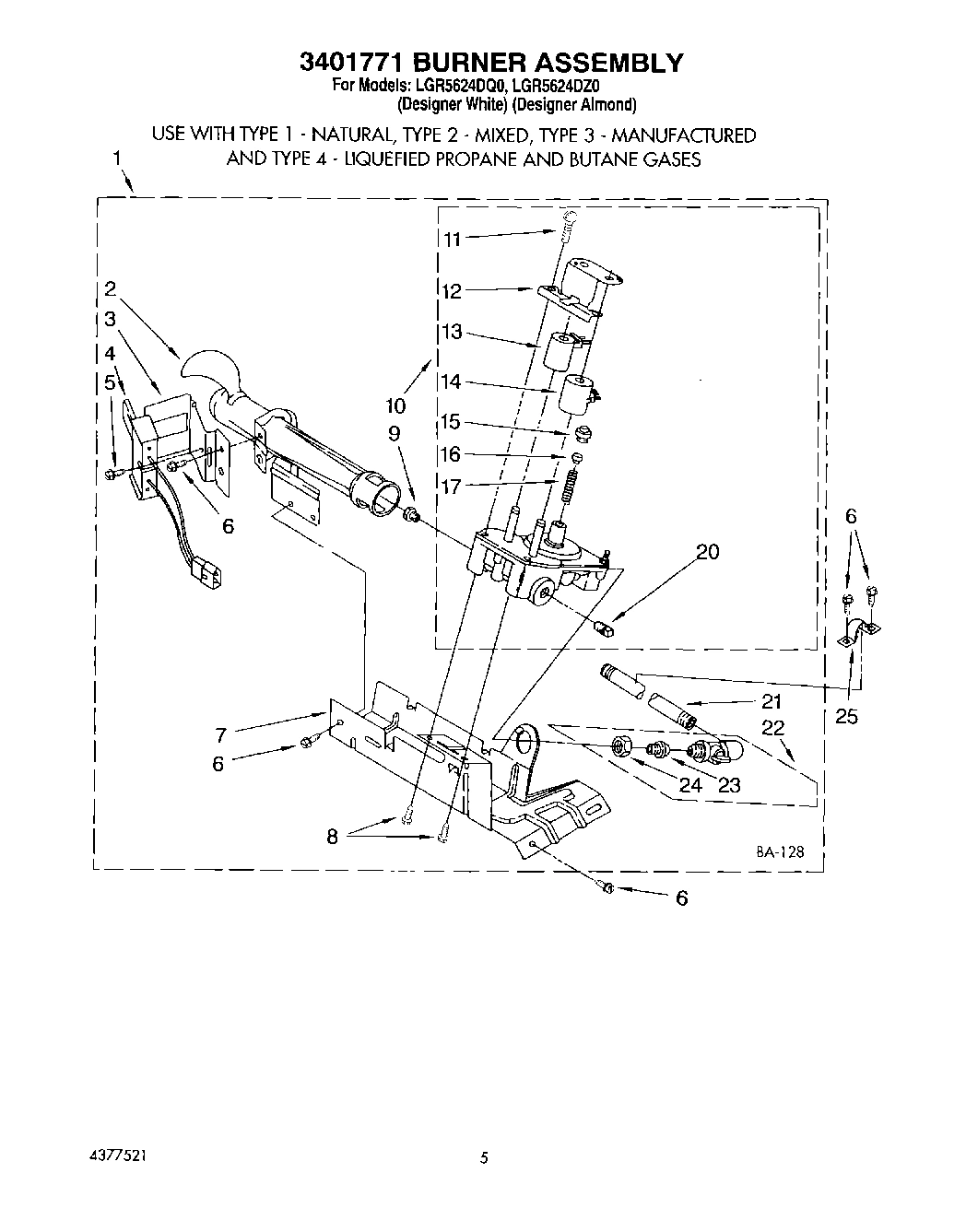

Burner Assembly, 60 Hz. (Refer To Burner Asse WPL 3401771 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

Receptacle, 2 Way WPL 717252 Contact Us For Availability

81

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $48.56

85

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

86

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

87

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

88

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

90

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

91

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

97

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58
