Model Whirlpool LGN3624BW1 GAS DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3395332 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT3396303 Contact Us For Availability
View on Model
Label, Wiring Diagram
Label, Wiring Diagram WPL LIT3399125 Contact Us For Availability
View on Model
Dryer
Dryer WPL LIT677818 Contact Us For Availability
View on Model

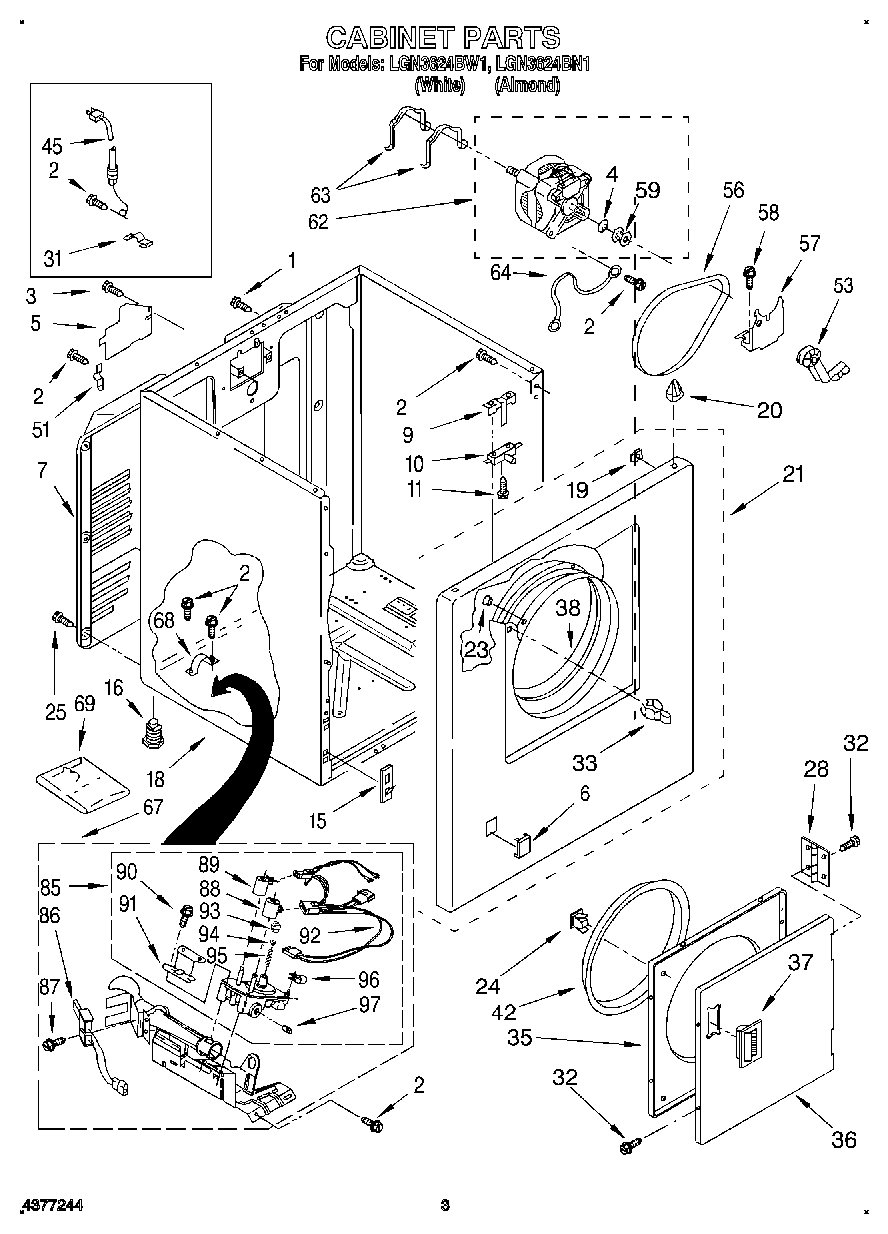

1

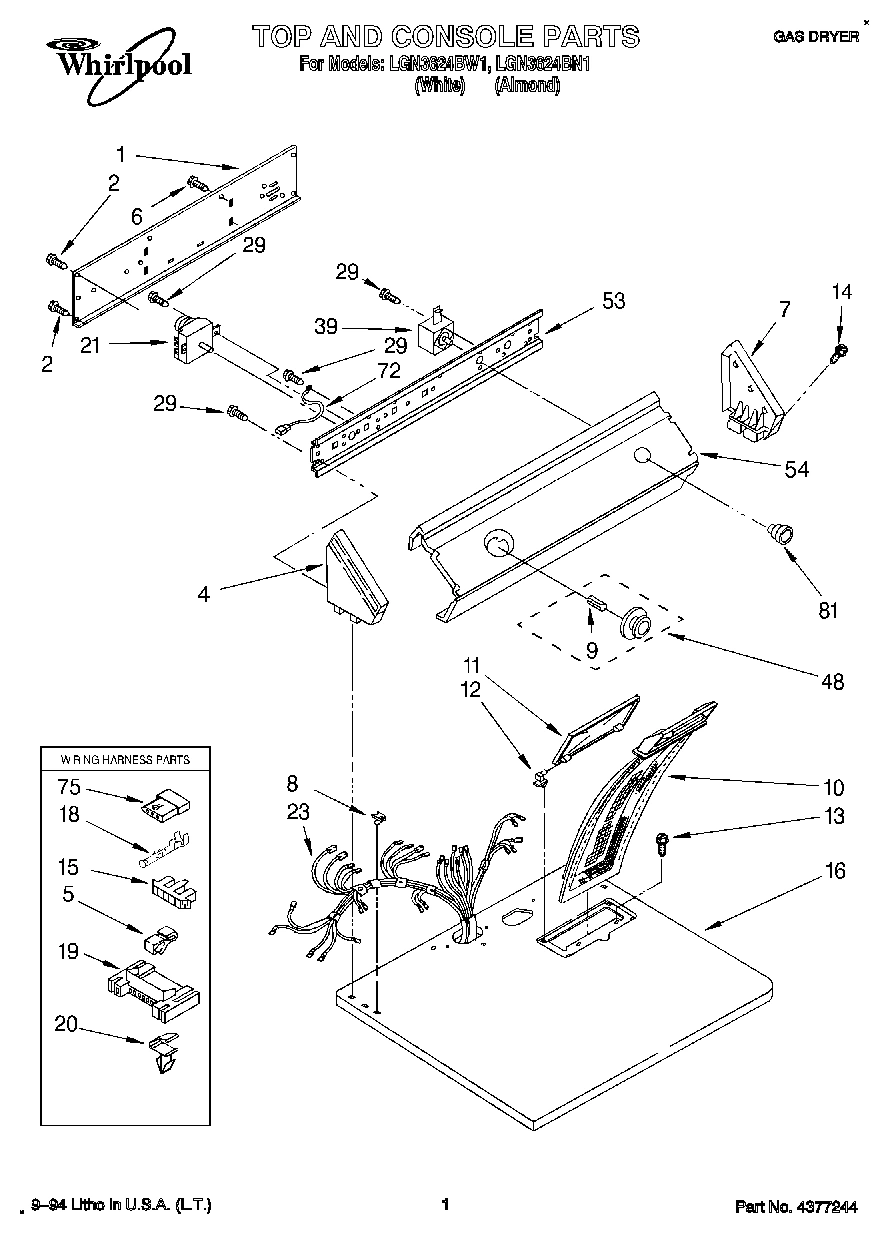

Panel, Rear Console
Panel, Rear Console WPL 3397545 Contact Us For Availability
View on Model
1

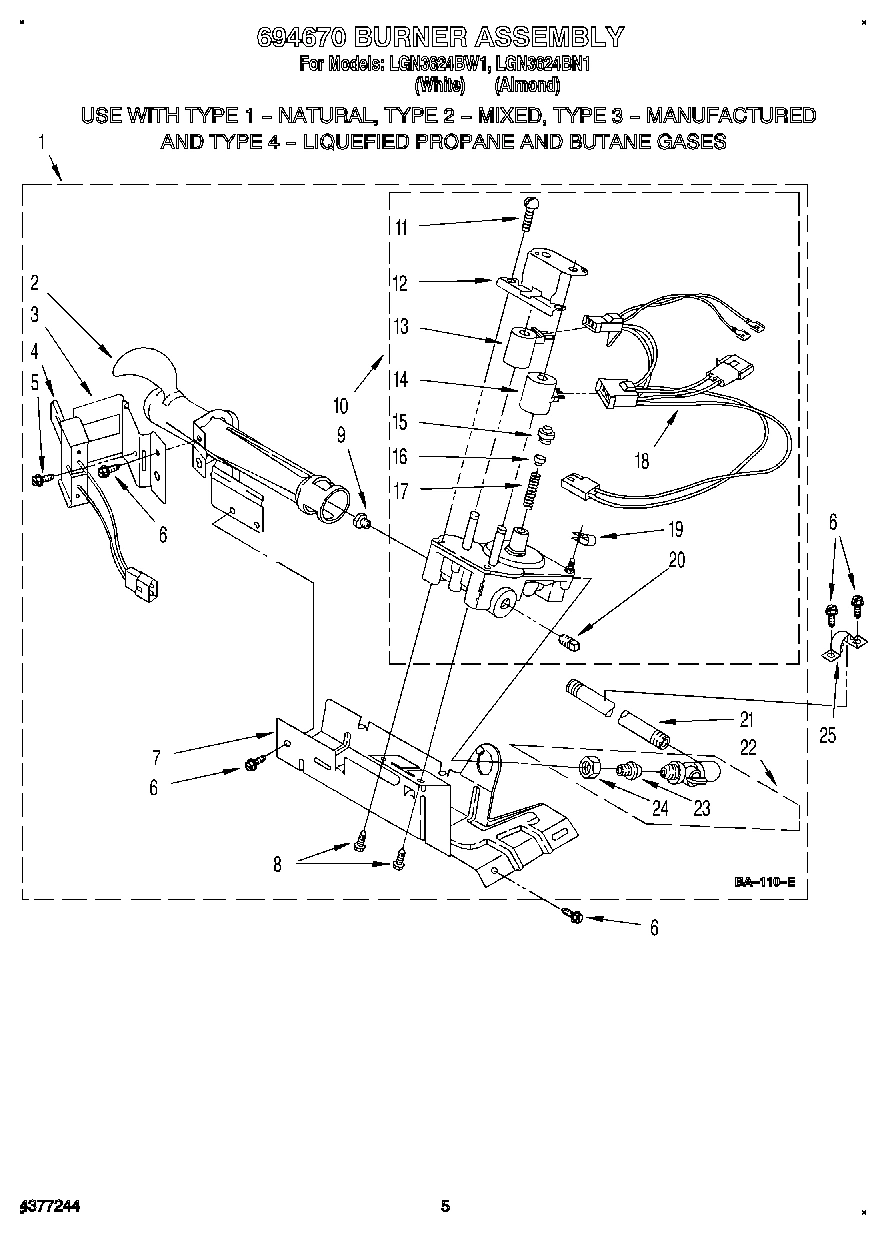

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
View on Model
4
Cap, End (L.H.)
Cap, End (L.H.) WPL 3358533 Contact Us For Availability
View on Model
5
Clip, Retainer
Clip, Retainer WPL 689180 Contact Us For Availability
View on Model
6
Plug, Front Panel (White)
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
View on Model
7
Cap, End (R.H.)
Cap, End (R.H.) WPL 3358518 Contact Us For Availability
View on Model
7
Base, Burner
Base, Burner WPL 693986 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
15
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3396022 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3396023 Contact Us For Availability
View on Model
19
Clip, Harness
Clip, Harness WPL 694510 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
View on Model
23
Harness, Wiring
Harness, Wiring WPL 3399654 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 689308 Contact Us For Availability
View on Model
39
(Alt.)
(Alt.) WPL 346364 Contact Us For Availability
View on Model
39
(Alt.)
(Alt.) WPL 692021 Contact Us For Availability
View on Model
48

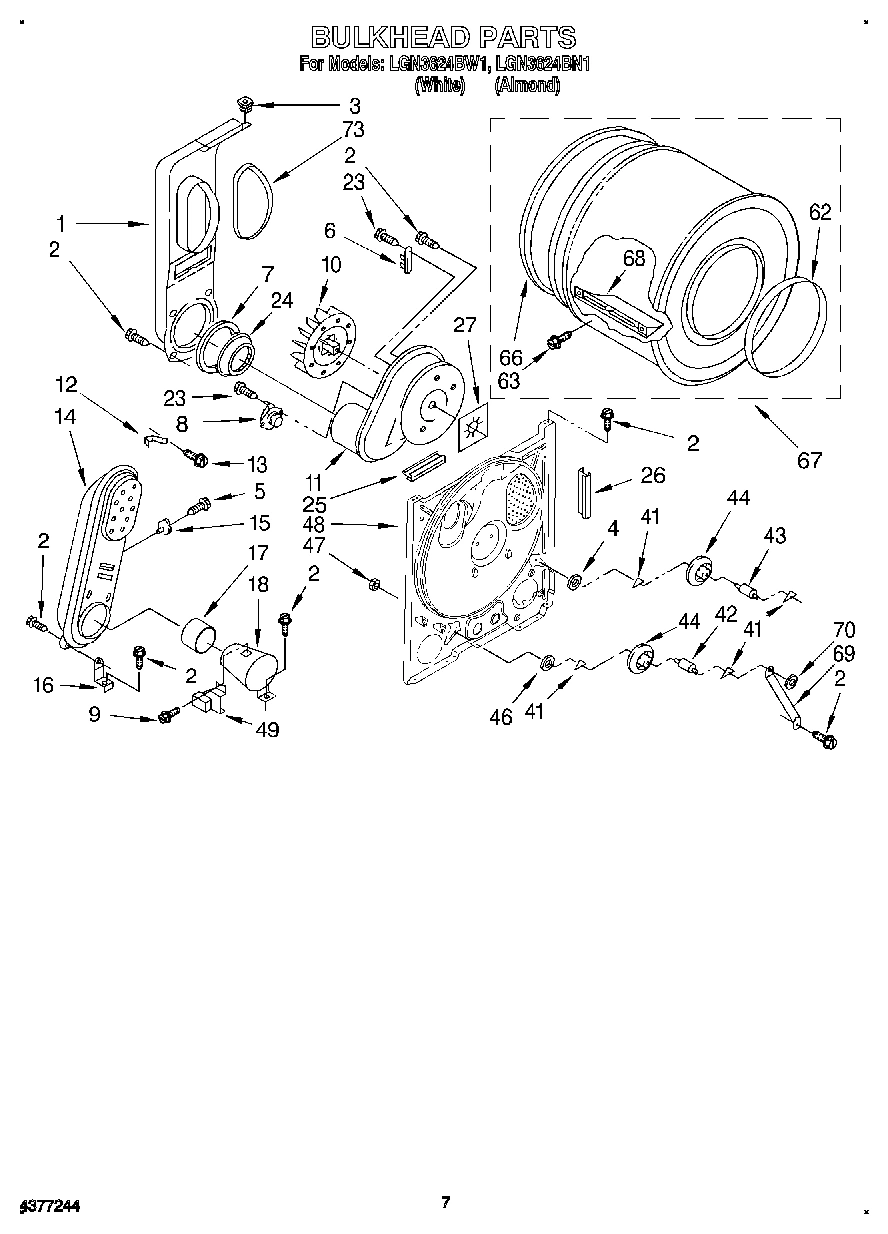

Bulkhead
Bulkhead WPL 3397264 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396293 Contact Us For Availability
View on Model
54
Panel, Control
Panel, Control WPL 3397189 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, Latching (3-Way) (Uses Terminal 9
Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability
View on Model
81
Knob, Push To Start
Knob, Push To Start WPL 3396160 Contact Us For Availability
View on Model
