Model Whirlpool LG9806XPW0 GAS DRYER – Common Parts & Diagrams

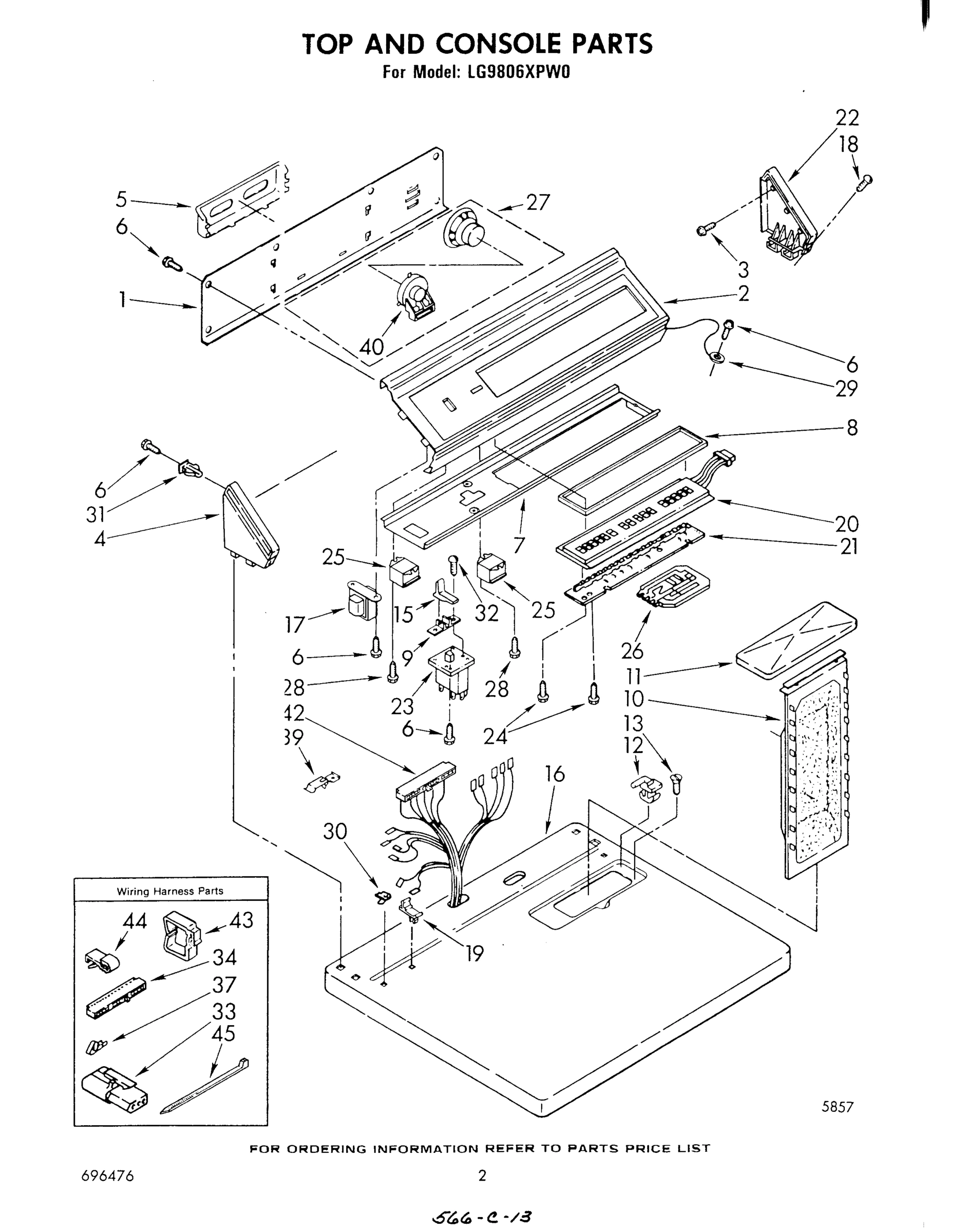

02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL

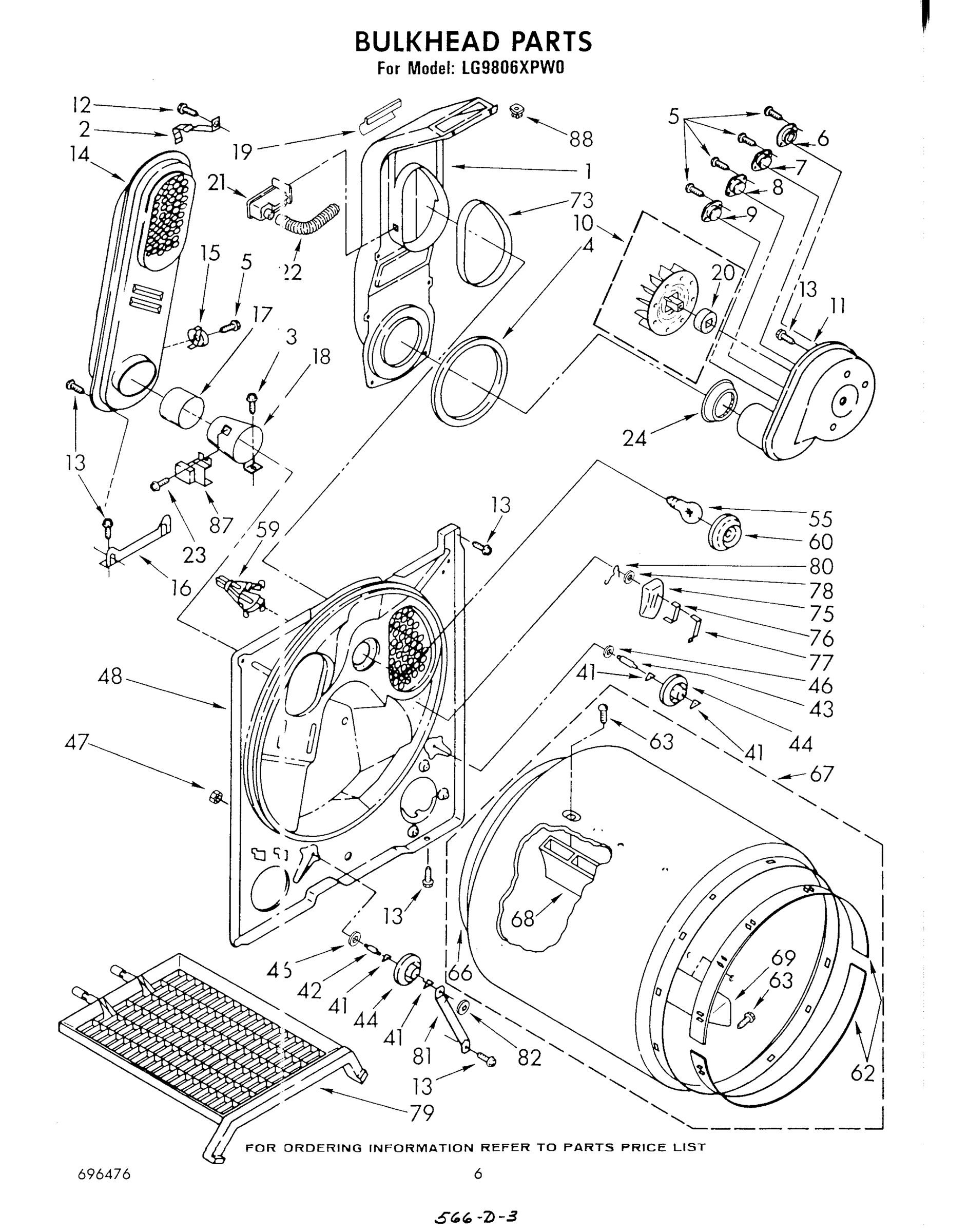

04 - BULKHEAD

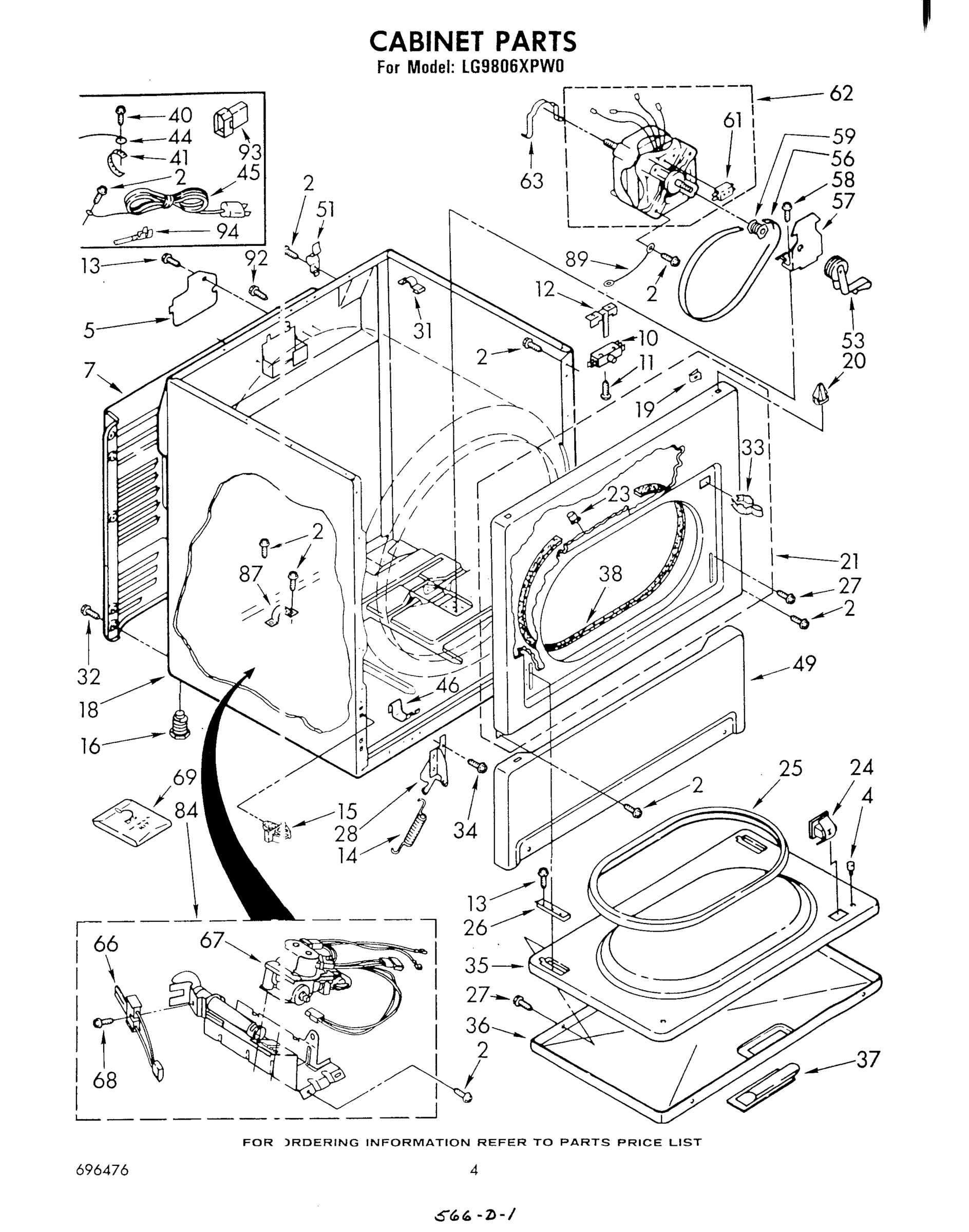

03 - CABINET

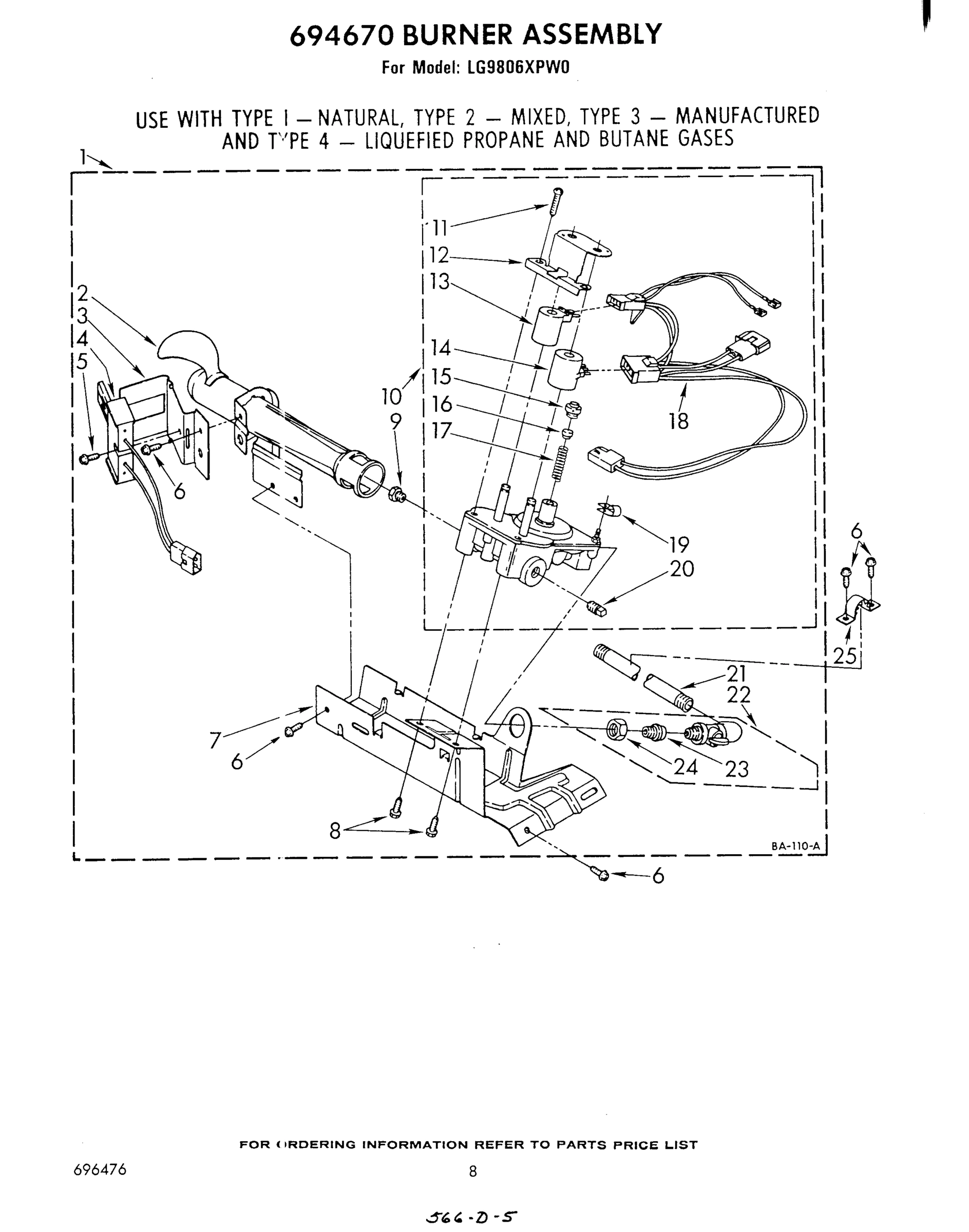

05 - 694670 BURNER
Common parts from model Whirlpool LG9806XPW0 GAS DRYER
1
Lint Chute Assembly WPL 686214 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
7
Panel, Rear WPL 348364 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
9
Thermostat, Operating 140~F (60~C) WPL 690031 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
10
Switch, Door WPL 691361 Contact Us For Availability
11
Housing, Blower WPL 348493 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 696232 Contact Us For Availability
16
Support, Heater Box WPL 348484 Contact Us For Availability
18
Cabinet (White) WPL 690841 Contact Us For Availability
18
Cabinet (Almond) WPL 690842 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability
18
cabinet (toast) WPL 694876 Contact Us For Availability
18
Cabinet (Platinum) WPL 694877 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
20
Seal, Blower WPL 694630 Contact Us For Availability
21
Alert, Lint WPL 690981 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 695631 Contact Us For Availability
21
Upper Front Panel (Golden Harvest) WPL 695632 Contact Us For Availability
21
Upper Front Panel (Toast) WPL 695633 Contact Us For Availability
21
Upper Front Panel (Platinum) WPL 695634 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
22
Hose, Differential WPL 686577 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
27
Speaker & Housing WPL 359201 Contact Us For Availability
28
Screw, 6-20 X 1/2 WPL 339583 Contact Us For Availability
29
Wire, Ground WPL 690853 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
31
Nut, Push-On (4) WPL 689559 Contact Us For Availability
33
Receptacle, Latching (3-Way) WPL 691707 Contact Us For Availability
34
Connector, 15 Circuit (Uses 60279 Terminal) WPL 60278 Contact Us For Availability
36
Door, Front (Almond) WPL 692319 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability
36
door, front (toast) WPL 695130 Contact Us For Availability
36
Door, Front (Platinum) WPL 695131 Contact Us For Availability
37
Terminal WPL 60279 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability
37
Handle, Door (Toast) WPL 695016 Contact Us For Availability
37
Handle, Door (Platinum) WPL 695017 Contact Us For Availability
39
Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability
40
Housing, Speaker WPL 359188 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
42
Harness, Wiring WPL 695381 Contact Us For Availability
43
Clip, Harness Retainer (Bulkhead Rear Area) WPL 688412 Contact Us For Availability
44
Clip, Harness Retainer (Door Switch) WPL 689180 Contact Us For Availability
44
Wire, Ground WPL 364089 Contact Us For Availability
45
WPL 799344 WPL 799344 Contact Us For Availability
45
Golden Harvest WPL 261890 Contact Us For Availability
45
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
45
Toast WPL 285365 Contact Us For Availability
45
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
45
Enamal, Toast (1 Q WPL 285367 Contact Us For Availability
45
WPL 285368 WPL 285368 Contact Us For Availability
45
WPL 350941 WPL 350941 Contact Us For Availability
45
WPL 72112 WPL 72112 Contact Us For Availability
45
WPL 978883 WPL 978883 Contact Us For Availability
45
WPL LIT691455 WPL LIT691455 Contact Us For Availability
45
WPL LIT693849 WPL LIT693849 Contact Us For Availability
45
WPL LIT694125 WPL LIT694125 Contact Us For Availability
45
WPL LIT696211 WPL LIT696211 Contact Us For Availability
45
WPL LIT696476 WPL LIT696476 Contact Us For Availability
48
BULKHEAD WPL 685821 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 692431 Contact Us For Availability
49
Pan WPL 695142 Contact Us For Availability
49
WPL 695143 WPL 695143 Contact Us For Availability
59
Socket Assembly WPL 691034 Contact Us For Availability
60
Lens, Drum Light WPL 341165 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
79
Dry Rack Assembly WPL 692990 Contact Us For Availability
89
WPL 690236 WPL 690236 Contact Us For Availability
93
WPL 353425 WPL 353425 Contact Us For Availability
× ![]()
