Model Whirlpool LG9801XPW0 GAS DRYER – Common Parts & Diagrams

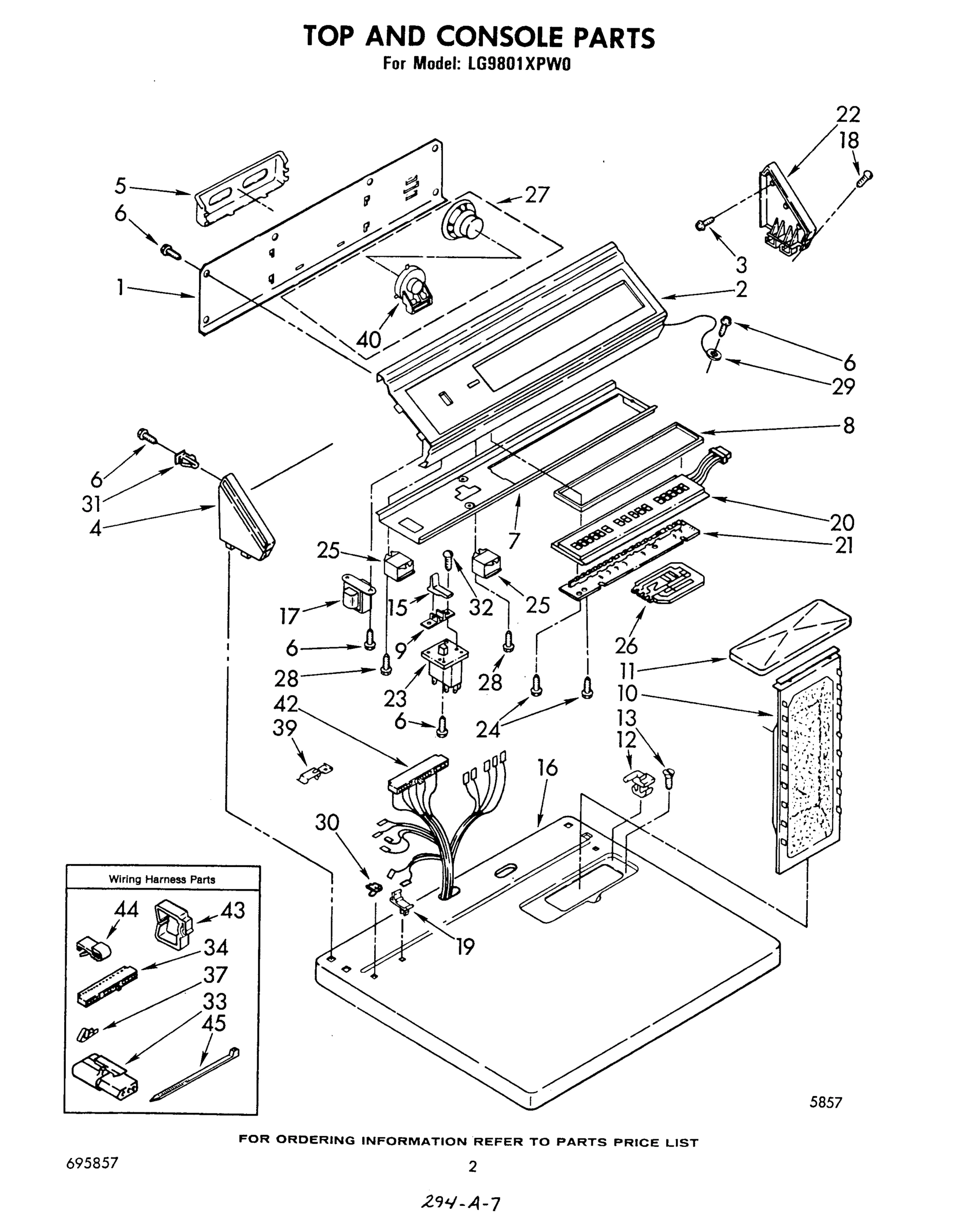

02 - TOP AND CONSOLE, LITERATURE AND OPTIONAL

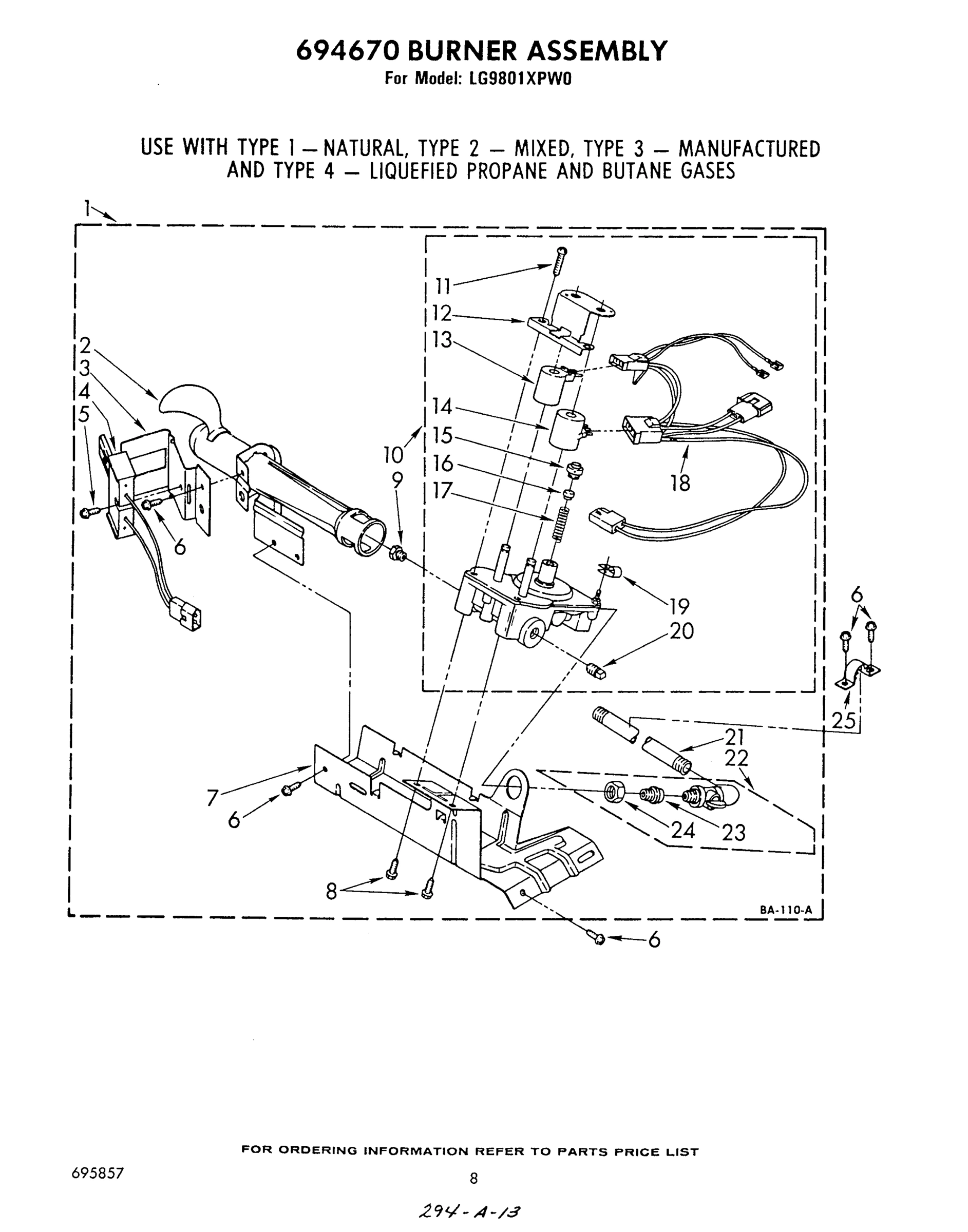

05 - 694670 BURNER

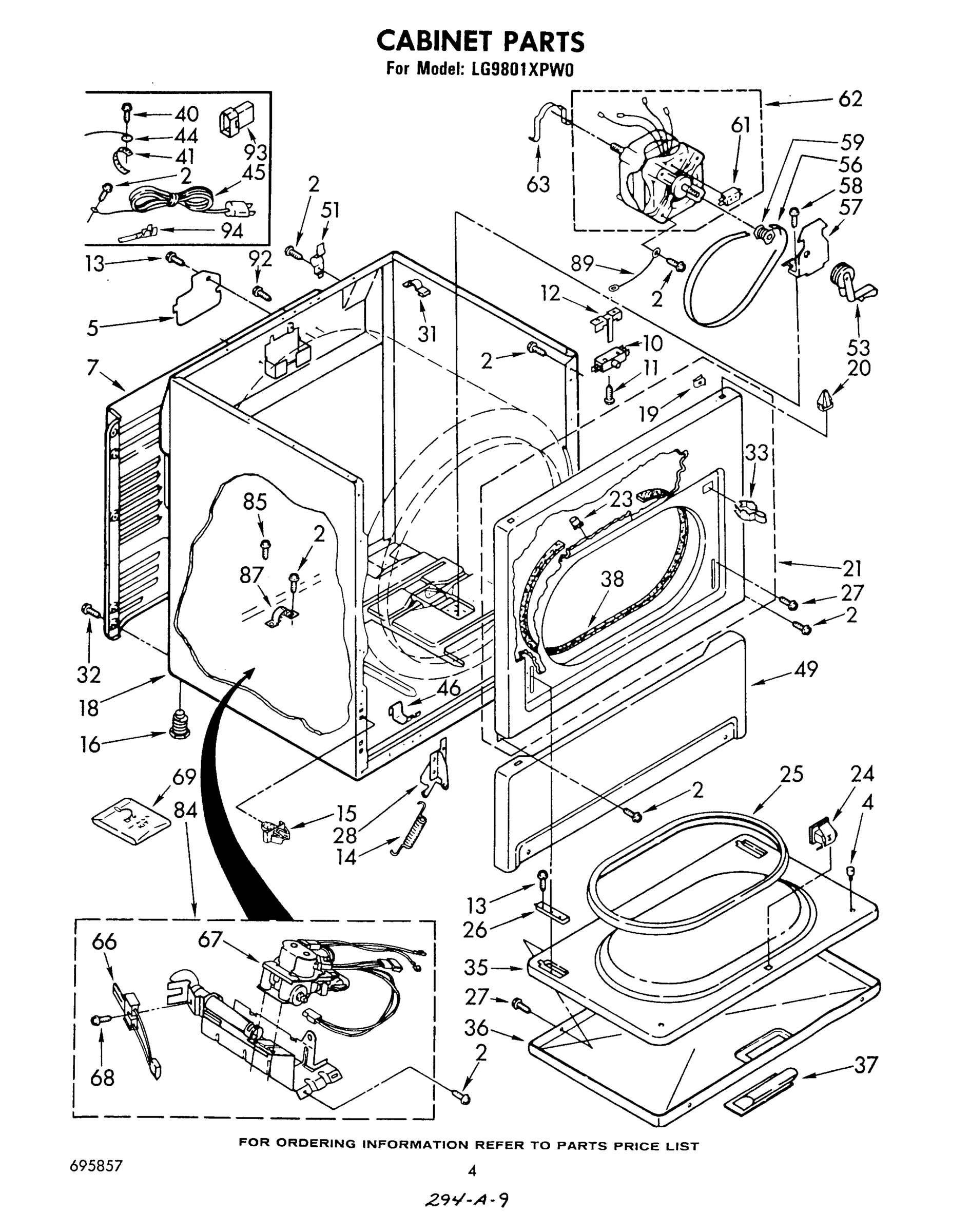

03 - CABINET

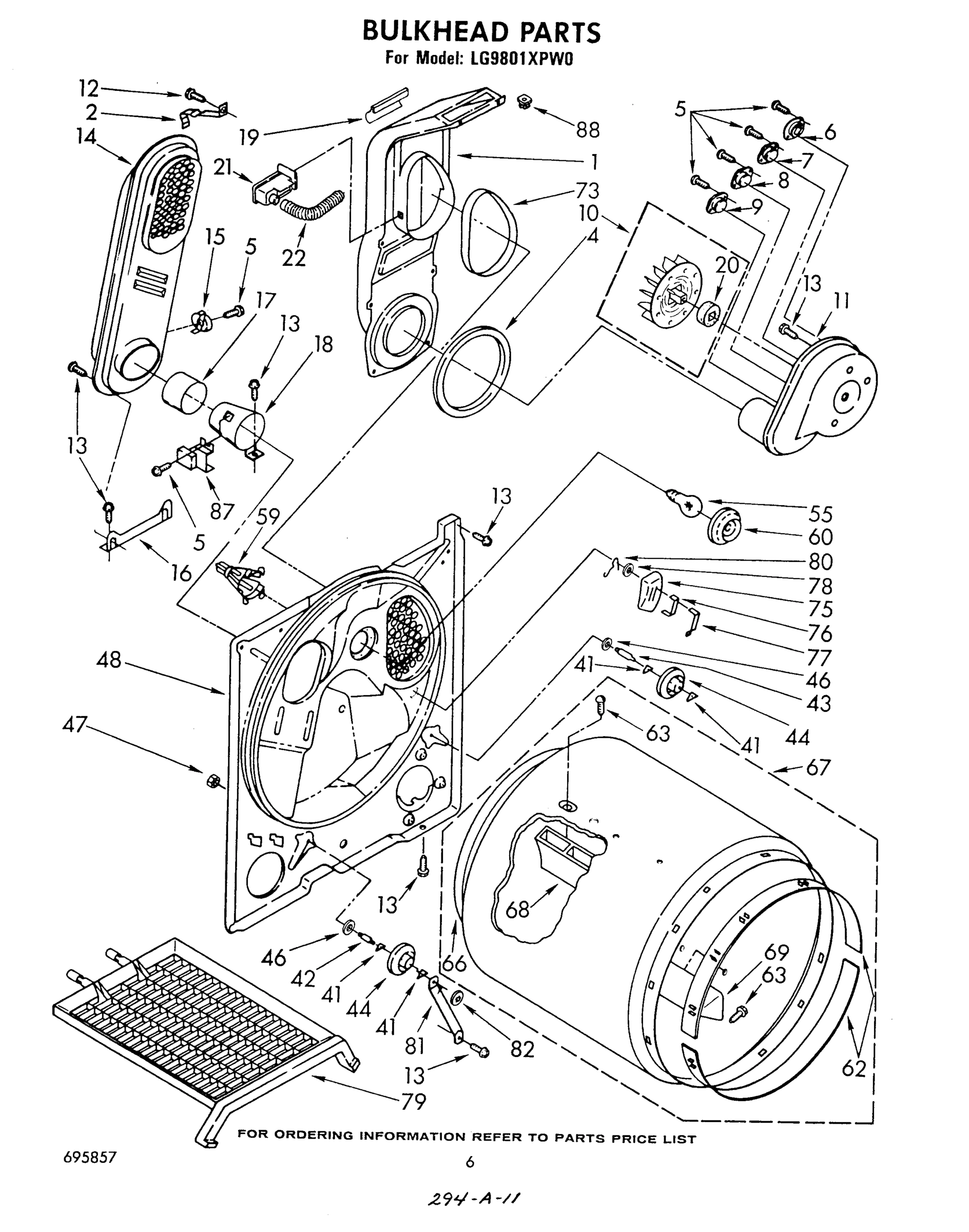

04 - BULKHEAD
Common parts from model Whirlpool LG9801XPW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Lint Chute Assembly WPL 686214 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
7
Panel, Rear WPL 348364 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
9
Thermostat, Operating 140~F (60~C) WPL 690031 Contact Us For Availability
10
Switch, Door WPL 691361 Contact Us For Availability
11
Housing, Blower WPL 348493 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability
16
Support, Heater Box WPL 348484 Contact Us For Availability
18
Cabinet (White) WPL 690841 Contact Us For Availability
18
Cabinet (Almond) WPL 690842 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability
18
cabinet (toast) WPL 694876 Contact Us For Availability
18
Cabinet (Platinum) WPL 694877 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
20
Seal, Blower WPL 694630 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 692436 Contact Us For Availability
21
Upper Front Panel (Golden Harvest) WPL 692439 Contact Us For Availability
21
Upper Front Panel (Toast) WPL 692454 Contact Us For Availability
21
Upper Front Panel (Platinum) WPL 692455 Contact Us For Availability
21
Alert, Lint WPL 690981 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
22
Hose, Differential WPL 686577 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
26
Microcomputer Assembly WPL 61203 Contact Us For Availability
27
Speaker & Housing WPL 359201 Contact Us For Availability
28
Screw, 6-20 X 1/2 WPL 339583 Contact Us For Availability
29
Wire, Ground WPL 690853 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
31
Nut, Push-On (4) WPL 689559 Contact Us For Availability
33
Receptacle, Latching (3-Way) WPL 691707 Contact Us For Availability
34
Connector, 15 Circuit (Uses 60279 Terminal) WPL 60278 Contact Us For Availability
36
Door, Front (Almond) WPL 692319 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability
36
door, front (toast) WPL 695130 Contact Us For Availability
36
Door, Front (Platinum) WPL 695131 Contact Us For Availability
37
Terminal WPL 60279 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability
37
Handle, Door (Toast) WPL 695016 Contact Us For Availability
37
Handle, Door (Platinum) WPL 695017 Contact Us For Availability
39
Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability
40
Housing, Speaker WPL 359188 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
42
Harness, Wiring WPL 695381 Contact Us For Availability
43
Clip, Harness Retainer (Bulkhead Rear Area) WPL 688412 Contact Us For Availability
44
Clip, Harness Retainer (Door Switch) WPL 689180 Contact Us For Availability
44
Wire, Ground WPL 364089 Contact Us For Availability
45
Golden Harvest WPL 261890 Contact Us For Availability
45
Toast WPL 285365 Contact Us For Availability
45
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
45
WPL 350941 WPL 350941 Contact Us For Availability
45
WPL 677813 WPL 677813 Contact Us For Availability
45
WPL 677818 WPL 677818 Contact Us For Availability
45
WPL 677821 WPL 677821 Contact Us For Availability
45
WPL 677967 WPL 677967 Contact Us For Availability
45
WPL 693686 WPL 693686 Contact Us For Availability
45
WPL 693849 WPL 693849 Contact Us For Availability
45
WPL 694125 WPL 694125 Contact Us For Availability
45
WPL 695857 WPL 695857 Contact Us For Availability
45
WPL 696233 WPL 696233 Contact Us For Availability
45
WPL 72112 WPL 72112 Contact Us For Availability
45
WPL 799351 WPL 799351 Contact Us For Availability
48
Bulkhead WPL 685817 Contact Us For Availability
49
WPL 692427 WPL 692427 Contact Us For Availability
49
WPL 692428 WPL 692428 Contact Us For Availability
49
WPL 692431 WPL 692431 Contact Us For Availability
49
WPL 695142 WPL 695142 Contact Us For Availability
49
WPL 695143 WPL 695143 Contact Us For Availability
59
Socket Assembly WPL 691034 Contact Us For Availability
60
Lens, Drum Light WPL 341165 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Drum Assembly WPL 692492 Contact Us For Availability
69
WPL 279243 WPL 279243 Contact Us For Availability
79
Dry Rack Assembly WPL 692990 Contact Us For Availability
84
WPL 694670 WPL 694670 Contact Us For Availability
85
WPL 343826 WPL 343826 Contact Us For Availability
89
WPL 690236 WPL 690236 Contact Us For Availability
93
WPL 353425 WPL 353425 Contact Us For Availability
× ![]()
