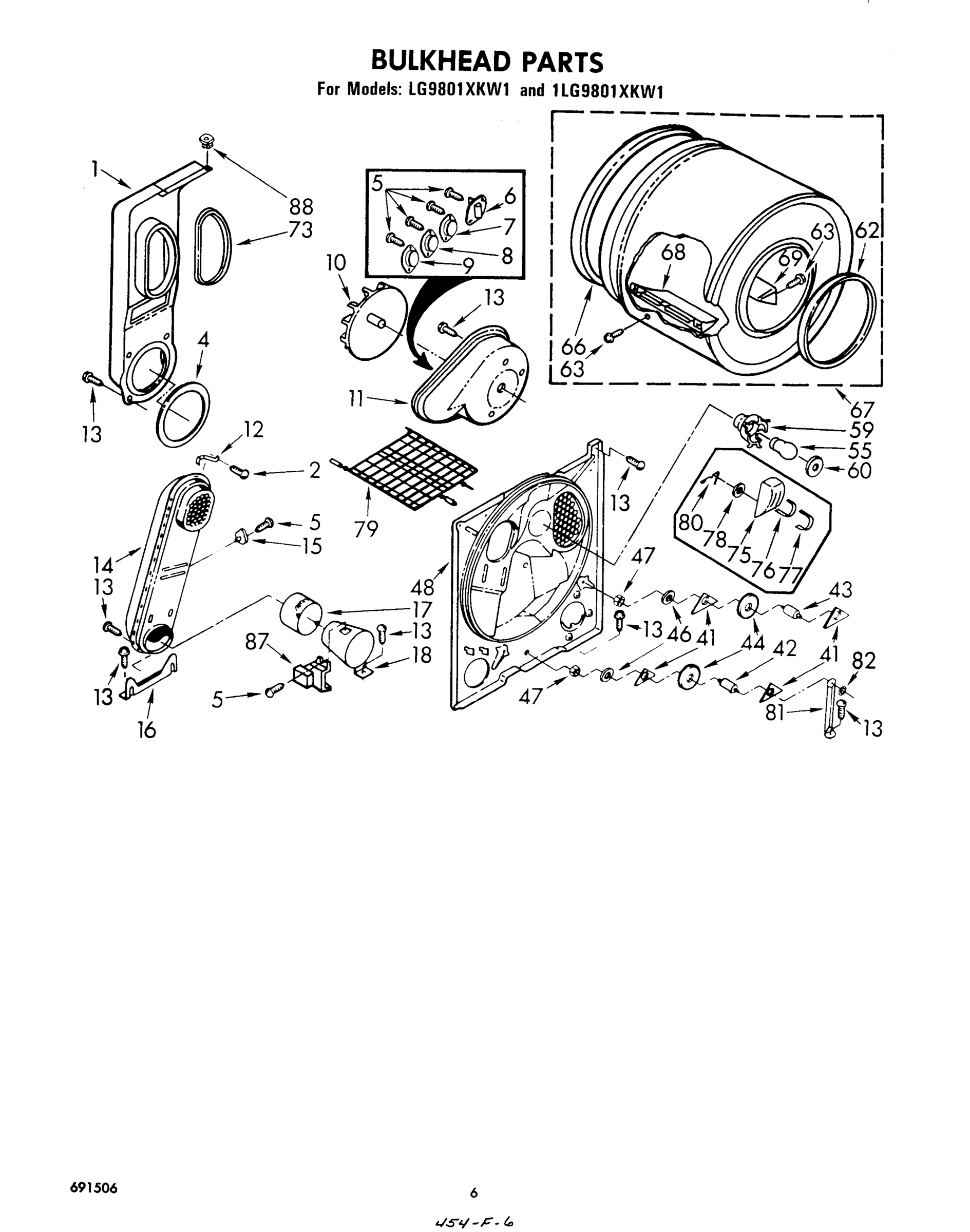

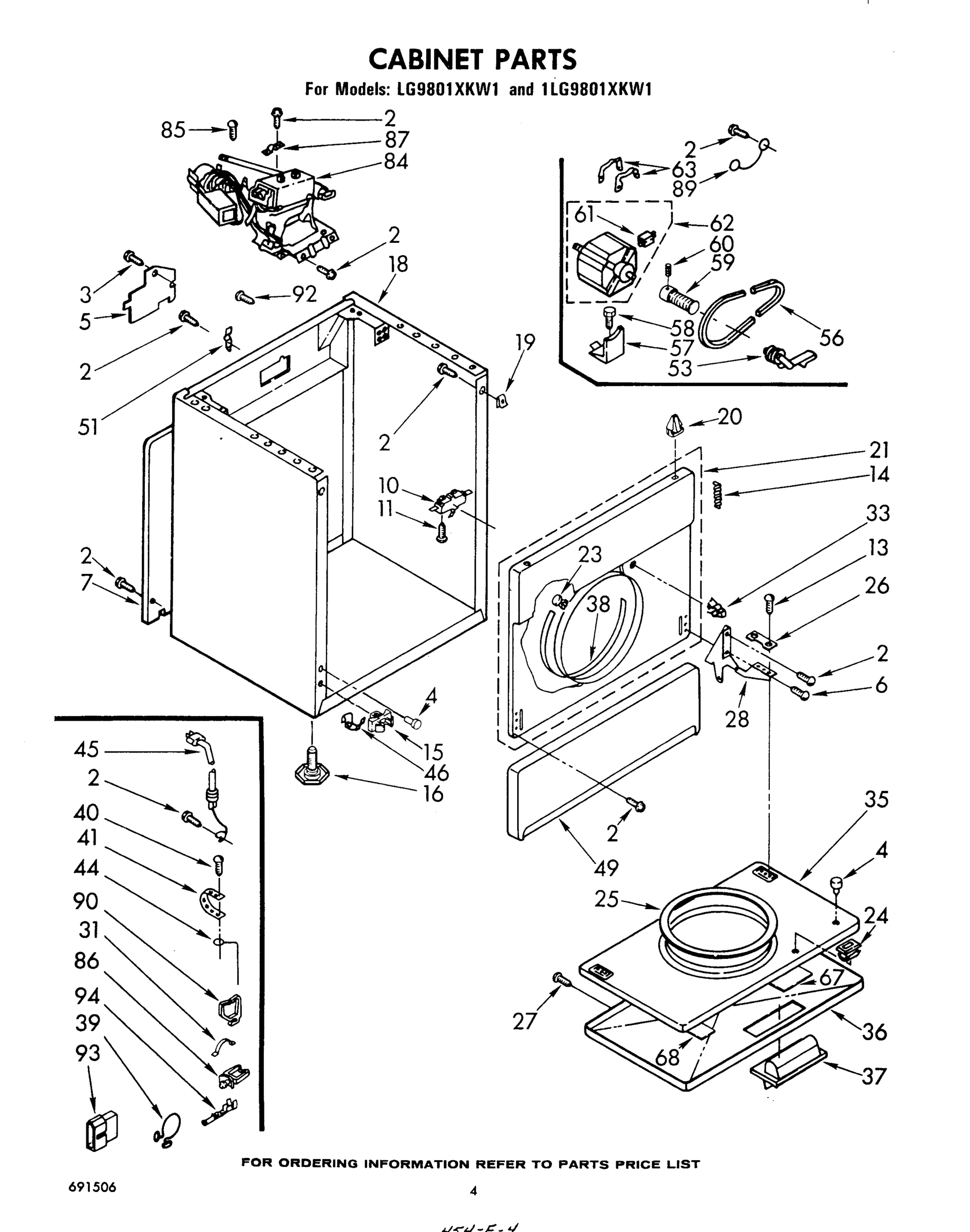

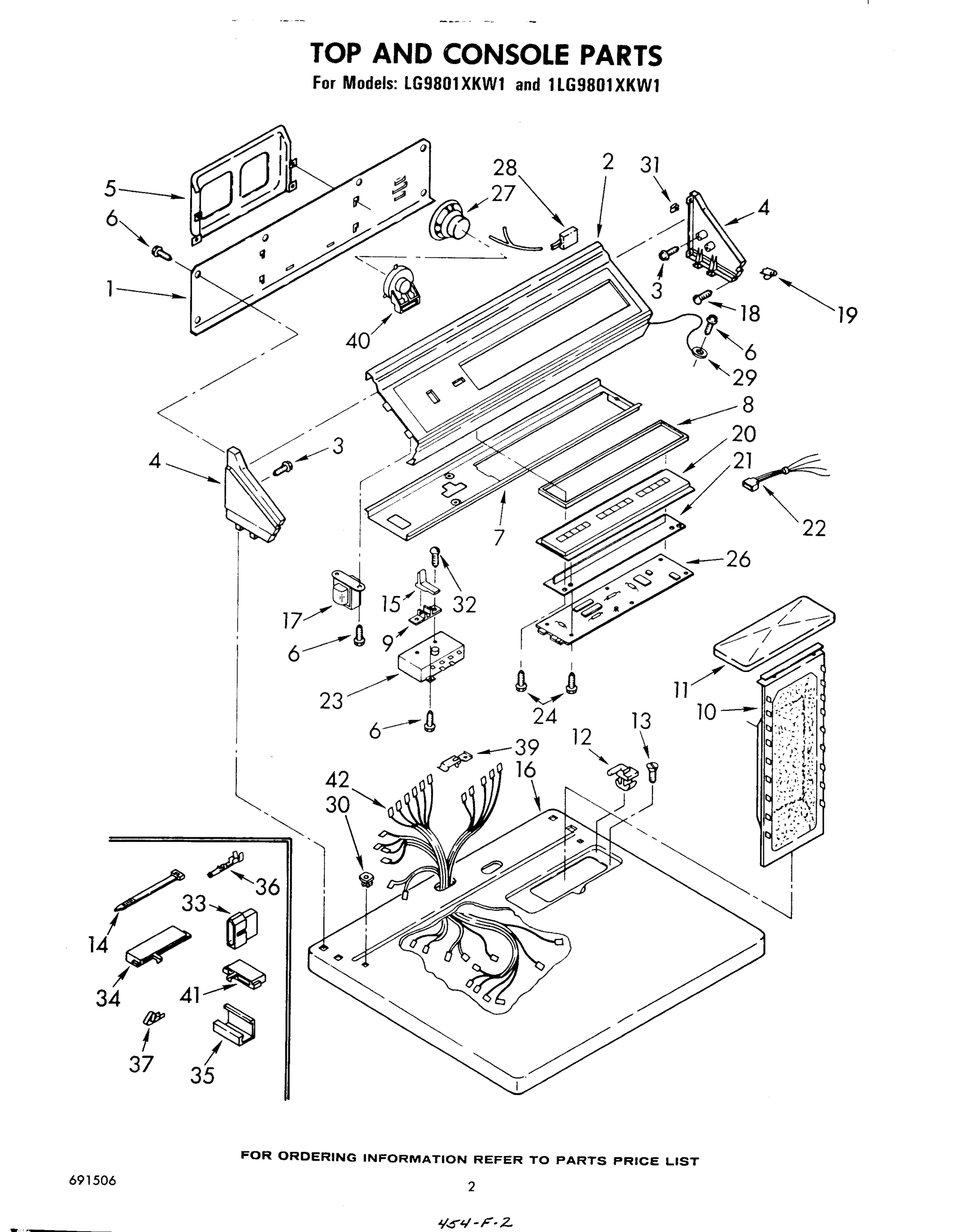

Model Whirlpool LG9801XKW1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $103.74

1

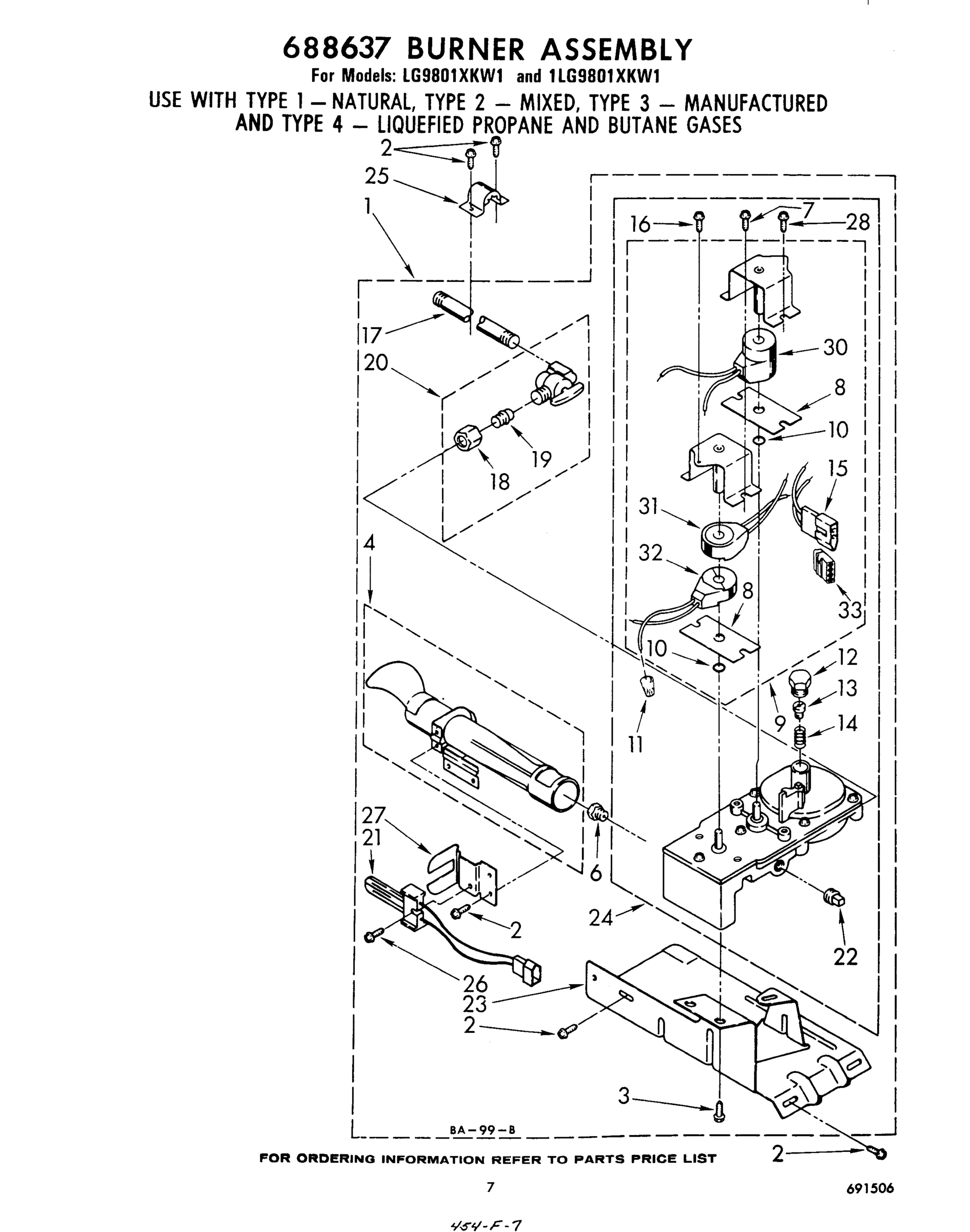

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability

1

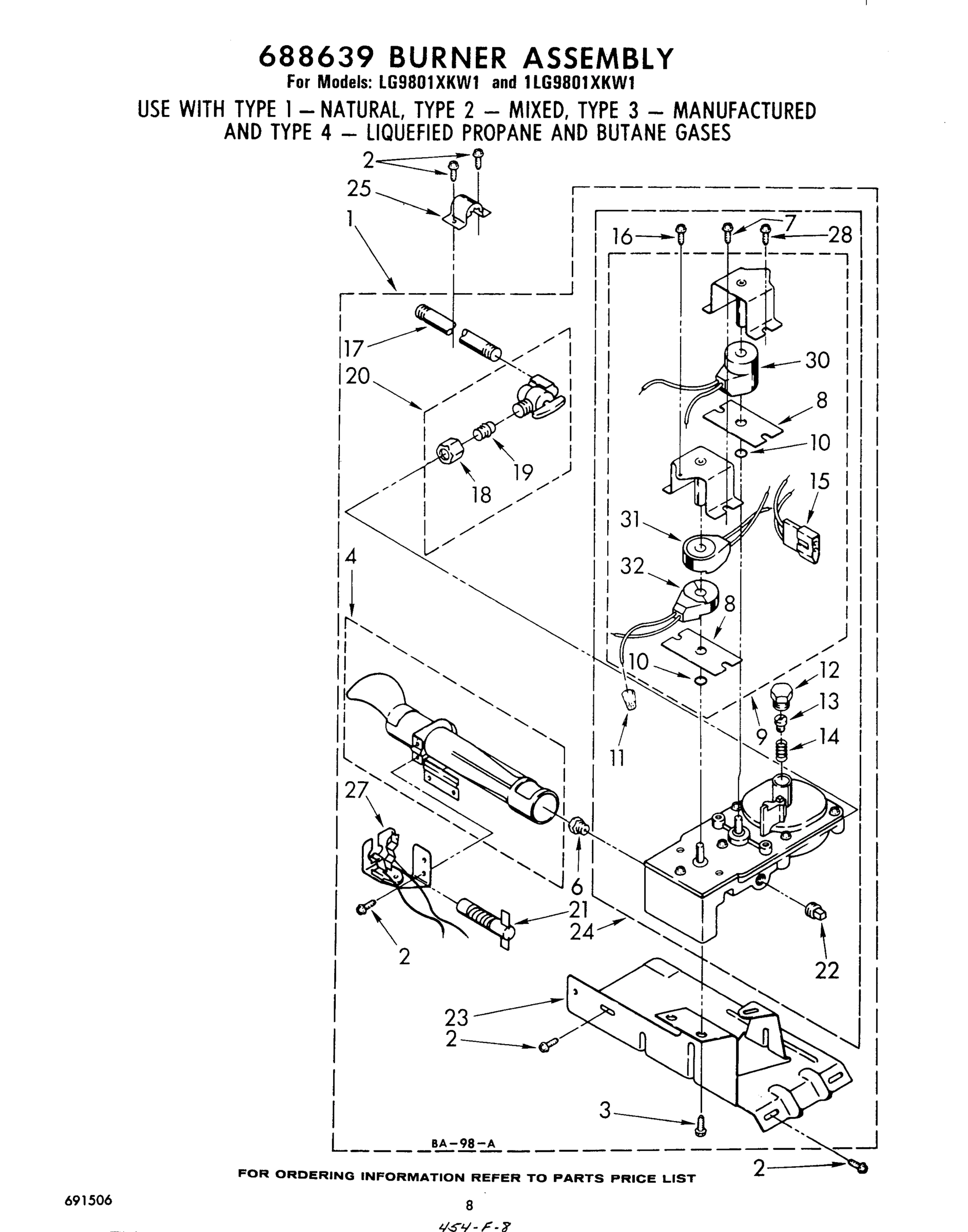

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $11.99

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

7

Panel, Rear WPL 348364 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

9

Operating Thermostat, 140~F (60~C) WPL 690031 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $30.54

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

11

Connector, Wire (3) WPL 340140 Contact Us For Availability

11

Housing, Blower WPL 348493 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

12

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

14

Spring, Door (2) WPL 237979 Contact Us For Availability

14

Spring, Regulator WPL 339226 Contact Us For Availability

High Limit Thermostat, 205~F (96~C) (Alternat WPL 341196 Contact Us For Availability

Lever WPL 358564 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

High Limit Thermostat, 205~F (96~C) (Alternat WPL 338471 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Coffee) WPL 689450 Contact Us For Availability

Top (New Avocado) WPL 689451 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

Support, Heater Box WPL 348484 Contact Us For Availability

17

Transformer WPL 60411 Contact Us For Availability

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

Nut, Compression WPL 233076 Contact Us For Availability

Screw, 8-18 (2) WPL 358225 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Coffee) WPL 690843 Contact Us For Availability

Cabinet (New Avocado) WPL 690844 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Stop, Push-In (2) WPL 358472 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

20

Module, Touch WPL 691821 Contact Us For Availability

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

Display Assembly WPL 60659 Contact Us For Availability

Upper Front Panel Assembly (White) WPL 337969 Contact Us For Availability

Upper Front Panel Assembly (Almond) WPL 689334 Contact Us For Availability

Panel Assembly, Upper Front (Coffee) WPL 689335 Contact Us For Availability

Upper Front Panel Assembly (New Avocado) WPL 689336 Contact Us For Availability

Upper Front Panel Assembly (Golden Harvest) WPL 689337 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

22

Harness, Display WPL 690092 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

Relay, Push-To-Start WPL 690105 Contact Us For Availability

23

Baseplate WPL 338455 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

Screw, 8-18 x 1/2 (6) WPL 690756 Contact Us For Availability

BURNER-GAS WPL 688631 Contact Us For Availability

Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

25

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $77.54

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

26

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

26

Microcomputer Assembly WPL 60854 Contact Us For Availability

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

27

Speaker WPL 60336 Contact Us For Availability

27

Screw, 6-18 x 1/2 WPL 689791 Contact Us For Availability

Hinge, R.H. WPL 687905 Contact Us For Availability

Speaker, Harness WPL 328158 Contact Us For Availability

Hinge, L.H. WPL 687906 Contact Us For Availability

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

31

Nut, WPL 689559 Contact Us For Availability

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $77.69

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

33

WPL 342529 WPL 342529 Contact Us For Availability

33

Receptacle, 2 Way WPL 717252 Contact Us For Availability

34

WPL 60447 WPL 60447 Contact Us For Availability

WPL 60719 WPL 60719 Contact Us For Availability

Door, Rear (White) WPL 346370 Contact Us For Availability

Door, Rear (Almond) WPL 689258 Contact Us For Availability

Door, Rear (Coffee) WPL 689259 Contact Us For Availability

Door, Rear (New Avocado) WPL 689260 Contact Us For Availability

Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (Coffee) WPL 689331 Contact Us For Availability

Door, Front (New Avocado) WPL 689332 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $65.89

WPL 60279 WPL 60279 Contact Us For Availability

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Coffee) WPL 690267 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

39

WPL 357144 WPL 357144 Contact Us For Availability

39

Clamp, Harness WPL 690987 Contact Us For Availability

40

WPL 359188 WPL 359188 Contact Us For Availability

40

WPL 132848 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

41

WPL 60671 WPL 60671 Contact Us For Availability

41

WPL 22965 WPL 22965 Contact Us For Availability

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

42

WPL 690073 WPL 690073 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

44

WPL 364089 WPL 364089 Contact Us For Availability

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

Bulkhead WPL 685817 Contact Us For Availability

WPL 337833 WPL 337833 Contact Us For Availability

WPL 689246 WPL 689246 Contact Us For Availability

WPL 689247 WPL 689247 Contact Us For Availability

WPL 689248 WPL 689248 Contact Us For Availability

WPL 689249 WPL 689249 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WPL 348946 WPL 348946 Contact Us For Availability

59

Socket Assembly WPL 691034 Contact Us For Availability

60

WPL 690046 WPL 690046 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $80.86

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $30.60

67

WPL 691207 WPL 691207 Contact Us For Availability

67

Drum Assembly WPL 347875 Contact Us For Availability

68

WPL 691206 WPL 691206 Contact Us For Availability

68

WPL 691525 WPL 691525 Contact Us For Availability

68

Baffle, Drum (Long) (2) WPL 347892 Contact Us For Availability

69

Baffle, Drum (Short) (1) WPL 348868 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

279366 Whirlpool Sensor Kit In Stock WPL 279366 $71.82

76

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.82

77

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.82

78

WP298877 Whirlpool Washer Backorder WPL WP298877 $15.23

79

Dry Rack Assembly WPL 687834 Contact Us For Availability

80

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.62

81

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

82

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

85

WPL 343826 WPL 343826 Contact Us For Availability

86

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

87

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

88

98460 Whirlpool Nut Backorder WPL 98460 $8.89

89

WPL 690236 WPL 690236 Contact Us For Availability

90

WPL 688412 WPL 688412 Contact Us For Availability

93

353424 Whirlpool Connector Backorder WPL 353424 $14.02

93

WPL 353425 WPL 353425 Contact Us For Availability

94

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82
