Model Whirlpool LG7801XMW0 GAS DRYER – Common Parts & Diagrams

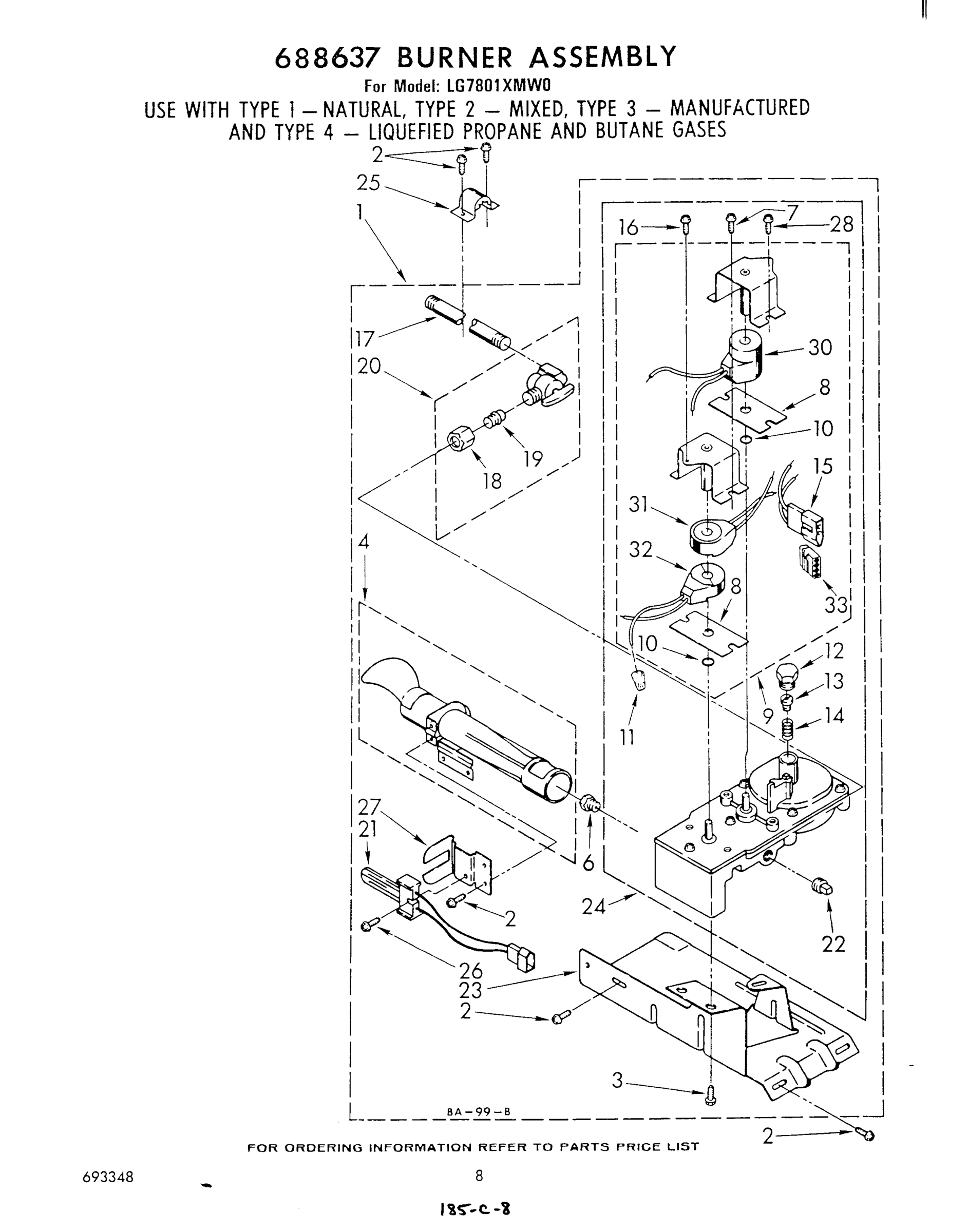

05 - 688637 BURNER

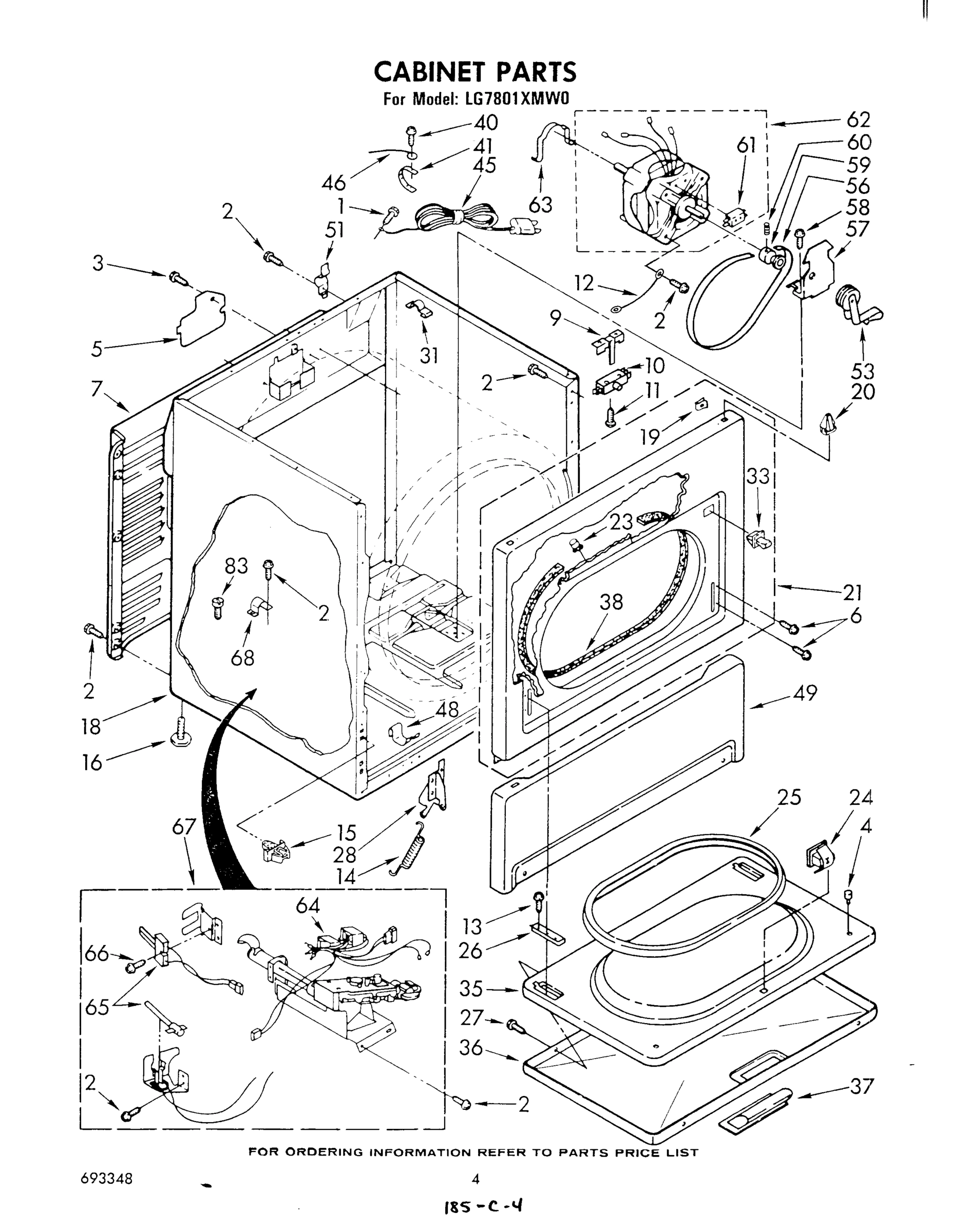

03 - CABINET

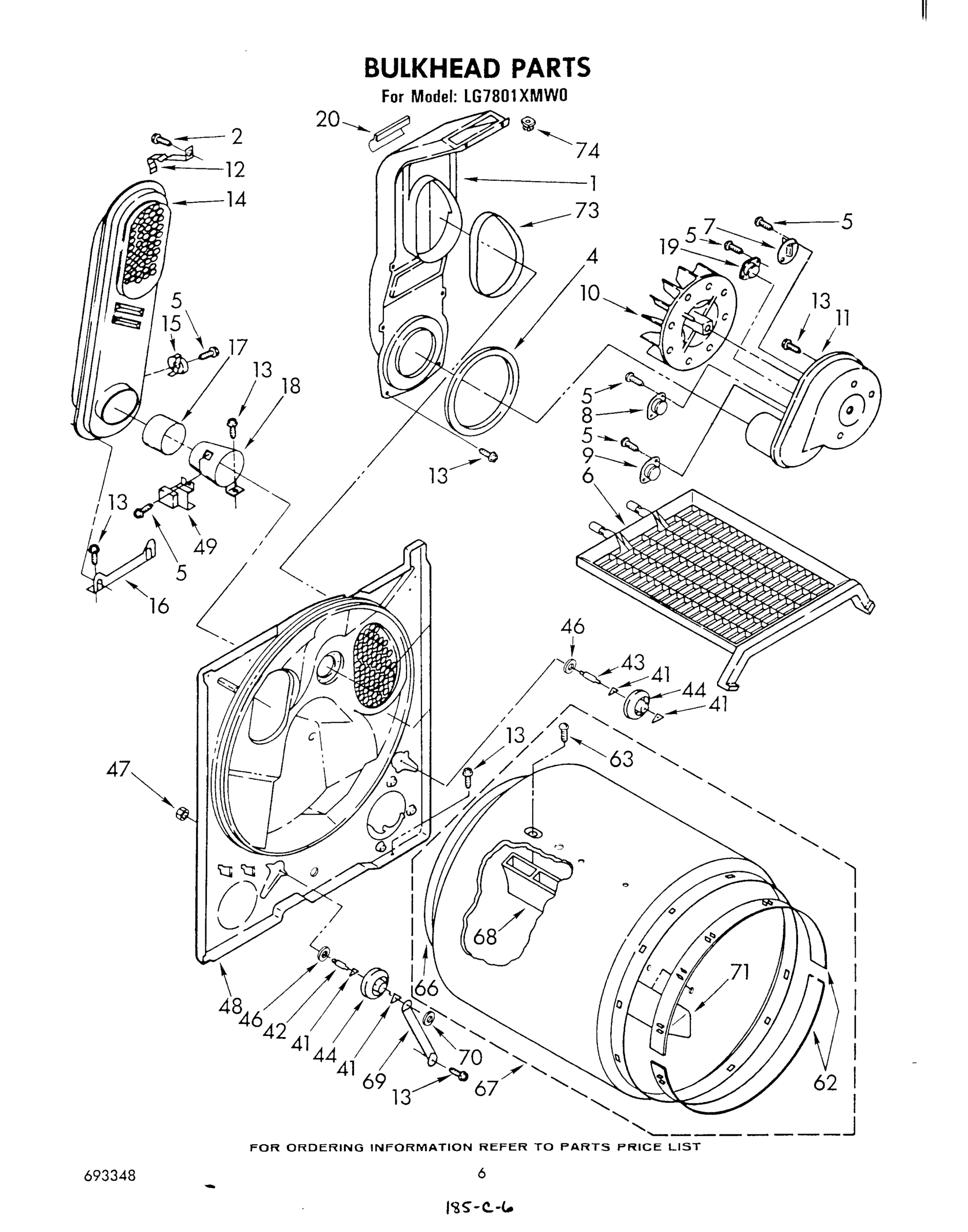

04 - BULKHEAD

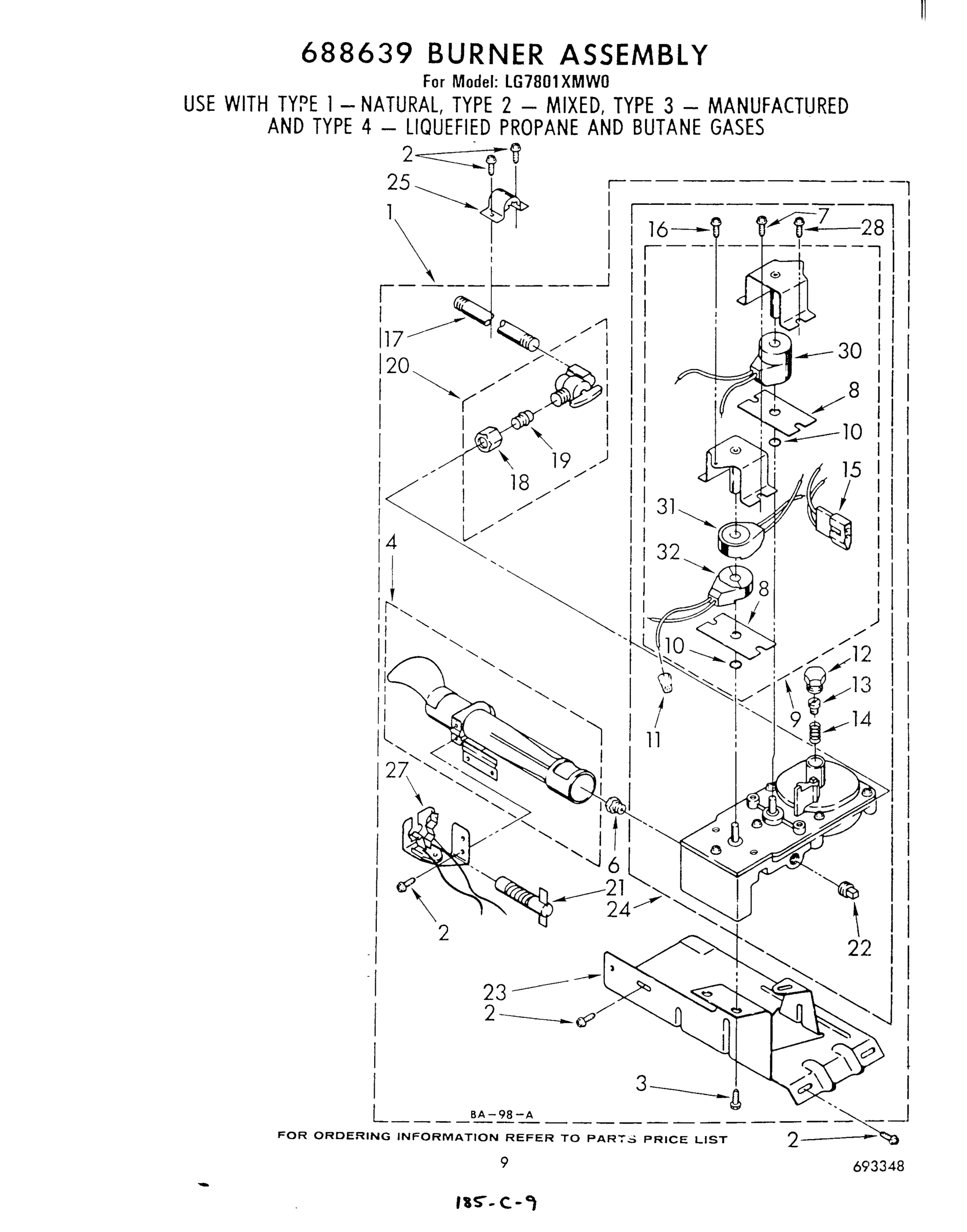

06 - 688639 BURNER

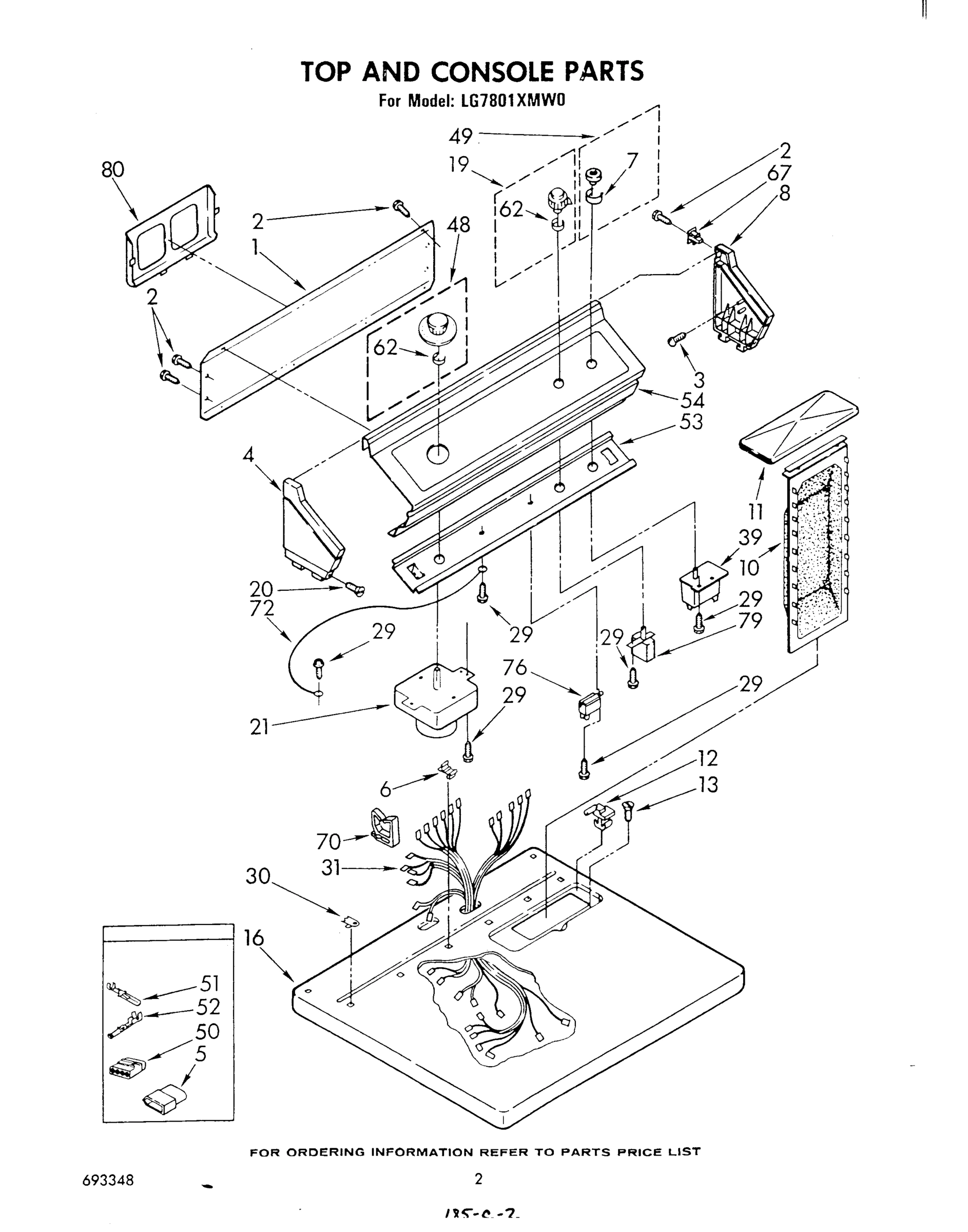

02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL
Common parts from model Whirlpool LG7801XMW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability
1
Panel, Rear Console WPL 359372 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability
6
Dry Rack WPL 692990 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
6
Stop, Push-In (2) WPL 358472 Contact Us For Availability
7
Clip WPL 90015 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
8
Cap , End (R.H.) (White) WPL 375309 Contact Us For Availability
8
Cap , End (R.H.) (Almond) WPL 375315 Contact Us For Availability
8
Cap, End (R.H.) (Coffee) WPL 375316 Contact Us For Availability
8
Cap , End (R.H.) (Golden Harvest) WPL 377283 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Housing, Blower WPL 348493 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Coffee) WPL 689311 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
12
Wire, Ground WPL 690236 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Support, Heater Box WPL 348484 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Coffee) WPL 689450 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Cabinet (White) WPL 690841 Contact Us For Availability
18
Cabinet (Almond) WPL 690842 Contact Us For Availability
18
Cabinet (Coffee) WPL 690843 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability
19
Control Knob, Temperature Selector WPL 690292 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
20
Screw, 8-18 WPL 358225 Contact Us For Availability
21
Panel Front (Almond) WPL 692436 Contact Us For Availability
21
Panel Front (Coffee) WPL 692437 Contact Us For Availability
21
Panel Front (Golden Harvest) WPL 692439 Contact Us For Availability
21
Timer Assembly (60 Hz.) (3 Cy) WPL 693747 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
27
Screw WPL 689791 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
31
Harness, Wiring WPL 693748 Contact Us For Availability
32
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
36
Door, Front (Almond) WPL 692319 Contact Us For Availability
36
Door, Front (Coffee) WPL 692320 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Coffee) WPL 690267 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability
39
Relay, Push-To-Start WPL 348314 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Clamp, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
49
Panel, Toe (Coffee) WPL 692429 Contact Us For Availability
49
Panel, To WPL 692431 Contact Us For Availability
49
Button, Push To Start WPL 691614 Contact Us For Availability
50
Receptacle, Terminal WPL 353425 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 690417 Contact Us For Availability
59
WPL 348946 WPL 348946 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Nut, Push-In (2) WPL 689559 Contact Us For Availability
67
WPL 688637 WPL 688637 Contact Us For Availability
67
Drum Assembly WPL 692492 Contact Us For Availability
70
Clip, Retainer WPL 688412 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
76
Buzzer, Mini WPL 686864 Contact Us For Availability
79
Switch, Fabric Selector Temperature WPL 693744 Contact Us For Availability
80
Coffee WPL 261886 Contact Us For Availability
80
Golden Harvest WPL 261890 Contact Us For Availability
80
WPL 350941 WPL 350941 Contact Us For Availability
80
WPL 357645 WPL 357645 Contact Us For Availability
80
WPL 688644 WPL 688644 Contact Us For Availability
80
WPL 691270 WPL 691270 Contact Us For Availability
80
WPL 693348 WPL 693348 Contact Us For Availability
80
WPL 693849 WPL 693849 Contact Us For Availability
80
WPL 72108 WPL 72108 Contact Us For Availability
80
WPL 799351 WPL 799351 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
× ![]()
