Model Whirlpool LG5751XKW0 GAS DRYER – Common Parts & Diagrams
02 - TOP AND CONSOLE , LIT/OPTIONAL

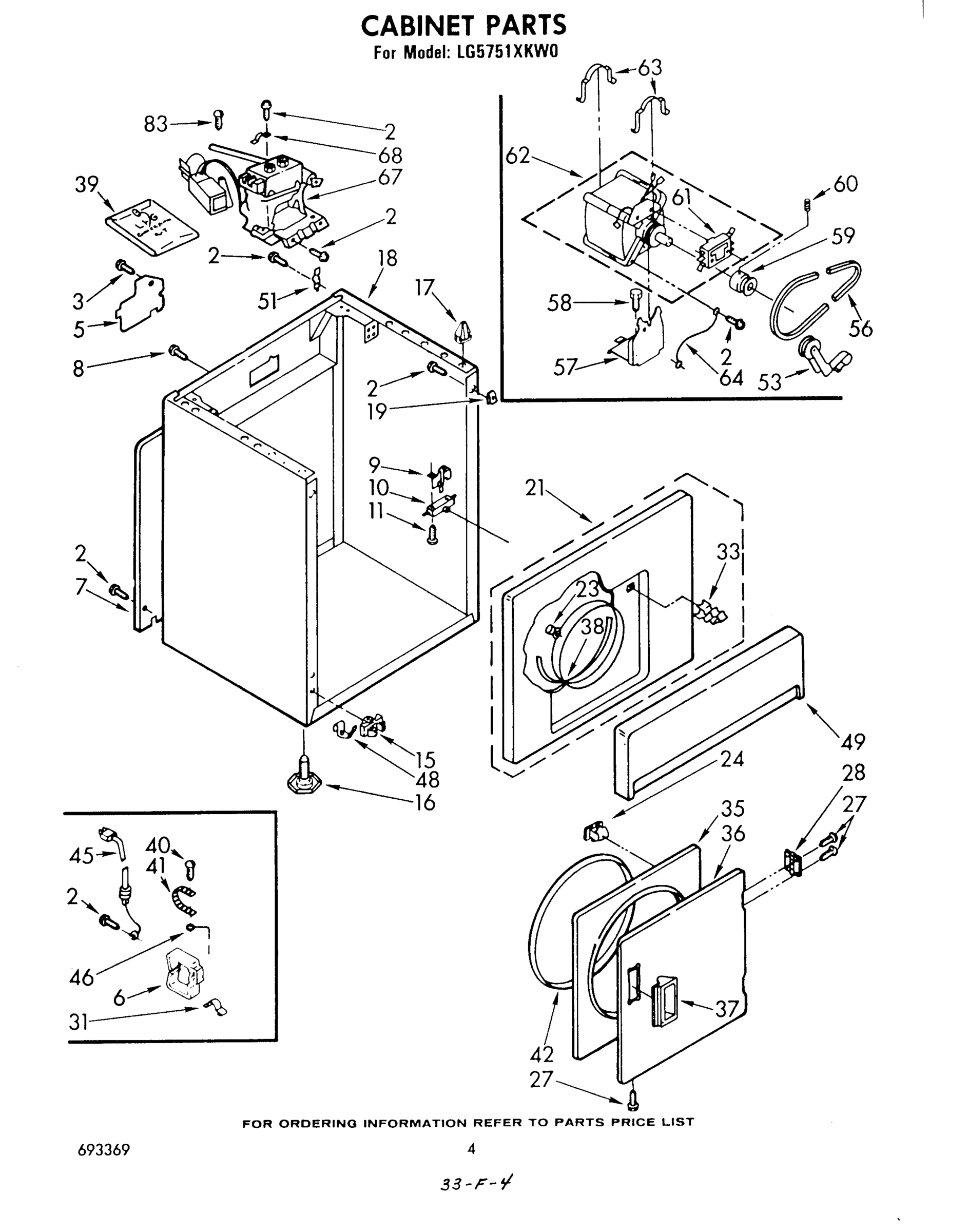

03 - CABINET

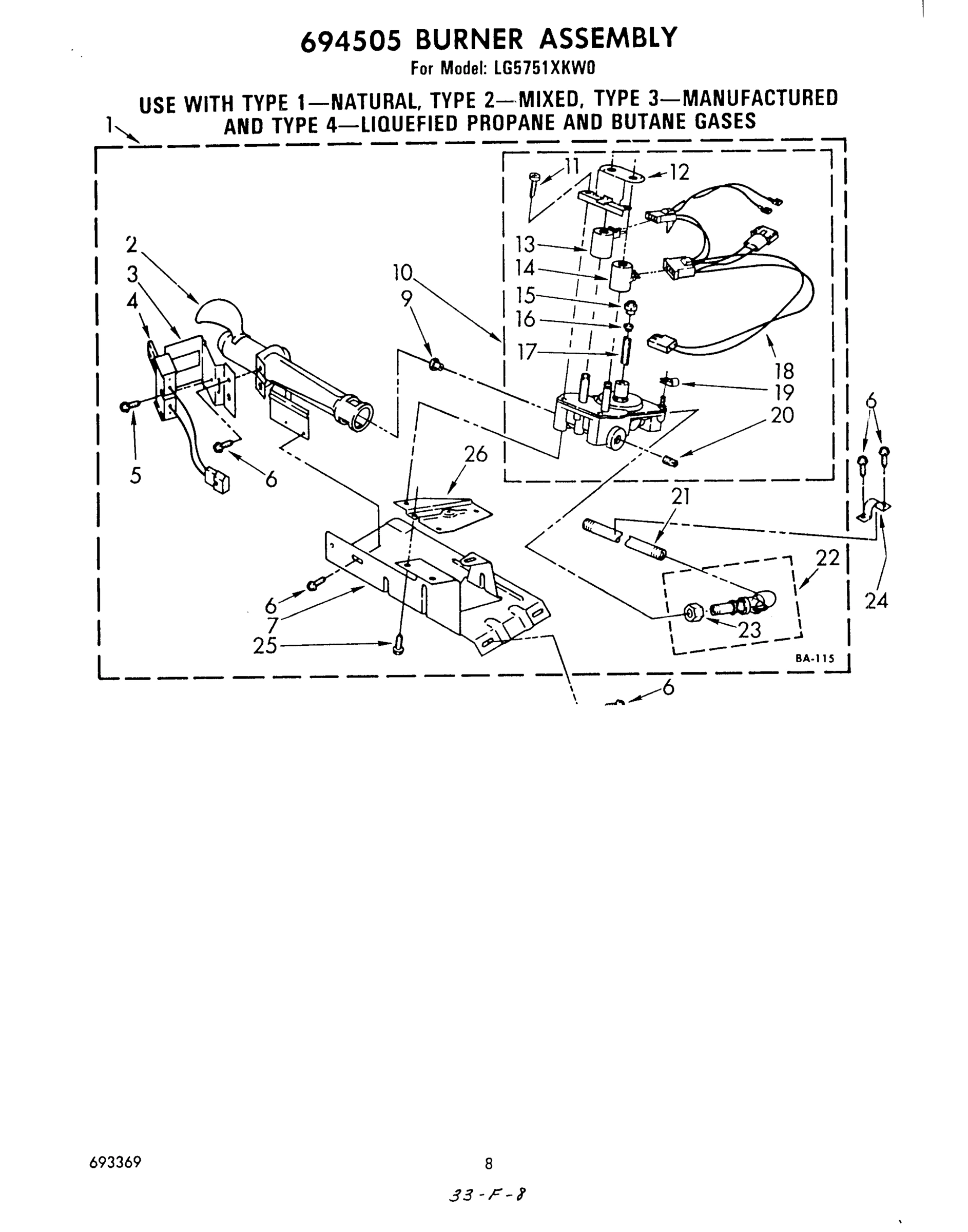

06 - 694505 BURNER ASSEMBLY

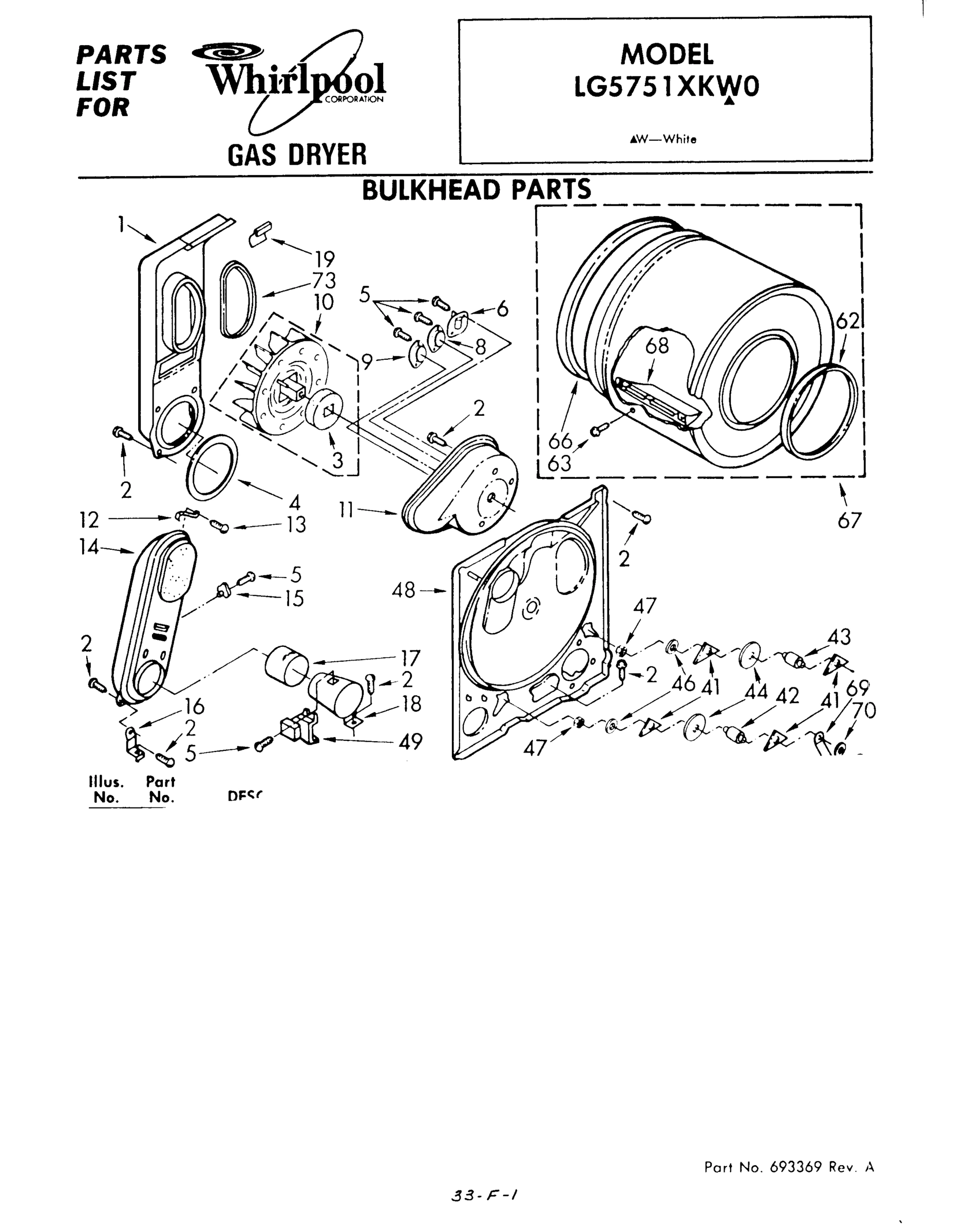

01 - BULKHEAD

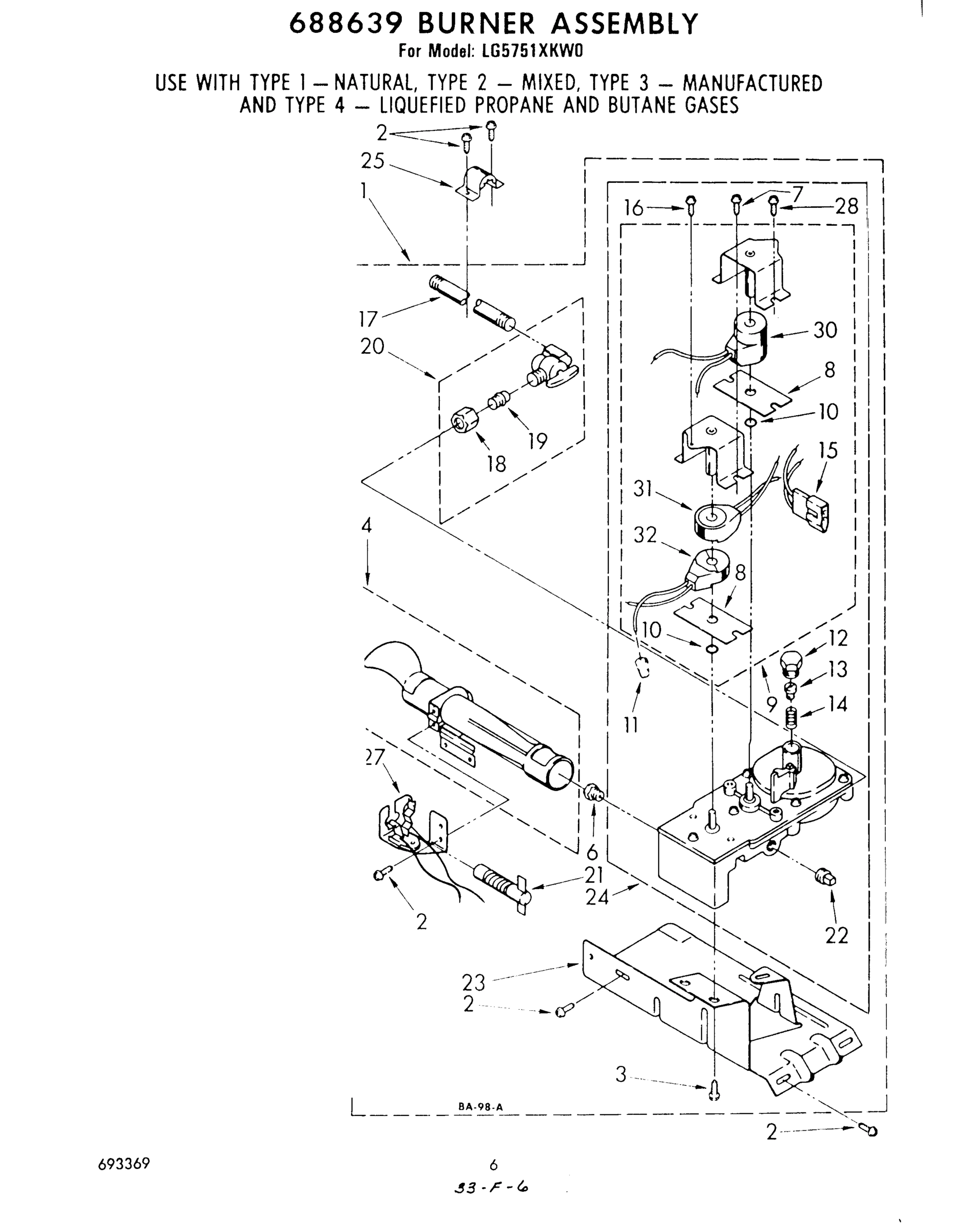

04 - 688639 BURNER ASSEMBLY

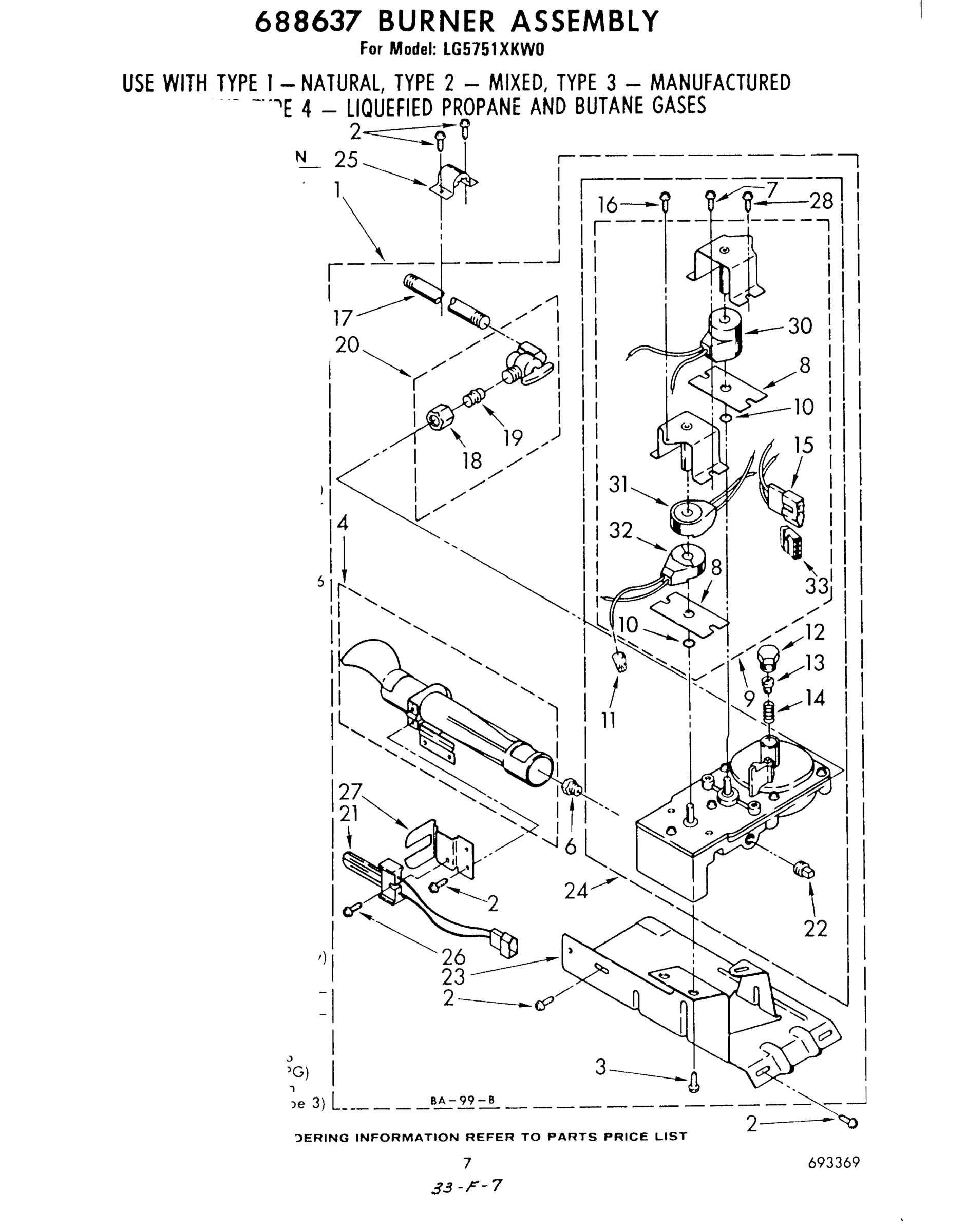

05 - 688637 BURNER ASSEMBLY
Common parts from model Whirlpool LG5751XKW0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694505 Contact Us For Availability
3
Seal, Blower WPL 694630 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
8
Nut, Push-In (2) WPL 358473 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Housing, Blower WPL 348494 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 693202 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 694504 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
26
Bracket, Gas Valve (Not a Serviceable Part) WPL ARI156744A Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
33
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
Panel, Toe (White) WPL 237035 Contact Us For Availability
60
Set Screw WPL 690046 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
× ![]()
