Model Whirlpool LEV5634AN1 ELECTRIC DRYER – Common Parts & Diagrams

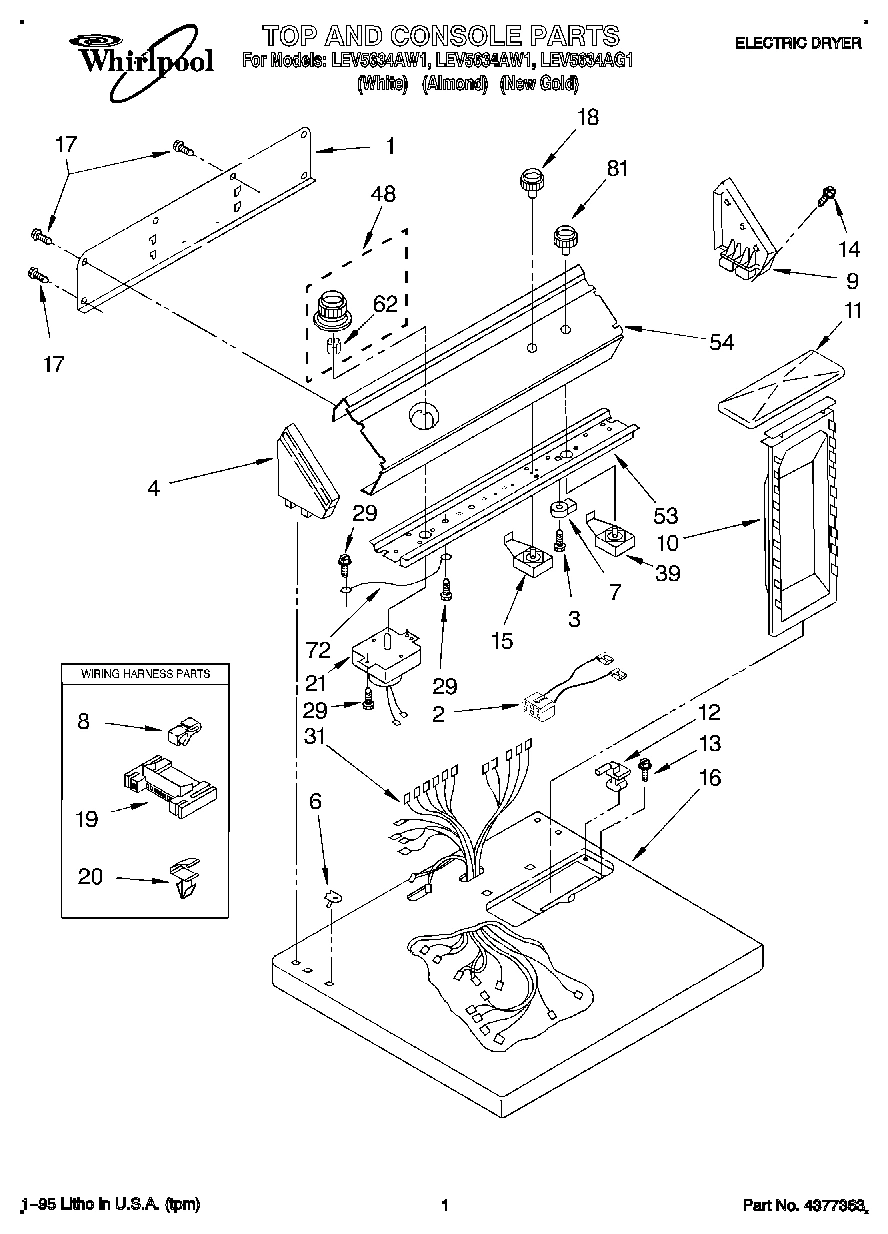

01 - SECTION

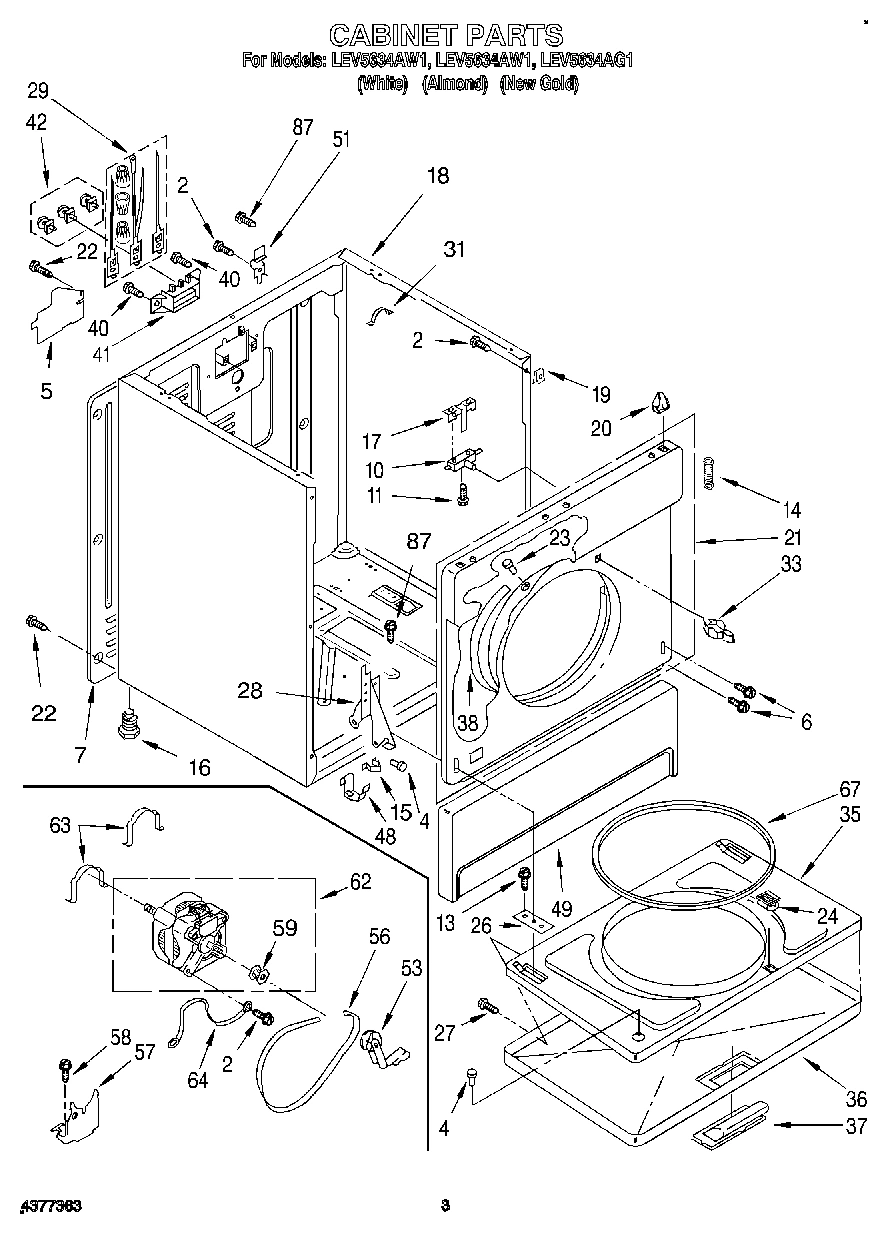

02 - SECTION

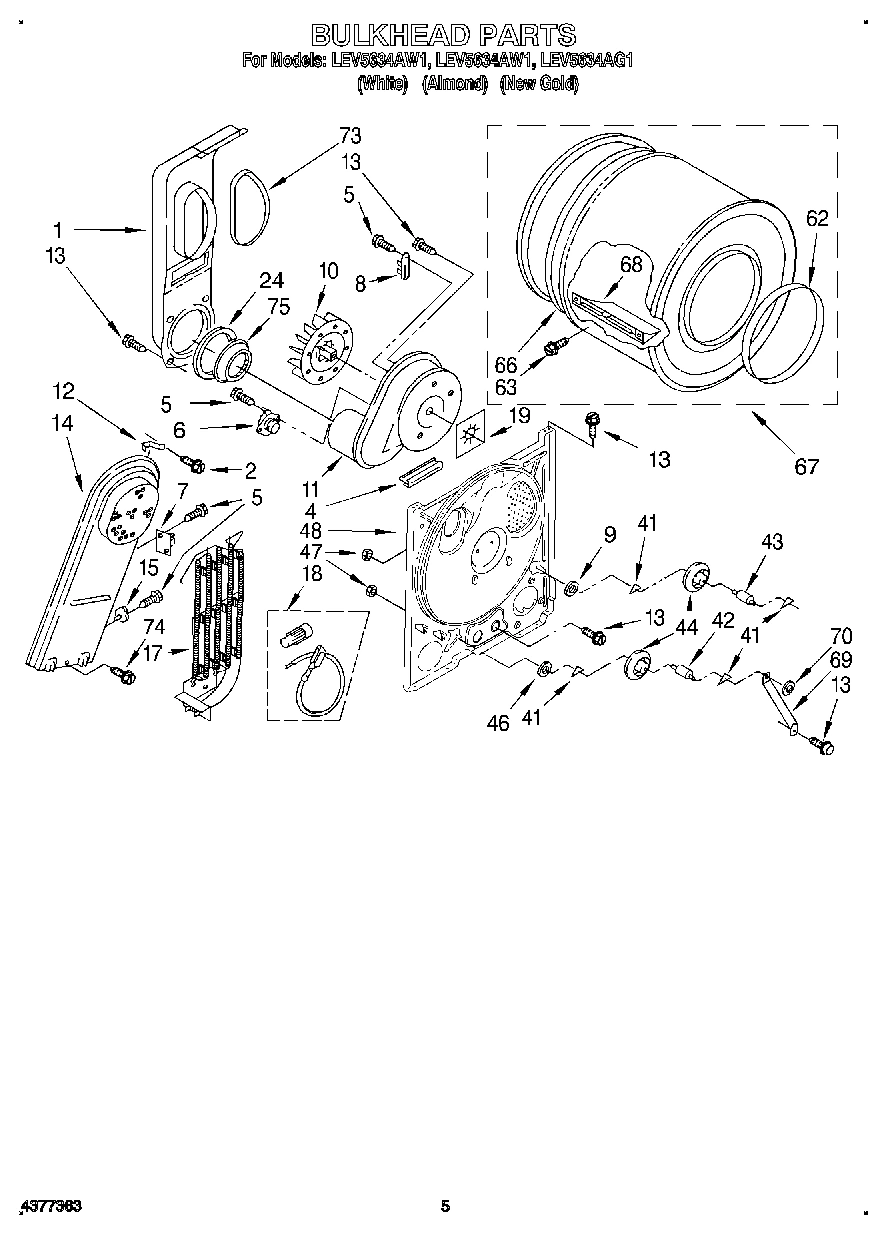

03 - SECTION
Common parts from model Whirlpool LEV5634AN1 ELECTRIC DRYER
PAINT, BULK (1 QT. WPL 799344 Contact Us For Availability
7
Panel, Rear WPL 3396807 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
14
Box, Heater WPL 695547 Contact Us For Availability
18
Cabinet (White) WPL 3399580 Contact Us For Availability
18
Cabinet (Almond) WPL 3399581 Contact Us For Availability
18
Cabinet (New Gold) WPL 3399584 Contact Us For Availability
19
Seal, Blower WPL 3392123 Contact Us For Availability
21
Panel Assembly, Upper Front (White) WPL 338012 Contact Us For Availability
21
Panel Assembly, Upper Front (Almond) WPL 689533 Contact Us For Availability
21
Panel Assembly, Upper Front (New Gold) WPL 689535 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
35
Door, Rear WPL 695954 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (New Gold) WPL 689333 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
37
Handle, Door (New Gold) WPL 690274 Contact Us For Availability
48
Bulkhead WPL 3397264 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
49
Panel, Toe (New Gold) WPL 692431 Contact Us For Availability
64
WPL 690236 WPL 690236 Contact Us For Availability
× ![]()
