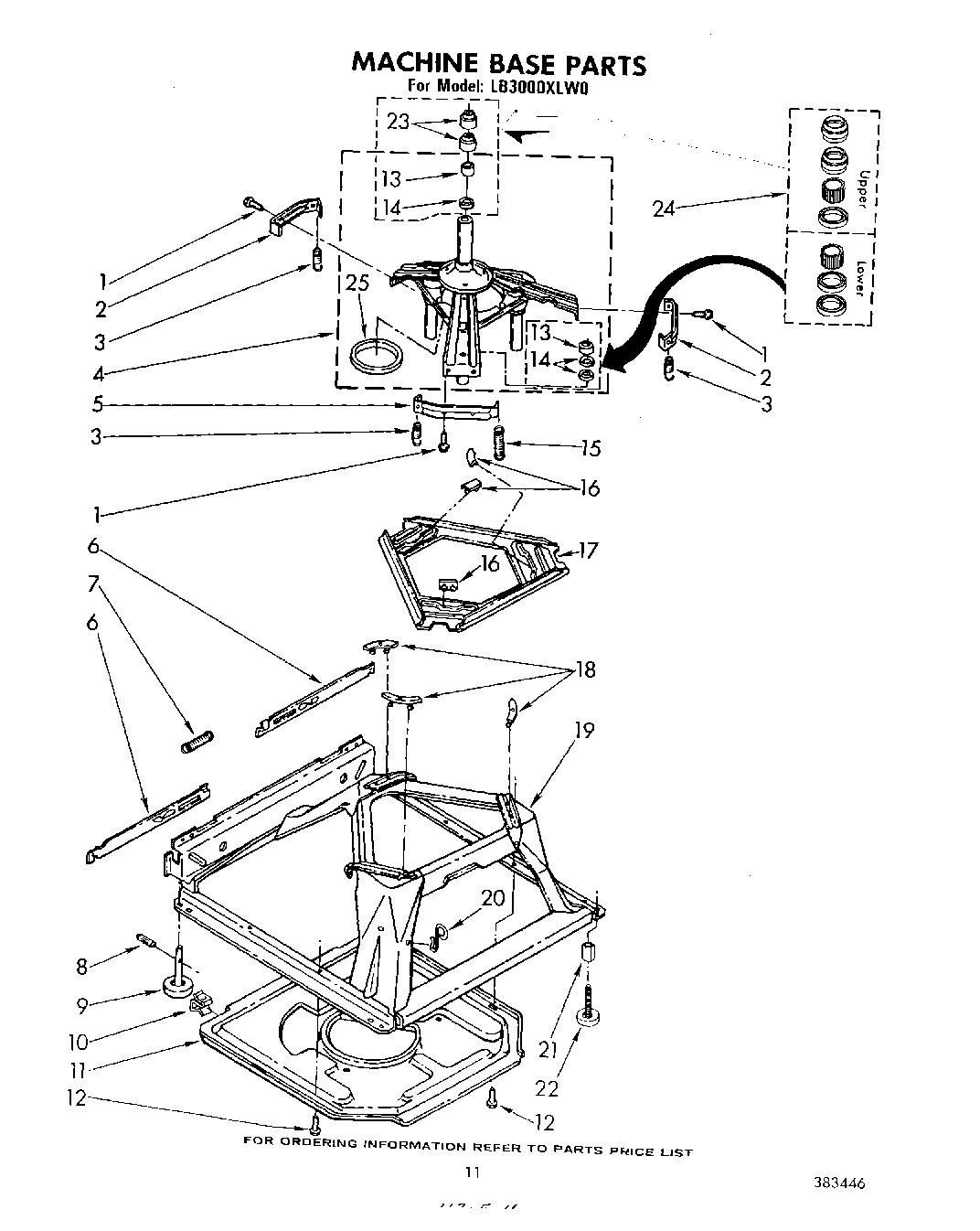

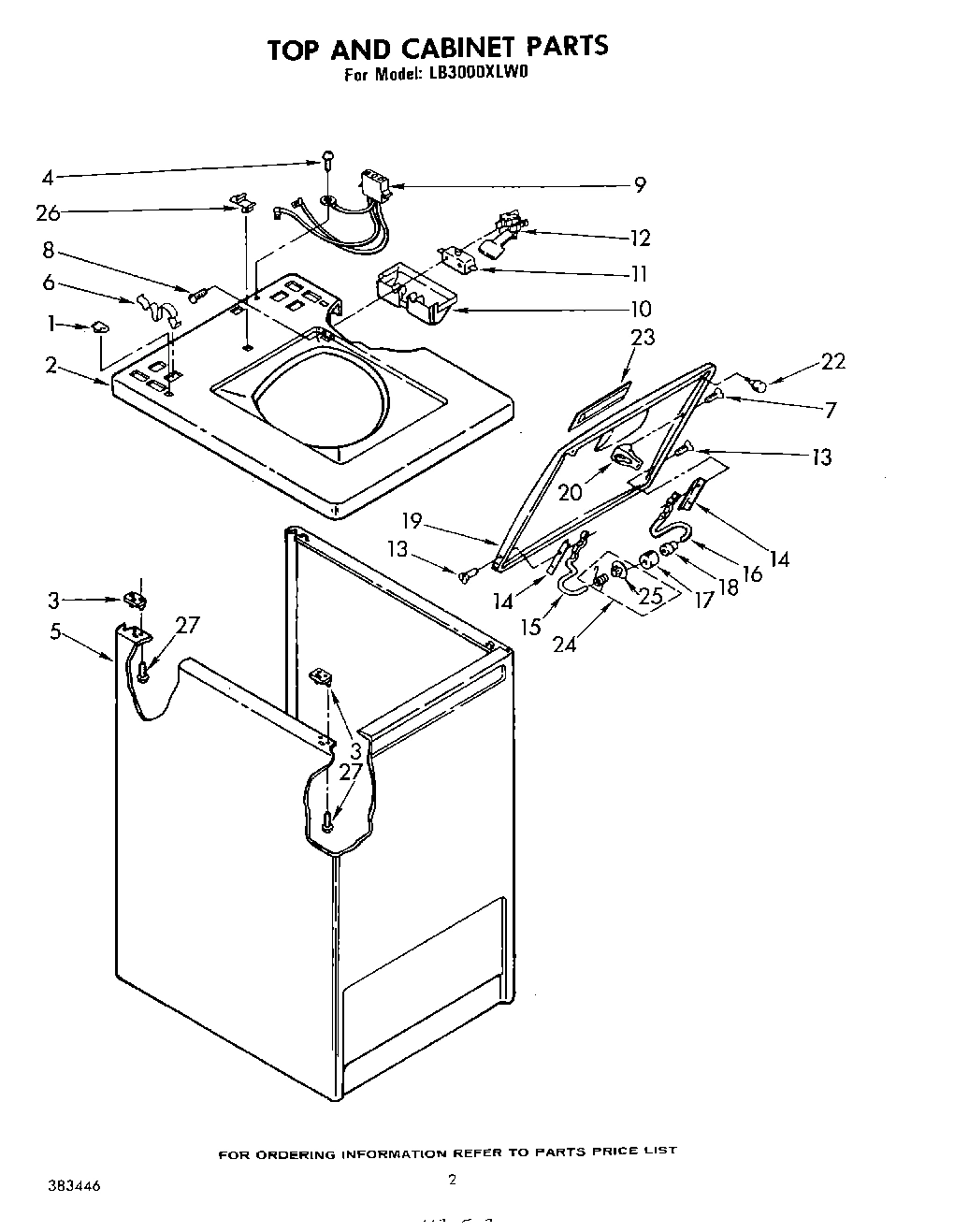

Model Whirlpool LB3000XLW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Terminal, Female Spade (3/16``) WPL 358764 Contact Us For Availability

1

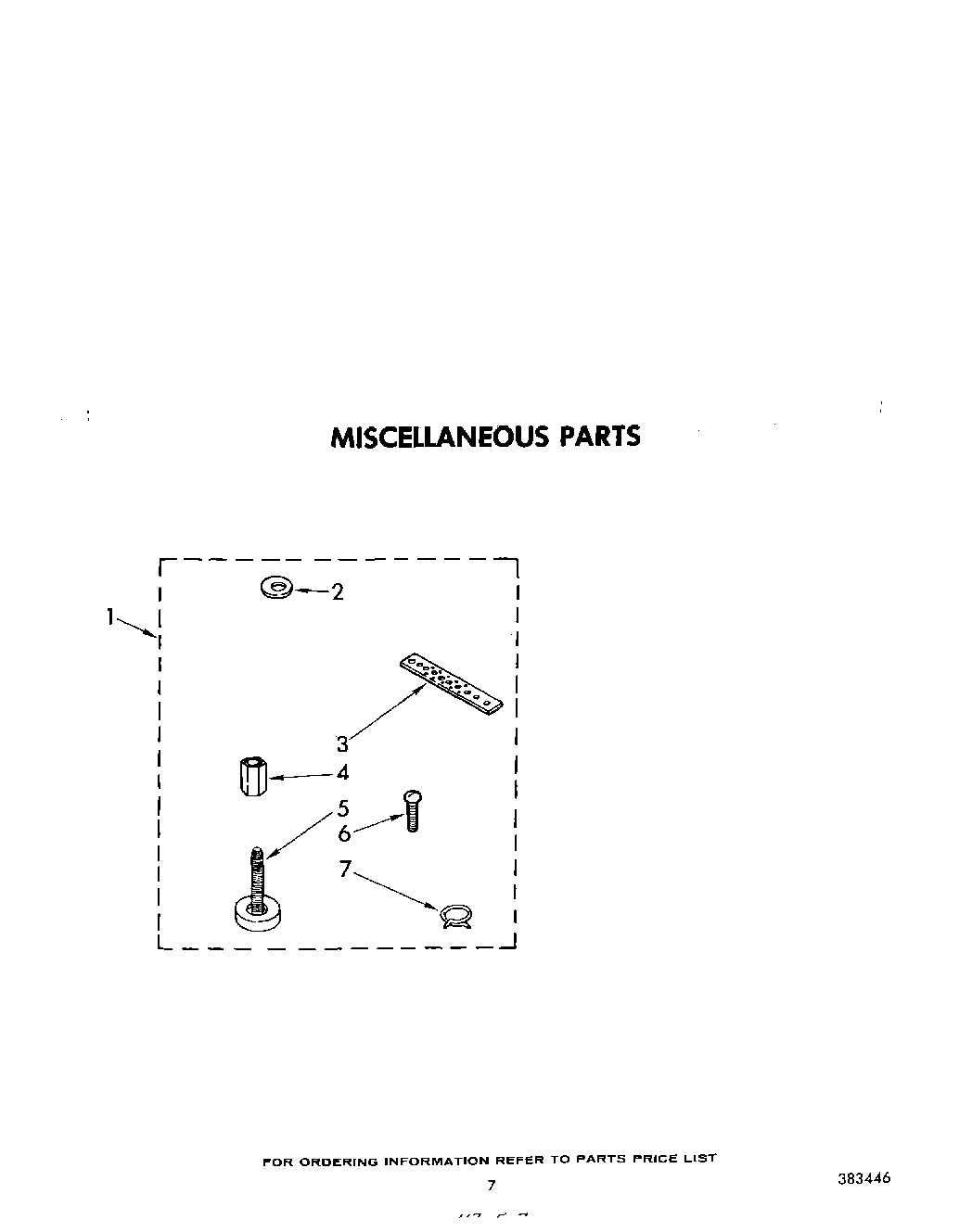

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

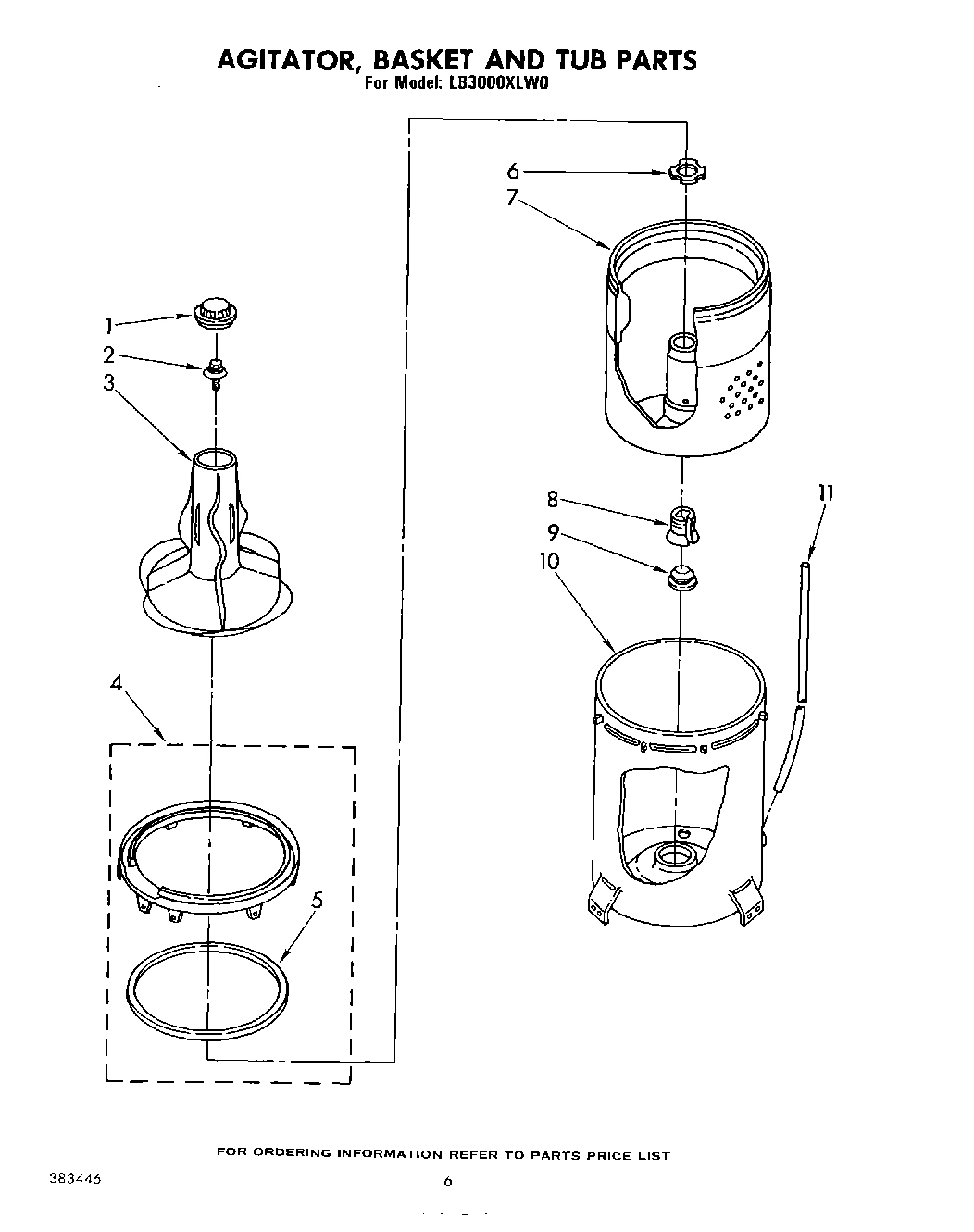

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Terminal, Male Spade (3/16``) WPL 98569 Contact Us For Availability

3

WP285432 Whirlpool Terminal Backorder WPL WP285432 $4.82

3

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $185.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Strap, Ground WPL 22965 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

4

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

Tub Ring & Gasket WPL 62649 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Terminal, Ring (3/16`` Dia. Hole) WPL 247283 Contact Us For Availability

5

Gasket, Tub Ring WPL 62645 Contact Us For Availability

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

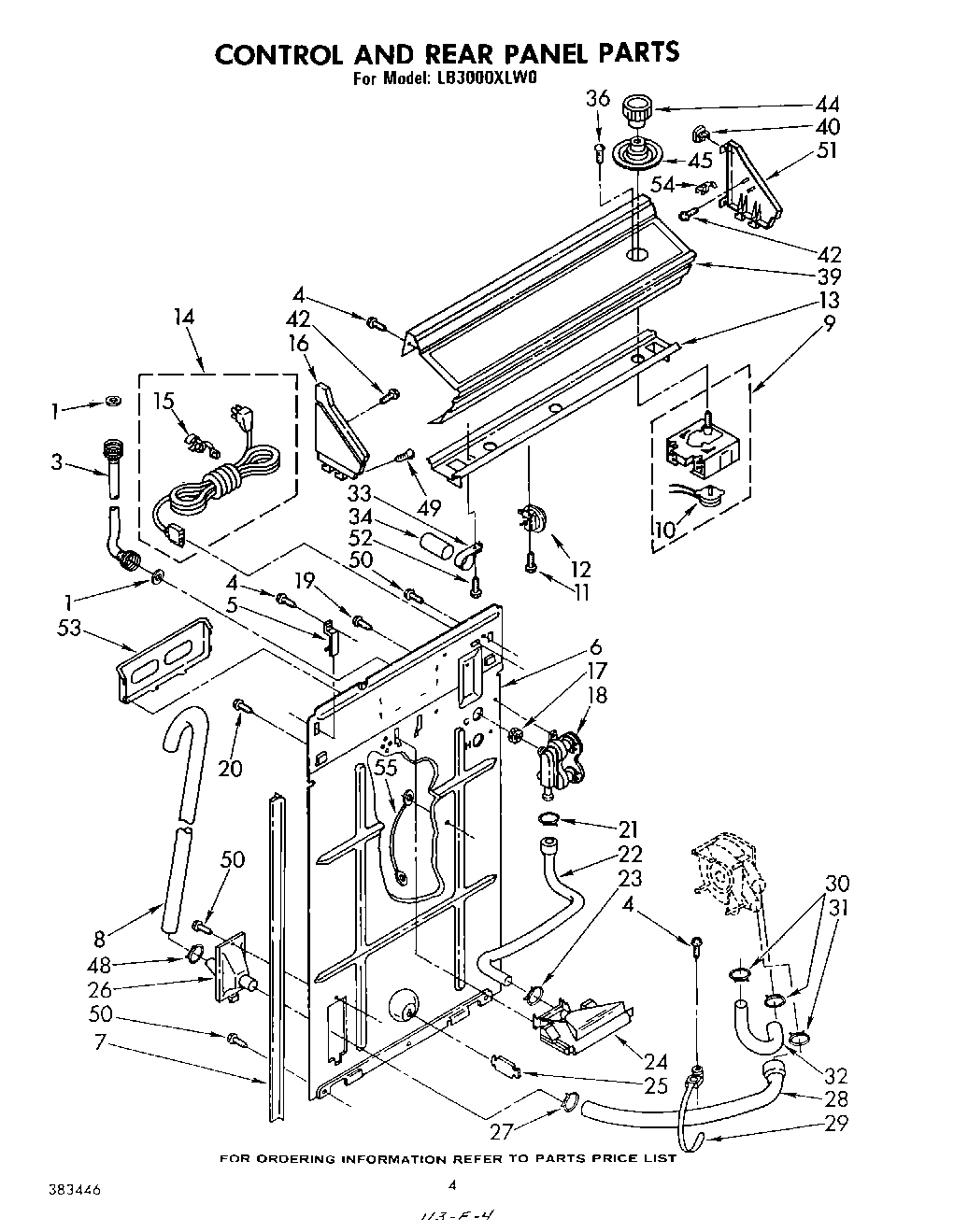

Panel, Rear WPL 384086 Contact Us For Availability

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

7

Basket WPL 62536 Contact Us For Availability

7

Spring, Clutch WPL 96409 Contact Us For Availability

8

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

8

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

8

Terminal, Female WPL 352088 Contact Us For Availability

9

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

9

353424 Whirlpool Connector Backorder WPL 353424 $14.02

9

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

9

Timer, Control (60 Hz.) (Mallory) WPL 63081 Contact Us For Availability

9

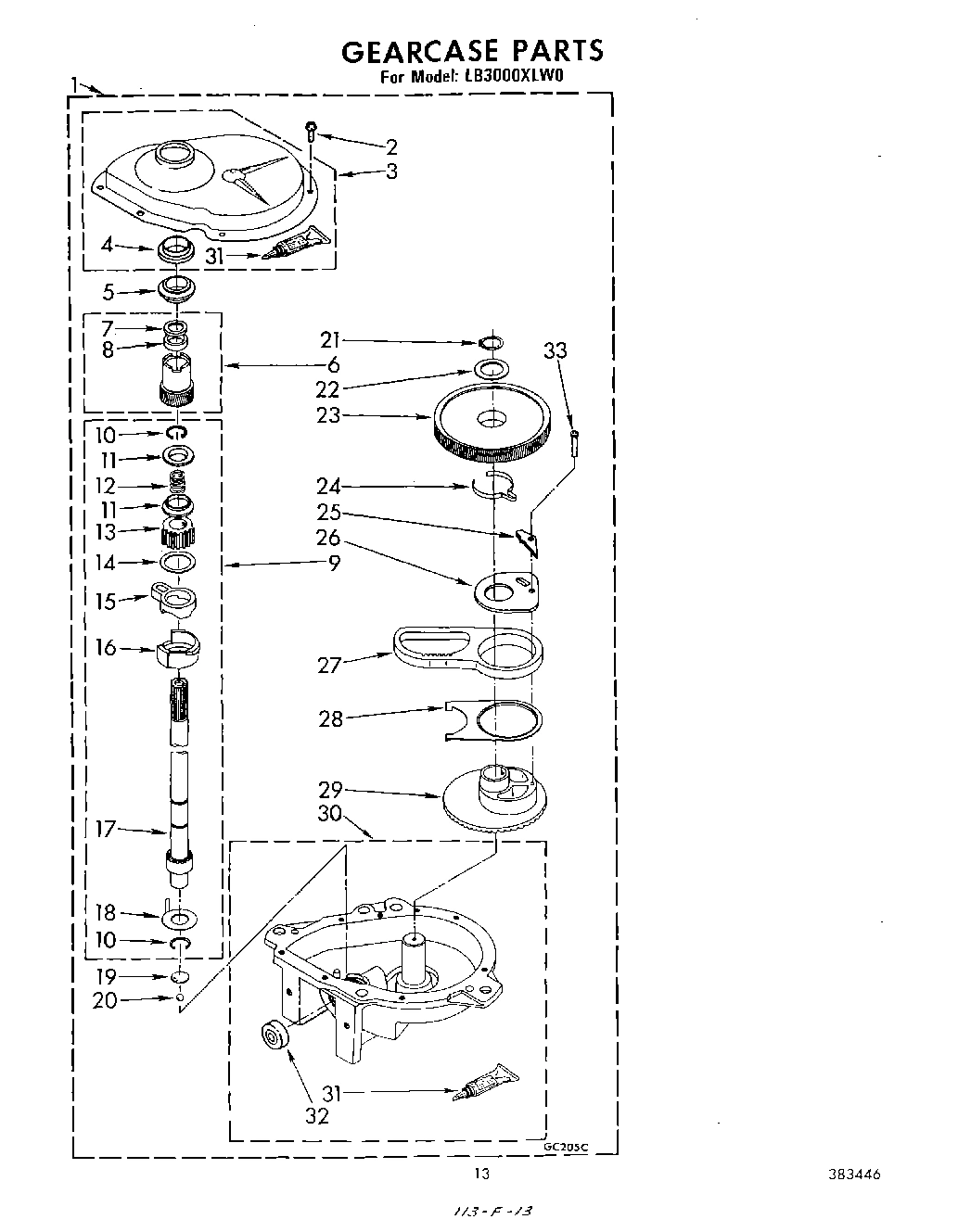

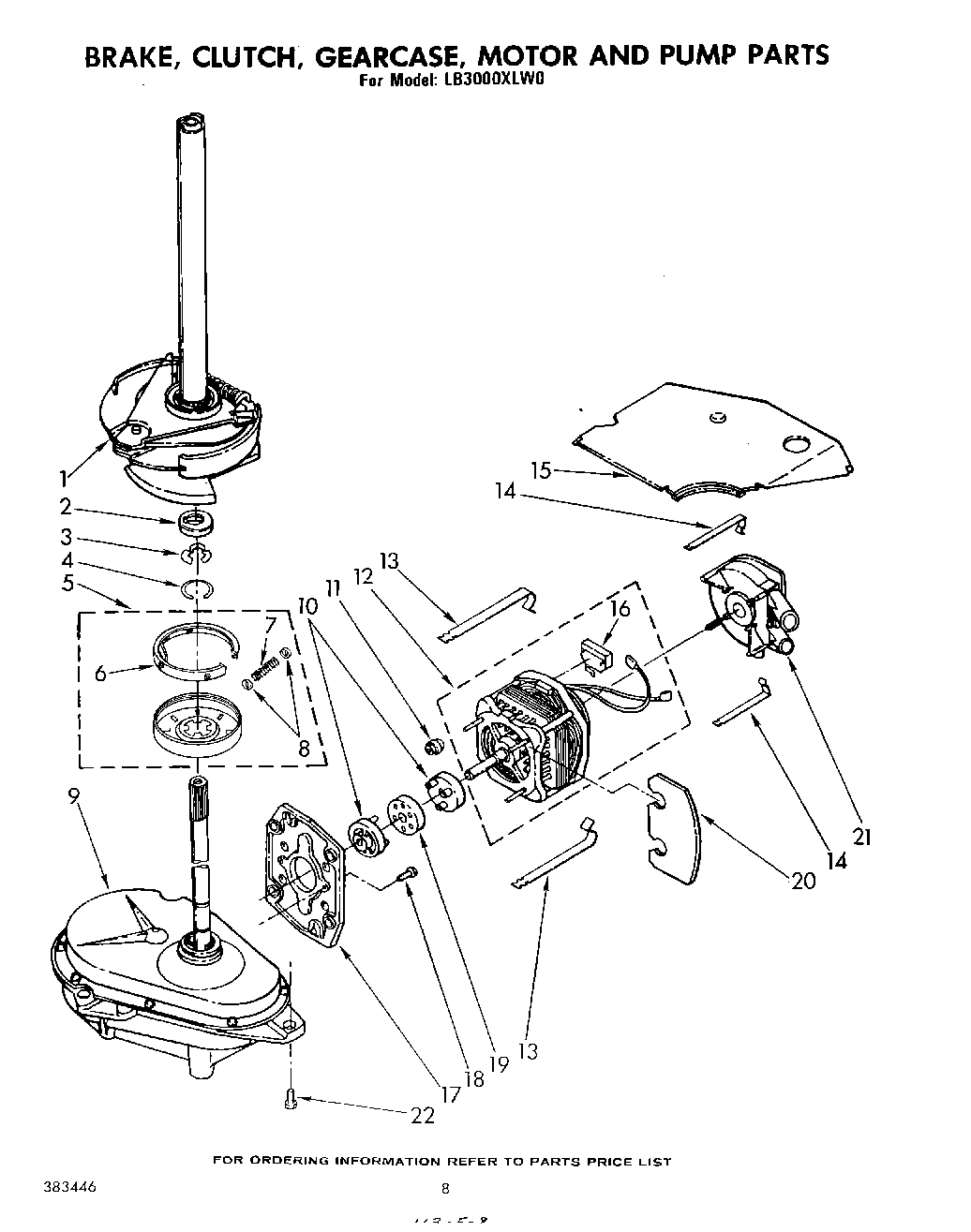

Gearcase (Complete) (Refer To Page 13 For Fur WPL 62667 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Receptacle, Terminal (3-Way) (Power Cord) WPL 353425 Contact Us For Availability

Tub WPL 62523 Contact Us For Availability

Motor, Timer (Use W/Mallory Timer) WPL 62920 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.50

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Plug, Terminal (3-Way) (Lid Switch) WPL 62888 Contact Us For Availability

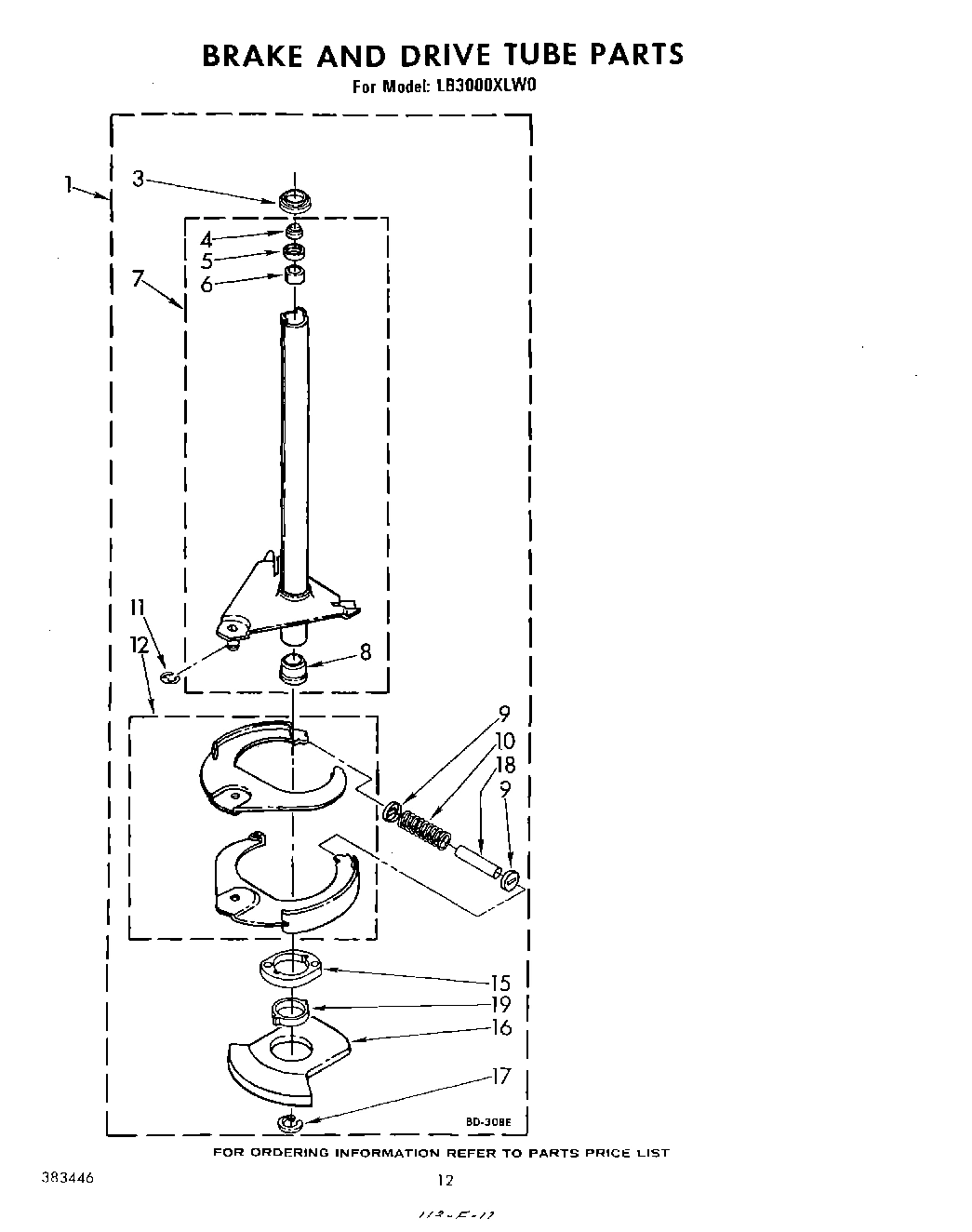

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Actuator, Lid Switch WPL 370959 Contact Us For Availability

Switch, Water Level WPL 63117 Contact Us For Availability

13

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

13

Bracket, Control WPL 359758 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Cord, Power WPL 62734 Contact Us For Availability

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Block, Disconnect (White) (Timer) WPL 352090 Contact Us For Availability

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

Shield, Tub To Motor WPL 62741 Contact Us For Availability

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

Clip, Harness WPL 62732 Contact Us For Availability

Cap, End (L.H.) (White) WPL 377314 Contact Us For Availability

Switch, Main Drive Motor WPL 62851 Contact Us For Availability

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Harness WPL 62749 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Clip, Harness (2) WPL 357469 Contact Us For Availability

20

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

20

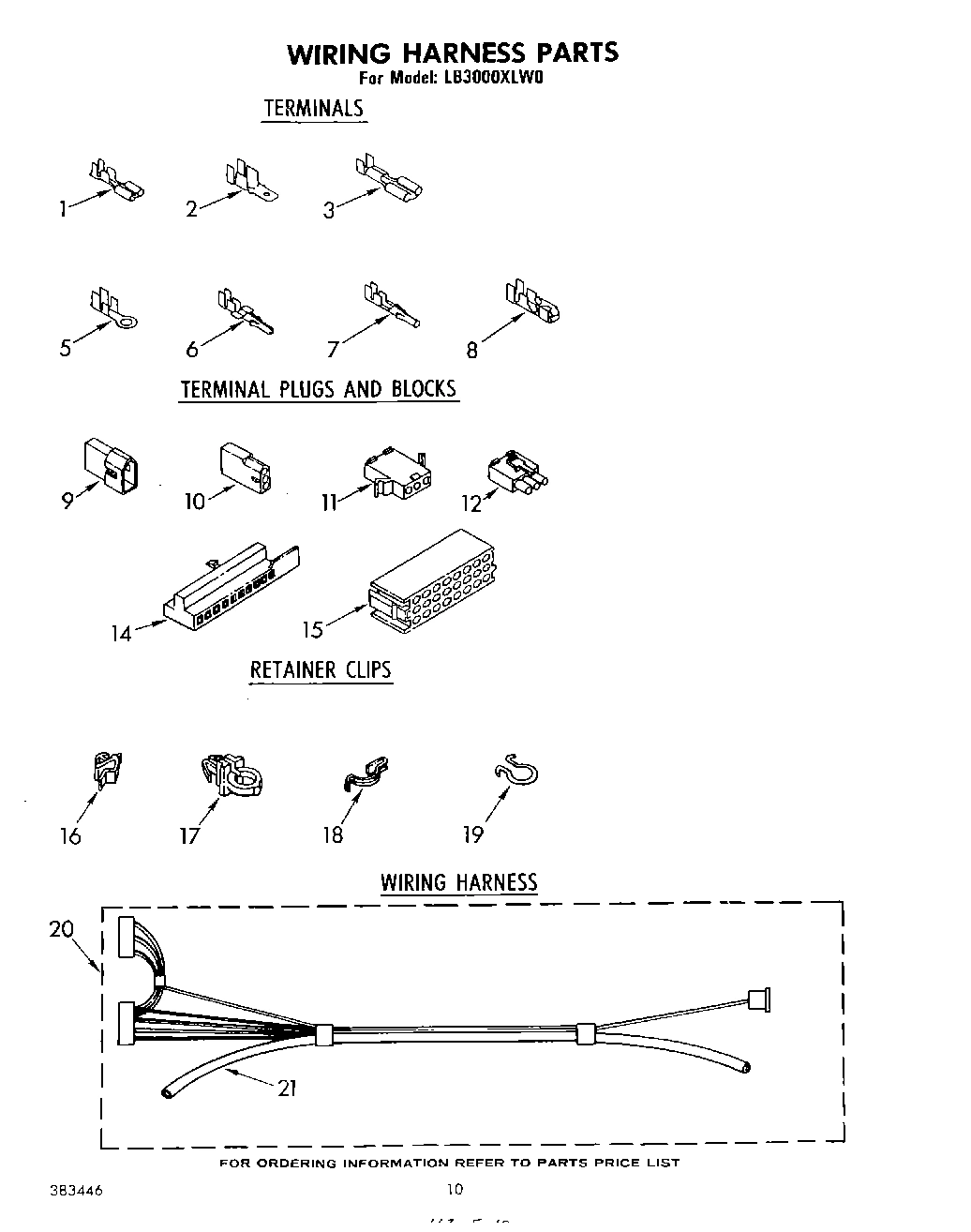

Wiring Harness & Pressure Switch Hose WPL 63115 Contact Us For Availability

21

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

22

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

23

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

Spring & Button, Lid WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

25

Plug, Button WPL 54690 Contact Us For Availability

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

26

Connector, Drain Hose WPL 62608 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Sheet, Installation Instructions WPL 378950 Contact Us For Availability

Instructions, Operating WPL 383157 Contact Us For Availability

Label, Energy Guide WPL 383356 Contact Us For Availability

List, Repair Parts WPL 383446 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

28

Hose, Pump To Drain Connector WPL 62730 Contact Us For Availability

29

Hanger, Hose WPL 63124 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

39

Panel, Console WPL 375696 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 359822 Contact Us For Availability

45

Dial, Timer WPL 359826 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

Cap , End (R.H.) (White) WPL 377315 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

53

Rack, Literature WPL 63020 Contact Us For Availability

54

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

55

Wire, Ground WPL 364089 Contact Us For Availability
