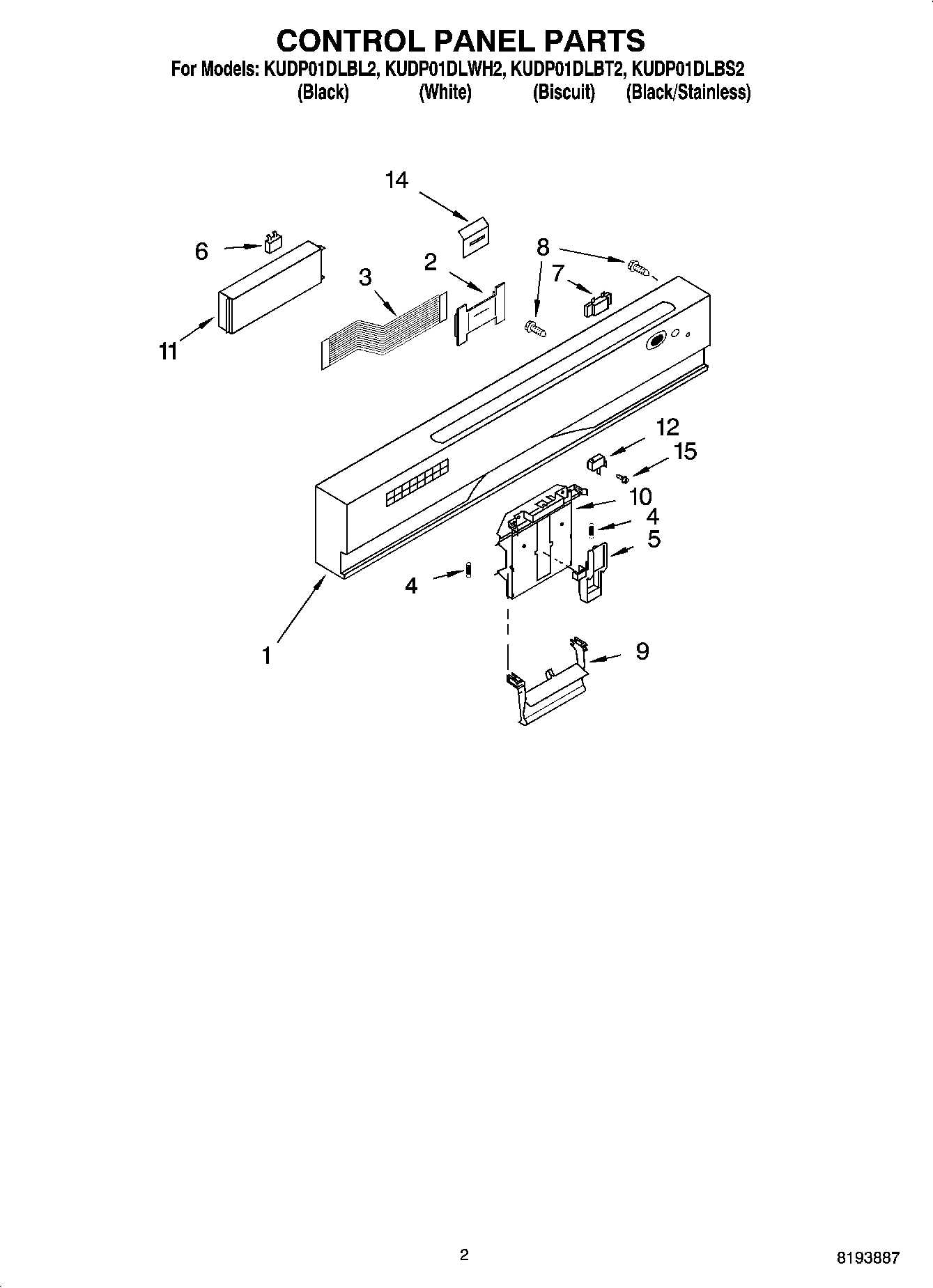

Model Whirlpool KUDP01DLBS2 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

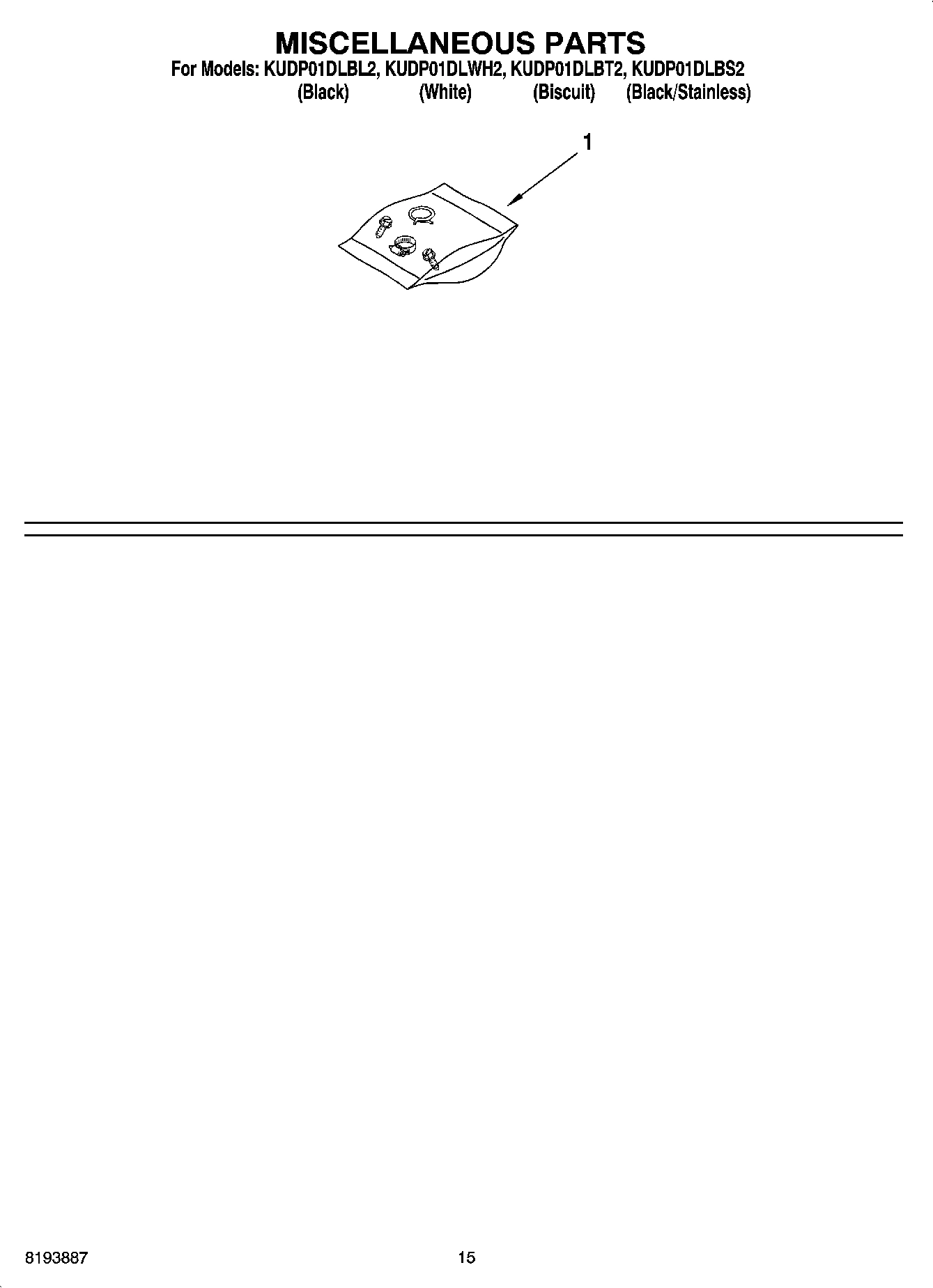

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.99

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

1

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $29.56

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $17.84

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $16.79

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

1

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.91

1

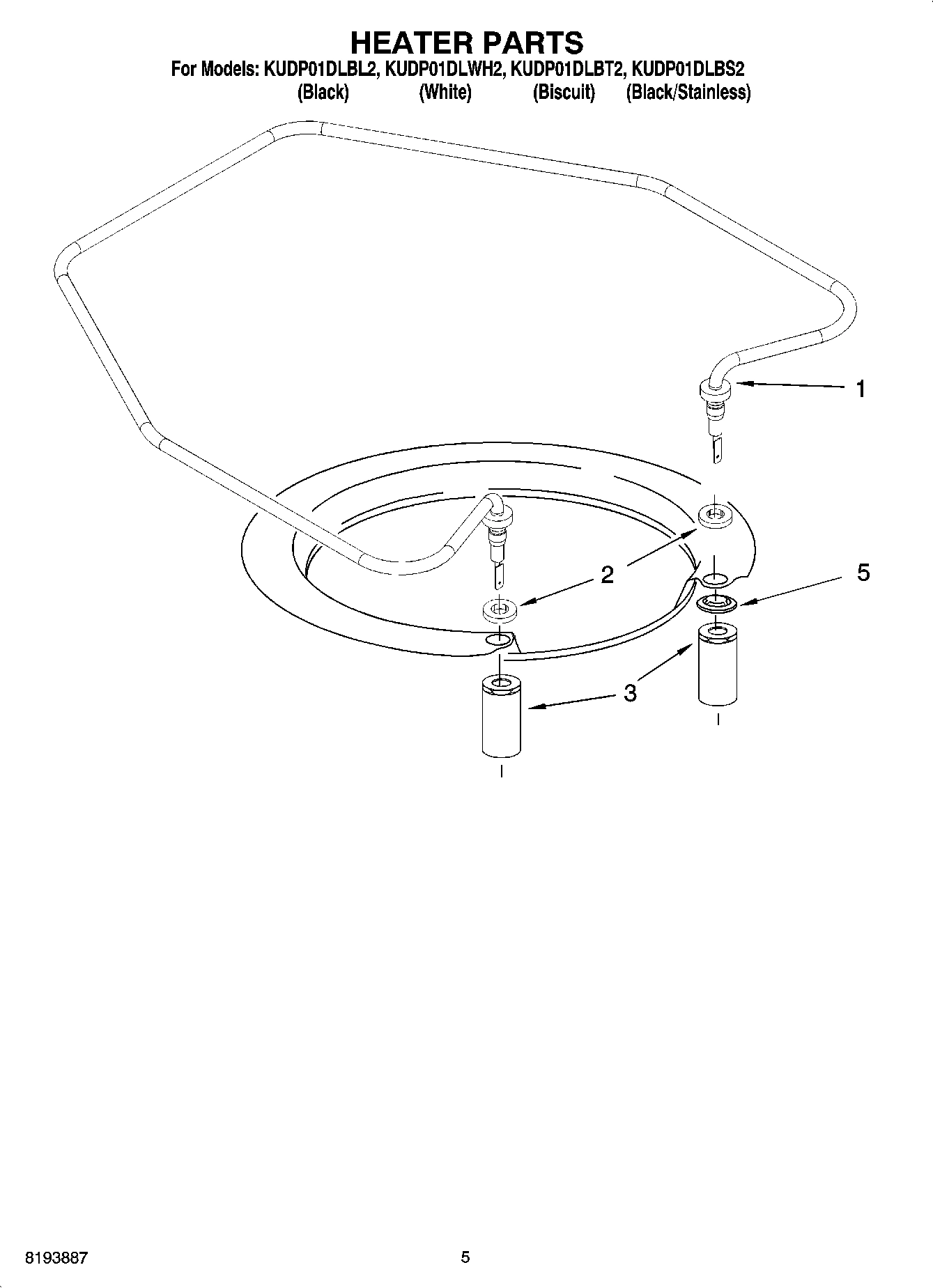

Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability

1

Feed Tube Assembly (Also Includes Item 3) WPL 8268361 Contact Us For Availability

1

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

Color Panel Kits (Hunter Green) WPL 4396398 Contact Us For Availability

1

Color Panel Kits (Empire Red) WPL 4396399 Contact Us For Availability

1

Color Panel Kits (Majestic Yellow) WPL 4396400 Contact Us For Availability

1

Custom Panel Kits (Black) WPL 8171555 Contact Us For Availability

1

Custom Panel Kits (White) WPL 8171556 Contact Us For Availability

1

Custom Panel Kits (Biscuit) WPL 8171557 Contact Us For Availability

1

Paint, Touch-Up 1/2 Oz. (Majestic Yellow) WPL 8171653 Contact Us For Availability

1

Side Panel Kits (Biscuit) WPL 8171658 Contact Us For Availability

1

PAINT, WPL 978883 Contact Us For Availability

1

WPL ARI114687A WPL ARI114687A Contact Us For Availability

1

WPL ARI114688A WPL ARI114688A Contact Us For Availability

1

WPL ARI114689A WPL ARI114689A Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $61.74

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $62.76

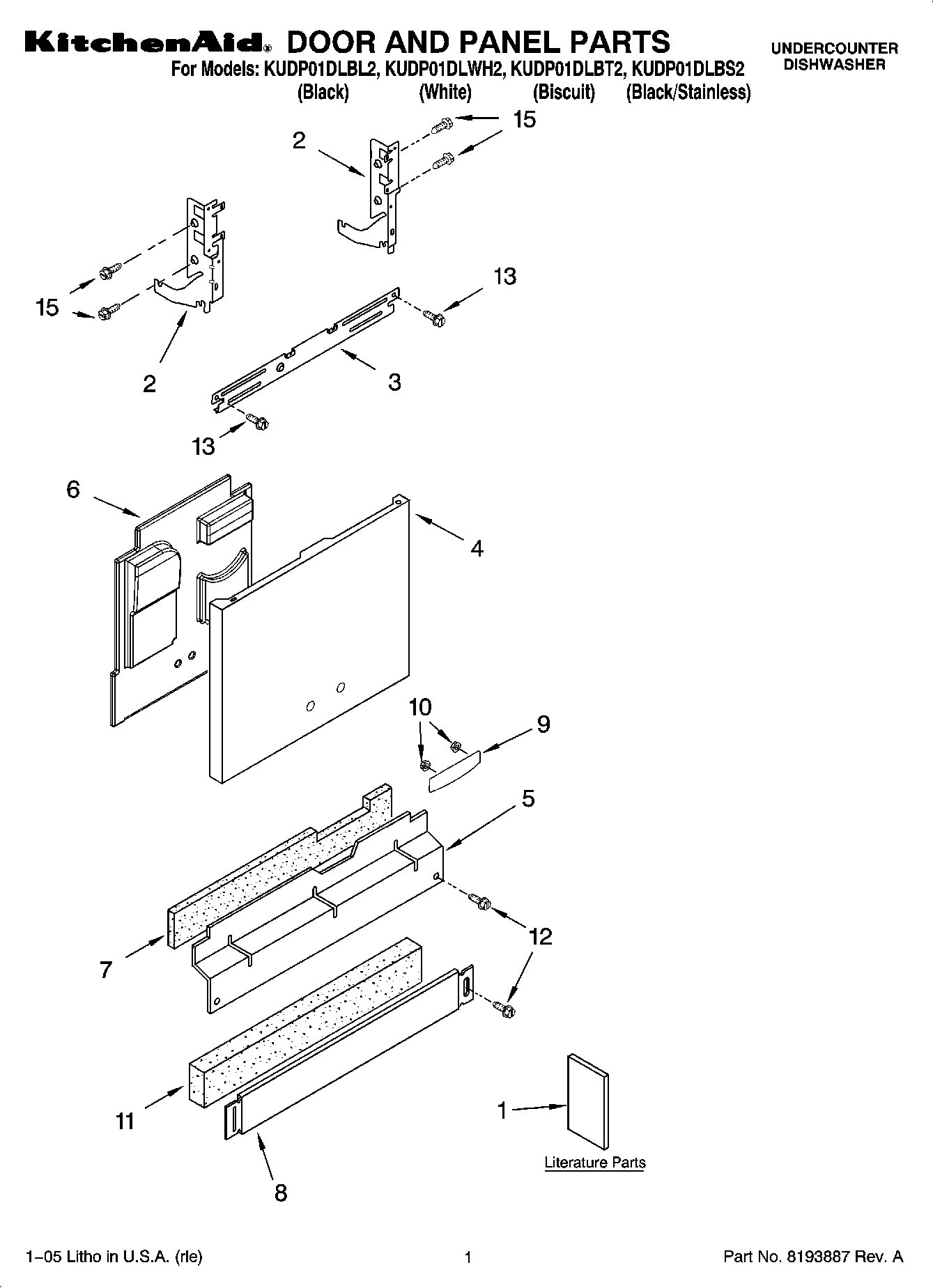

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $81.78

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $92.78

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $14.99

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $67.37

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $7.99

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $61.20

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $8.99

3

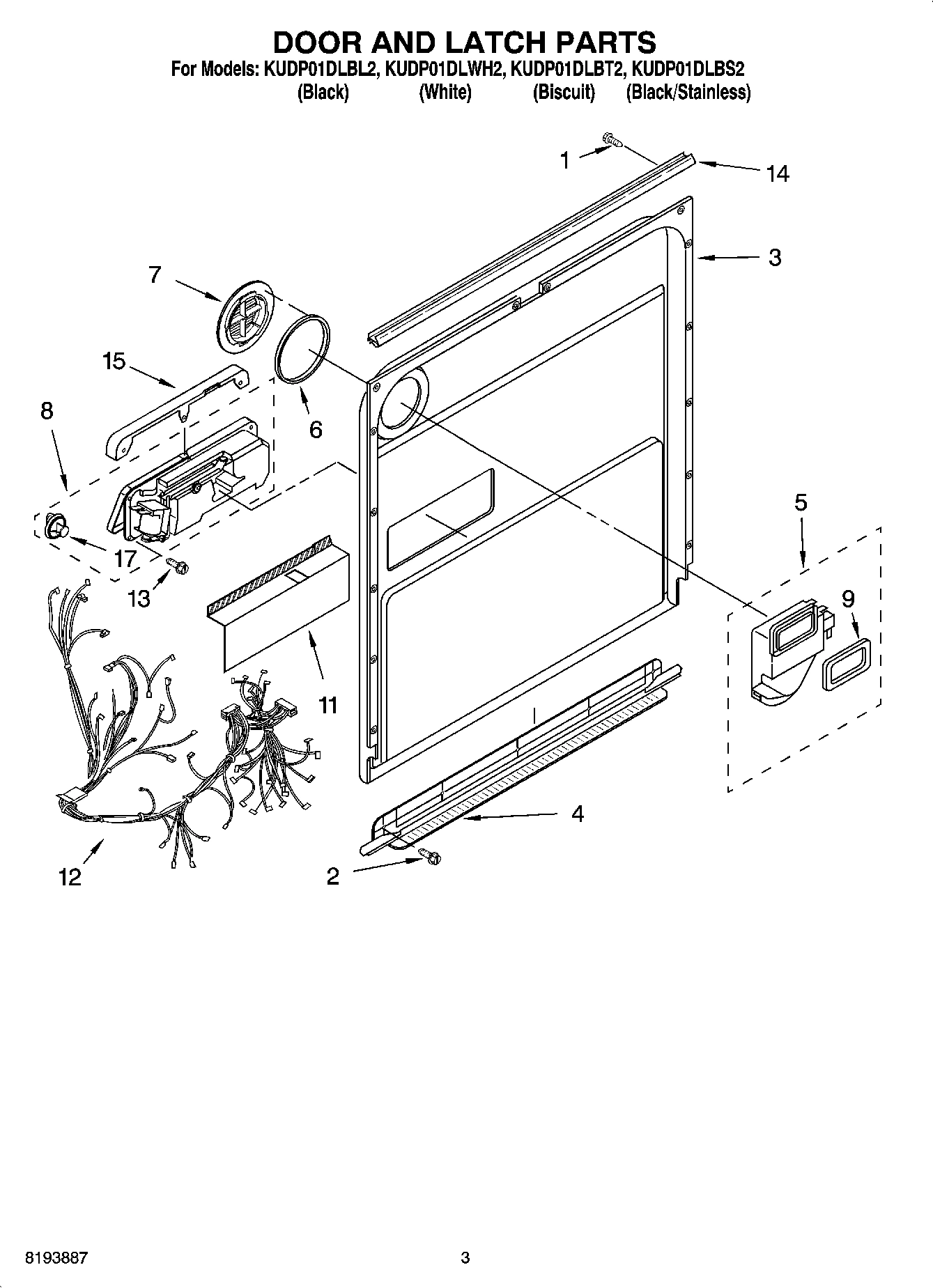

Inner Door Mastic Assembly (Also Order Item 6 WPL 8530900 Contact Us For Availability

4

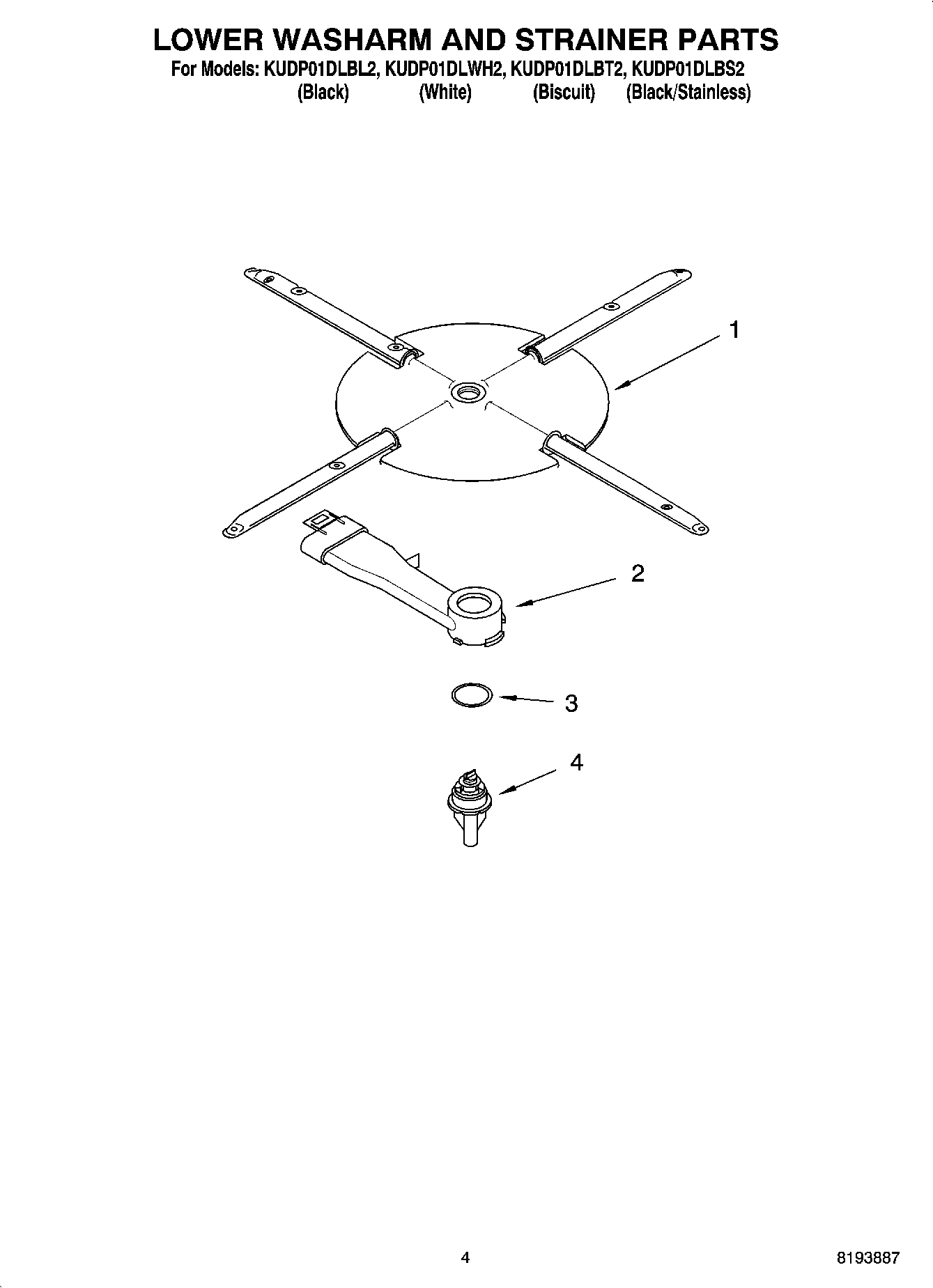

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $56.99

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $3.91

4

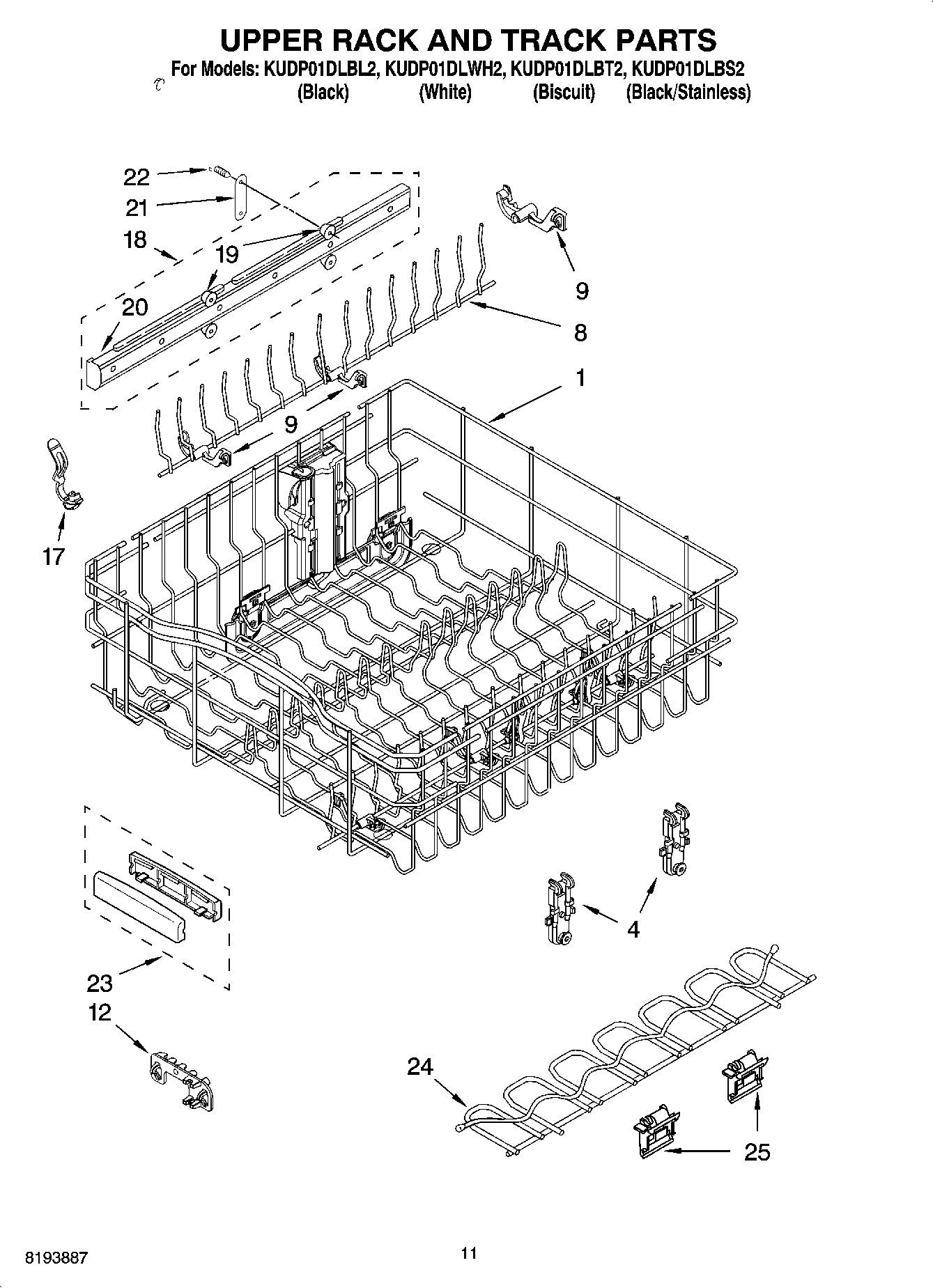

WP8268785 Whirlpool Dishwasher Wheel In Stock WPL WP8268785 $15.99

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $34.99

4

WP8531233 Whirlpool Dishwasher Silverware Bas In Stock WPL WP8531233 $49.95

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $17.99

4

Fastener, Push-In WPL 3400920 Contact Us For Availability

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $64.53

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $59.87

5

WP8545533 Whirlpool Dishwasher Vent Backorder WPL WP8545533 $138.51

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

NOTE: If heater element is removed, it must b WPL ARI114686A Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $55.68

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $49.86

6

Manifold WPL 8268355 Contact Us For Availability

7

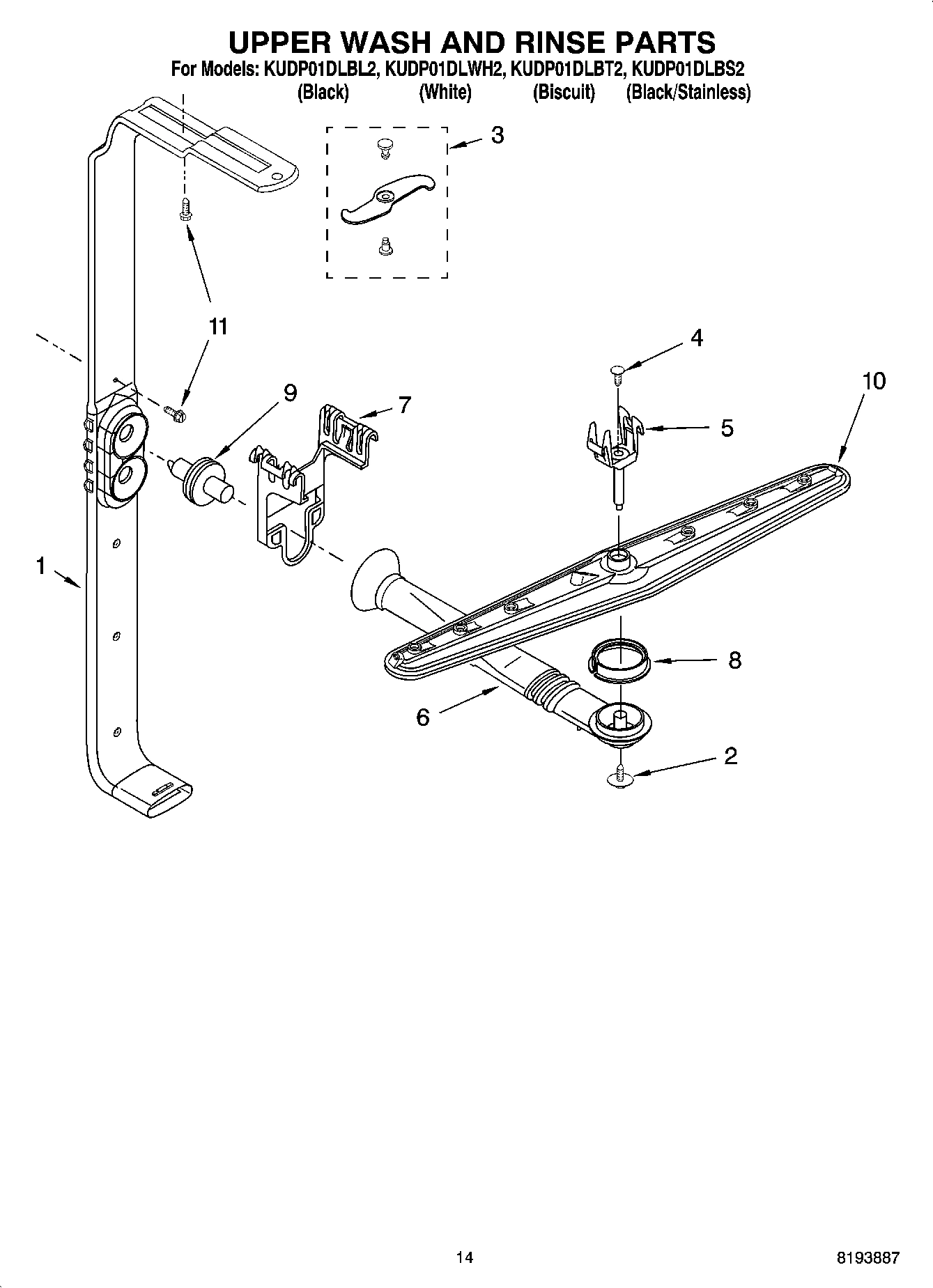

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $8.94

7

WP8269206 Whirlpool Dishwasher Display Backorder WPL WP8269206 $82.46

7

WP8531314 Whirlpool Dishwasher Retainer Backorder WPL WP8531314 $18.65

7

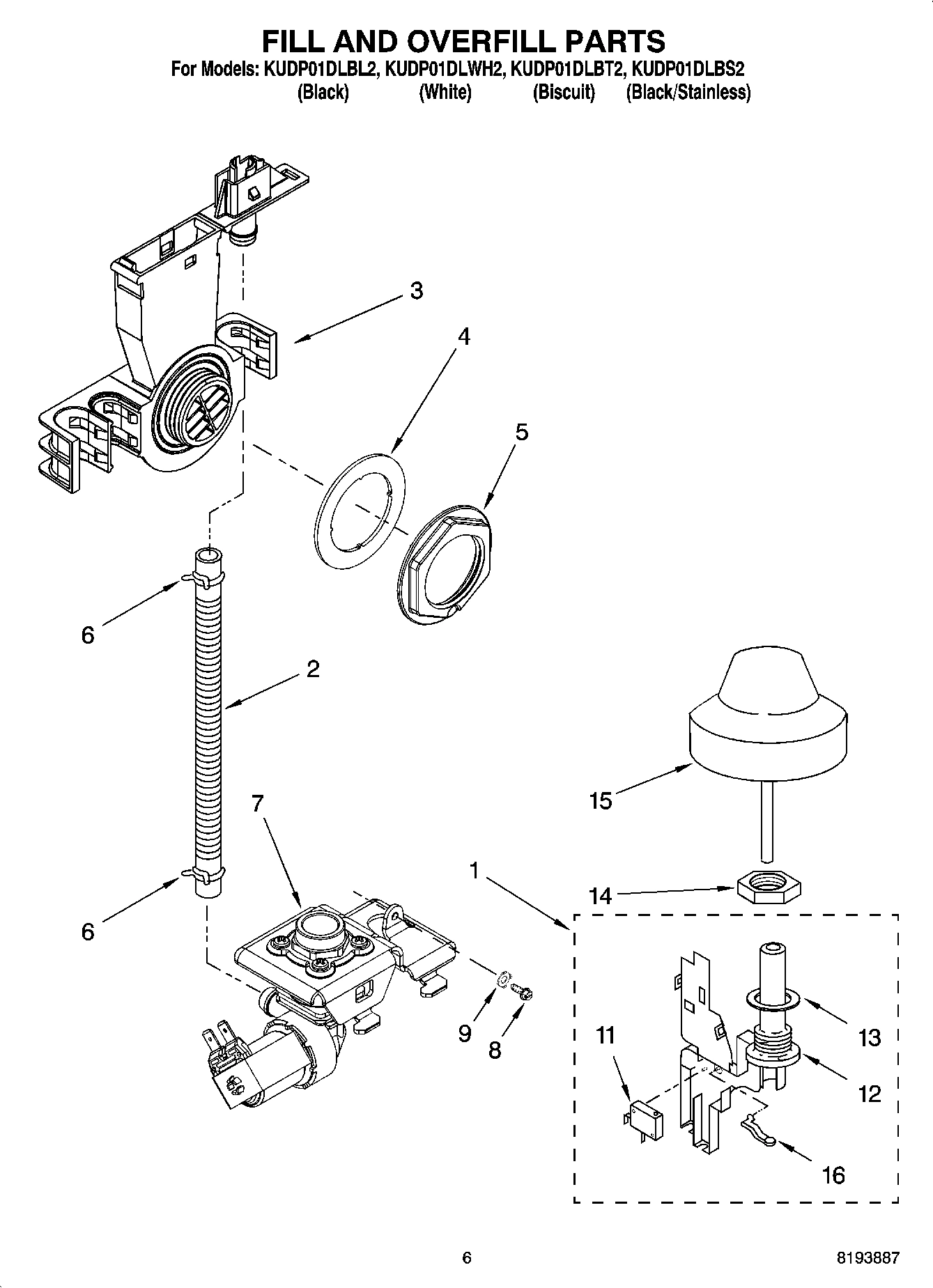

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $39.99

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $52.93

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $10.99

8

WP8558129 Whirlpool Dishwasher Detergent Disp In Stock WPL WP8558129 $64.99

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $88.99

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $60.35

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

9

Clip, Pivot WPL 8519669 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.67

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $49.99

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $7.97

Shield, Dispenser WPL 8268541 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.56

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $4.99

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $17.66

Wiring Harness Main WPL 8534932 Contact Us For Availability

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $36.85

13

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $9.64

13

Seal, Sump WPL 8268395 Contact Us For Availability

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $115.87

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $4.82

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $4.99

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $62.88

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $9.77

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $21.99

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $35.67

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $7.41

17

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $15.98

17

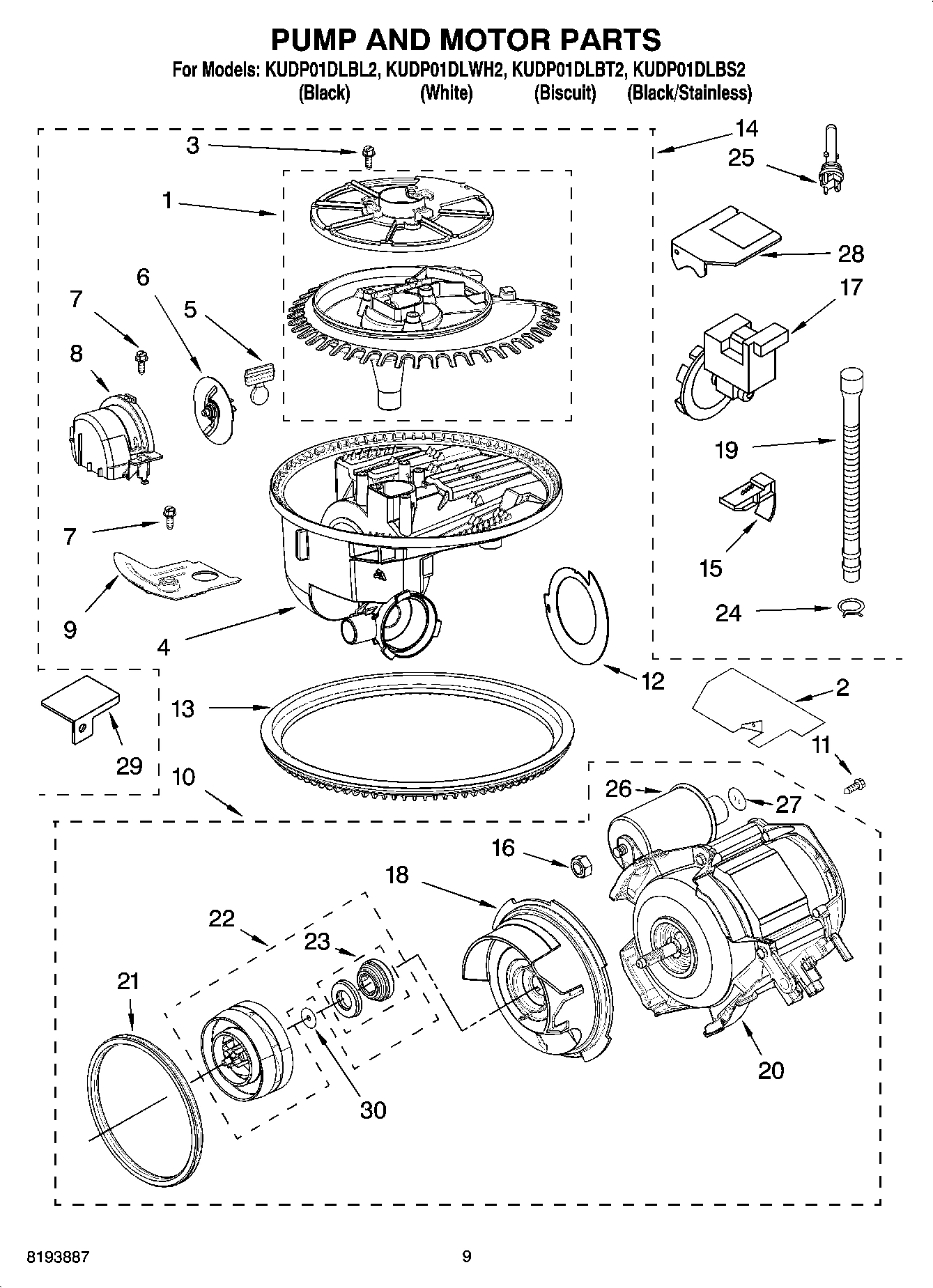

Pump, Drain WPL 661658 Contact Us For Availability

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $14.99

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.99

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $4.82

20

Stop, Track WPL 8270136 Contact Us For Availability

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $21.09

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $8.99

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $6.65

29

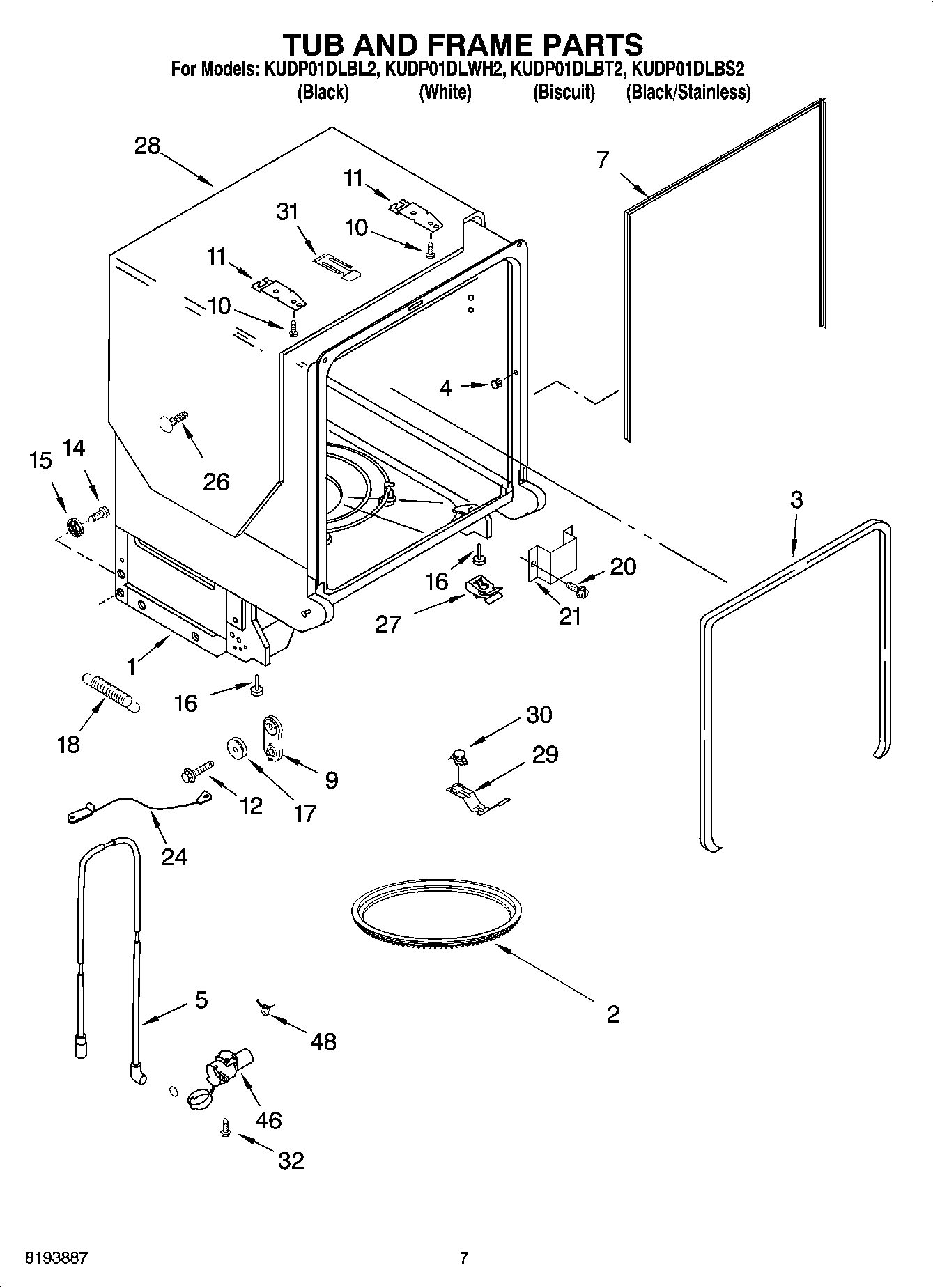

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $39.26

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.99

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $4.82

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98
