Model Whirlpool KSRS25IKBT01 REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER LINER
07 - FREEZER DOOR

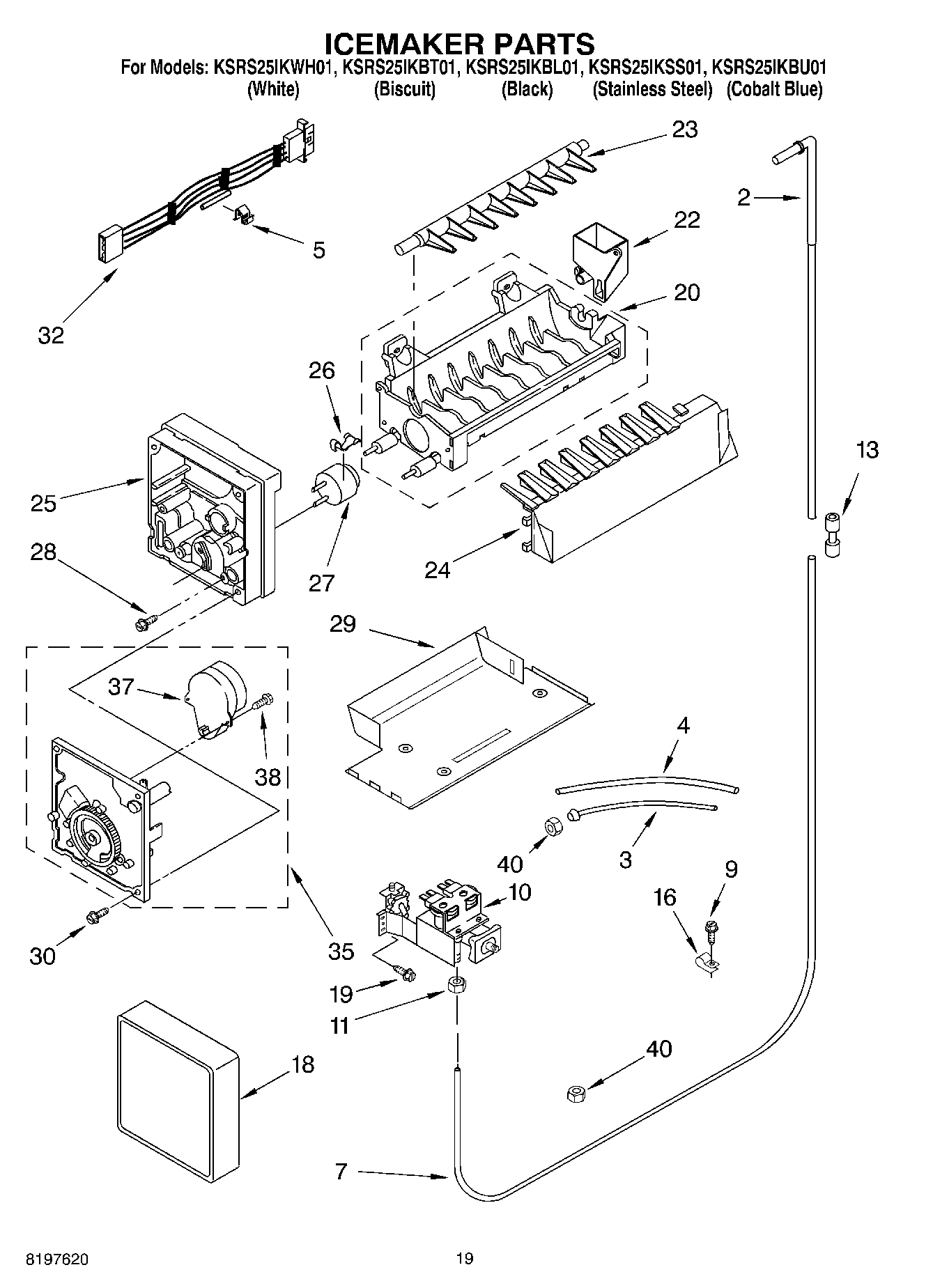

12 - ICE MAKER, OPTIONAL

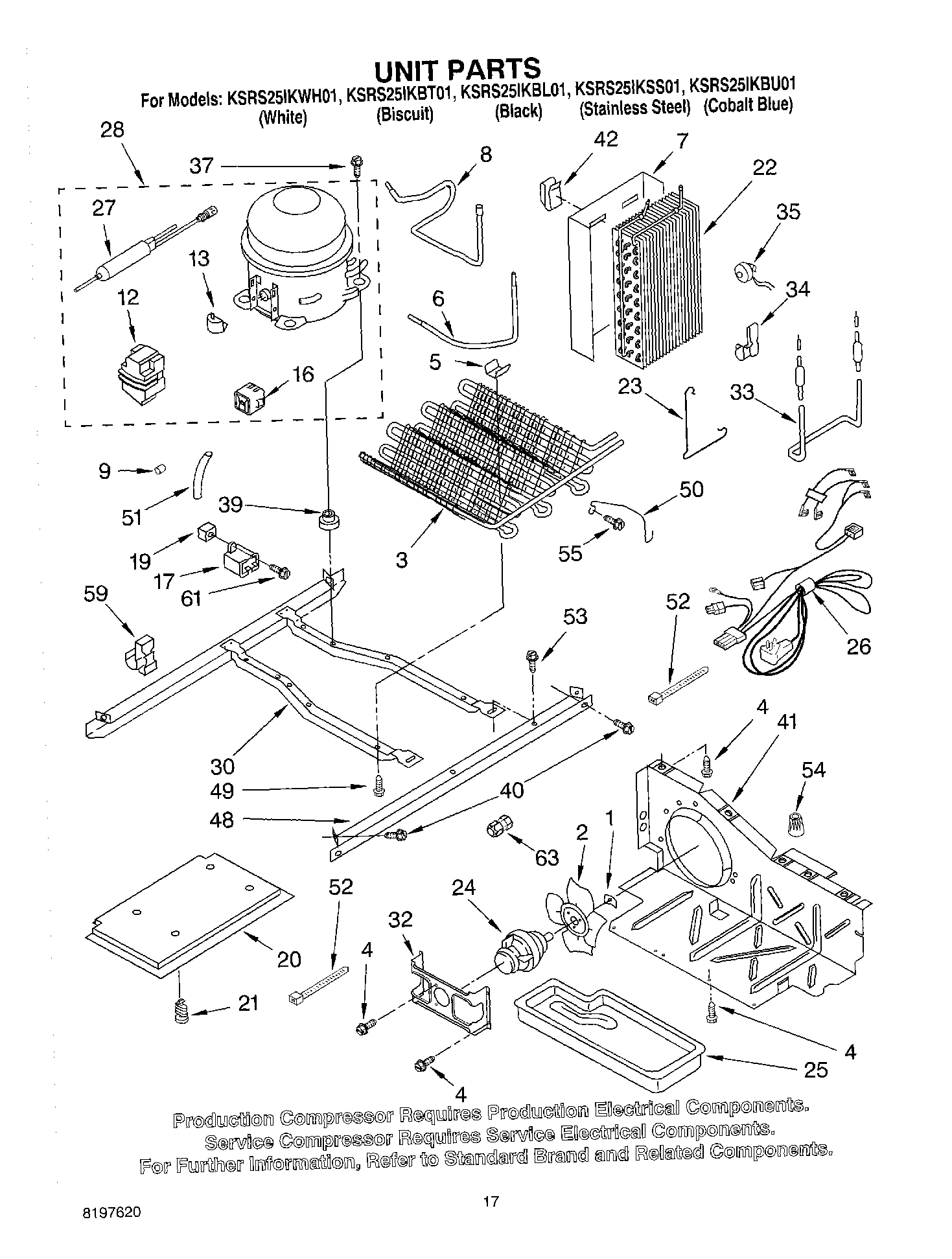

11 - UNIT

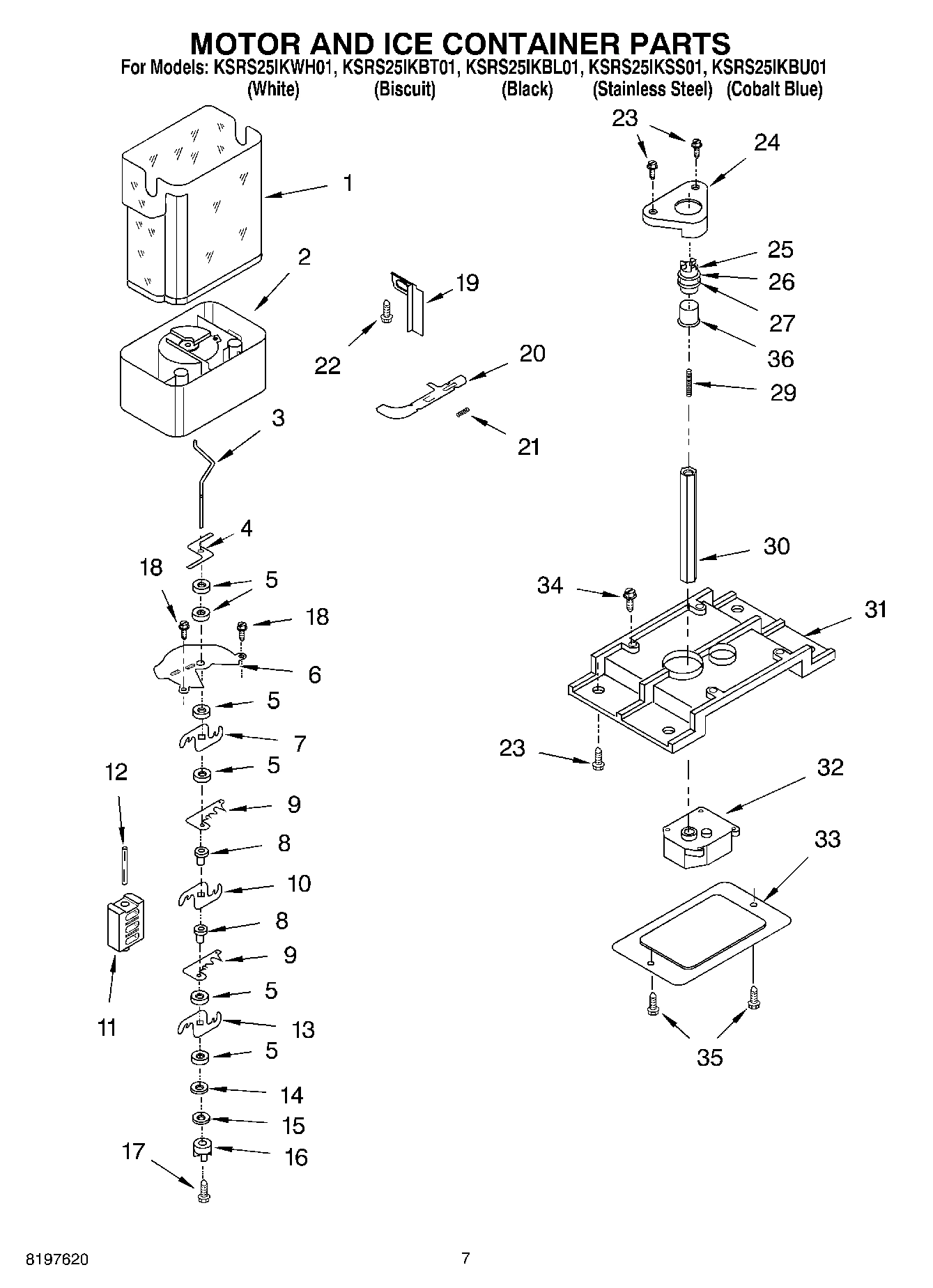

05 - MOTOR AND ICE CONTAINER

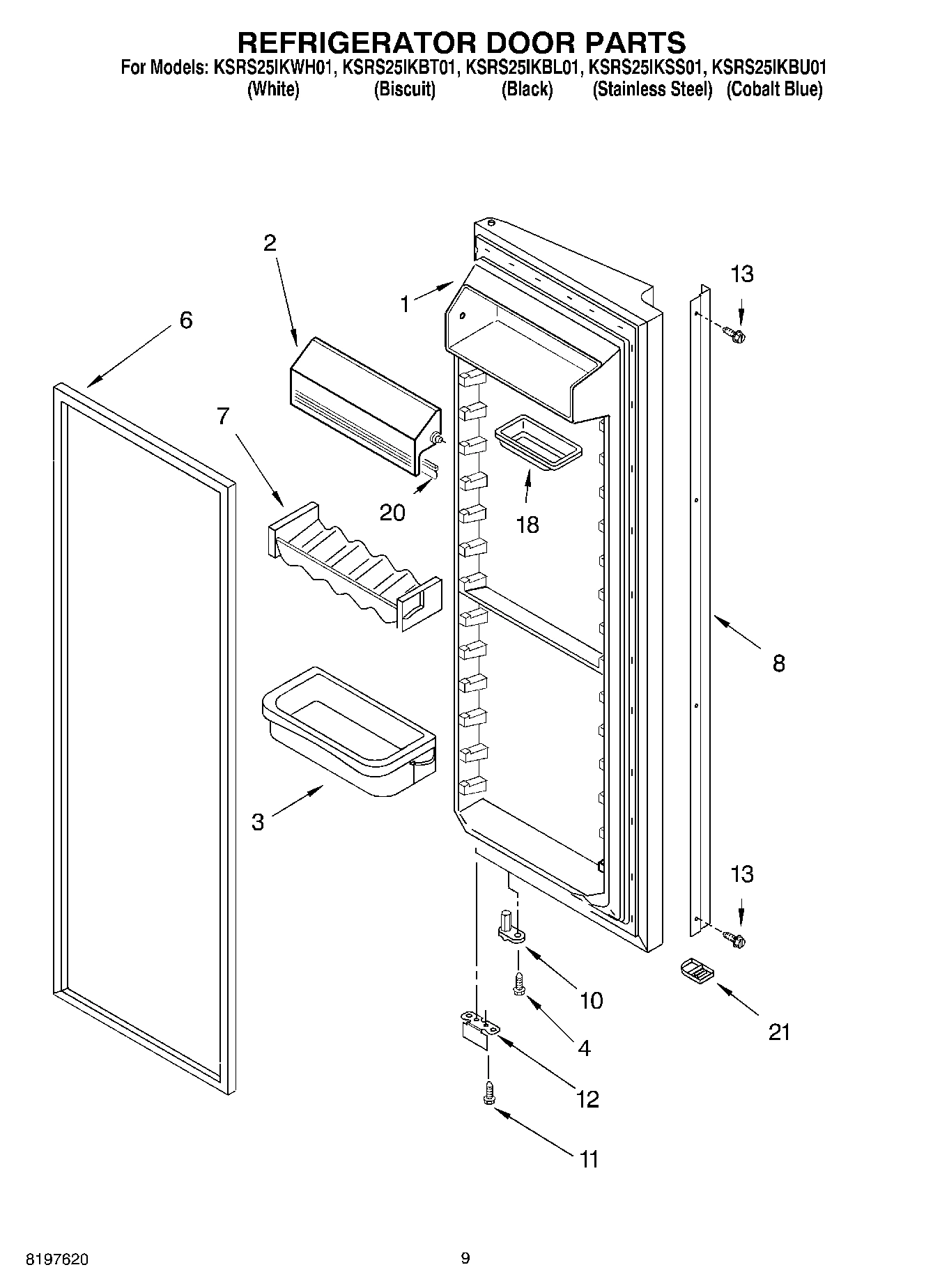

06 - REFRIGERATOR DOOR

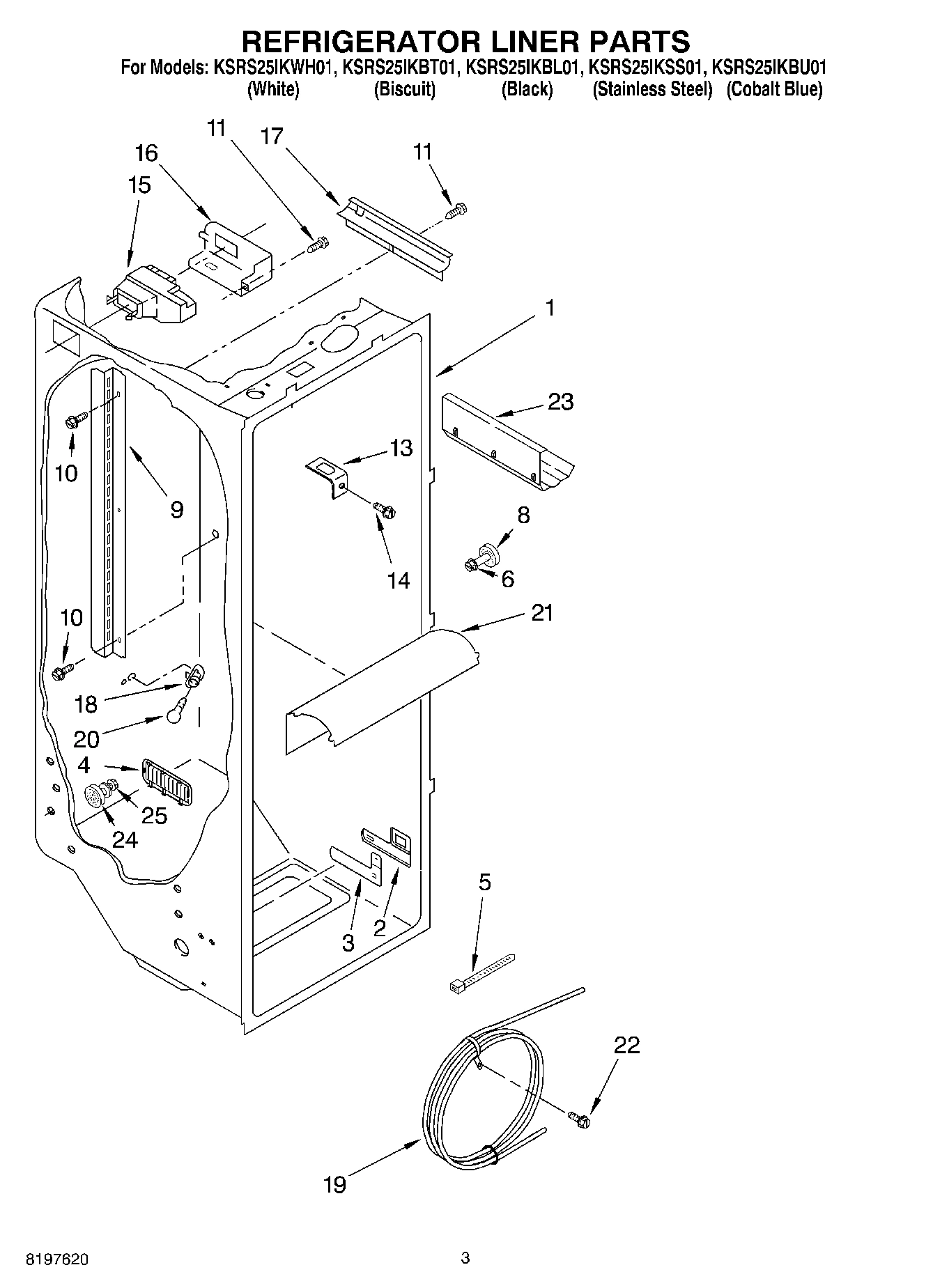

02 - REFRIGERATOR LINER

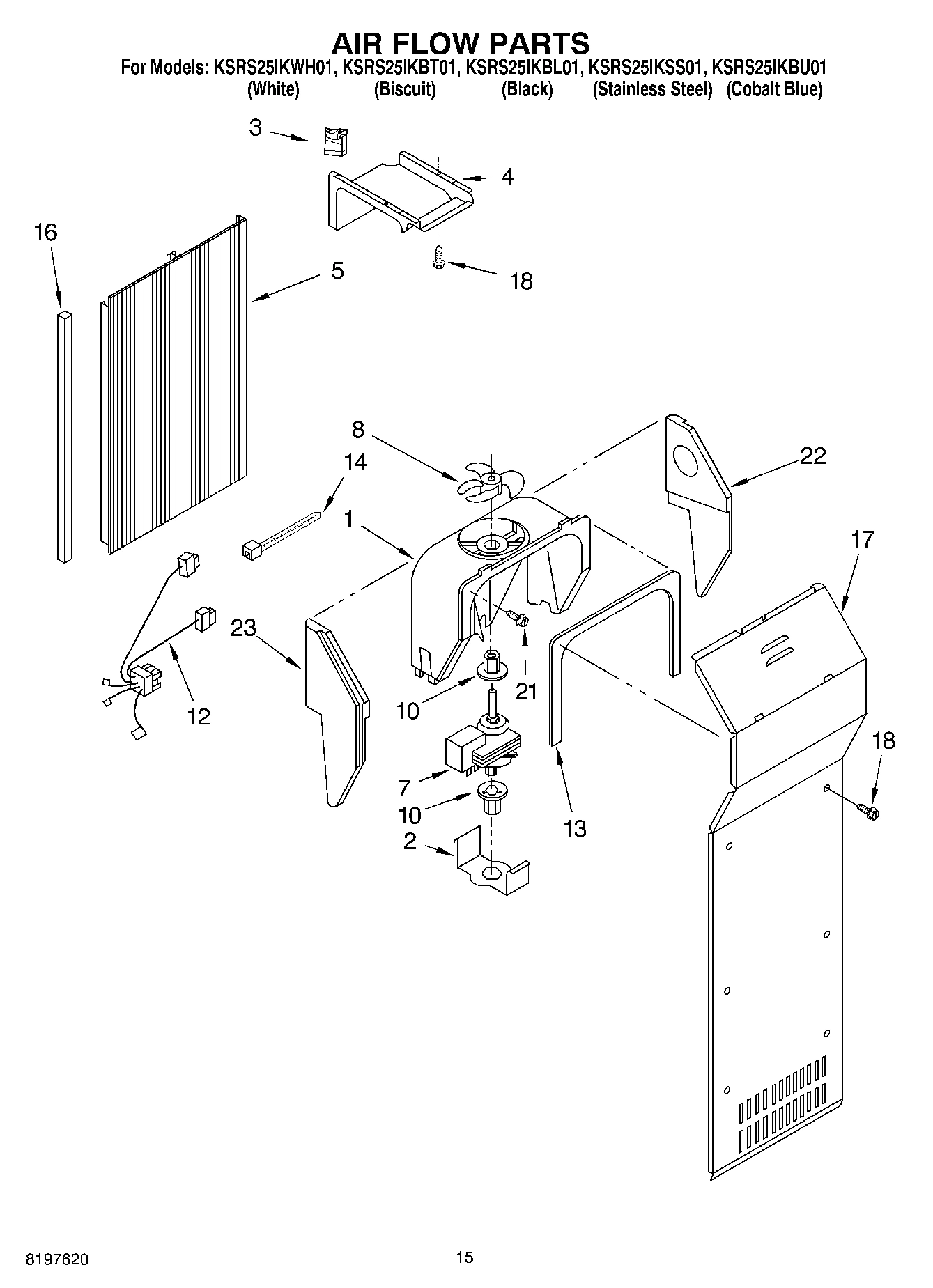

09 - AIR FLOW

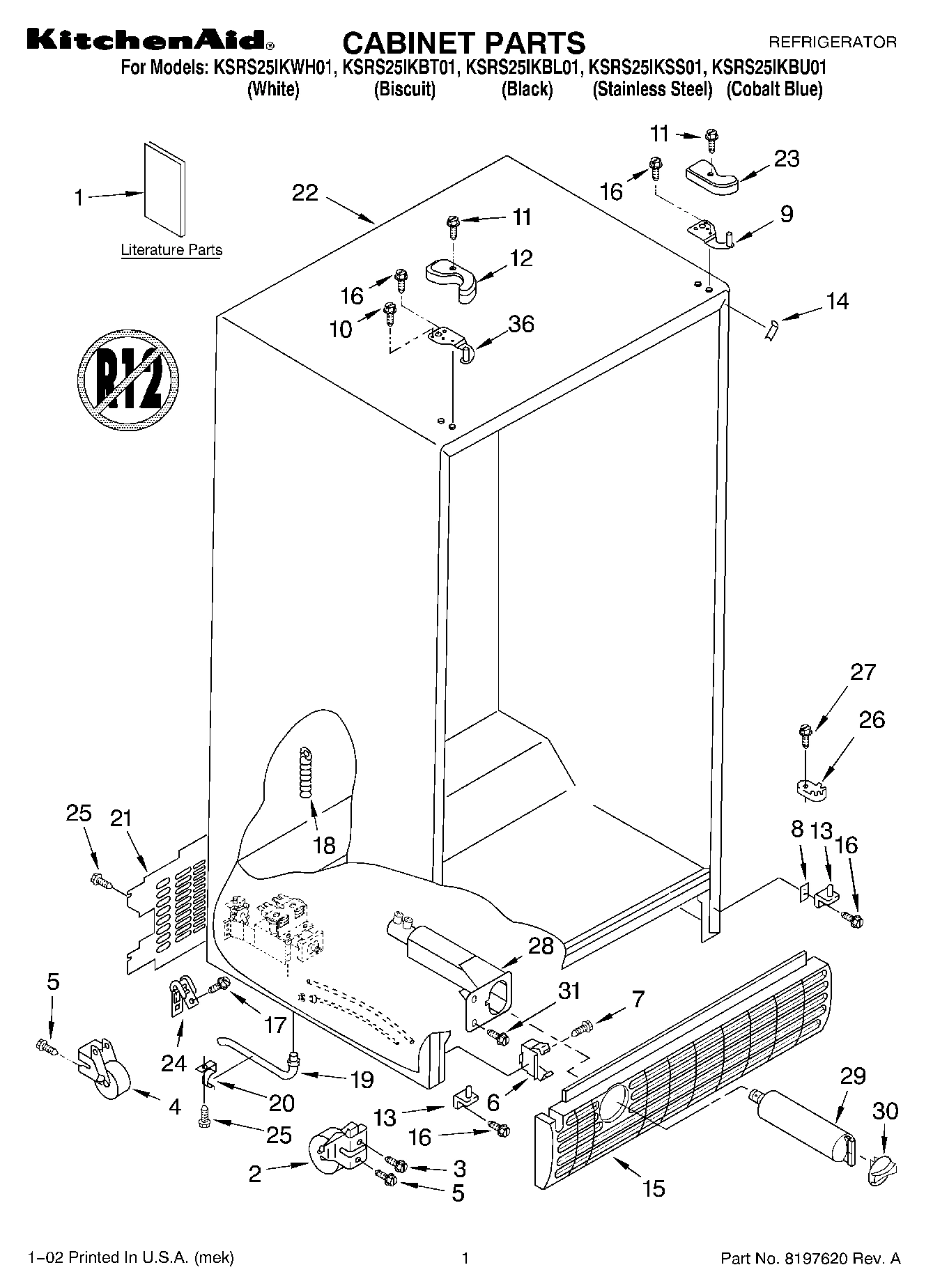

01 - CABINET, LITERATURE

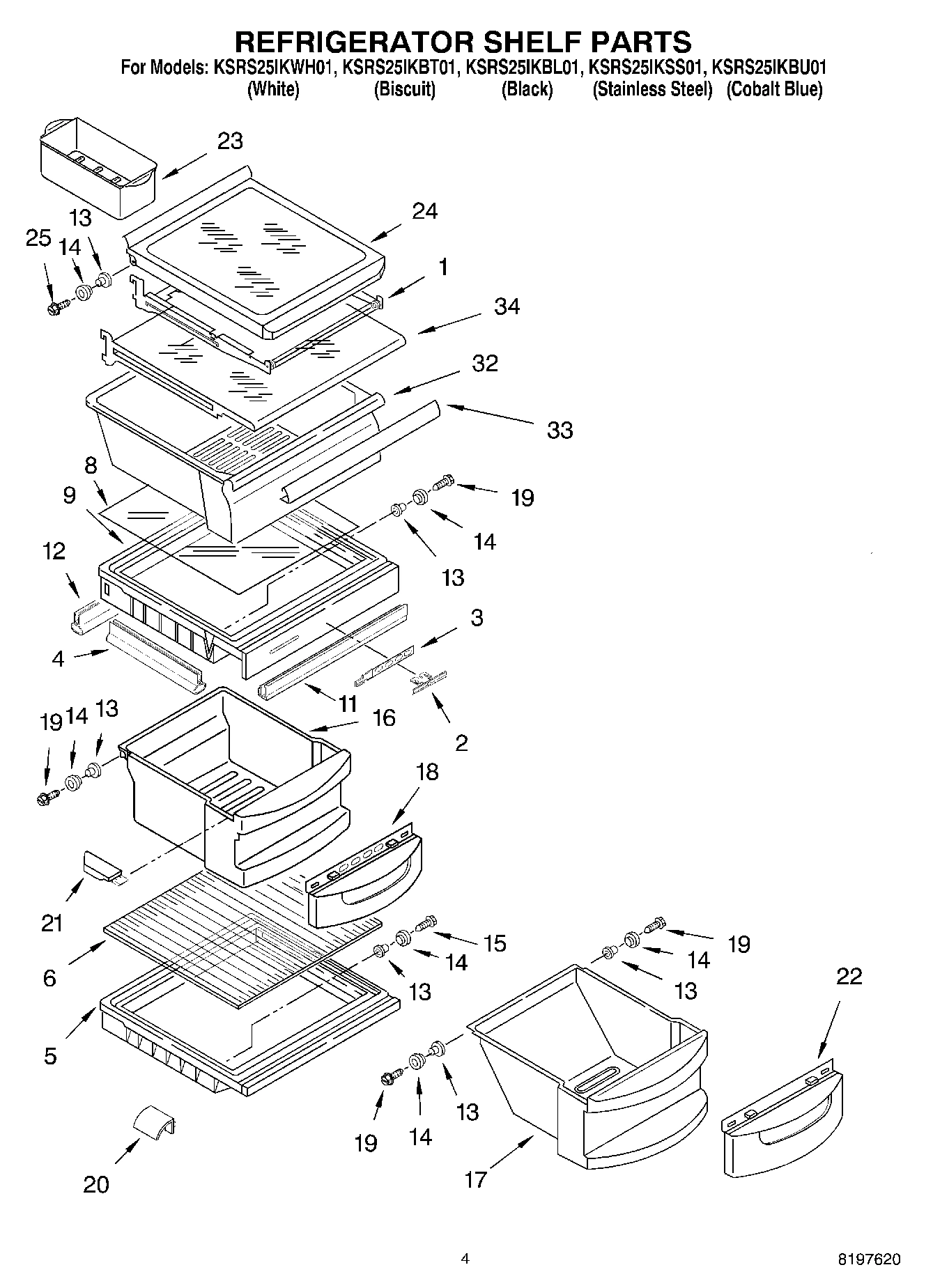

03 - REFRIGERATOR SHELF

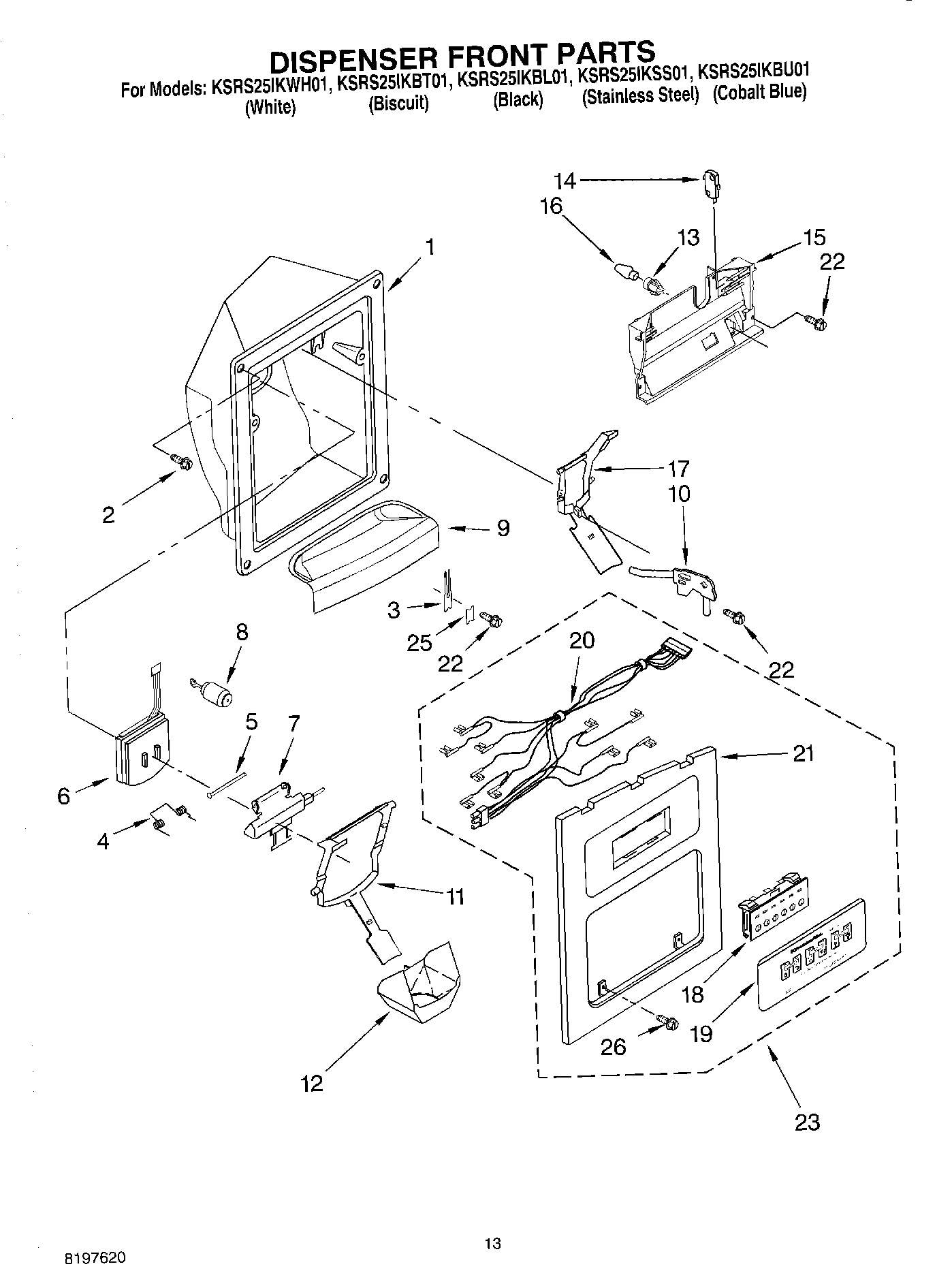

08 - DISPENSER FRONT

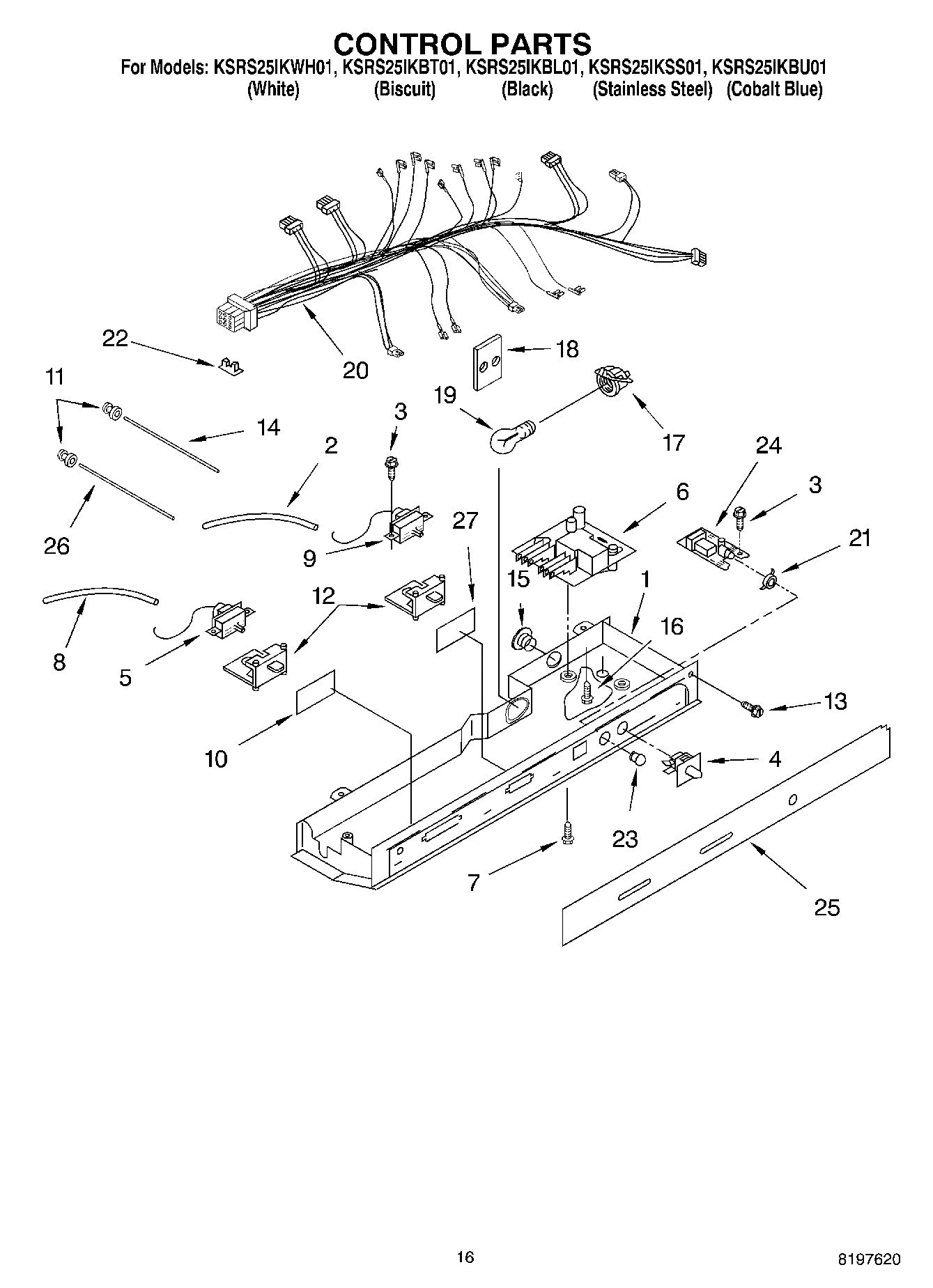

10 - CONTROL
Common parts from model Whirlpool KSRS25IKBT01 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101968A Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216935 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2220276 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220322 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI101970A Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Air Duct, Upper WPL 2212377 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
6
Glass, Cover WPL 2174148 Contact Us For Availability
7
Beverage Holder WPL 2193409 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Shim (1) WPL 2209697 Contact Us For Availability
8
Handle (Black) WPL 2207112B Contact Us For Availability
8
Handle (Cobalt Blue) WPL 2207112BU Contact Us For Availability
8
Handle (Stainless Steel) WPL 2207112S Contact Us For Availability
8
Handle (Biscuit) WPL 2207112T Contact Us For Availability
8
Handle (White) WPL 2207112W Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Shelf Ladder WPL 2206273 Contact Us For Availability
9
Grille, Overflow (Cobalt Blue) WPL 2207109BU Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability
9
Grille, Overflow (White) WPL 2207109W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Lever, Ice Dispenser (Cobalt Blue (Cobalt Blu WPL 2207151 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability
12
Bracket, Door Stop (Black) WPL 2220082B Contact Us For Availability
12
Hinge Cover (Cobalt Blue) WPL 2203407BU Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Screw (4) (Black) WPL 3400899 Contact Us For Availability
13
Screw (4) (Chrome) WPL 3400897 Contact Us For Availability
13
Screw (4) (White) WPL 3400898 Contact Us For Availability
13
Screw (4) (Biscuit) WPL 8281135 Contact Us For Availability
13
Screw (4) (Cobalt Blue) WPL 8281178 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Filler, Wrapper (Cobalt Blue) WPL 2205991 Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
Grille (Cobalt Blue) WPL 2186881BU Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Lever, Water Dispenser (Cobalt Blue (Cobalt B WPL 2207149 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Butter, Dish WPL 2165792 Contact Us For Availability
18
Switch Assembly (Not Available, Order No.23) WPL ARI101971A Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order No WPL ARI101972A Contact Us For Availability
20
Gasket WPL 2159124 Contact Us For Availability
20
Control Box Harness WPL 2206517 Contact Us For Availability
21
Endcap (Black) WPL 2207111B Contact Us For Availability
21
Endcap (Satin Chrome) WPL 2207111CH Contact Us For Availability
21
Endcap (Biscuit) WPL 2207111T Contact Us For Availability
21
Endcap (White) WPL 2207111W Contact Us For Availability
21
Light Lens WPL 2206269 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101973A Contact Us For Availability
21
Retainer, Light Lens WPL 2200097 Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI101967A Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Hinge Cover (Cobalt Blue) WPL 2203408BU Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153BU Contact Us For Availability
23
WPL 2207153T WPL 2207153T Contact Us For Availability
23
WPL 2207153W WPL 2207153W Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Cap, Water Filter (Cobalt Blue) WPL 2186884BU Contact Us For Availability
34
Shelf, Snack Pan WPL 2206346 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
