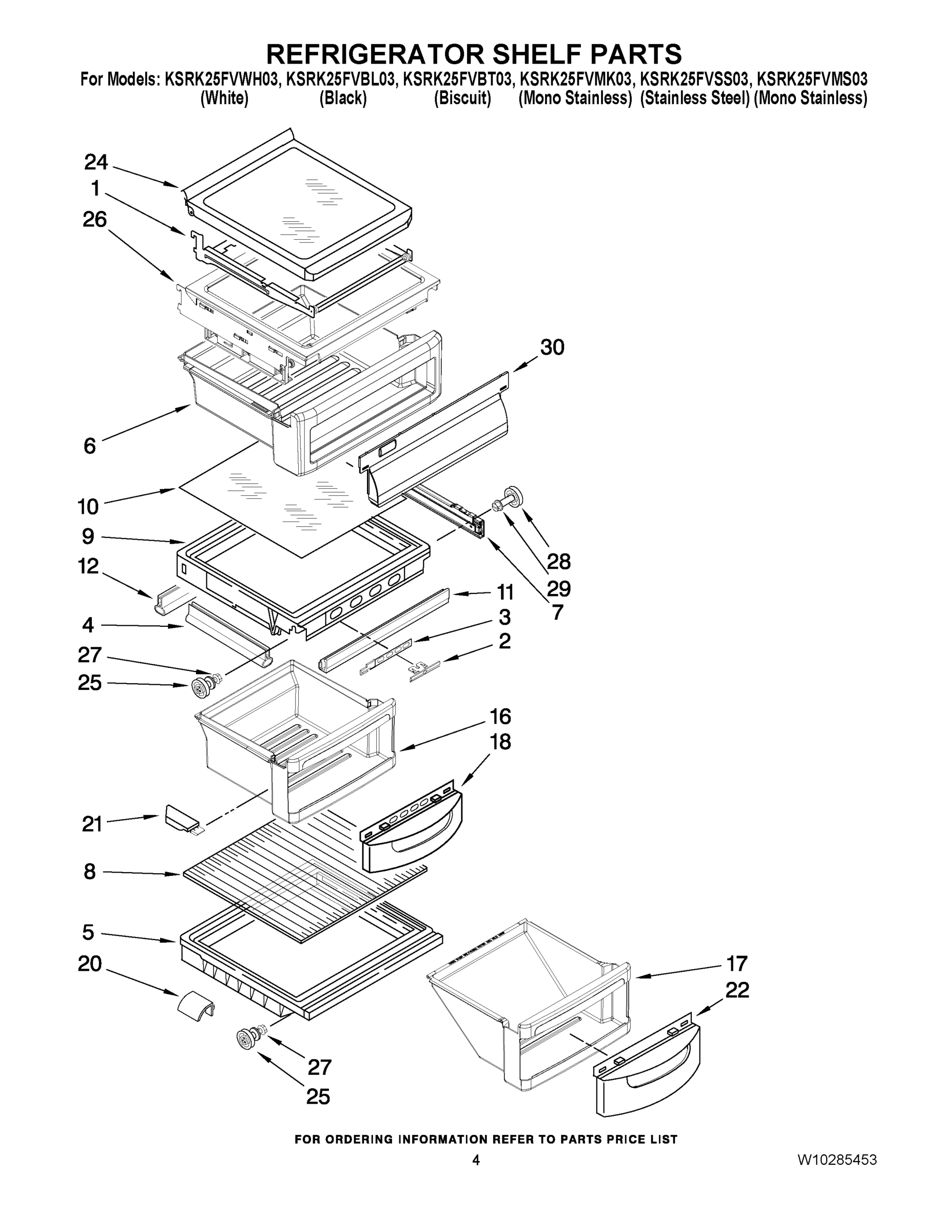

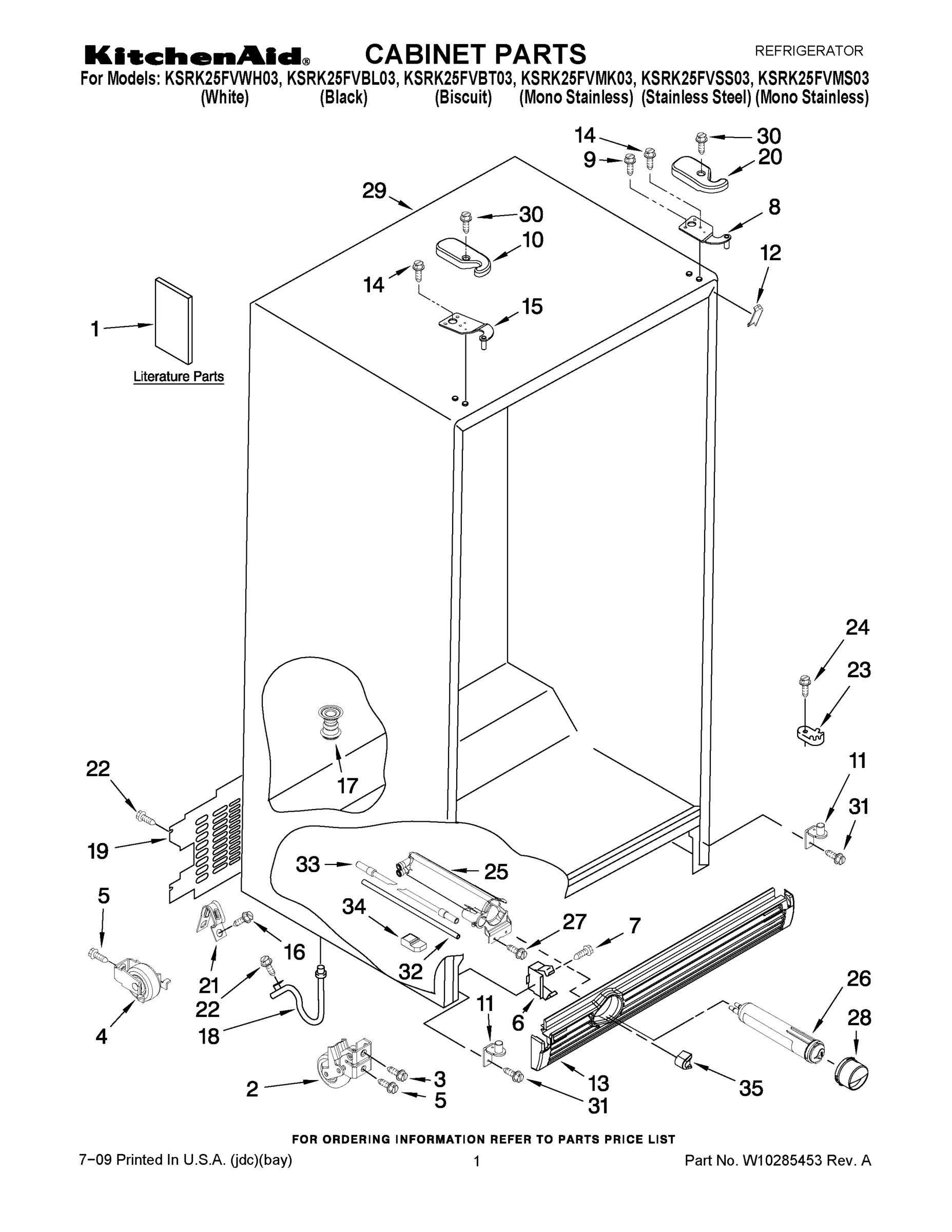

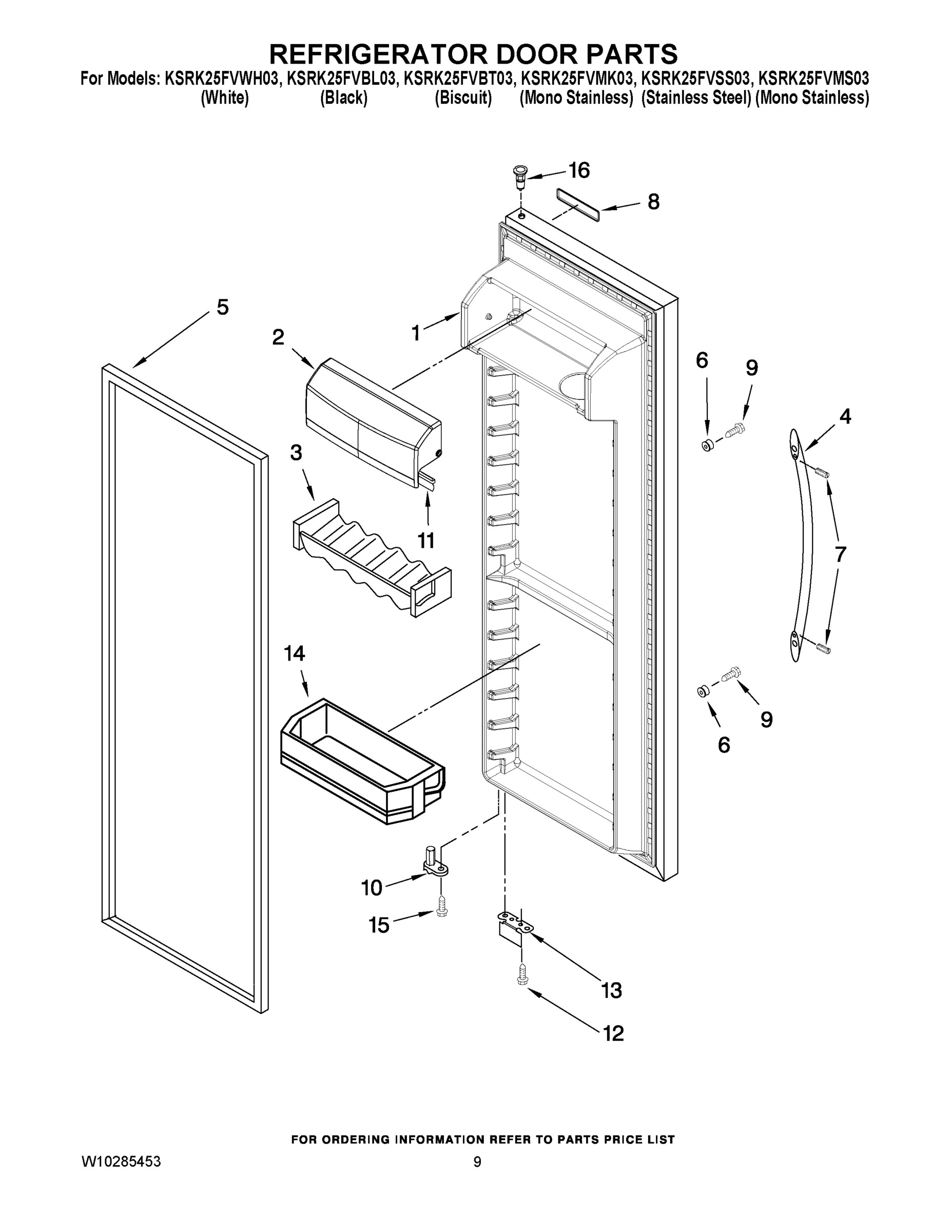

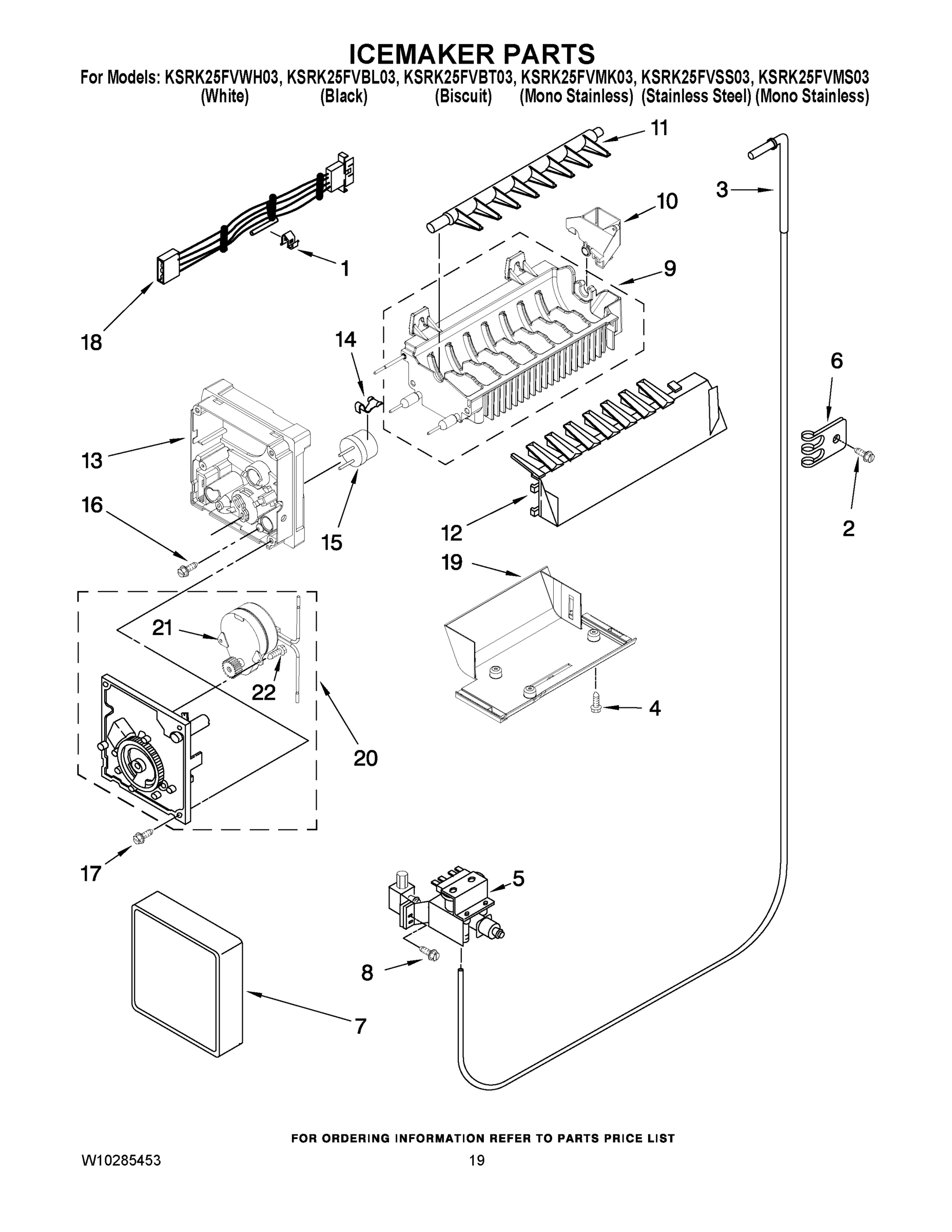

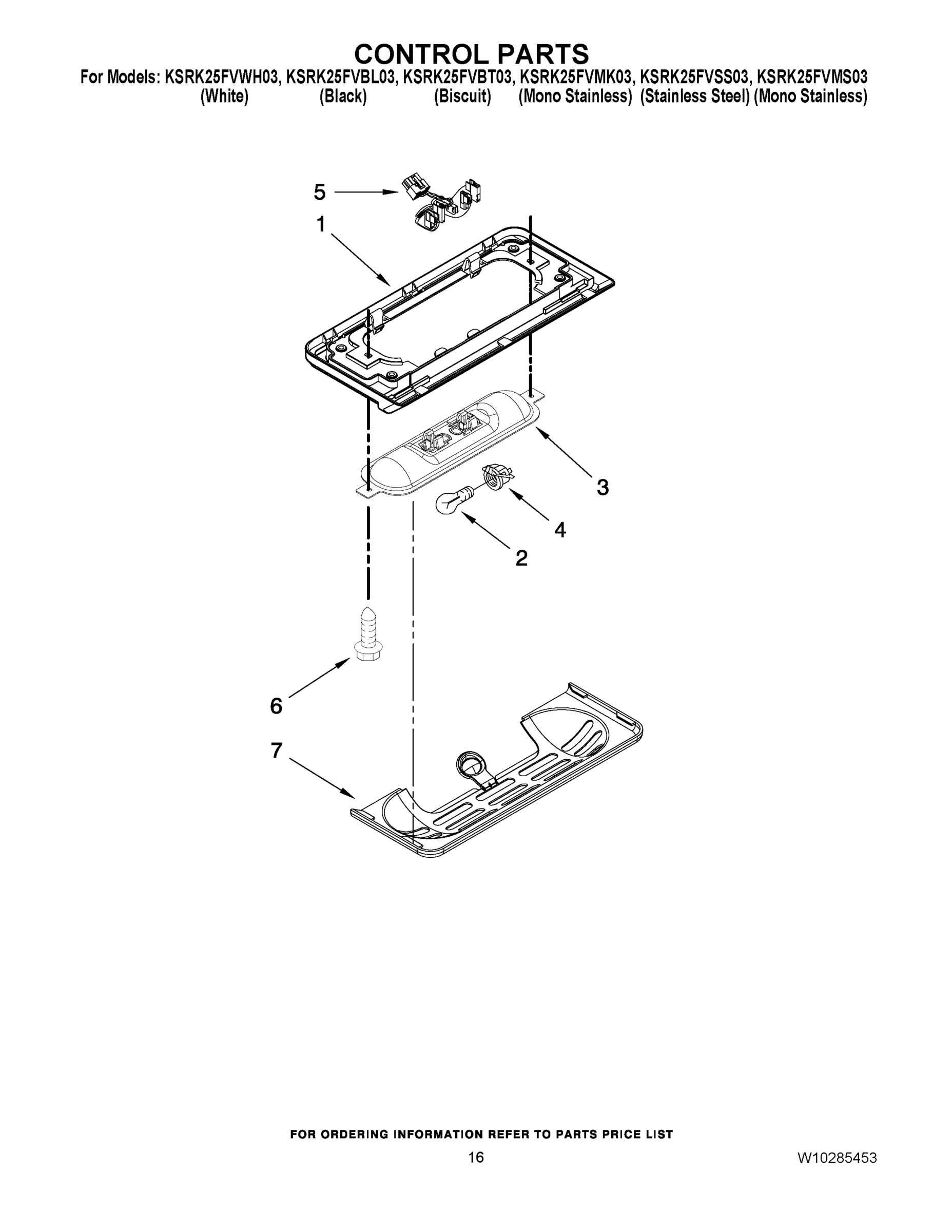

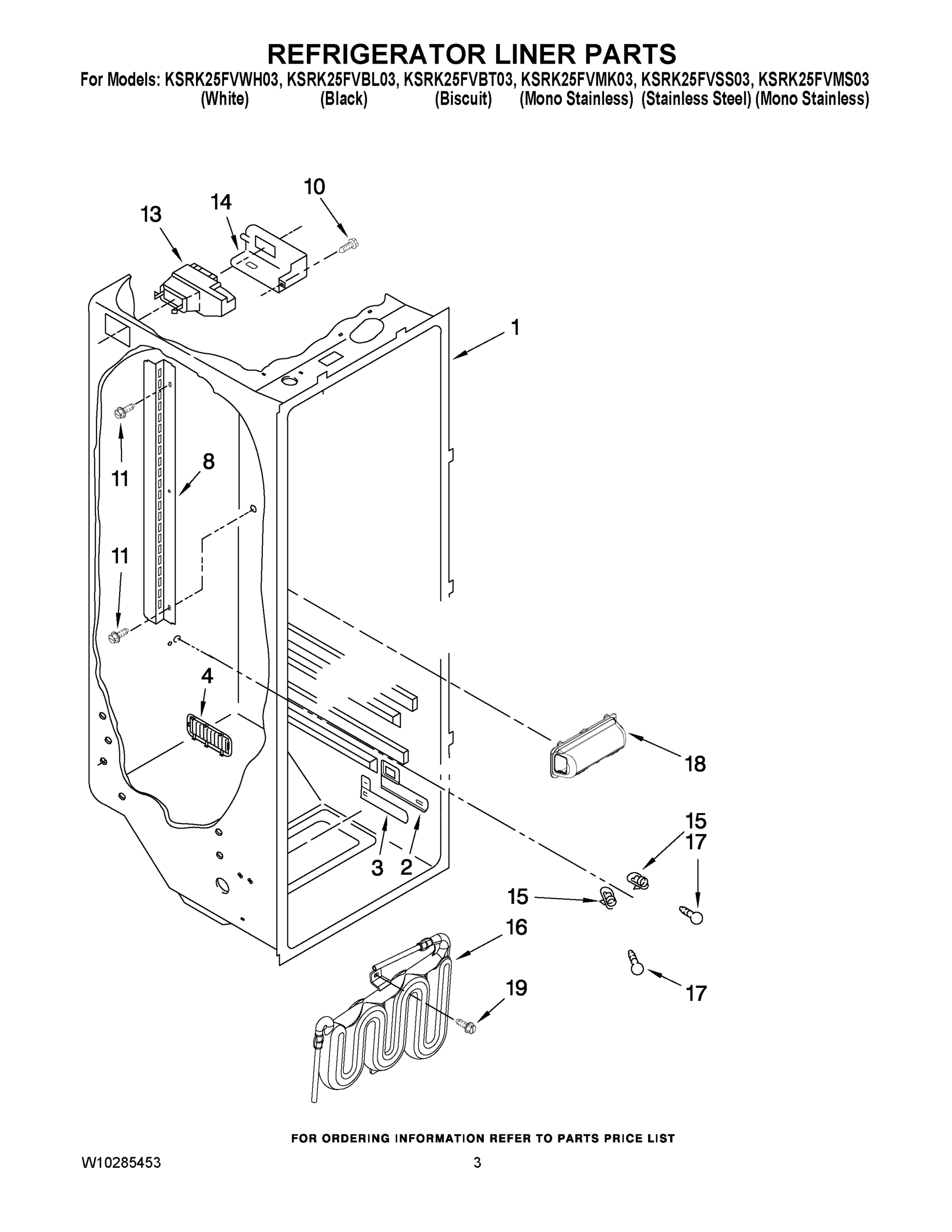

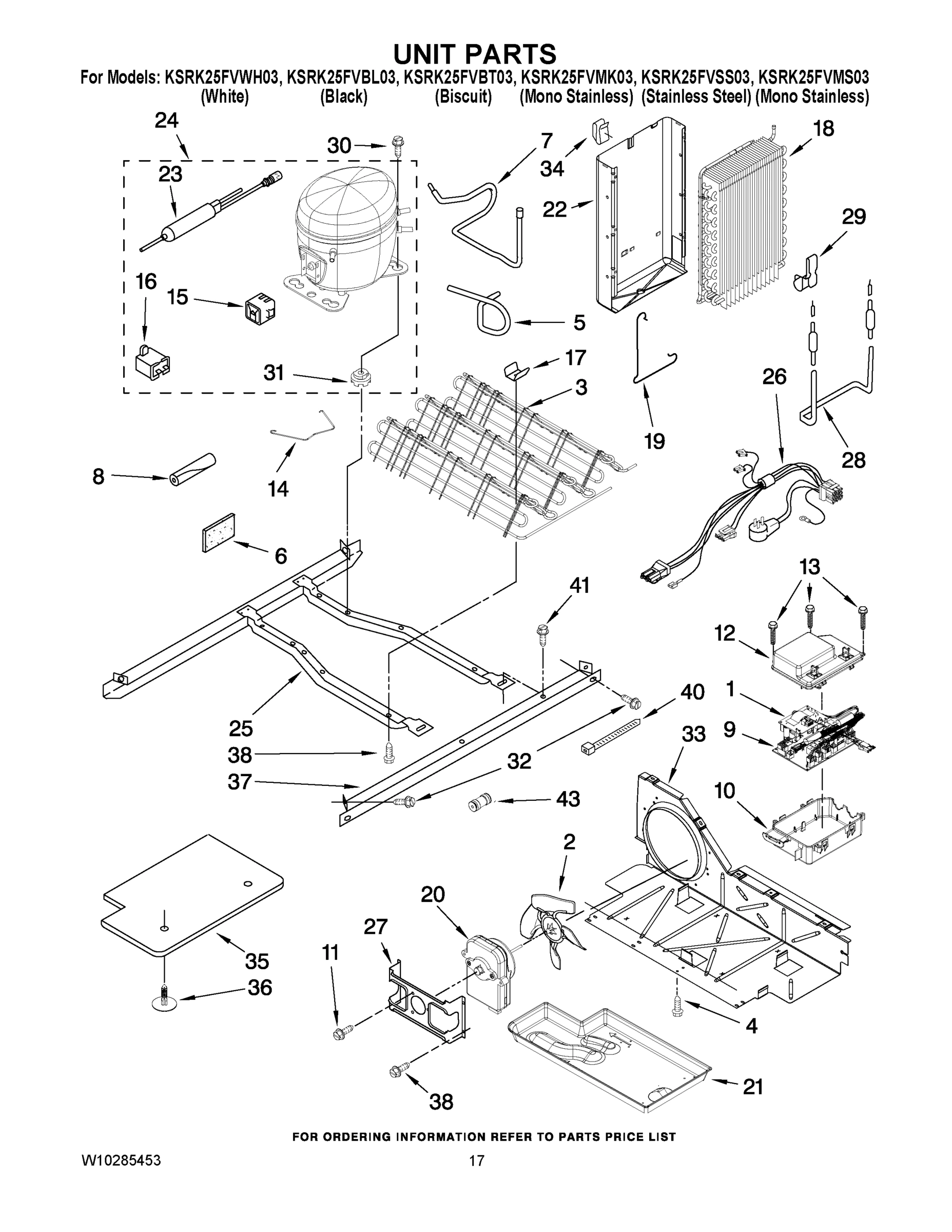

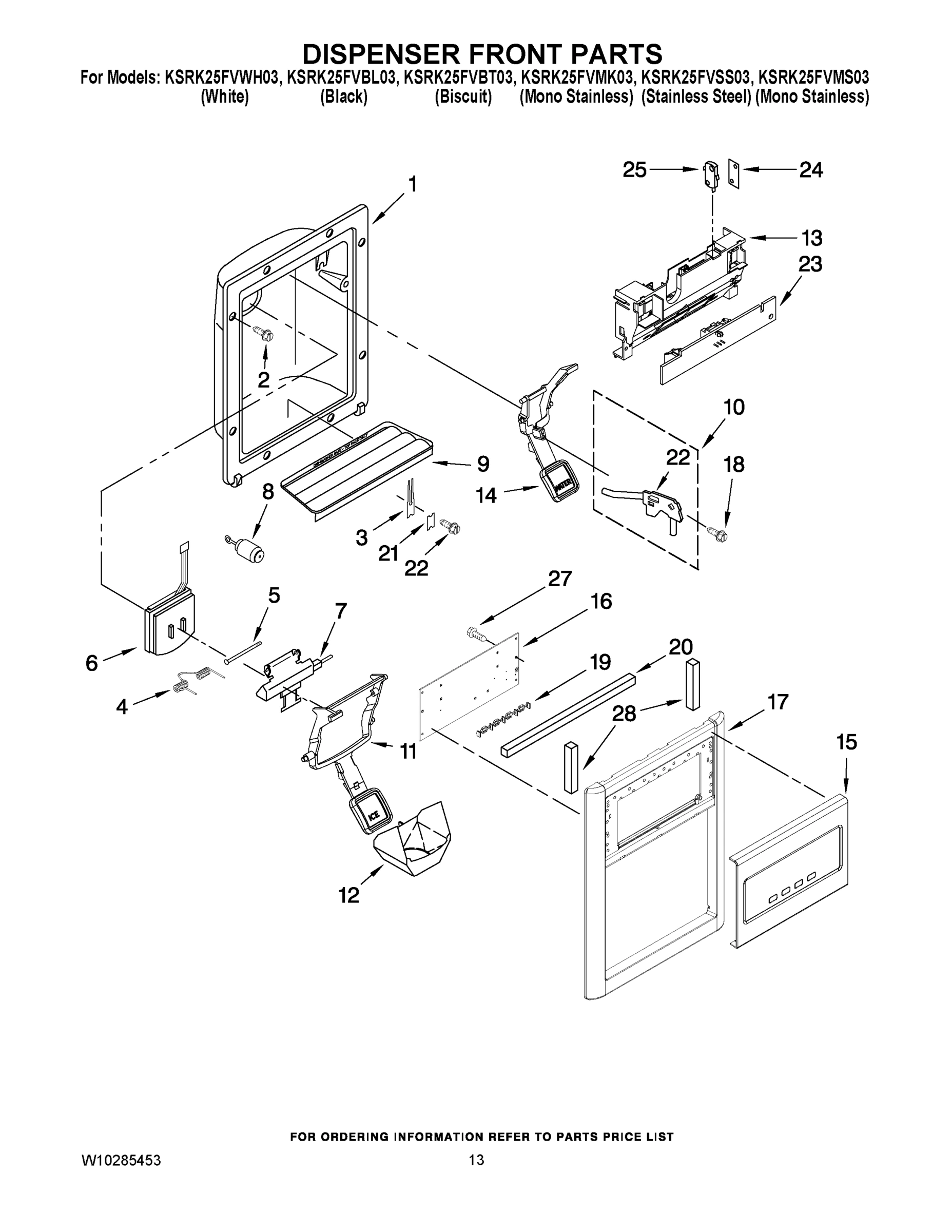

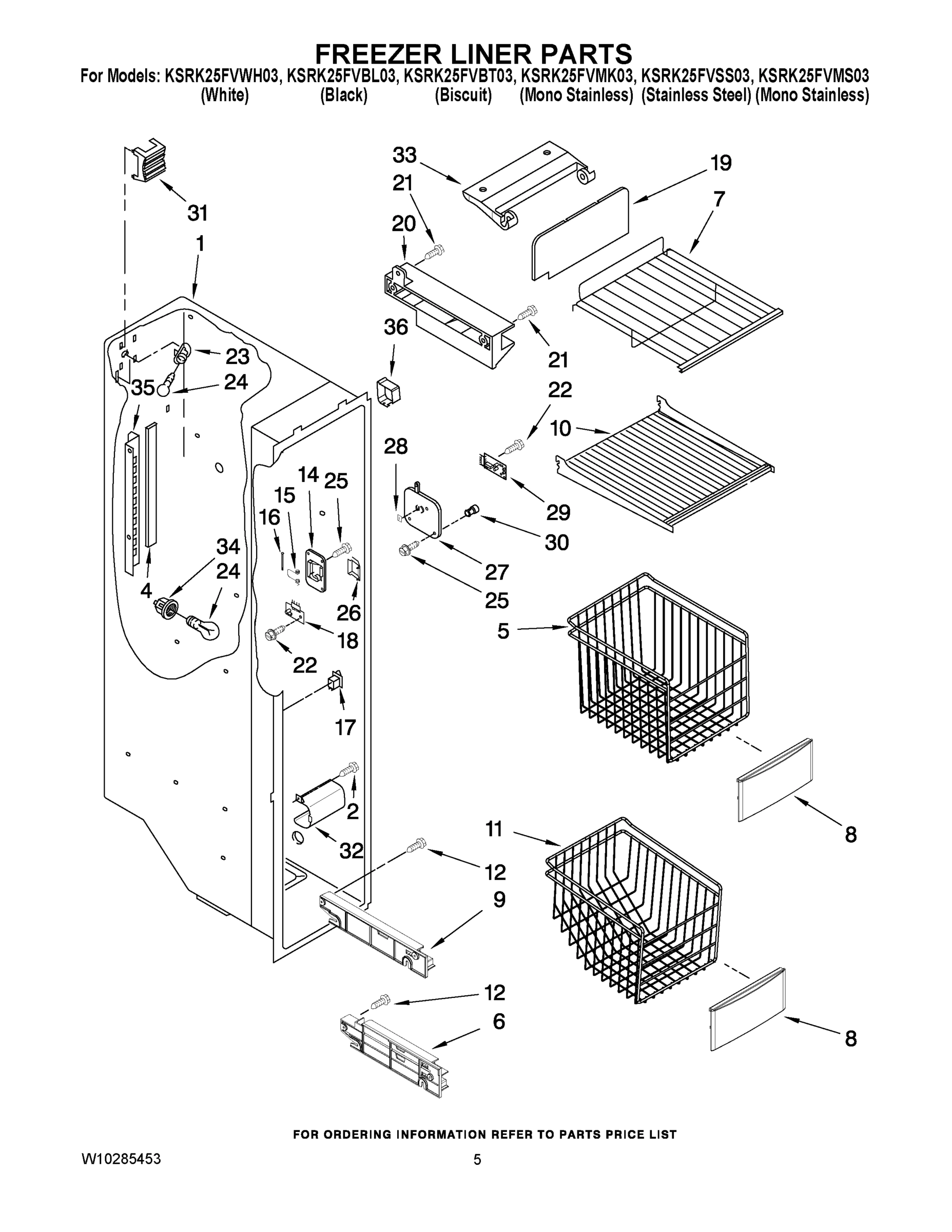

Model Whirlpool KSRK25FVBT03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

1

SHELF ASSEMBLY,CANTILEVER (3) WPL 2195975 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (STAINLESS WPL 2301184S Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMA WPL 2301184SAP Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (BLACK) WPL 2313299B Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (BISCUIT) WPL 2313299T Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (WHITE) WPL 2313299W Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

Handle (Black) WPL 2319727B Contact Us For Availability

2

Button, Humidity WPL 2301025 Contact Us For Availability

2

Door, Compartment WPL 2301486 Contact Us For Availability

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $48.27

3

2301026 Whirlpool Refrigerator Slide Backorder WPL 2301026 $74.62

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $130.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

3

Beverage Holder (2) WPL 2193409K Contact Us For Availability

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2301117 Contact Us For Availability

4

Handle (Biscuit) WPL 2319727T Contact Us For Availability

4

Handle (White) WPL 2319727W Contact Us For Availability

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $98.56

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

5

Cover, Meat Pan (Includes Items 13, 14, 15 & WPL 2301568 Contact Us For Availability

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $230.99

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $61.50

7

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $4.82

7

RIGHT SIDE WPL 2301548 Contact Us For Availability

7

LEFT SIDE WPL 2301549 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

8

BASKET, FRONT WPL 2301134 Contact Us For Availability

8

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

8

Glass, Cover WPL 2301010 Contact Us For Availability

8

Nameplate (Biscuit) WPL W10046700 Contact Us For Availability

9

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $6.70

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

9

WPW10210789-includeCORE Whirlpool WPW10210789 Backorder WPL WPW10210789-includeCORE $284.04

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $67.21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Glass, Cover WPL 2301009 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $60.74

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $65.33

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $65.21

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $61.47

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $64.64

Gasket WPL 2159124 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WPW10142233 Whirlpool Refrigerator Screw Backorder WPL WPW10142233 $5.23

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Gasket, Rear WPL 2301115 Contact Us For Availability

13

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $143.62

13

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $67.89

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $63.26

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $76.67

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $63.15

Lever, Water Dispenser (Apollo Gray) WPL W10155162 Contact Us For Availability

Thimble-Top (For Stainless Steel and Monochro WPL 2301049 Contact Us For Availability

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP2313162 Whirlpool Refrigerator Start Device In Stock WPL WP2313162 $124.97

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Fascia Assy (Stainless) WPL W10144818 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $116.03

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

Thimble-Top (For Stainless Steel and Monochro WPL 2308050 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $119.93

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Front Bezel-Disp (Stainless) WPL W10139842 Contact Us For Availability

Meat Pan (Includes 13, 14, 19 & 22) WPL W10165656 Contact Us For Availability

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $64.80

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $17.99

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Window, Crisper WPL 2301001 Contact Us For Availability

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.85

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

Latch, Bin WPL 2317277 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Hinge Cover, RC (Apollo Gray) WPL W10138579 Contact Us For Availability

Deflector WPL 2301126 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Cap, Crisper Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2301017 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Screw WPL W10141645 Contact Us For Availability

Window, Meat Pan WPL 2301227 Contact Us For Availability

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

23

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $14.95

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

Spacer, Switch WPL 625834 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.97

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

26

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

26

Shelf, Snack Pan WPL W10141750 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

Cover, Receiver WPL W10173569 Contact Us For Availability

Enclosure, Motor WPL 2322488 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $36.91

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.99

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

29

Screw WPL W10191952 Contact Us For Availability

29

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

30

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

32

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

33

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

33

TUBE, FILTER INLET WPL W10212512 Contact Us For Availability

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $17.54

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $51.99

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $59.85

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

Previous Architect Series Handle Kit (Stainle WPL 8201806 Contact Us For Availability
