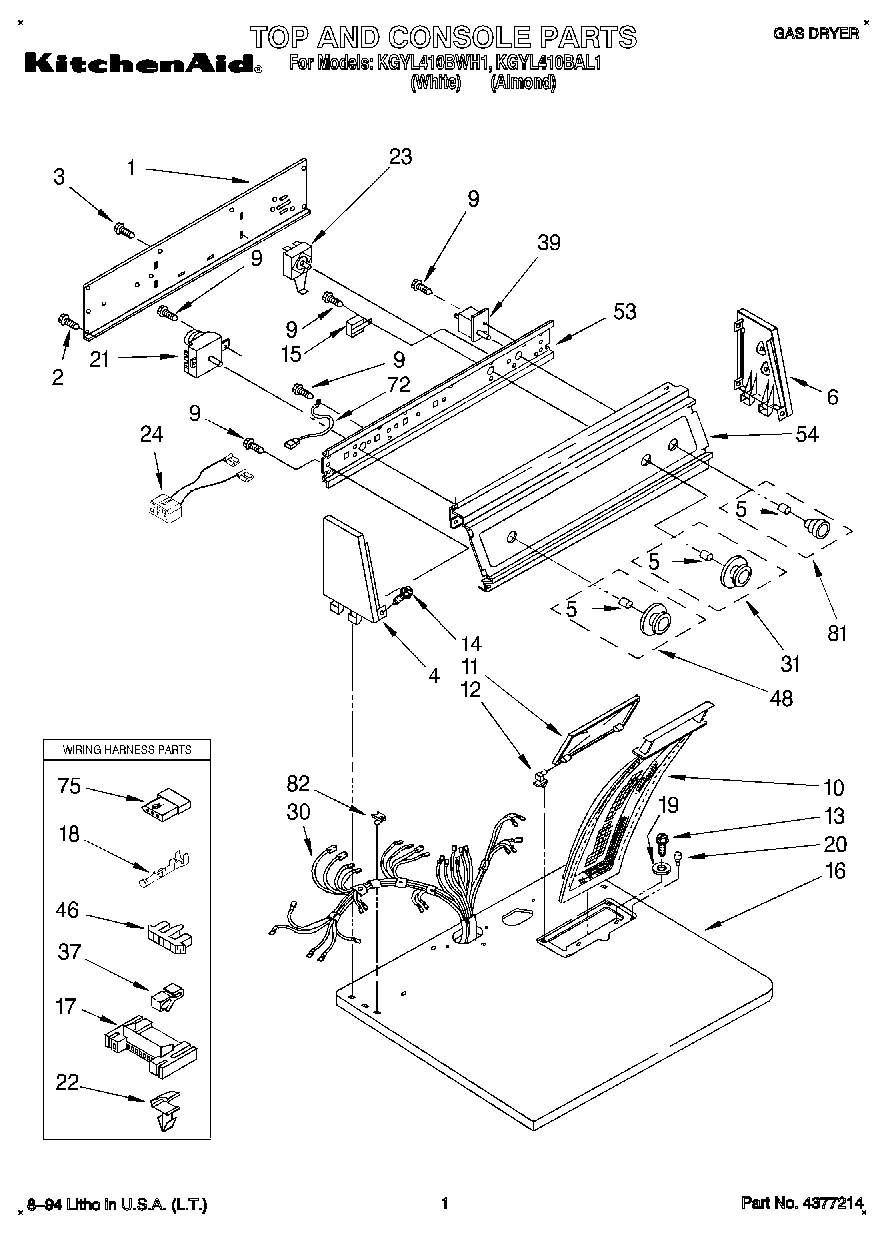

Model Whirlpool KGYL410BAL1 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Dryer WPL LIT3387320 Contact Us For Availability

Label, Operating Instructions WPL LIT3388652 Contact Us For Availability

Guide, Use & Care WPL LIT3392986 Contact Us For Availability

Instructions, Installation WPL LIT3395306 Contact Us For Availability

Label, Wiring Diagram WPL LIT3399496 Contact Us For Availability

1

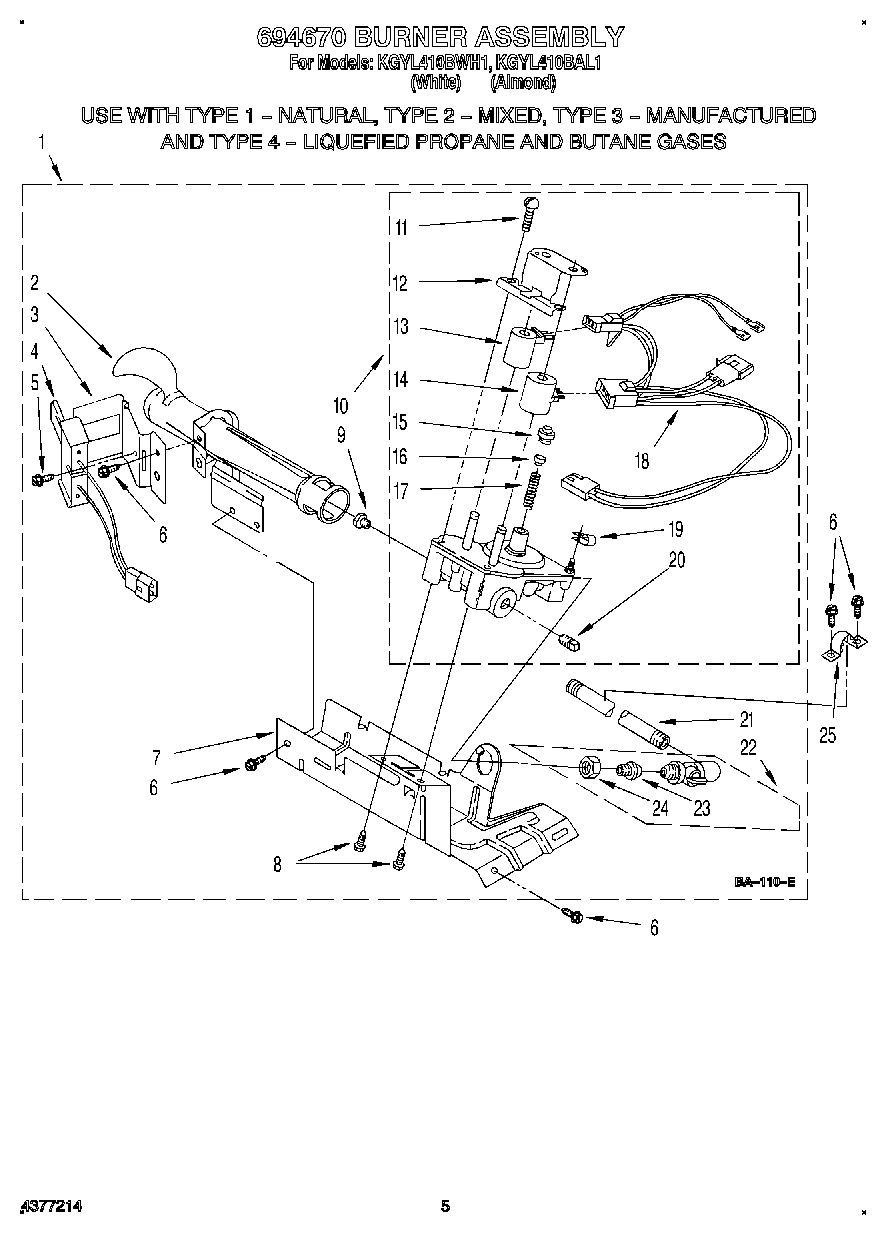

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Panel, Rear Console WPL 3399179 Contact Us For Availability

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

Cap, End (L.H.) WPL 3360571 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

6

Cap, End (R.H.) WPL 3360568 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

9

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 691200 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 691201 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $9.33

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

Screw, Console WPL 64211 Contact Us For Availability

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $10.13

15

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

15

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

Support, Heater Box (2) WPL 337445 Contact Us For Availability

Top (White) WPL 3399162 Contact Us For Availability

Top (Almond) WPL 3399163 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

17

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Clip, Harness WPL 694510 Contact Us For Availability

19

Washer WPL 237446 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

Bumper, Lint Lid WPL 297535 Contact Us For Availability

21

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

21

Timer Assembly, 60 Hz. WPL 3398138 Contact Us For Availability

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

23

Switch, Temperature WPL 3354281 Contact Us For Availability

24

8283286 Whirlpool Wire Harness Backorder WPL 8283286 $52.61

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

28

Hinge, Door (R.H.) WPL 687905 Contact Us For Availability

29

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

30

Harness, Wiring WPL 3399664 Contact Us For Availability

31

Knob, Temperature Control WPL 3363041 Contact Us For Availability

34

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

37

Clip WPL 689180 Contact Us For Availability

39

Relay, Push-To-Start WPL 3395395 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $77.54

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

Connector, Timer WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

48

Bulkhead WPL 3397264 Contact Us For Availability

48

Timer Knob & Clip WPL 3396269 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control WPL 3362003 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $80.86

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

64

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $241.06

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

75

Receptacle, 3-Way WPL 691707 Contact Us For Availability

81

Knob, Push To Start WPL 3390054 Contact Us For Availability

82

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

88

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

89

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

90

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83
