Model Whirlpool KGHS01PMT1 Gas Dryer – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $52.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $15.74

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $11.79

Kit, Hold Down WPL 8529894 Contact Us For Availability

ACCESSORY PARTS WPL ARI154606A Contact Us For Availability

1

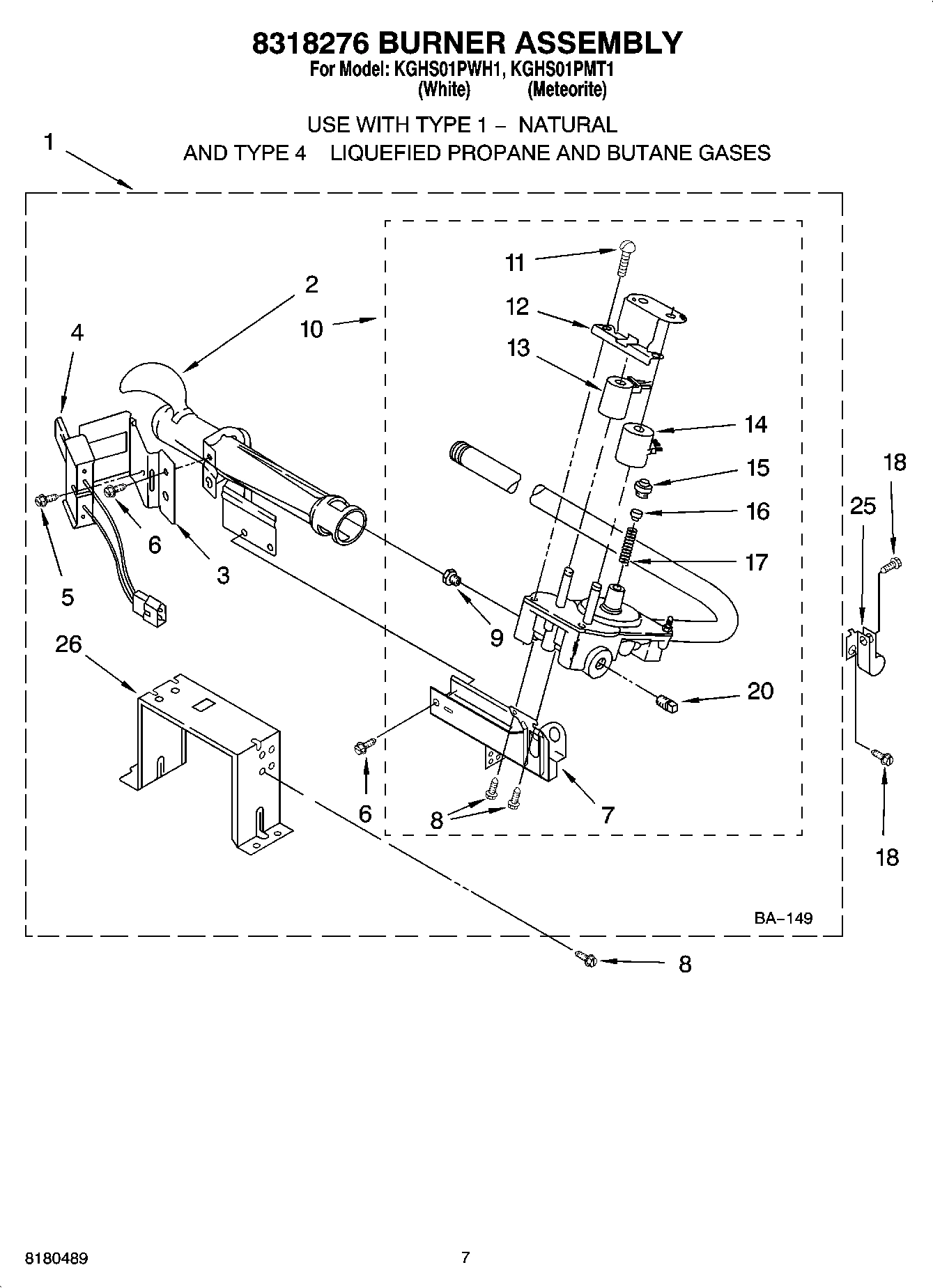

280119 Whirlpool Gas Burner In Stock WPL 280119 $266.87

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $70.98

1

Literature Parts (Installation Instructions) WPL LIT8537141 Contact Us For Availability

1

Literature Parts (Parts List) WPL LIT8537342 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

2

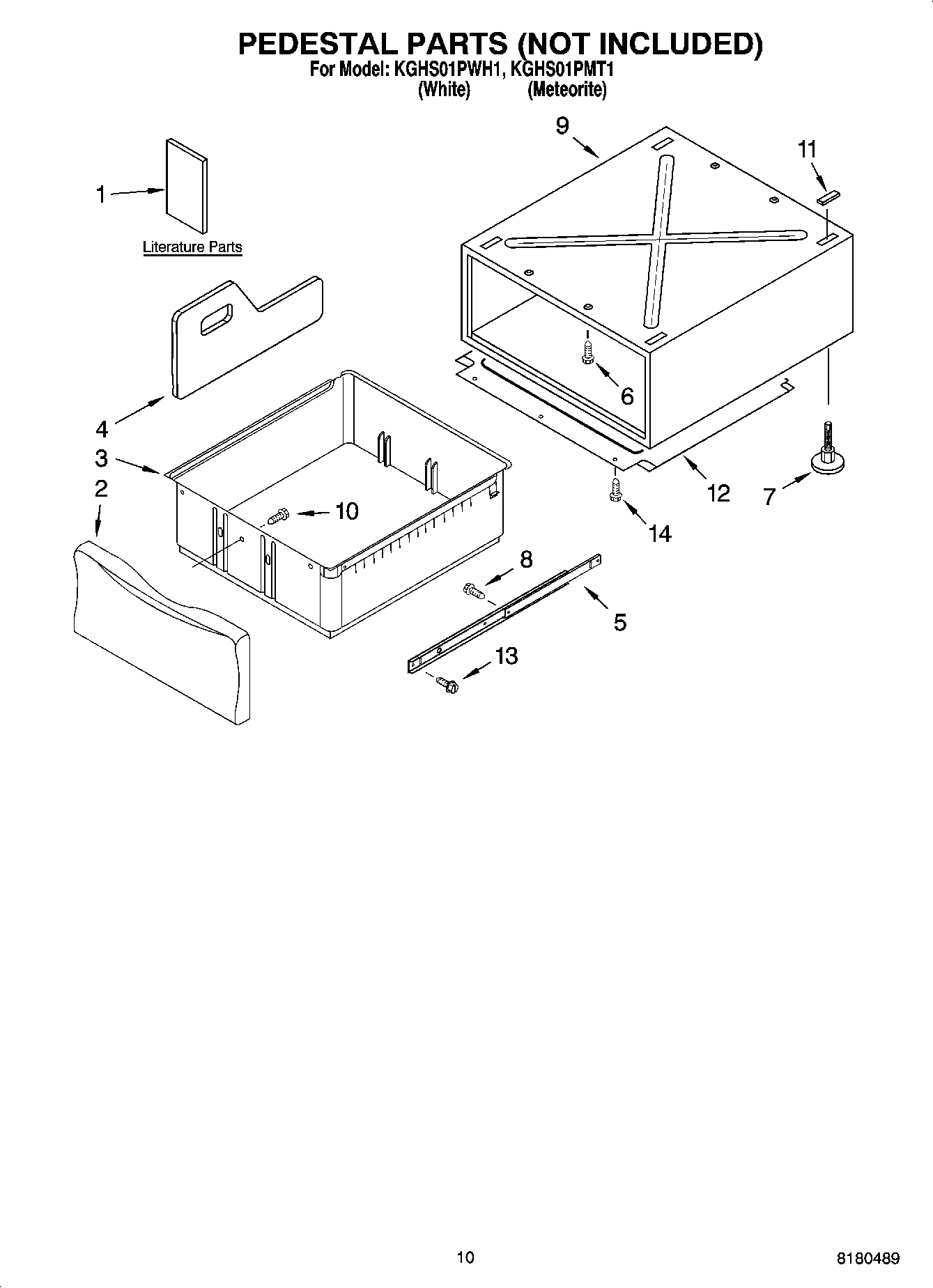

Drawer Front Assembly (White) WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly (Biscuit) WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly (Graphite) WPL 8537872 Contact Us For Availability

2

Drawer Front Assembly (Pewter) WPL 8537908 Contact Us For Availability

2

Drawer Front Assembly (Meteorite) WPL 8537931 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Harness, Main WPL 8299950 Contact Us For Availability

3

Drawer Bin (For Model Numbers LAB2700MQ, LAB2 WPL 8537883 Contact Us For Availability

3

Drawer Bin (For LAB2700PMT) WPL 8537934 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Divider, Drawer (Set Of 2) (For Model Numbers WPL 8537875 Contact Us For Availability

4

Divider, Drawer (Set Of 2) (For LAB2700PMT) WPL 8537935 Contact Us For Availability

4

Panel, Side (R.H.) (White) WPL 8519213 Contact Us For Availability

4

Panel, Side (R.H.) (Meteorite) WPL 8542720 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $67.75

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $6.99

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $8.99

7

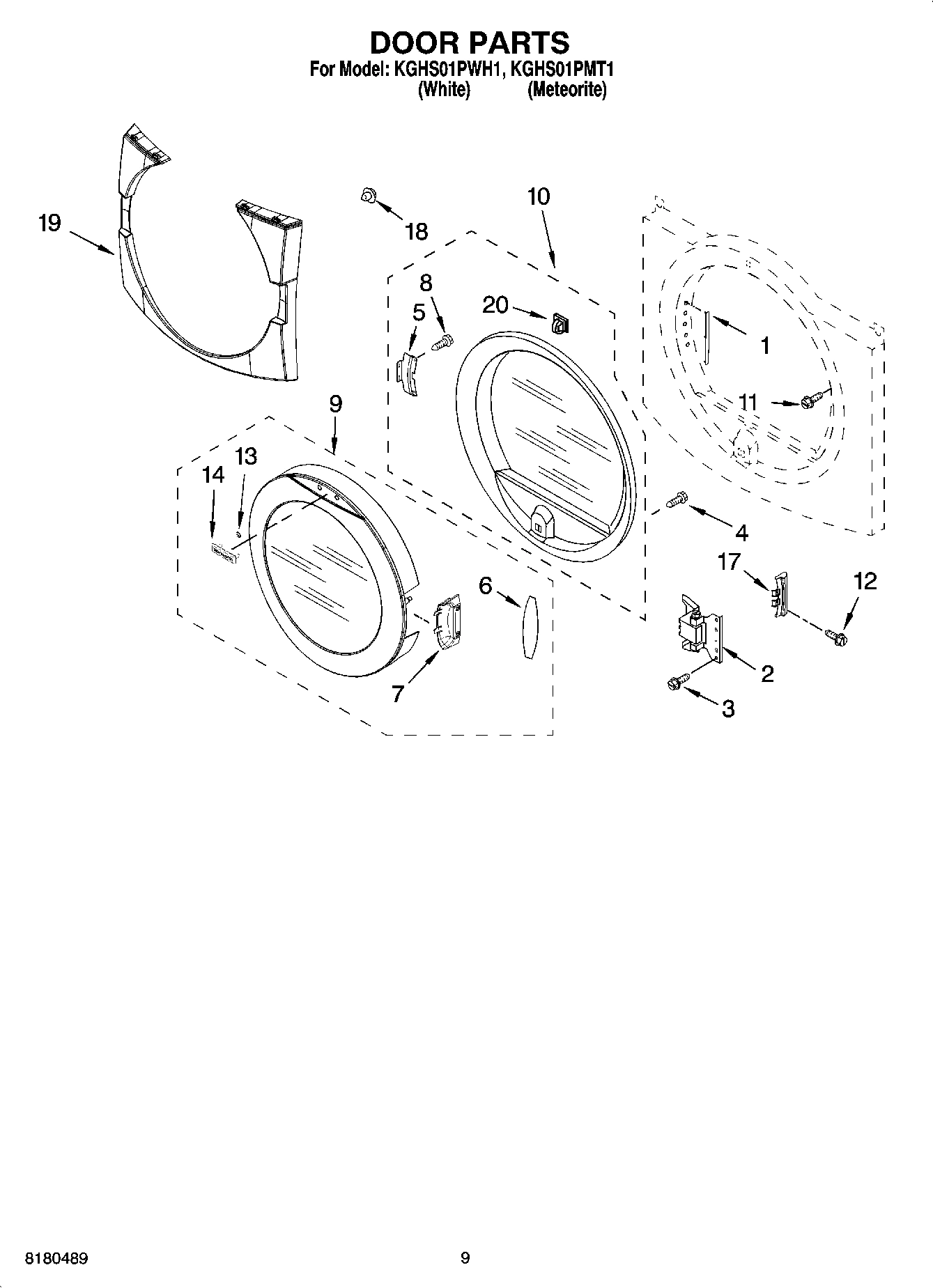

Handle, Door WPL 8557268 Contact Us For Availability

7

Panel, Side (L.H.) (White) WPL 8519209 Contact Us For Availability

7

Panel, Side (L.H.) (Meteorite) WPL 8542719 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

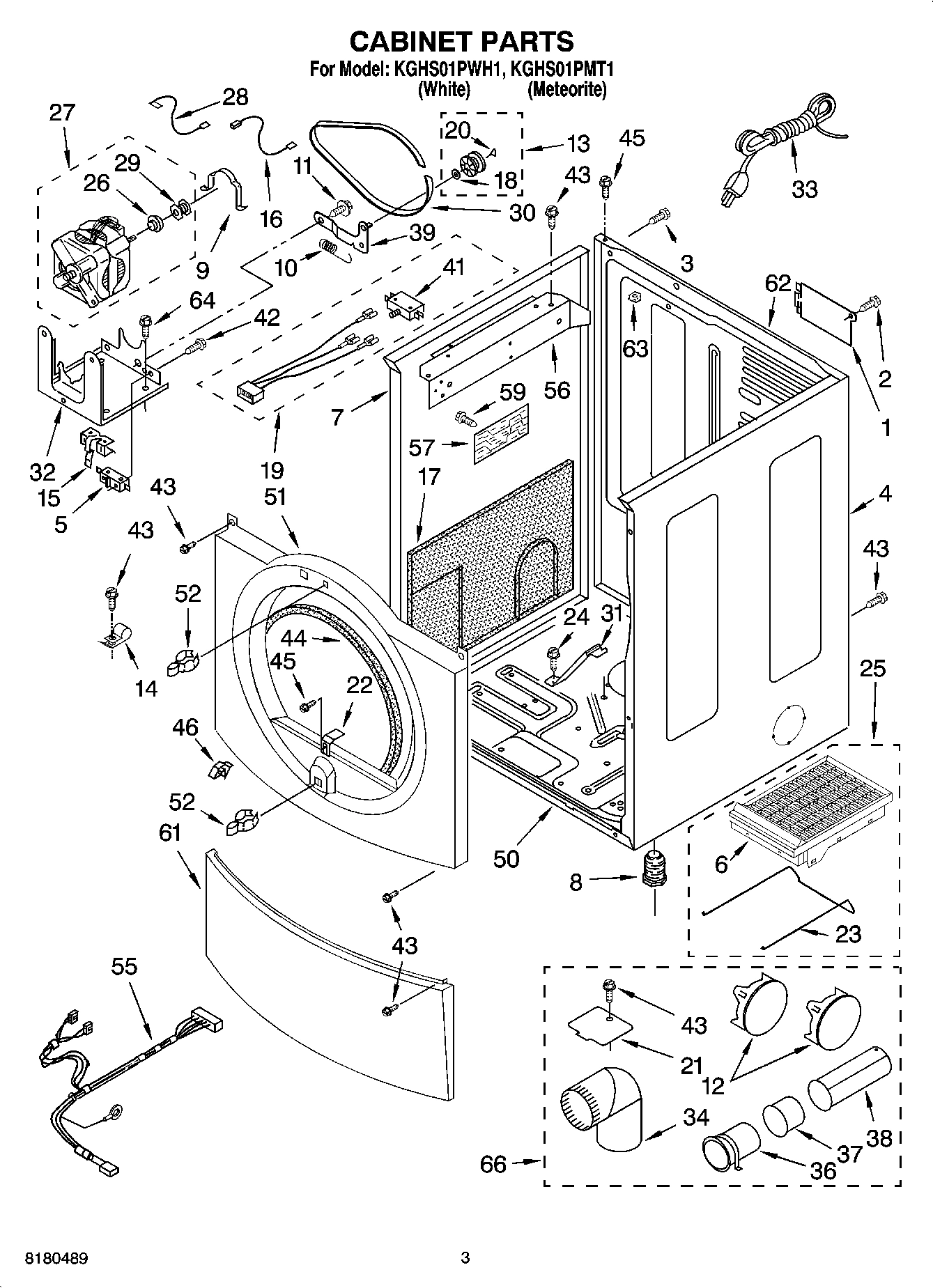

Cabinet (Not Serviced) WPL ARI154605A Contact Us For Availability

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $246.68

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

Pad (4) WPL 8537863 Contact Us For Availability

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

Pan, Bottom WPL 8537853 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

13

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $57.09

15

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

17

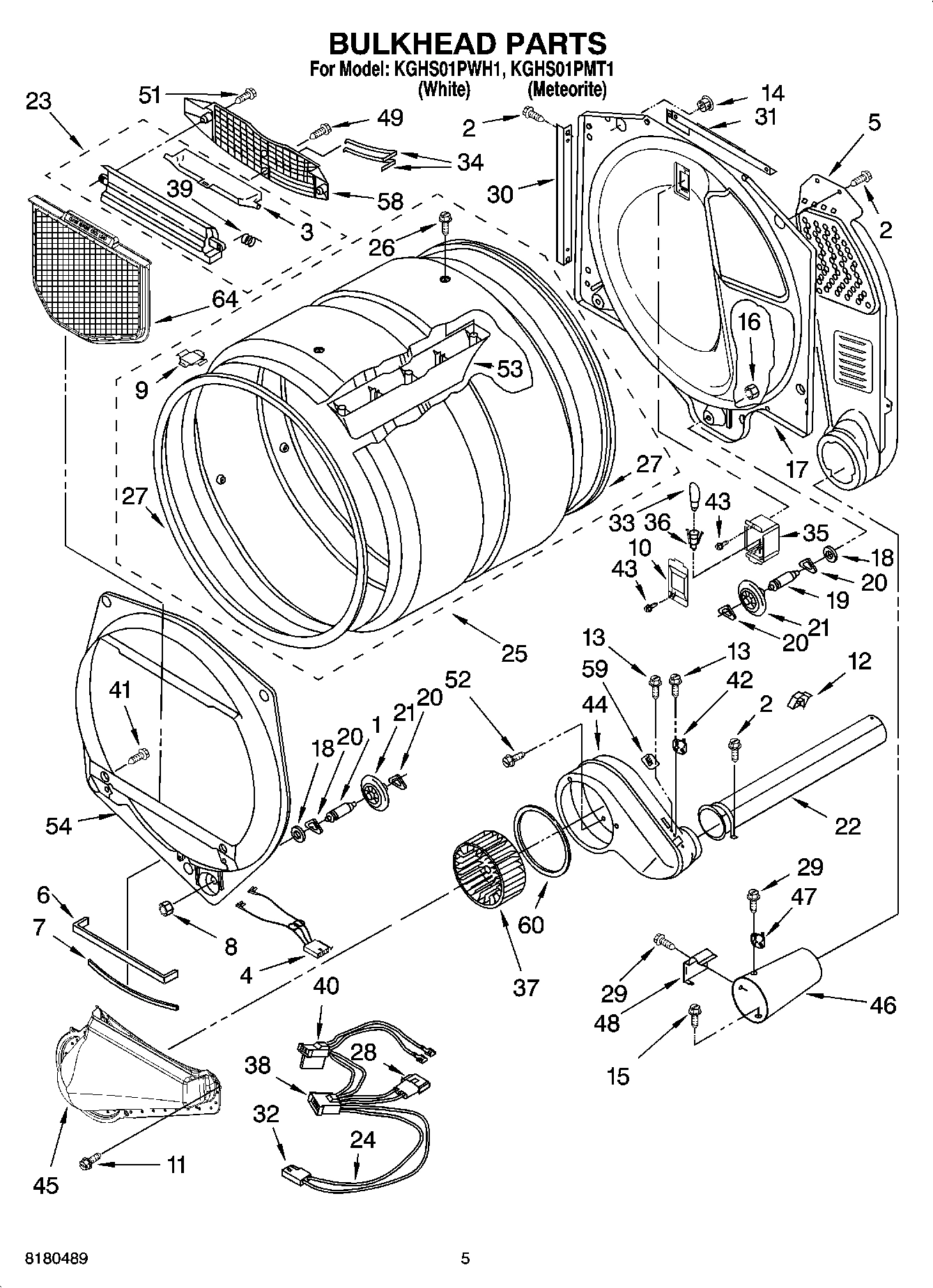

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $151.69

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

Sound Panel WPL 8564132 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

Knob, Assembly WPL 8542701 Contact Us For Availability

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $83.88

19

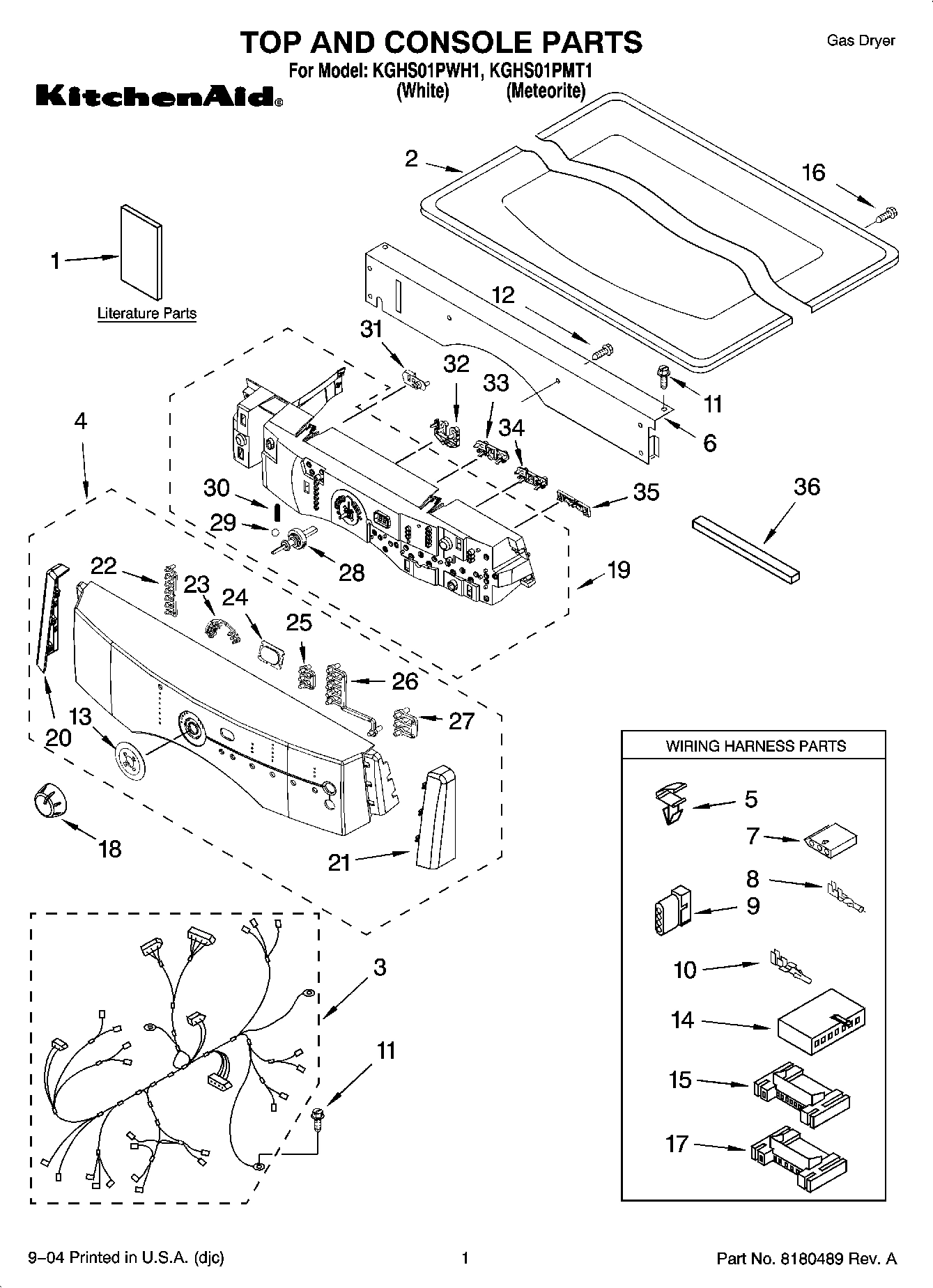

User Interface (Includes Illus. 28, 29 & 30) WPL 8558455 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.98

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $5.99

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

Dry Rack Support WPL 8521961 Contact Us For Availability

23

Light Indicator (Cycle) WPL 8542683 Contact Us For Availability

24

Lens, Display WPL 8542691 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $51.16

25

Light Indicator (Dryness Level) WPL 8542684 Contact Us For Availability

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

Light Indicator (Temperature) WPL 8542685 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI154604A Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.97

27

Light Indicator (XCare/EOC) WPL 8542686 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

353424 Whirlpool Connector Backorder WPL 353424 $14.02

28

Shaft, Cycle Selector WPL 8542717 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $55.99

29

Bearing, Knob WPL 8542716 Contact Us For Availability

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

30

Spring, Knob WPL 8542715 Contact Us For Availability

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

31

Pushbutton, (Control) (Cashmere Metallic) WPL 8542711 Contact Us For Availability

31

Pushbutton, (Control) (Silver) WPL 8562606 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

32

Pushbutton, (Drytime) (Cashmere Metallic) WPL 8542708 Contact Us For Availability

32

Pushbutton, (Drytime) (White) WPL 8562603 Contact Us For Availability

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $62.94

33

Pushbutton, (Dryness/Temp) (Cashmere Metallic WPL 8542709 Contact Us For Availability

33

Pushbutton, (Dryness/Temp) (White) WPL 8562604 Contact Us For Availability

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

Pushbutton, ( WPL 8542710 Contact Us For Availability

WPL 8562605 WPL 8562605 Contact Us For Availability

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.01

35

WPL 8558454 WPL 8558454 Contact Us For Availability

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $61.06

36

WPL 8066181 WPL 8066181 Contact Us For Availability

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $52.61

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $59.08

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

50

Base, Cabinet WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

51

Front Panel (Includes Illus. 44) (Meteorite) WPL 8562173 Contact Us For Availability

51

Front Panel (In WPL 8565907 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

55

WPL 8299929 WPL 8299929 Contact Us For Availability

56

WPL 8519273 WPL 8519273 Contact Us For Availability

57

WPL 8546219 WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

WPL 8519233 WPL 8519233 Contact Us For Availability

61

WPL 8539265 WPL 8539265 Contact Us For Availability

62

WPL 8519219 WPL 8519219 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

64

WPL ARI154603A WPL ARI154603A Contact Us For Availability

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95
